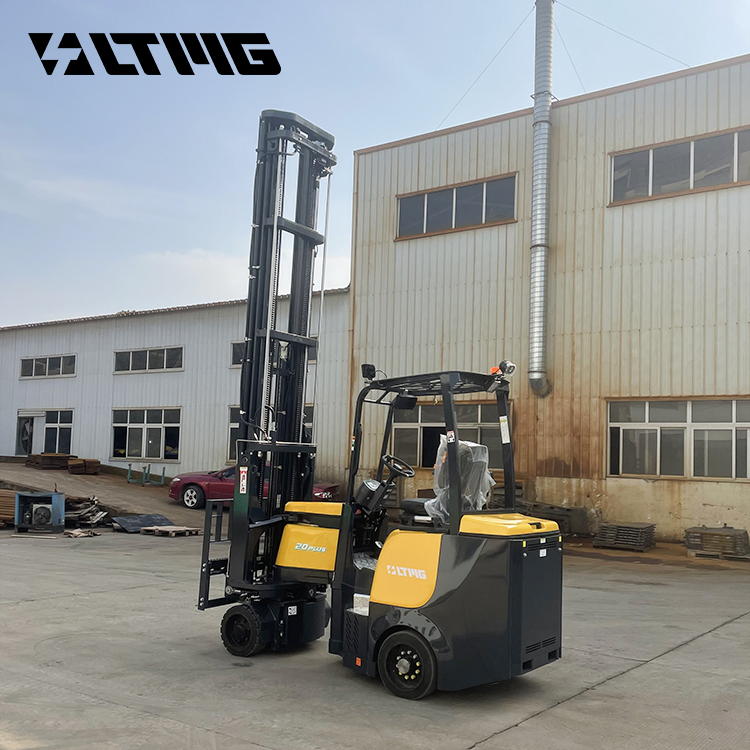

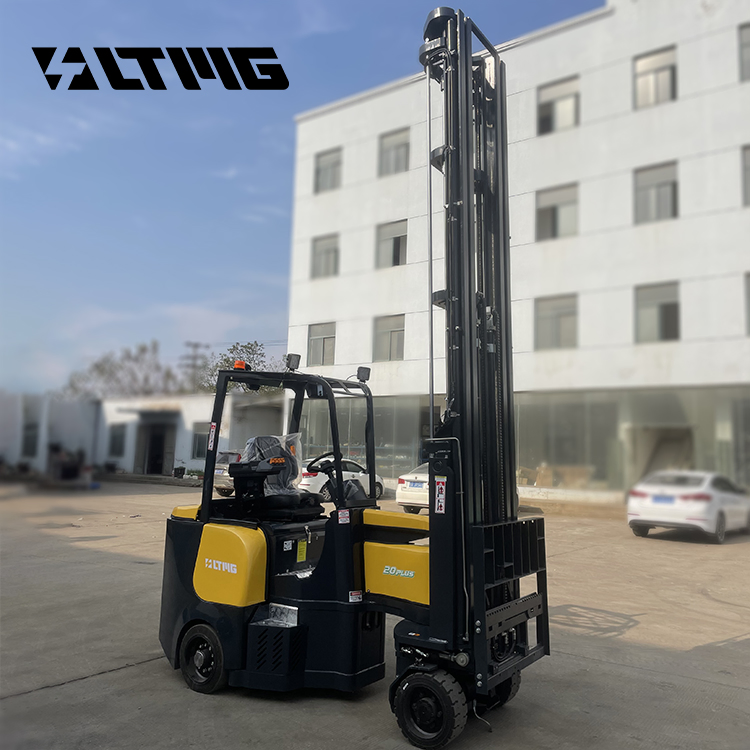

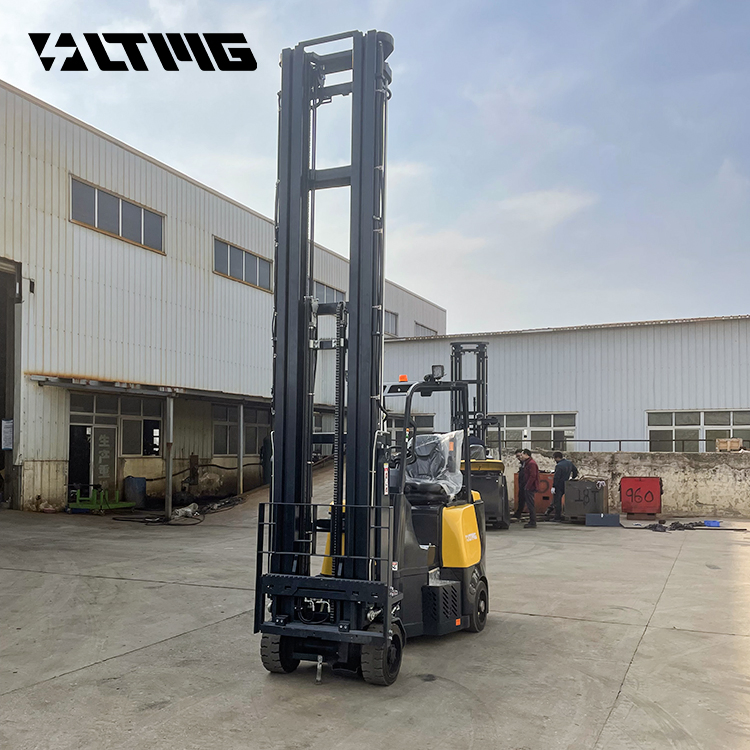

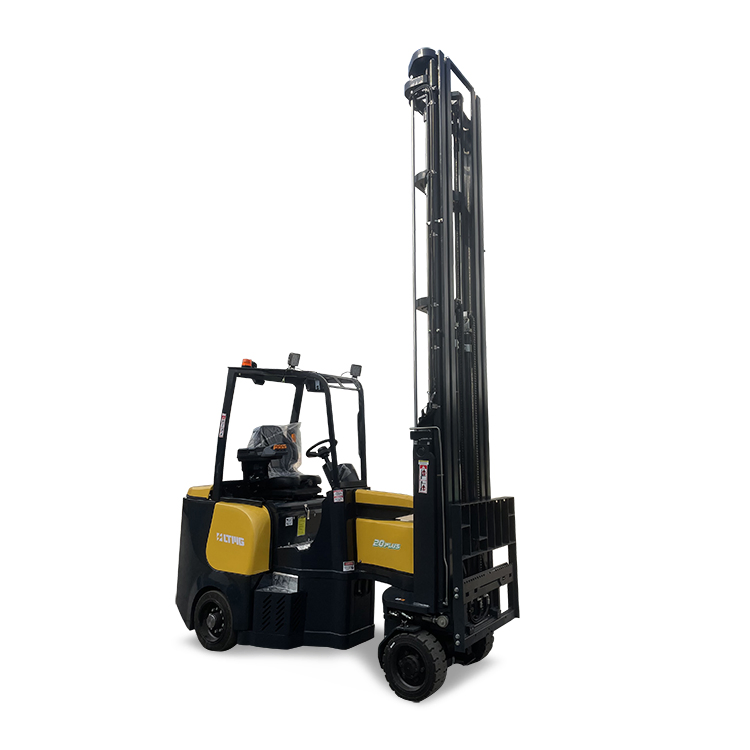

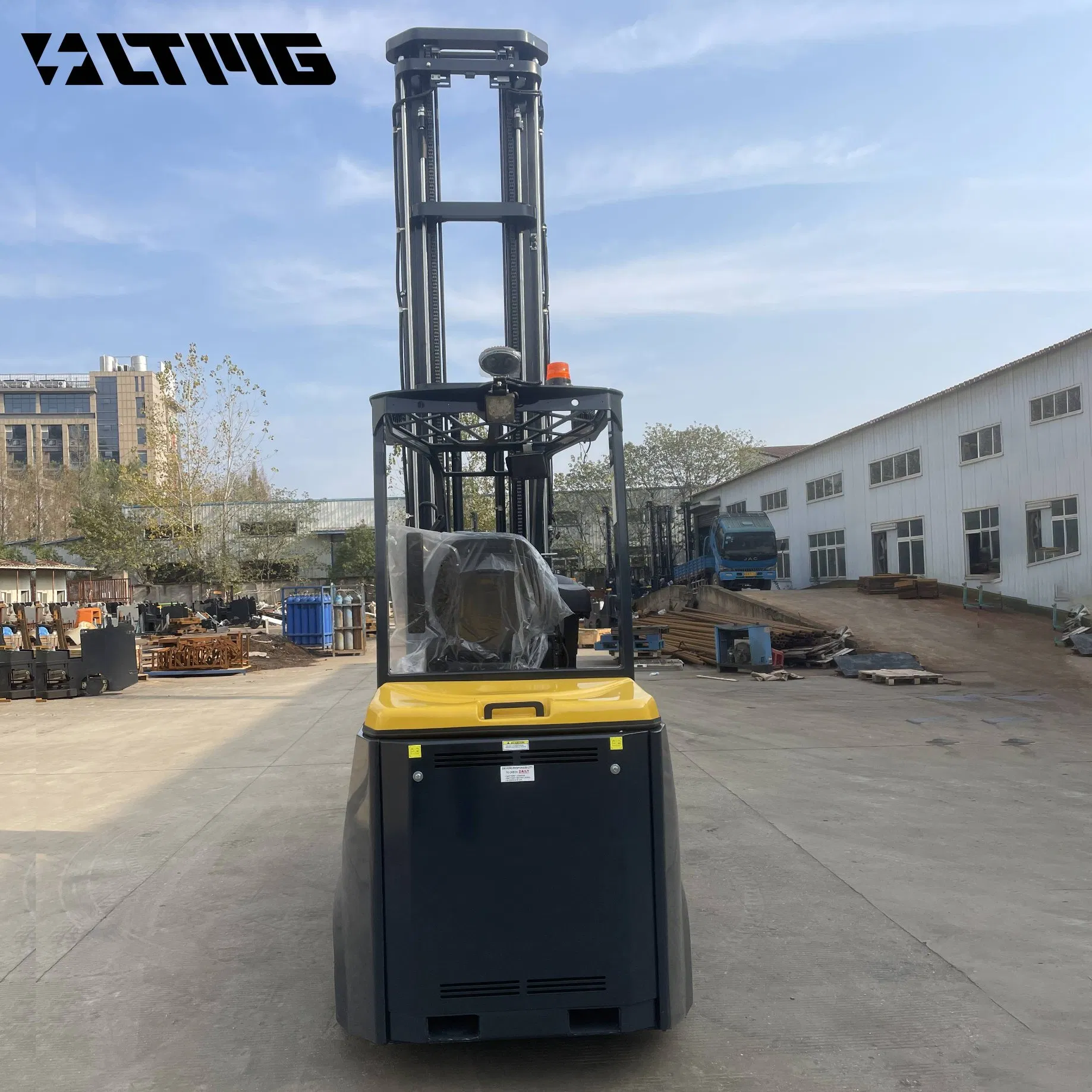

Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale

1 / 5

Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year/2000 Working Hours

Send Inquiry

Product Description

Basic Specifications

Model NO.

FBZ20

Type

Stacker

Power

AC Motor

Fuel

Electric

Load Capacity

1T - 5T

Lift Height

3000~5000mm

Controller

Curtis

Condition

New

Origin

China

Production Capacity

1000sets/Year

Packaging & Delivery

Package Size

300.00cm * 300.00cm * 300.00cm

Gross Weight

500.000kg

Product Technical Description

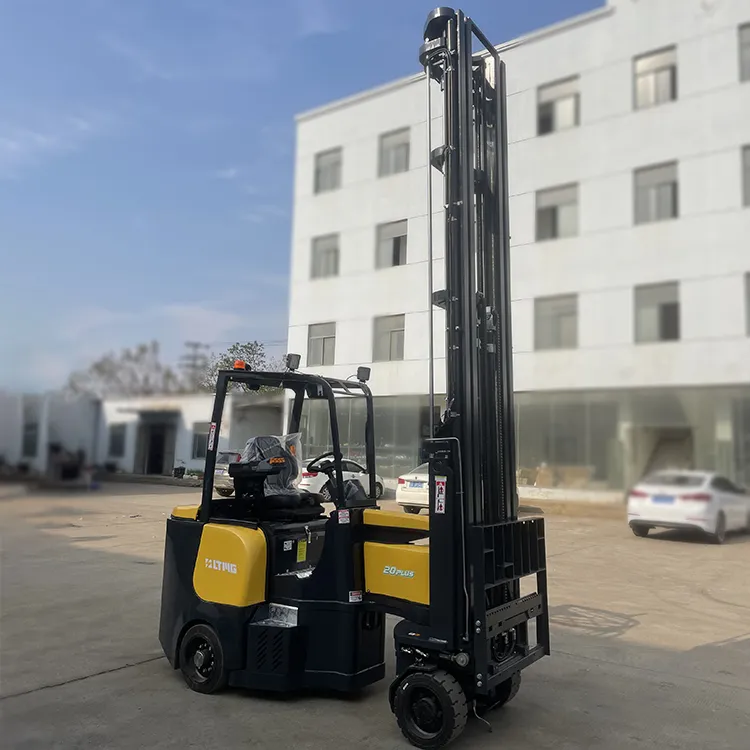

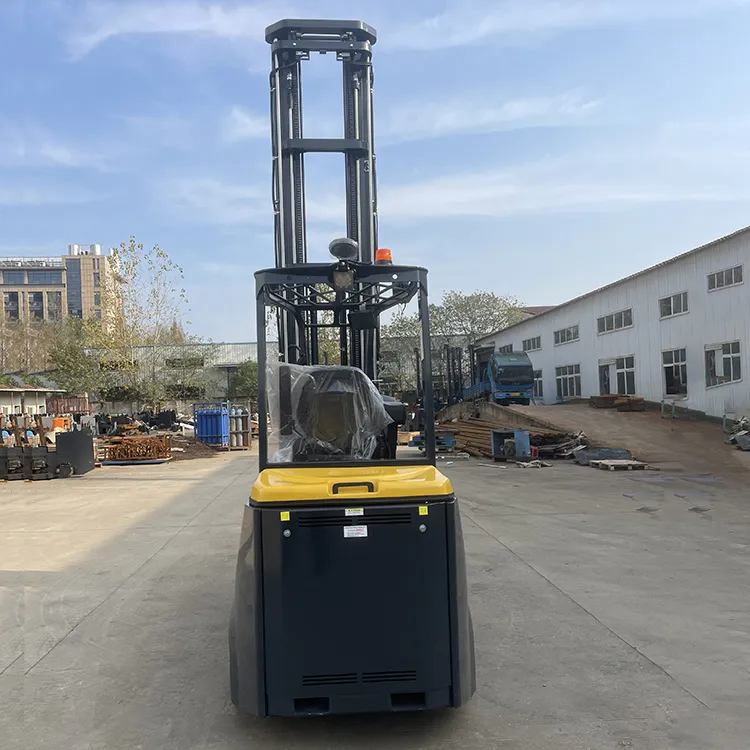

The Specification of New 2 Ton Electric Pallet Stacker
Model	-	FBZ20
Energy type	-	Battery
Operation Type	-	Seated
Rated Capacity	Q(kg)	2000
Load Center	C(mm)	600
Wheelbase	y(mm)	1720
Service weight (incl. battery)	kg	7460
Tyre size, load side	mm	Φ457×178
Tyre size, drive side	mm	Φ415×178
Height of mast closed	h1(mm)	According to mast sheet
Rated capacity Lifting height	h3(mm)	3300
Overall length	L1(mm)	3830
Overall width	b1/b2(mm)	980/1260
Min. Stacking aisle width	Ast(mm)	1900
Turning radius	Wa(mm)	2200
Drive speed, load/unload	km/h	13
Driving motor power	kw	AC18.5
Battery voltage/capacity	V/Ah	48/900

Frequently Asked Questions

What is the maximum load capacity of the FBZ20 stacker?

The FBZ20 model is designed for versatile heavy-duty tasks with a rated capacity of 2000kg, though the series covers a range from 1T to 5T.

Does this stacker use an AC or DC motor?

This equipment is powered by high-efficiency AC motors for both driving (18.5kw) and lifting (15kw) systems, ensuring low maintenance and high performance.

What type of controller is integrated into this model?

The stacker utilizes a world-renowned Curtis controller, which provides precise control, programmable performance, and advanced diagnostics.

Is the FBZ20 suitable for very narrow aisle (VNA) operations?

Yes, with a minimum stacking aisle width of approximately 1900mm and a turning radius of 2200mm, it is optimized for high-density warehouse environments.

What are the battery specifications for this electric stacker?

The unit features a powerful 48V/900Ah battery system, designed to support long working shifts in intensive applications.

What lifting heights can be achieved?

The standard lifting height is 3000mm, but it can be configured with different masts to reach heights between 3000mm and 10000mm depending on specific needs.
