AJ Forklifts
1 / 5

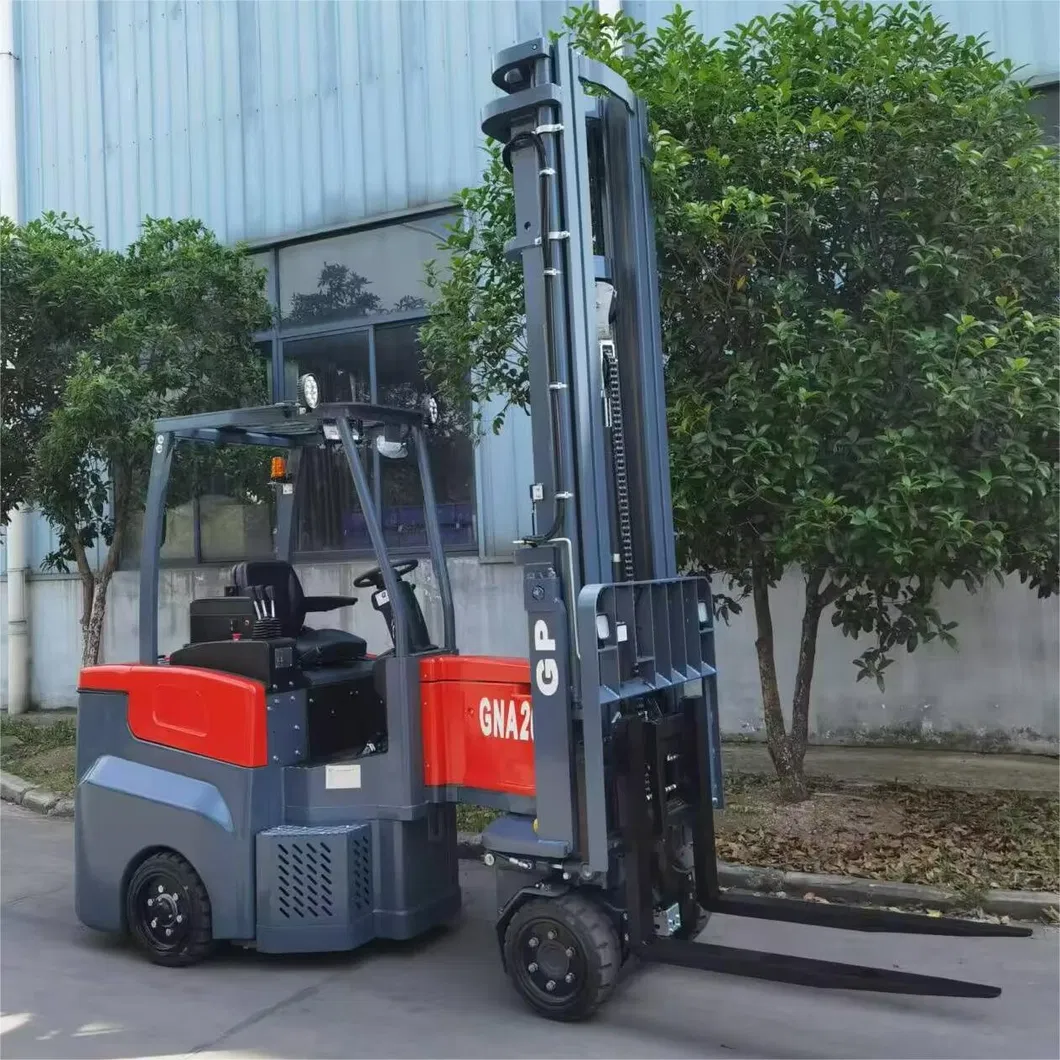

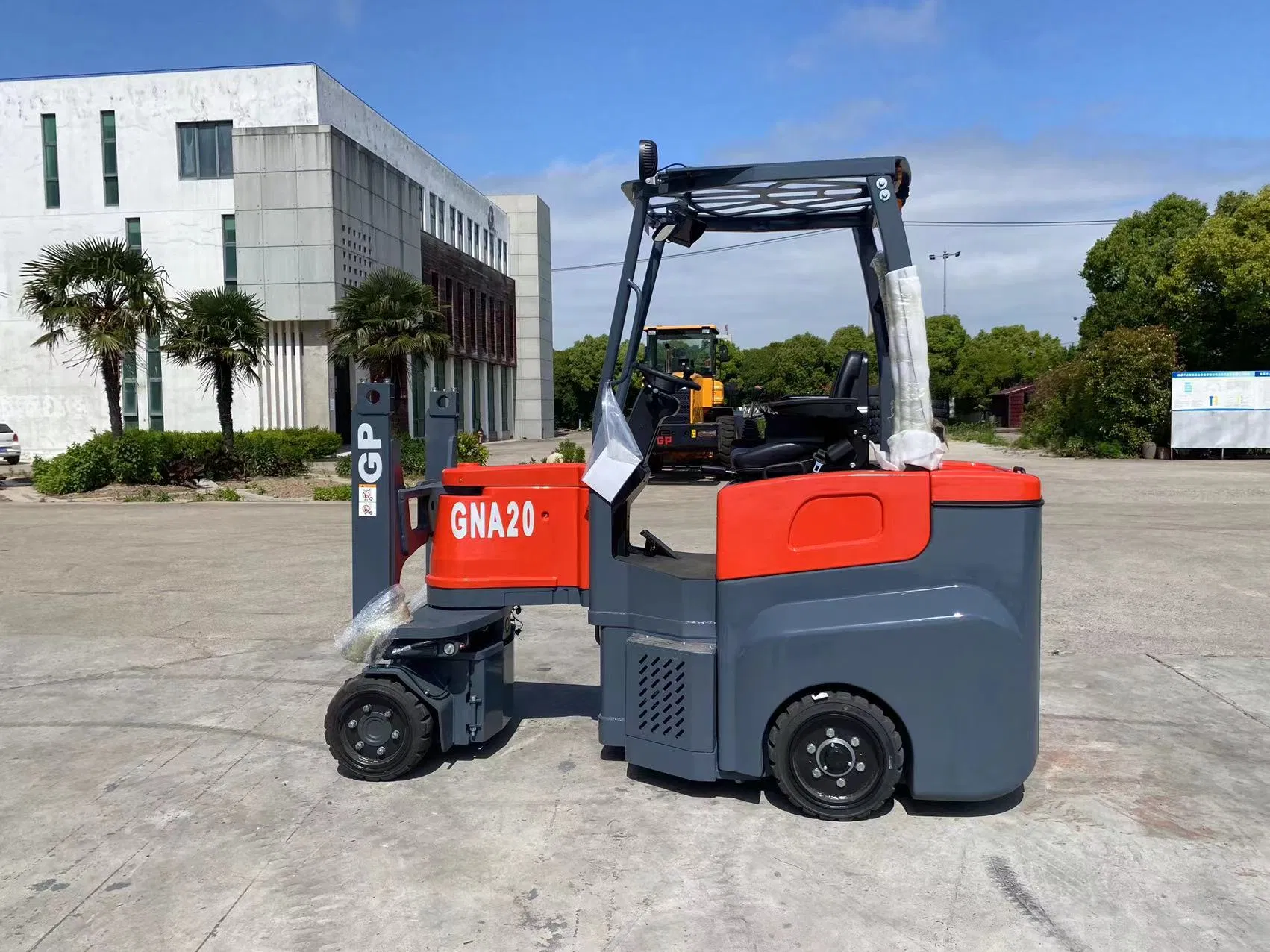

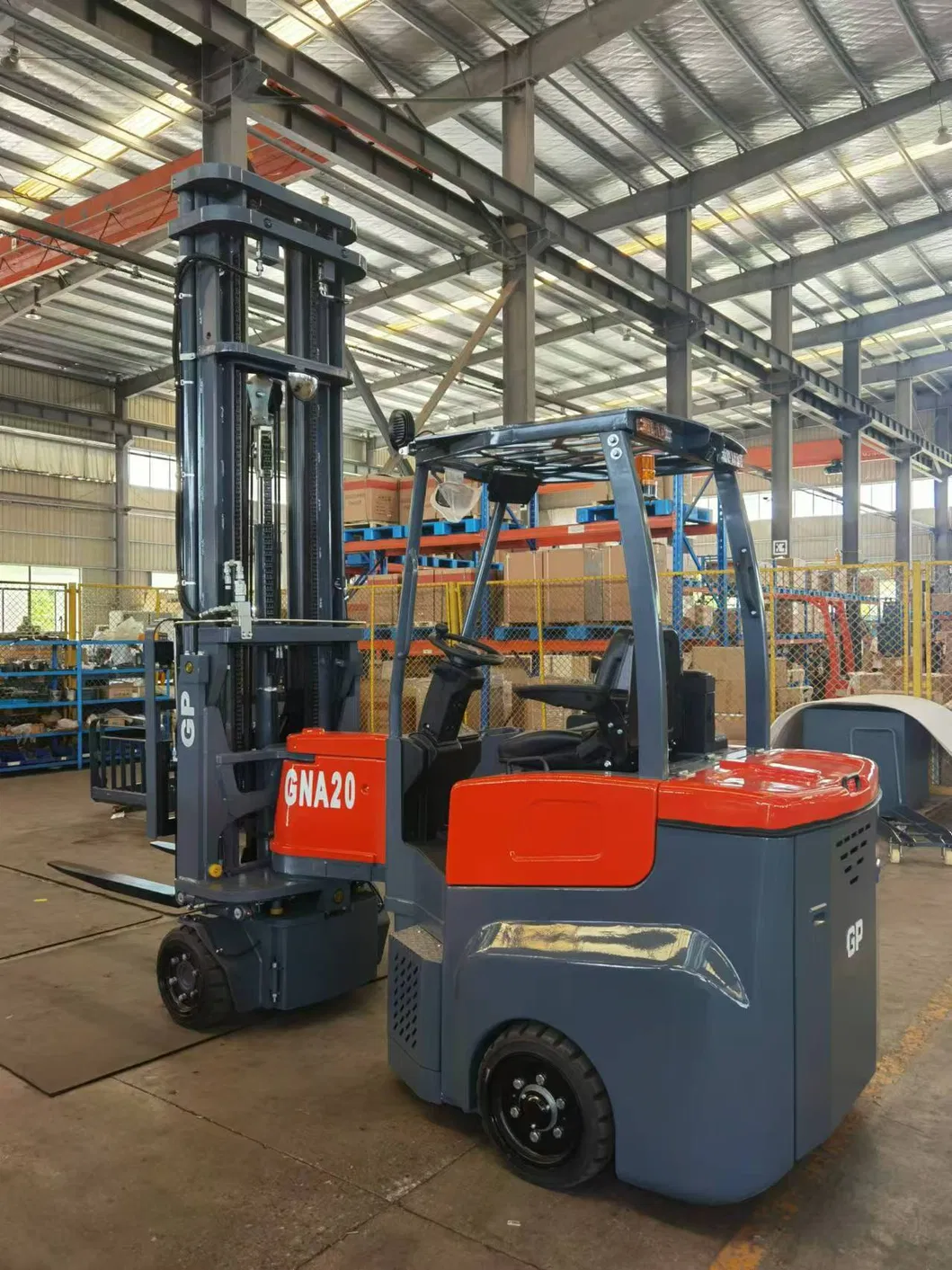

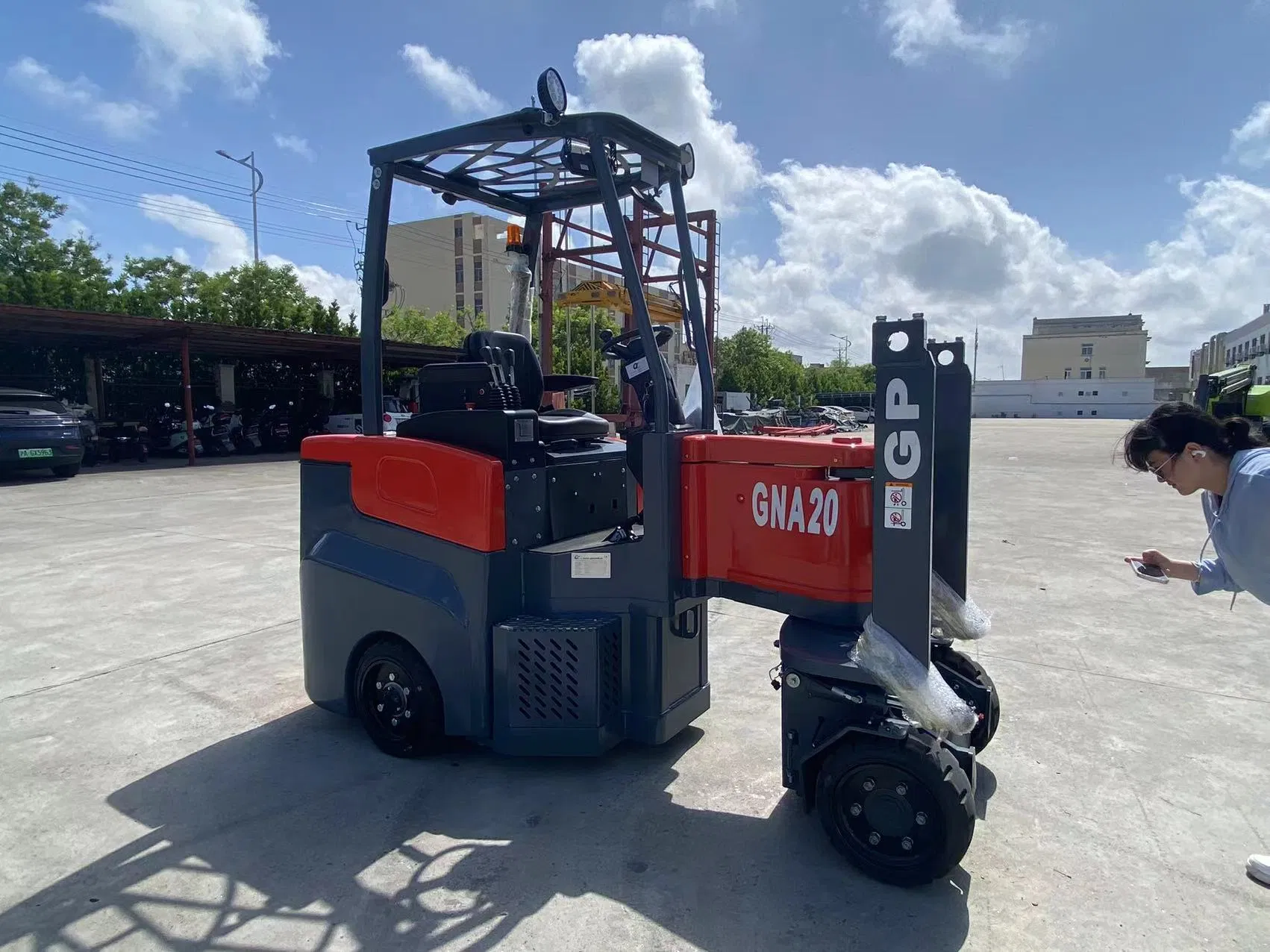

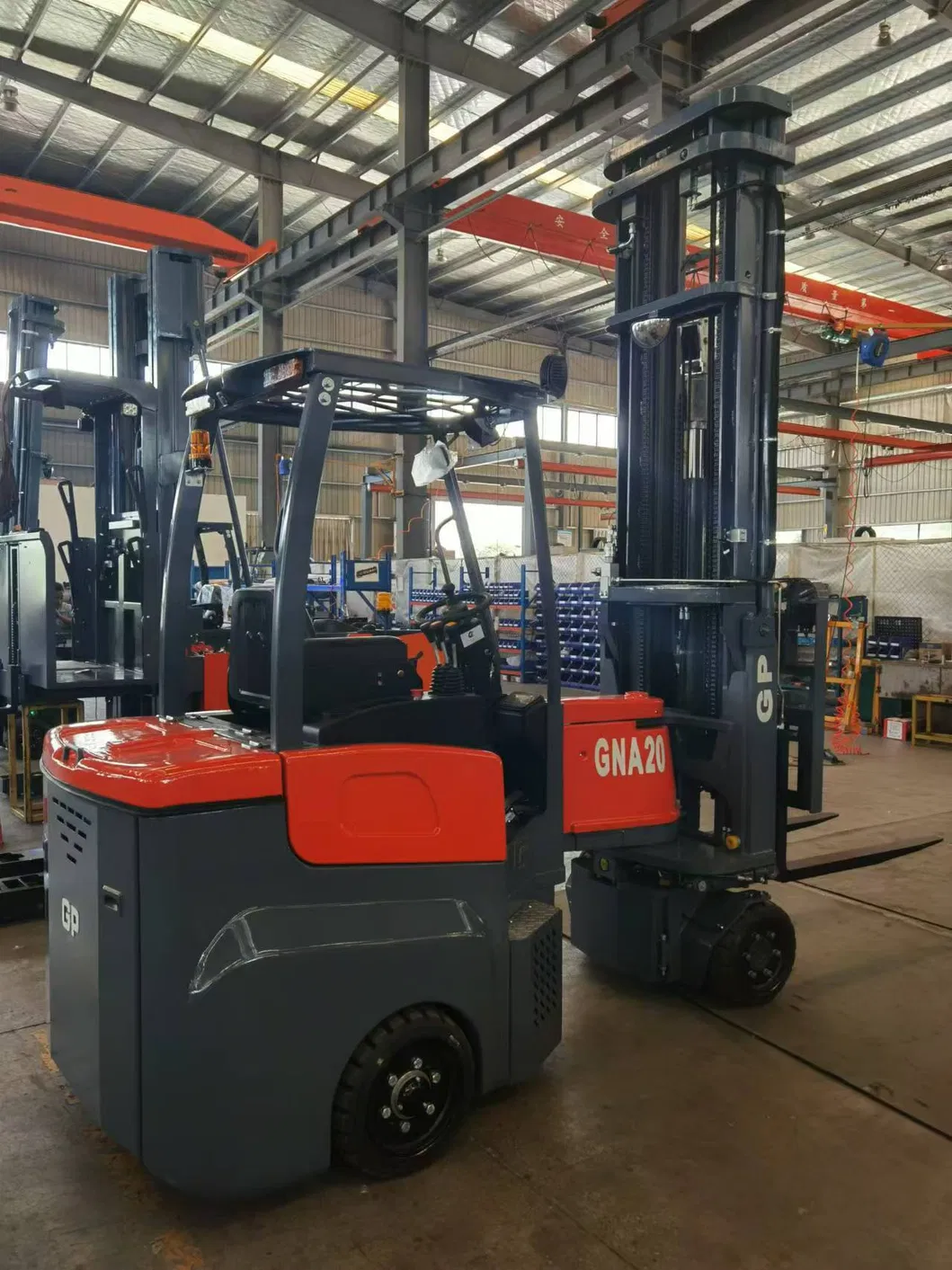

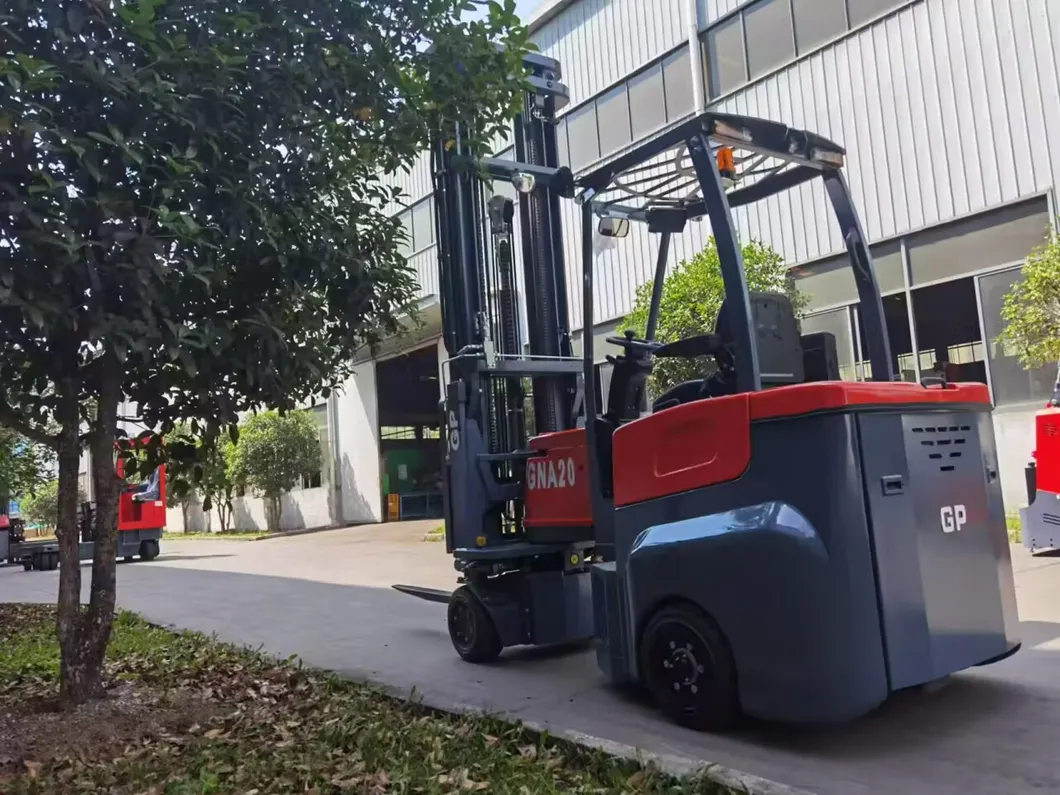

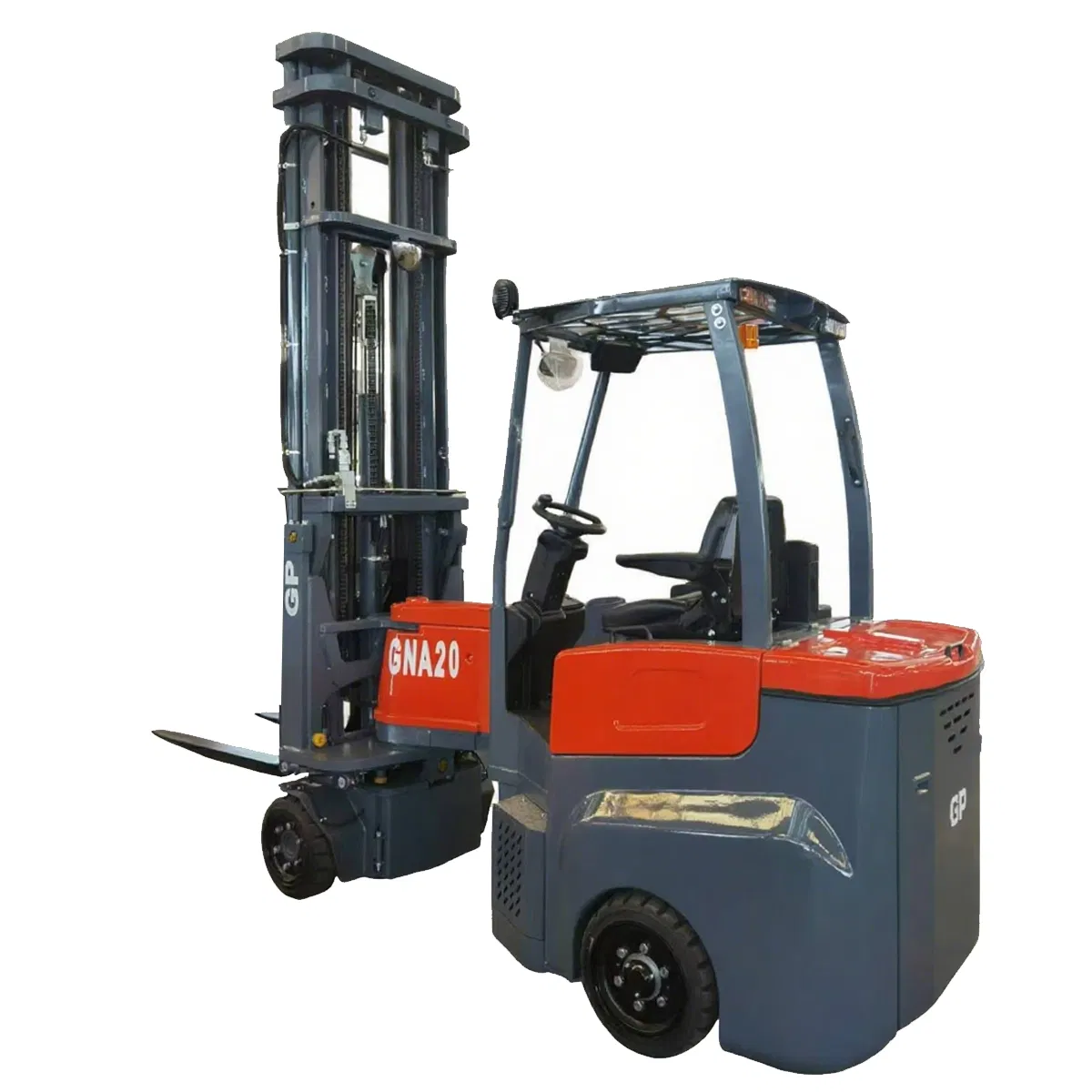

High performance articulated joint forklift, covering narrow and wide bodies, with a load capacity of 2 tons and a maximum lifting height of 12.5 meters. Engineered for both indoors and outdoors usage, it meets medium and heavy-duty working conditions while ensuring high work efficiency, rapid lifting speed, and superior driving performance.
| Item | Parameter (Model: GNA20) | Details |
|---|---|---|
| 1 | Load Capacity (kg) | 2000 |
| 2 | Load Center (mm) | 600 |
| 3 | Power Type | AC Electric |
| 4 | Standard Lifting Height (mm) | 6500 |
| 5 | Standard Free Lift (mm) | 2202 |
| 6 | Mast Maximum Height (mm) | 7380 |
| 7 | Side Shift (+/-mm) | 100 |
| 8 | Fork Length (mm) | 1200 |
| 9 | Total Width (mm) | 1260 |
| 10 | Transfer Aisle Width (mm) | 2150 (Pallet: 800*1200) |
| 11 | Driving Speed (km/h) | 15 |
| 12 | Lifting Speed (mm/s) Load/Unload | 400/420 |
| 13 | Gradeability (Load) % | ≤12 |
| 14 | Weight (with battery) kg | 6985 |
| 15 | Battery Voltage (V) / Capacity (Ah) | 48V / 950Ah |
