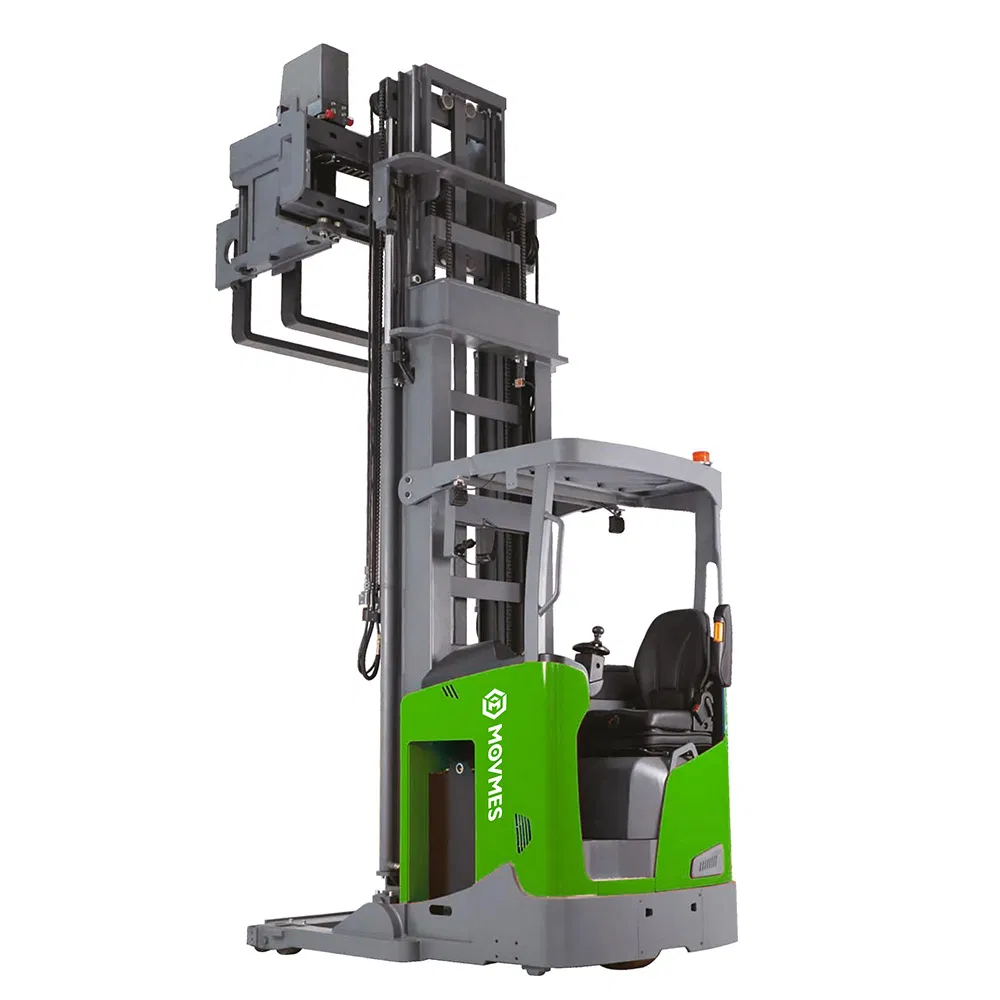

1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1 / 5
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts
1.5ton 1500kg Electric Very Narrow Aisle Forklifts

1.5ton 1500kg Electric Very Narrow Aisle Forklifts

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

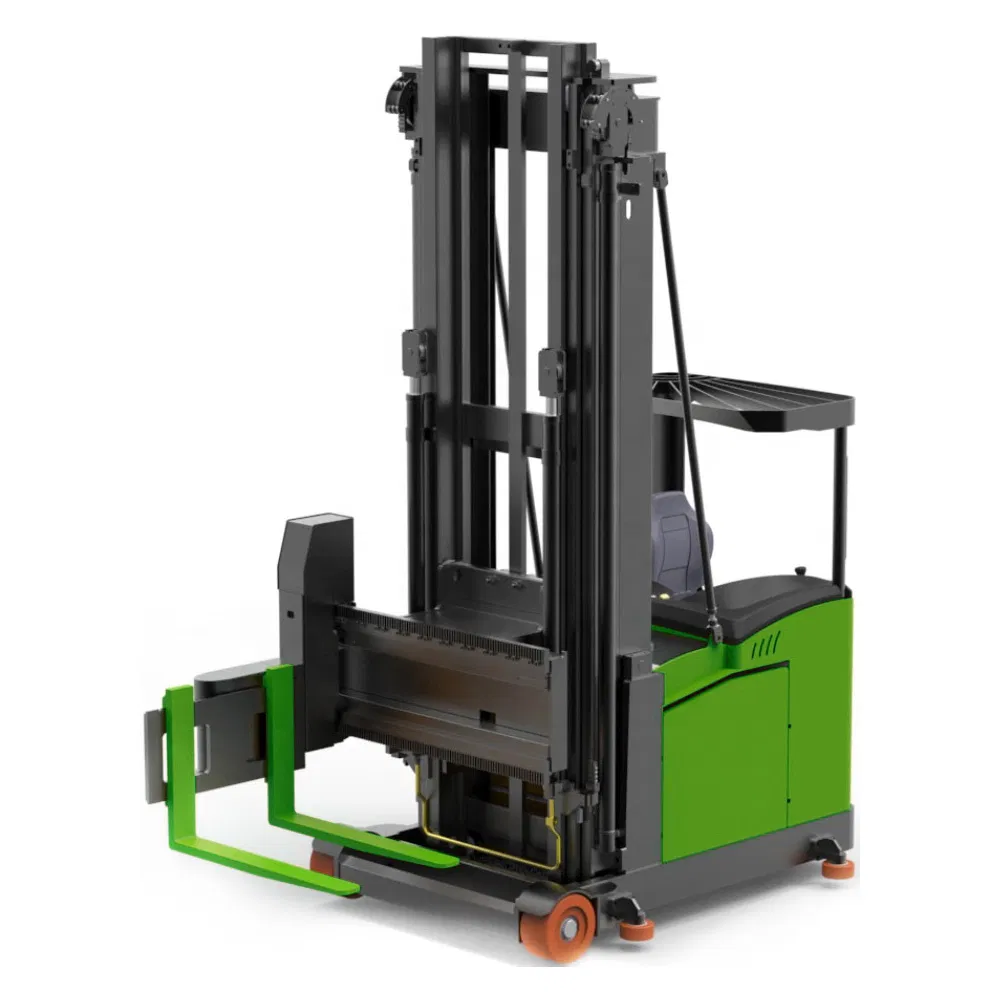

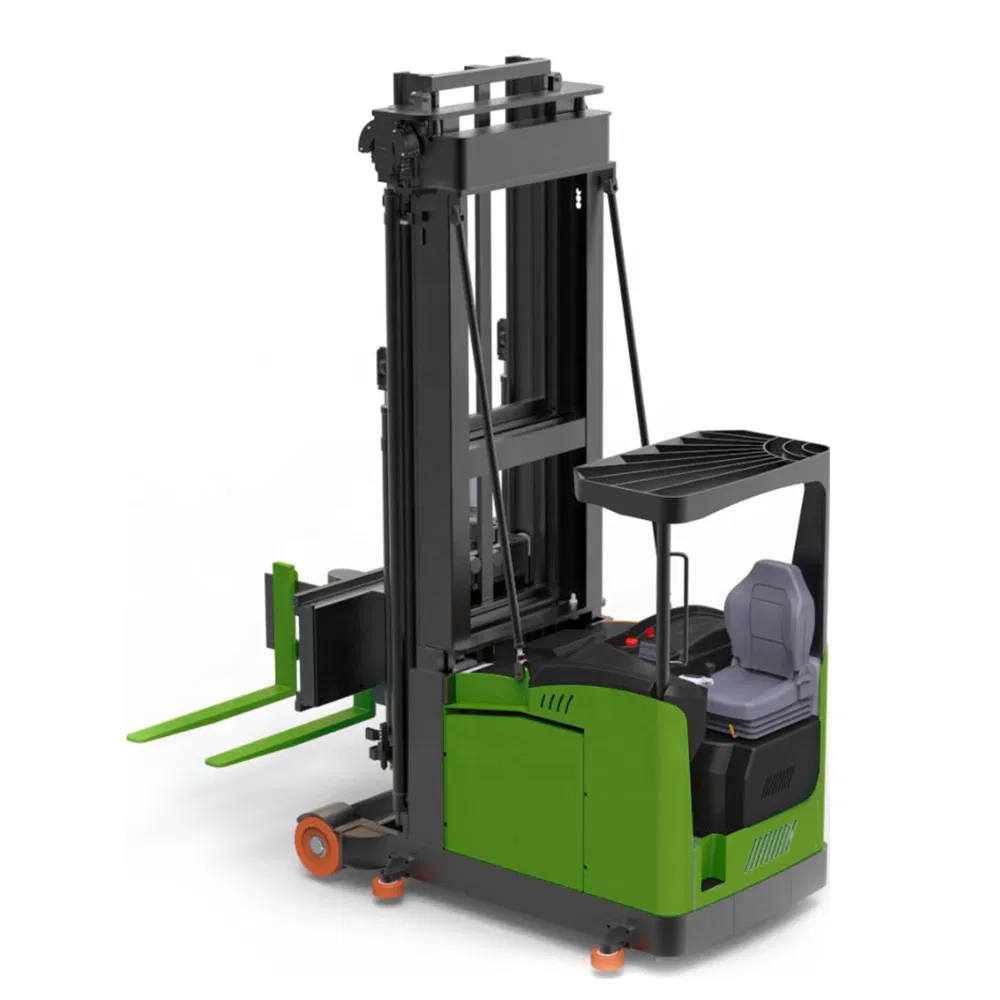

Electric Forklift Front View Electric Forklift Side View
Product Overview

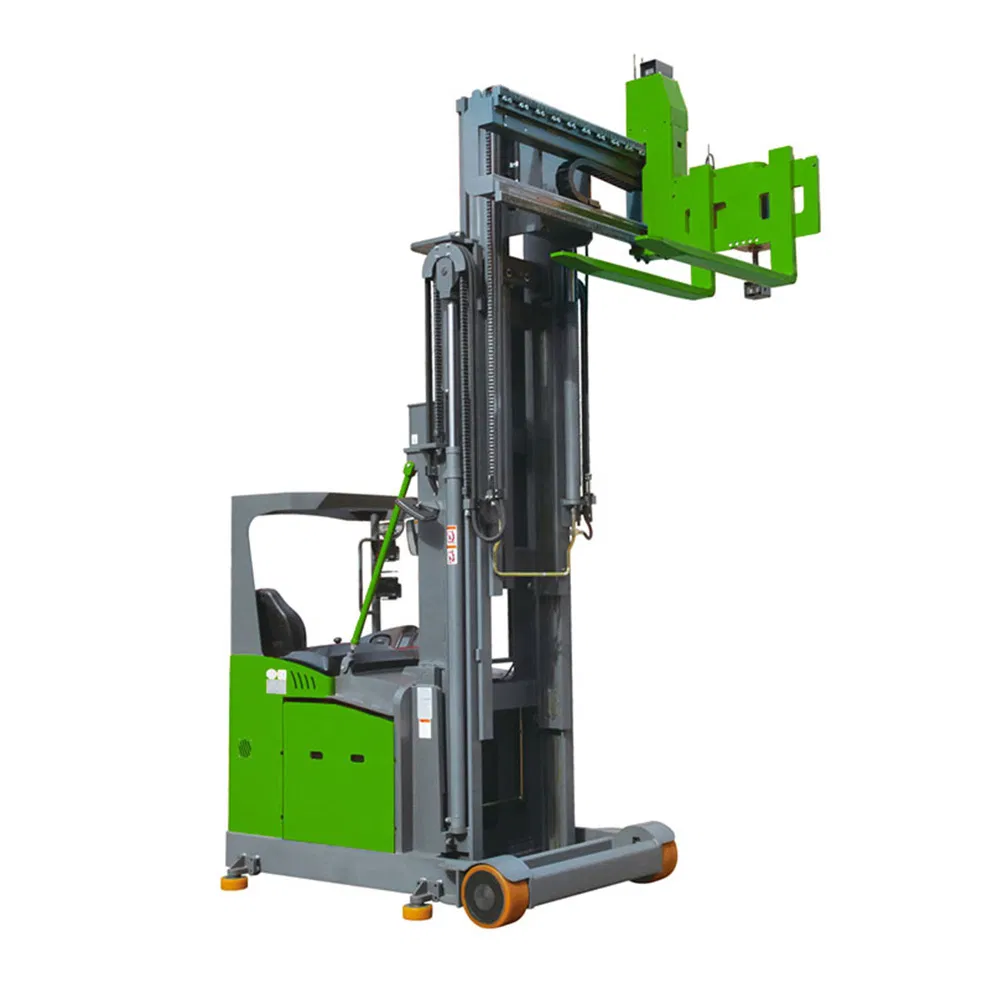

1.5Ton 1500kg Electric Very Narrow Aisle Forklifts

Forklift Operation
Basic Information
Model NO.OPD15Z
TypeReach Forklift
PowerAC Motor
FuelElectric
Load Capacity1500kg
Lift Height4500mm - 7500mm
Wheel MaterialPU
Battery Voltage/Capacity48V / 450Ah
Main Configuration
✔ 48V full AC power system
✔ CURTIS controller
✔ Triplex mast (free lift)
✔ Multi-way valve operating system
✔ Special mast imported from Germany
✔ Electric power steering (EPS)
✔ Optional Lithium battery (48V400Ah)
✔ Side-way battery design
✔ Imported reduction gearbox
✔ Adjustable steering wheel & Central instrument

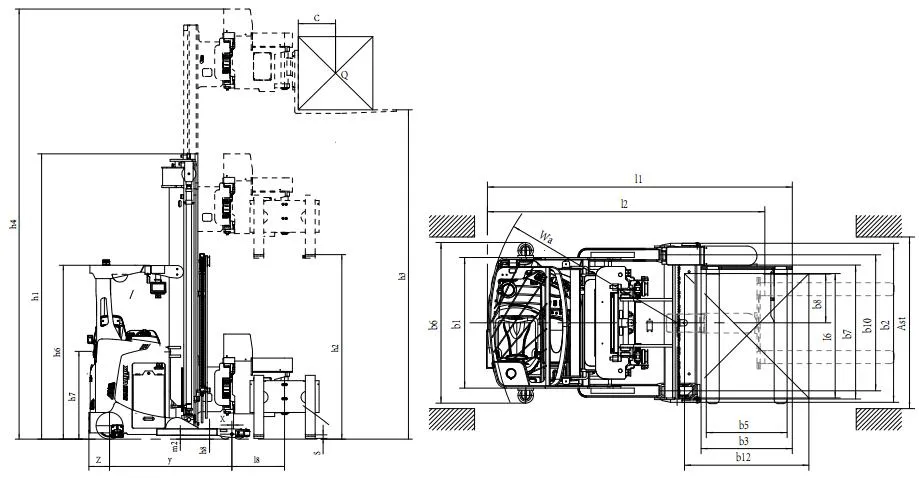

Technical Specifications
Operator TypeSeated
Load Center Distance600 mm
Wheelbase1595 mm
Overall Width1260/1534 mm
Turning Radius1880 mm
Aisle Width (Pallet 1000x1200)1600 mm
Travel Speed (Laden/Unladen)8 / 8.5 km/h
Lift Speed (Laden/Unladen)205 / 293 m/s
Product Advantages
Advantages
⚡ SAFETY AND PRODUCTIVITY
  • Full AC system with large-capacity battery for two-shift operation.
  • Equipped with Electric Power Steering (EPS) with automatic return.
  • The Lateral fork can rotate 180 degrees for narrow aisle efficiency.
  • Electromagnetic brake ensures safe, short braking distances.
🏗️ STRUCTURAL DESIGN
  • Integrated console for one-handed operation of all functions.
  • Shock-absorbing seat with adjustable backrest and positioning.
  • Telescopically adjustable steering wheel for operator comfort.
🛠️ EASY MAINTENANCE
  • One-piece upper cover allows full access to internal components.
  • Sideway moving battery facilitates quick replacement and maintenance.
Detailed Gallery

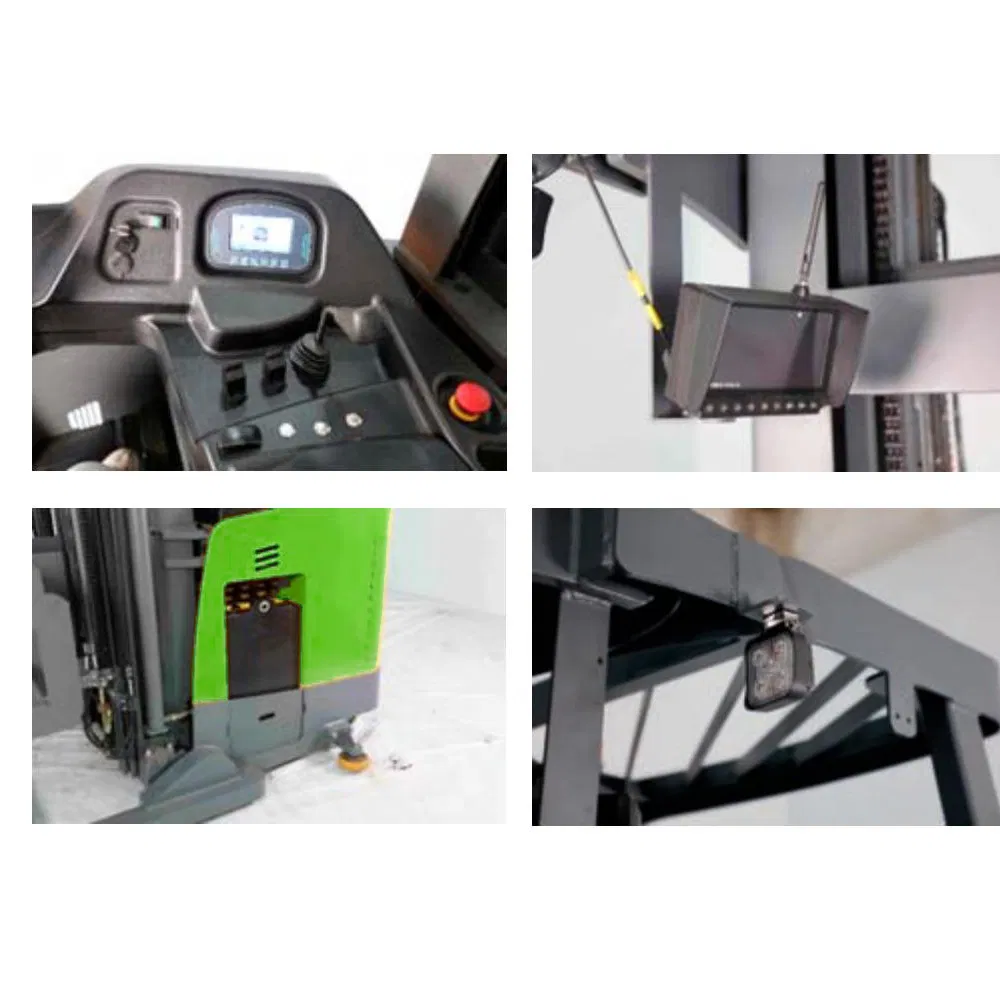

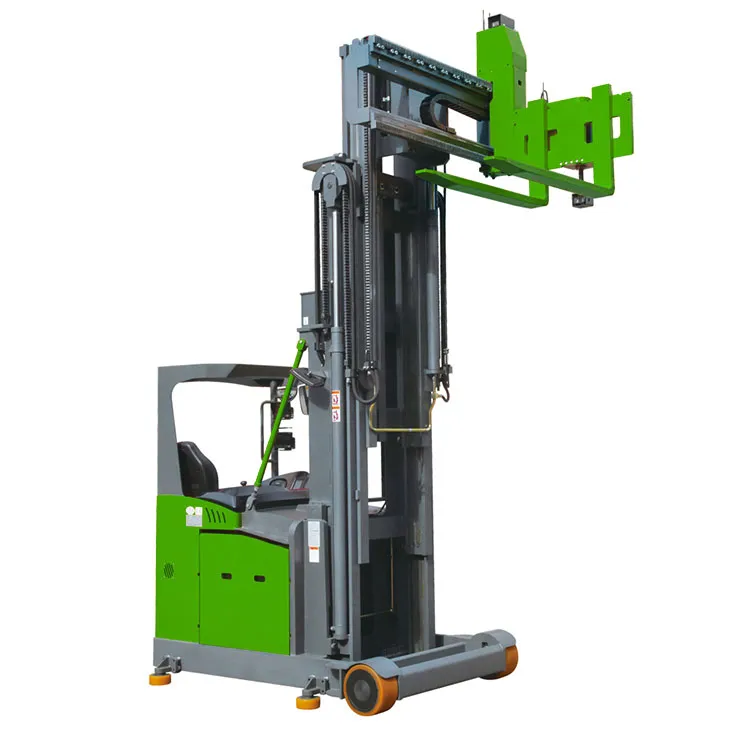

Product Detail 1 Product Detail 2
Quality Assurance

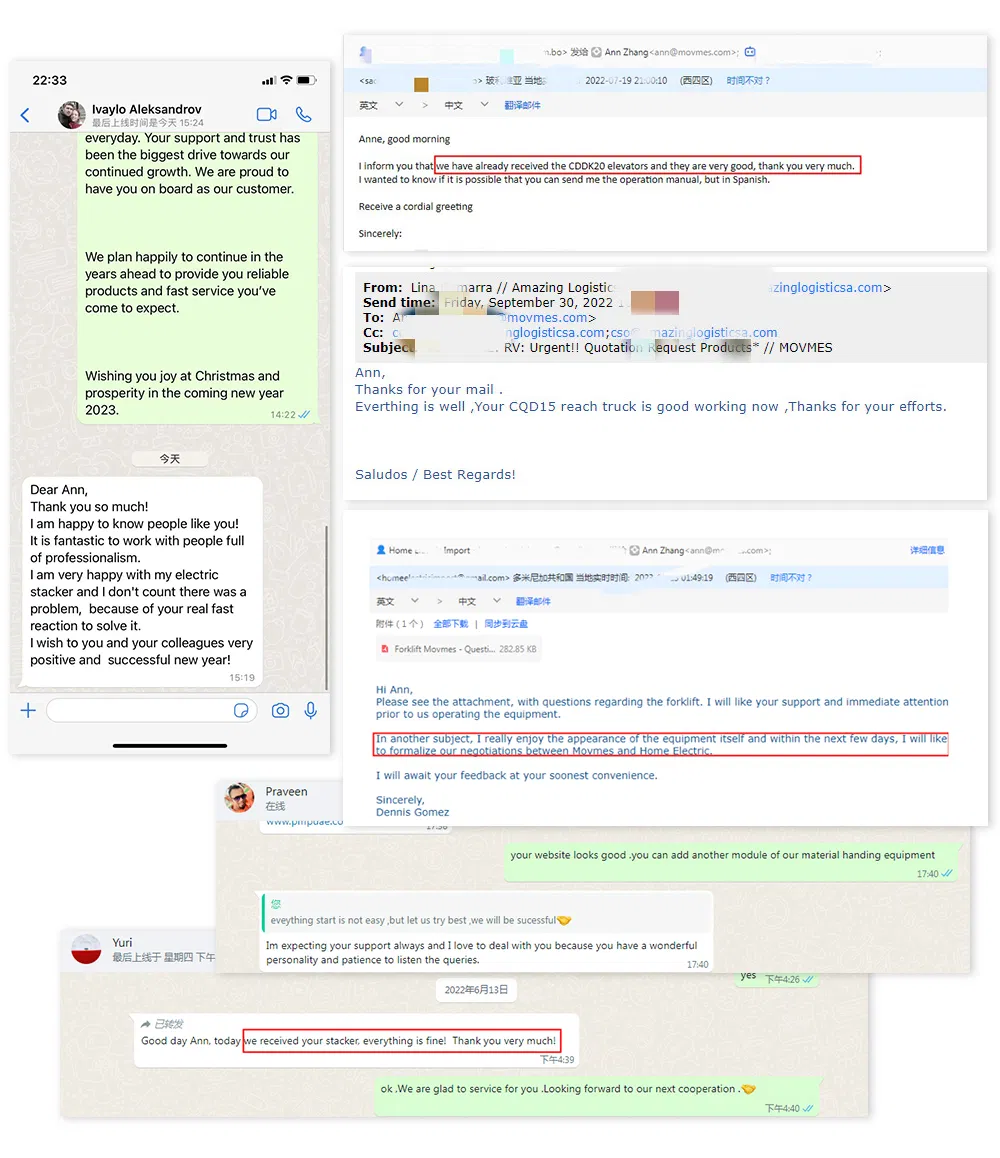

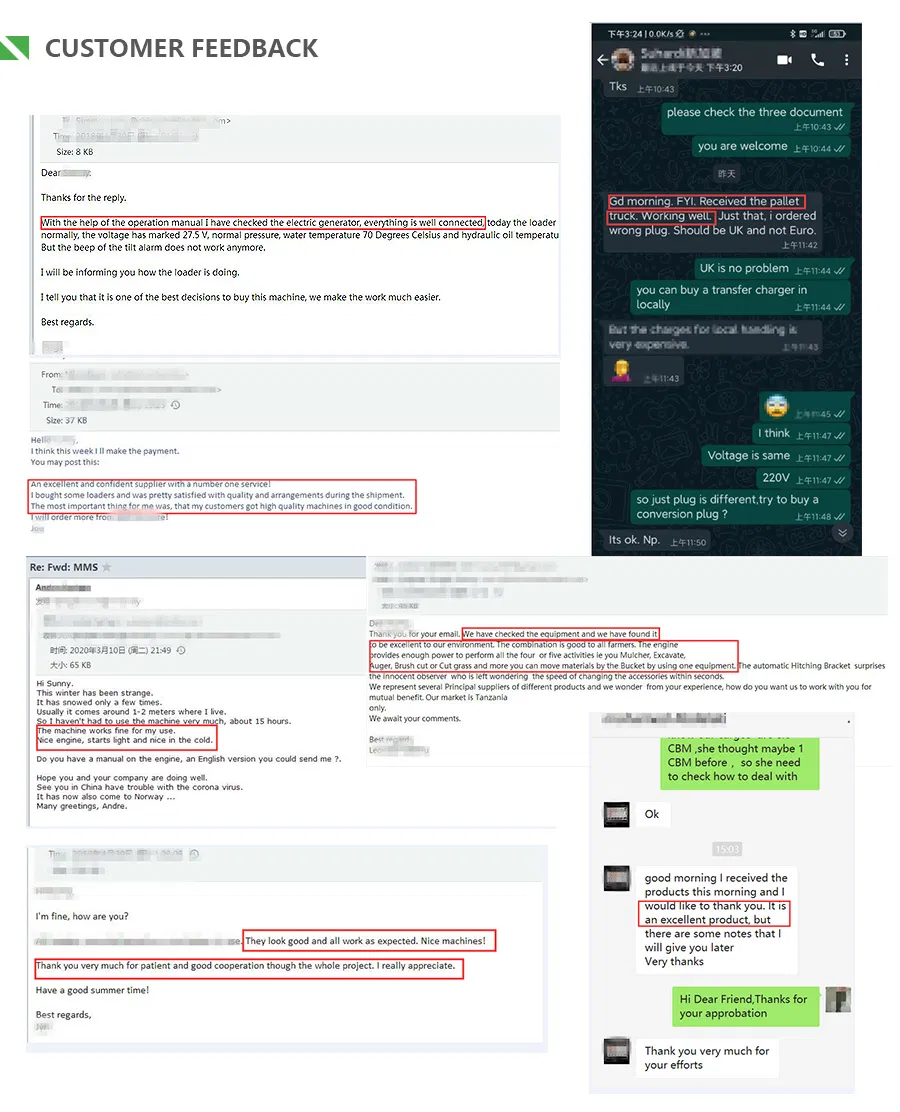

Quality Feedback CE Certificate

Standards Met: ISO9001:2008, ISO14001:2004, OHSAS18001:2007. Products are TUV/GS/CE certified, complying with ISO3691-1, EN1175-1, and EN16307-1.

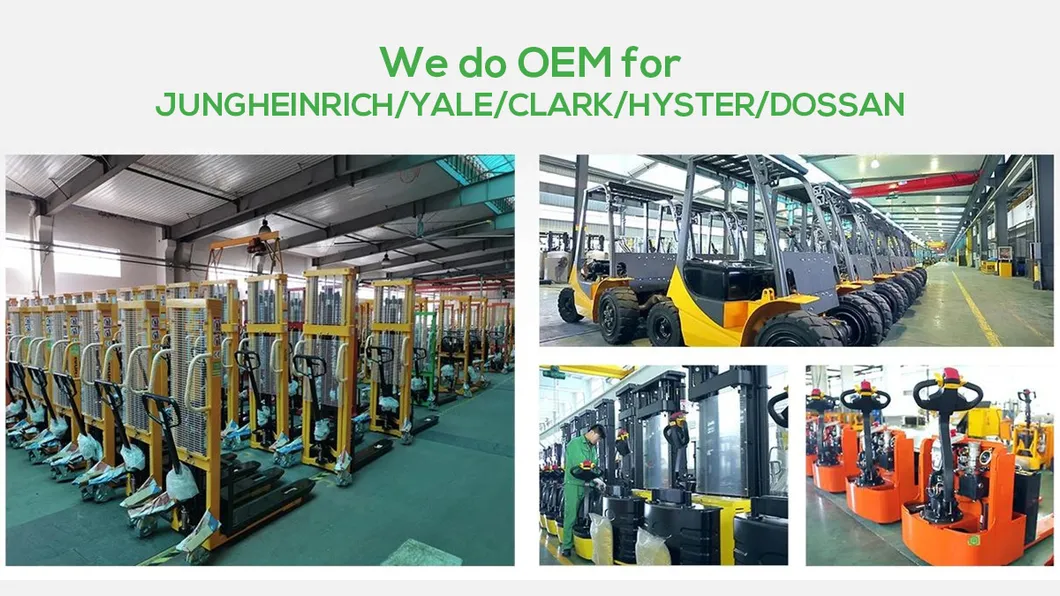

Factory Strength
📍 36 years of manufacturing experience
📍 150,000m² large-scale factory area
📍 1,200 professional employees
📍 77 senior engineering experts
📍 Exporting to over 157 countries

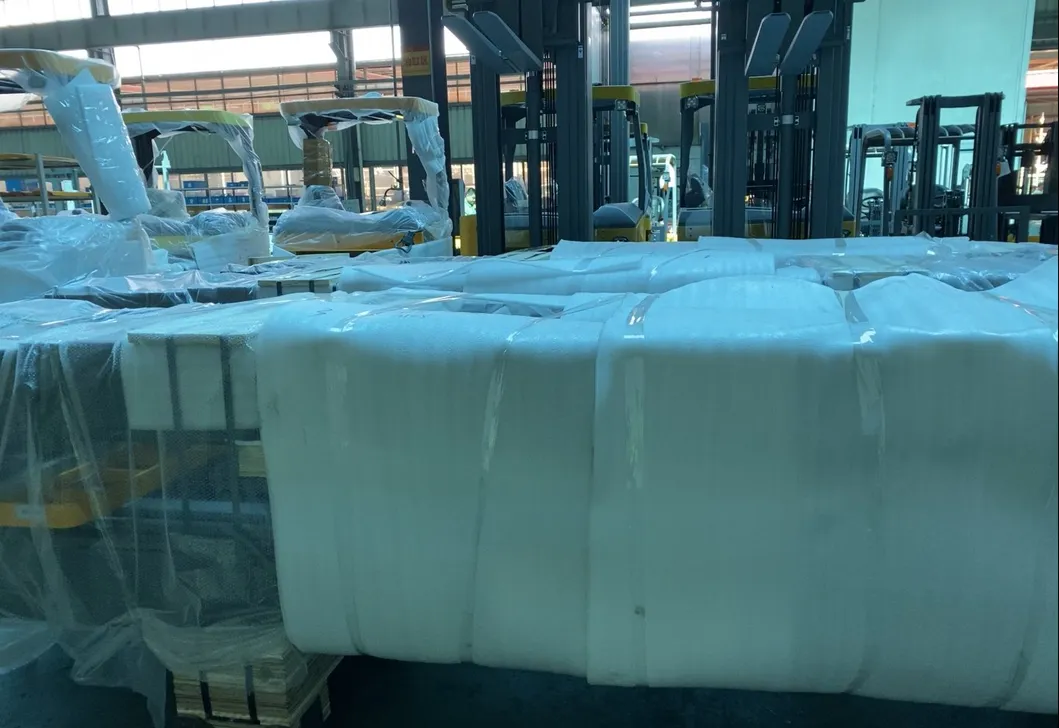

Packing
Frequently Asked Questions
Q1: What is the continuous working time of this electric forklift?
The continuous working time is approximately 3-6 hours, depending on the battery volume and load intensity.
Q2: How long does it take to fully charge the battery?
It typically takes 3 to 6 hours to reach a full charge using the standard charger.
Q3: What are the charger specifications for the OPD15Z model?
We provide chargers suitable for 48V500Ah Lead-acid batteries. Power plugs can be customized to USA, UK, Australia, or European standards.
Q4: Are customized OEM or ODM products available?
Yes, we have been professionally developing and producing warehouse equipment since 1985 and provide OEM services for several world-famous brands.
Q5: What is the warranty period for these products?
We provide a one-year warranty. During this period, we provide replacement parts free of charge for any non-human related damage.
Q6: How does the 180-degree lateral fork benefit operation?
The 180-degree rotation allows the forklift to pick and stack pallets from both sides of a very narrow aisle without turning the entire vehicle, maximizing warehouse space.
