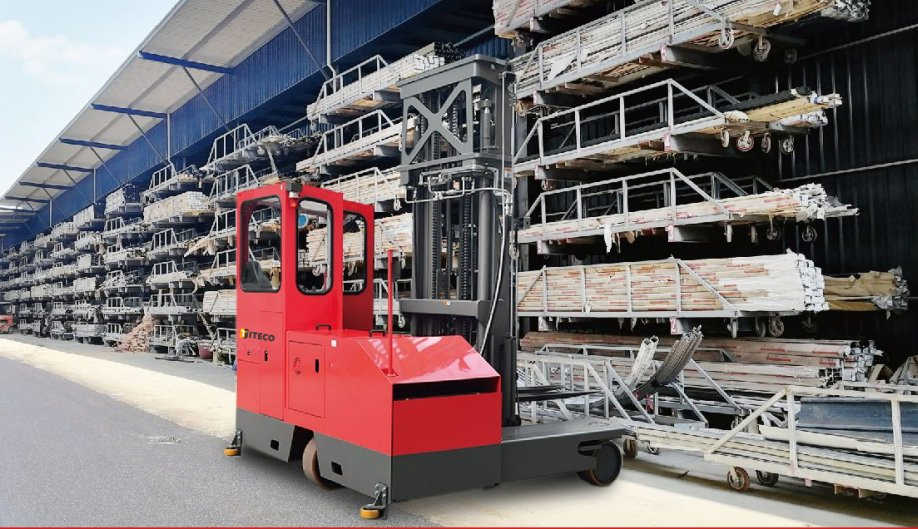

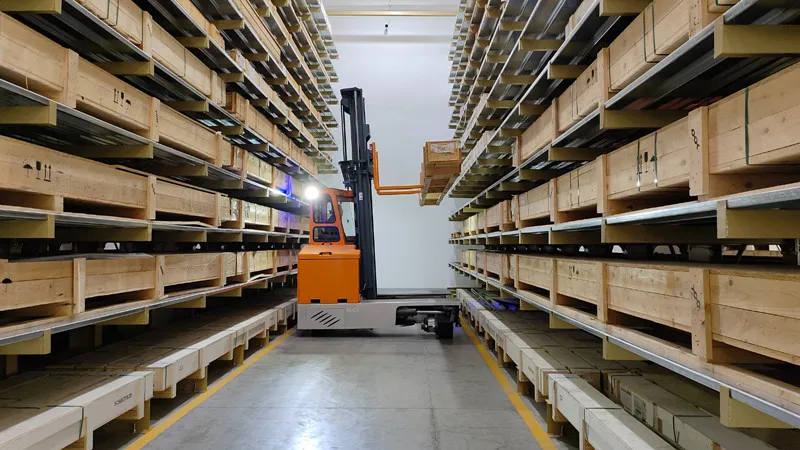

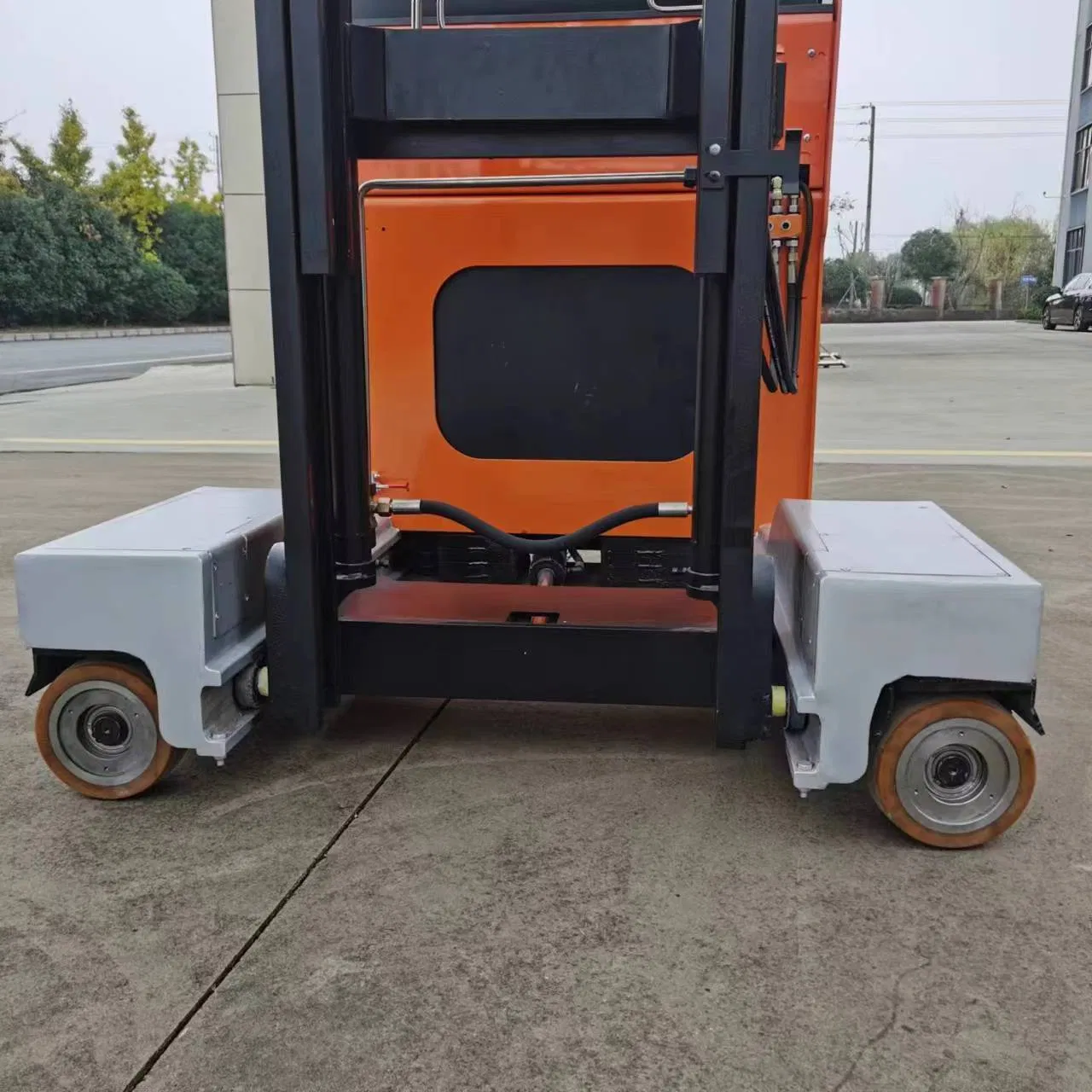

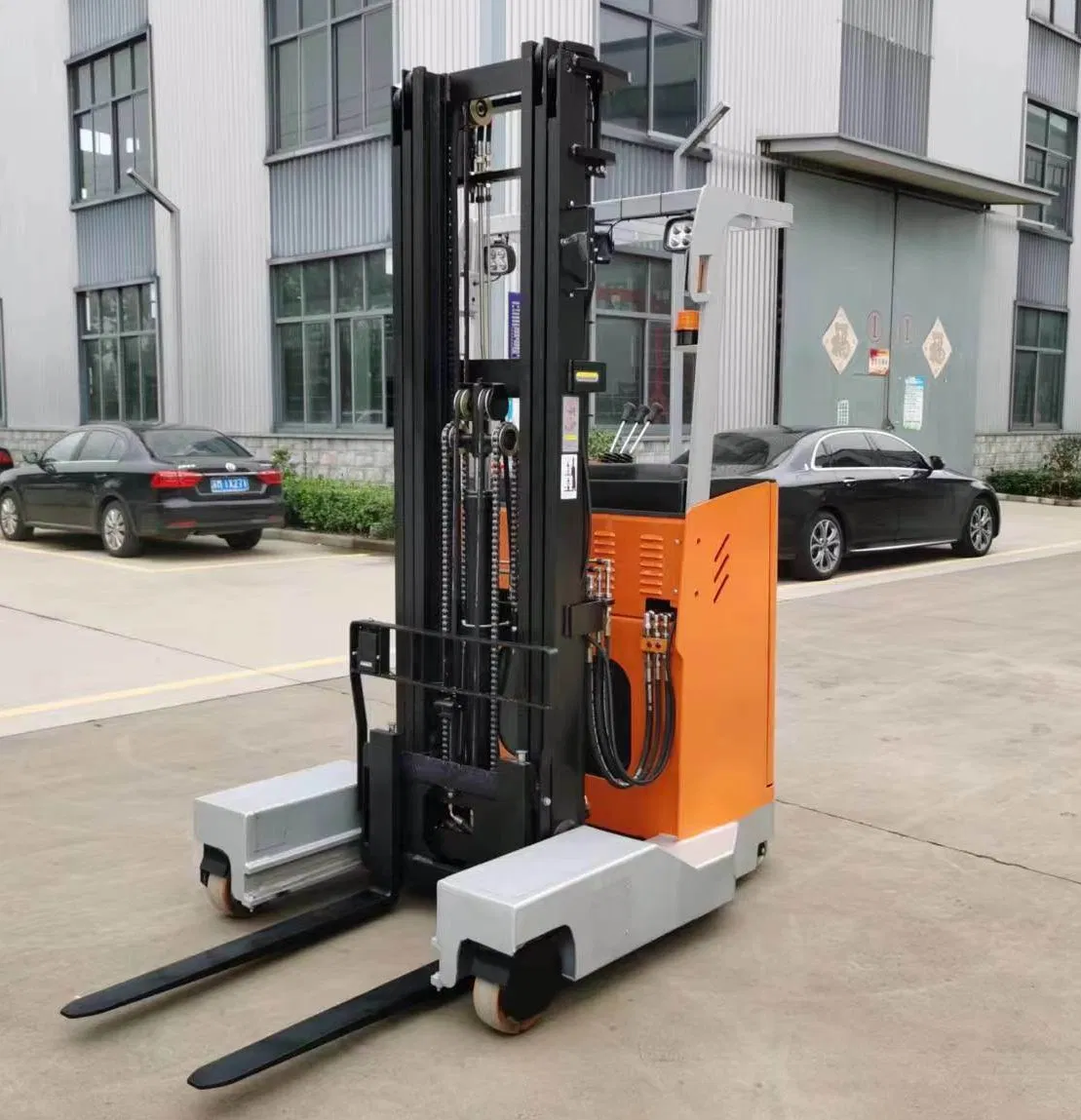

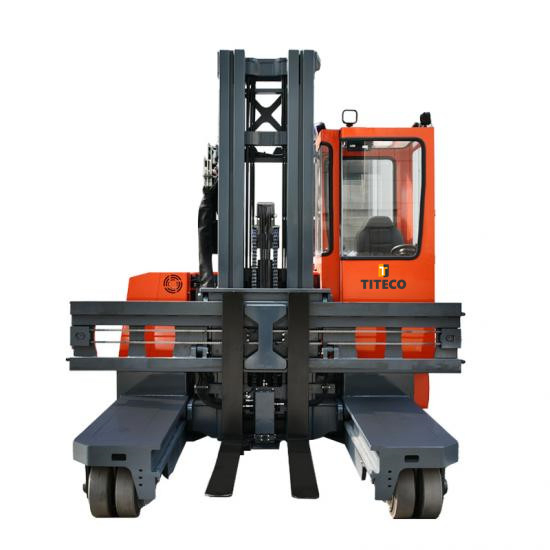

Multi directional forklift is a special forklift designed for long material handling. It features straight travelling, side travelling, and in situ rotating functions. Capacity ranges from 1500kg to 5000kg.

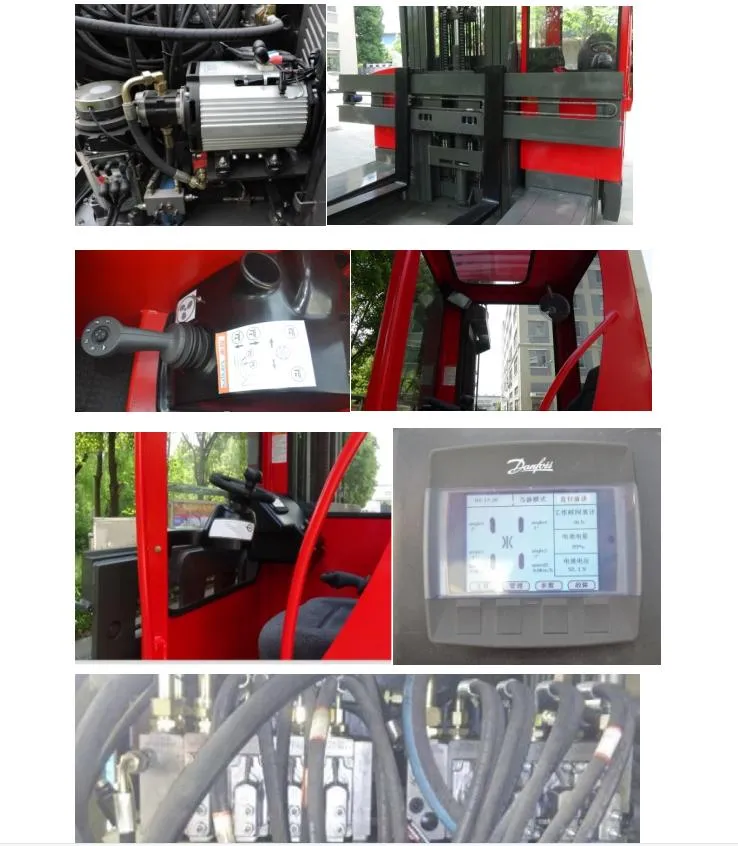

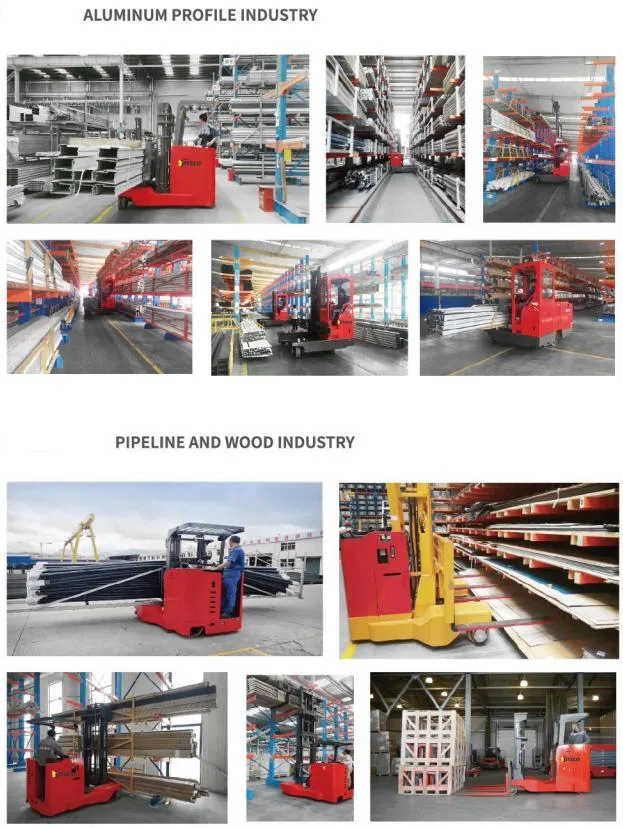

Equipped with OPS system, EPS steering, and an integrated handle. Perfectly suited for handling metal profiles, wood, curtain walls, steel pipes, and other long materials.

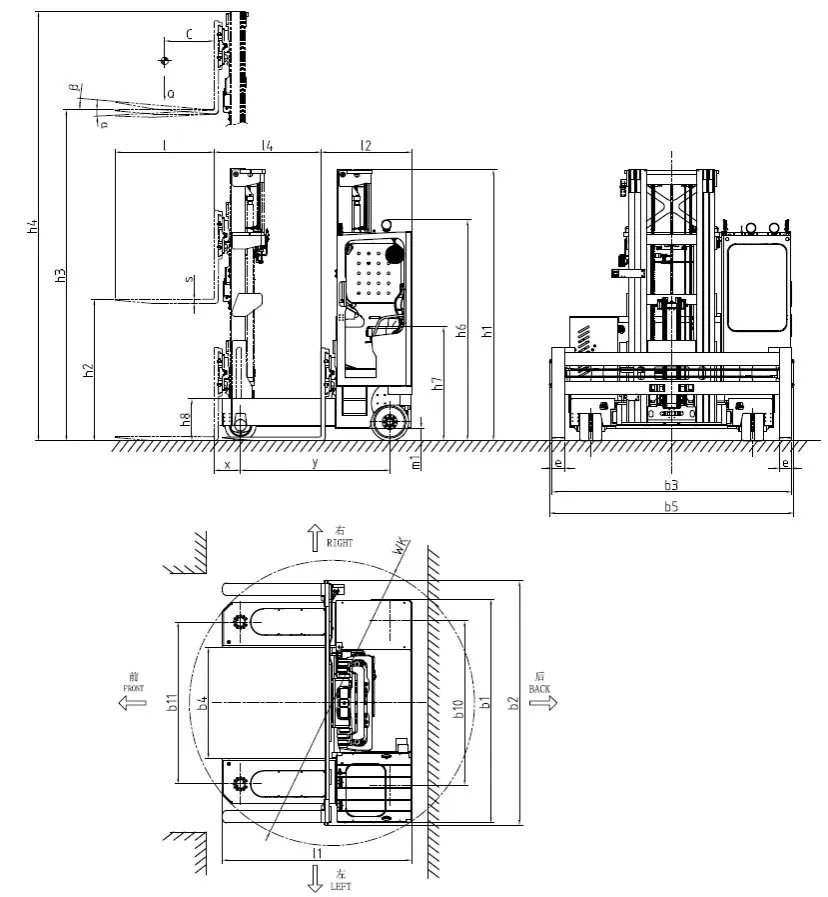

| Major Parameter | TFC40/TFC45 | MQC50 |
|---|---|---|
| Power Type | Electric | Electric |
| Driving Type | Seated Type | Seated Type |
| Rated Loading Q(kg) | 4000/4500 | 5000 |
| Load Center C(mm) | 600 | 600 |
| Lifting Height h3(mm) | 6000 | 6000 |
| Total Weight (kg) | 7750 | 8100 |
| Driving Speed (km/h) | 7.8/9.0 | 7.0/8.0 |
| Lifting Motor Power (kw) | 15AC | 21AC |
| Battery Voltage (V/Ah) | 48/900 | 80/500 |
