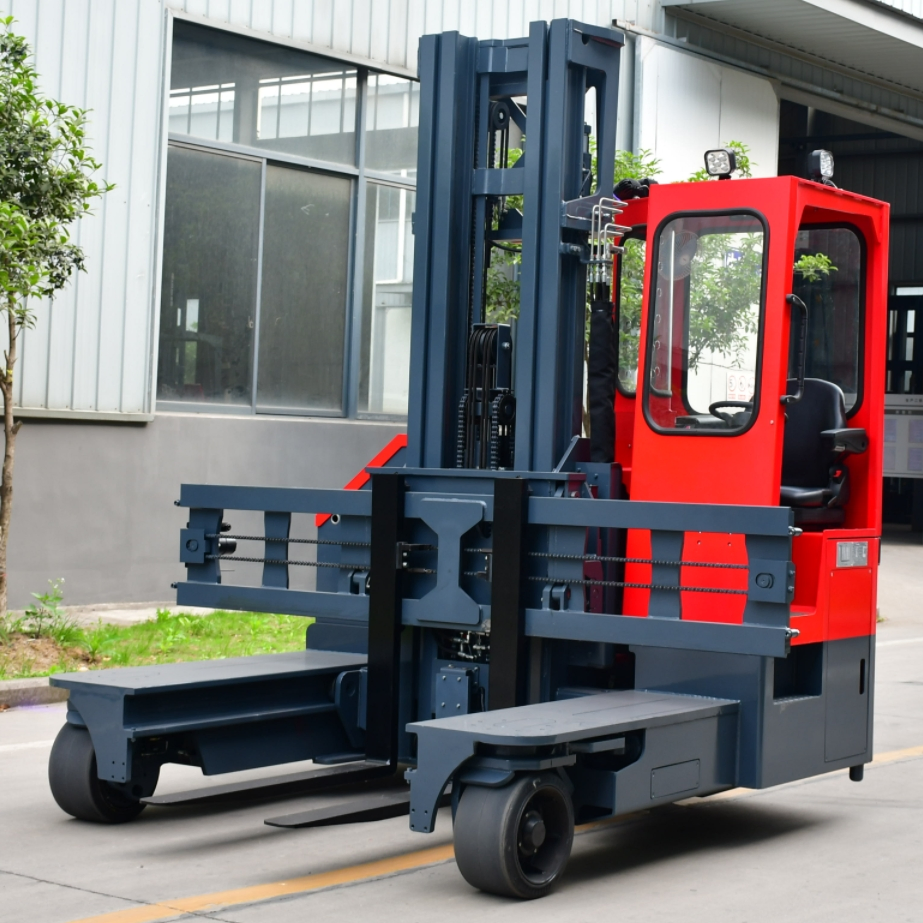

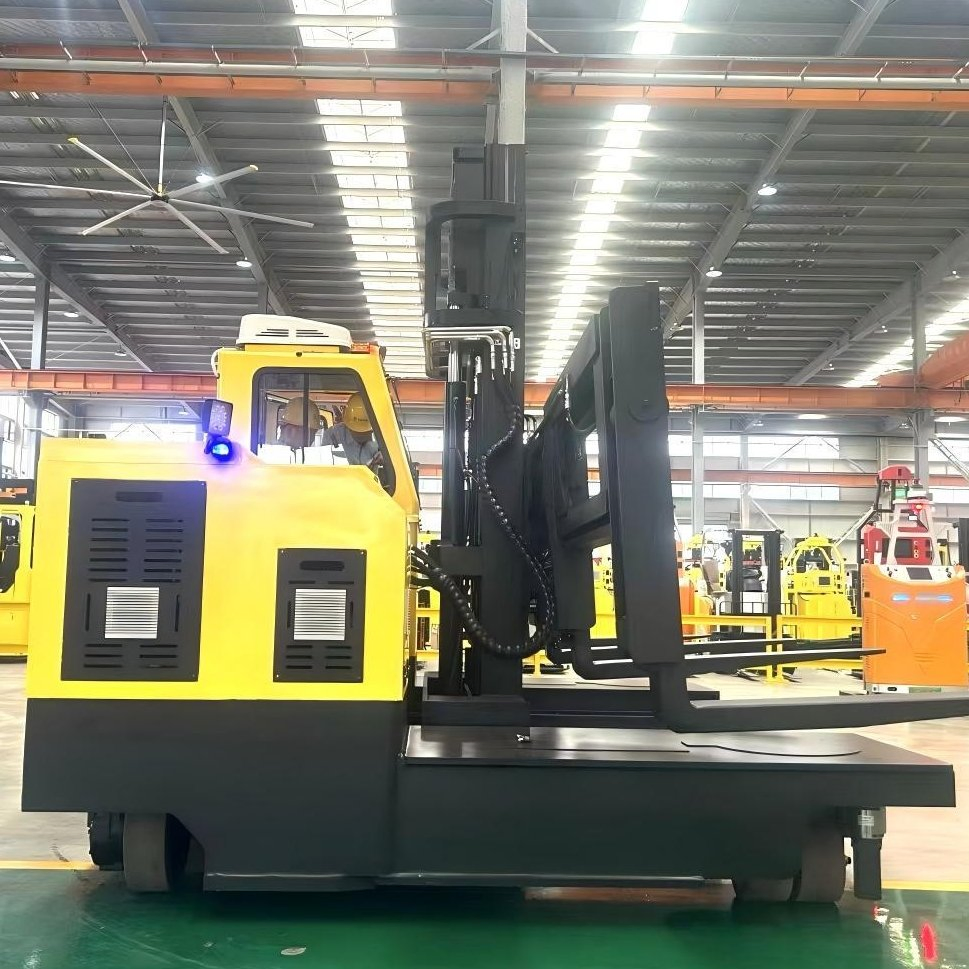

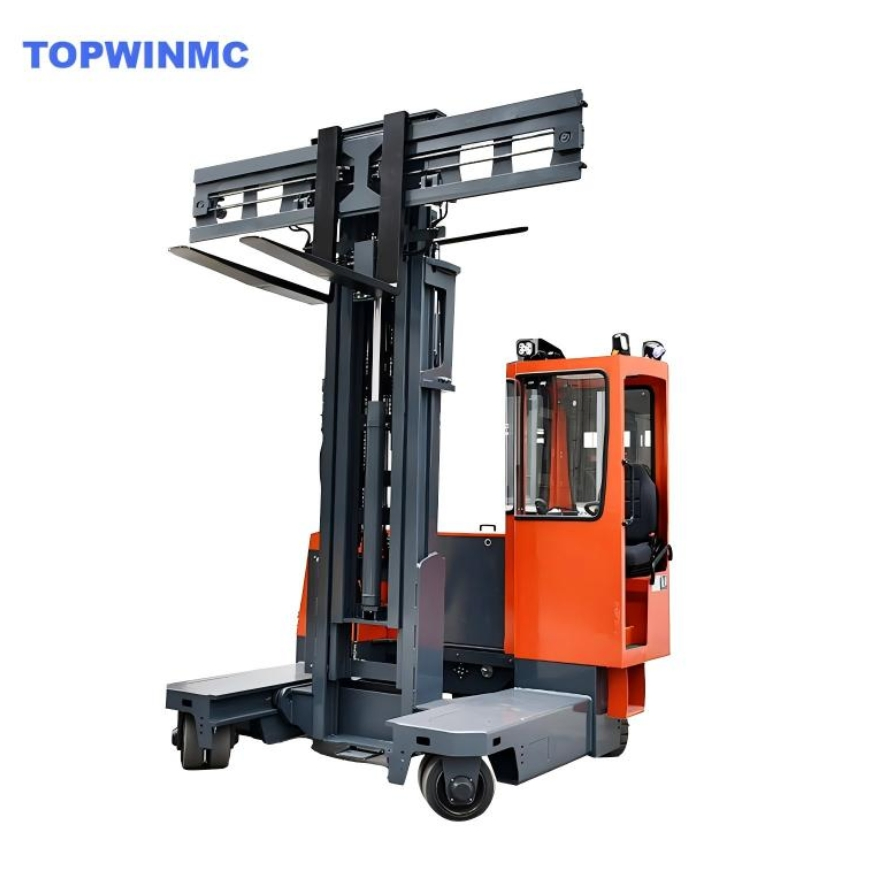

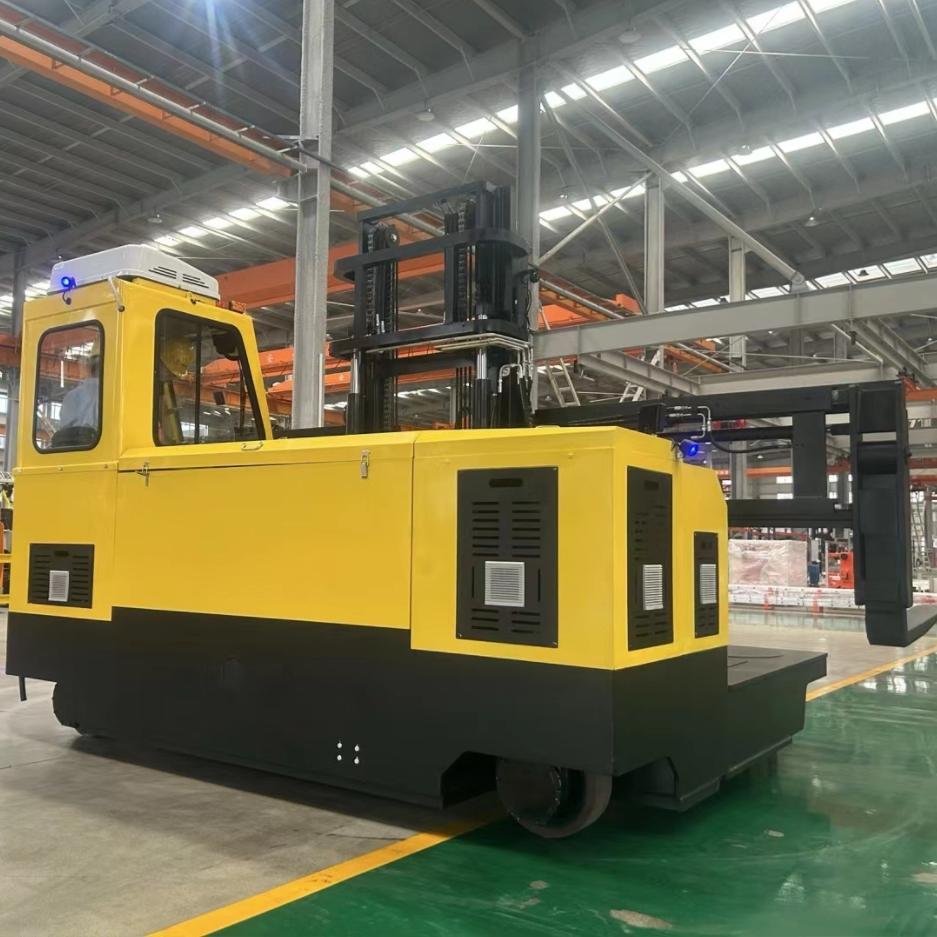

Multi-Directional Electric Side Loader Forklift 2ton - 5 Ton with 6-6.5m Stacker

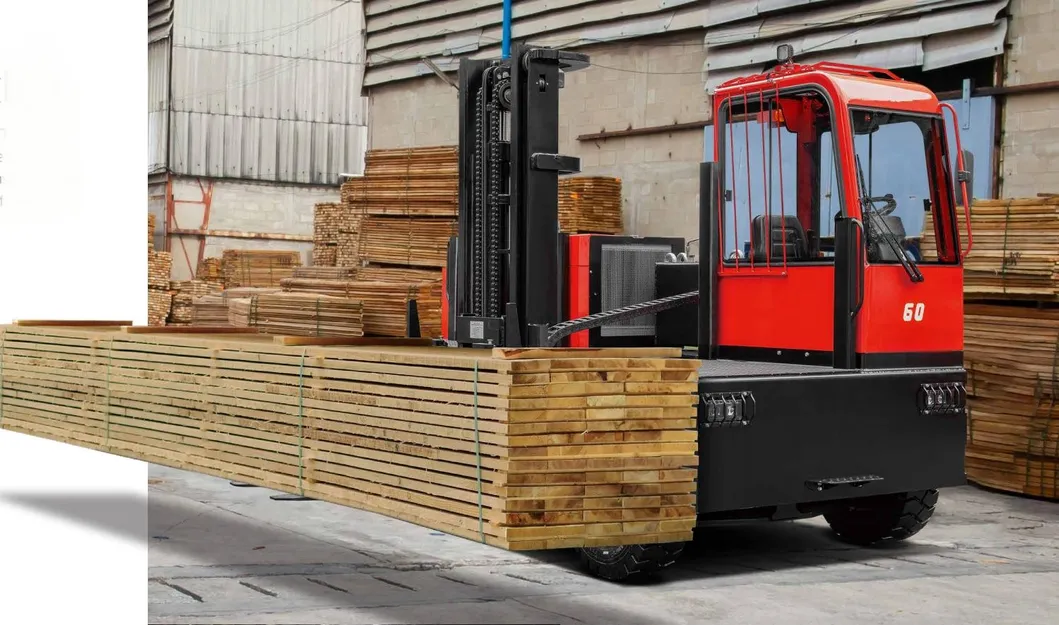

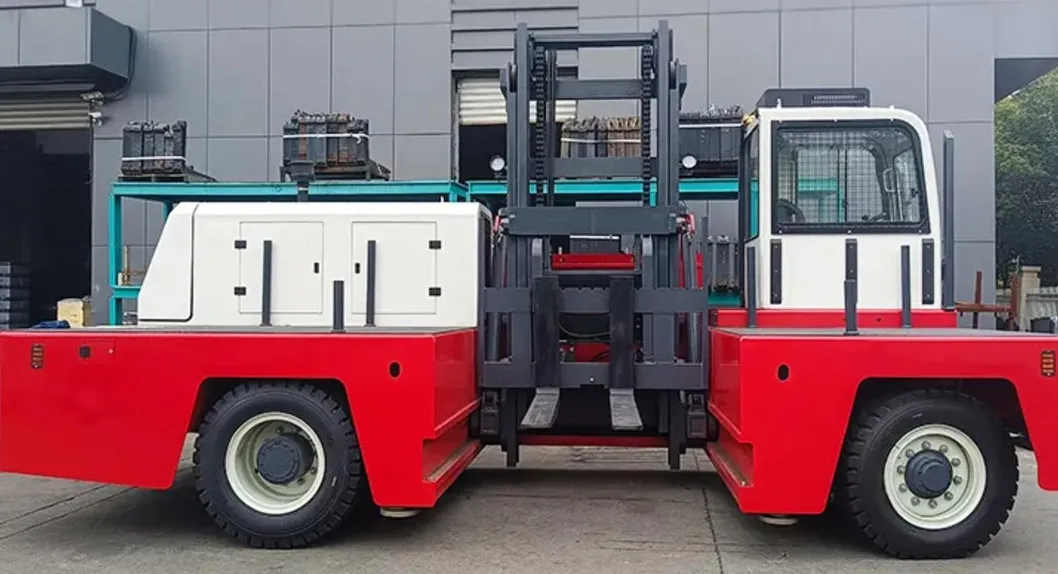

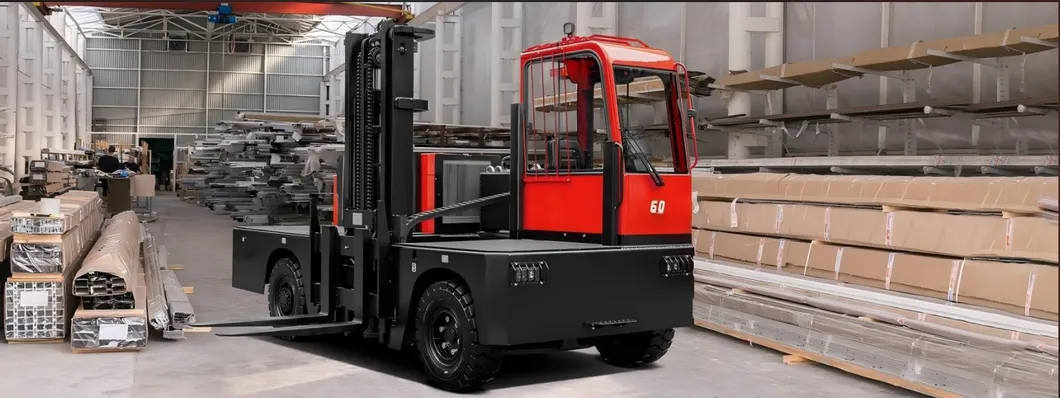

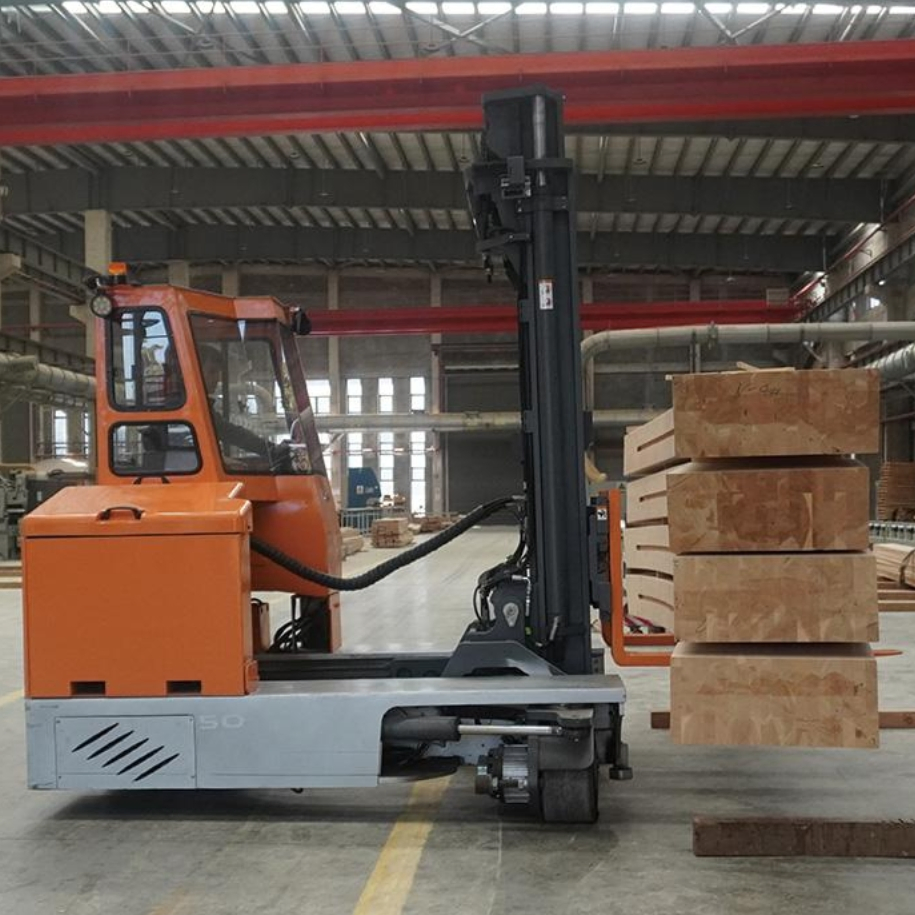

With the rugged, dependable Sideloader, you can easily move long and bulky materials up to 6,000 pounds in narrow storage aisles and tightly confined areas. These long load forklift trucks provide superior maneuverability that allows operators to more easily move long, cumbersome loads such as bar stock, tubing, laminates and plywood sheets and stacking them up to 30 feet high.

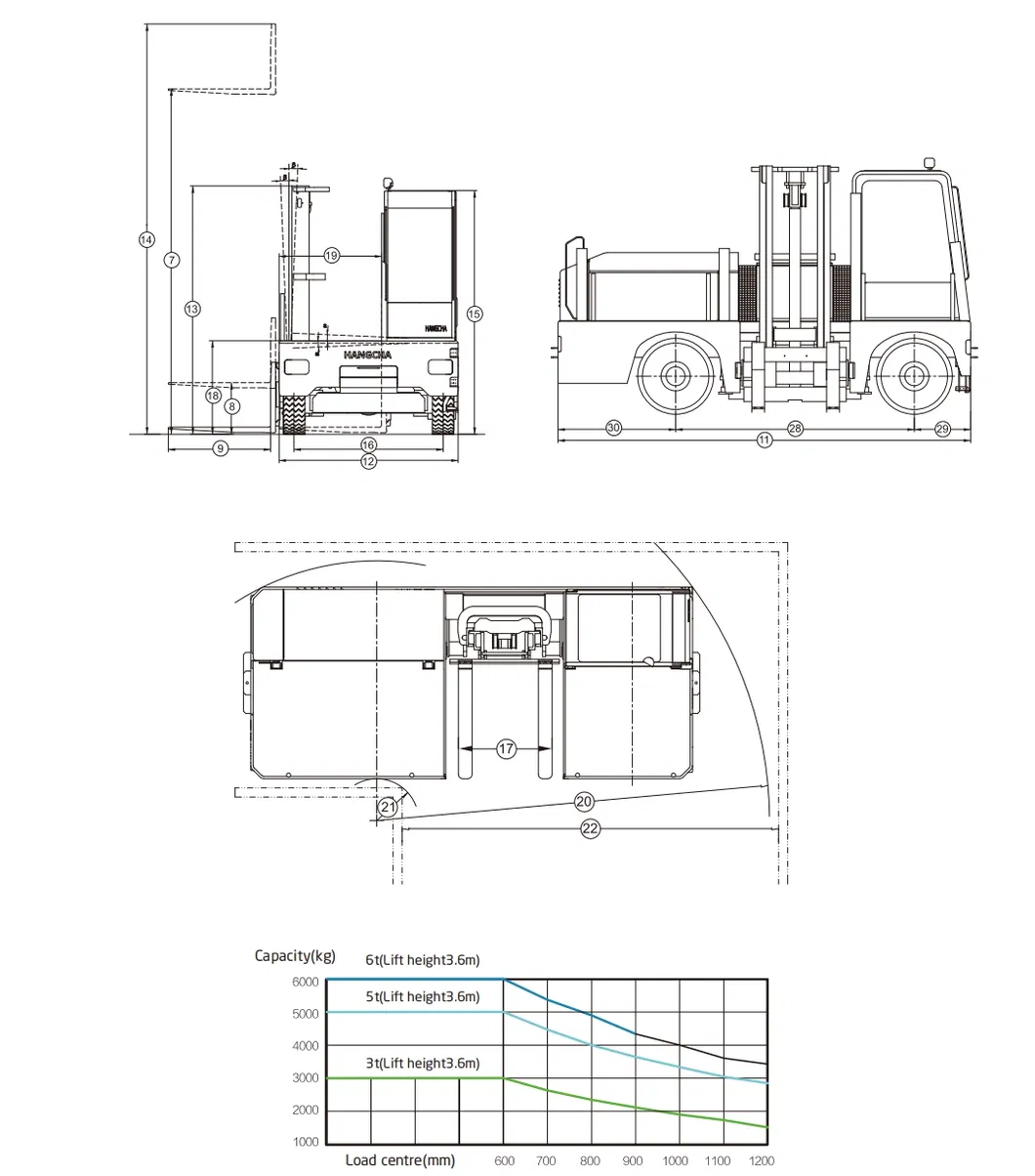

| Distinguishing Mark | Parameter | FD30S | FD50S | FD60S |
|---|---|---|---|---|
| 1.3 Drive | Fuel Type | Diesel | Diesel | Diesel |
| 1.5 Rated Capacity | Q (kg) | 3000 | 5000 | 6000 |
| 1.6 Load Centre | c (mm) | 600 | 600 | 600 |
| 1.9 Wheelbase | y (mm) | 2550 | 2800 | 2800 |
| 2.1 Service Weight | kg | 6000 | 9100 | 9400 |
| 4.4 Lift | h3 (mm) | 3600 | 3600 | 3600 |
| 5.1 Travel Speed | km/h | 20/21 | 23/25 | 23/25 |
Optional Configs: Cab with fan, Heater, Dual front wheel, Solid tires, High-grade seat, High exhaust, Tilting/lifting cylinder sleeve, Dual air filter, Fire extinguisher.
Engine Options: Chinese Engine, EUR II Japan ISUZU 4JG2PE-01, Japan Mitsubishi 4G64 and LPG systems.
Optional Attachments: Side shifter, Fork positioner, Bale clamps, Paper roll clamps, Rotator, Rotating clamps, Log holder, Tyre clamps, Carpet boom.
