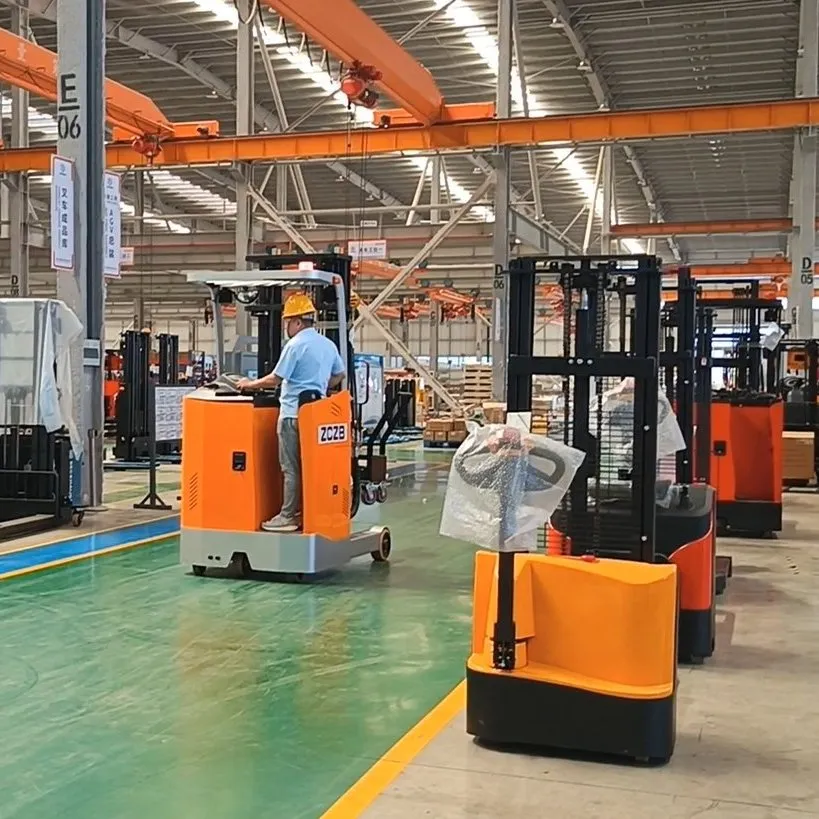

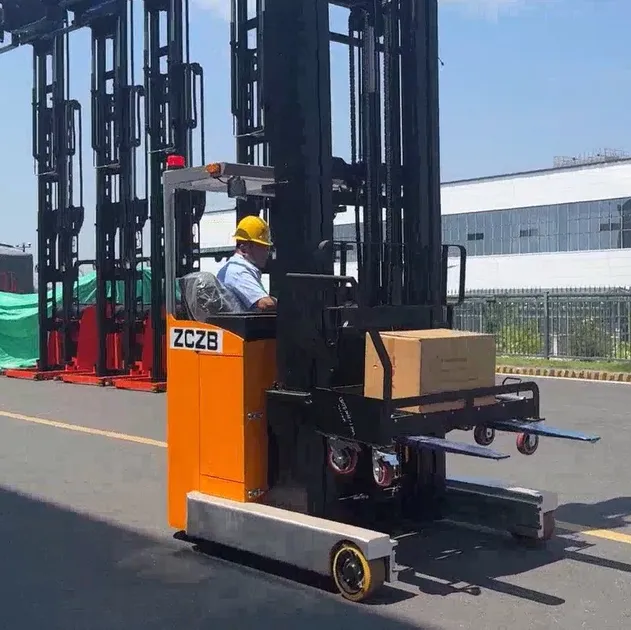

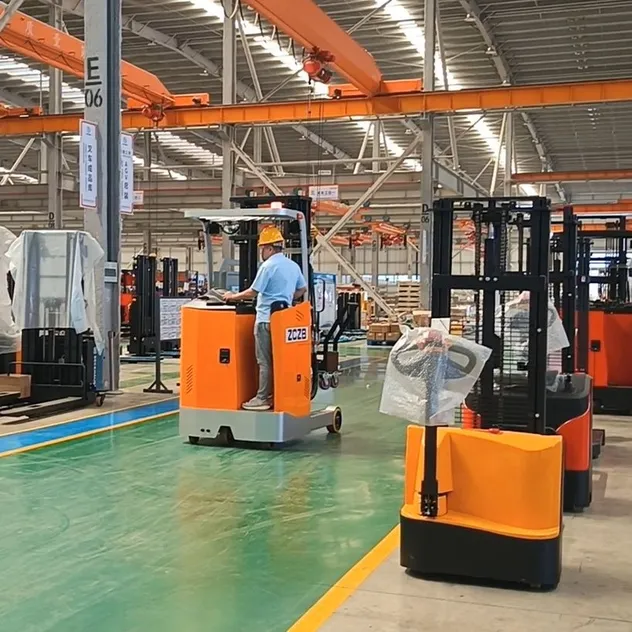

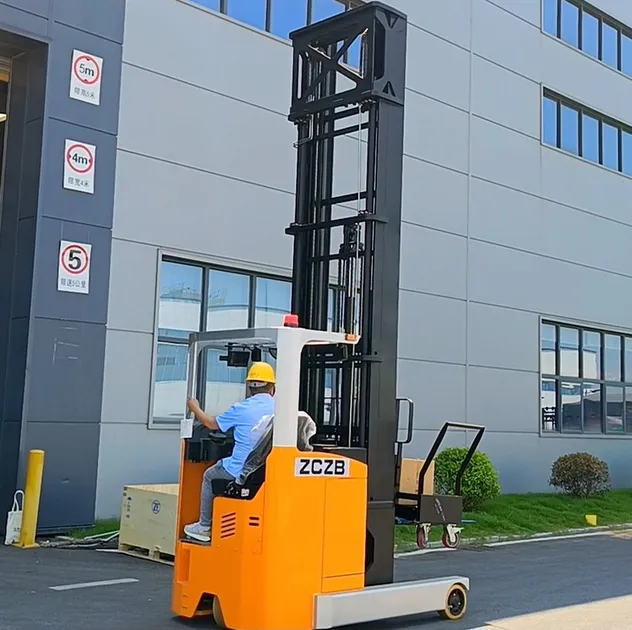

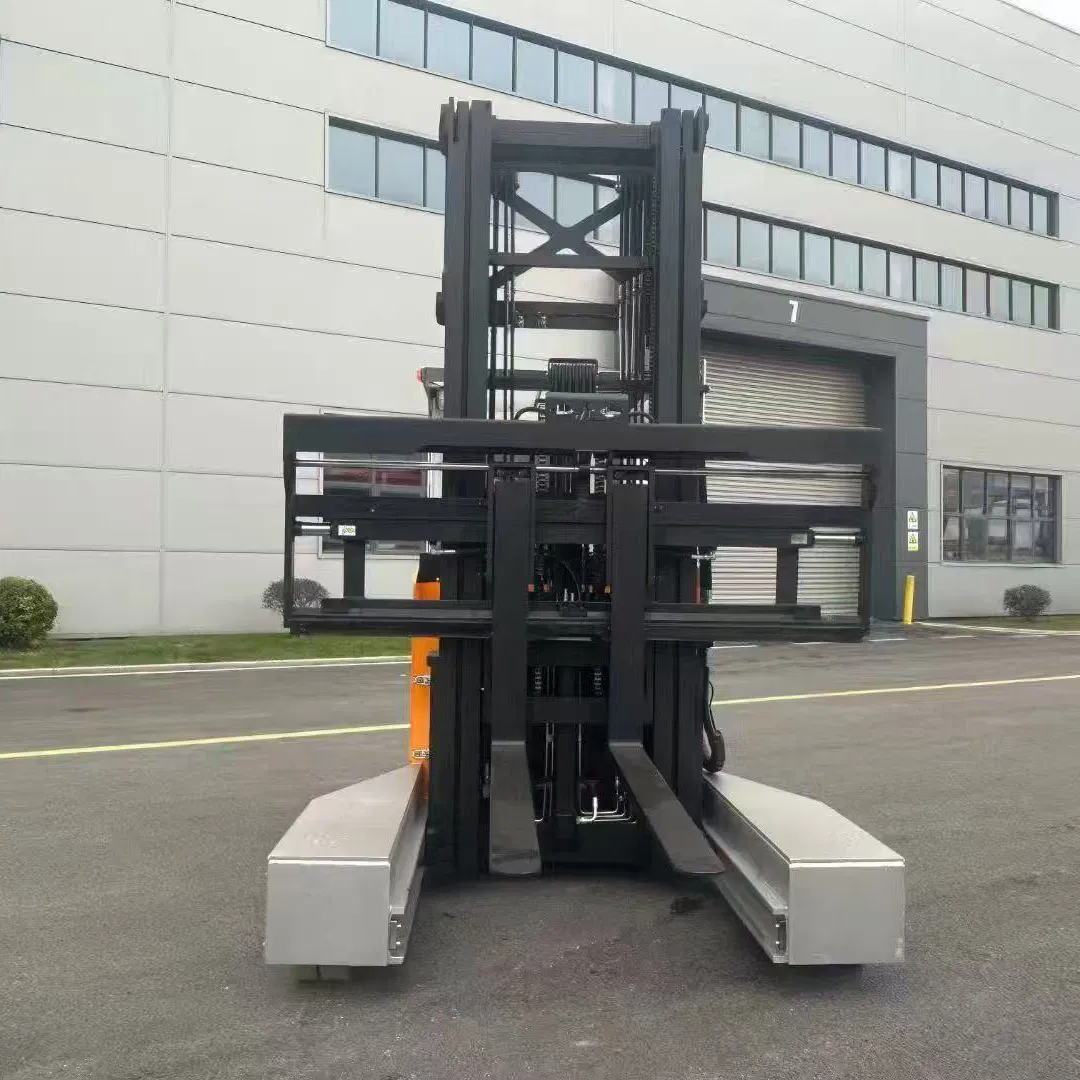

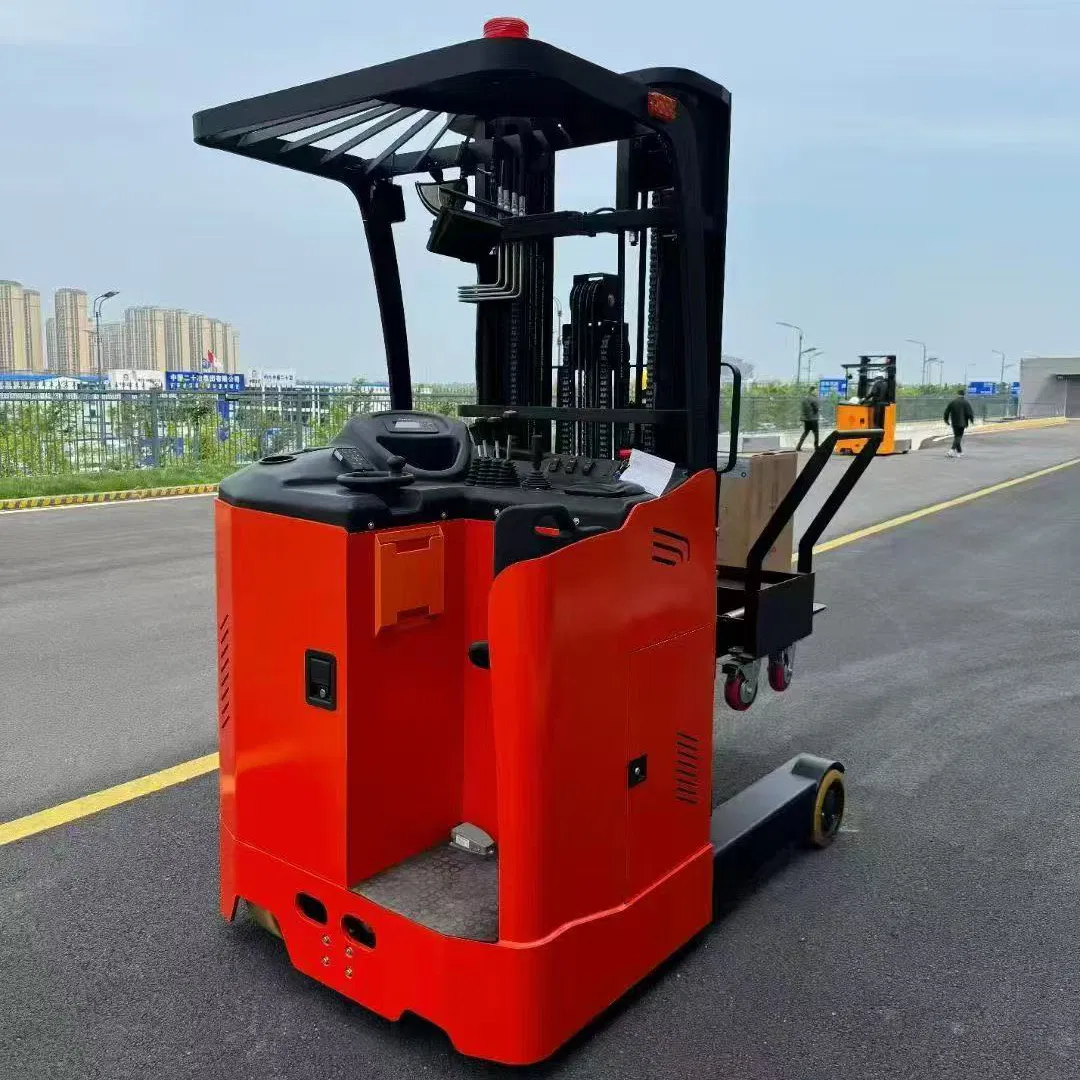

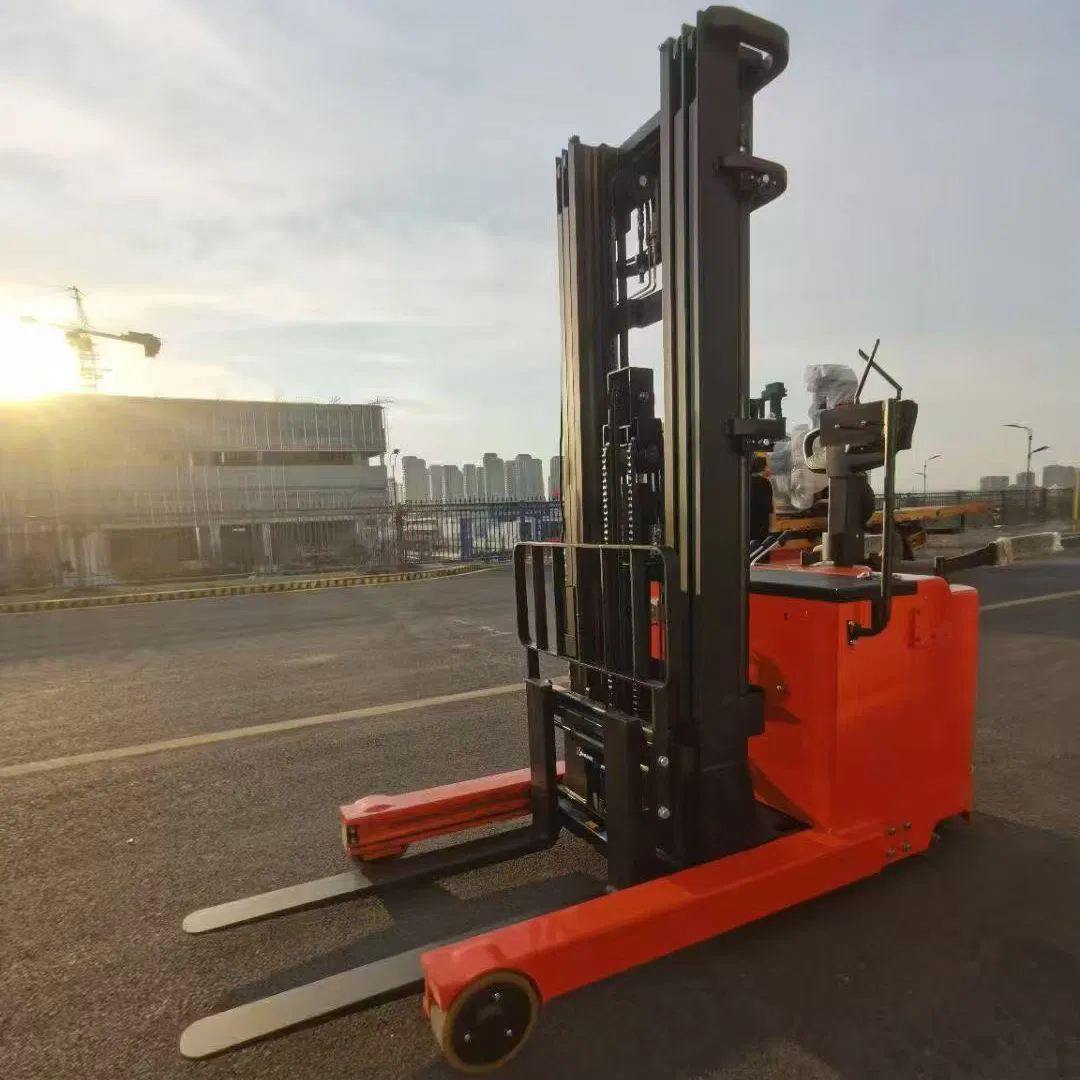

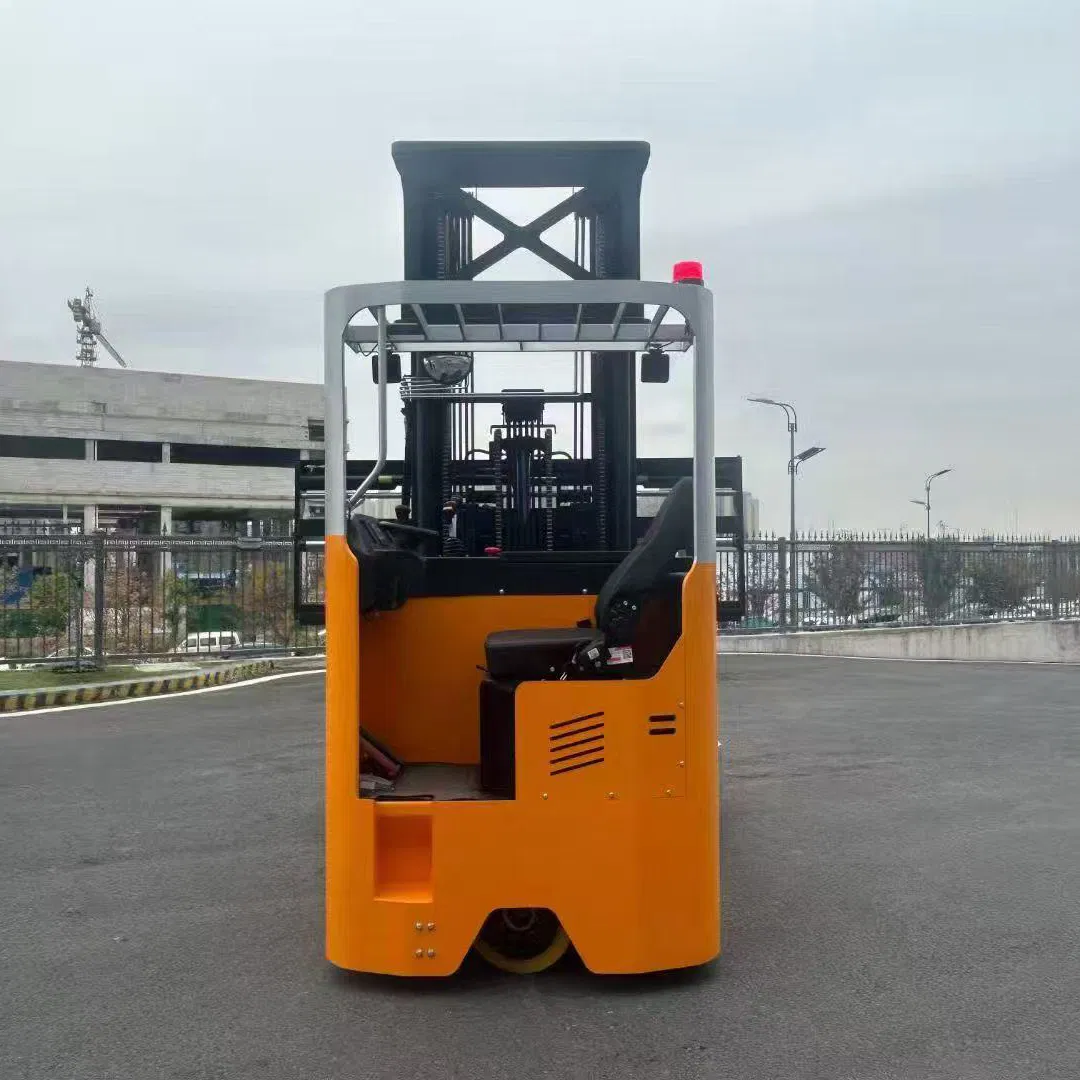

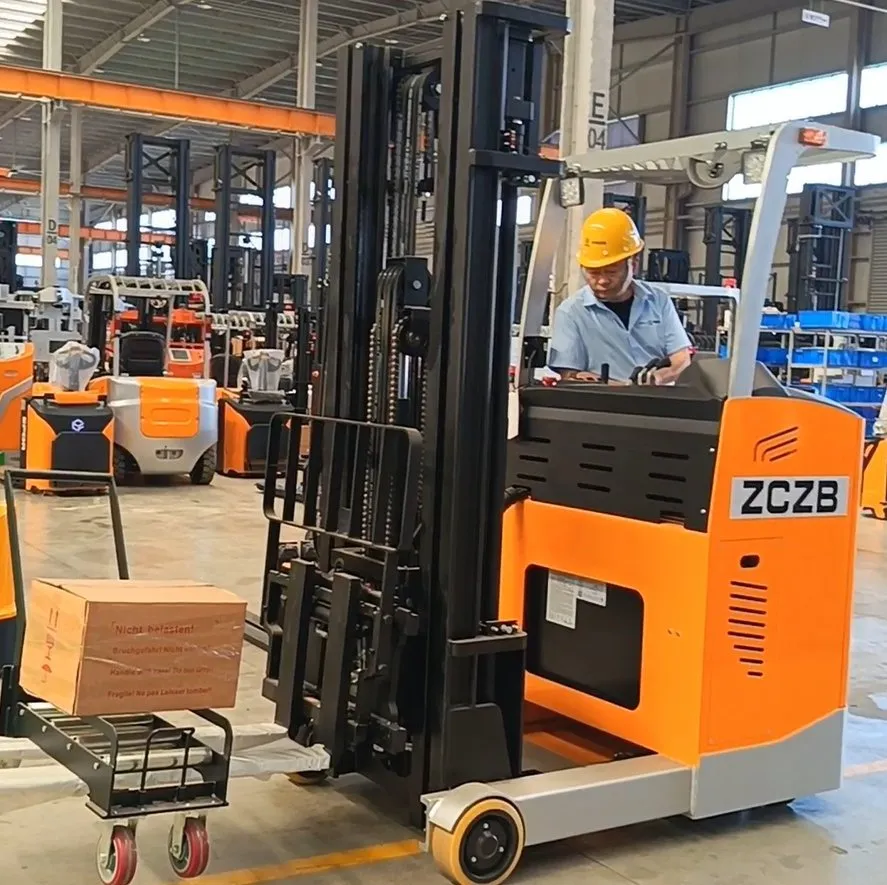

The reach truck features a compact body structure with sit-down operation for enhanced maneuverability. With its centrally-positioned drive unit and low center of gravity, the truck delivers exceptional stability - making it ideal for high-capacity, high-lifting storage applications.
Equipped with a maintenance-free AC drive system offering strong gradeability (≤10% slope capacity), regenerative braking, and superior operational stability. Eliminates brush replacement requirements compared to DC motors.
Branded control system with multi-layer automatic protection for enhanced safety. HD intelligent display provides real-time operational data and fault diagnostics for easier troubleshooting.
EPS steering reduces energy consumption by ~20%. Precision handling reduces operator fatigue and boosts productivity. Standard fork tilt function prevents load tipping and improves stability.
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CQDE20H-100S |
| General | Rated Load Capacity | 2000 kg |
| General | Load Center Distance | 500 mm |
| General | Wheelbase | 1650 mm |
| Weight | Weight (Incl. Battery) | 5860 kg |
| Dimensions | Lifting Height (h3) | 12000 mm |
| Dimensions | Mast Lowered Height | 4375 mm |
| Dimensions | Overall Length | 2515 mm |
| Performance | Travel Speed (Loaded) | 6.8 km/h |
| Performance | Max Gradeability | ≤10% |
| Motor | Drive Motor Power | 6.5 kW |
| Battery | Battery Type | Lithium battery |
| Battery | Voltage/Capacity | 48V/350Ah |

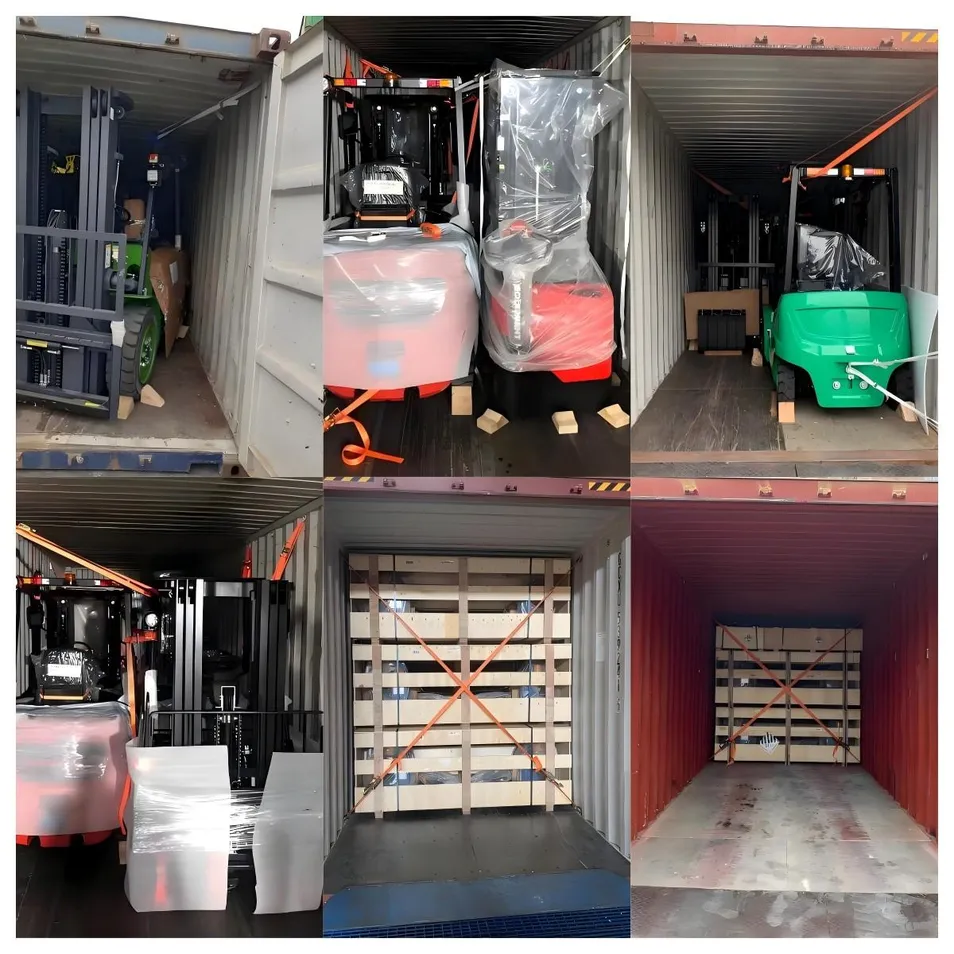

Export Protection: VCI film + desiccants guarantee 30-day corrosion-free sea transportation.
Shock Resistance: Customized wooden/steel crates with internal EPS foam padding, tested to ISTA standards.
Efficient Unloading: Forklift slots at crate base cut unloading time by 50%.
Lead Time: 5-10 days for stock items; 20 days for customized orders.

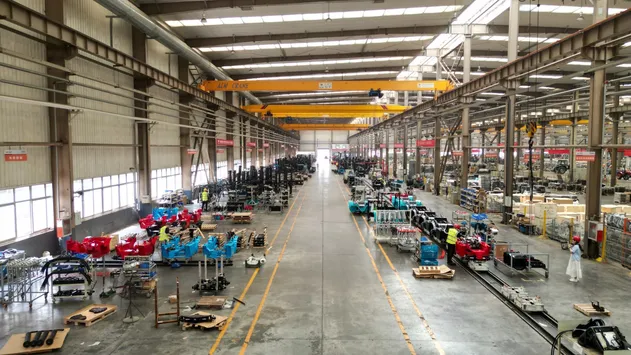

Our team consists of highly educated and vibrant professionals. Most technicians possess years of experience in forklift manufacturing, electrical, and hydraulic systems.
Service Advantages: Quick diagnosis, clear technical communication, and strict adherence to safety operating procedures.
