Basic Info.
Model NO.:CBD15/CBD10
Type:Powered Pallet Truck
Power:DC Motor
Load Capacity:1500kg - 2000kg
Fuel:Electric
Lift height:200mm (195mm)
Condition:New
Fork Width:685mm
Fork Length:1150mm
Package:Wooden Pallet
Product Description

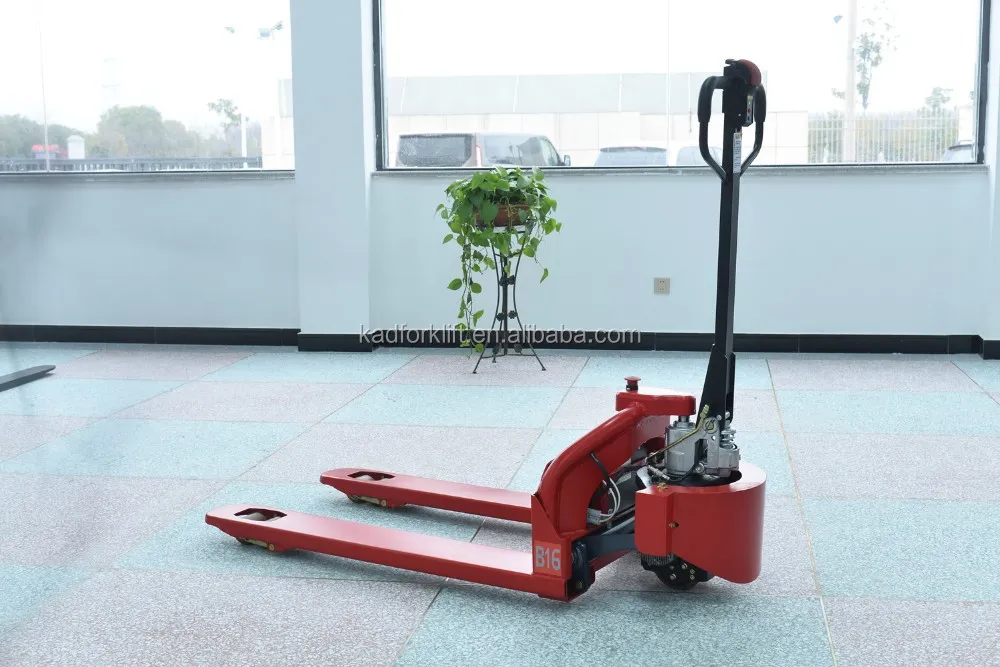

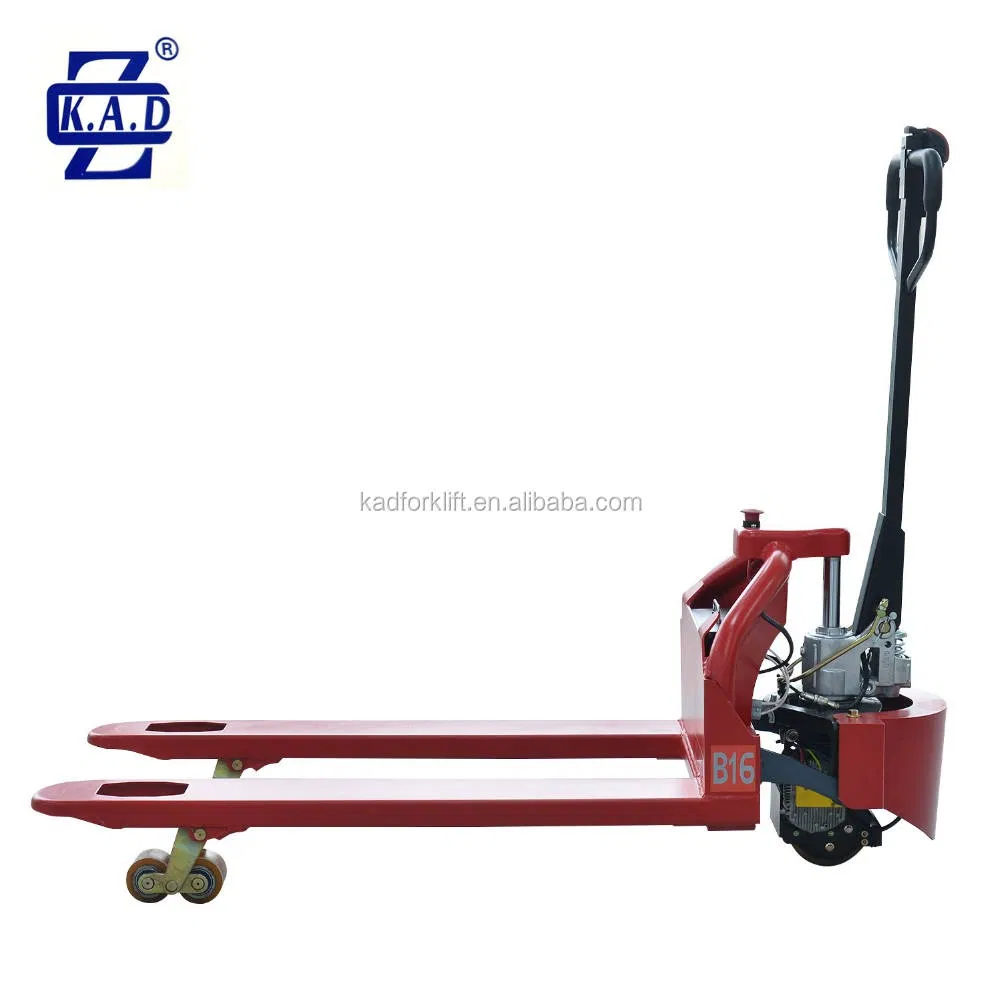

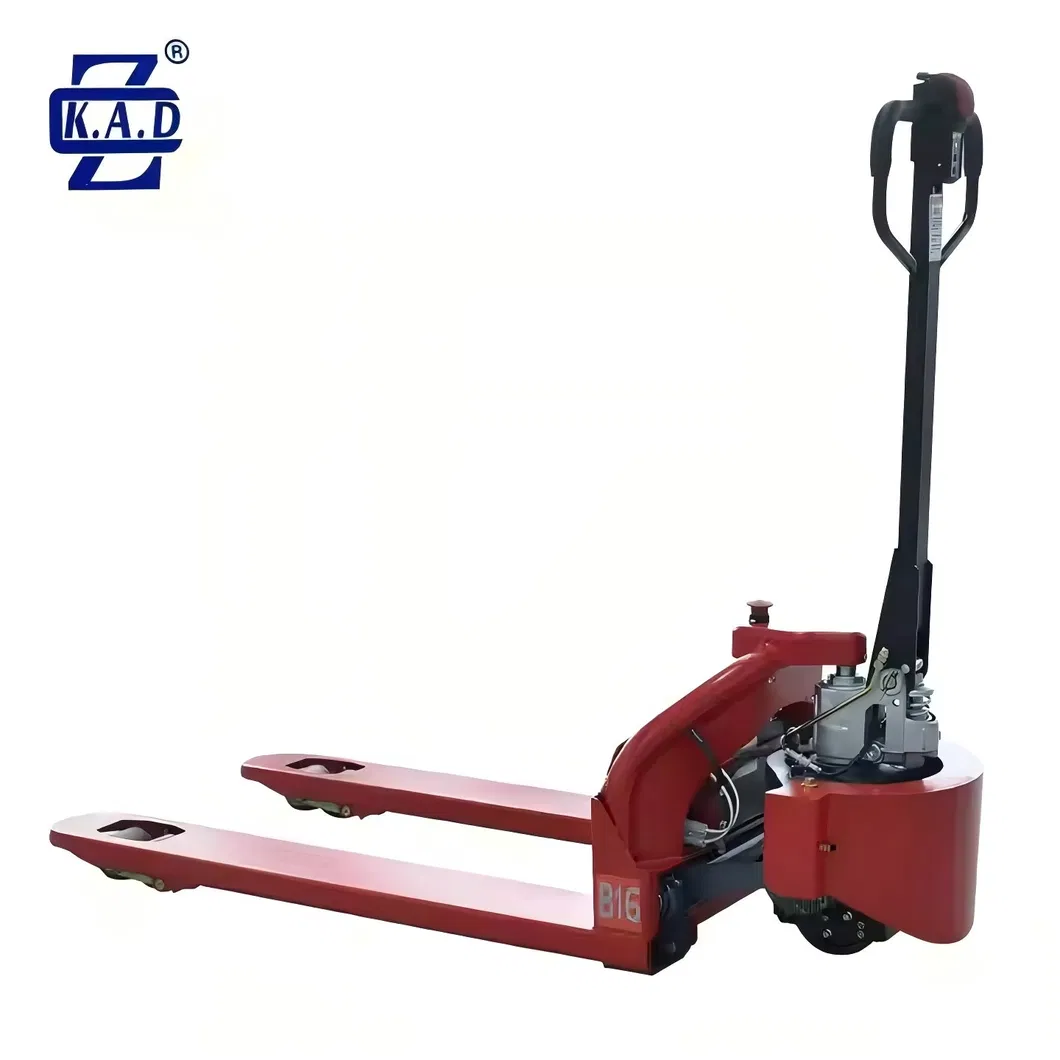

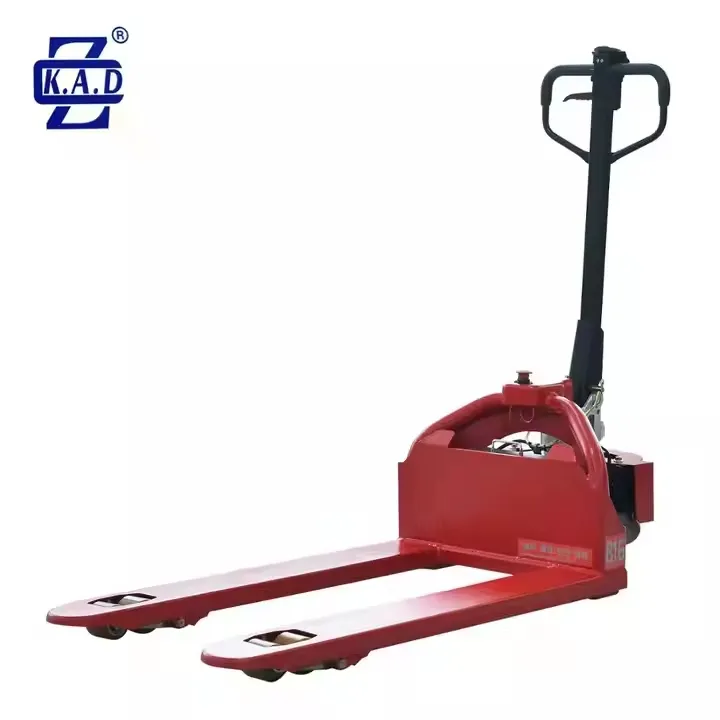

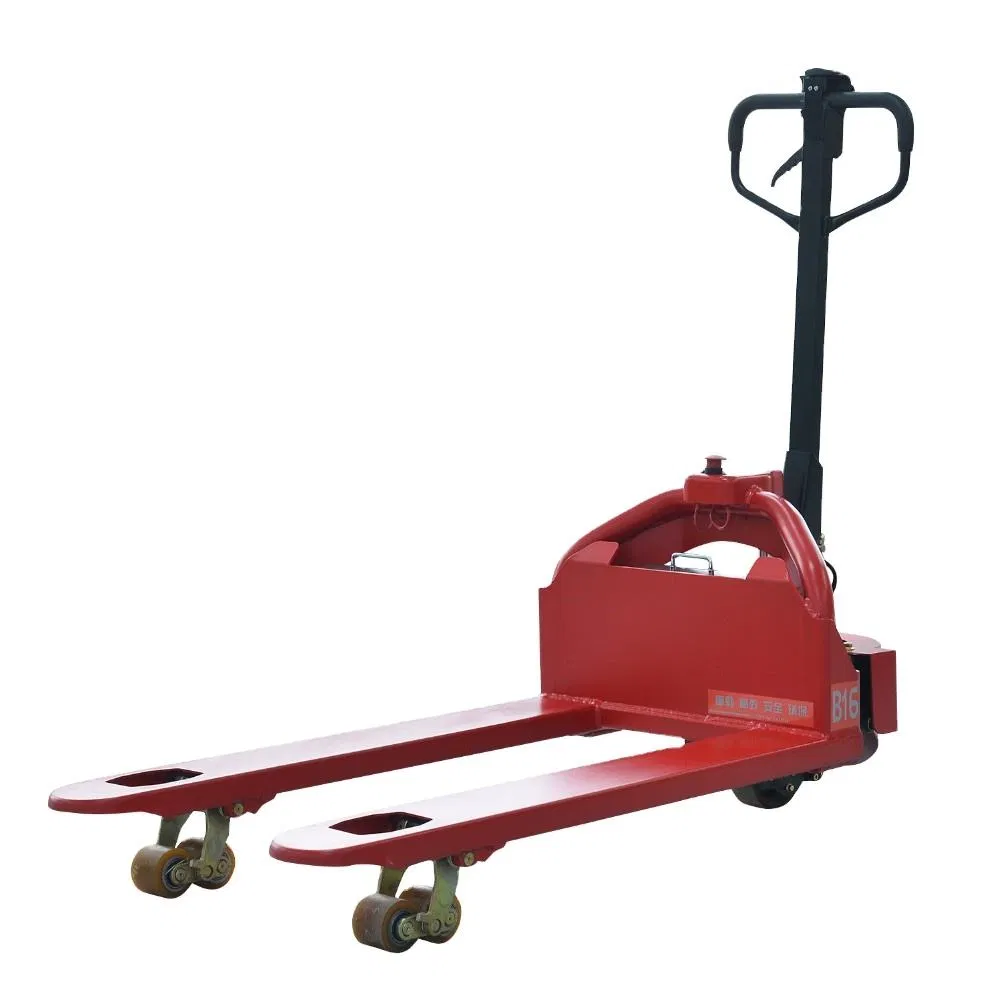

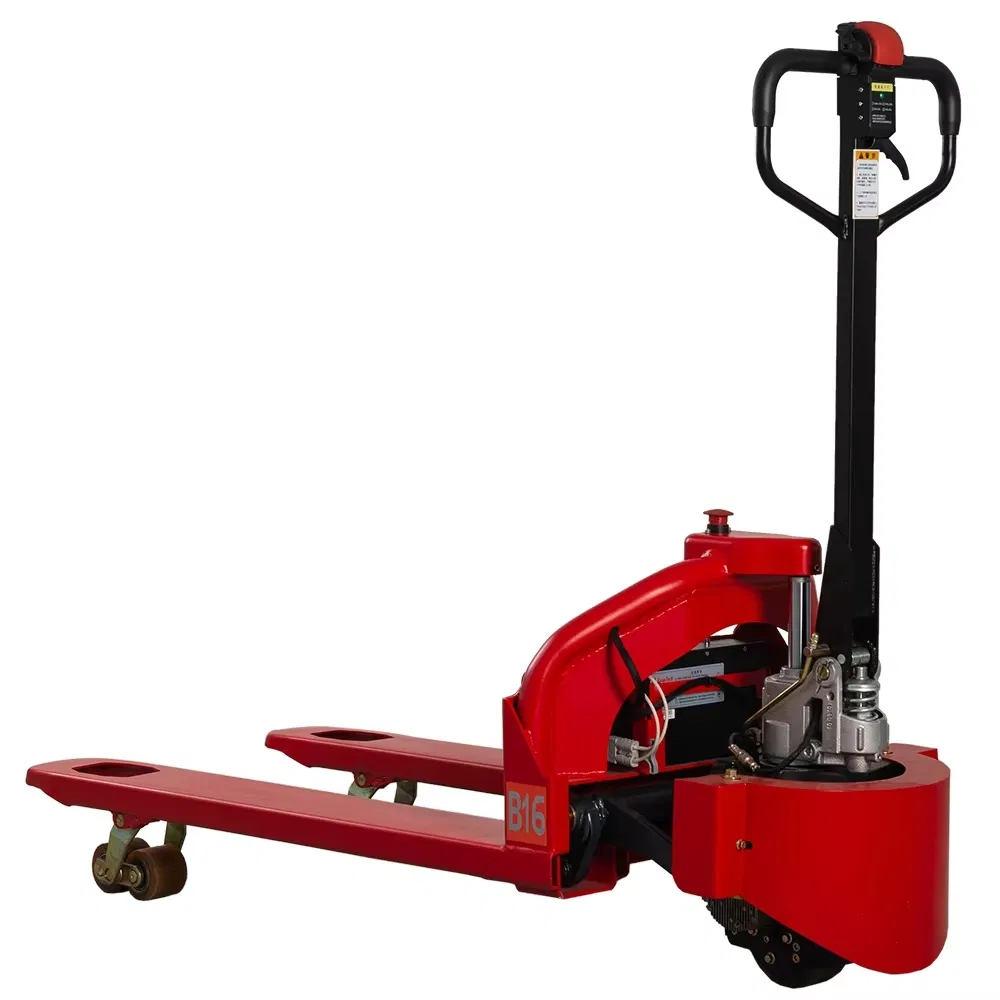

Semi-electric pallet truck, also known as industrial vehicles, are trackless vehicles for short-distance handling, loading and unloading and stacking of goods within enterprises. This kind of vehicle is suitable for loading, unloading and handling places such as stations, wharfs, airports, warehouses, construction sites and freight yards.
| Min. Fork height | mm | 85 |
| Max. Fork Height | mm | 195 |
| Width of fork | mm | 685 |
| Fork Length | mm | 1150 |
| Total Length | mm | 1605 |
| Min. Turning Radius | mm | 1460 |
| Driving Motor | KW | DC/0.65 |
| Battery Capacity | V/Ah | 48V/15Ah |
| Brake | - | Mechanical braking |
Main Features
🚩 1. The cost of direct handling can be reduced by more than 25% compared with manual handling.
🚩 2. The unit of goods to be transported can be enlarged and the time to be transported can be saved.
🚩 3. Reduce the damage of moving articles and improve the success rate of products.
🚩 4. Increase the height of the stack and improve the utilization rate of the stack space.
🚩 5. Reduce labor intensity and improve working conditions.
🚩 6. Good maneuverability, diversified working performance, reduce investment.

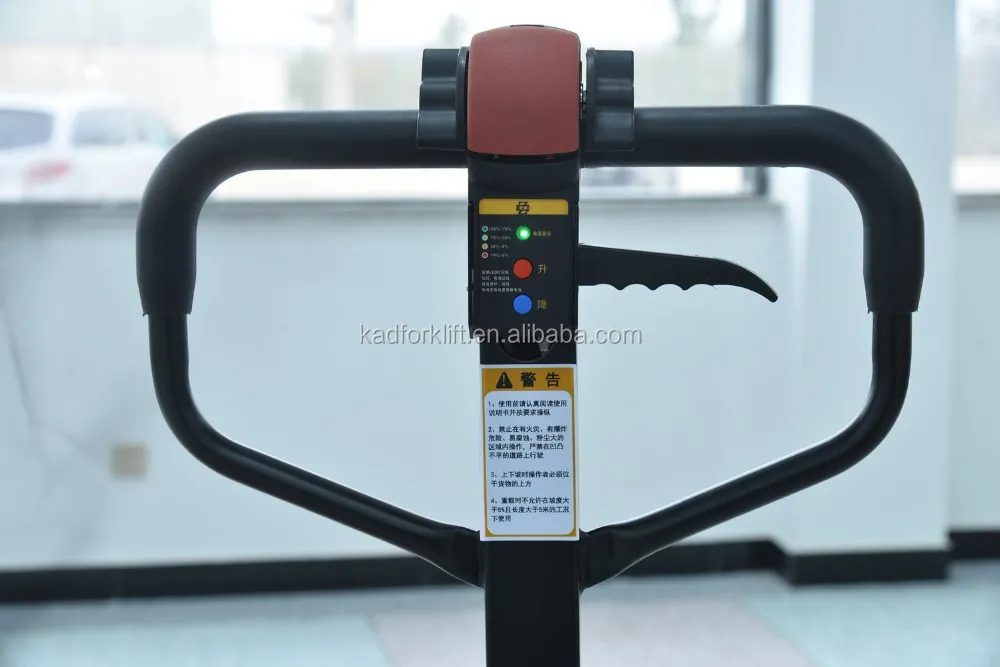

Easy operated control handle
Motor plus mechanical combined braking makes braking safer and reliable. Can continue to operate as a manual carrier when no electricity.
The whole vehicle has only two power lines which are not easy to be damaged, avoiding the problem of high incidence of faults.
Frequently Asked Questions
❓ Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
❓ Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you photos of products and packages before balance payment.
❓ Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
❓ Q4. How about your delivery time?
A: Generally, 5 to 30 days after receiving deposit depending on order items and quantity.
❓ Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
❓ Q6. How do you ensure long-term business relationships?
A: We maintain high quality and competitive prices while respecting every customer as a friend.
