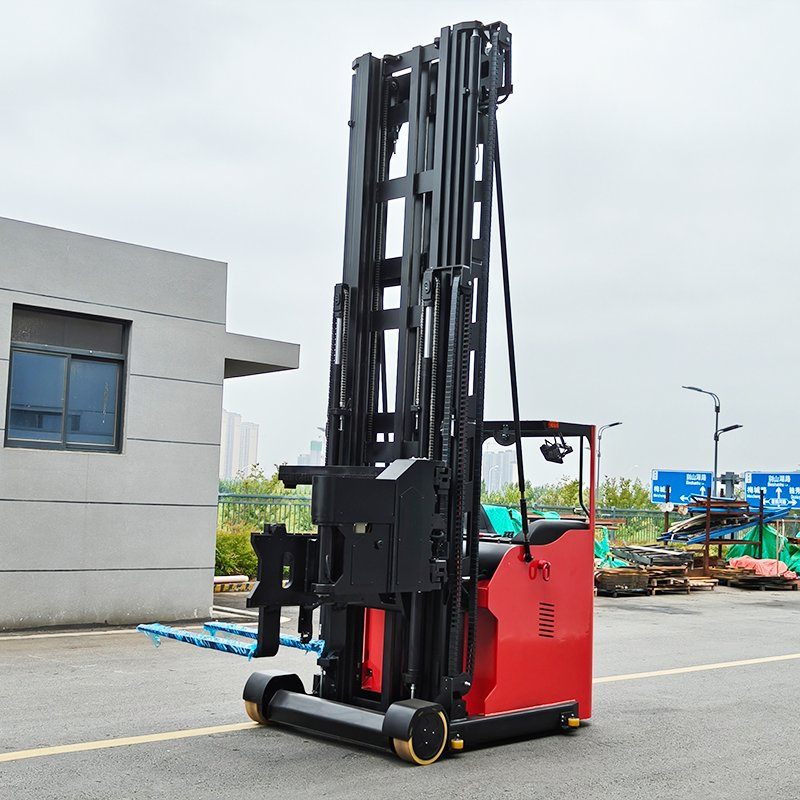

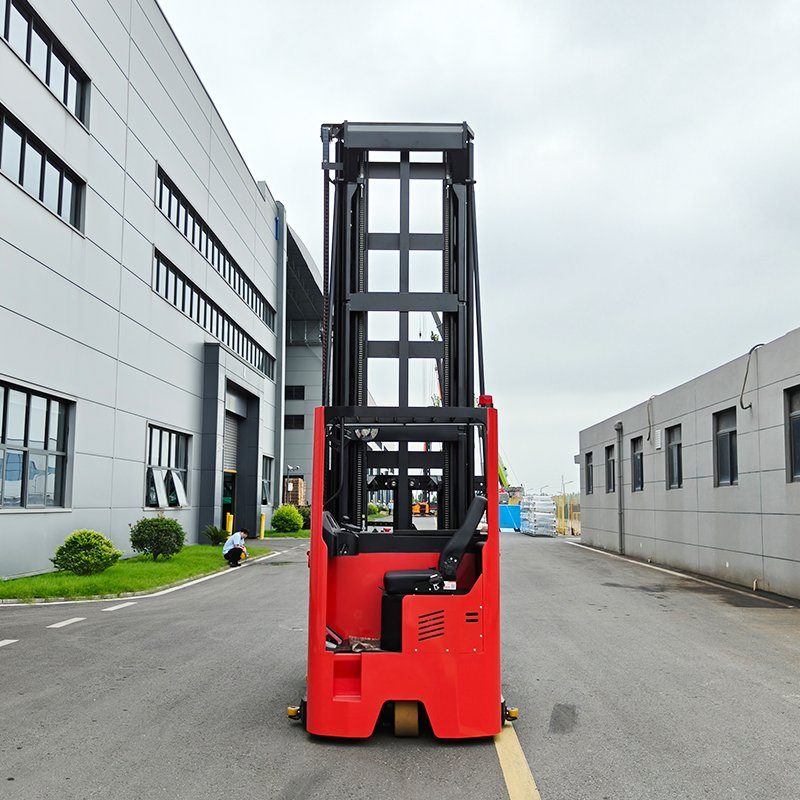

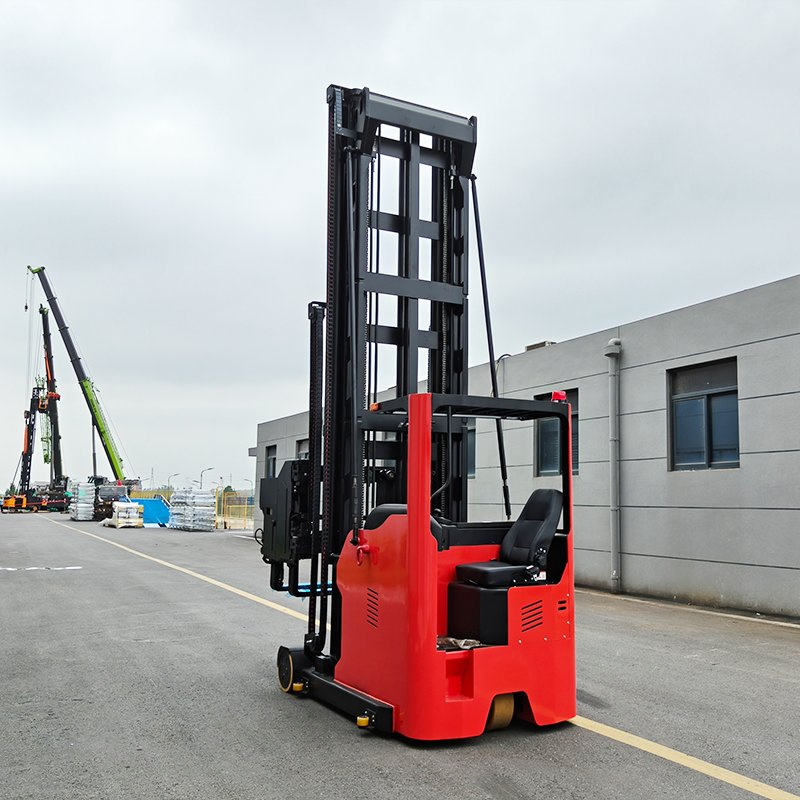

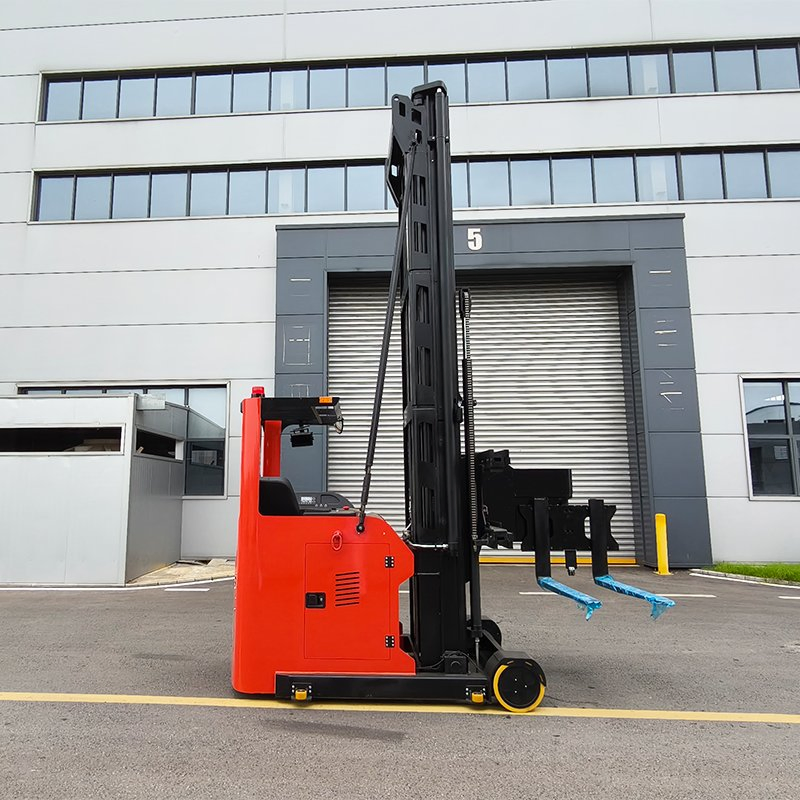

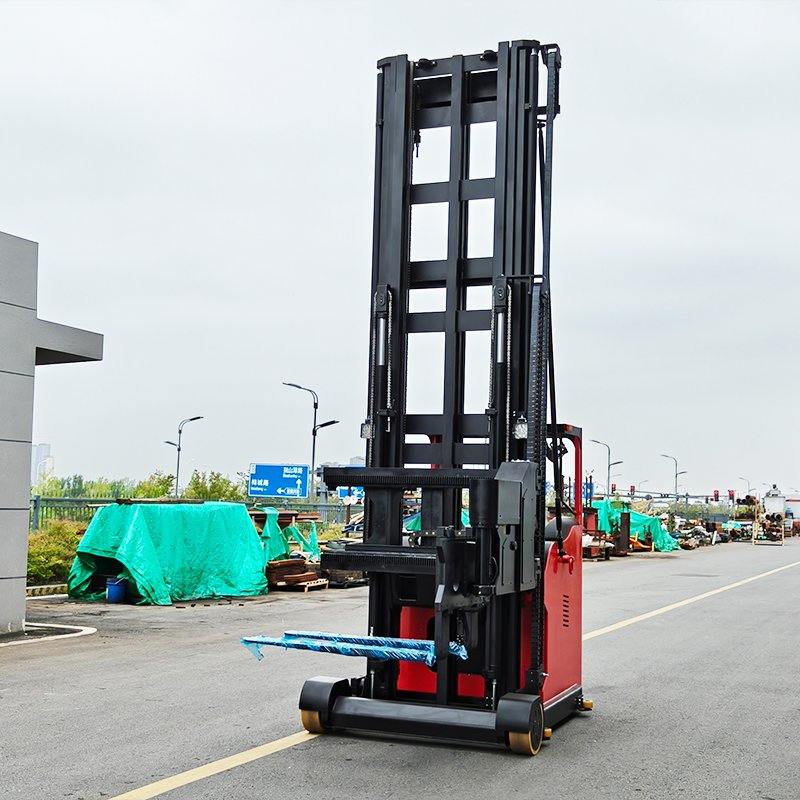

High Precision Multi Directional Electric Stacker Factory 3 Way Electric Forklift

Customization: Available
After-sales Service: 7*24-Hour Technical Support
Warranty: 1 Years

Product Description

📦 Basic Information
Type
Reach Forklift
Power
AC Motor
Load Capacity
1.6t
Fuel
Electric
Lift Height
3000-12000mm
Turning Radius
2075mm
Fork Size
1200*125*50mm
Wheelbase
1750mm
🚜 Product Description

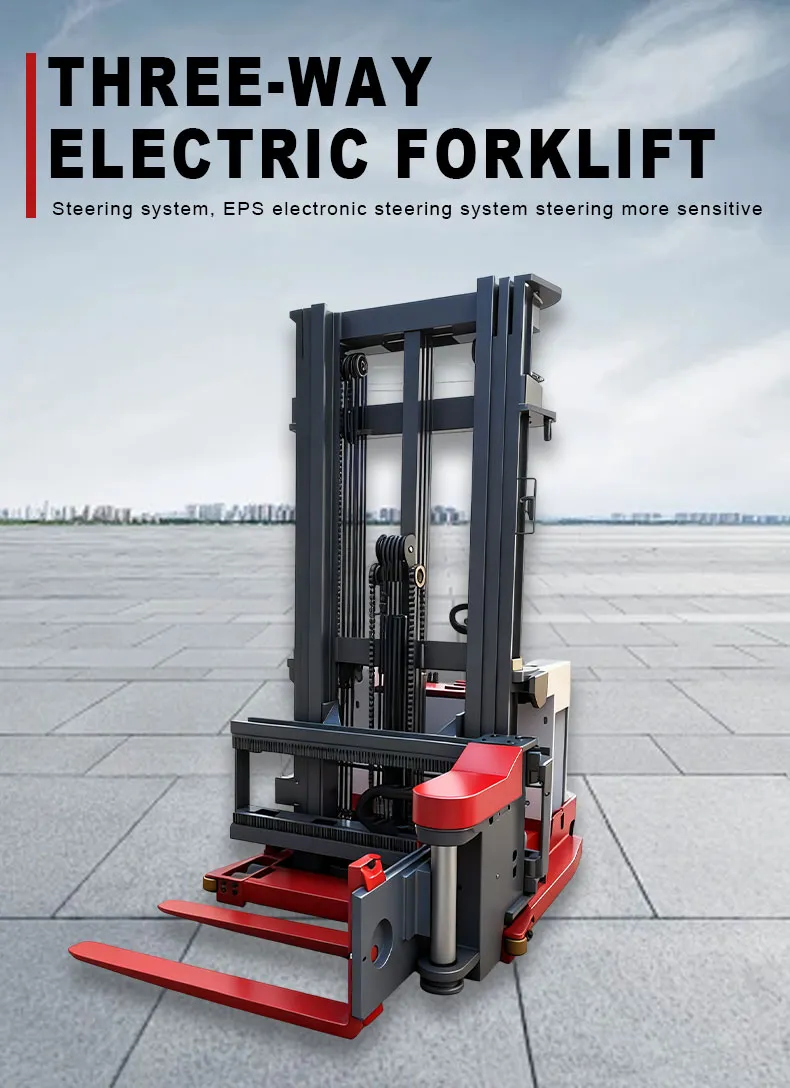

Electric Forklift Banner
3 Ways Electric Forklift
A Tri-lateral Stacker, also known as a Very Narrow Aisle (VNA) Forklift, is an electric-powered industrial vehicle designed for high-density storage operations. Its key feature is the ability to move forward, as well as lift and place loads to the left and right sides, all within exceptionally narrow aisles. This unique capability maximizes the utilization of both warehouse height and width.
1. Maximized Storage Density By operating in very narrow aisles, these trucks dramatically reduce the space needed for alleys, allowing for more storage racks and effective use of valuable warehouse space.
2. Unmatched Operational Efficiency Equipped with the MonoLift mast for stability at high elevations, allowing for faster traveling, lifting, and load handling.
3. Eco-friendly Energy Regeneration The innovative system charges the battery during lowering and braking, leading to longer operation times and lower energy costs.
4. Operator Comfort & Safety Ergonomic design with height-adjustable swivel seat, intuitive thumb controls, and a wide field of vision to reduce fatigue.
📊 Specifications
Parameter Unit Value
Model-CDME16-60S
Power Type-Electric
Operation Type-Sit Down
Load CapacityQ(kg)1600
Load CenterC(mm)600
Mast Lowered Heighth1(mm)3290
Lift Heighth3(mm)6000
Overall Widthb1(mm)1550
Aisle WidthAst(mm)1600
Min. Turning RadiusWa(mm)2075
Travel Speed (Laden)km/h7
Battery CapacityV/Ah48V/400Ah

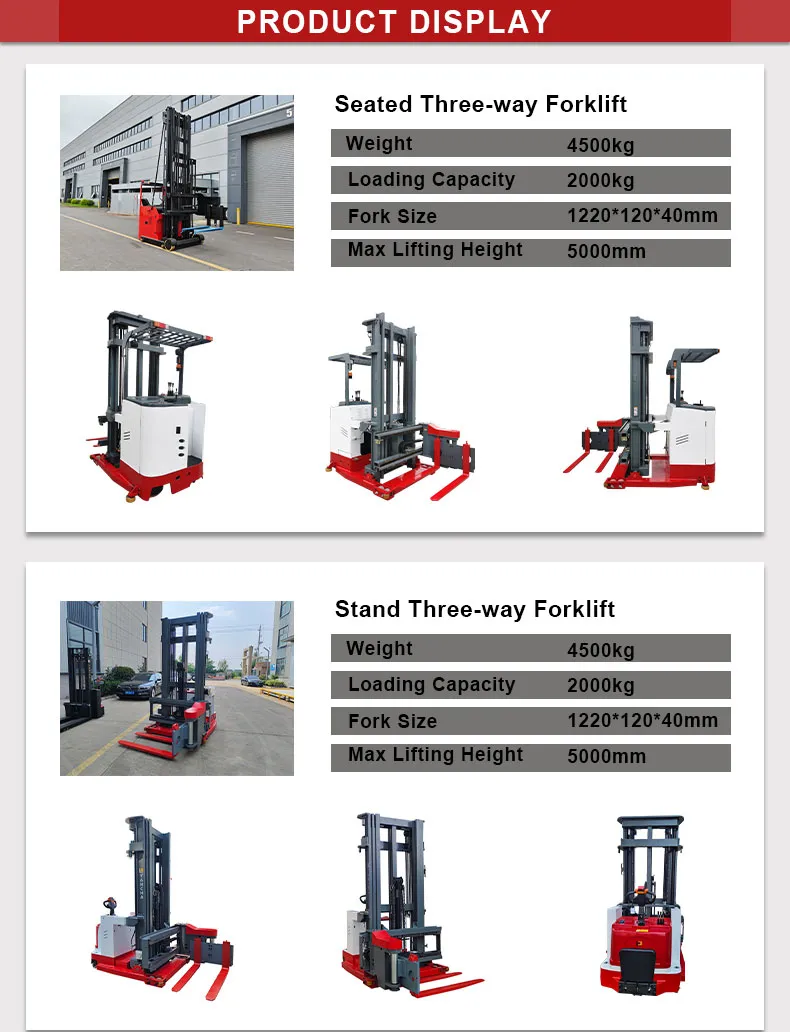

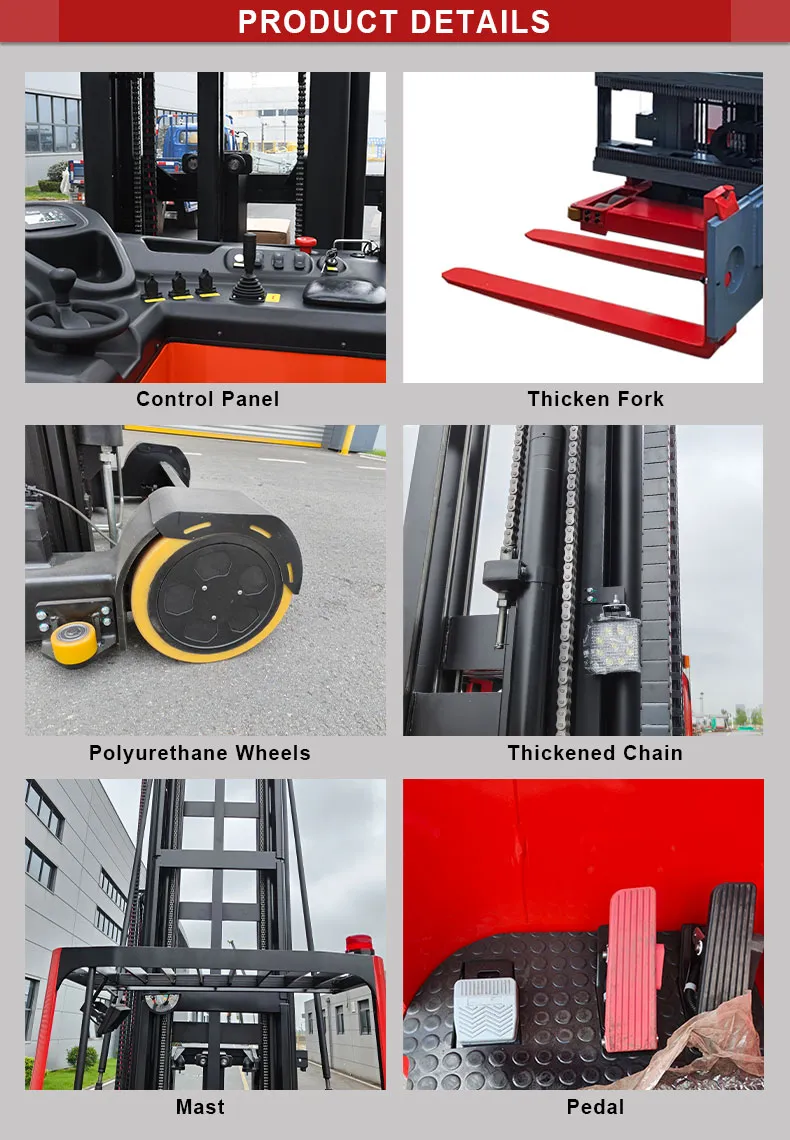

Forklift Dimensions Mast Details Control System
🏗️ Applications
  • Construction: Transporting building materials like lumber, steel, and piping.
  • Agriculture: Handling hay bales, fertilizer bags, and heavy equipment.
  • Lumber Yards: Moving logs, timber, and processed wood products.
  • Infrastructure: Supporting road building, bridge construction, and large-scale landscaping.

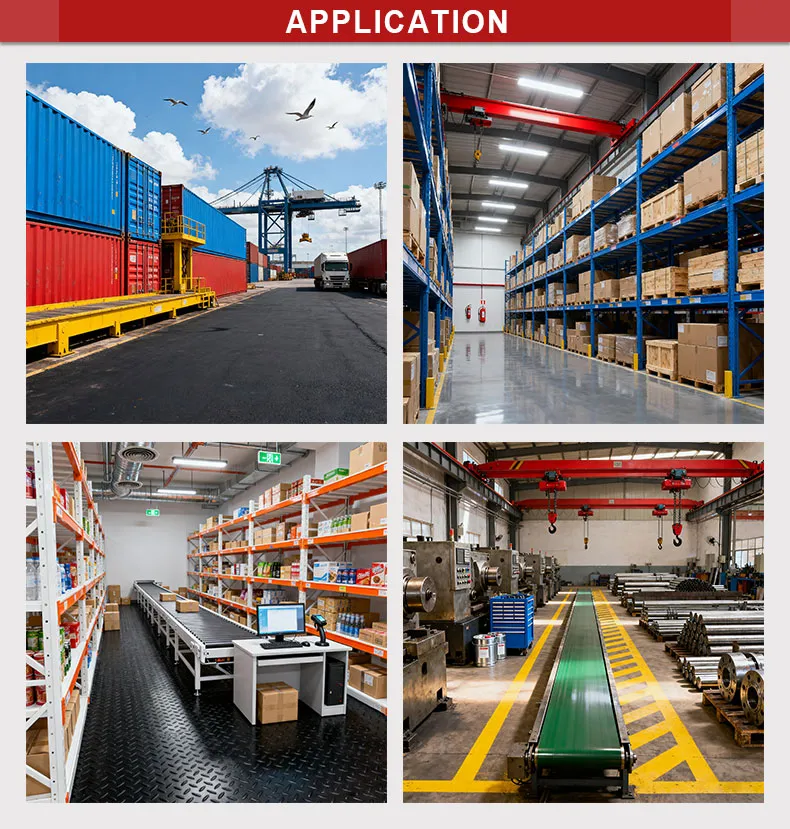

Forklift Application
🚢 Packing & Delivery
Package Size
335cm * 155cm * 329cm
Gross Weight
7040.00kg
Package Type
Wooden Case
Packing Process
🏭 Factory & Production

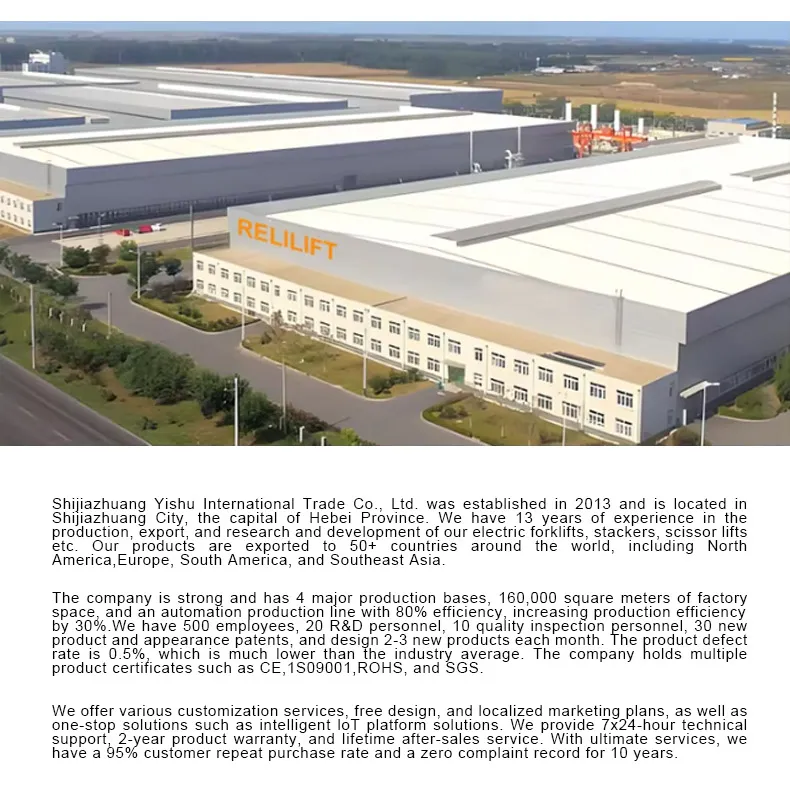

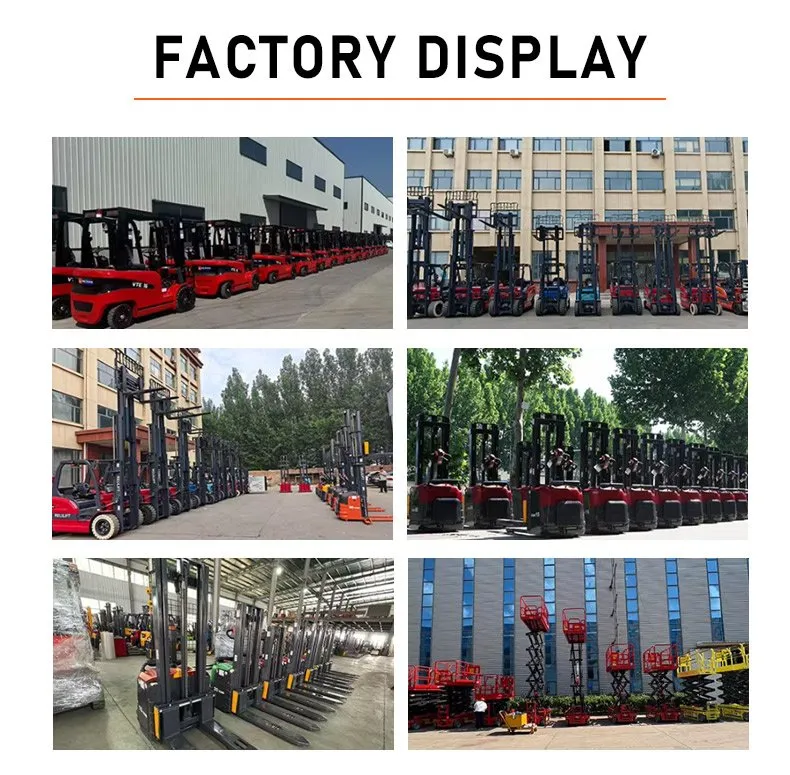

Factory View 1 Factory View 2 Production Line
Quality Control Testing Area
❓ Frequently Asked Questions
Q1: What is the typical lead time for a stacker?
Lead time for standard configuration stock units is usually 1-2 weeks. For custom configurations, it is approximately 4-8 weeks depending on complexity.
Q2: How long is the delivery time if the goods are not in stock?
Generally, it is 5-10 days if in stock, and 15-20 days if the goods are not in stock, depending on the order quantity.
Q3: What are your standard terms of payment?
Our standard payment terms are 50% T/T in advance, with the remaining balance due before shipment.
Q4: Do you provide installation and after-sales support?
Yes, we offer remote installation guidance and free accessory delivery within the scope of the contract.
Q5: What is the warranty period for the forklift?
Our stackers come with a standard one-year warranty covering major components.
Q6: What safety features are included?
Units can be equipped with OPS/FOPS certified overhead guards, backup cameras, speed limiters, and blue safety lights for enhanced workspace safety.
