| Model | CCD-3C | CCD-4C | CCD-5A | CCD-6A | CCD-7A |
|---|---|---|---|---|---|
| Carrying capacity | 3000kg | 4000kg | 5000kg | 6000kg | 7000kg |
| Max.lift height | 3.5m | 3.5m | 3.55m | 3.55m | 3.0m |
| Max.travel speed | 13/15km/h | 13/15km/h | 14km/h | 14kw/h | 14km/h |
| Min.turning radius | 4.3m | 4.3m | 4.45m | 4.45m | 4.45m |
| Gradeability | 13% | 13% | 13% | 12% | 10% |
| Overall Width | 2.03m | 2.03m | 2.1m | 2.1m | 2.1m |
| Battery Volts AH | 80V/540Ah | 80V/600Ah | 80V/800Ah | 80V/800Ah | 80V/800Ah |

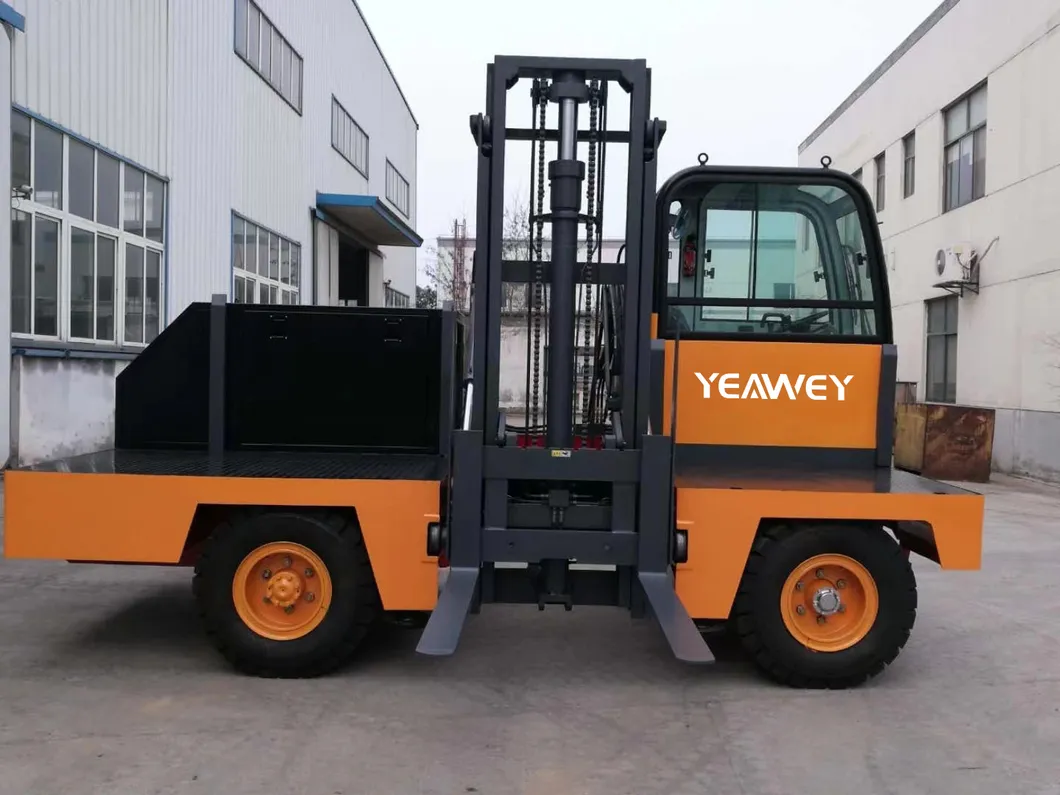

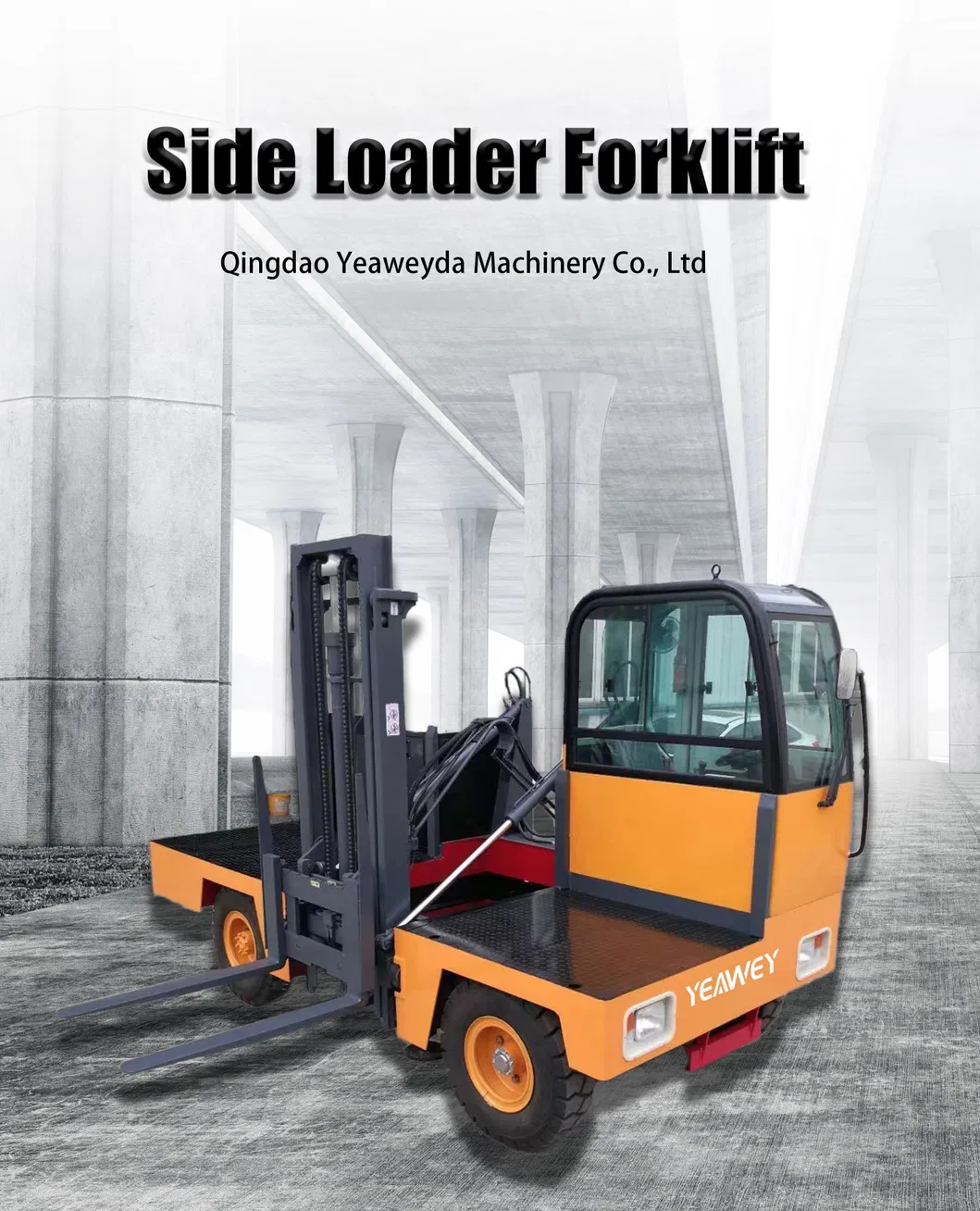

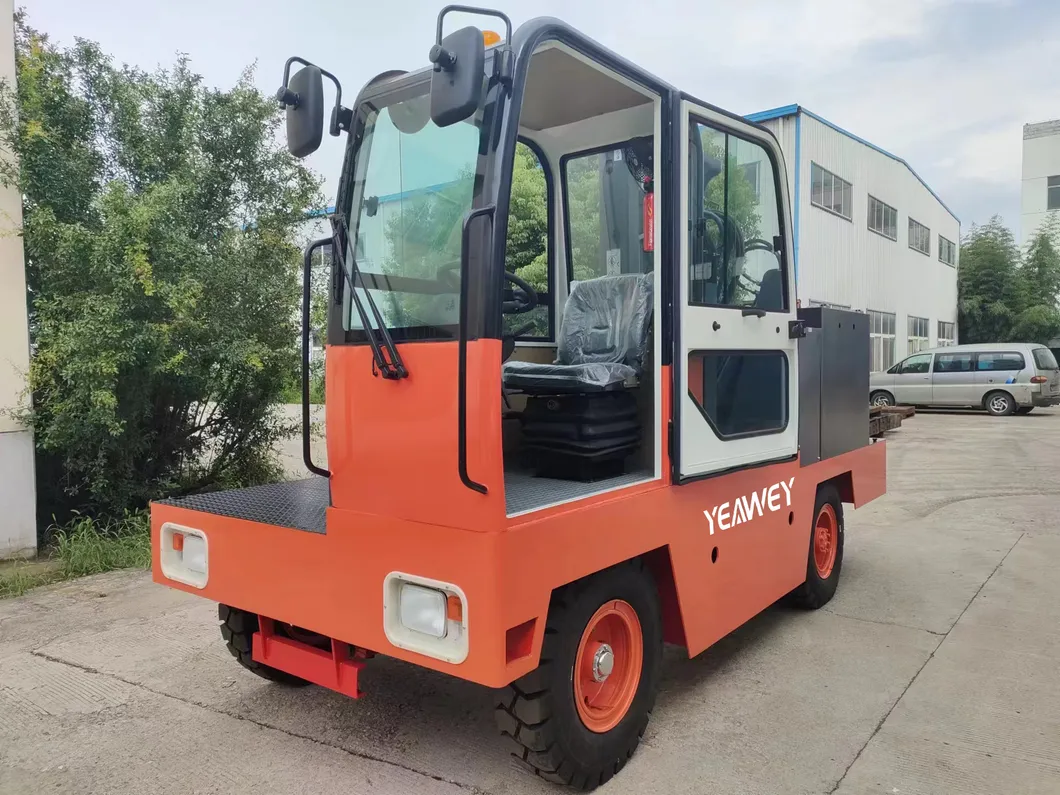

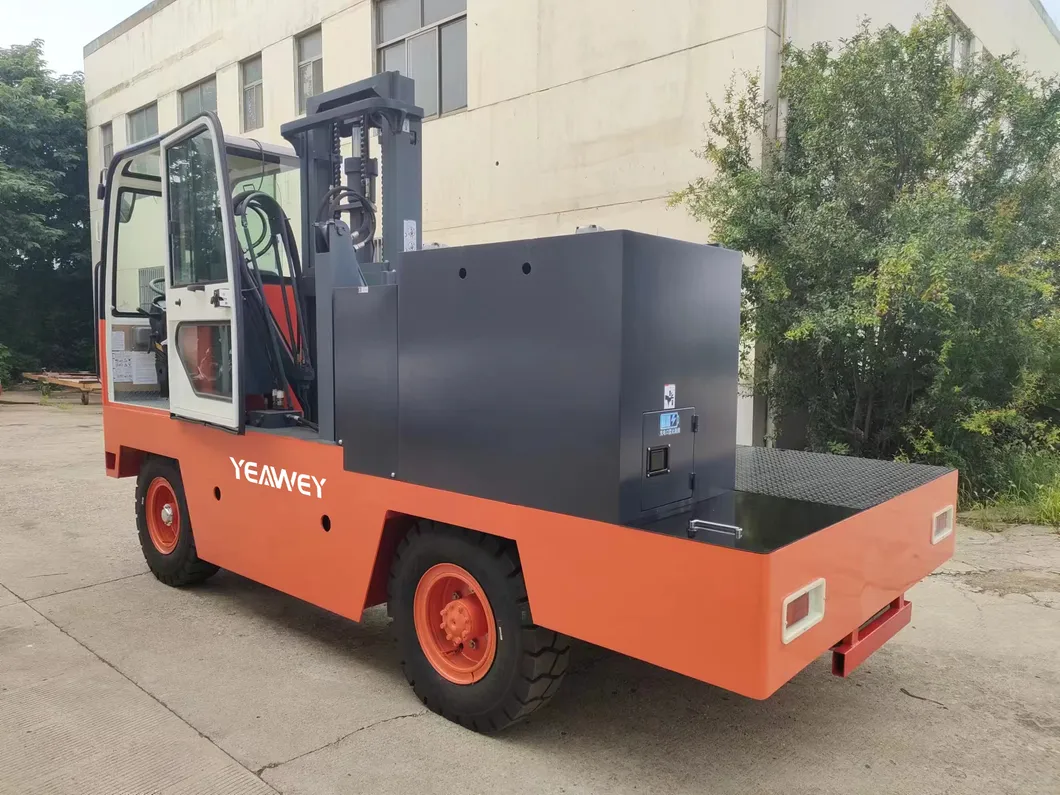

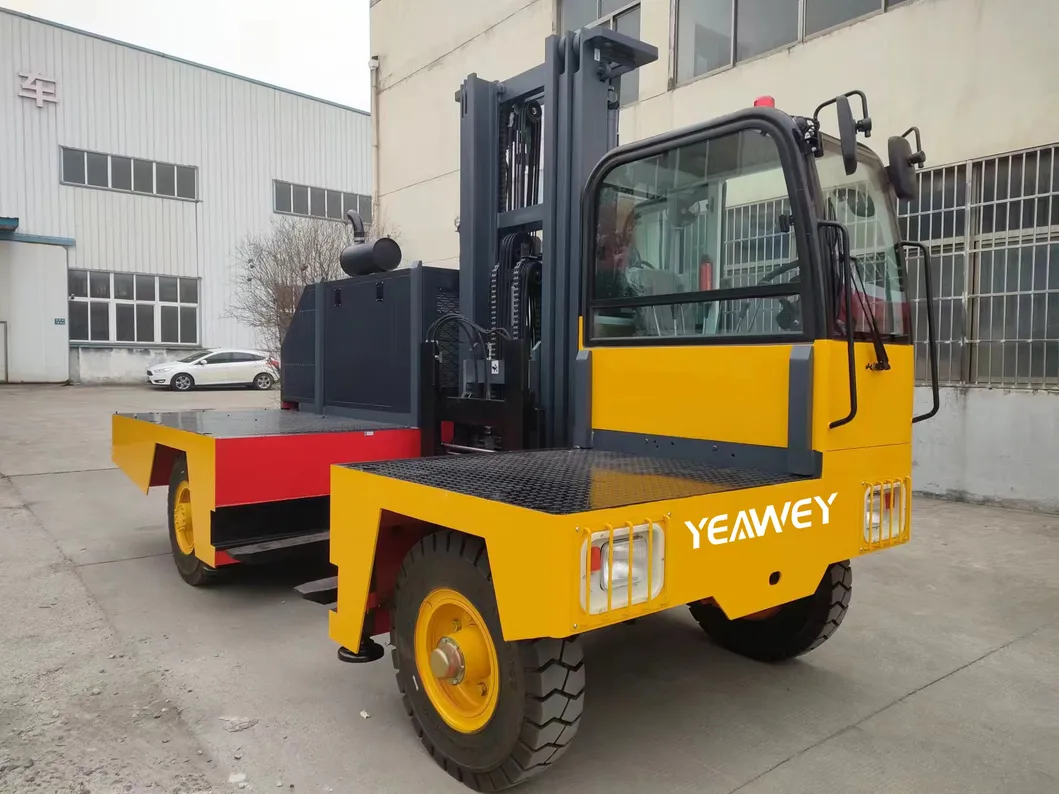

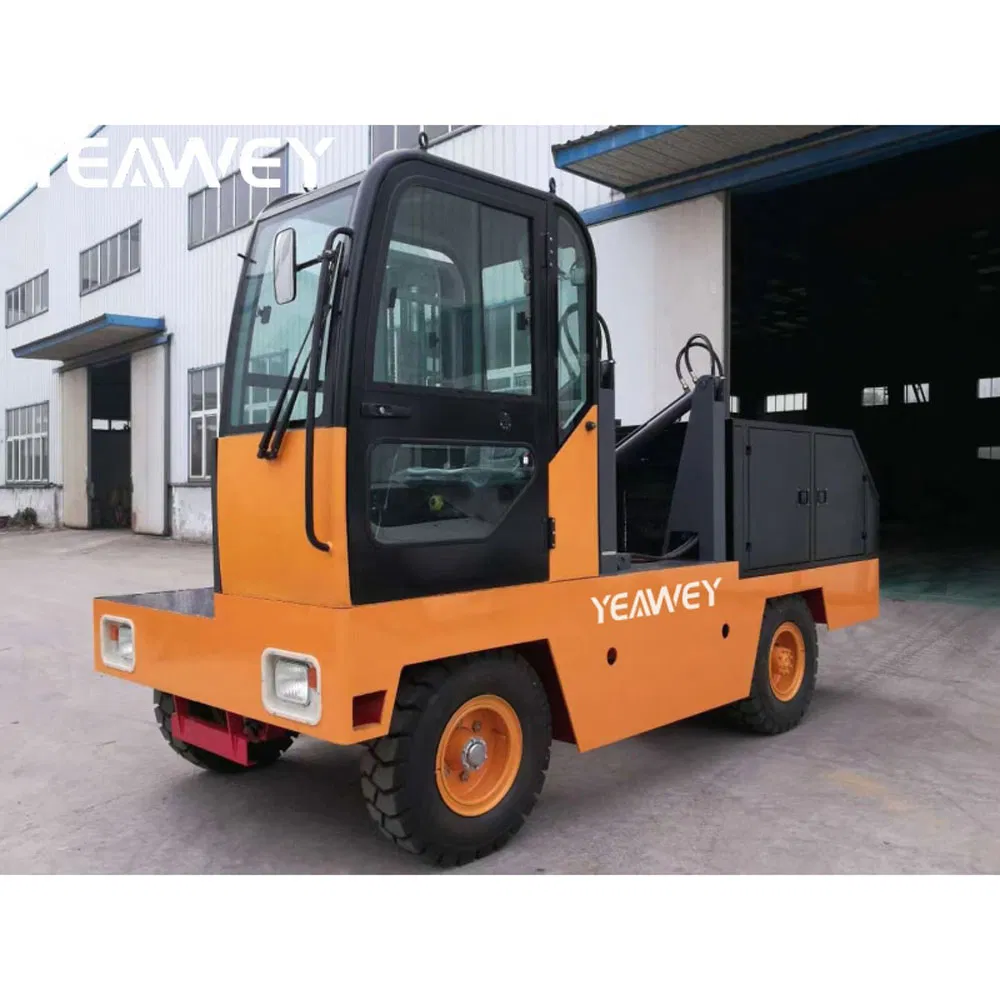

Side Loader Forklift is a specialized material handling solution where the forks are mounted on the side of the body. Besides standard lifting and tilting, the forks can traverse to the right side of the truck frame and retract, allowing for efficient handling of long cargoes in confined spaces.
This design significantly reduces the required aisle width, making it perfect for handling timber, section steels, line poles, cement tubes, and other bulky or over-length materials. It is widely used in forestry, railway stations, oilfields, ports, and construction sites.

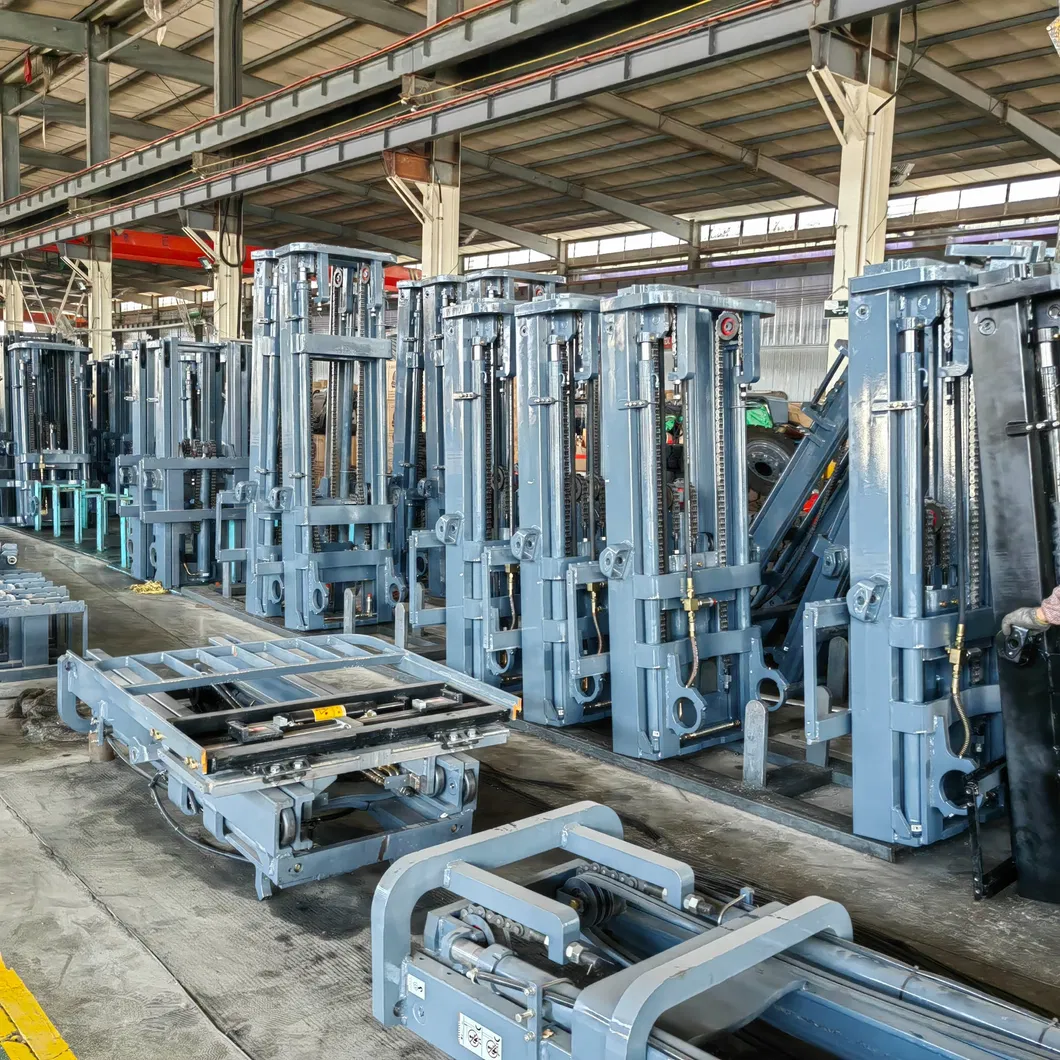

We focus on the research, development, production, and sales of high-quality material handling equipment ranging from 1.5 to 15 tons. Our expert team provides professional suggestions on product selection, maintenance, and operator training to ensure maximum efficiency in your specific working conditions.
