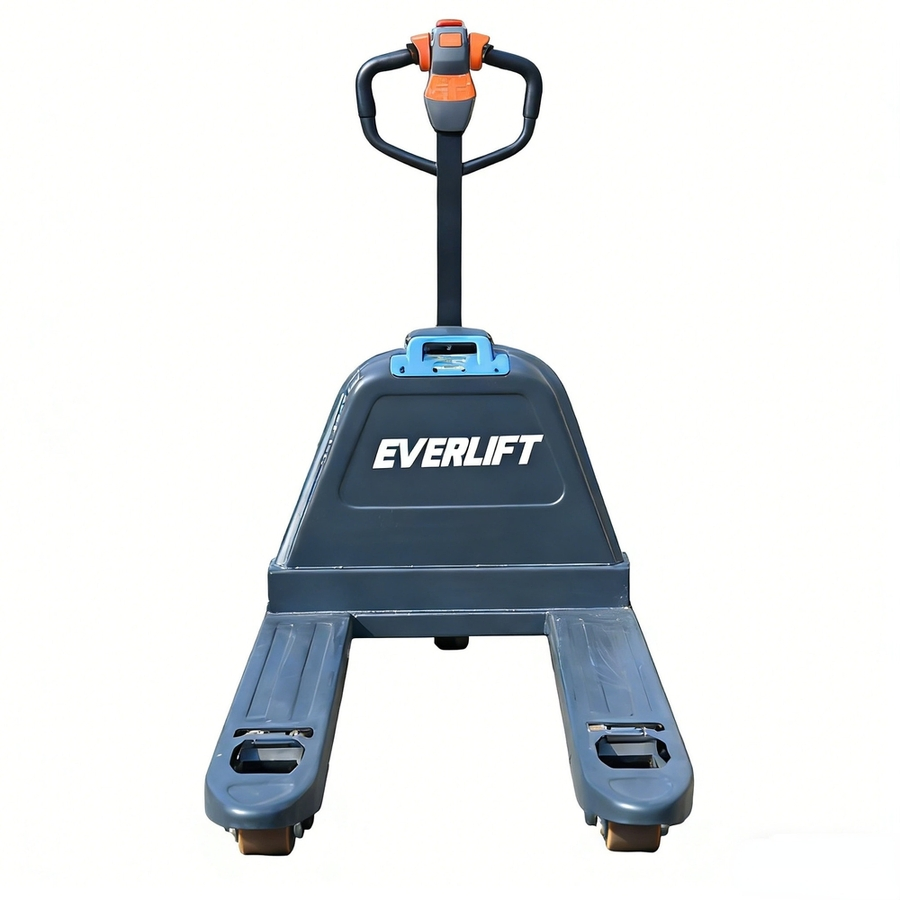

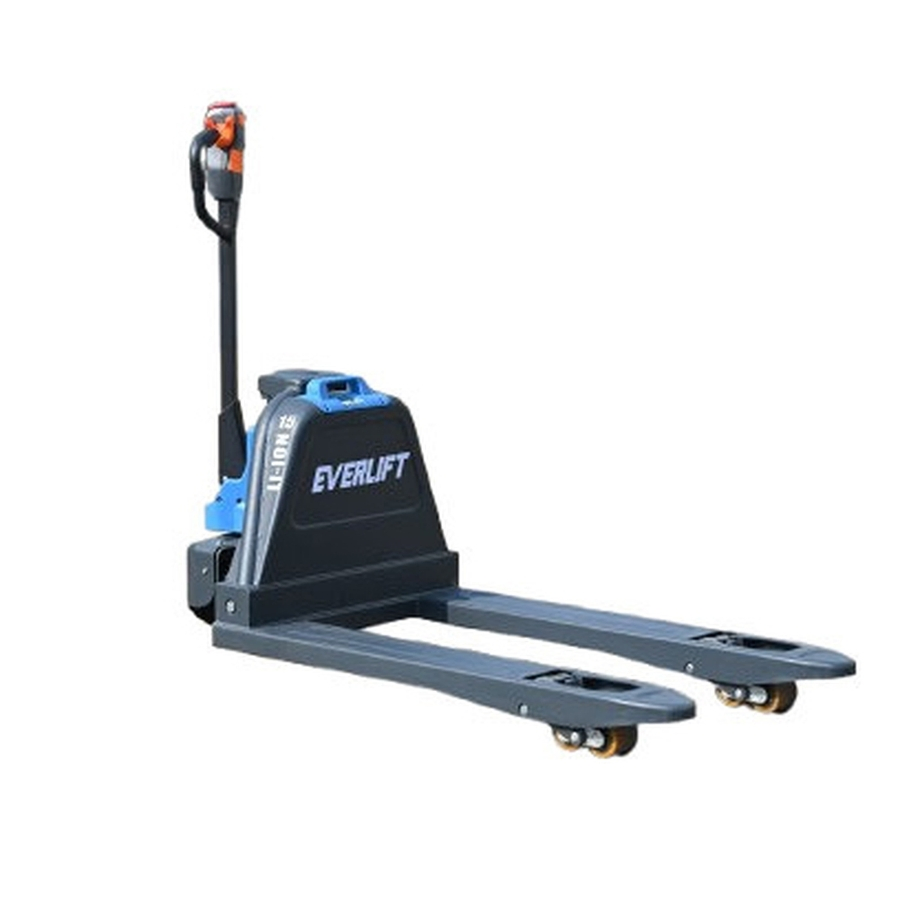

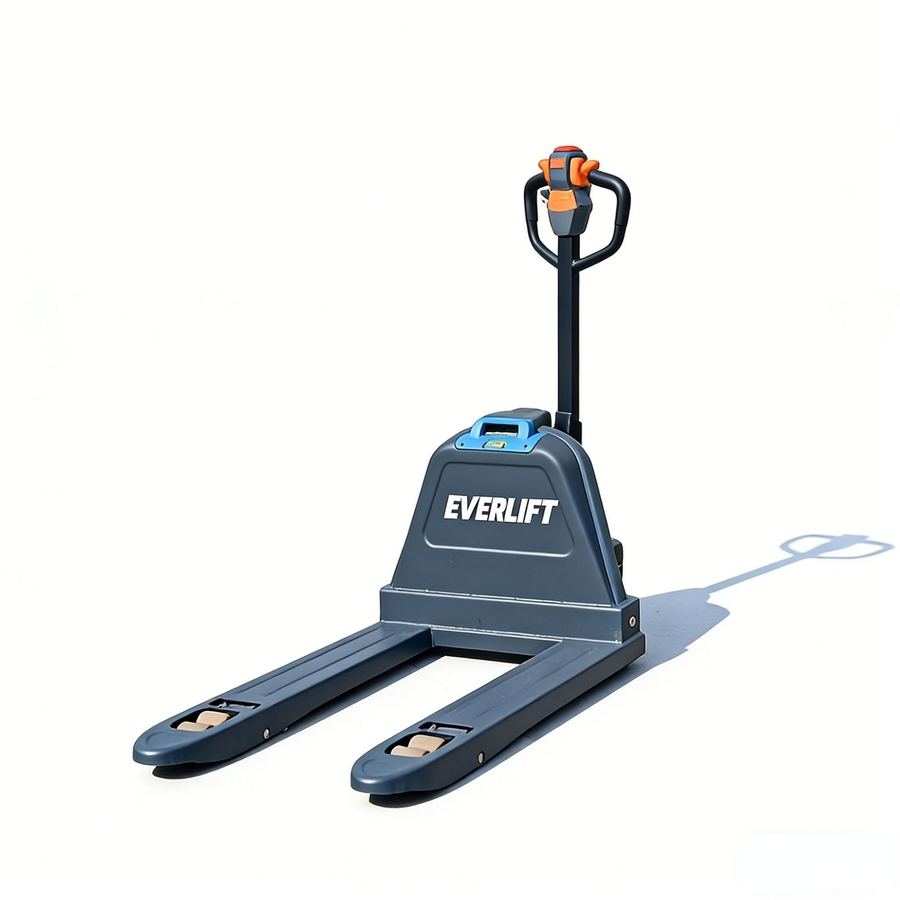

Heavy Duty Industrial Electric Pallet Jack for Warehouse Material Handling Operations

Basic Information

Model NO.	ELEP-1520 Zli
Type	Powered Pallet Truck
Power	AC Motor
Load Capacity	1500/2000 Kg
Fuel	Electric
Load Center	600mm
Lift Height	200mm
Operating Type	Walkie
Battery	48V/10ah (48V/15ah) Lithium
Motor	DC 0.75kw (Drive) / DC 0.6kw (Lift)
Service Weight	130 Kg
Noise Level	≤70 dB(a)

Product Description

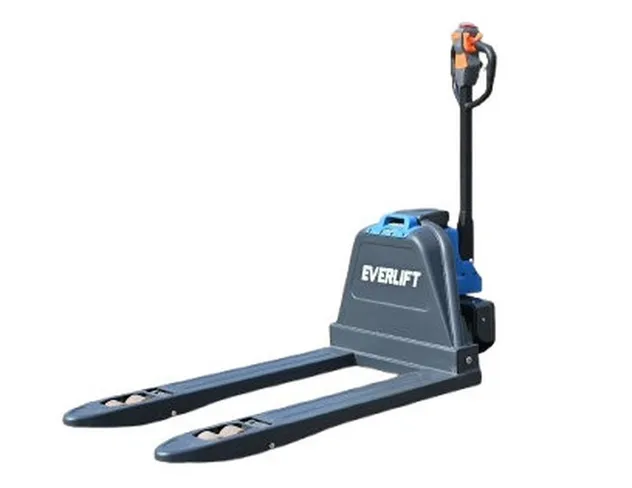

ELECTRIC PALLET JACK

The ELEP-1520 Zli Electric Pallet Jack is a high-efficiency powered pallet truck with a 1500kg-2000kg load capacity, specifically designed for modern warehouse and industrial material handling. Featuring a durable lithium battery, ergonomic walkie controls, and a compact design, this battery-operated jack minimizes operator fatigue while maximizing daily throughput.

Heavy-Duty Performance
Optimized lifting height handles standard pallets efficiently for various commercial warehouse applications.

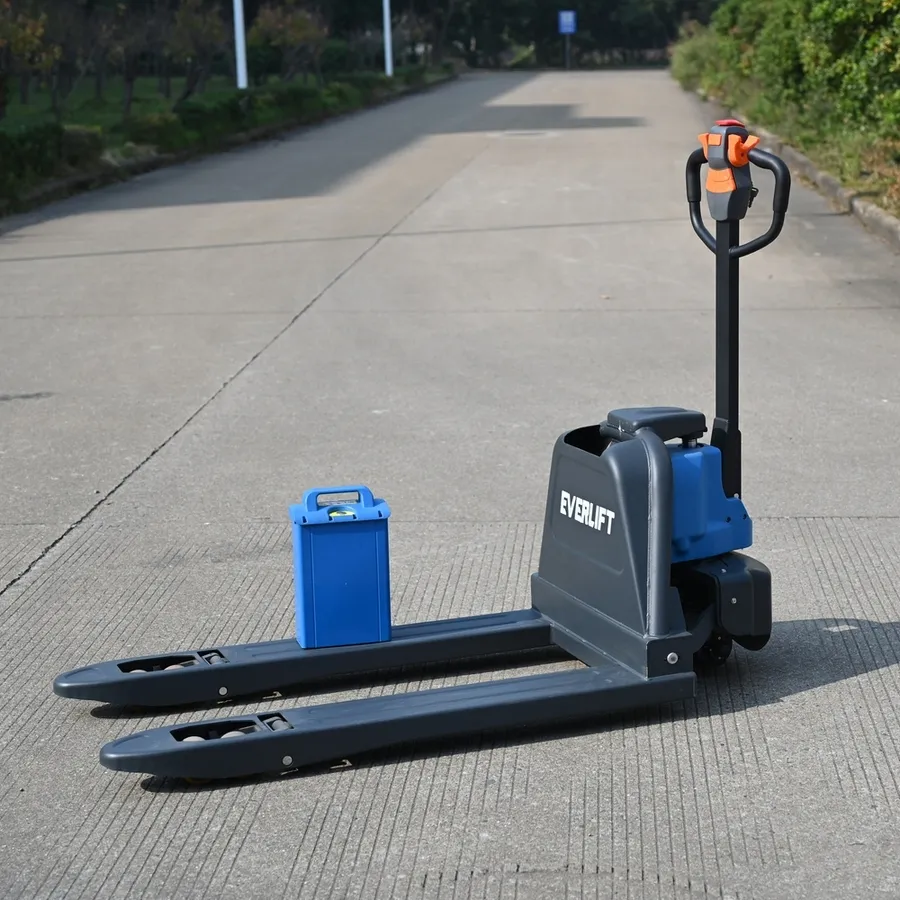

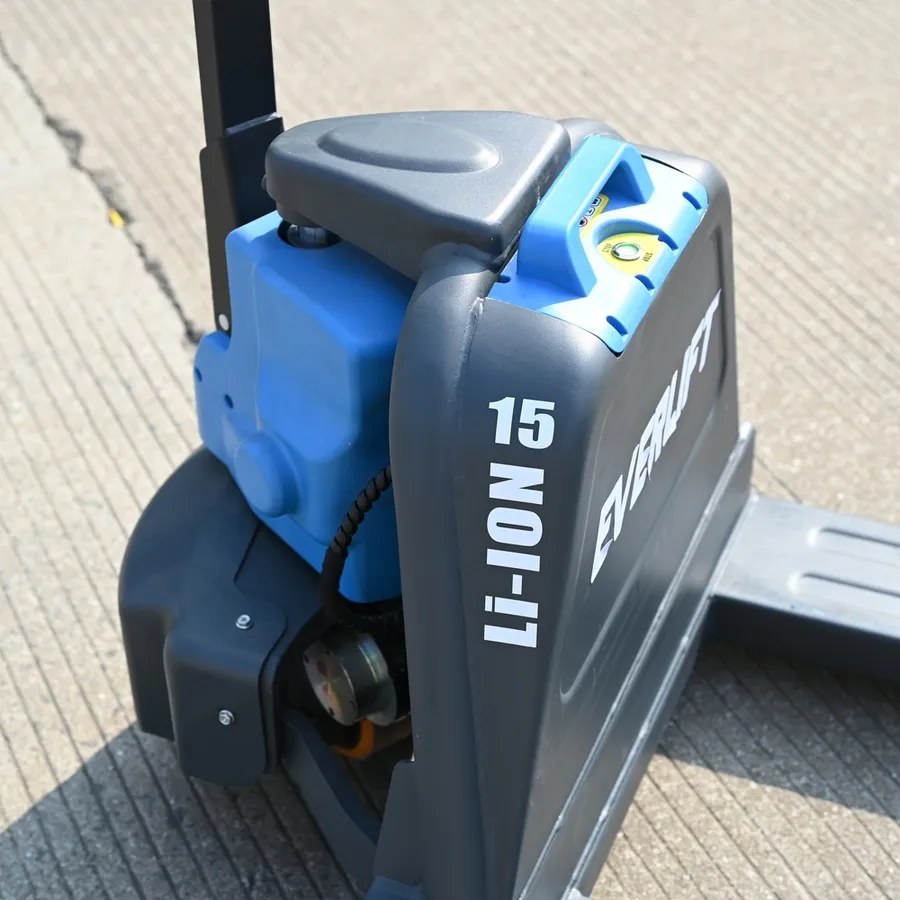

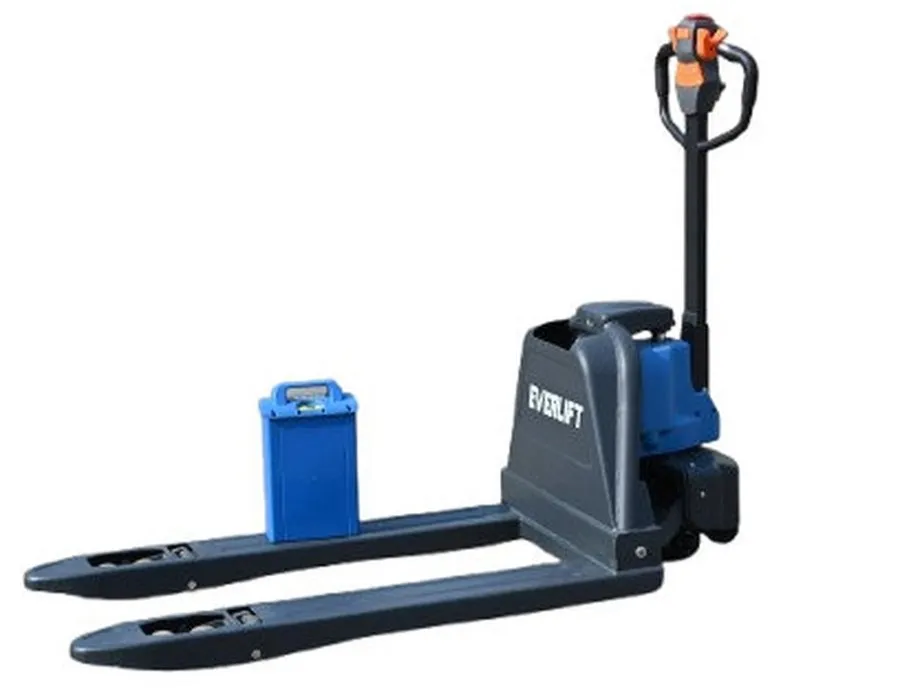

Advanced Lithium System
Provides extended runtime, fast charging, and low maintenance for continuous multi-shift operations.

Ergonomic Handling
Intuitive handle controls ensure comfortable single-hand operation and smooth maneuverability in tight spots.

Technical Parameters

SPECIFICATIONS
Fork Length	1150/1200 mm
Fork Width	160 mm
Max. Lifting Height	200 mm
Min. Turning Radius	1345/1395 mm
Travel Speed	4-4.5 km/h
Material	Steel, Industrial Plastics
Production Capacity	5000 units/Year

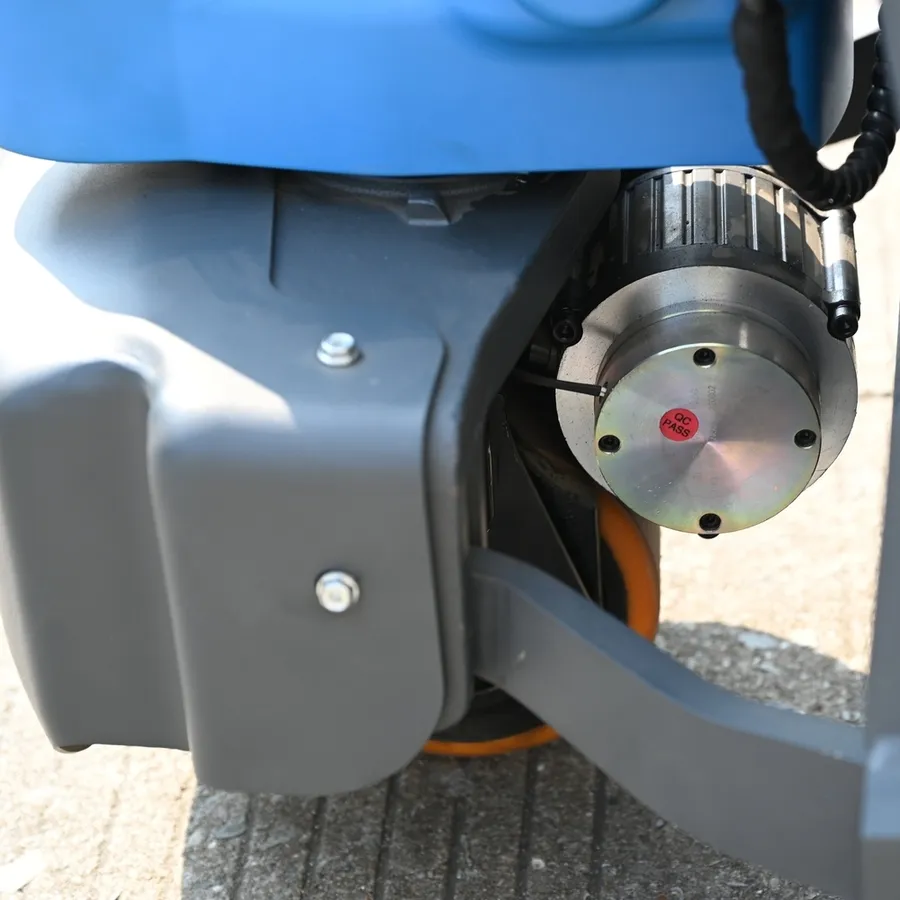

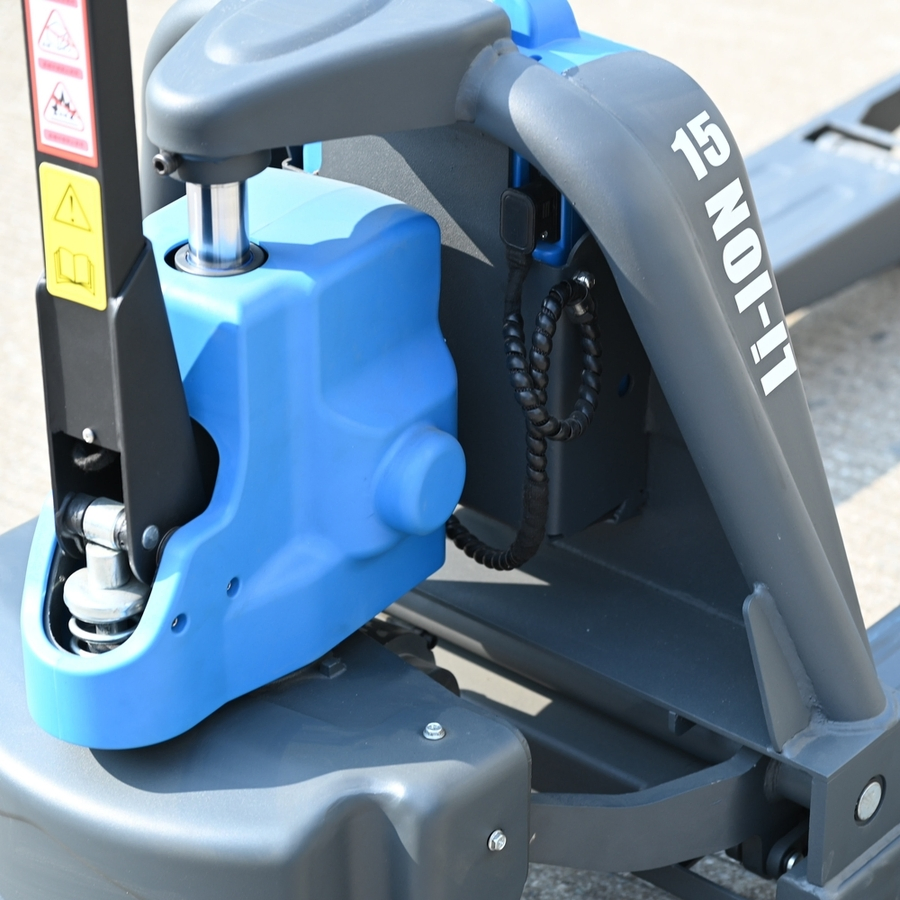

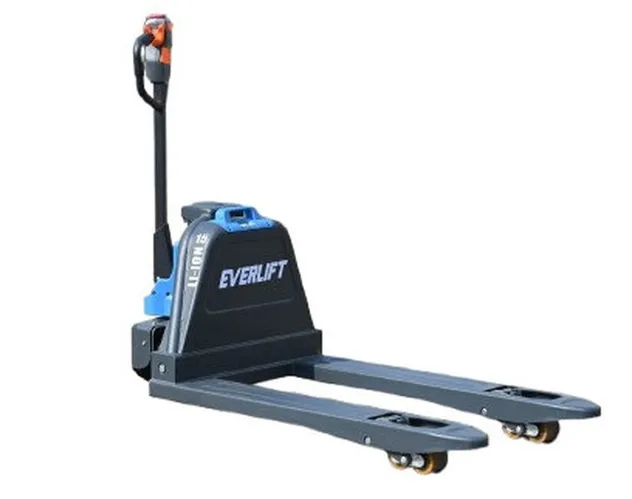

Detailed Photos

SPACE-SAVING OPERATION

With a minimum turning radius of just 1345mm, navigate the tightest warehouse aisles and confined loading areas without difficulty. This compact design allows efficient operation in spaces as narrow as 1843mm.

Frequently Asked Questions

How long is the warranty for this electric pallet jack? We provide a standard warranty of 12 months or 1000 working hours (whichever comes first) for the entire machine starting from the delivery date.

What is the typical production and delivery timeline? Usually, production takes 15-20 days after receiving the advance payment. Standard configurations may be available in stock for immediate dispatch.

How does the lithium battery perform in continuous shifts? The high-capacity 48V lithium system supports opportunity charging, allowing for fast top-ups during breaks to sustain multi-shift operations effectively.

Are OEM or ODM customization options available? Yes, we support both OEM and ODM requests. We can customize technical specifications and features to meet your specific material handling requirements.

Can we request a specific color for our fleet? Absolutely. You can request custom colors for the equipment by providing the corresponding RAL color code.

Is the motor suitable for noise-sensitive environments? Yes, the machine operates at a noise level ≤70 dB(A), making it ideal for retail stores, hospitals, and quiet warehouse zones.
