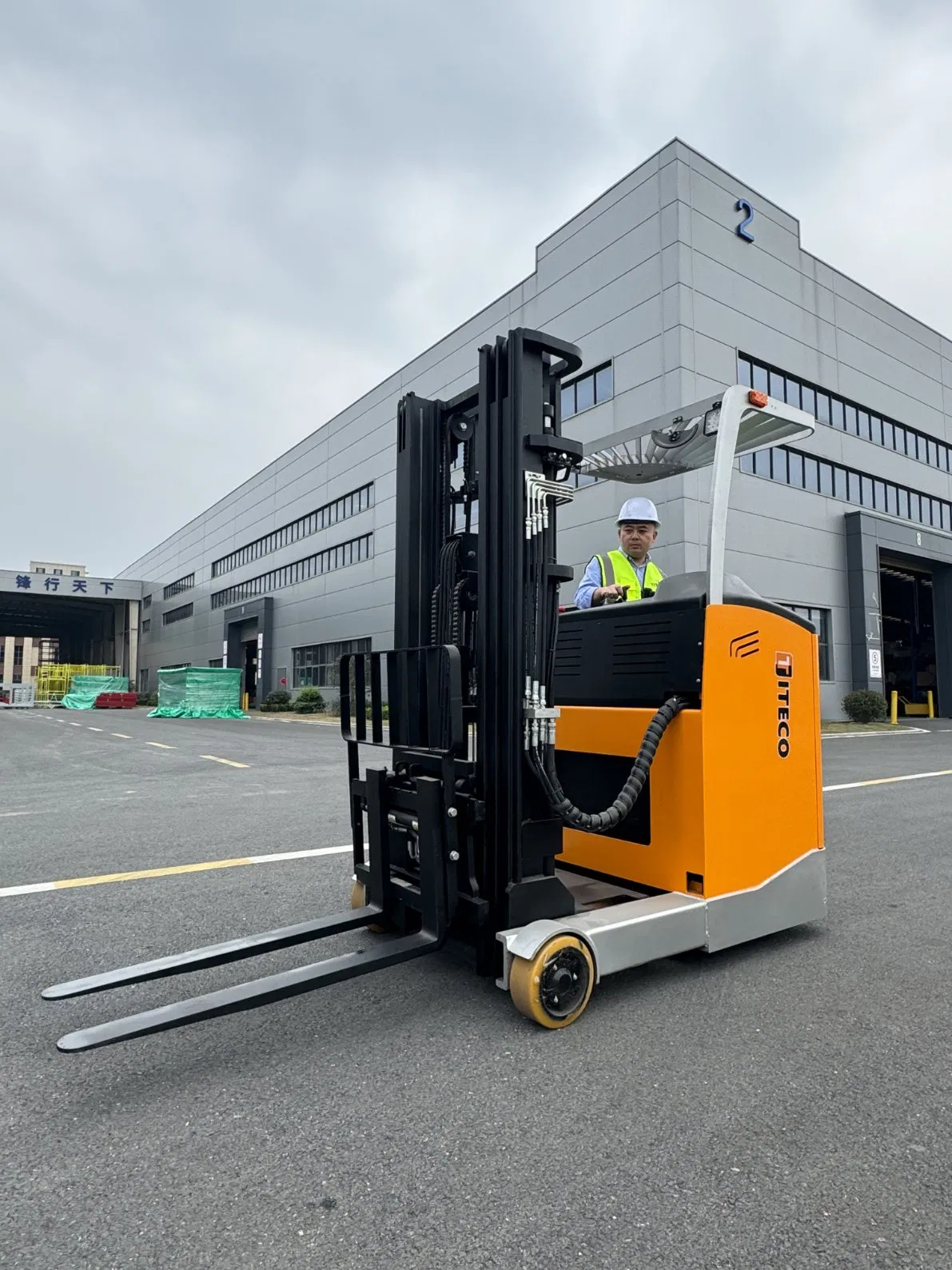

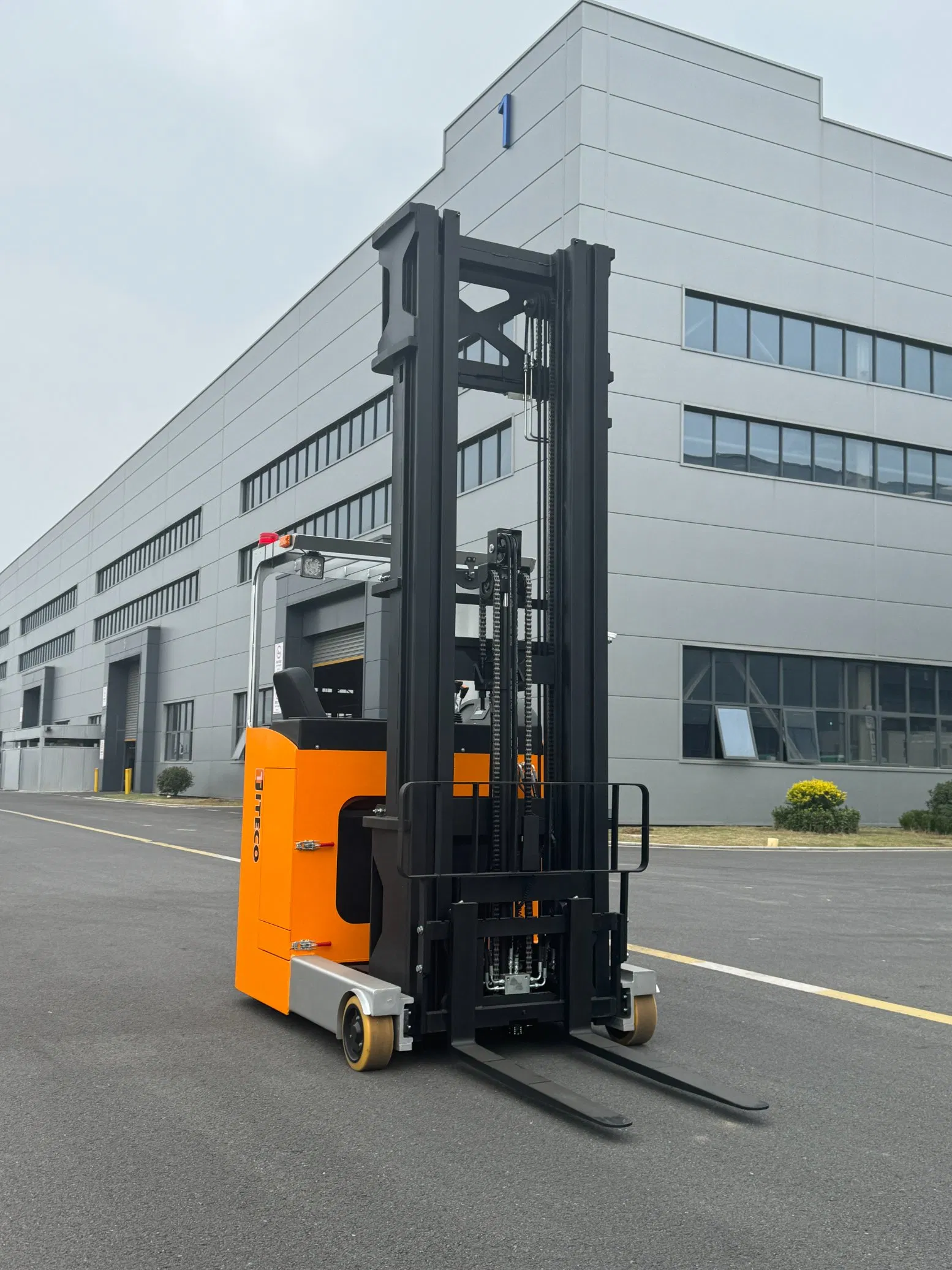

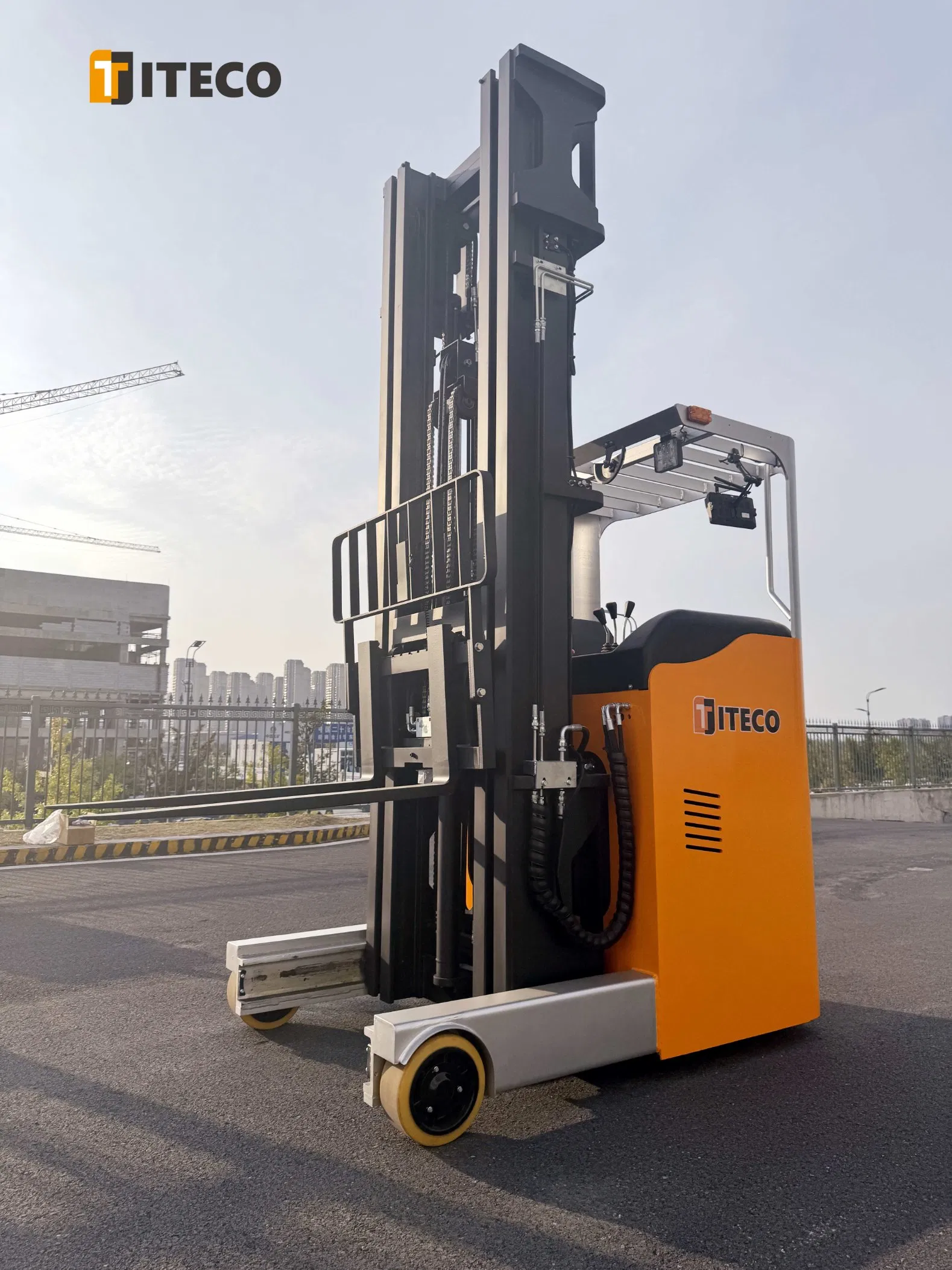

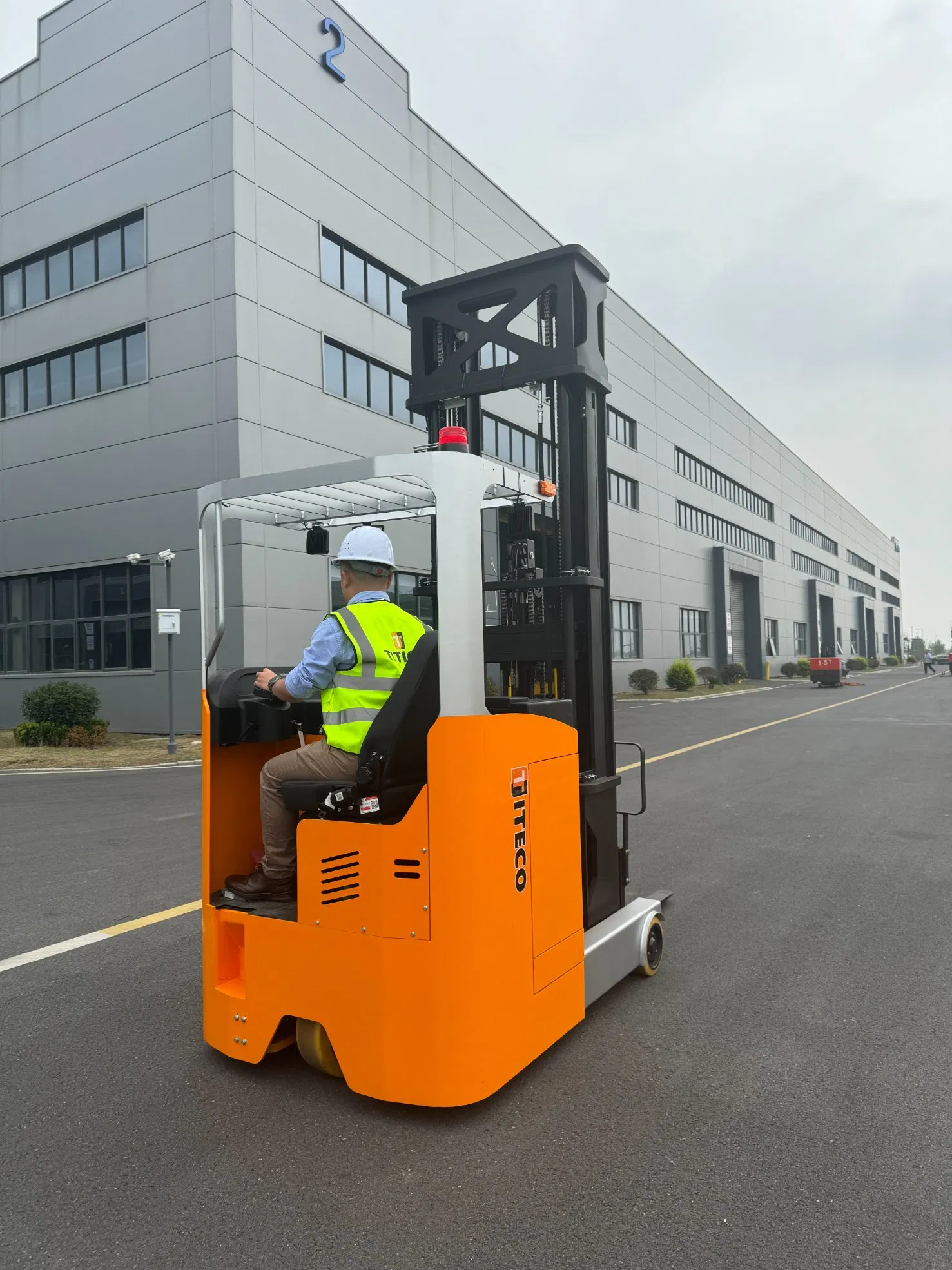

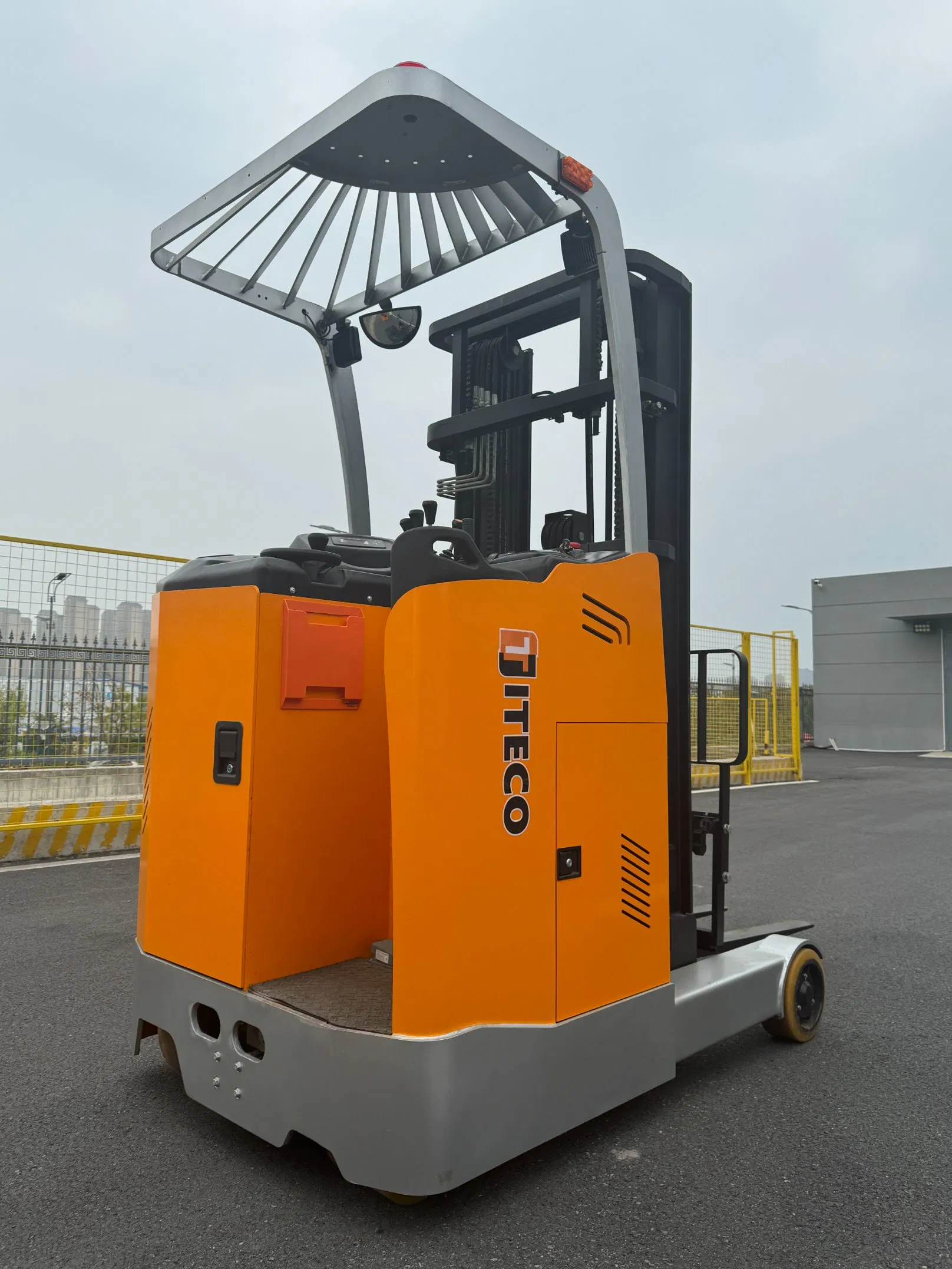

Electric Pallet Forklift 1.5t 2t 3t Electric Pallet Truck Side Loader Order Picker for Warehouse and Container Electric Reach Truck Forklift

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Specifications

Model NO.

CQDE20

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

>5000mm

Battery Voltage

48V300ah

Tyre Type

Polyurethane PU

Brake Type

Electromagnetic

Origin

China

Product Overview

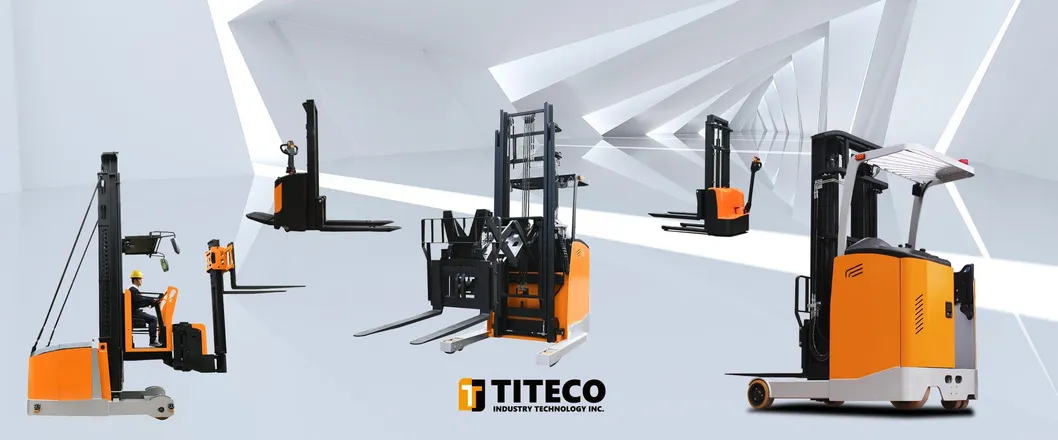

Our electric reach truck forklifts feature a compact structure, specifically designed for operations in narrow aisles and limited warehouse spaces. With exceptional lifting and loading capacities, they are the ideal solution for high-density storage, supermarkets, and industrial workshops.

Technical Specifications (Sit Type)

Model	Unit	CQDE15-45S	CQDE20-45S	CQDE25-80S	CQDE30-45S	CQDE20H-120S
Load Capacity	kg	1500	2000	2500	3000	2000
Lifting Height	mm	4500	4500	8000	4500	12000
Wheelbase	mm	1470	1620	1620	1650	1650
Travel Speed (Laden)	km/h	14	14	8	10	14
Drive Motor	kw	6.5AC	6.5AC	8AC	8AC	6.5AC
Battery	V/Ah	48V300Ah	48V400Ah	48V400Ah	48V400Ah	48V400Ah

Technical Specifications (Stand Type)

Model	Unit	CQD15-45S	CQD20-45S	CQD25-45S	CQD30-30	CQD30-60S
Load Capacity	kg	1500	2000	2500	3000	3000
Lifting Height	mm	4500	4500	4500	3000	6000
Overall Width	mm	1195	1195	1270	1460	1460
Lift Motor	kw	7.5AC	8.6AC	8.6AC	12AC	12AC

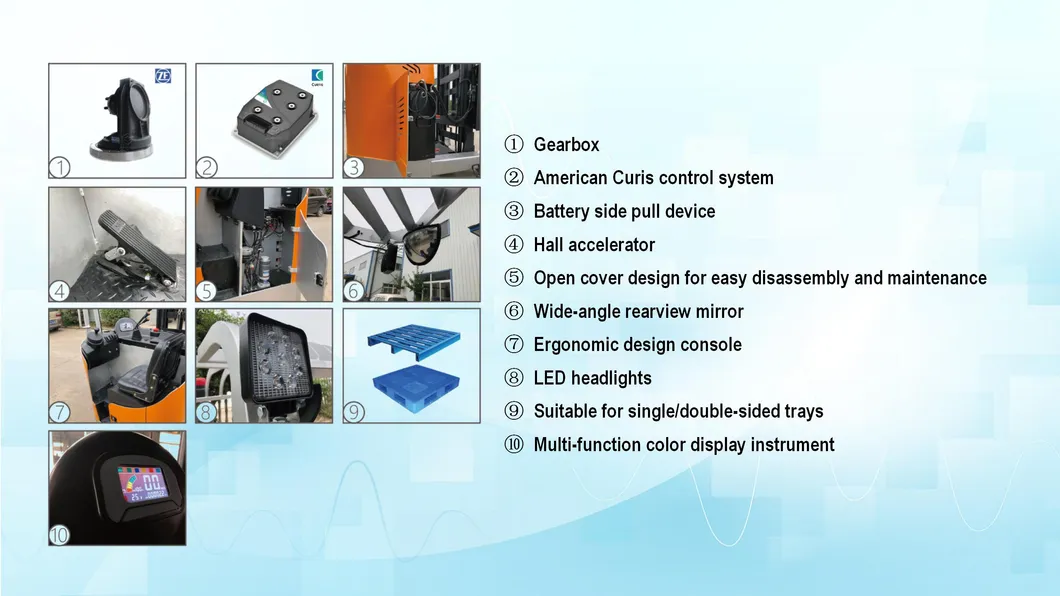

Key Features & Details

1

Compact Stability: Low center of gravity and compact body structure ensure maximum stability for high-lift cargo applications.

2

Superior Maneuverability: Small turning radius with a forward-moving gantry system, perfect for narrow aisle navigation.

3

Full AC Drive System: Maintenance-free AC motor provides powerful climbing ability and regenerative braking efficiency.

4

HD Intelligent Display: Real-time monitoring of vehicle status and fault diagnosis for simplified maintenance.

5

EPS Steering: Electronic Power Steering reduces energy consumption by 20% and minimizes driver fatigue.

6

Easy Battery Access: Side-pull battery design with a standard roller trolley for quick multi-shift replacements.

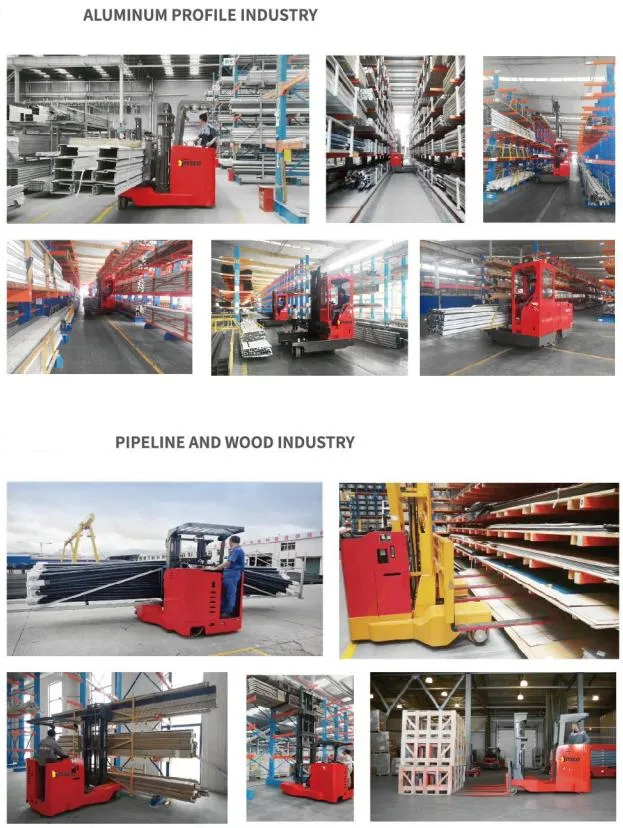

Applications

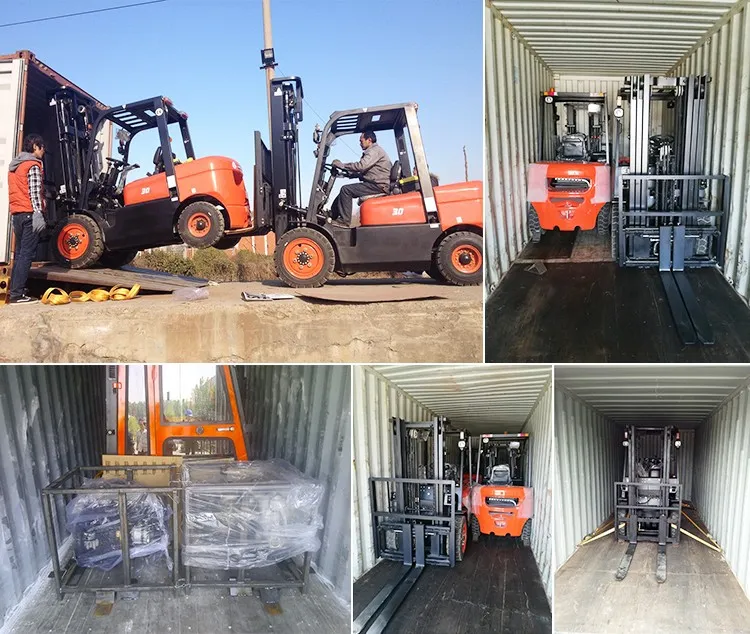

Packaging & Delivery

Package Size

250cm * 130cm * 220cm

Gross Weight

3200.00kg

Frequently Asked Questions

Q1: What is the maximum lifting height of this reach truck?

The maximum lifting height can reach up to 12,000mm (12 meters) depending on the specific model selected.

Q2: Is this forklift suitable for very narrow aisles?

Yes, the compact structure and small turning radius (starting from 1680mm) make it ideal for narrow aisle warehouse operations.

Q3: What are the advantages of the AC drive system?

The AC system is maintenance-free (no carbon brushes), offers better climbing ability, and includes regenerative braking for higher efficiency.

Q4: How does the EPS steering system help the operator?

Electronic Power Steering (EPS) reduces energy consumption by about 20% and makes steering more precise and effortless, significantly reducing driver fatigue.

Q5: Can the battery be easily replaced for multi-shift work?

Absolutely. It features a side-pull battery design and comes with a standard roller trolley for fast and convenient battery swaps.

Q6: What type of braking system is used?

The truck is equipped with an advanced electromagnetic braking system for reliable and safe stopping power.
