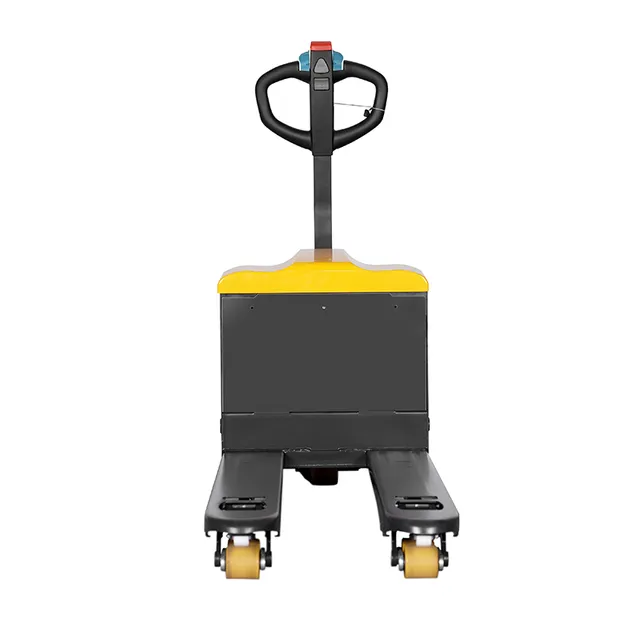

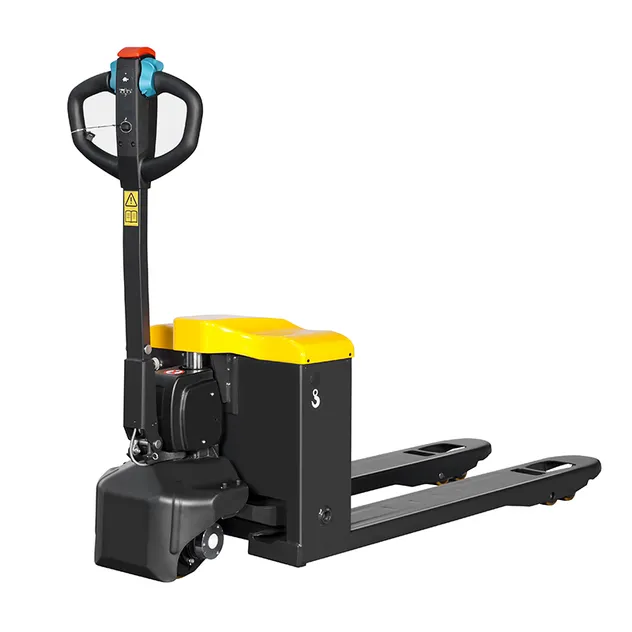

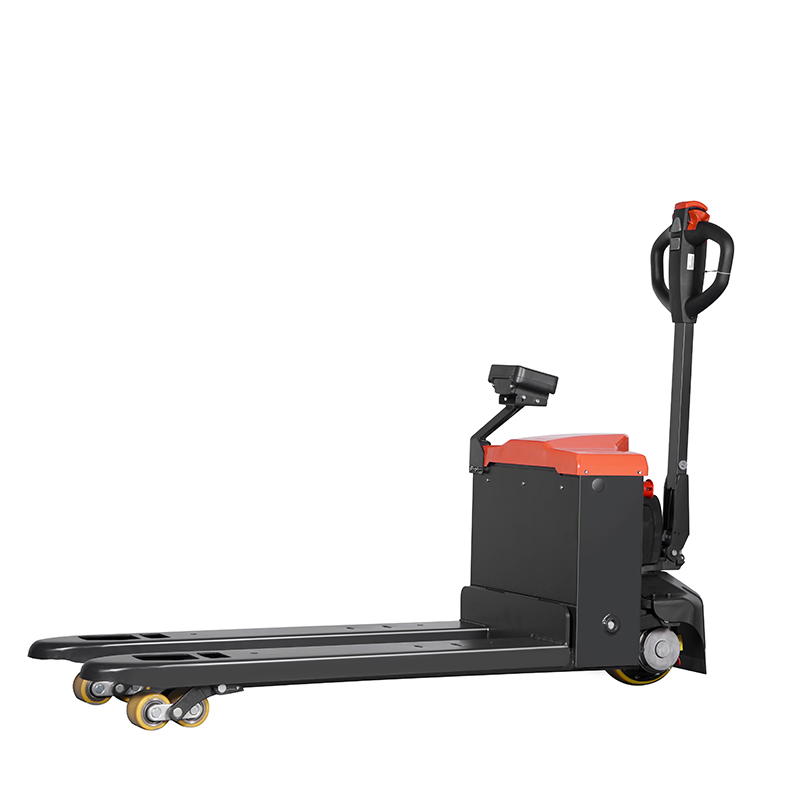

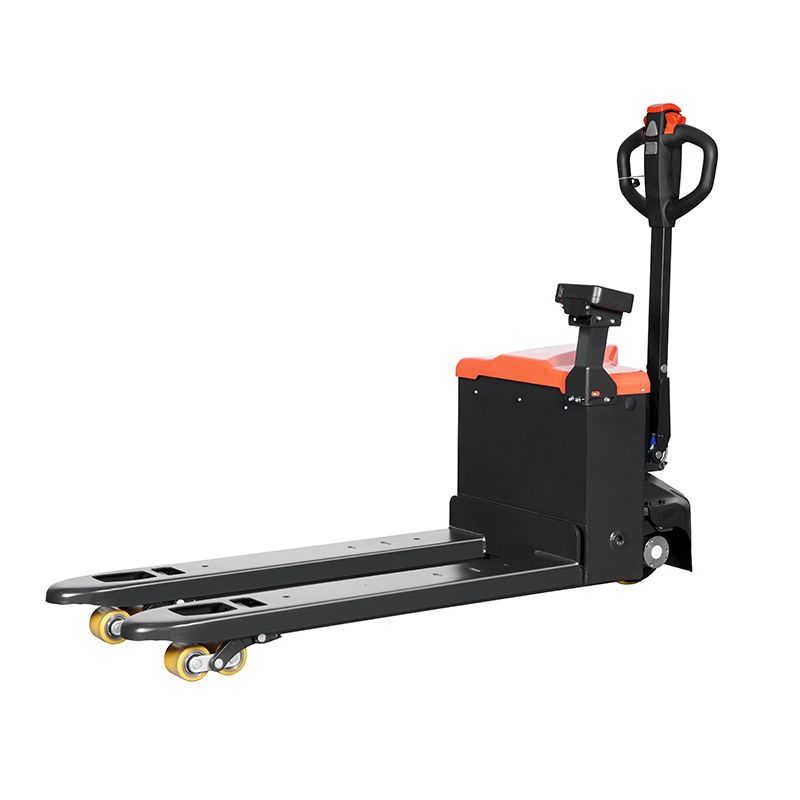

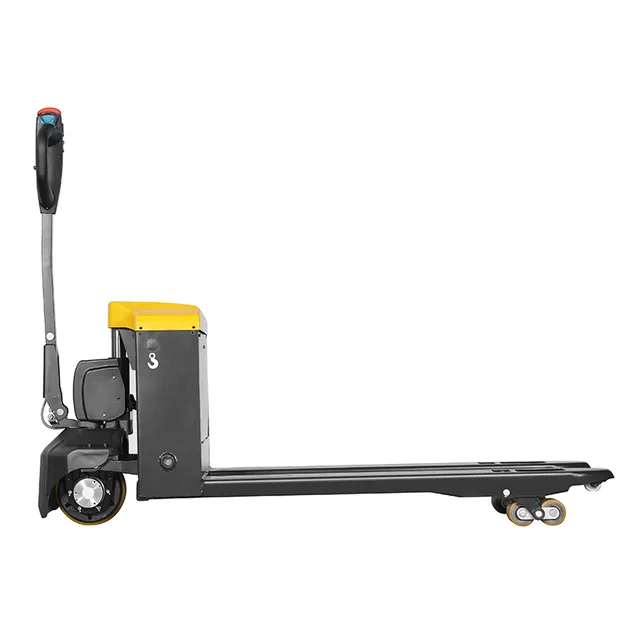

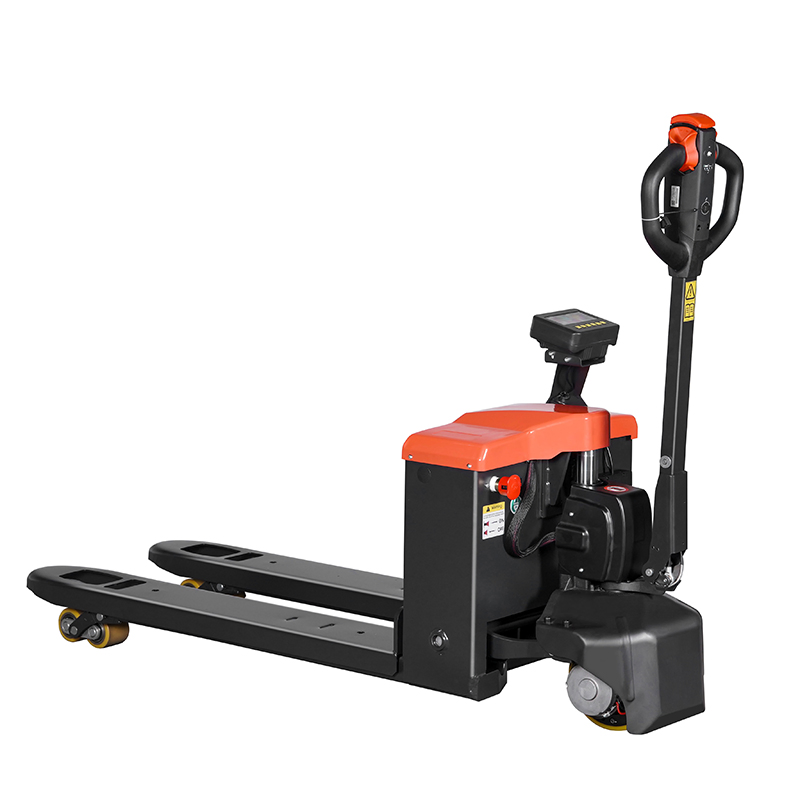

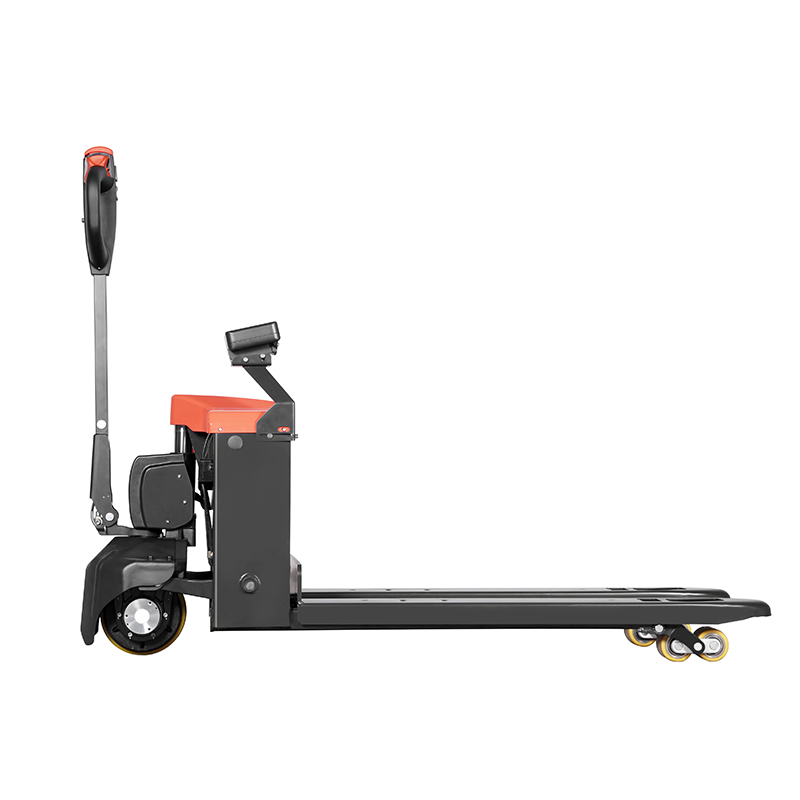

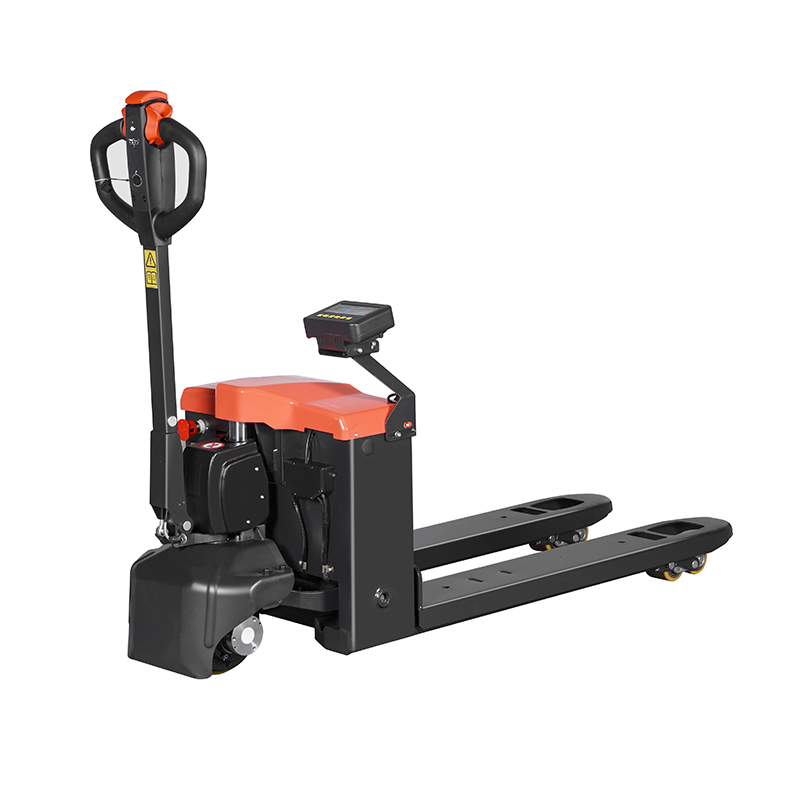

Compact Electric Pallet Jack with Integrated Fork Scale for Efficient Distribution

i

Basic Information

Model NO.: CBD-C20

Cab Location: Walkie

Type: Powered Pallet Truck

Power: DC Motor

Load Capacity: 1T - 5T

Fuel: Electric

Load Center: 500mm

Lift Height: 195mm

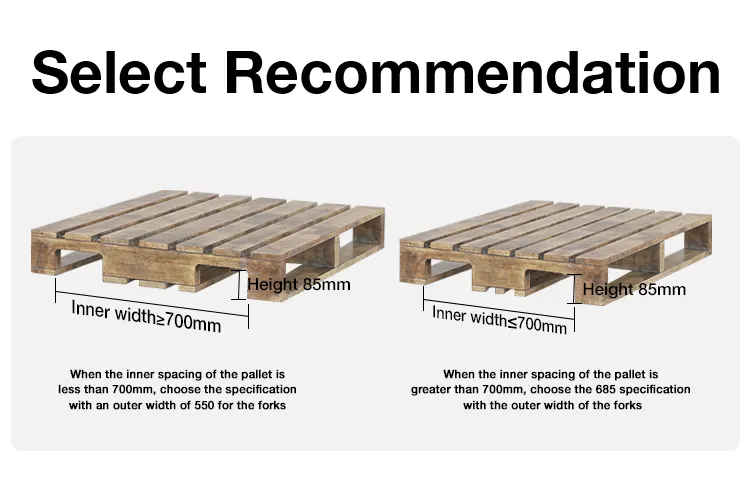

Outside Fork Width: 570 / 685 / 700mm

Fork Length: 1150/1220mm

Battery Type: Lead-Acid/Lithium

Production Capacity: 50000PCS/Year

★

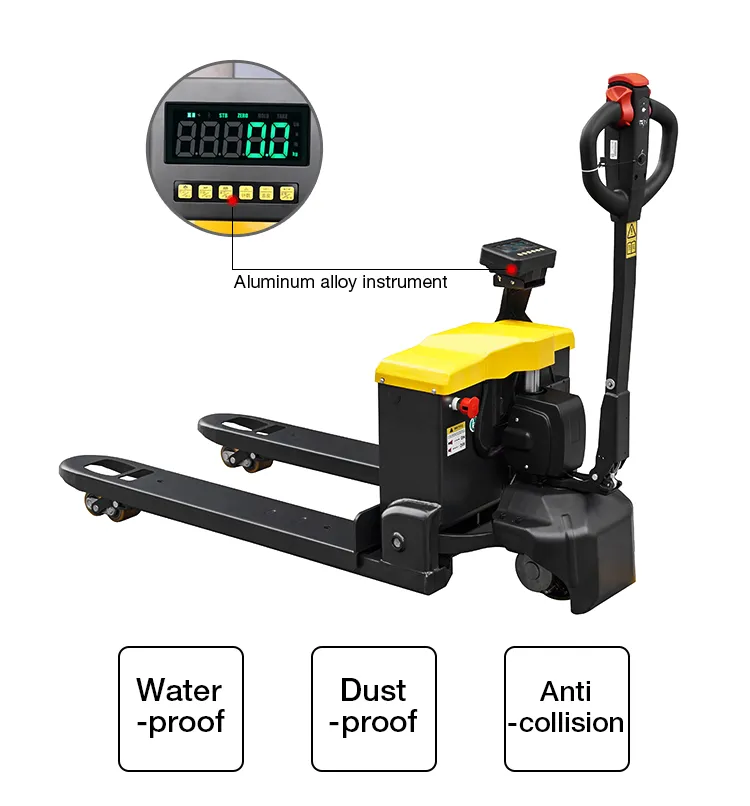

Durable Aluminum Alloy Indicator

The indicator is made of aluminum alloy, featuring waterproof, dustproof, and impact-resistant performance.

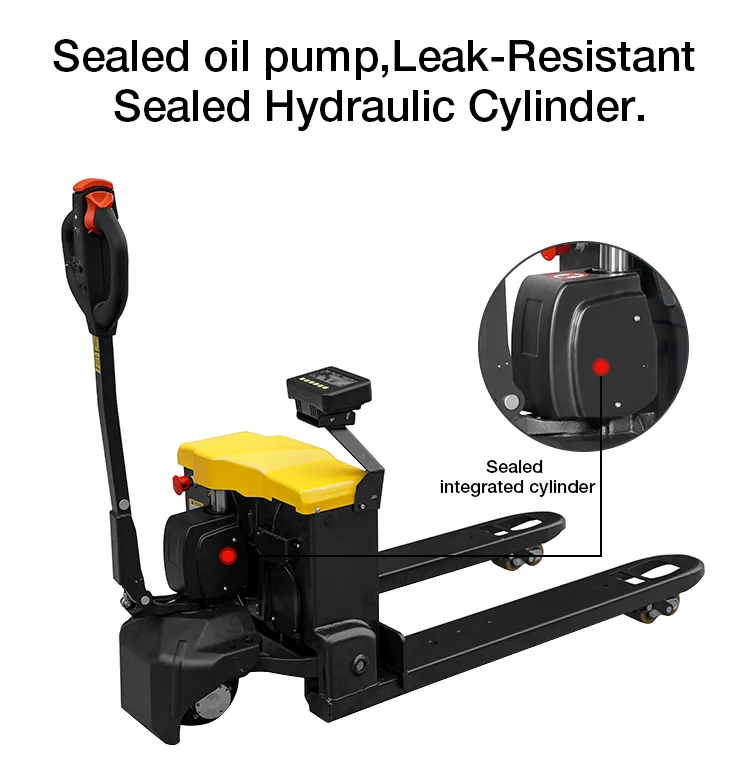

Leak-Resistant Sealed Hydraulic Cylinder

Integrated cast pump with fully sealed oil cylinder, ensuring high load capacity and long-lasting performance.

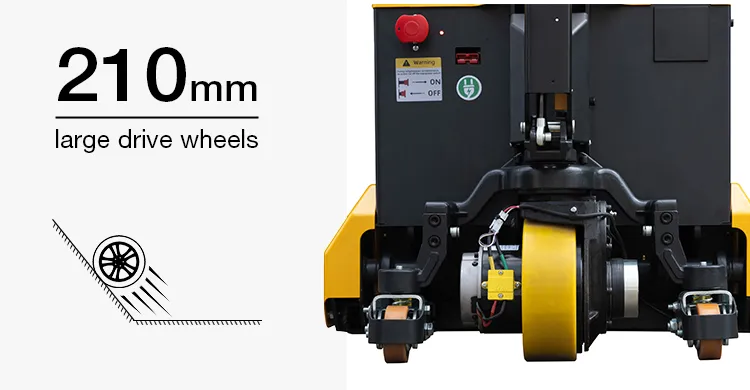

Smooth Climbing with Zero Effort

Equipped with 210mm large drive wheels and intelligent support wheels, providing strong climbing power and smooth turning.

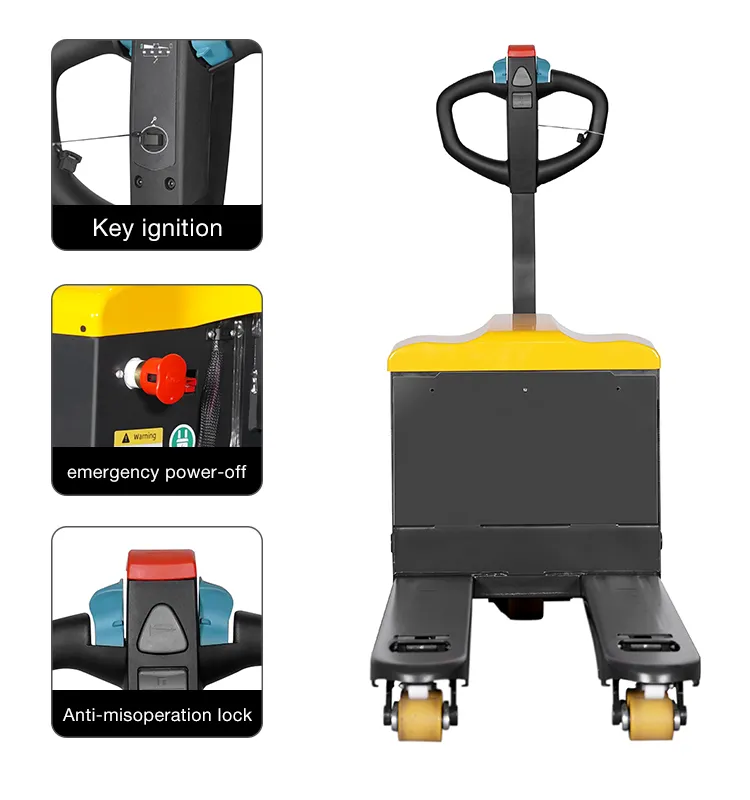

Triple Safety Protection

Key ignition, emergency power-off, and anti-misoperation lock ensure every start and stop is safe and reliable.

📋

Model	CBD-C15	CBD-C20	CBD-C25
Load Capacity (kg)	1500	2000	2500
Fork Length (mm)	1150 / 1220	1150 / 1220	1150 / 1220
Lifting Height (mm)	195	195	195
Wheel Type	Polyurethane / Nylon	Polyurethane / Nylon	Polyurethane / Nylon
Drive Motor Power	0.75kW	0.75kW	1.0kW
Battery Voltage	24V/48V	24V/48V	24V/48V
Working Time (h)	5–8	6–10	8–12
Weight (kg)	260	280	310
