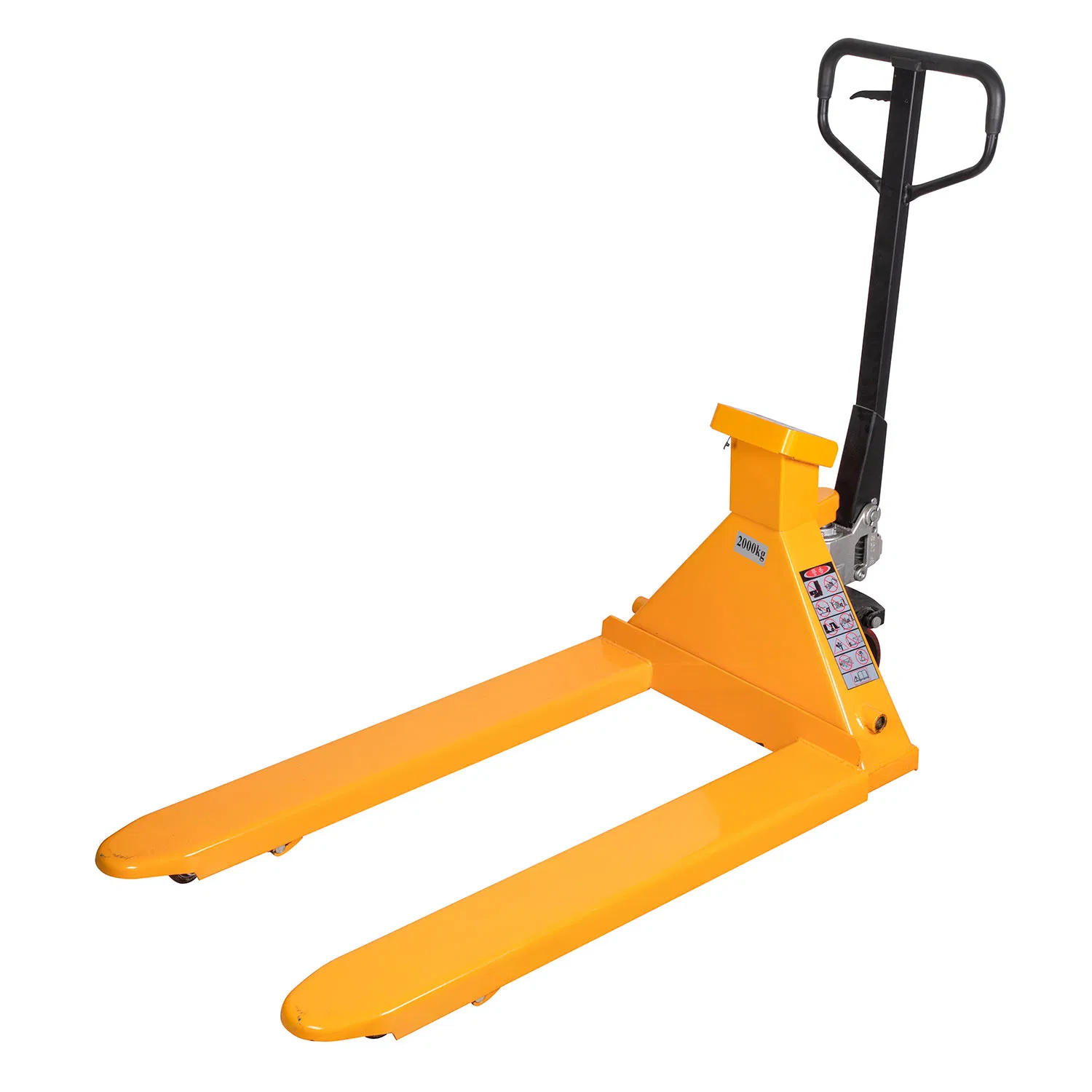

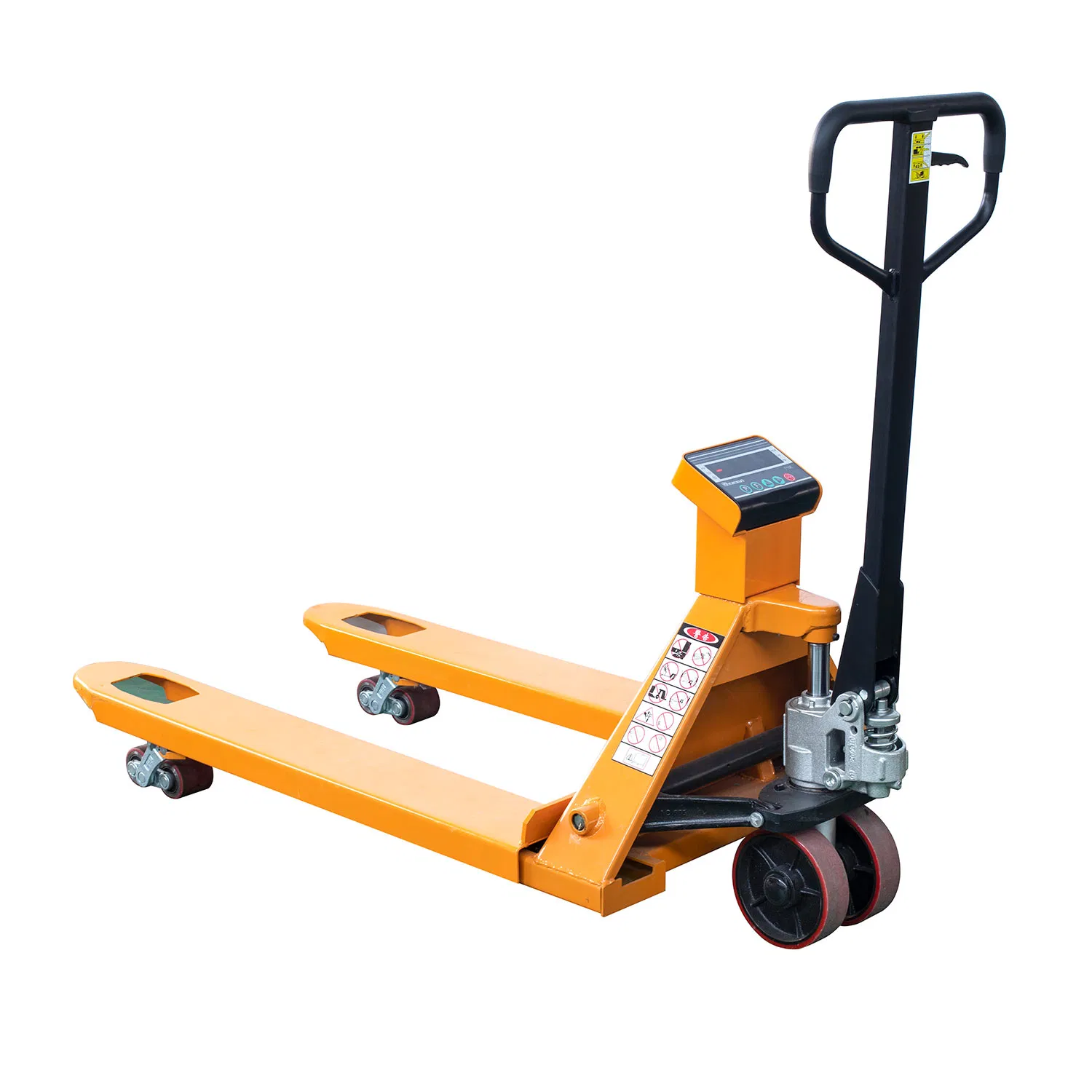

3000kg Capacity Manual Pallet Jack with Electronic Scale

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
KX-DZC30
Type
Manual Pallet Truck
Power
AC Motor
Load Capacity
3000kg
Fuel
Electric
Lift Height
203mm
Fork Width
550/685mm
Fork Length
1150/1220mm
Battery Type
Lithium
Battery Capacity
7.4V/4000mAh
HS Code
84279000
Production Capacity
5000 pieces/Year

Product Description

Key Features

3000kg Heavy Duty Capacity
0.5kg High Accuracy Scale Instrument
7.4V/4000mAh Rechargeable Lithium Battery
LCD Clear Data Display
Multiple Functions: Zero Correction, Gross/Net/Total Weight
Ergonomically Designed Handle (685mm Width)
Height Range: 88mm to 203mm
3-Position Handle Control: Raise, Lower, Neutral

Main Advantages

Adopts international measurement standard high precision sensors.
Long working time supported by high-capacity lithium battery.
Durable Scale: Shockproof, dustproof, and waterproof design.

Technical Parameters

Articles/Model Unit DZC20 DZC30
Rated loadkg20003000
Carrying wheelmmφ75x60φ80x70
Steering wheelmmφ160x50φ180x50
Fork lowest heightmm8588
Max. fork heightmm200203
Fork sizemm55*160
Fork lengthmm1150/1220
Fork widthmm540/685
BatteryV/mAh7.4/4000
Battery lifeh40
Display mode-LCD
Net Weightkg9597
📷

Detailed Photos

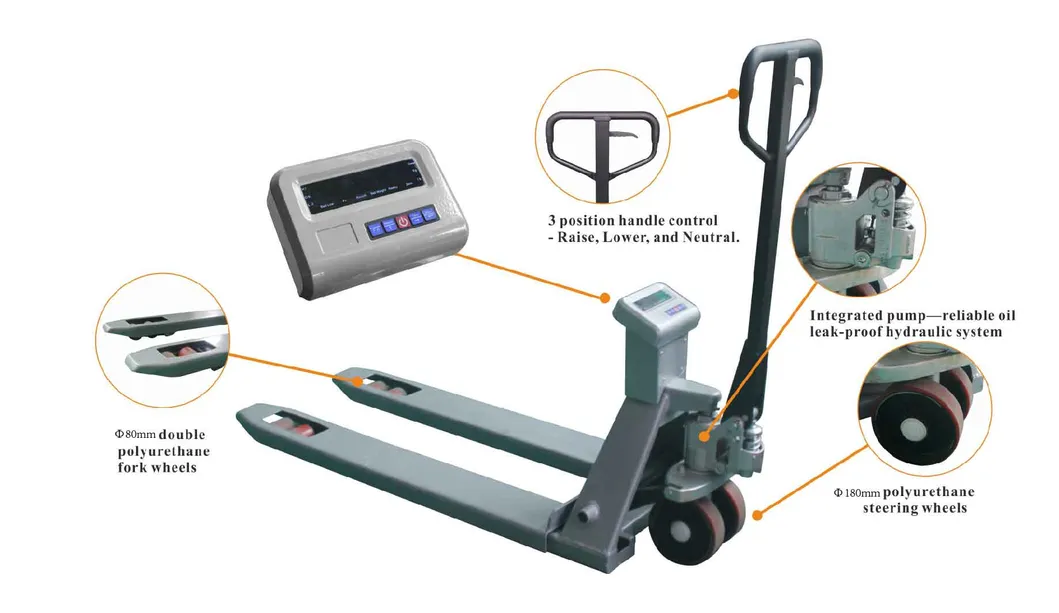

Manual Pallet Jack Overview

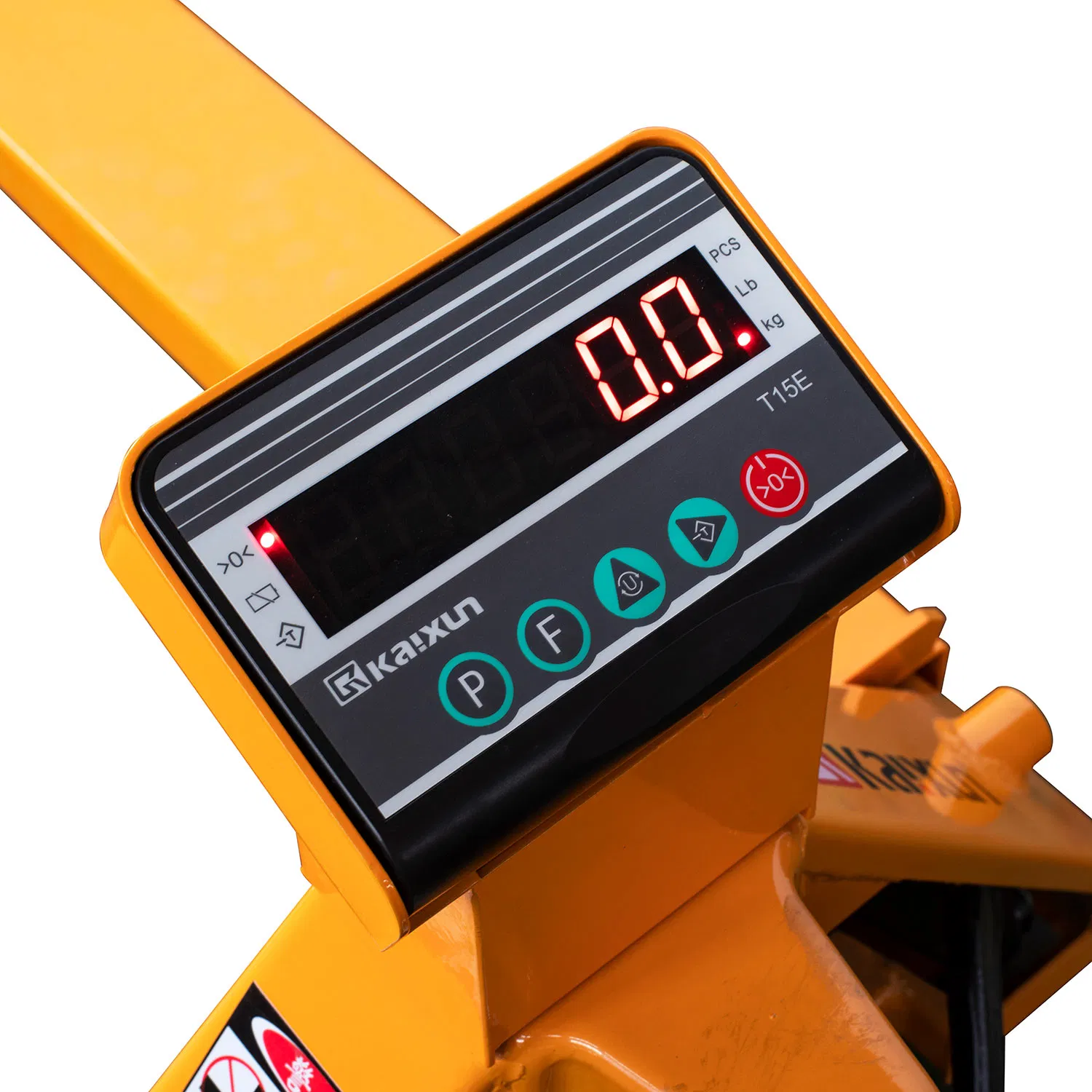

Pallet Jack Scale Detail

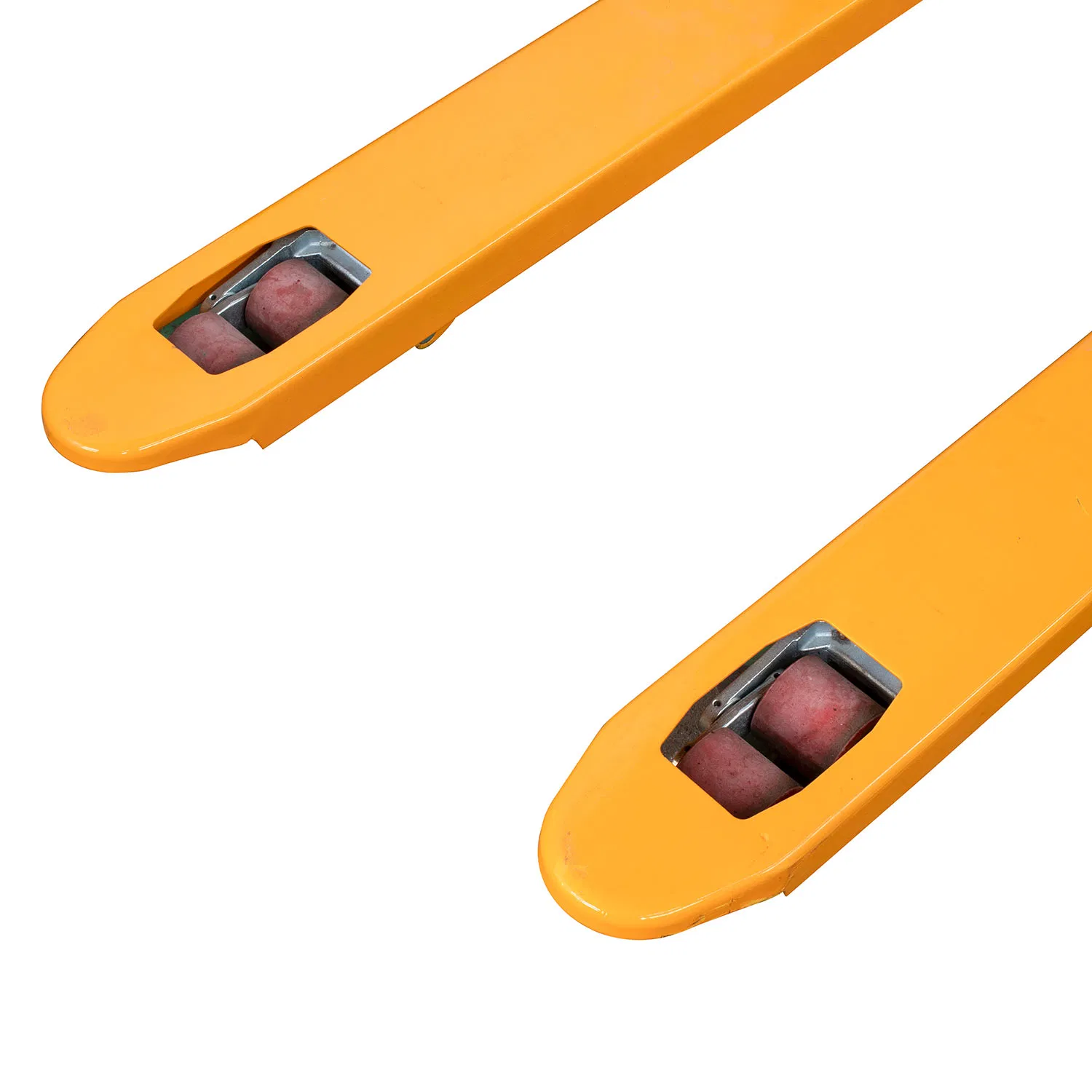

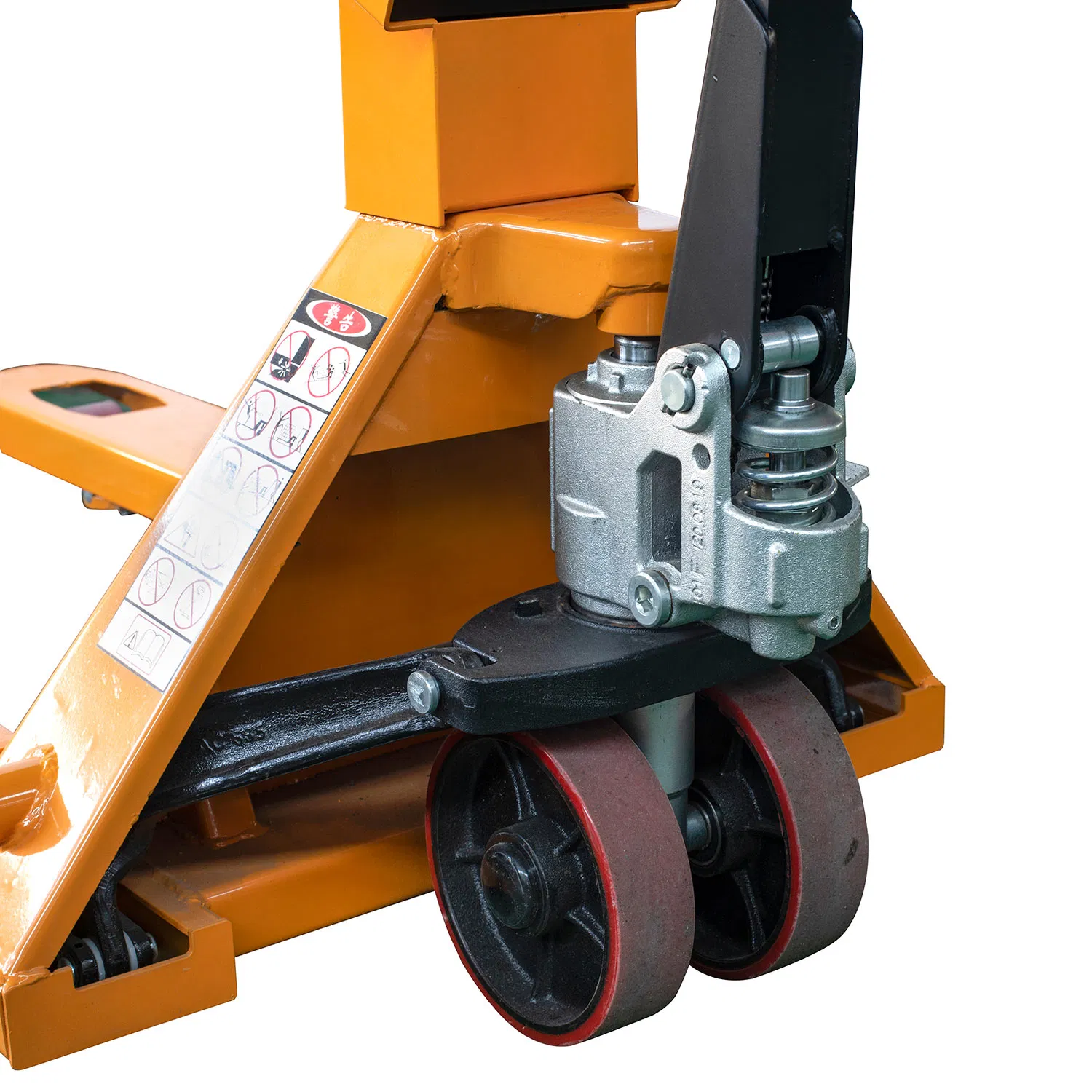

Pallet Jack Wheel Detail
Pallet Jack Handle Detail

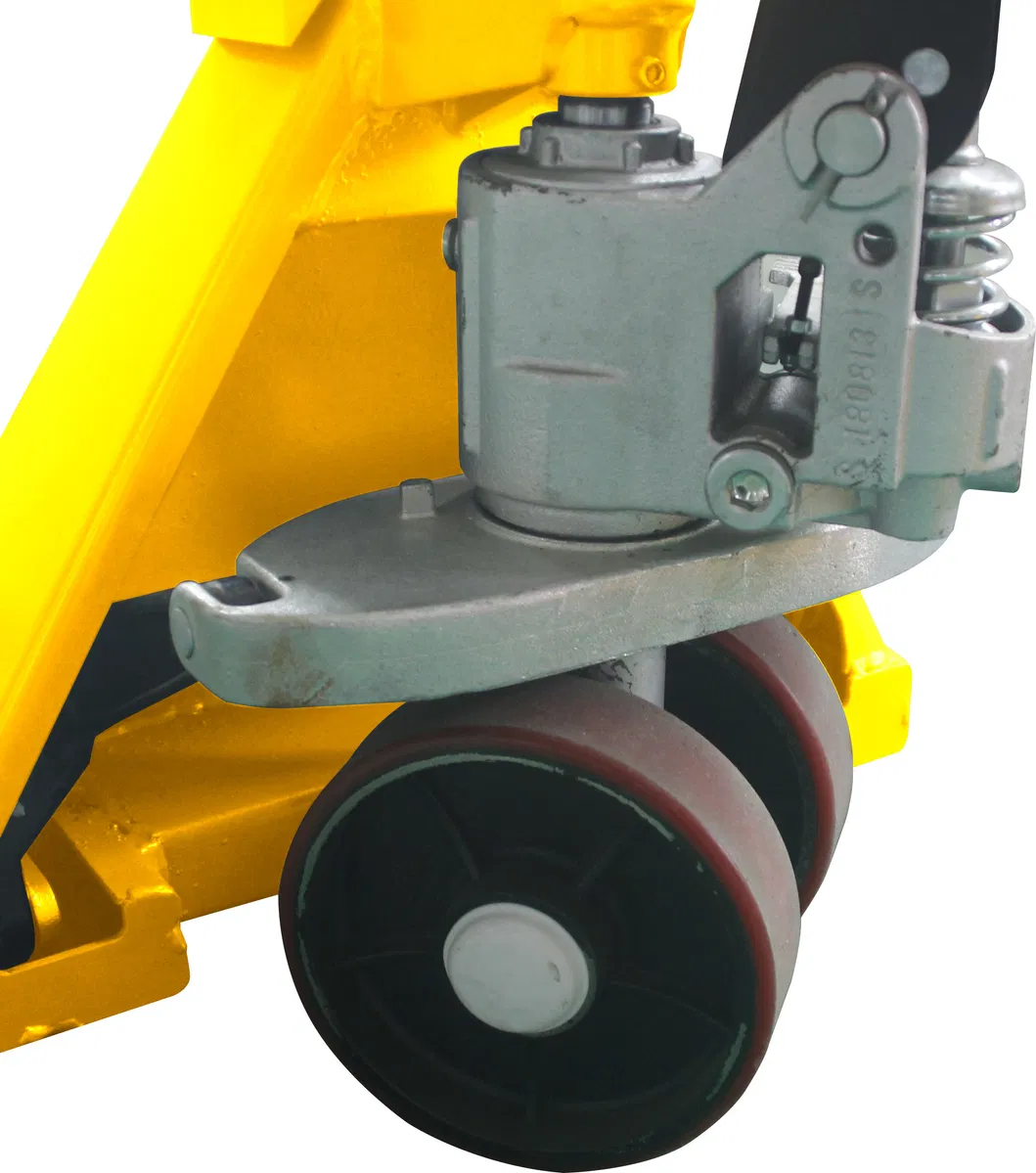

Side View
Scale Interface

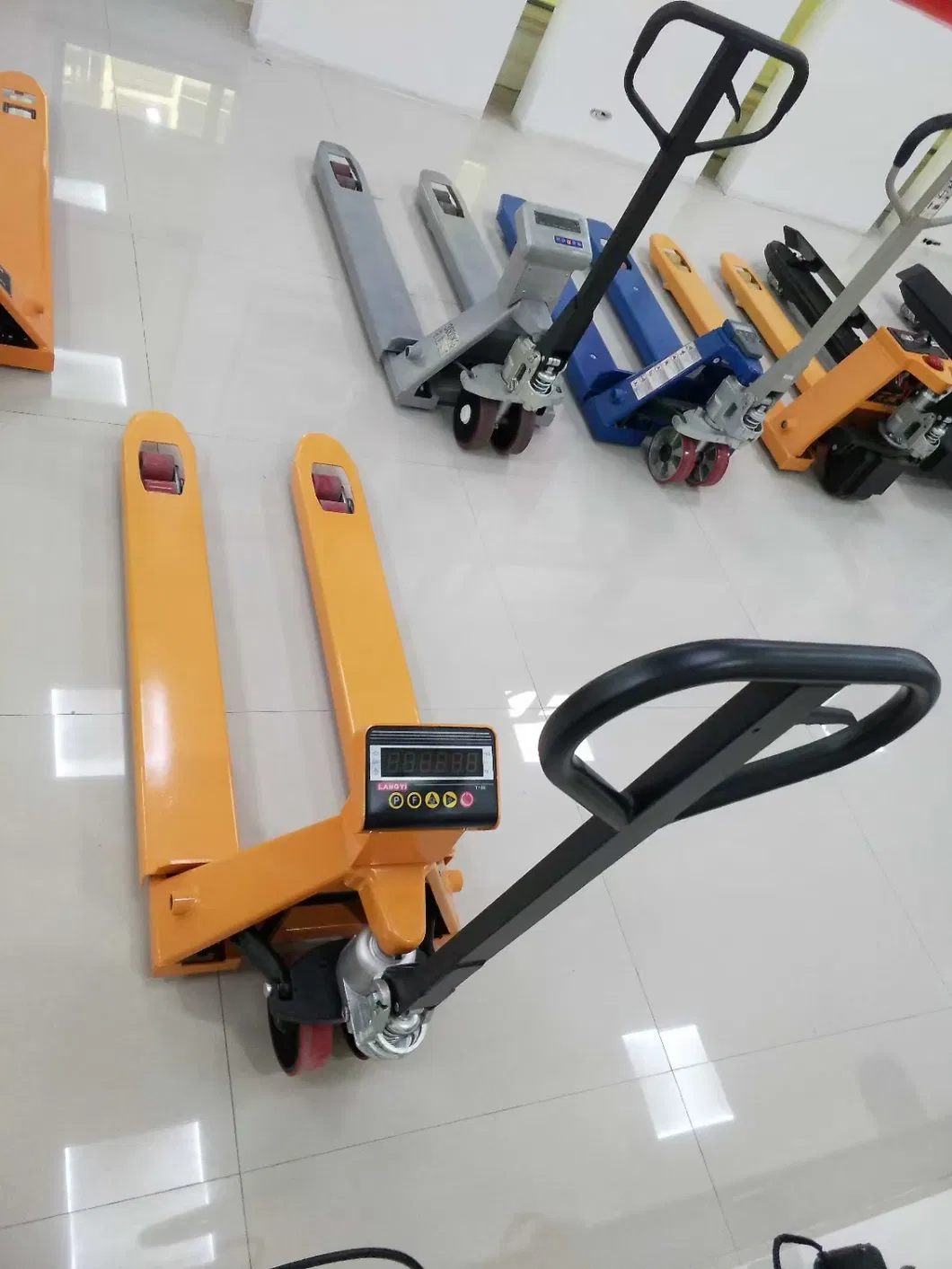

Product Display 1

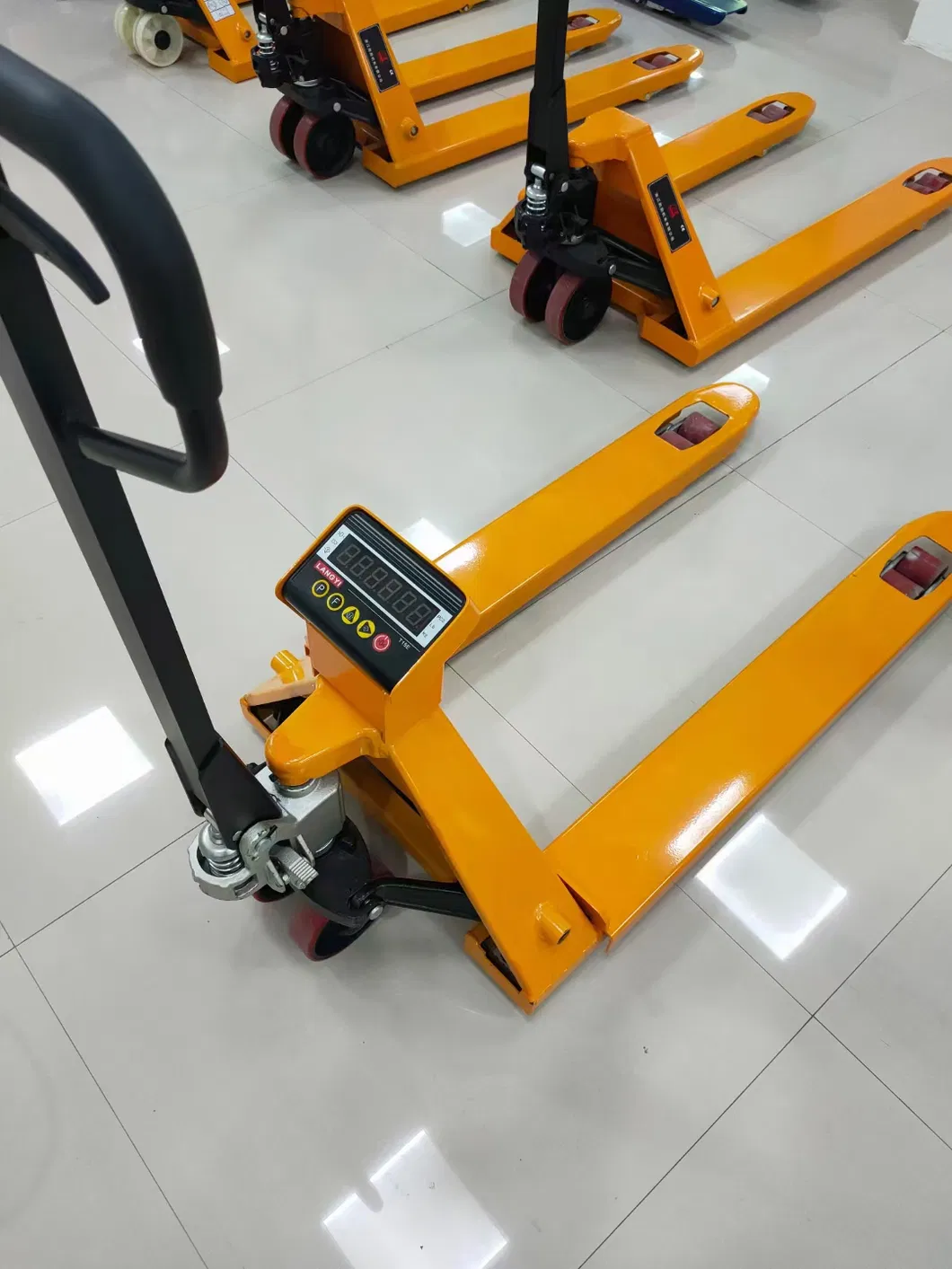

Product Display 2

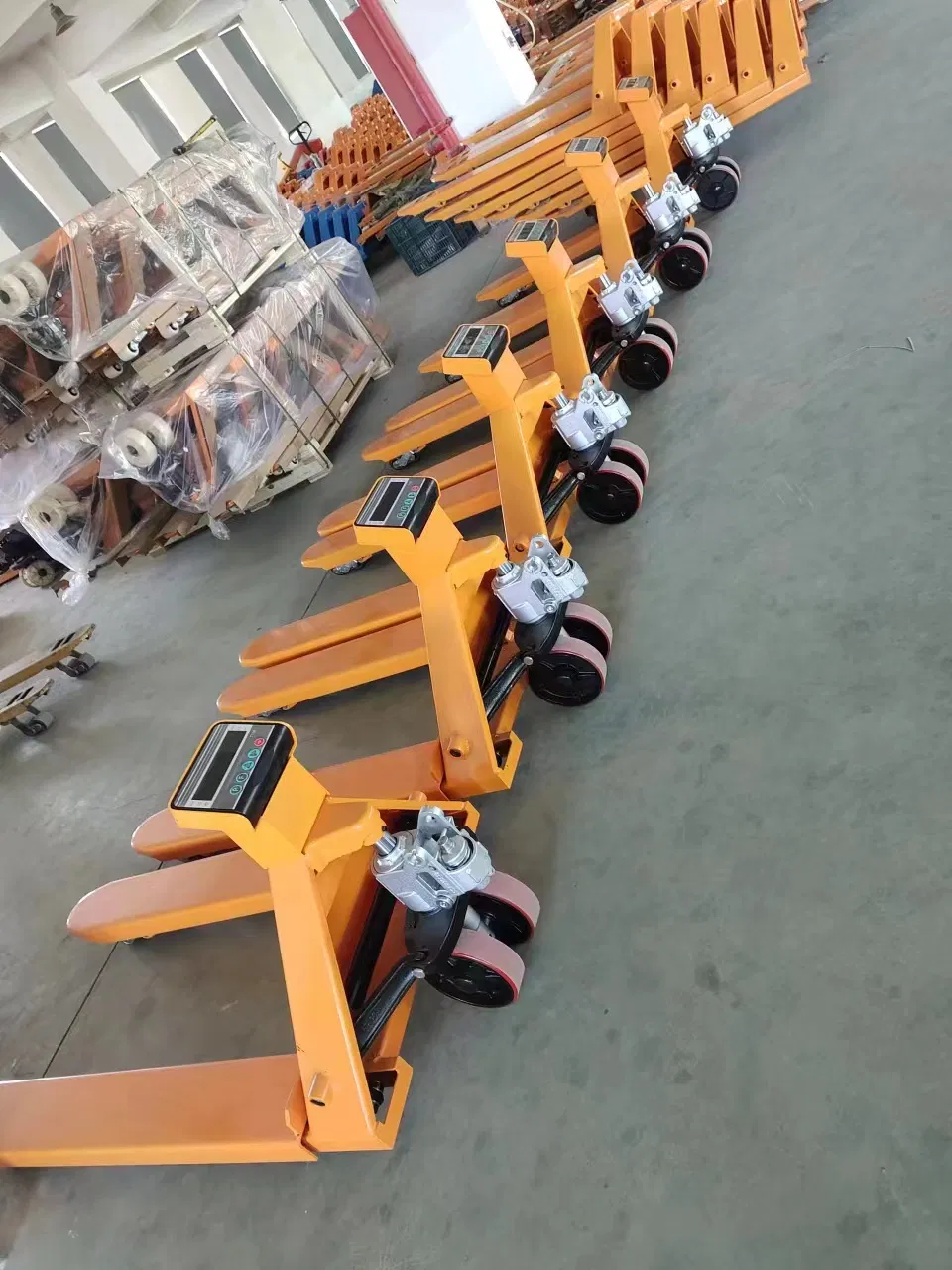

Vertical View

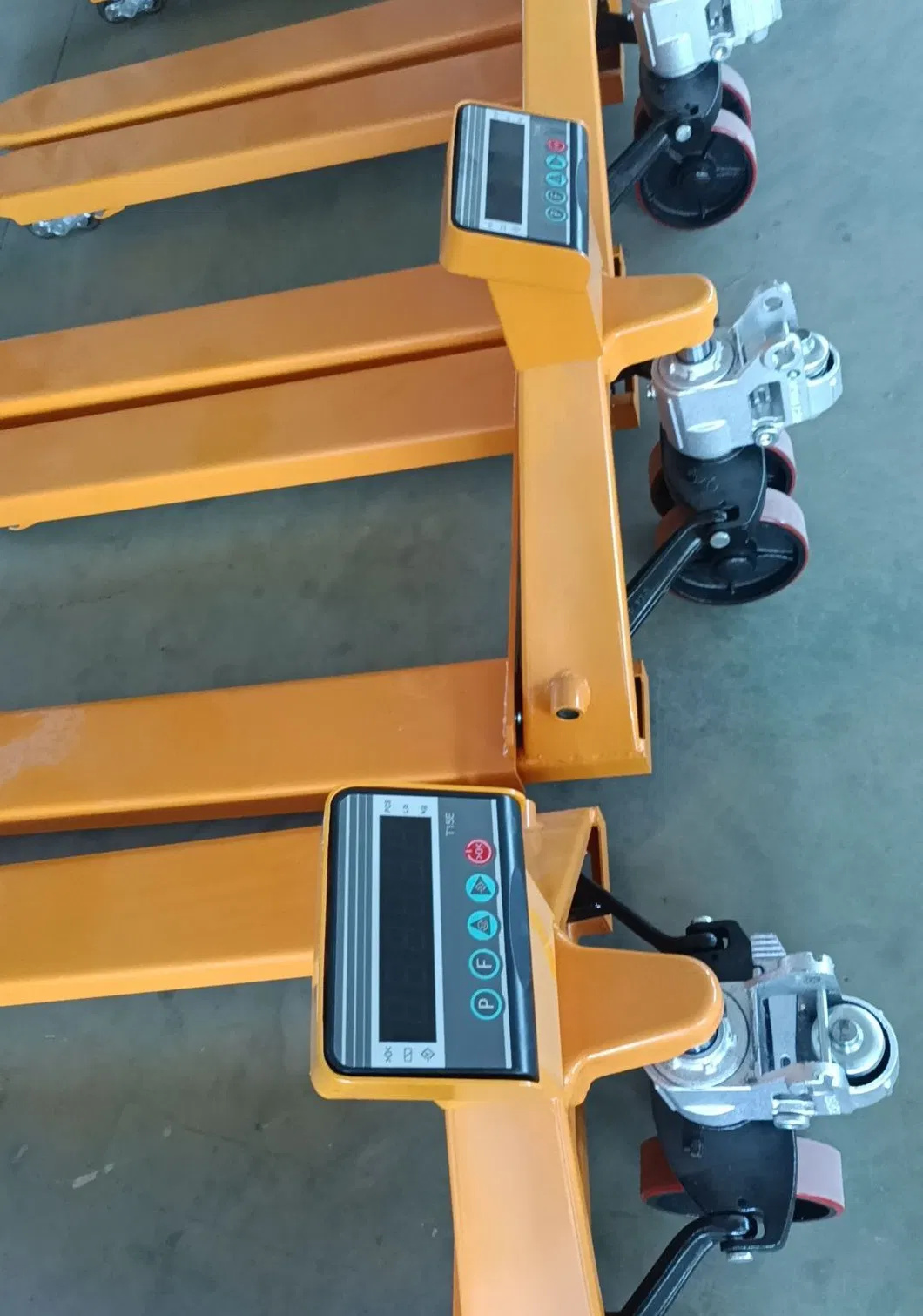

Scale Close-up

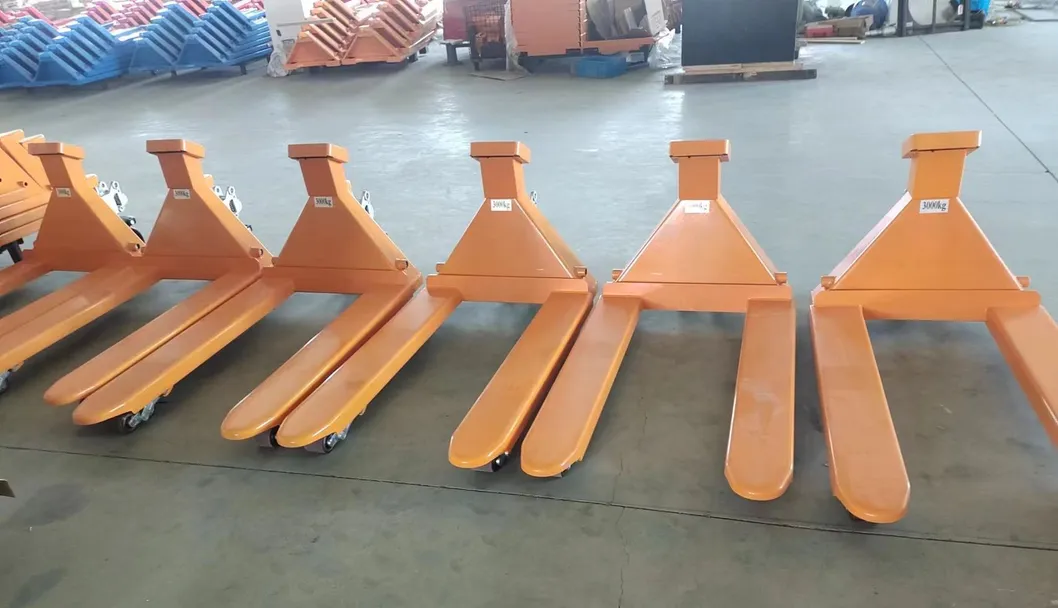

Full Product View
📦

Packaging & Shipping

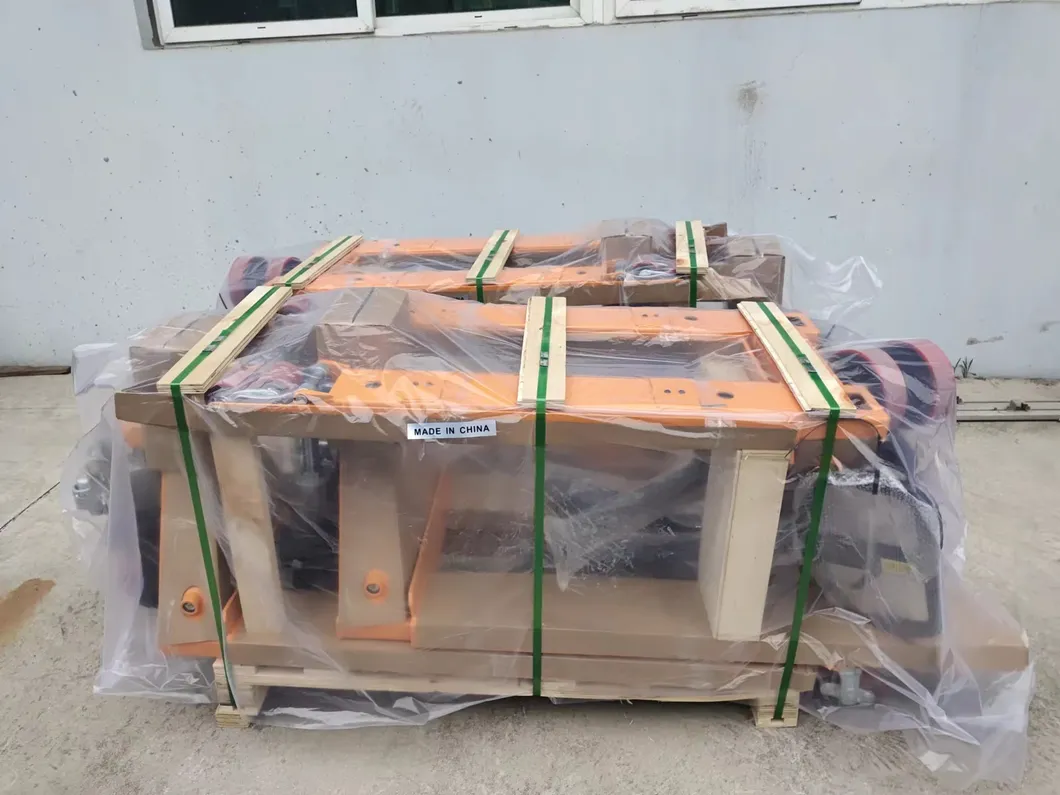

Our products are carefully packed using standard wood packages to ensure safety during transit. Each pallet can accommodate up to 4 pieces of manual pallet trucks.

Packaging and Shipping Details
🏢

Company Profile

Founded in 1998, our company is an export-oriented high-tech enterprise. We integrate R&D, production, and sales into one body, specializing in manufacturing various lifting machinery, financial equipment, electric winches, electric trucks, electric forklifts, and hydraulic cars.

Our facility covers an area of 59,000m² with a structure area of 87,000m². We own 880 sets of production equipment, including 260 sets of testing instruments, allowing for a significant annual output. We have passed the ISO9001:2008 quality system certification, and many products have obtained CE, GS, RoHS, CB, UL, CUL, and FCC approvals.

We export 90% of our products to over 120 countries and regions, including Europe, USA, Africa, Middle East, South Asia, Russia, and India, where our products are highly praised by clients.

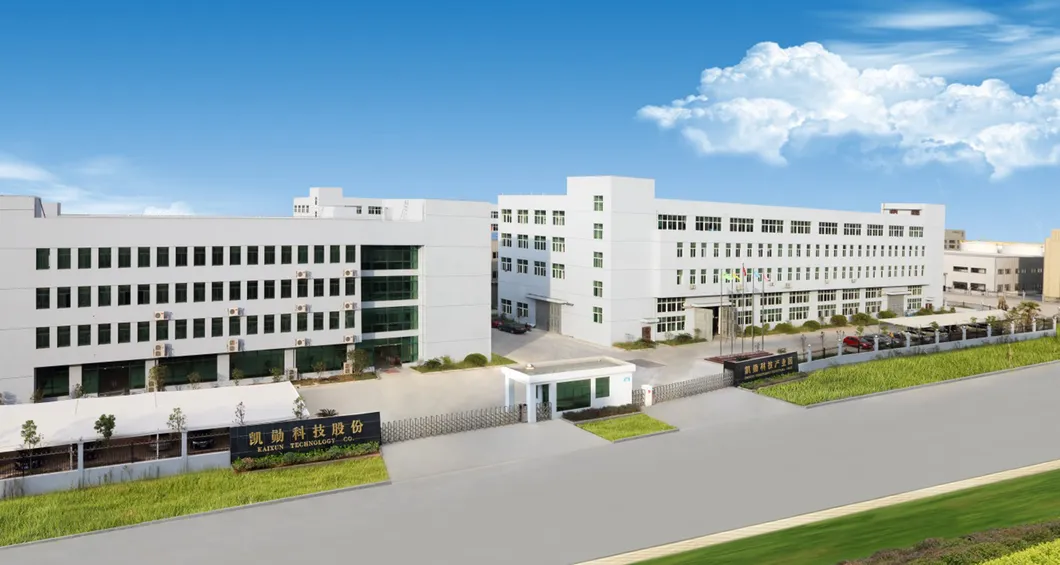

Factory View 1
Factory View 2

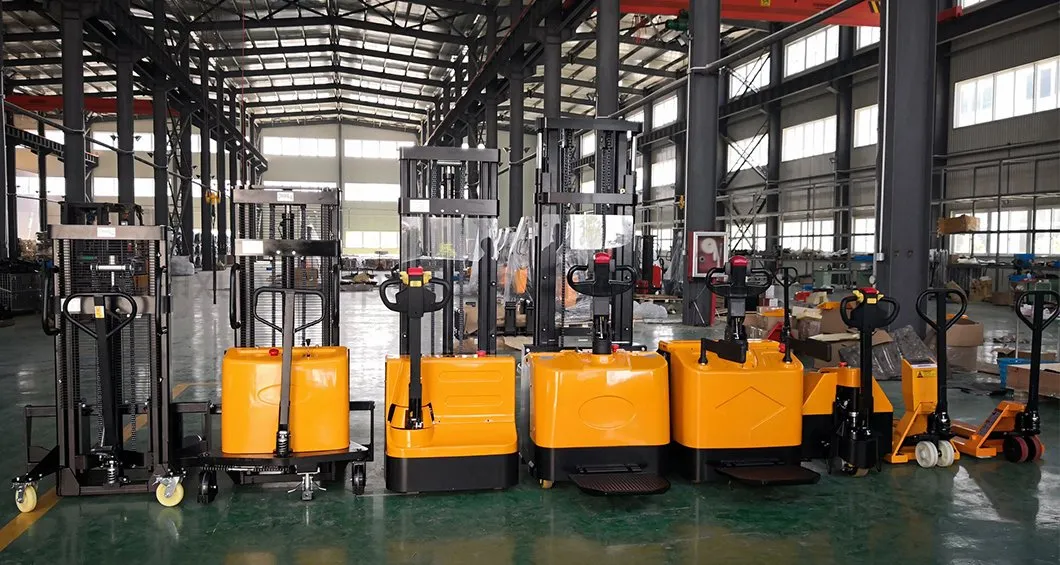

Production Line
?

Frequently Asked Questions

What is the maximum load capacity of the KX-DZC30 model?
The KX-DZC30 manual pallet truck has a maximum rated load capacity of 3000kg.
How accurate is the electronic scale?
The electronic scale is highly accurate, with an instrument precision of 0.5kg.
What type of battery powers the display and how long does it last?
It uses a rechargeable 7.4V/4000mAh lithium battery, which provides approximately 40 hours of battery life.
Are the weighing scales protected against harsh environments?
Yes, the weighing scale is designed to be shockproof, dustproof, and waterproof for reliable use in various industrial conditions.
What are the available fork dimensions?
The standard fork lengths are 1150mm or 1220mm, and fork widths are available in 550mm or 685mm.
Does the pallet truck have different control positions?
Yes, it features a 3-position handle control for Raising, Lowering, and a Neutral setting for easy maneuvering.
