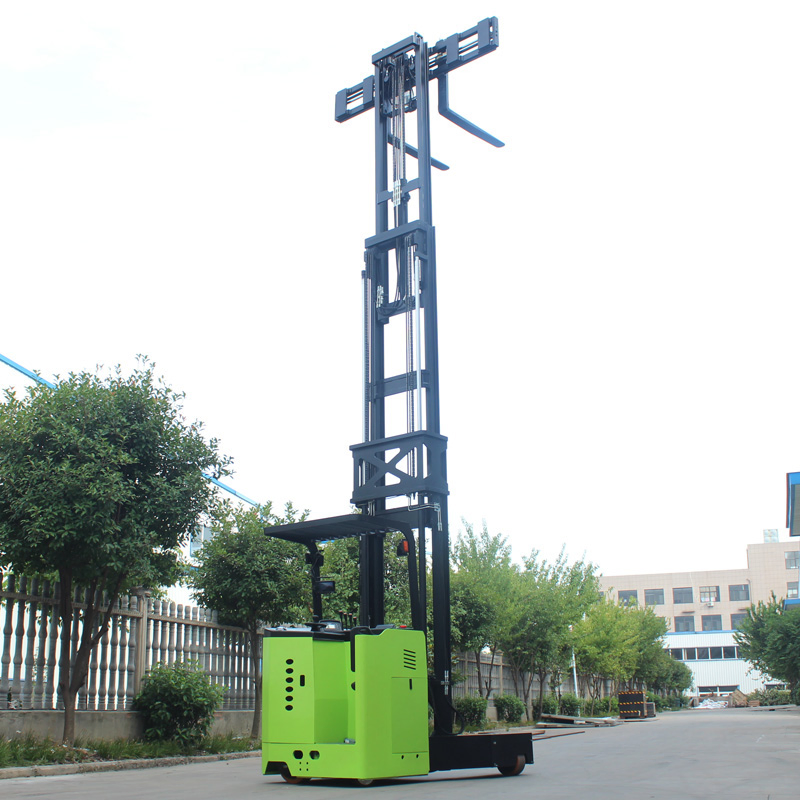

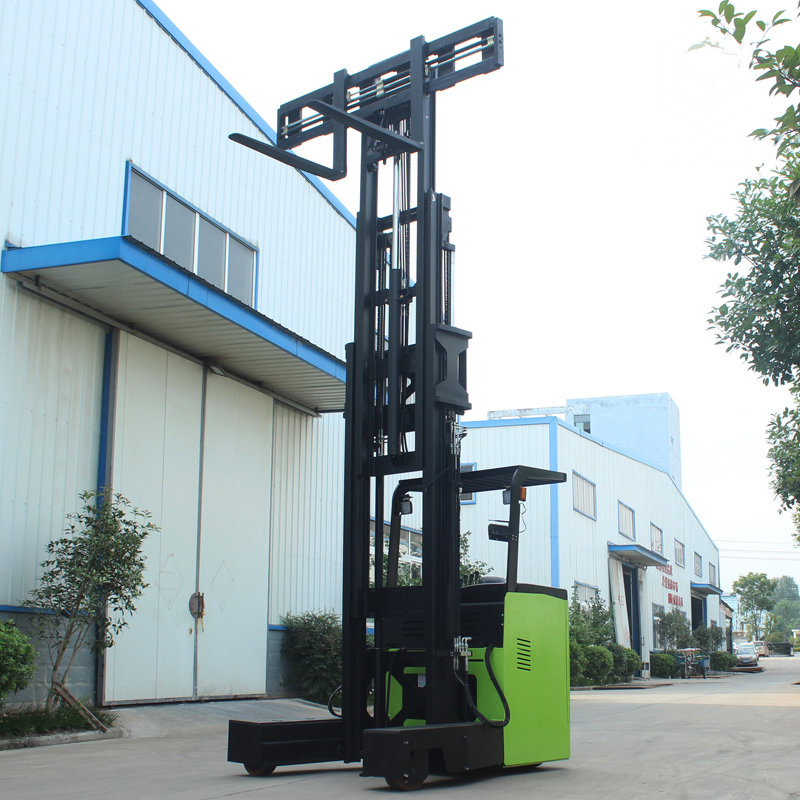

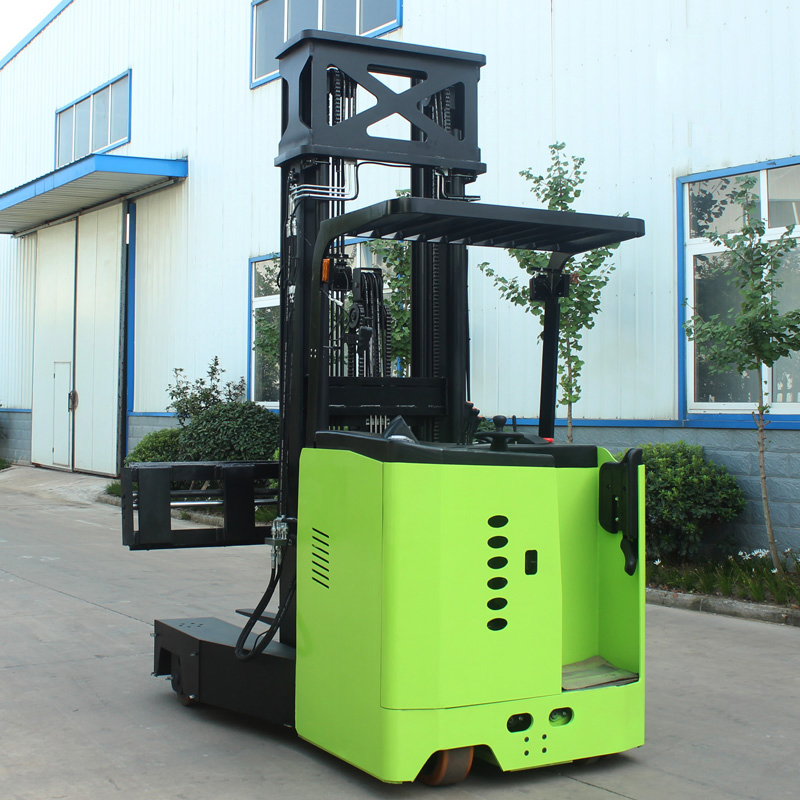

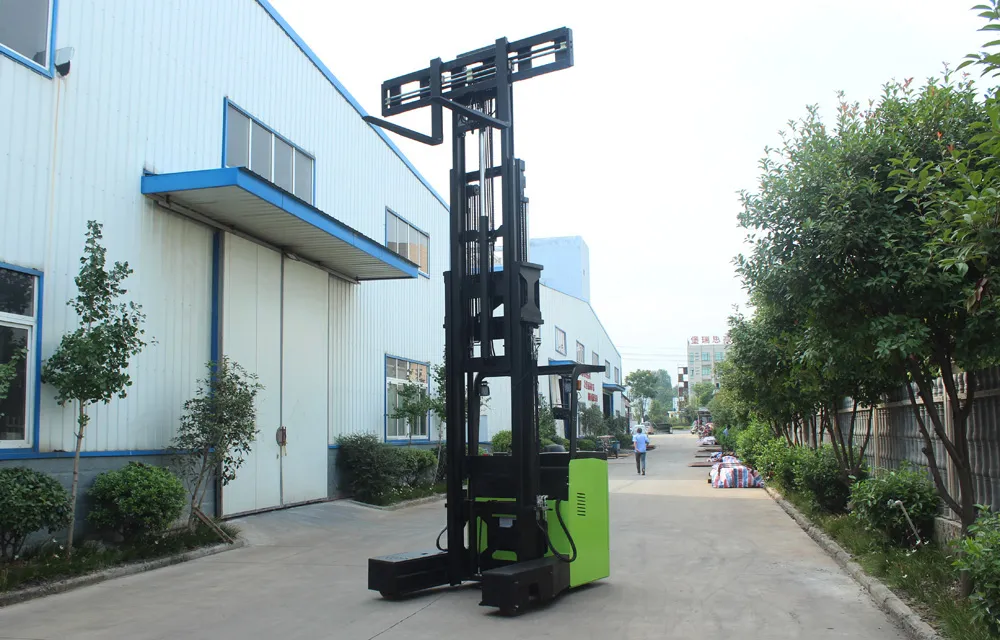

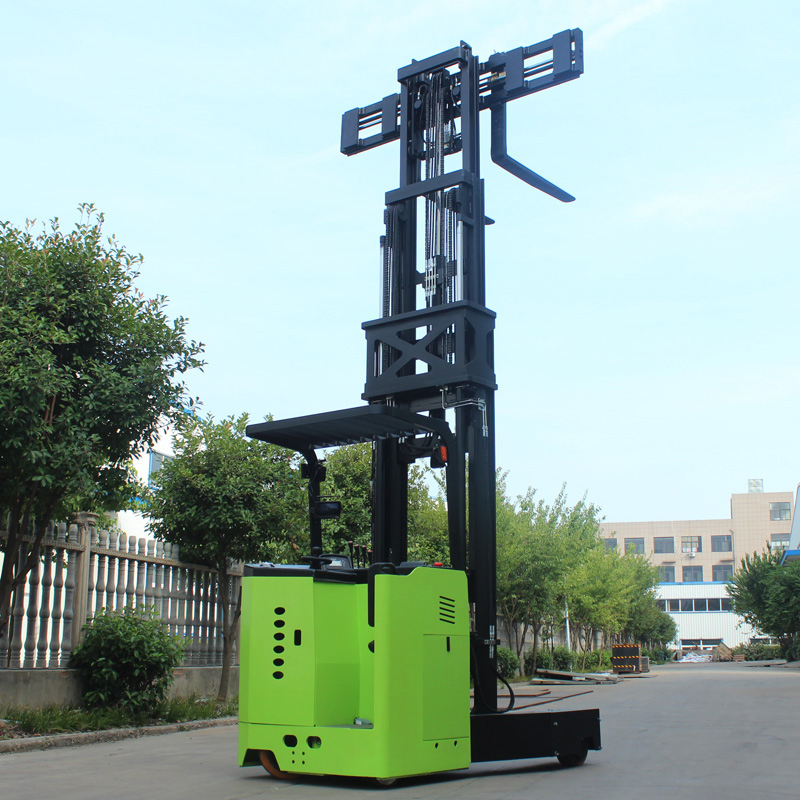

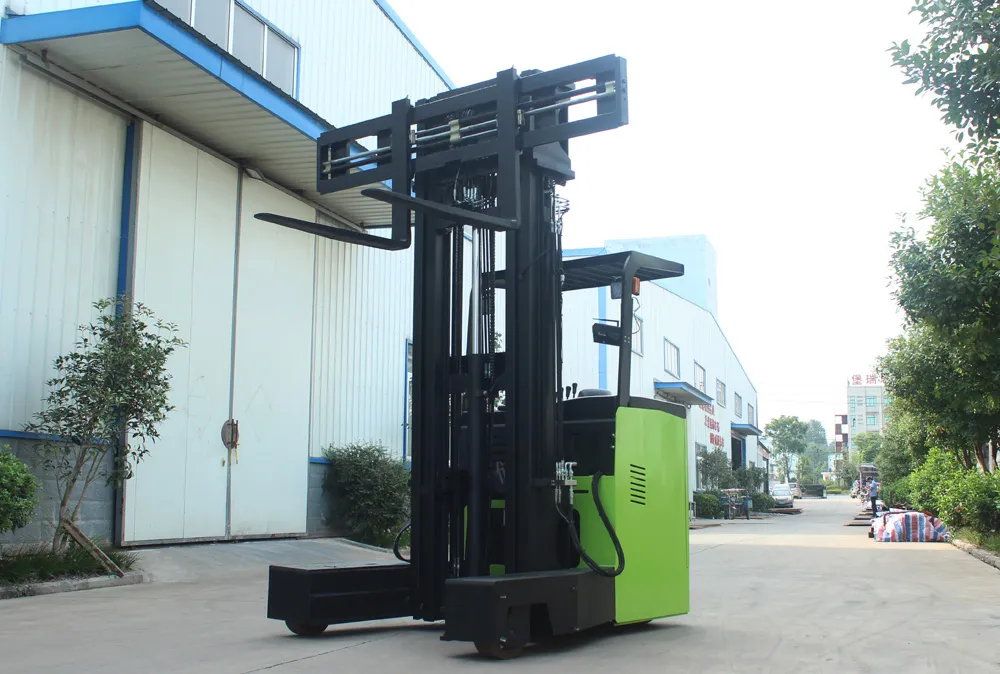

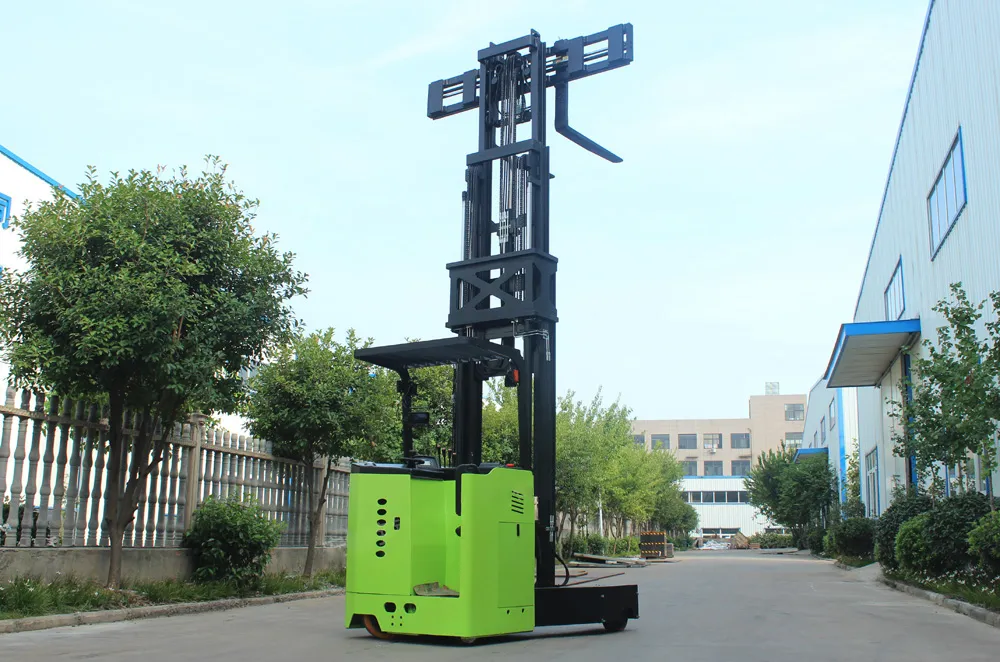

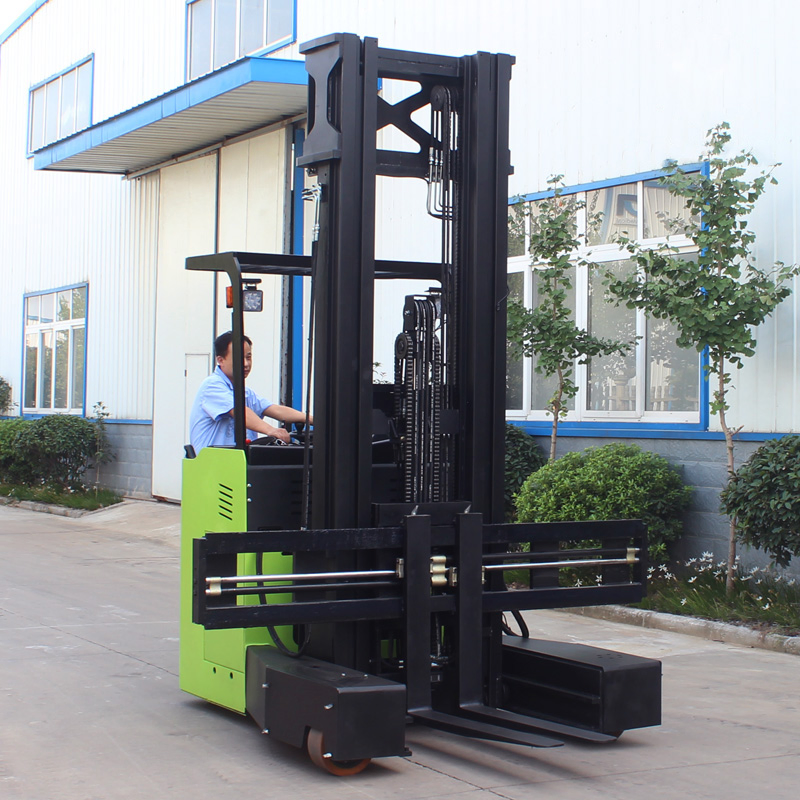

4 Way 2.5ton Multi Directional Electric Reach Forklift Truck with 2 Stage Mast

1 / 5

4 Way 2.5ton Multi Directional Electric Reach Forklift Truck with 2 Stage Mast

Customization:	Available
After-sales Service:	Supply
Warranty:	Supply

Send Inquiry

Product Description

Basic Information

Cab Location:Adjustable

Type:Electric Forklift

Power:AC Motor

Load Capacity:1T - 5T

Fuel:Electric

Load Center:500mm

Lift Height:3000~5000mm

Condition:New

Origin:China

Package Size:200.00cm * 200.00cm * 200.00cm

Gross Weight:2000.000kg

Product Description

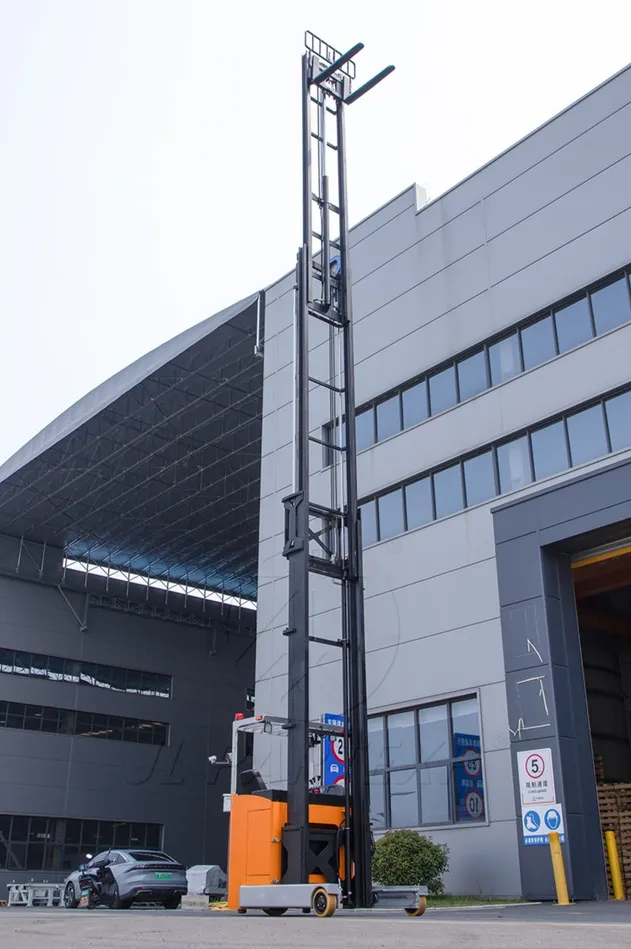

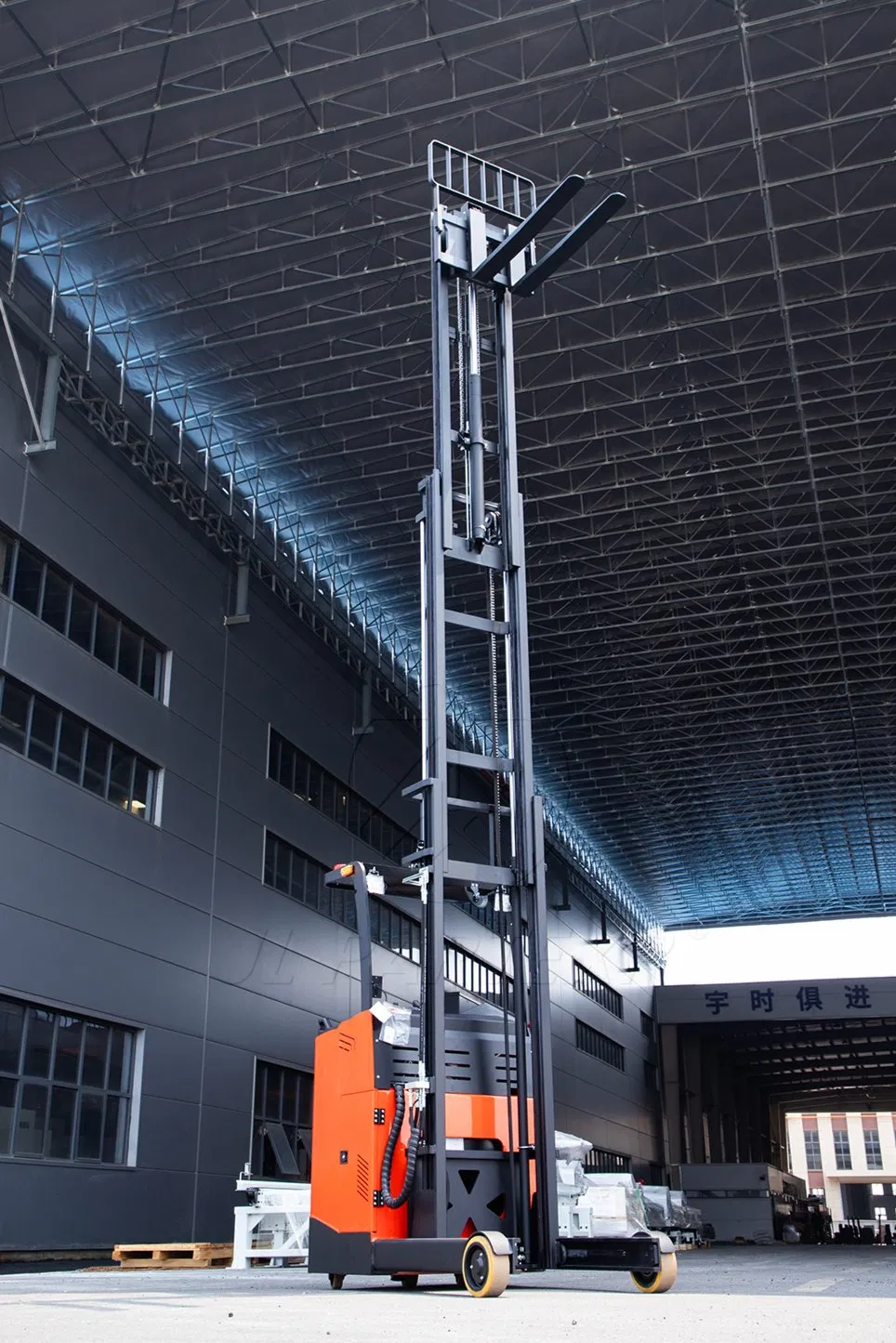

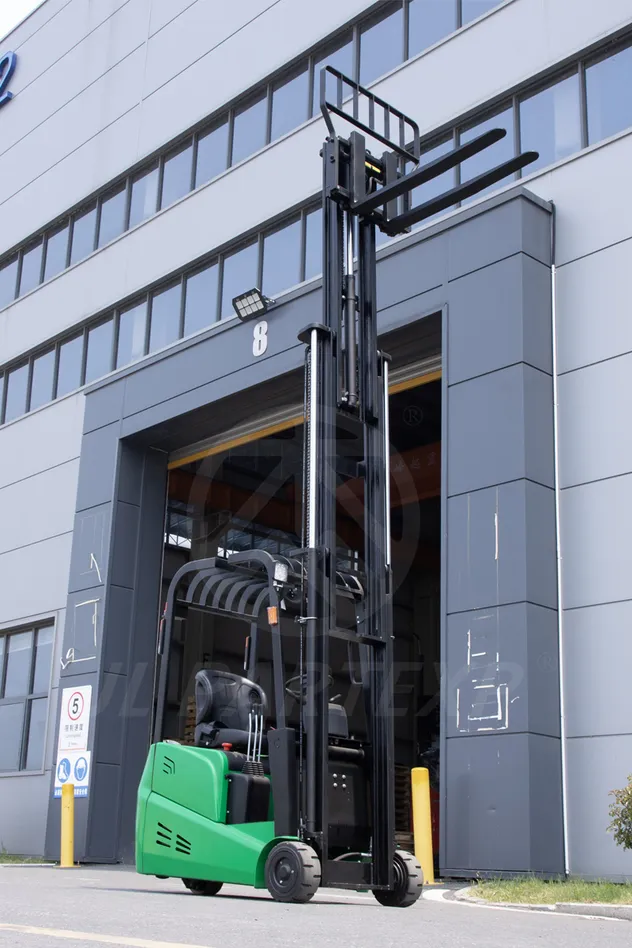

Multi Directional Electric Reach Forklift

Professional Forklift Customization Manufacturer

Our company has more than 20 years of experience in forklift manufacturing and can customize various models of forklifts according to customer needs.

Multifunctional four-way forklift: travels longitudinally and horizontally. Flexible for handling slender materials.
Electric power source: Low noise, zero emissions, and environmental protection.
Advanced AC variable frequency control system: High efficiency, maintenance-free motor, and long service life.
Dual motor drive and dual steering system: Front, rear, left, and right directional capabilities.
Automatic detection: Electronic control system restores the forklift to its initial state upon startup.
Multi-functional instrument: Features power display, running time, fault self-diagnosis, and alarm functions.
Optional customization: Automatic distance-adjusting forks (400mm-2800mm) and real-time camera functions available.

Specifications

Standard Mast Specification
Model	Unit	20S-30	20S-35	20S-40	20S-45
Mast Type	-	Double door frame
Lift Height	mm	3000	3500	4000	4500
Height-Mast Lowered	mm	2100	2350	2600	2850
Height-Mast extended	mm	3965	4465	4965	5465

Triplex Free Lifting Mast Specification
Model	Unit	20S-40	20S-45	20S-50	20S-55	20S-60	20S-65	20S-70	20S-75
Mast Type	-	Three door frames
Lift Height	mm	4000	4500	5000	5500	6000	6500	7000	7500
Height-Mast Lowered	mm	1940	2110	2280	2450	2620	2790	3210	3380

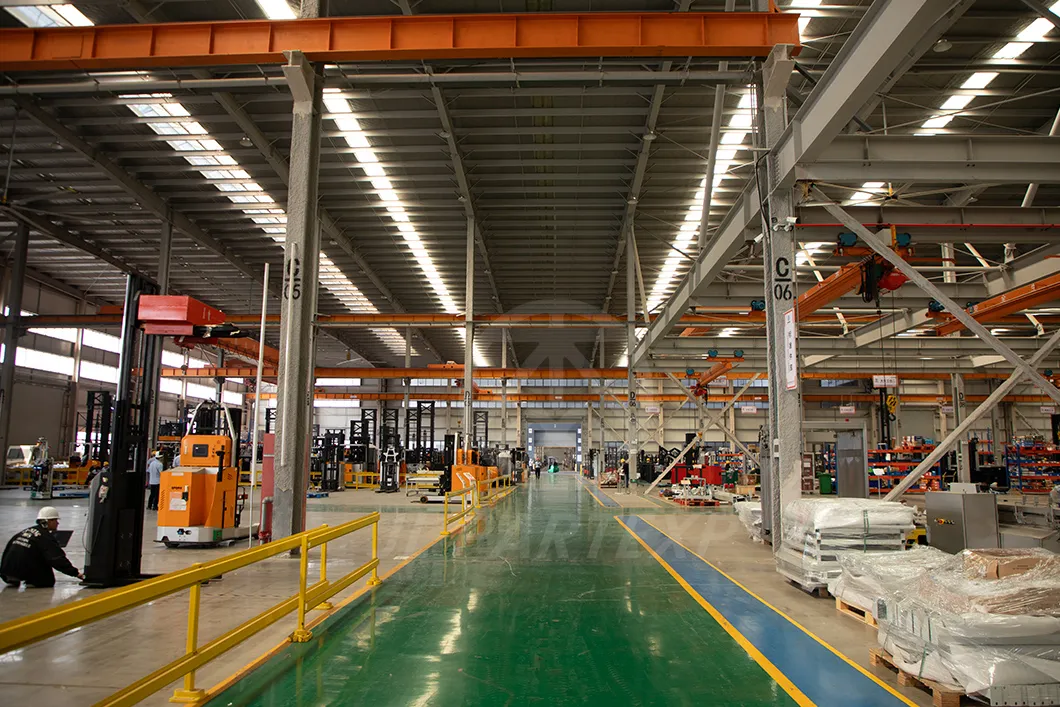

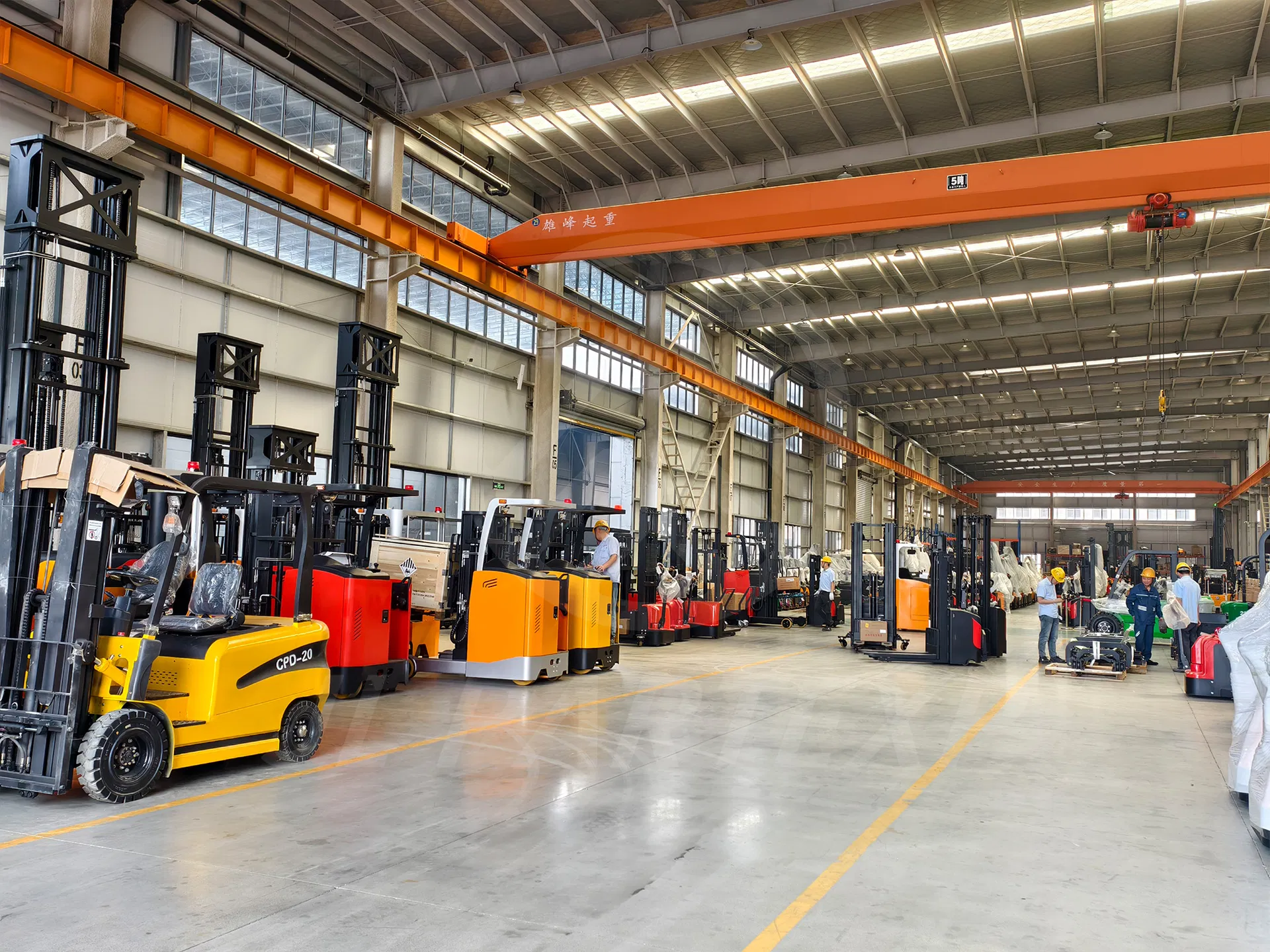

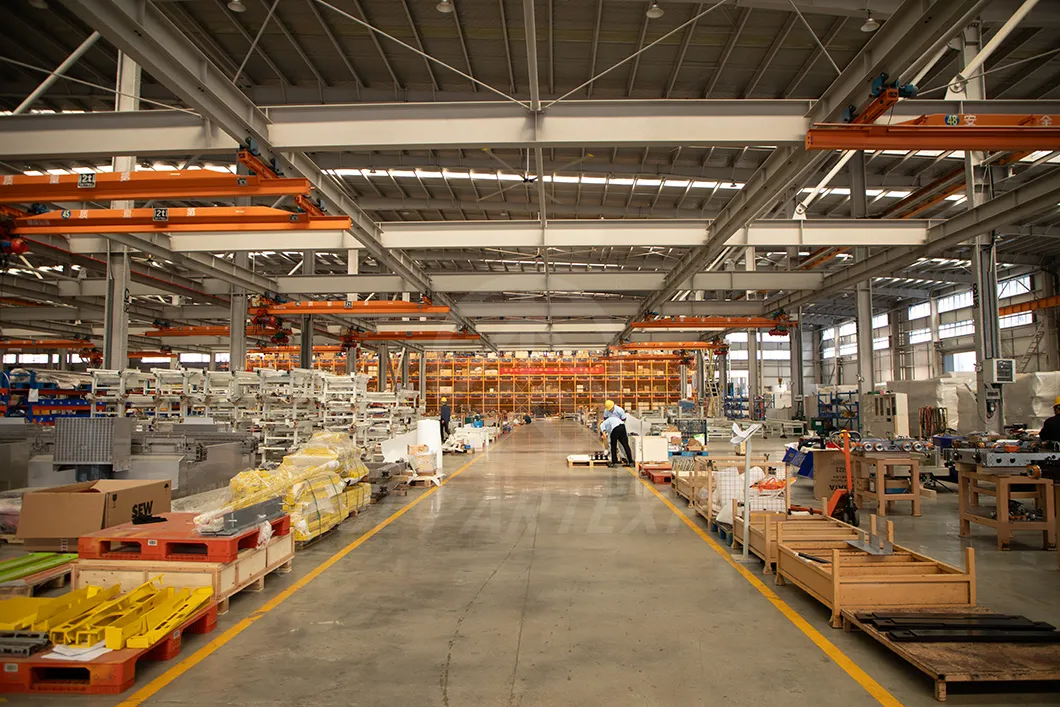

Company Profile

Our company integrates manufacturing, research and development, sales, after-sales and service, introduces high-end technology, and launches the Model series of high-performance electric forklifts, off-road forklifts, handling machinery, and small miniature electric excavators. We are a professional heavy industry machinery company focusing on material handling, intelligent warehousing, and manufacturing systems.

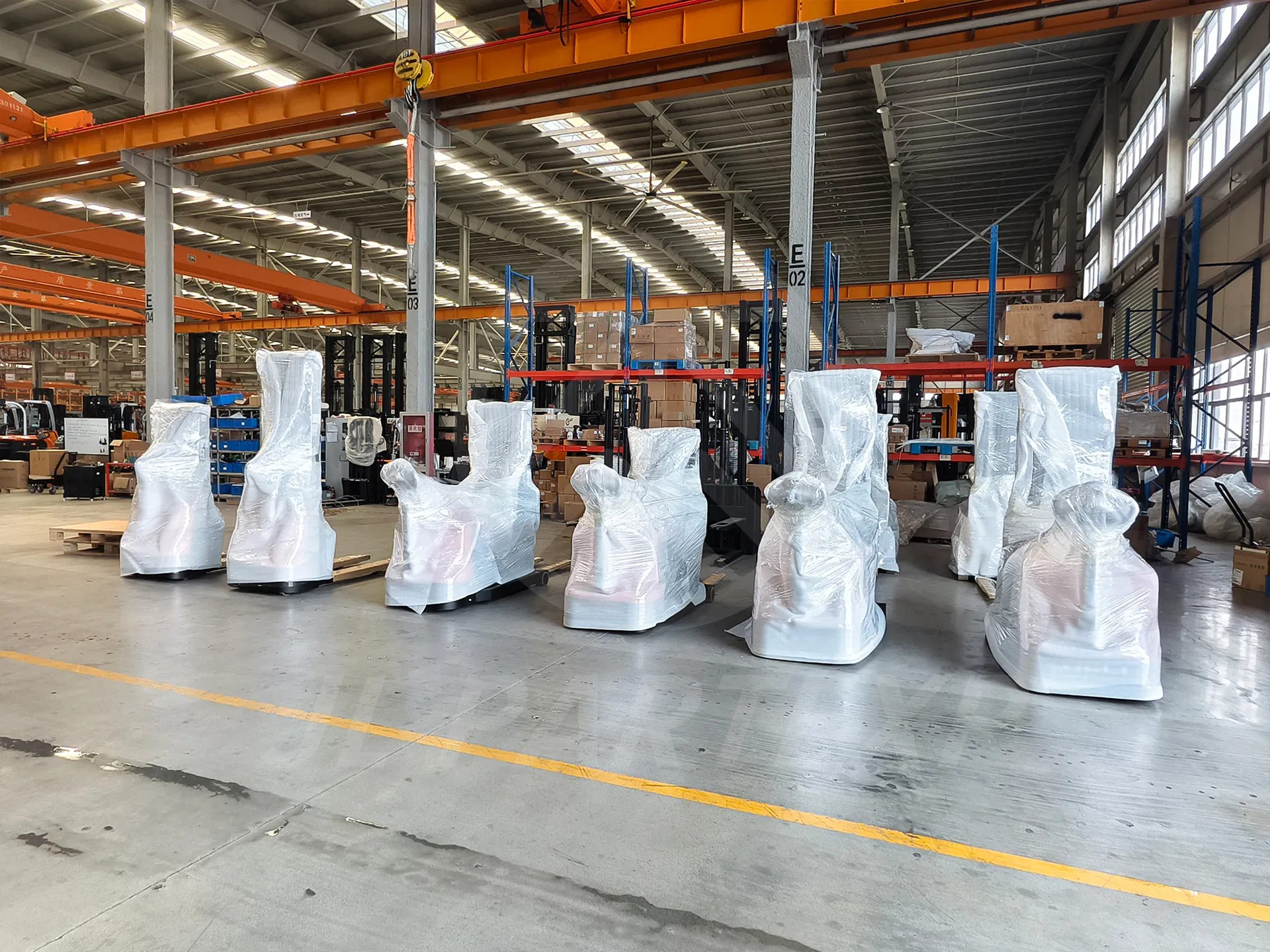

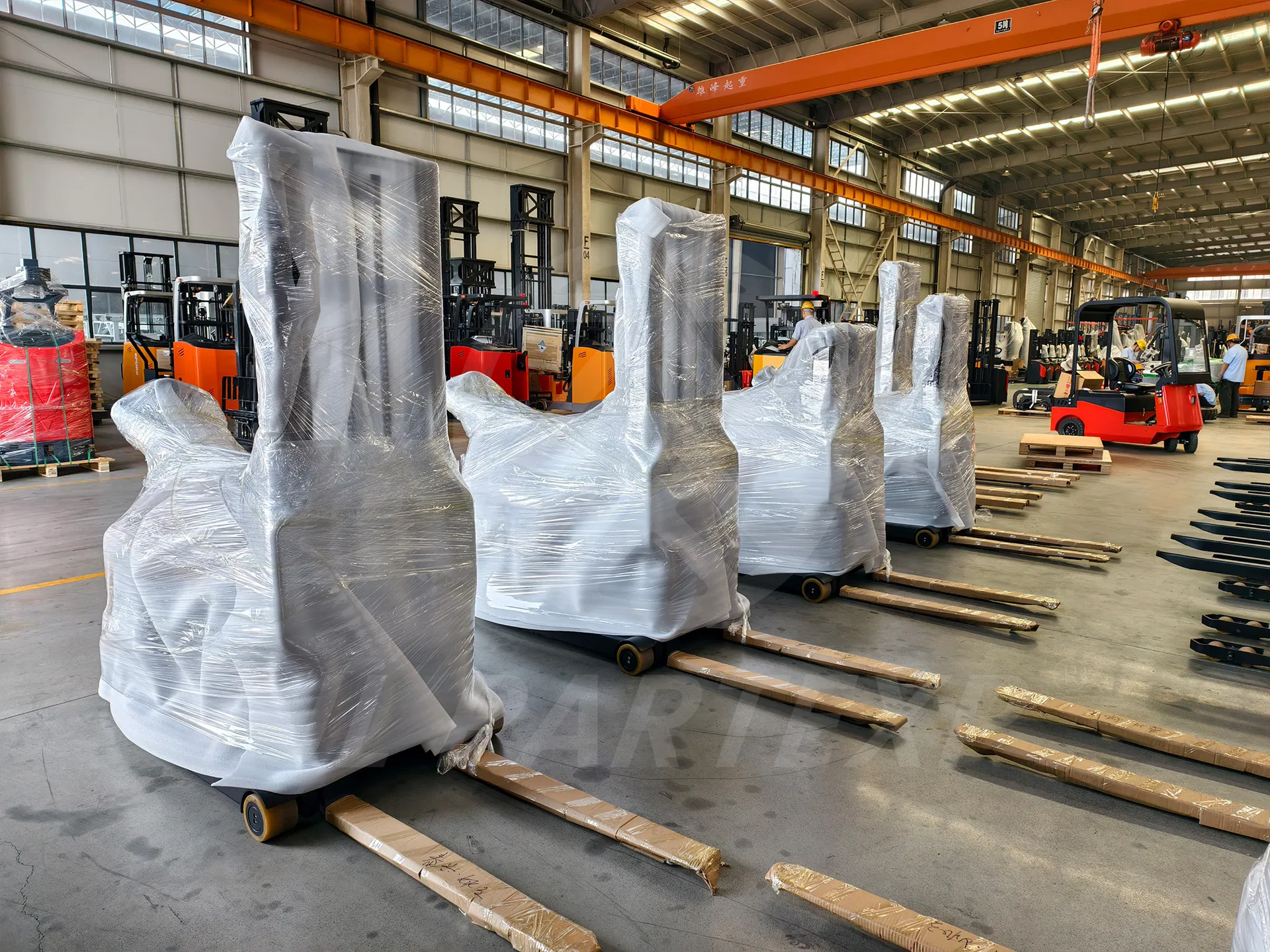

Packaging & Shipping

Frequently Asked Questions

What makes a 4-way forklift different from a standard one?

A 4-way forklift can travel both longitudinally and horizontally (sideways), making it exceptionally efficient for handling long loads in narrow aisles where traditional forklifts cannot maneuver.

What are the benefits of using an AC motor system?

The AC variable frequency control system provides more stable performance, higher energy efficiency, and is virtually maintenance-free compared to DC systems, significantly extending the service life.

Can I customize the fork width and lift height?

Yes, we offer extensive customization. Forks can be adjusted from 400mm to 2800mm, and we provide various mast types (Standard or Triplex) with lift heights up to 7500mm.

Is this forklift suitable for indoor use?

Absolutely. Being 100% electric, it produces zero emissions and operates with very low noise, making it ideal for indoor warehouses and environmentally sensitive areas.

How does the automatic detection system work?

When powered on, the pre-programmed electronic control system automatically runs a diagnostic check and restores all components to their initial operational state, ensuring safety and reliability.

What optional features can be added?

Common options include real-time camera systems for high-altitude fork monitoring, automatic distance-adjusting forks, and different cabin configurations.
