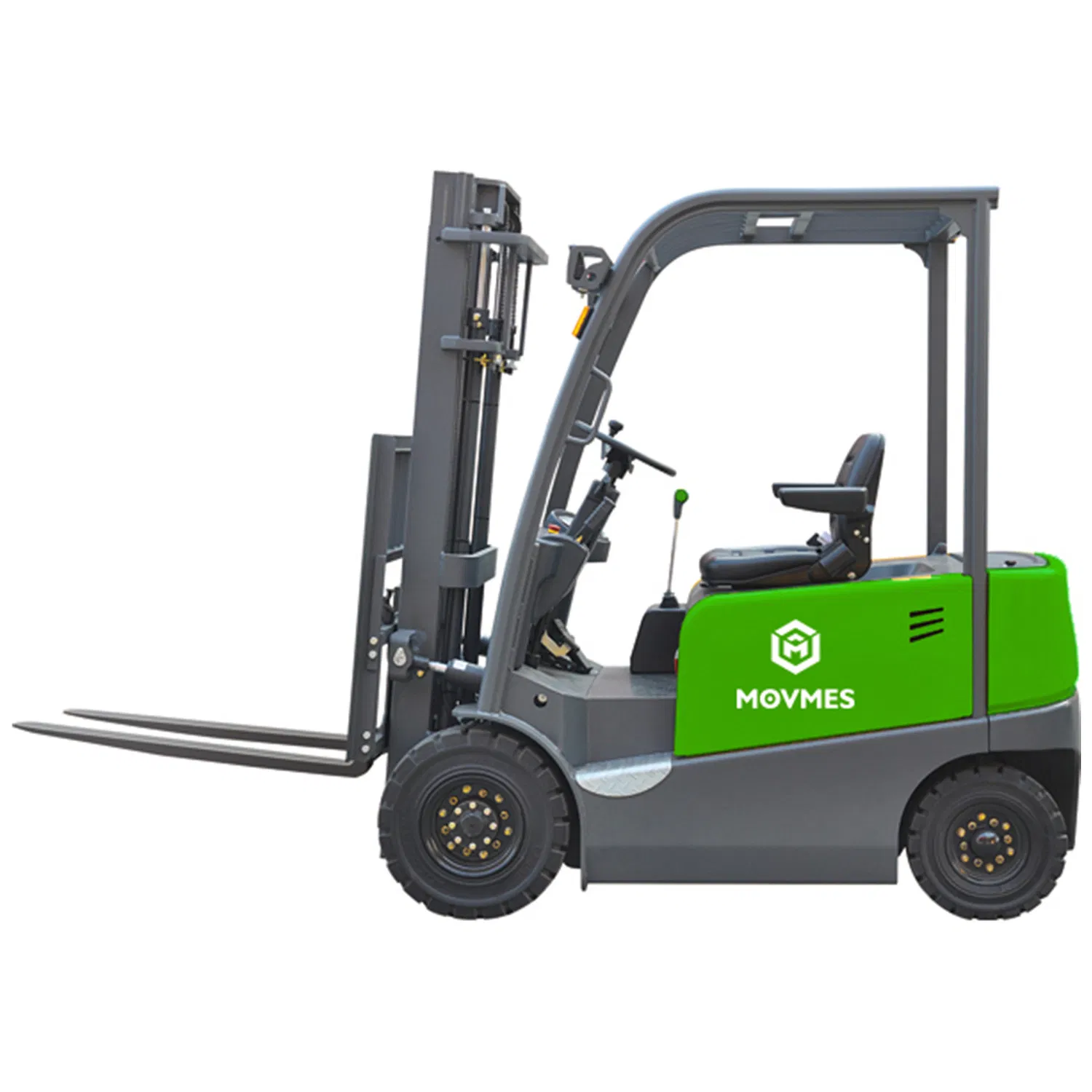

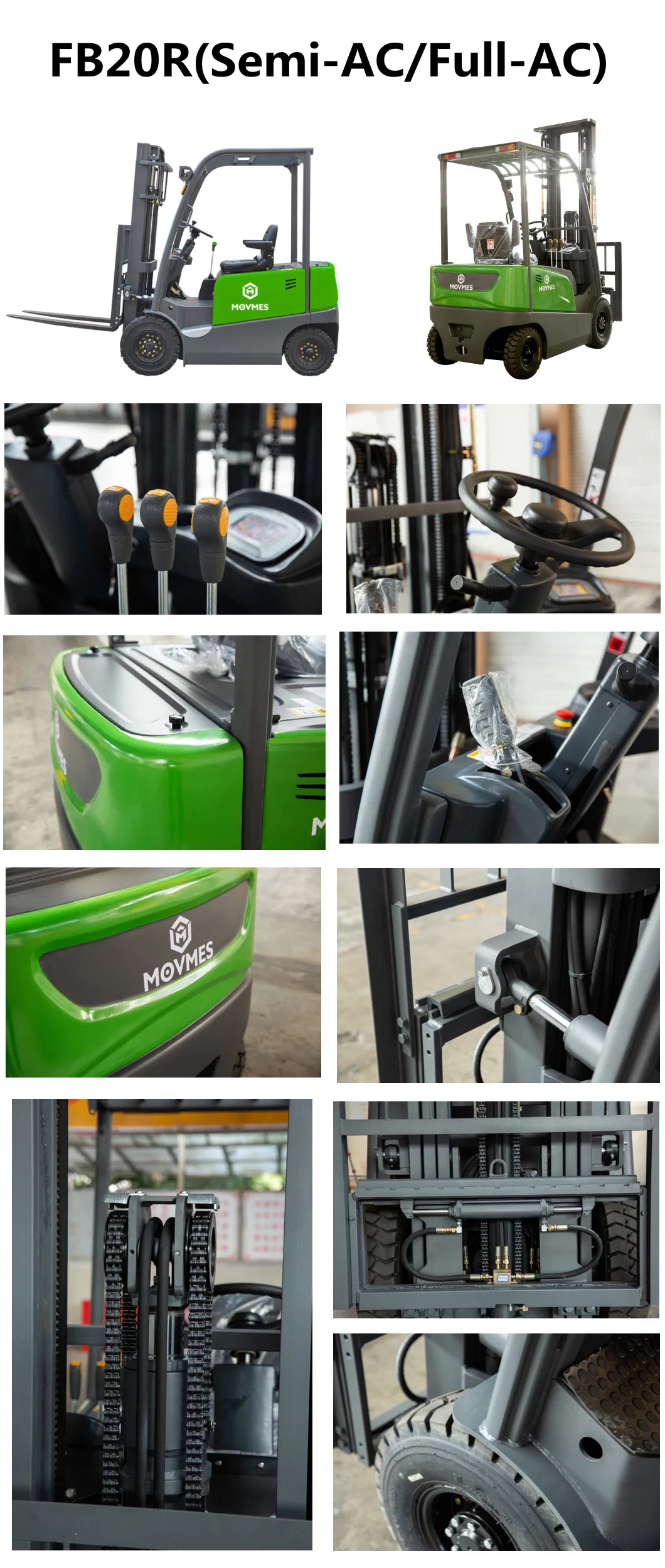

Strong Durable Safe and Efficient Green Lithium Battery 2 Tons All Electric Step-Type Forklift

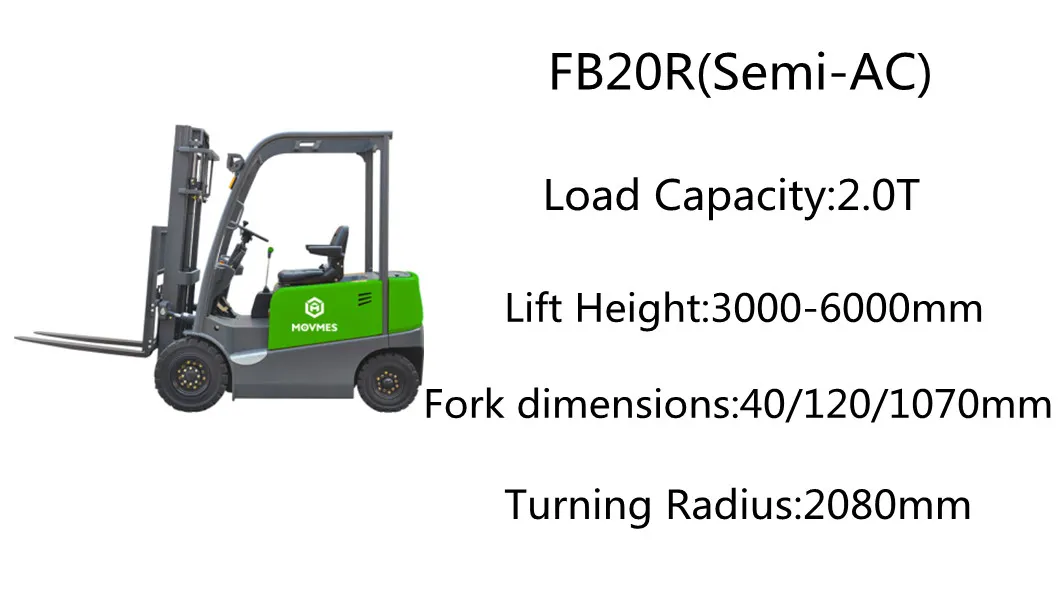

| Parameter | Unit | FB20R (Semi-AC) | FB20R (Full AC) |
|---|---|---|---|
| Power | - | electric | electric |
| Operation type | - | seated | seated |
| Capacity/rated load | Q(kg) | 2000 | 2000 |
| Load centre distance | c(mm) | 500 | 500 |
| Lift height | h3(mm) | 3000--6000 | 3000--6000 |
| Wheelbase | Y(mm) | 1480 | 1480 |
| Service weight | kg | 3315 | 3500 |
| Travel speed (laden/unladen) | Km/h | 12/13 | 12/13 |
| Lift speed (laden/unladen) | mm/s | 0.24/0.36 | 0.28/0.32 |
| Battery weight | kg | 680 | 760 |
Our professional design team is committed to every small feature to improve work efficiency, reduction of safety risks for employees, and improve utilization.
Improved efficiency with H type driving axle. High power and large torque AC driving motor with heat radiating grooves. Low gravity center relocated battery reinforces steering stability. Dual-controller design for independent driving and lifting control. Full LED lights and metal housing for protection.

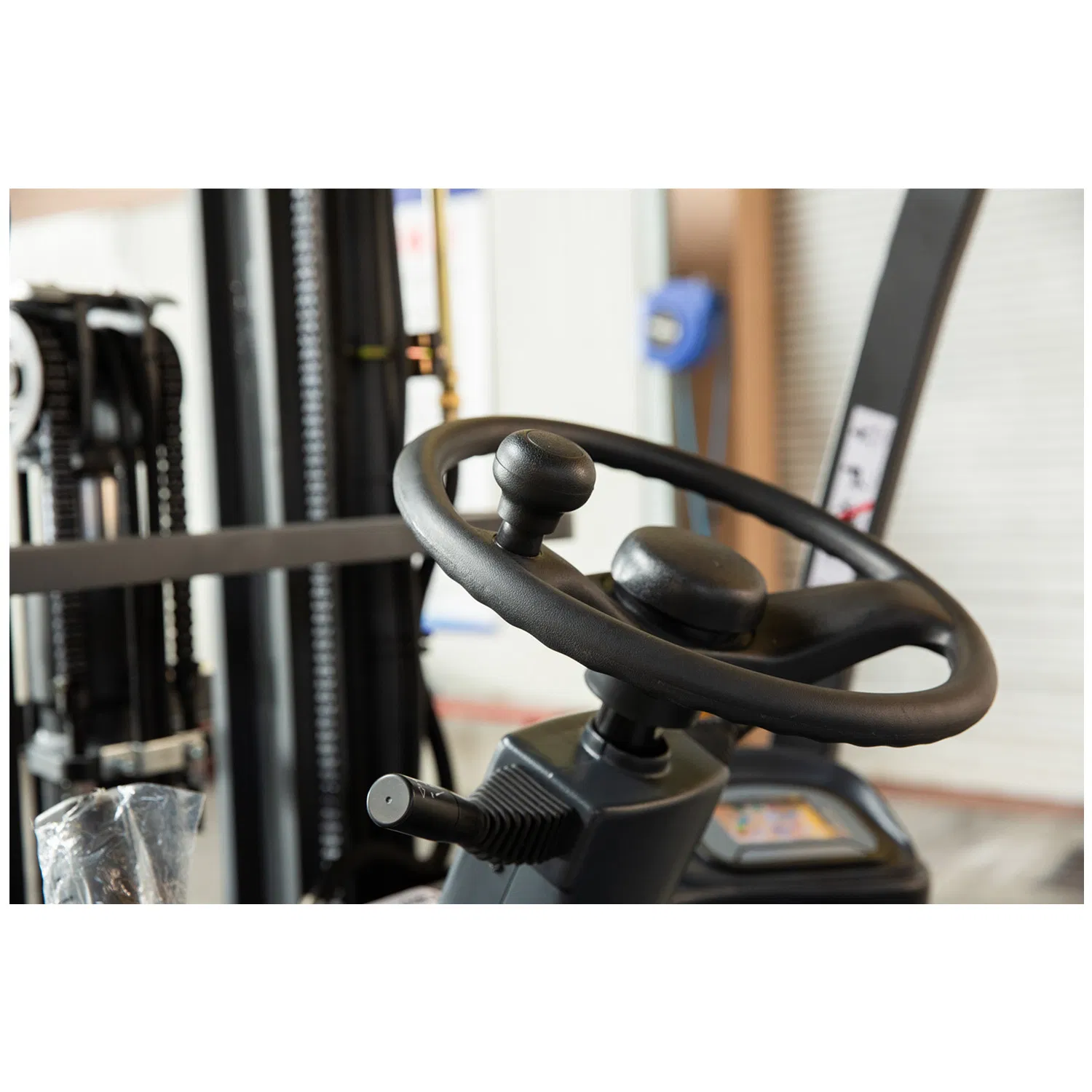

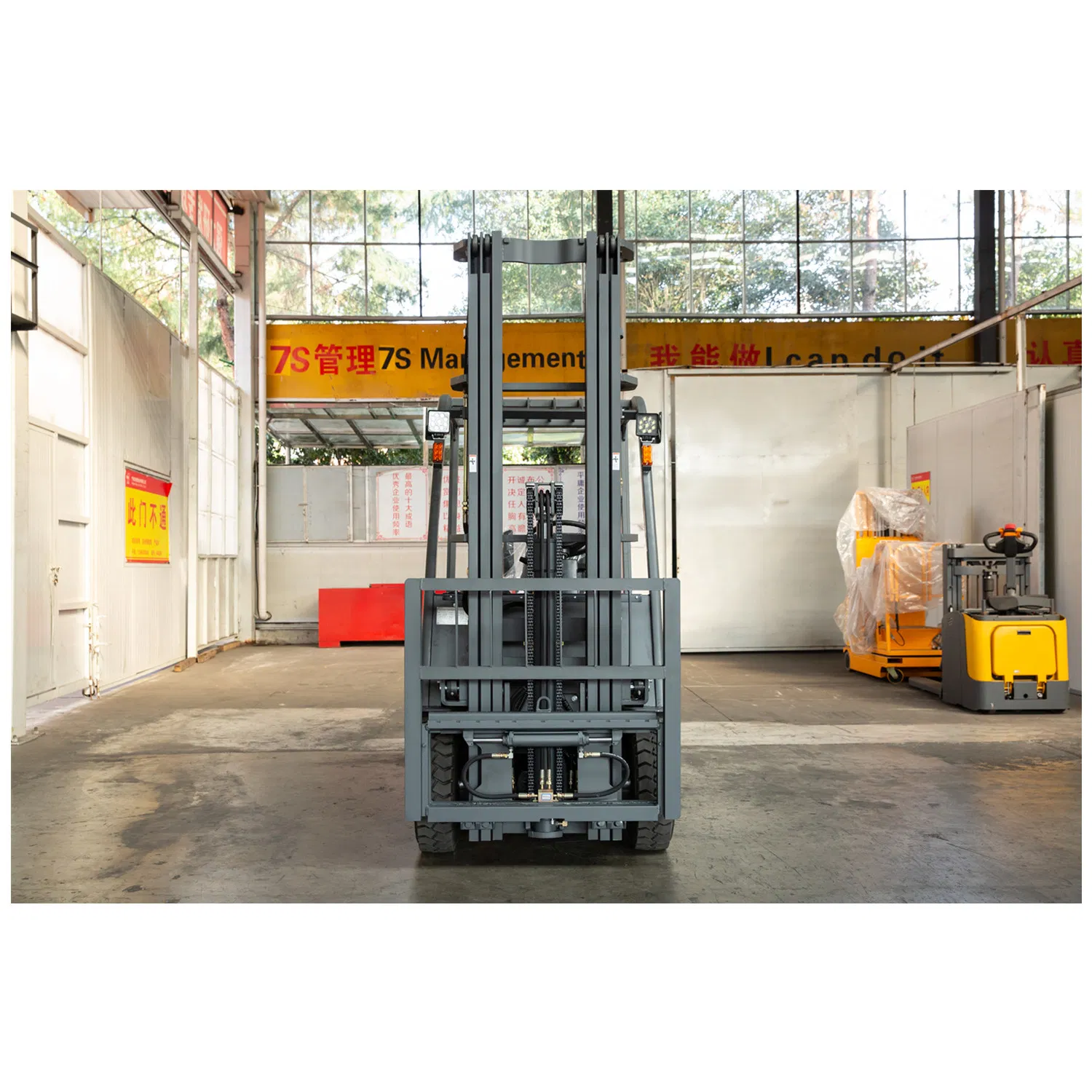

Optimized structure creates a large operating room. Adjustable steering wheel column and integrated light switch. Clear view mast with intelligent collapse buffering.

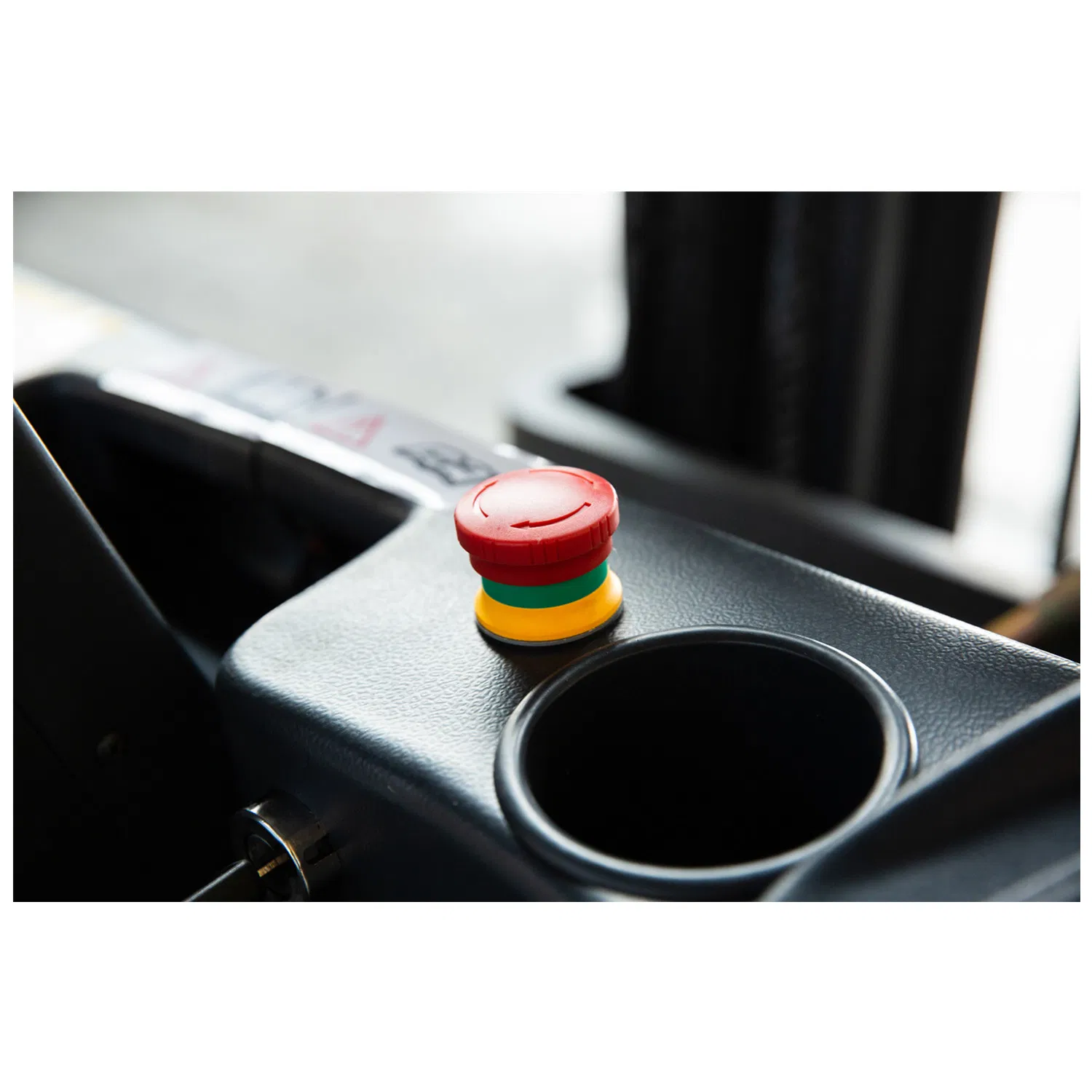

Side-way battery box, Electromagnetic valve, Shock-absorbing chair with power disconnect, Lithium battery, and Cold storage application.
Easy maintained controller and steering potentiometer. Brushless motors reduce cost of ownership. Over-discharge protecting system (warns at <20% battery). Convenient braking oil cup access.
CBD15W-L Lithium Truck

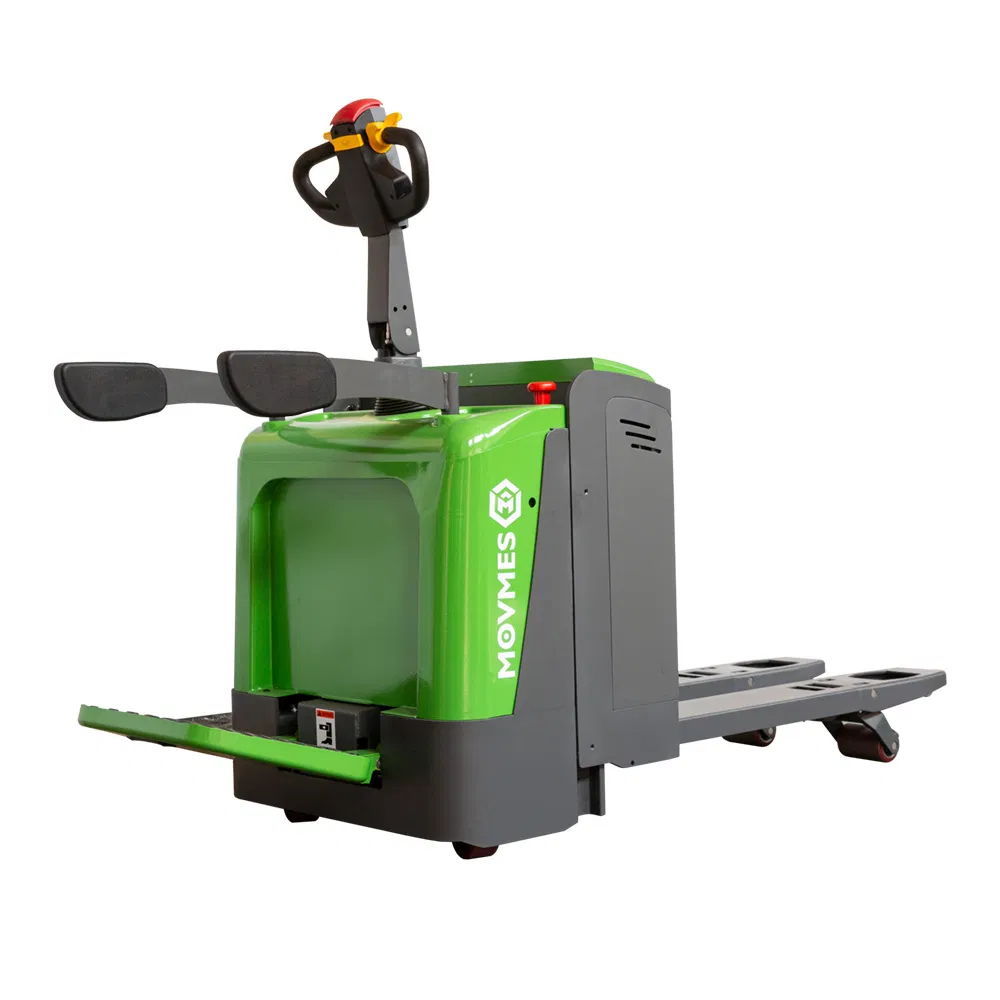

CBD20R-II Rider Truck
CDD10R-E Electric Stacker
Certifications: ISO9001:2008 Quality management system, ISO14001:2004 Environmental management system, OHSAS18001:2007. Products approved CE standards of EN3691-5:2014 and EN3691-1:2012.

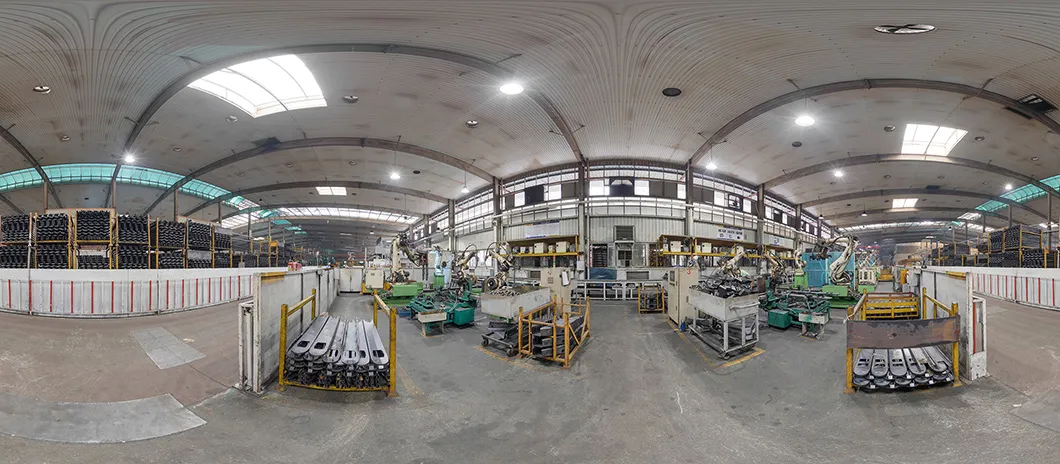

Product test before delivery includes: 1. Strengthening test; 2. Stability detection; 3. Climbing performance; 4. Braking performance; 5. Technical parameter verification.

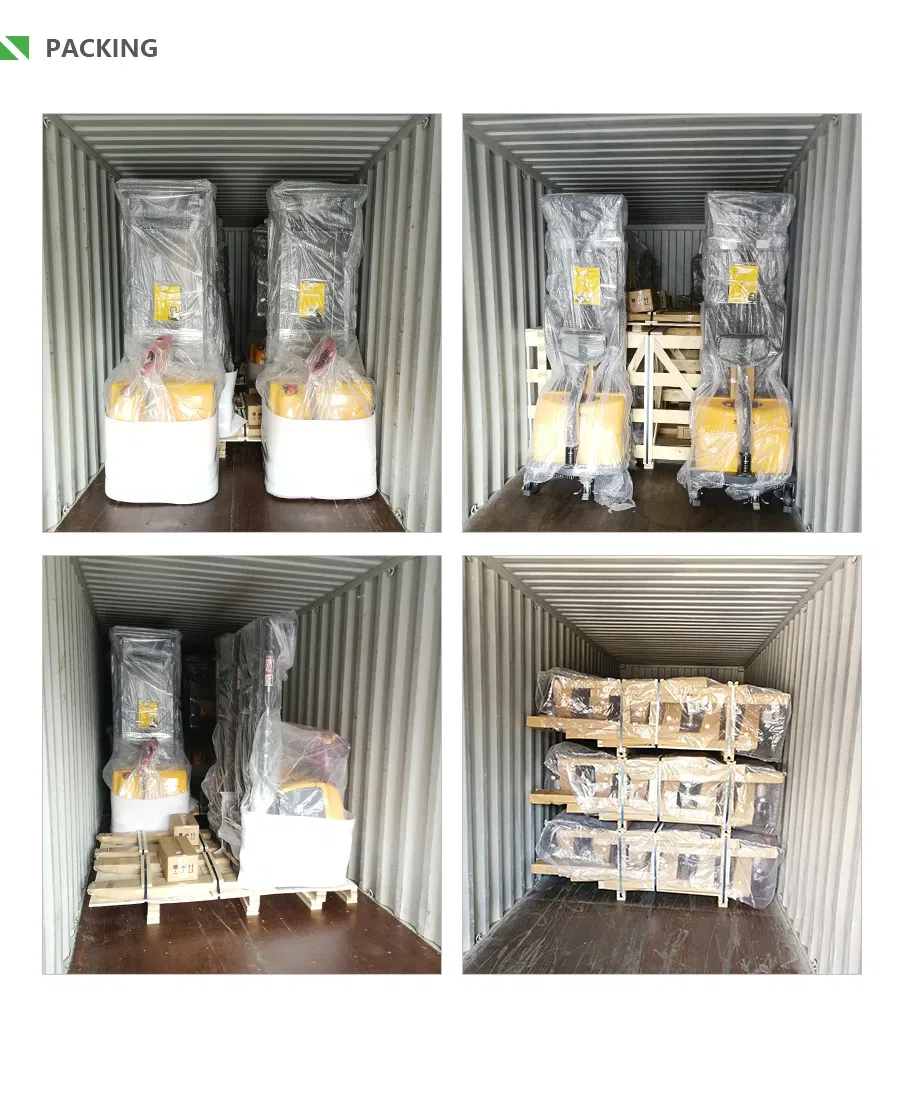

Careful packaging for every truck. Production time is typically 15-20 days after advanced payment. Stock available for standard products for immediate delivery.
