1.5ton Economical & Practical Electric Pallet Jack Standard Fork Length 1150mm

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO. KX-QDCX15 1150mm Type Powered Pallet Truck
Power DC Motor Load Capacity 1.5t
Fuel Electric Lift height 200mm
Load center 500mm Lowest Height 85mm
Battery Lead-Acid Battery Wheel PU Wheel
Fork Length 1150mm Specification 1650X700X1360mm

Product Description

Key Features

  • Rated load 1500kg
  • Fork size options: 1150/1500/1800 x 160 x 50mm
  • Lifting range: 85mm to 200mm
  • Powered by 2 pieces 12V Lead-acid battery
  • 0.8 kw Pumping Station & 0.6 kw Driving Motor
  • Tight turning radius of 1440mm for narrow spaces
  • Curtis PCB board for reliable control
  • Safety emergency button and anti-collision button included

Technical Parameters

Characteristics Specification Unit Value
Main characteristics Drive mode QD Electric
Driving mode Operation JS Stand/Step
Wheel material Material PU Polyurethane
Size Lifting height mm 200
Size Turning radius mm 1440
Motor battery Battery voltage V/Ah 2*12/65

Detailed Photos

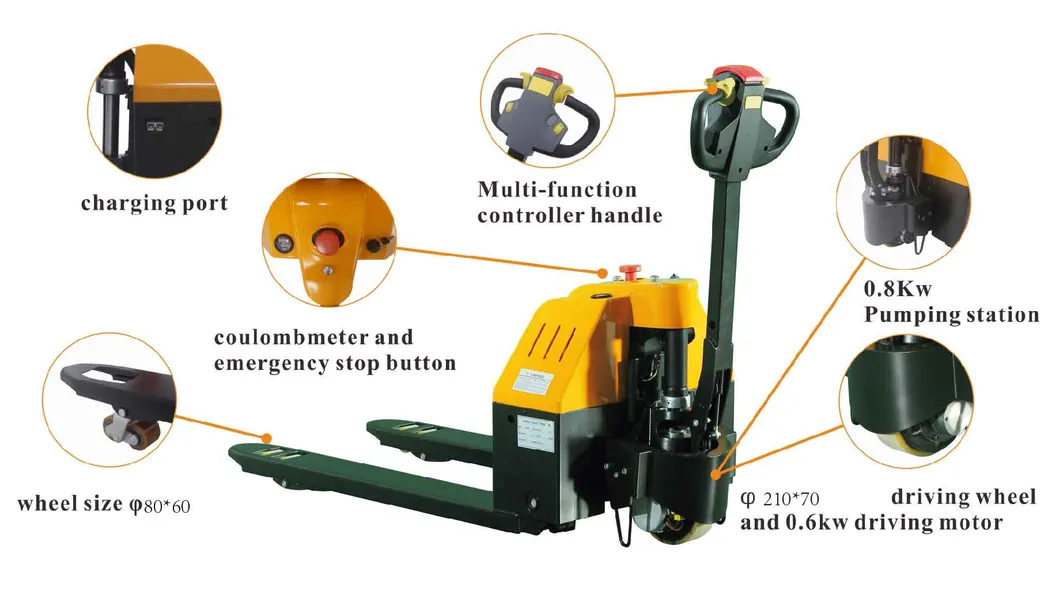

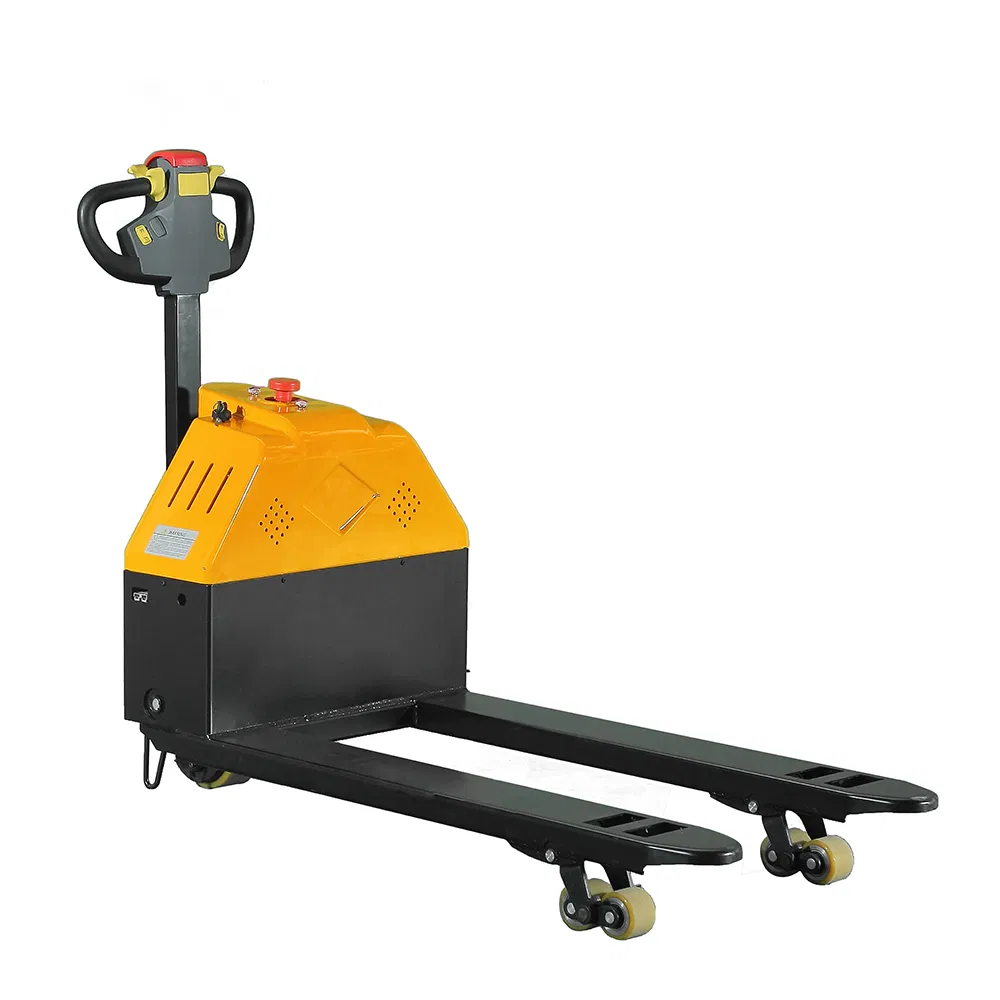

Electric Pallet Jack Overview

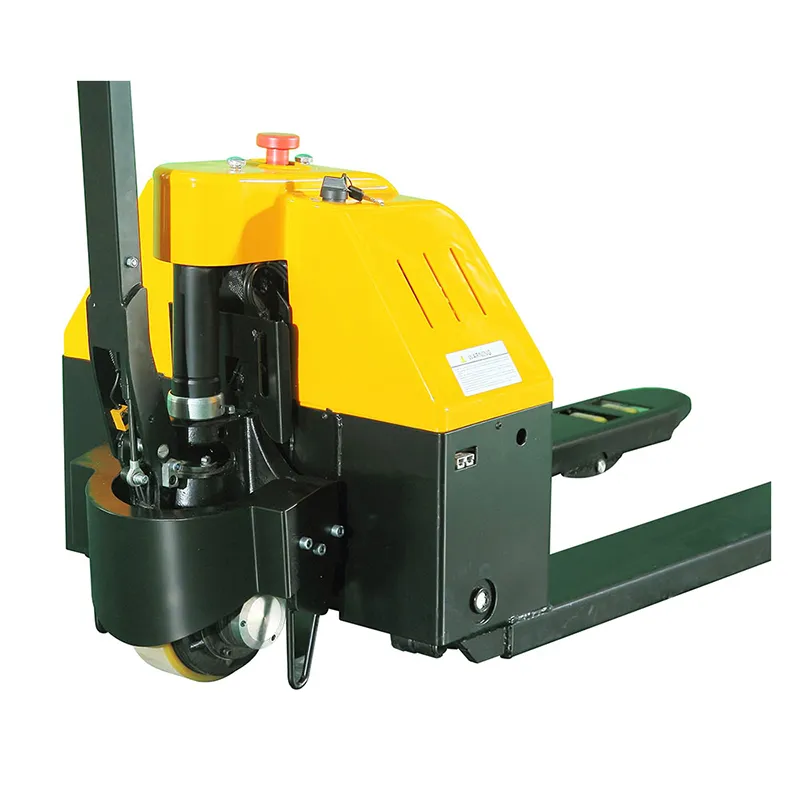

Detail View 1

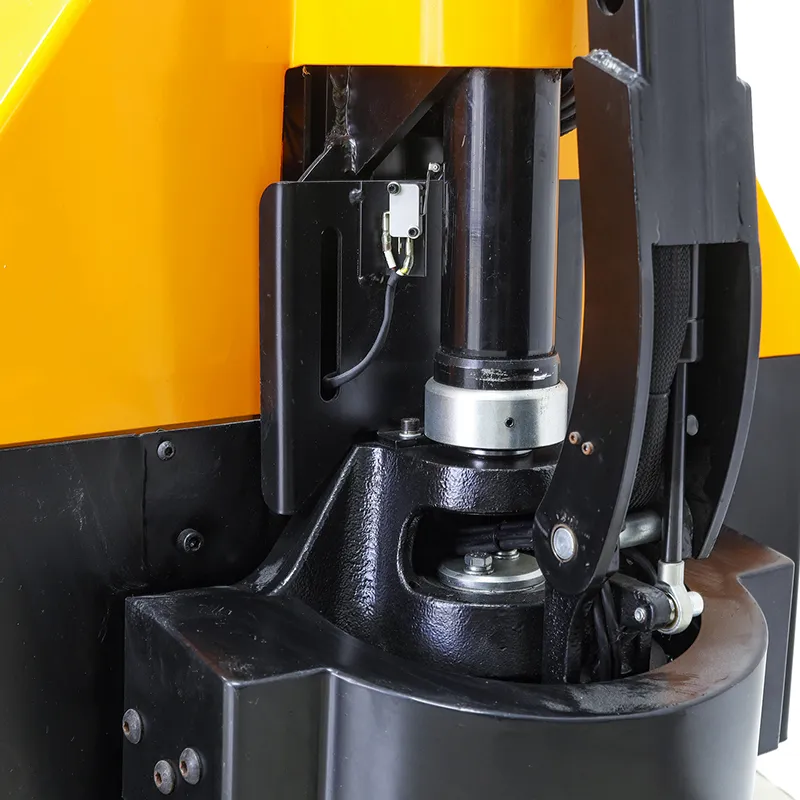

Detail View 2

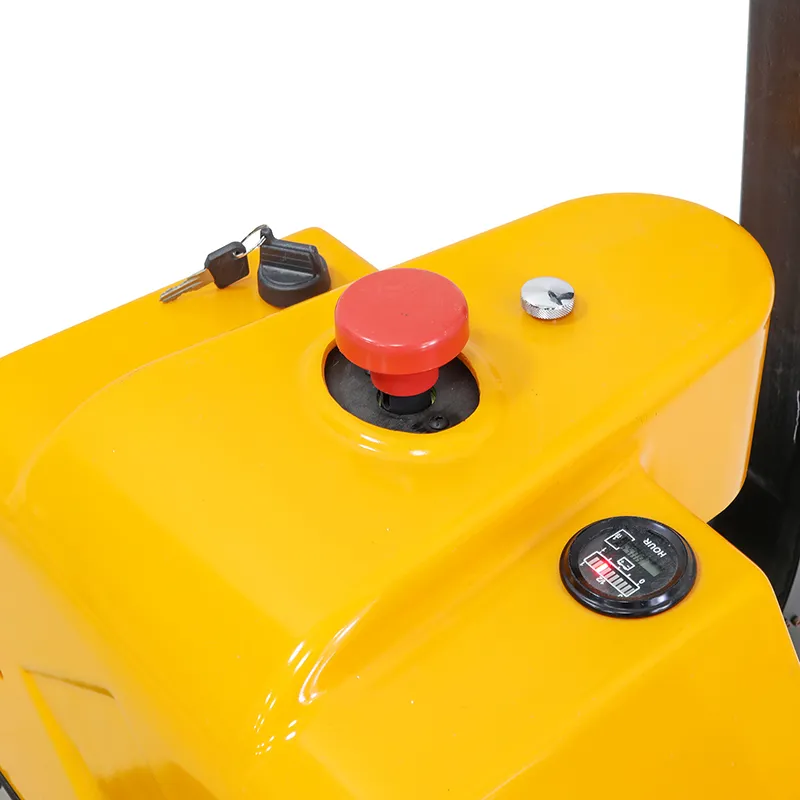

Detail View 3

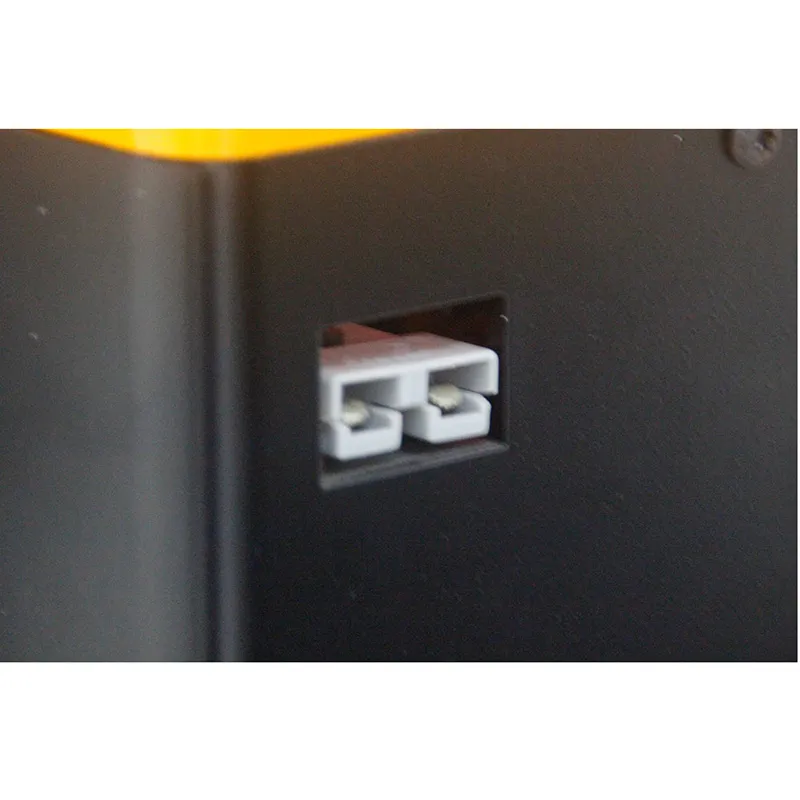

Detail View 4

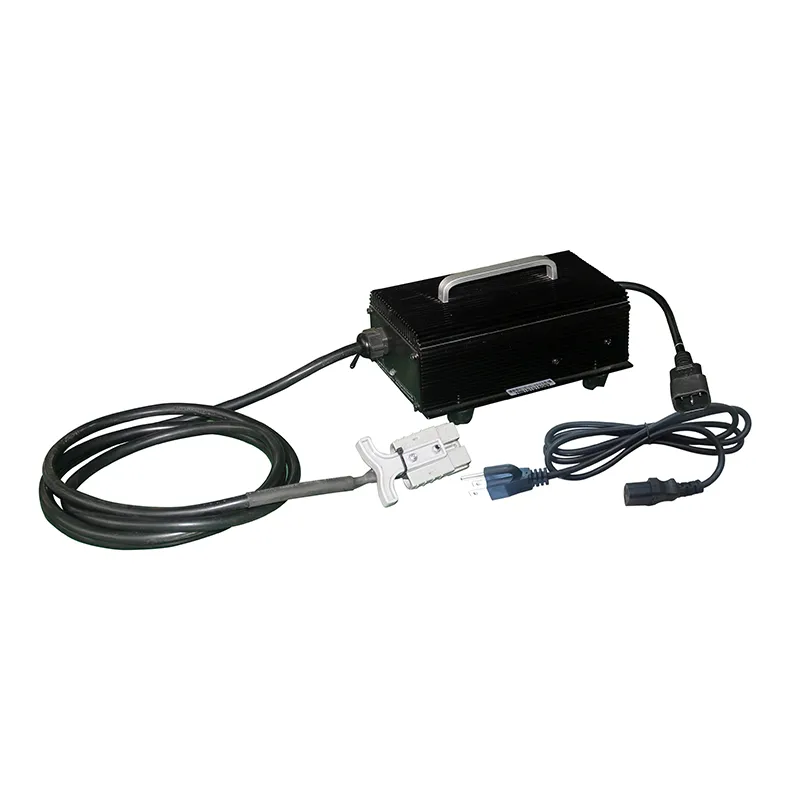

Detail View 5
Detail View 6

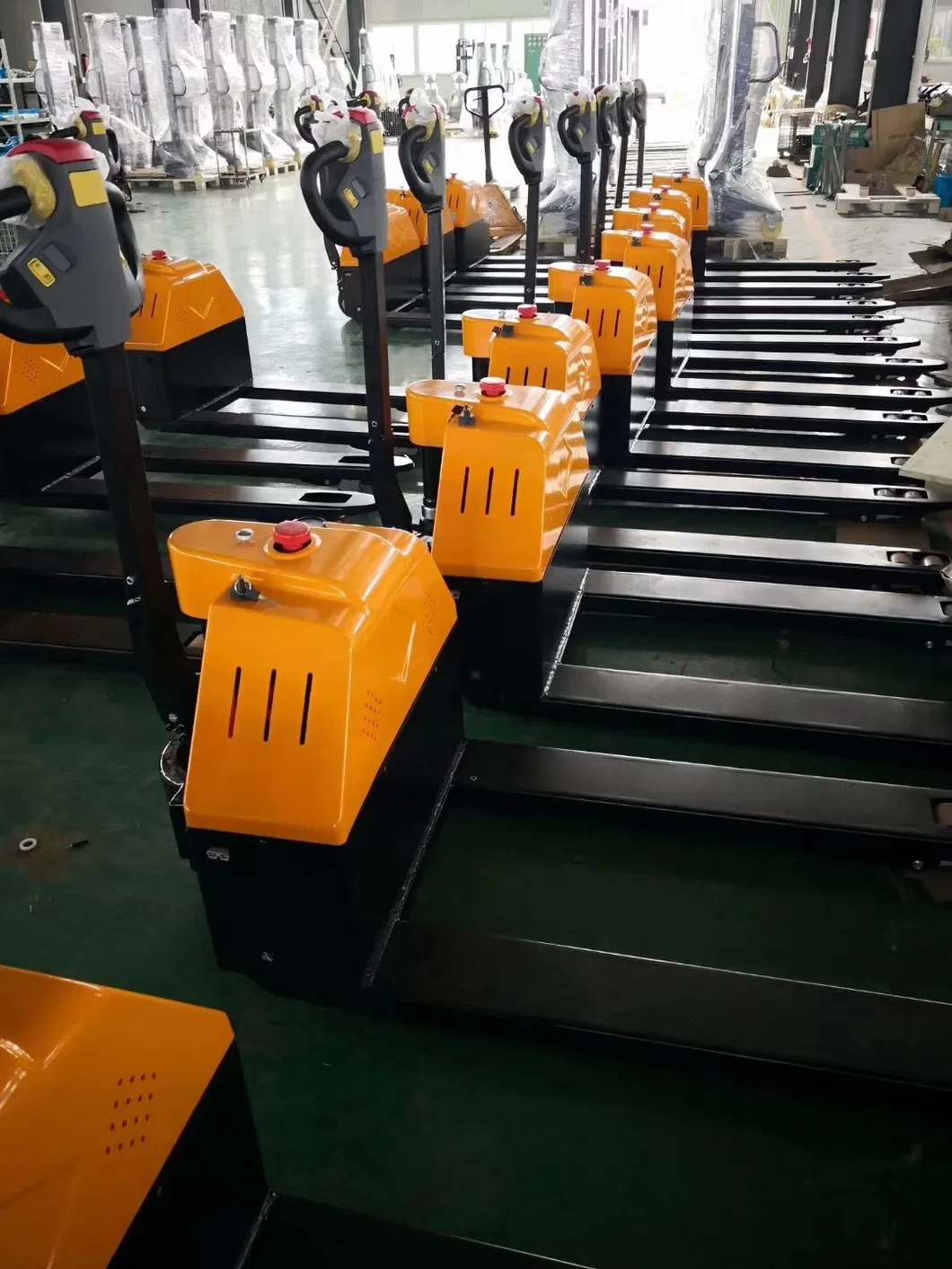

Scale View 1

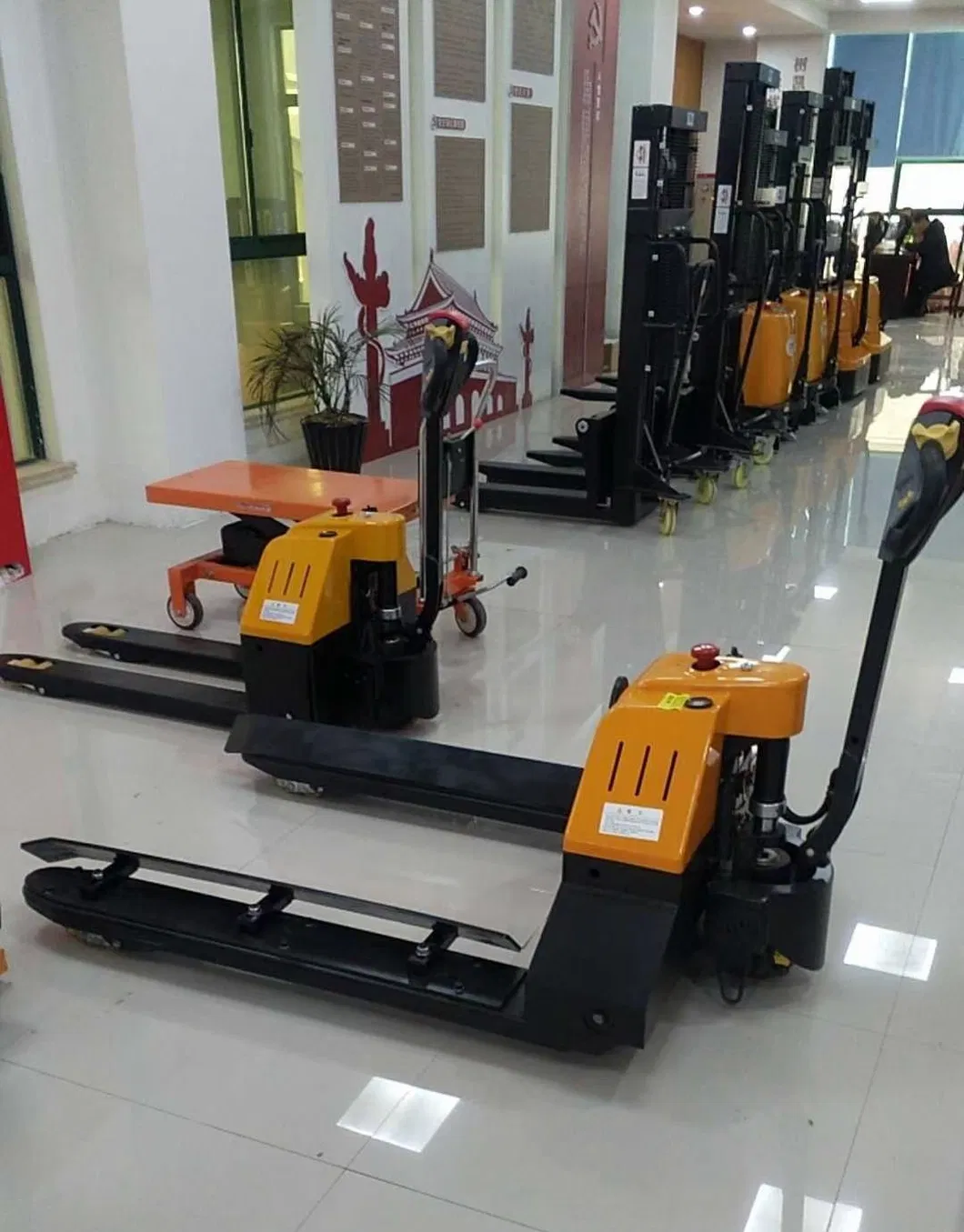

Scale View 2

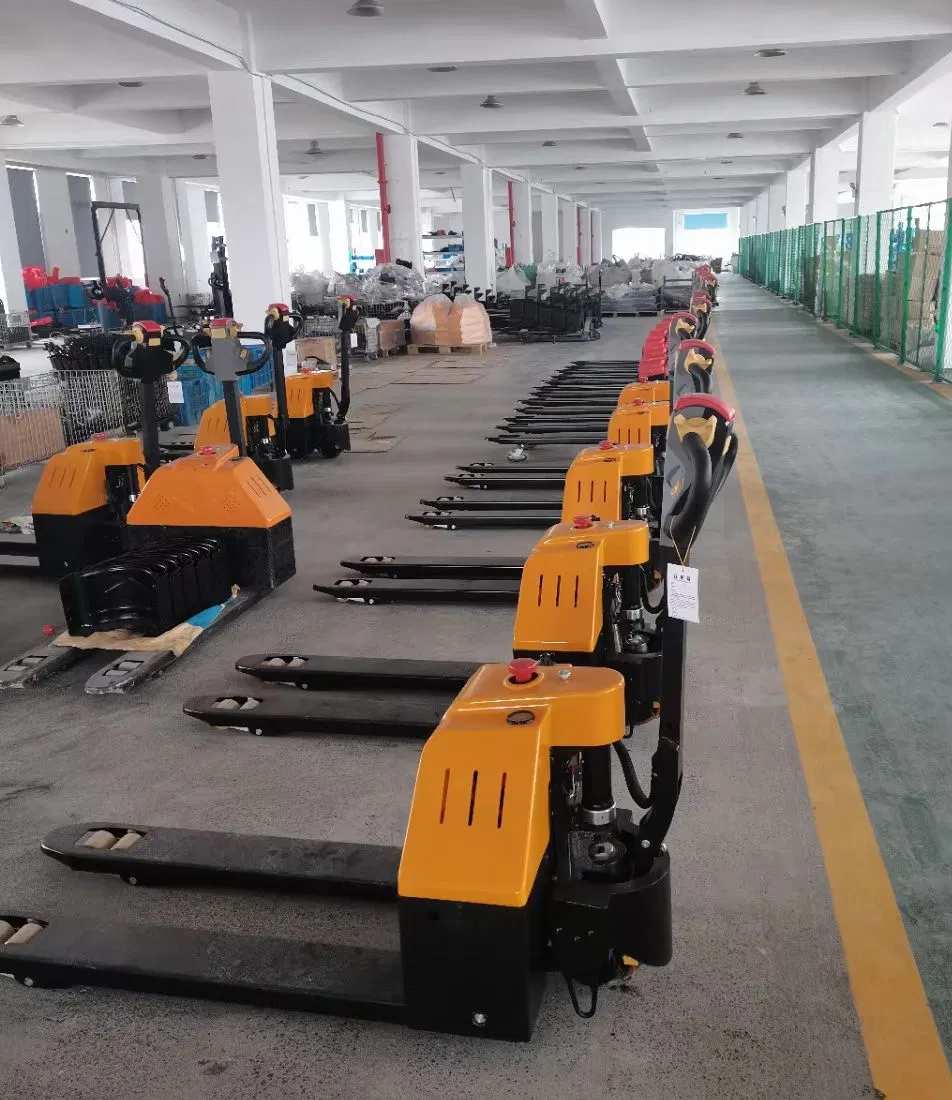

Scale View 3

Packaging & Shipping

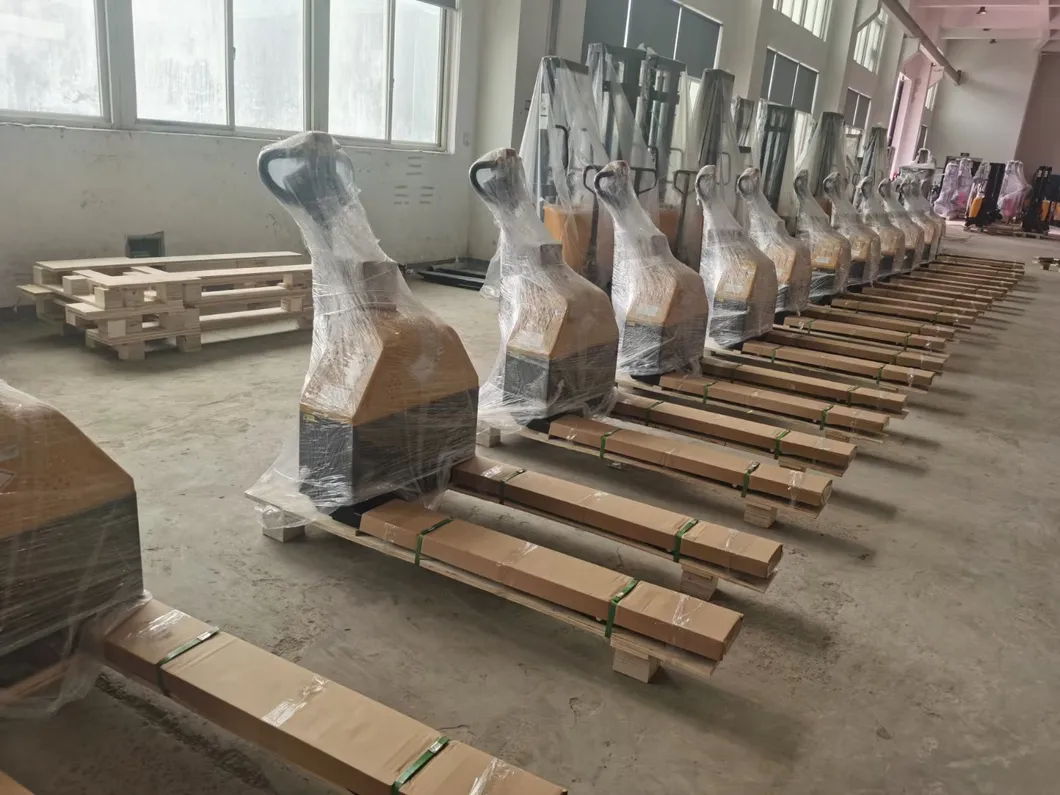

Packaging Details
Package Size 165.00cm * 70.00cm * 136.00cm
Package Gross Weight 240.000kg

Frequently Asked Questions

What is the maximum load capacity of this electric pallet jack?
The rated load capacity for this model is 1500kg (1.5 tons), making it ideal for standard warehouse operations.
Is it suitable for narrow aisles?
Yes, it features a compact design with a turning radius of only 1440mm, allowing for easy maneuverability in confined spaces.
What type of safety features are included?
The unit is equipped with an emergency stop button and an anti-collision button on the handle to protect the operator during use.
What battery type does this pallet truck use?
It uses two 12V lead-acid batteries, providing reliable power for long working hours.
What are the fork dimensions?
The standard fork length is 1150mm, with options for 1500mm or 1800mm lengths to suit different pallet types.
What material are the wheels made of?
The wheels are made of high-quality Polyurethane (PU), which offers durability and smooth movement on various floor surfaces.
