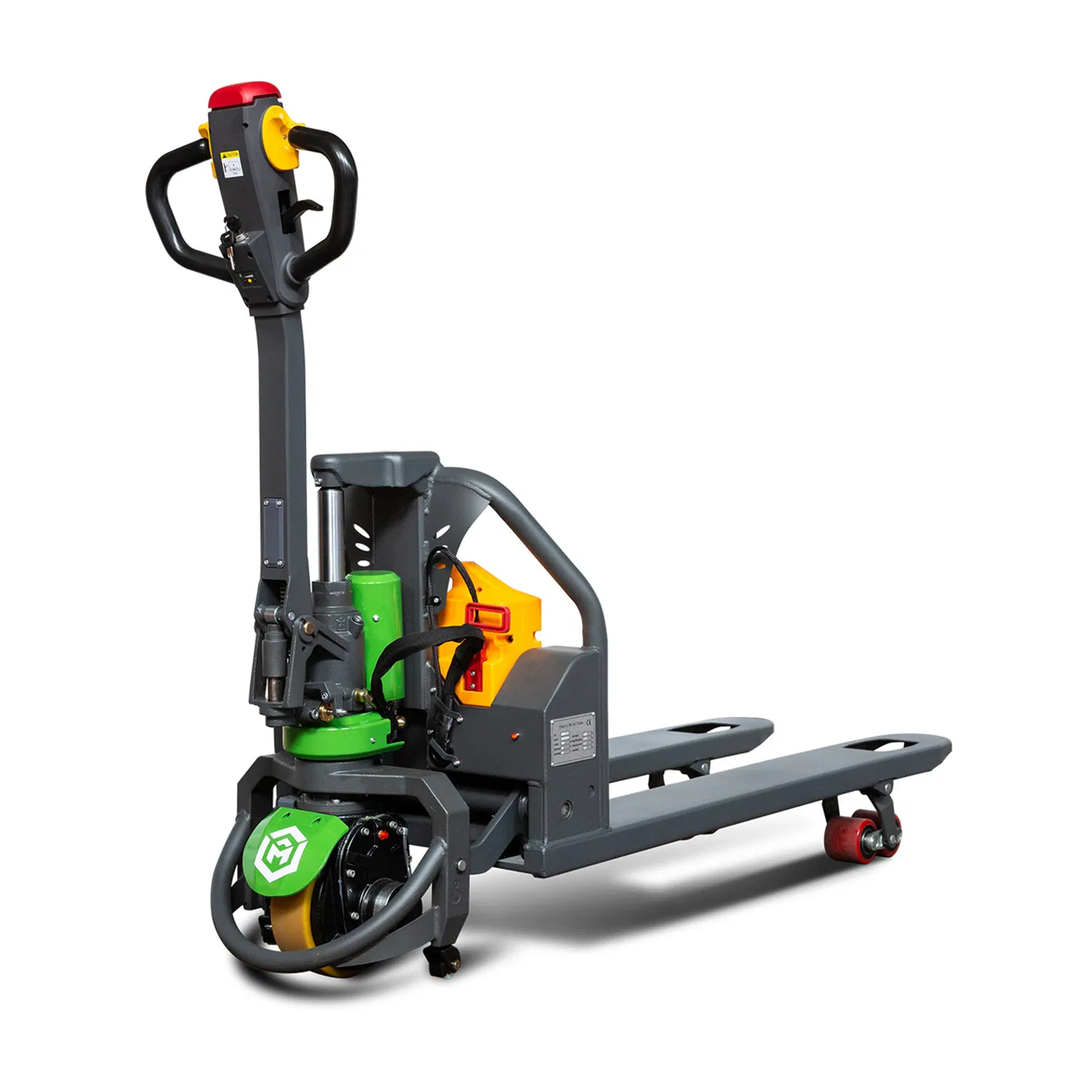

1500kg Li-ion Battery Electric Pallet Jack for Sale

1 / 5

1500kg Li-ion Battery Electric Pallet Jack for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.CBD15W-Lix

TypePowered Pallet Truck

PowerDC Motor

FuelElectric

Load Capacity1T - 5T

Load Center500mm

Lift Height110mm

Overall Length1623/1693mm

Overall Width550/685 mm

Battery Voltage48V / 20Ah

Service Weight145 Kg

HS Code8427109000

Main Configuration

QEXPAND Controller

48V DC Power System

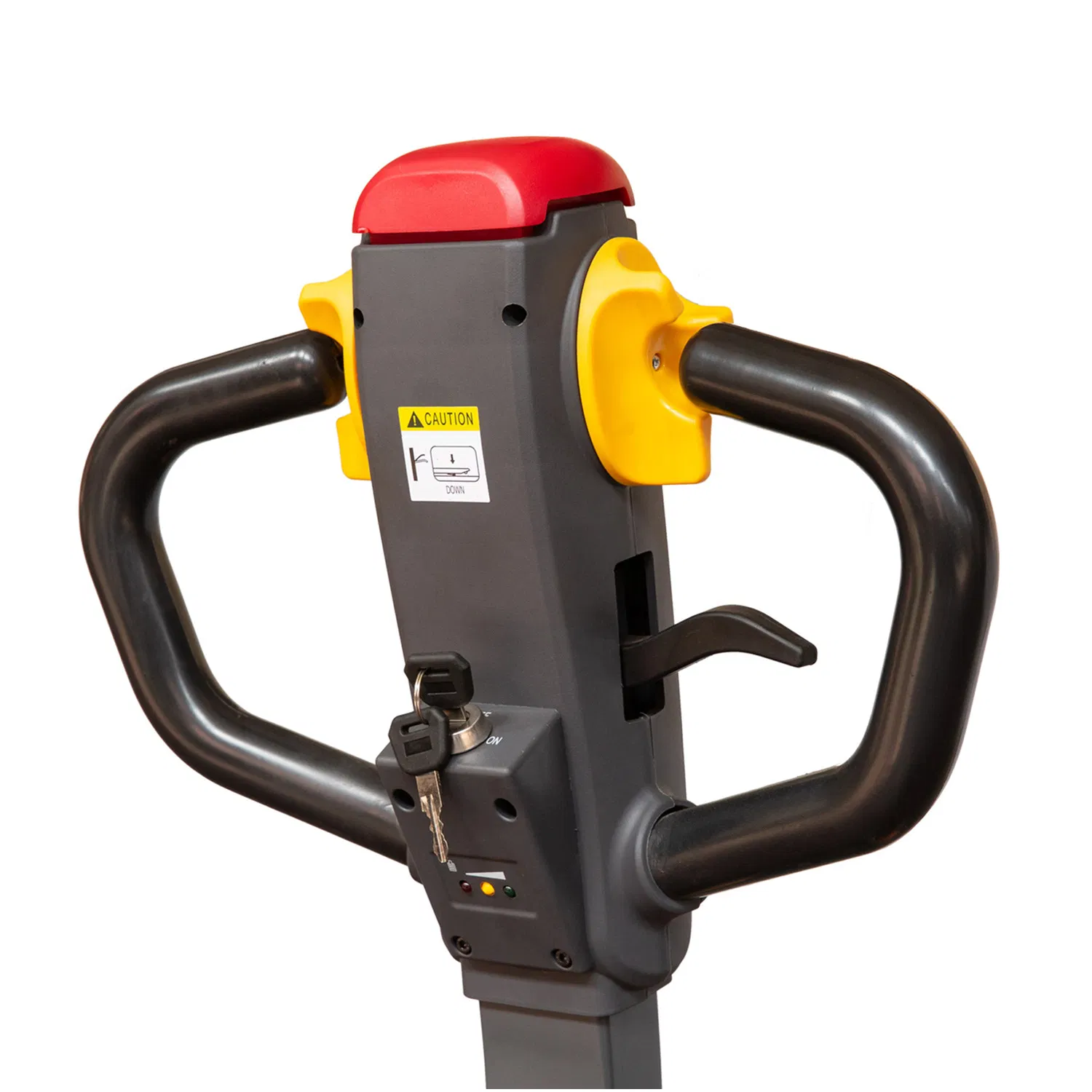

RUYI Tiller Handle

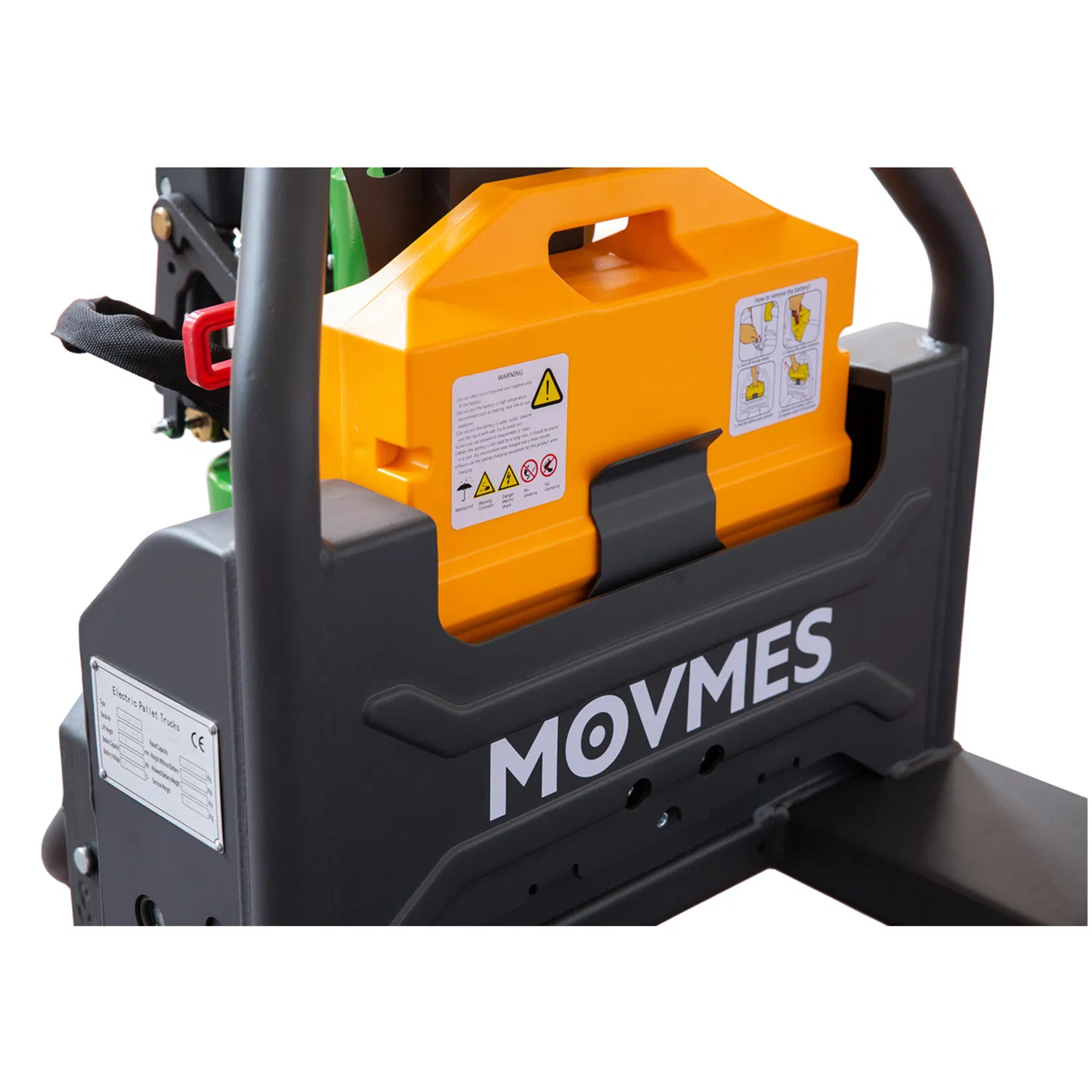

48V 20AH Li-ion Battery

External Charger Included

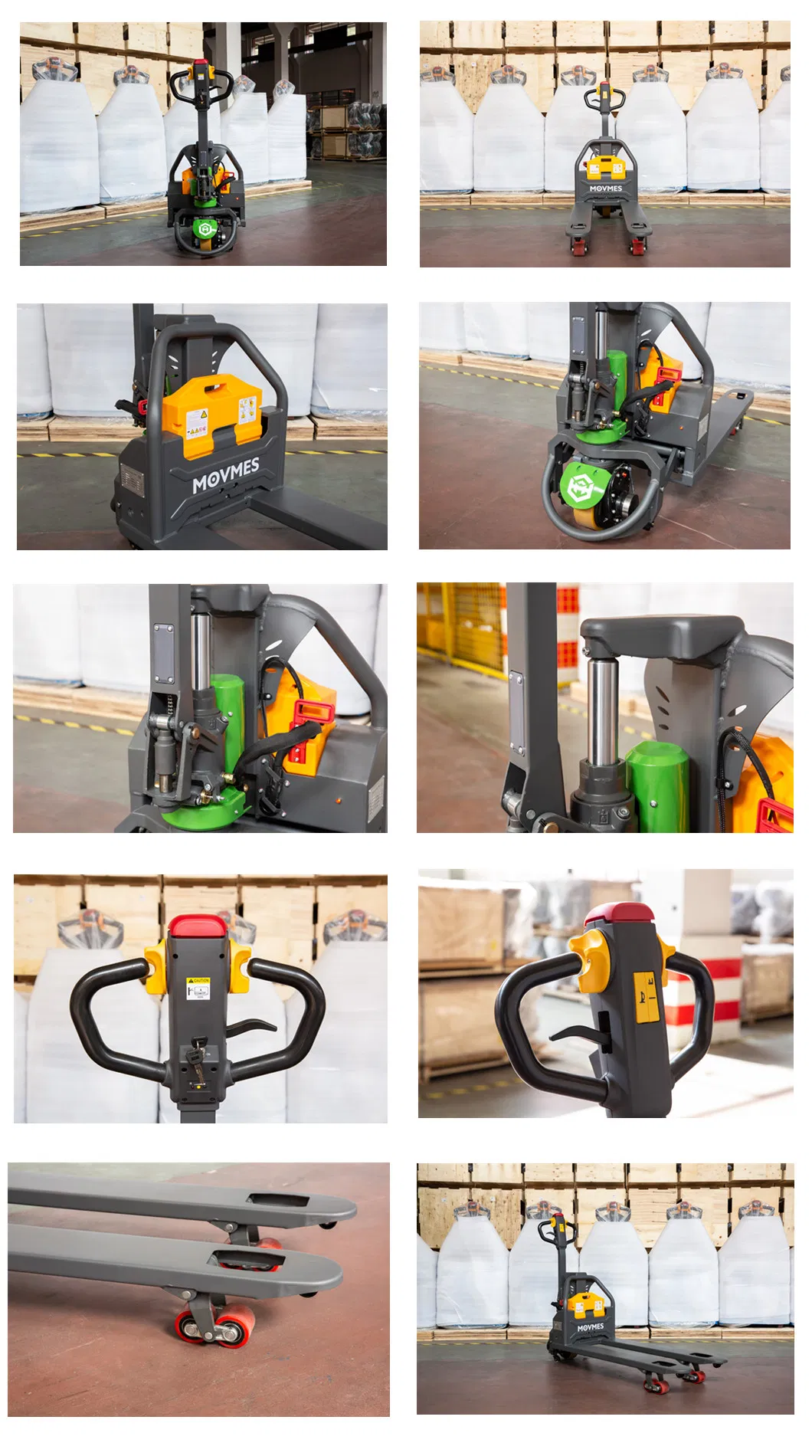

Size Information

Parameter	Unit	Value (CBD15W-Lix)
Load capacity	Q(kg)	1500
Load center distance	c(mm)	600
Fork height, lowered	h13(mm)	80
Tyre size, front	mm	dia250
Tyre size, rear	mm	dia80
Max. lift height	h3(mm)	110
Length to face of forks	I2(mm)	473
Turning radius	Wa(mm)	1424/1494
Travel speed, laden/unladen	Km/h	4/4.5
Battery weight	Kg	8.5

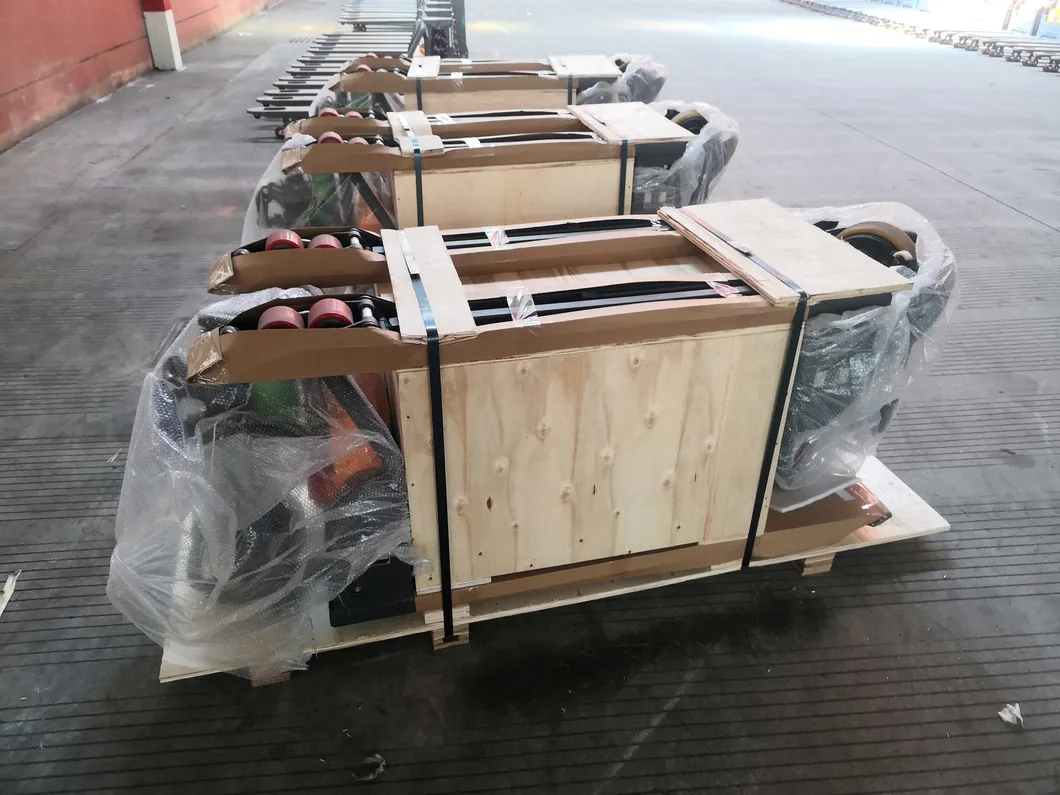

Packing and Delivery

Fork Dimension	One Package Volume (2 sets)	20GP Capacity	40GP Capacity
550*1150mm	1800x570x750mm	60 sets	120 sets
685*1220mm	1800x700x750mm	48 sets	96 sets

Related Models

Certifications & Strength

Our material handling equipment maintains the highest international standards. Up to 90% of products have approved CE certificates from TUV, including standards ISO3691-1, EN1175-1, and EN16307-1.

36Years Experience

150,000m²Factory Area

1,200Total Employees

157Countries Exported

Frequently Asked Questions

Q1: How long is the continuous working time and charging time? A1: The battery continuous working time is approximately 3-6 hours depending on the volume. It typically requires 3-6 hours for a full charge.

Q2: What are the charger specifications for the CBD15W-Lix? A2: We provide chargers compatible with 48V20Ah Li-ion batteries. Power plugs can be customized to USA, UK, Australia, or European standards.

Q3: Can you provide customized OEM or ODM products? A3: Yes, we have been professional in developing warehouse equipment since 1985 and provide OEM services for global brands such as Toyota, Jungheinrich, and Clark.

Q4: What is the warranty period for your products? A4: We provide a one-year warranty. During this period, we provide wearing parts for free if they are damaged by non-human factors.

Q5: What is the load capacity of the CBD15W-Lix model? A5: The CBD15W-Lix has a rated load capacity of 1500kg (1.5 Tons).

Q6: What certifications do these electric pallet jacks hold? A6: Our products are certified with ISO9001, ISO14001, OHSAS18001, and hold TUV/GS/CE certificates.
