Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
1 / 5
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity
Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity

Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 Ton Loading Capacity

Customization: Available
After-sales Service: Online
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model
Xc6-3514
Type
Telescopic Handler
Power
Diesel Engine
Load Capacity
3.5 Ton
Lift Height
13500mm - 14m
Engine Model
Deutz
Rated Power
74.9kw
Condition
New
HS Code
84269900
Production
4000PCS/Month
Product Description

Xuzhou 14 Meters Telescopic Handler Xc6-3514 with 3.5 ton Loading Capacity

XC6 is the latest agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.

Technical Specifications
Description Unit XC6-3514K Data
Gross weightkg10500
Engine powerkW74.9
Rated loadkg3500
Effective load at max forward reachkg635
Maximum lifting heightmm13700
Maximum forward reachmm9600
Center distance of loadmm600
Luffing angle°-4~73
Fork angle°90~18
Maximum traction forcekN≥55
Gradeability°≥25
Maximum traveling speedkm/h30
Turning radiusmm≤4750
Overall lengthmm6380
Overall widthmm2500
Overall heightmm2740
Wheelbasemm2980
Detailed Photos & Gallery

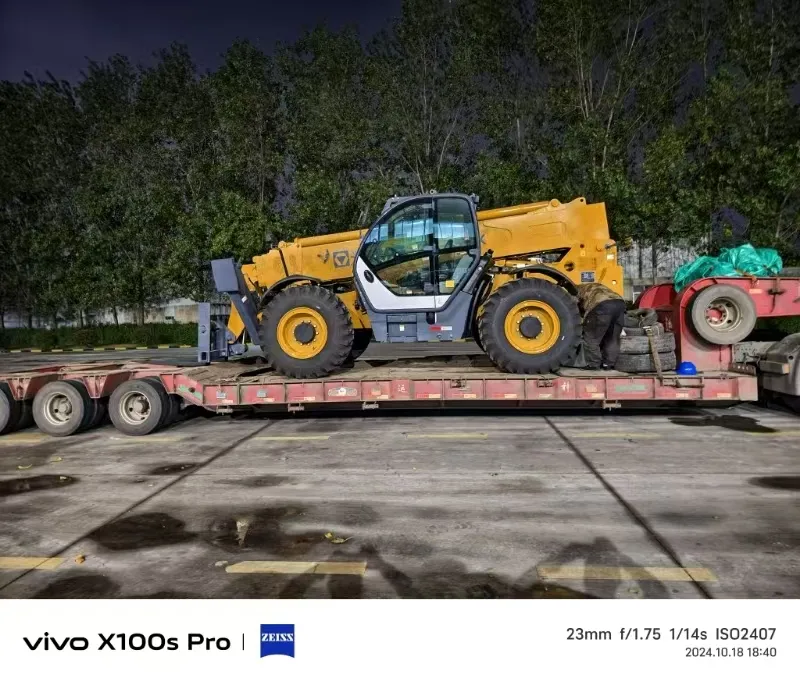

Telescopic Handler View 1
Telescopic Handler View 2
Telescopic Handler View 3
Telescopic Handler View 4
Telescopic Handler View 5
Telescopic Handler View 6
Telescopic Handler View 7

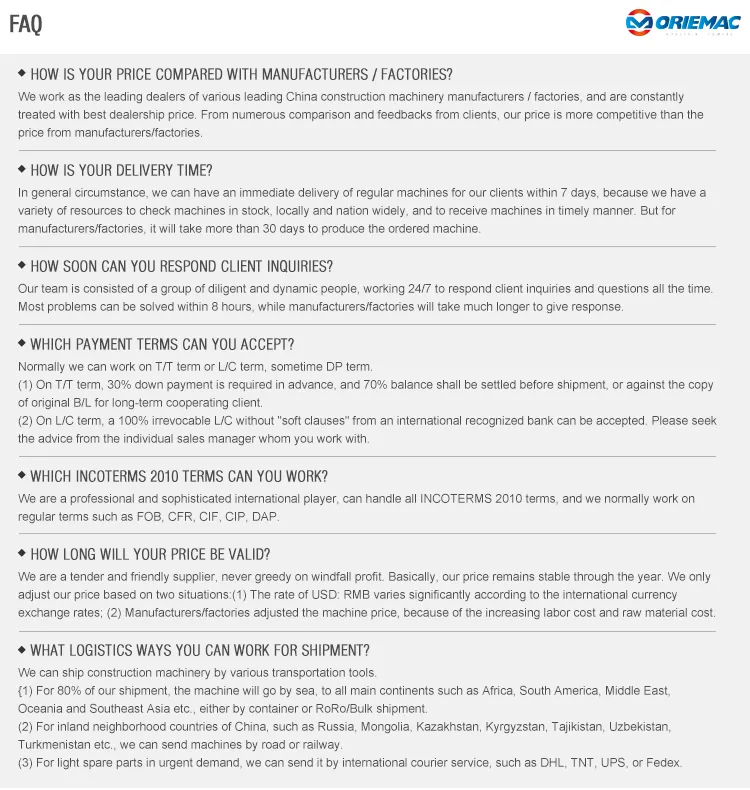

Telescopic Handler View 8
Frequently Asked Questions
What is the maximum lifting capacity of the XC6-3514?
The rated load capacity for this model is 3500kg (3.5 tons).
How high can the telescopic boom reach?
The XC6-3514 features a maximum lifting height of up to 13700mm (approximately 14 meters).
What kind of engine powers this machine?
It is equipped with a high-performance Deutz diesel engine with a rated power of 74.9kW.
What are the advantages of the hydrostatic drive system?
The electronically controlled hydrostatic drive system provides continuously variable speed, ensuring more stable, reliable, and smooth operations.
Is the machine suitable for agricultural use?
Yes, the XC6 is specifically designed as an agricultural version telehandler, optimized for simplicity, safety, and efficiency in farm environments.
What is the maximum traveling speed?
The machine can reach a maximum traveling speed of 30 km/h, allowing for quick transit between work sites.
