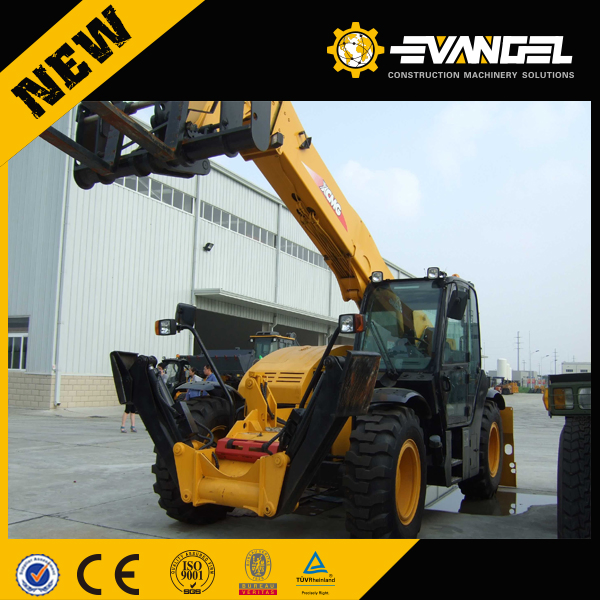

Xt670-140 Telescopic Handler with 14m Height

Customization: Available
Type: Powered Pallet Truck
Power: Diesel Engine

Product Description

Basic Specifications
Model NO.
XT670-140
Load Capacity
5T - 10T
Fuel
Diesel
Load center
>500mm
Lift height
>5000mm
Condition
New
Weight
10500kg
Engine Model
Deutz/Perkins
Engine Power
70/74.5kw
Max. Lift Capacity
3100kg (Full Height)
Wheel Base
3250mm
Dimension
6290*2500*2600mm
Product Introduction

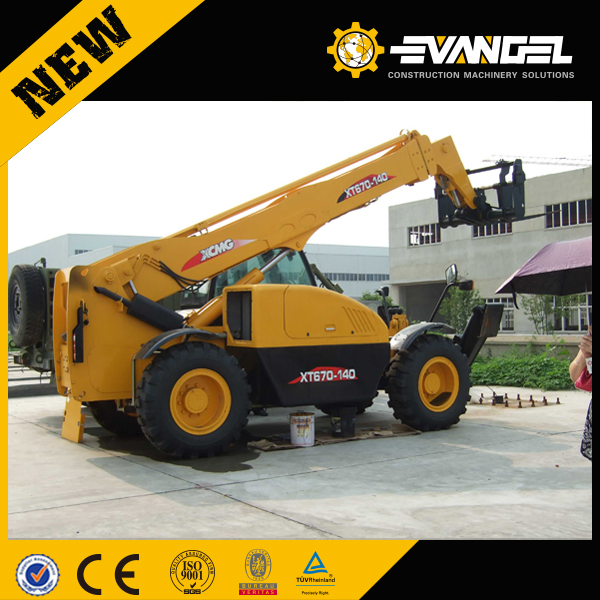

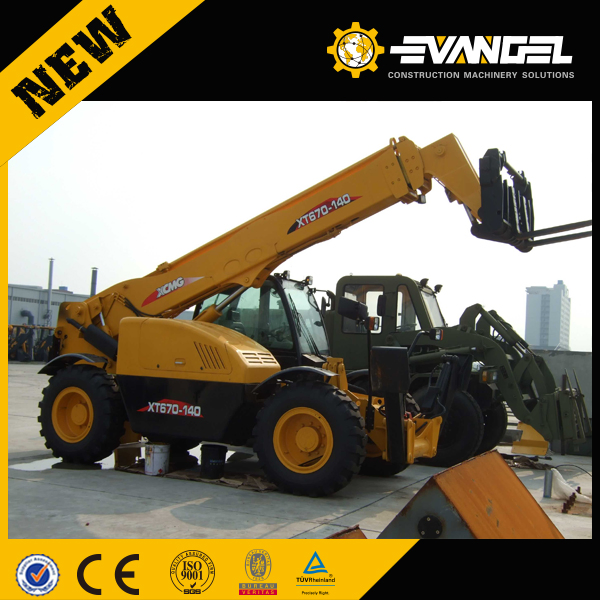

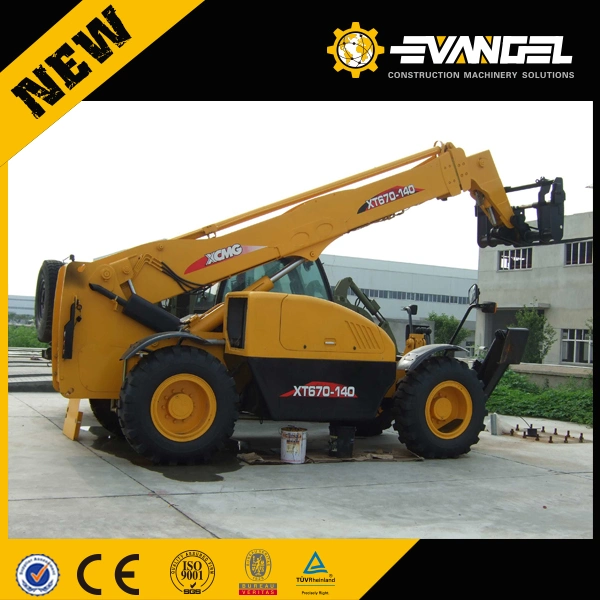

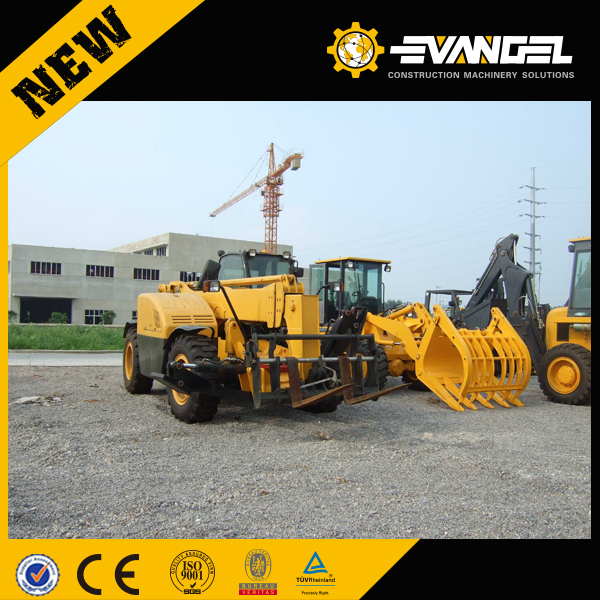

XT670-140 Telescopic Handler (14m Lift Height)

The Telescopic Forklift is a multi-functional engineering machine designed for lifting and carrying with exceptional stability and efficiency. Featuring a compact frame and flexible operation, it offers sensitive lifting, automatic adjustment, and high carrying capacity.

  • Powerful engine with low maintenance (Europe III/EPA Tier3 standard).
  • Articulated frame with a small turning radius for narrow spaces.
  • Four-wheel drive with front-wheel steering.
  • Broad-vision cab equipped with air conditioning and shock attenuation.
  • Fully sealed wet multi-disc brakes for maximum safety.
Technical Parameters
Rated Power70 kw
Working Weight10500 kg
Overall Dimensions (LxWxH)6290*2500*2600 mm
Turning Radius4238 mm
Maximum Lift Capacity3500 kg
Lift Capacity at Full Reach635 kg
Maximum Lift Height13700 mm
Maximum Forward Reach9460 mm

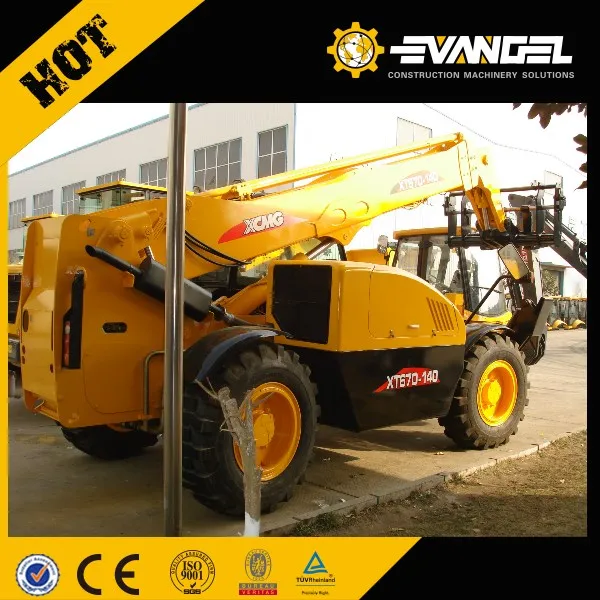

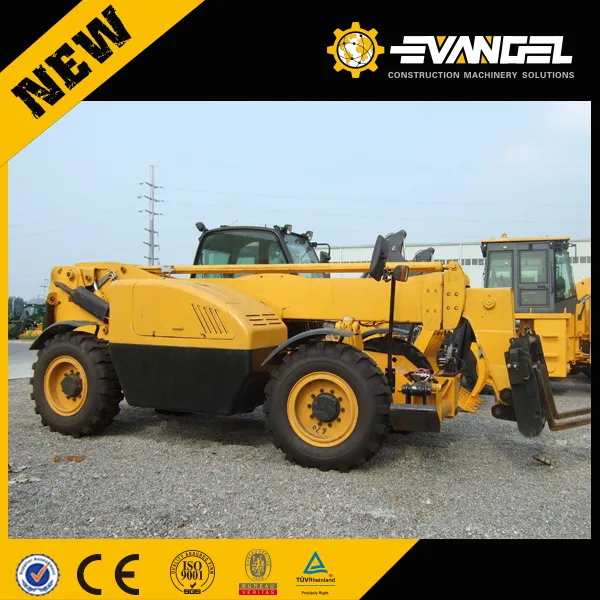

Product Display
Frequently Asked Questions
What is the maximum lift height of the XT670-140?
The XT670-140 telescopic handler provides a maximum lift height of 13,700mm (approximately 14 meters).
What type of engine does this telescopic forklift use?
It is equipped with high-performance Deutz or Perkins engines that meet Europe III (EPA Tier3) emission standards.
Is the cabin comfortable for long operating hours?
Yes, the driver's cabin features a broad field of vision, air conditioning, and a shock attenuation system to ensure operator comfort and safety.
What is the load capacity at maximum reach?
The lift capacity at full forward reach is 635kg, while the maximum overall lift capacity is 3,500kg.
Can this machine operate in narrow spaces?
Absolutely. With its articulated frame and a small turning radius of 4,238mm, it is specifically designed for narrow grounds and confined work areas.
What braking system is installed on this model?
The machine uses fully sealed wet multi-disc brakes in the wheel heads, protecting them from environmental influences and ensuring reliable stopping power.
