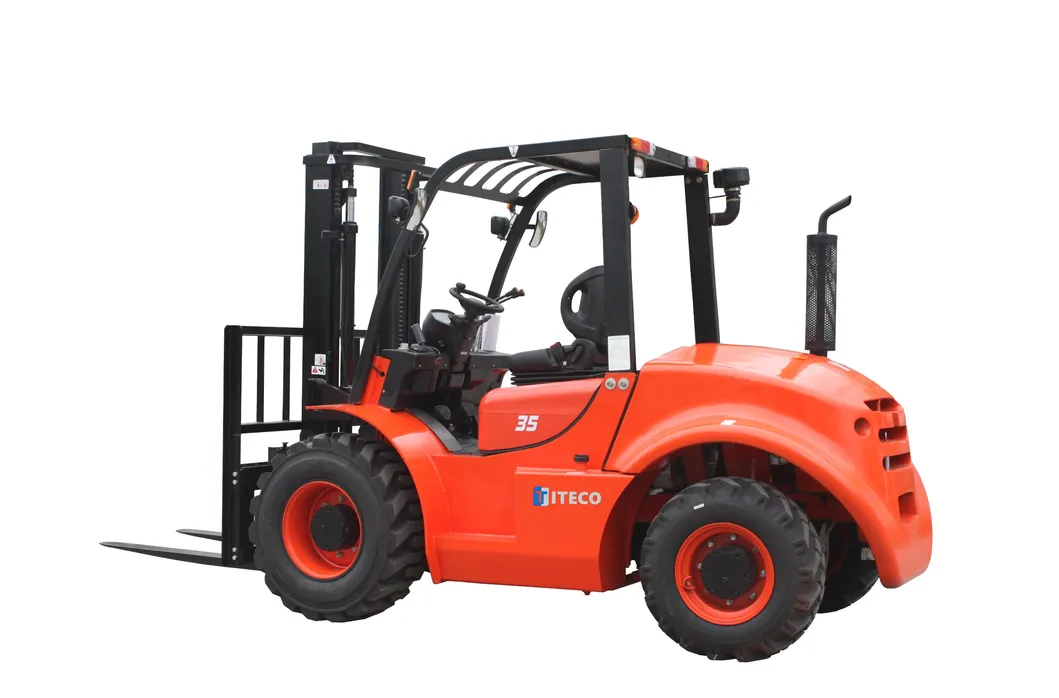

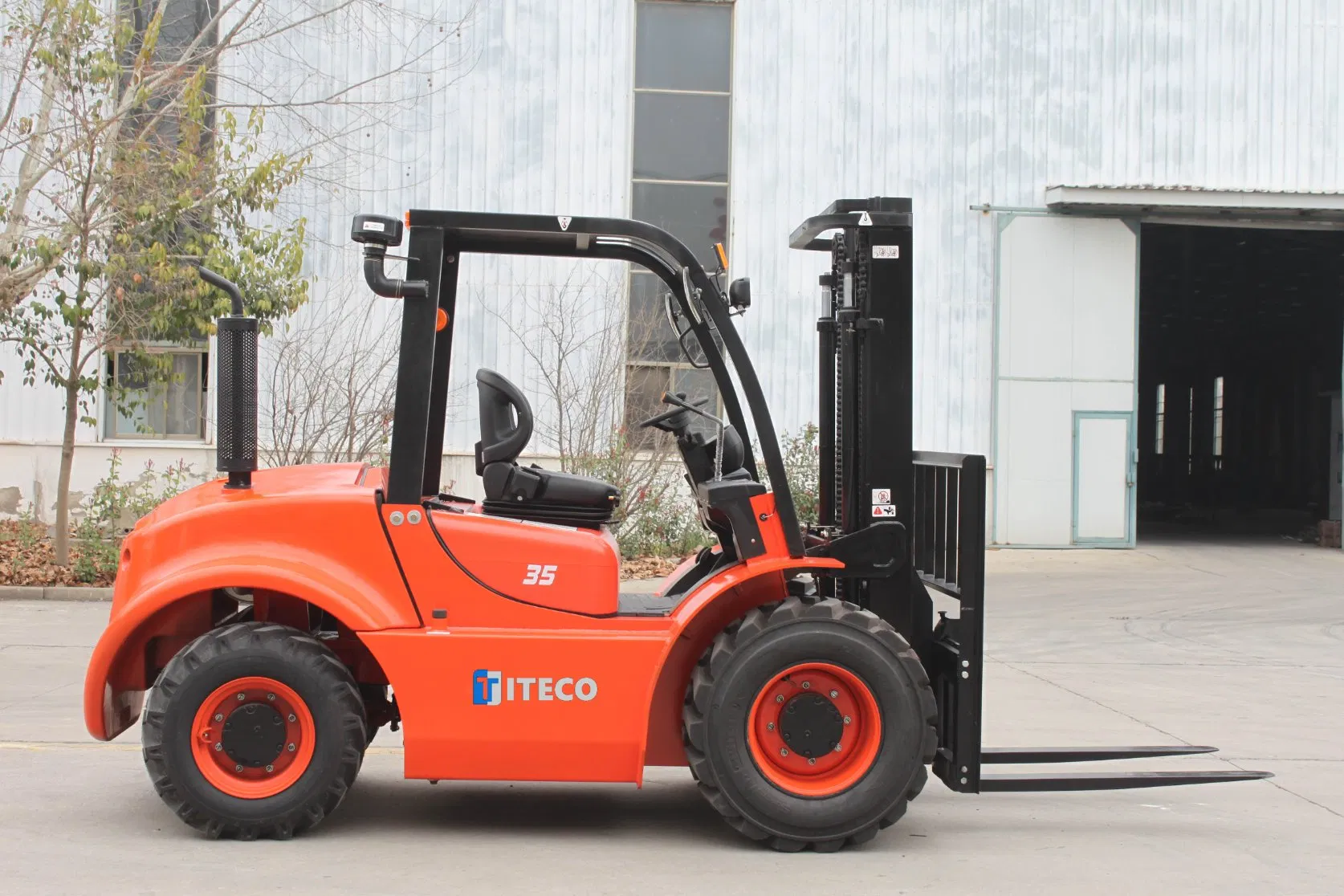

Product Description
| Model |
Unit |
CPCD20Y |
CPCD25Y |
CPCD30Y |
CPCD35Y |
CPCD40Y |
| Load capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Power type | - | Diesel | Diesel | Diesel | Diesel | Diesel |
| Max.lifting speeds | Mm/s | 545 | 545 | 440 | 440 | 400 |
| Max.driving speeds | Km/h | 17/19 | 17/19 | 18/20 | 18/19.8 | 17.8/19.5 |
| Total Weight | kg | 4600 | 4900 | 5400 | 5600 | 5850 |
| Gradeability | % | 45 | 45 | 45 | 45 | 45 |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Min. turning radius | mm | 2950 | 2950 | 3250 | 3250 | 3250 |
| Overall length | mm | 4165 | 4165 | 4435 | 4435 | 4435 |
| Overall width | mm | 1500 | 1500 | 1600 | 1600 | 1600 |
| Engine | - | China/Japan | China/Japan | China/Japan | China/Japan | China/Japan |
| Drive type | - | 4WD | 4WD | 4WD | 4WD | 4WD |

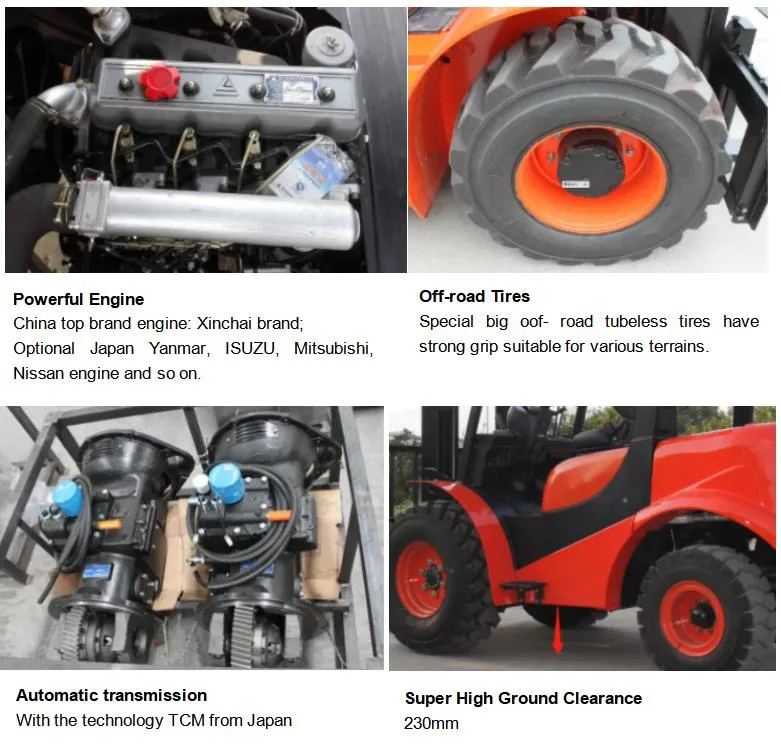

Design for Harsh Environments
- Professional steering axle suitable for the worst working environments, especially mud roads.
- Transmission equipped with differential lock for enhanced traction.
- High ground clearance: Mast clearance of 280mm and main chassis clearance of 320mm.
- 30-degree angle of departure ensures excellent passing ability.
- Deep-tread, wide tires provide superior stability and skid resistance.
- Widened mast design for an improved operator field of view.
- Cast steel structure for a stronger and more reliable driving axle.
Main Features
Strong Engine System: Low emission, optimized fuel system, and advanced distribution for reliable low-temperature starting and smooth power transmission.
High-Quality Instrumentation: Reliable electronic instruments allow operators to observe real-time data conveniently.
Safety Focus: Wide visible range ensures work accuracy, while the slope sliding prevention function ensures safety when restarting on inclines.

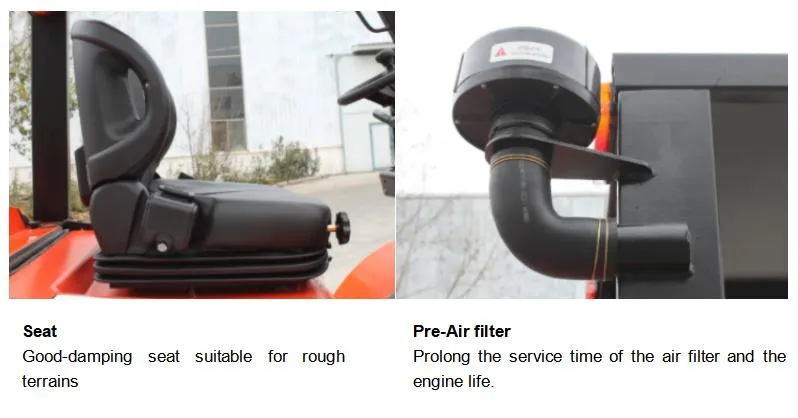

Durability: Heightened air inlet position keeps the air filter clean, improving engine efficiency and extending service life.
Super Cooling System: Increased water tank capacity (1.25x larger than similar products) prevents overheating during intense operations.
❓
Frequently Asked Questions
What is the maximum load capacity for this series?
This series covers a load capacity range from 2 tons (2000kg) up to 4 tons (4000kg) across various models.
Can these forklifts handle muddy or uneven terrain?
Yes, they are specifically designed for rough terrain with 4WD, a professional steering axle, and a differential lock to handle mud and mountain forest environments.

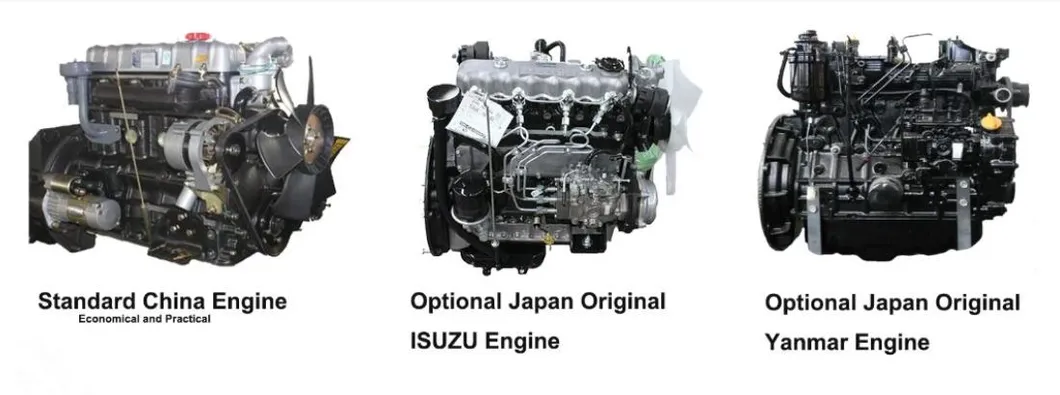

What kind of engine options are available?
The forklifts can be equipped with high-performance engines from China or Japan, such as the YANMAR 4TNE98, depending on your requirements.
Is there a safety feature for slope operations?
Absolutely. The units include a preventing slope sliding function that ensures the machine stays in place when restarting on an incline.
How does the cooling system perform in high temperatures?
The super cooling system features an enlarged water tank (1.25 times larger than standard) to prevent overheating even during prolonged heavy-duty work.
What is the standard lifting height?
The standard lifting height is 3000mm, but it can be customized to range between 3000mm and 5000mm.
