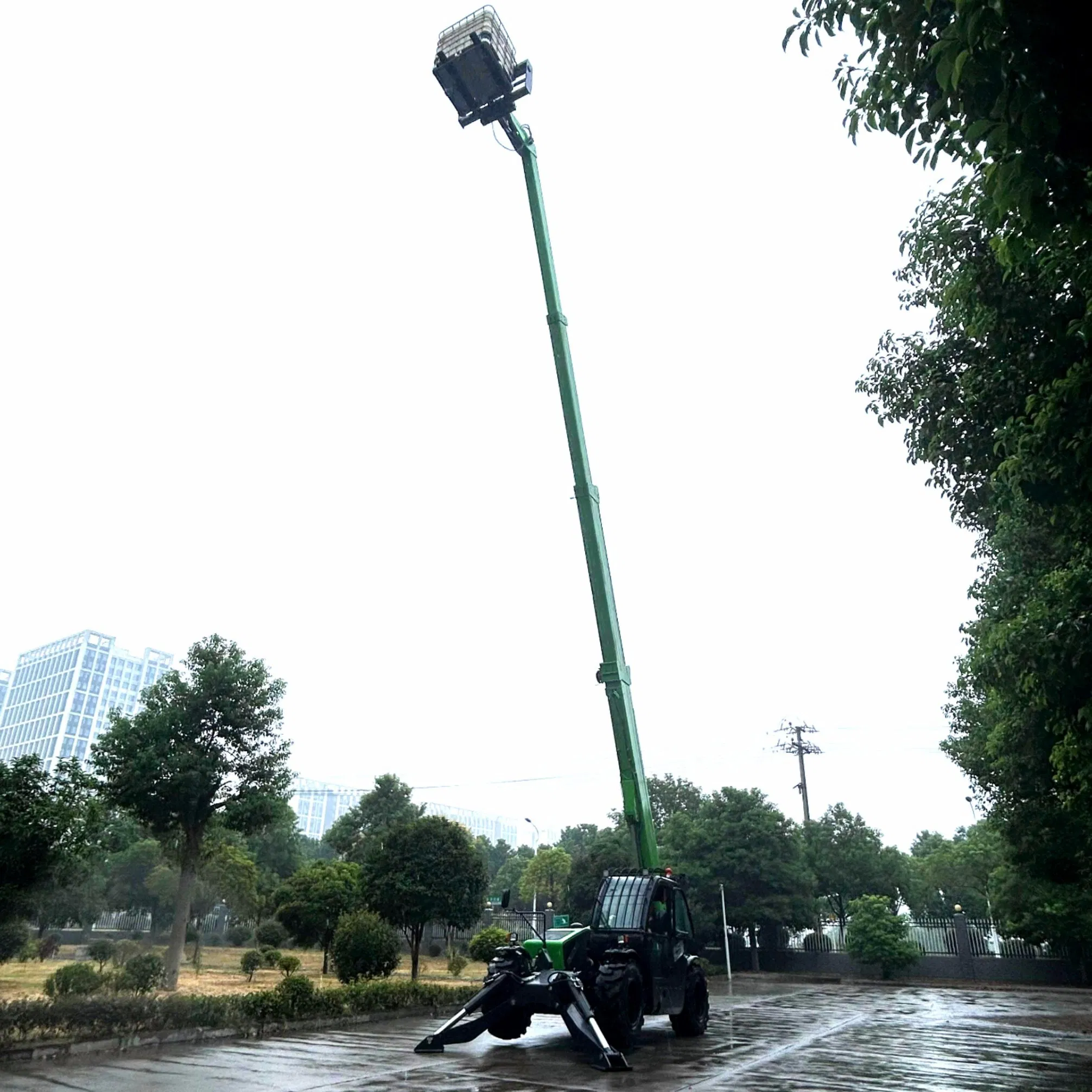

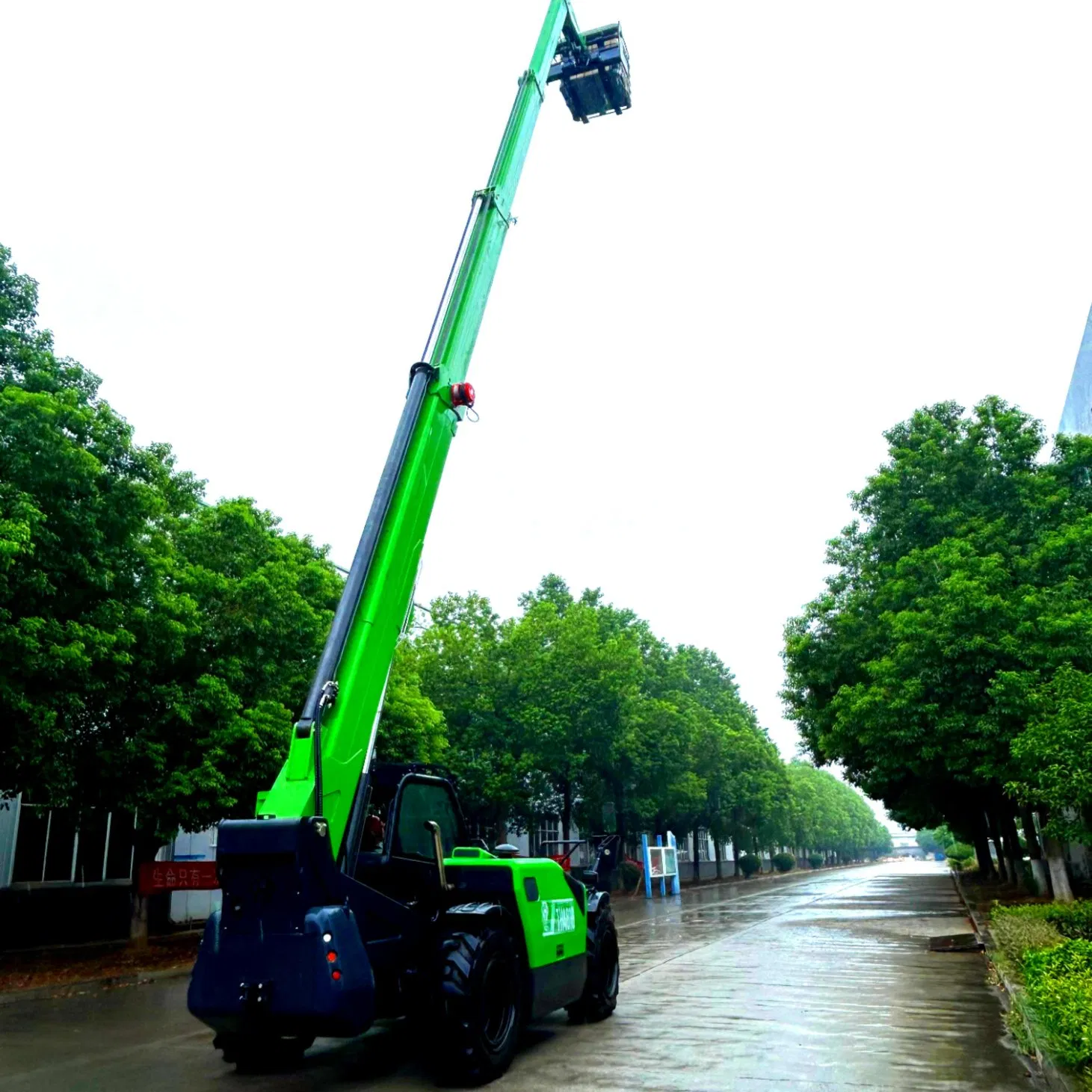

New Telescopic Forklift 4 Ton18 Meters Boom Diesel Telescopic Handler with Cummins 92kw Engine

1 / 5

New Telescopic Forklift 4 Ton18 Meters Boom Diesel Telescopic Handler with Cummins 92kw Engine

Customization:	Available
After-sales Service:	by Dealer,Online Talk Service,DHL Free Parts
Warranty:	2500 Working Hours or 1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HZTH4018

Type

Telehandler

Load Capacity

4000kg

Lift Height

18000mm

Power Type

Diesel Engine

Load Center

600mm

Condition

New

Engine Emission

Stage3-5, Euro 5 and EPA

🏗️ Product Description

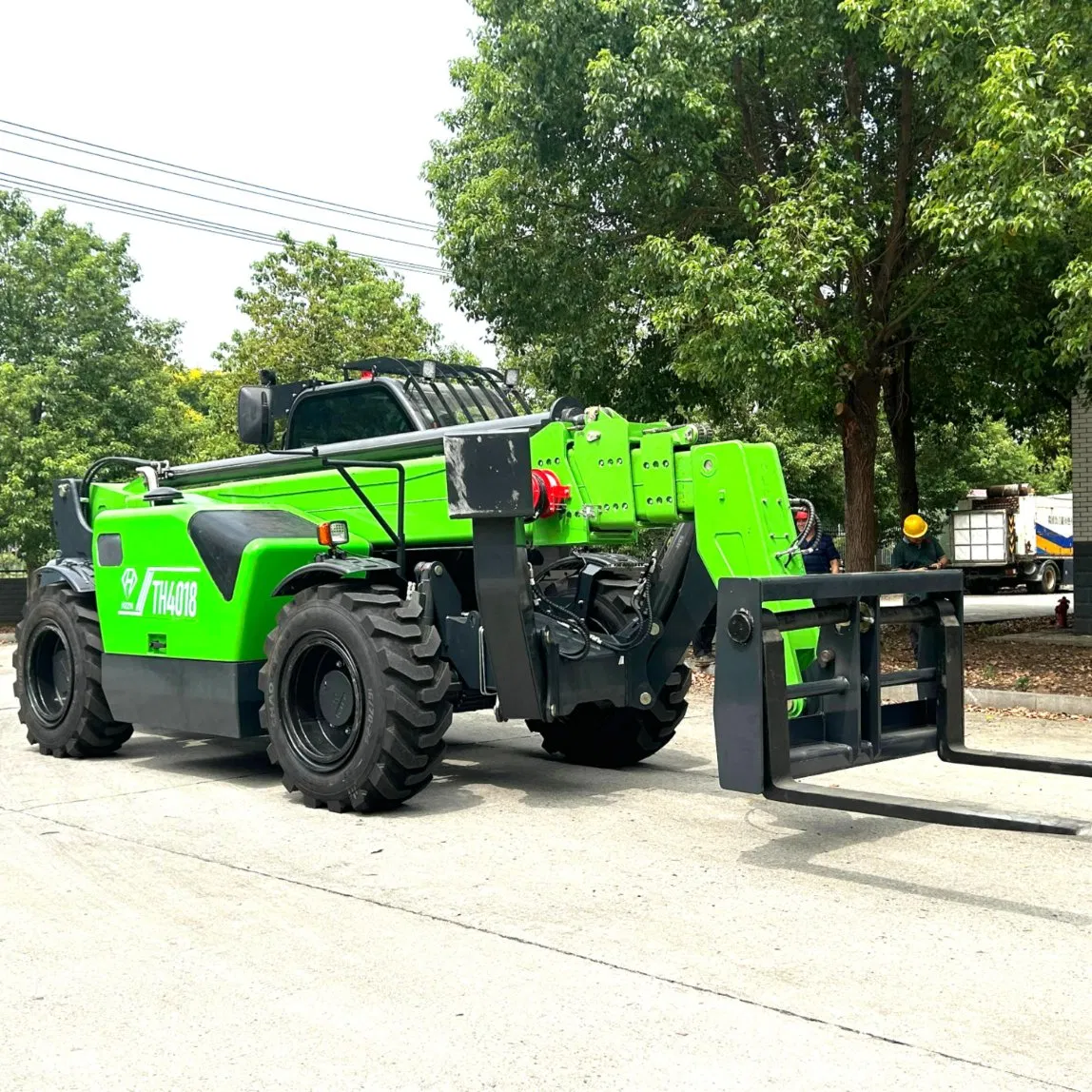

The HZTH4018 telehandler is a versatile 4-ton forklift designed to lift, transport, and stack goods across various terrains. It features a dedicated 4x4 chassis, a high-performance boom system, and advanced hydraulic control for precision operation.

Energy-Efficient: Features a mobile independent closed variable system.

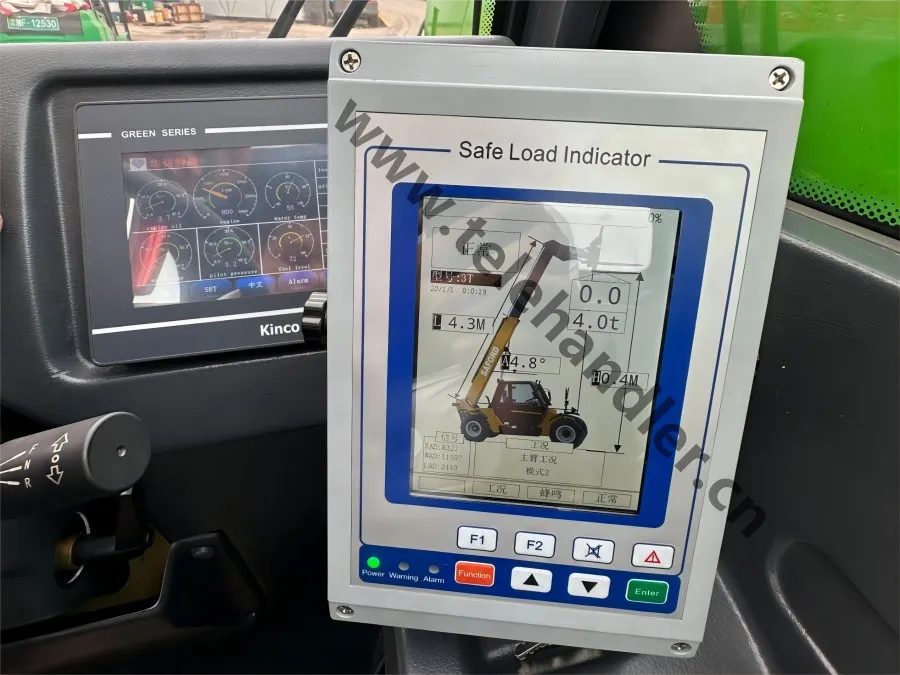

Safety First: Equipped with anti-rollover limiters and automatic stop buttons.
Superior Mobility: Supports front-wheel steering, four-wheel steering, and crab driving modes.
Off-Road Capability: Electronically controlled throttle and static pressure drive for rugged environments.

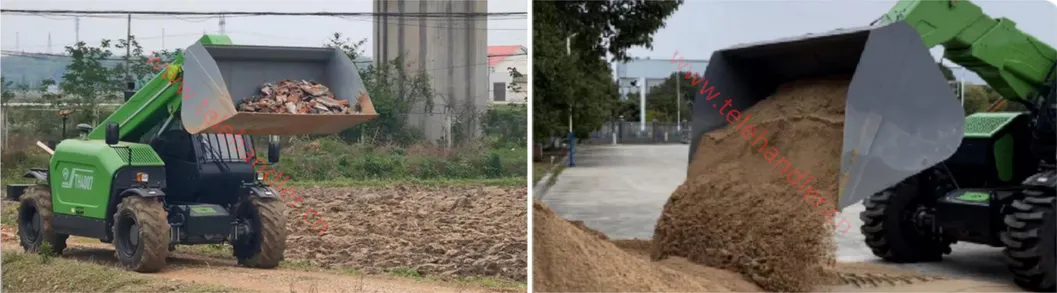

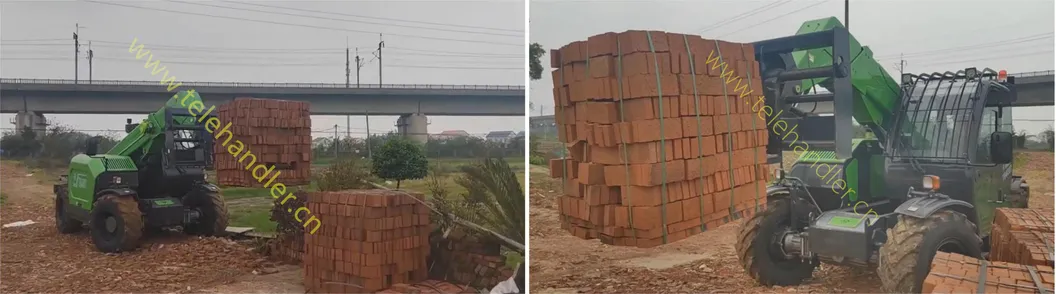

📸 Detailed Photos

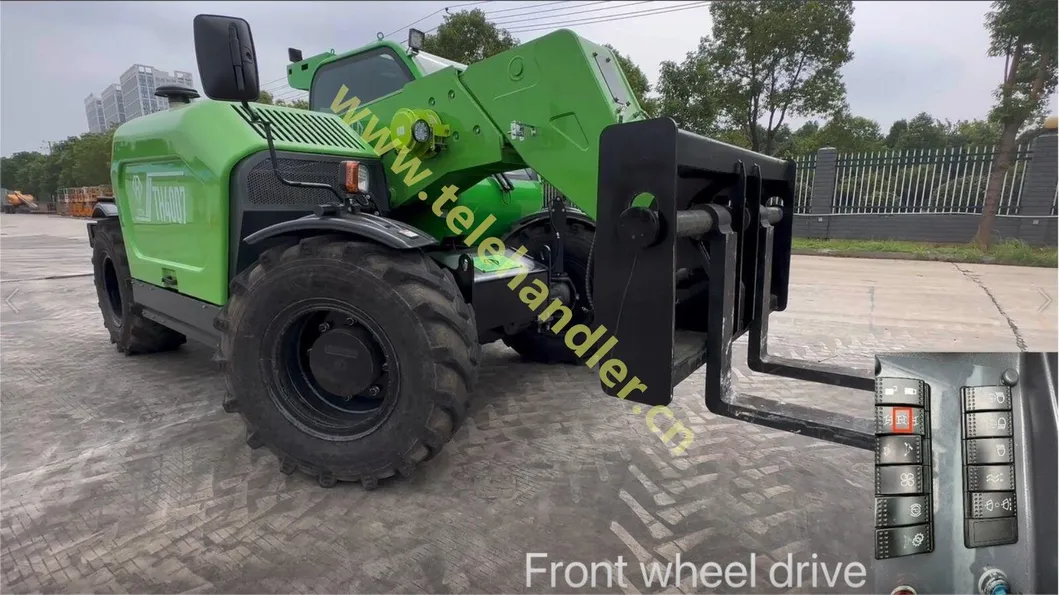

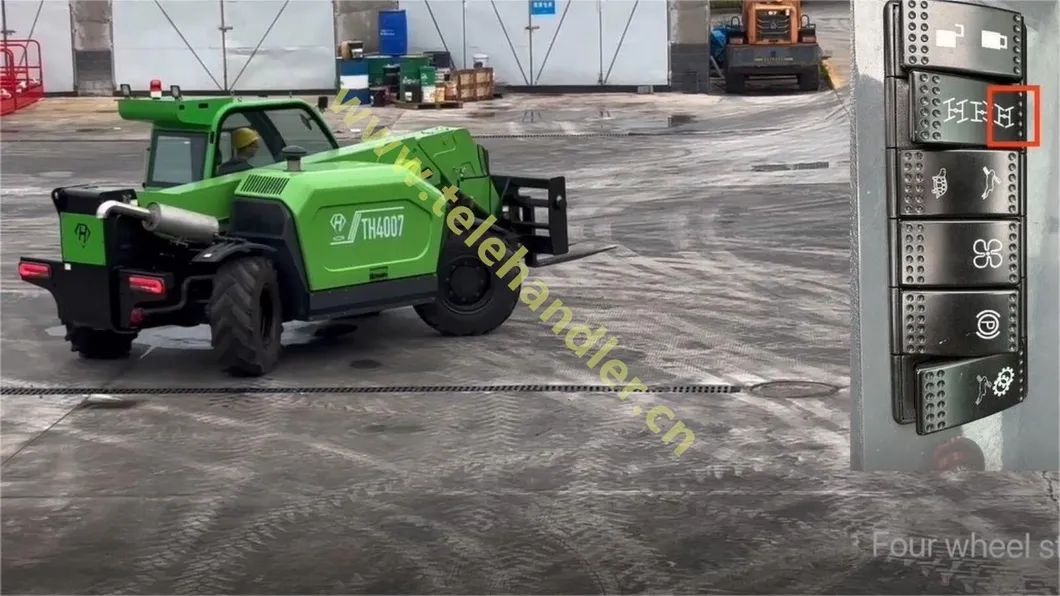

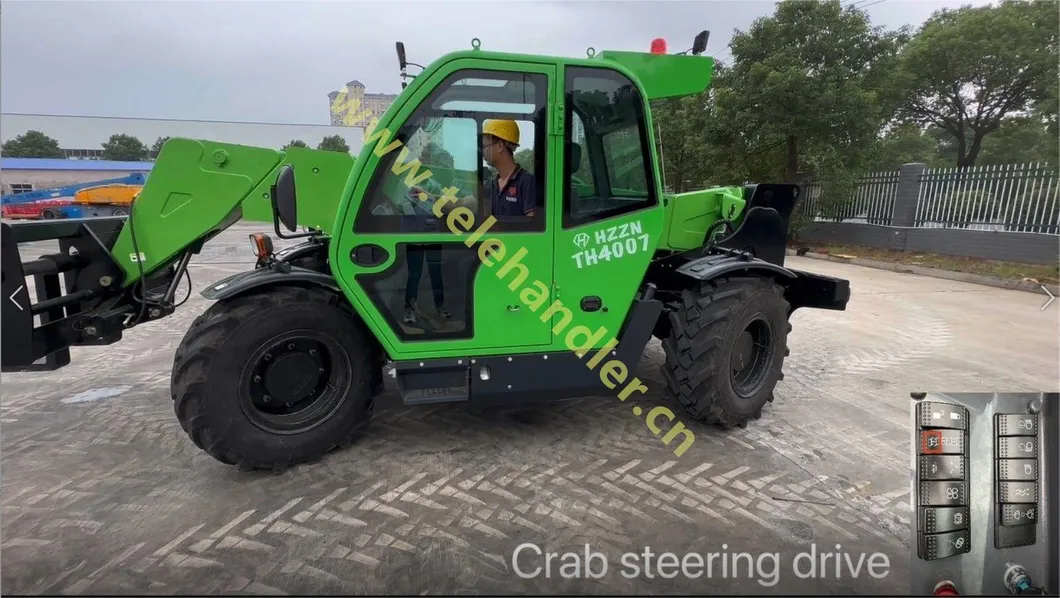

Steering Modes Comparison:

📊 Product Parameters

Category	Items	Parameters (HZTH4018)
Dimensions	Length / Width / Height	6530 / 2380 / 2485 mm
Weight	Dead Weight	11300 kg
Performance	Capacity	4000 kg
Performance	Max Lifting Height	17885 mm
Performance	Max Full Extension Distance	14350 mm
Engine	Brand / Model	Cummins / QSB3.9-C125-30
Engine	Power / Torque	92kw @ 2200 / 480N @ 1600
Drive	Max Mobile Speed	40 km/h
Drive	Grade Ability	30% - 45%

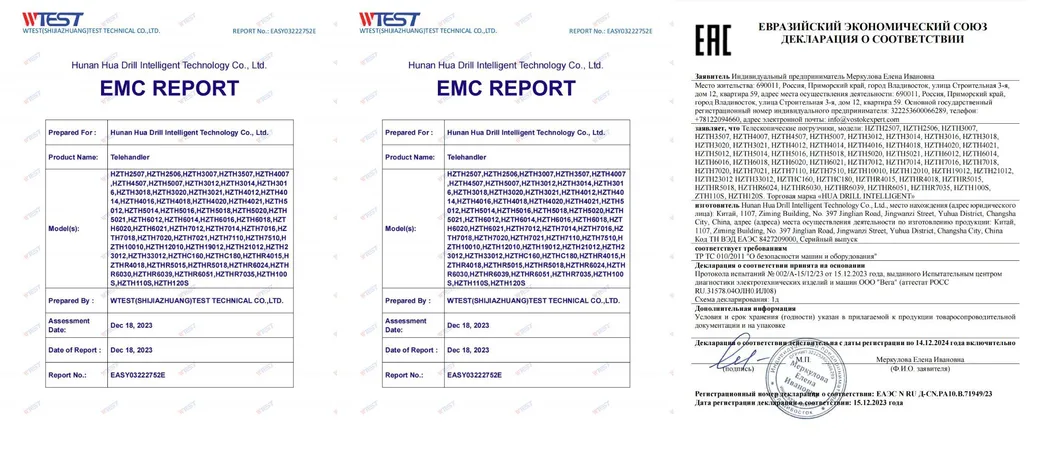

📜 Certifications

❓ Frequently Asked Questions

What is the delivery time for the telehandler?

Standard delivery time is approximately 60 days after receiving the initial deposit.

What kind of warranty is provided?

We offer a warranty of 12 months after shipment or 2500 working hours, whichever comes first.

What type of transmission system does the machine use?

The standard telehandler is equipped with a hydrostatic type transmission. An engine with a torque converter is available as an option.

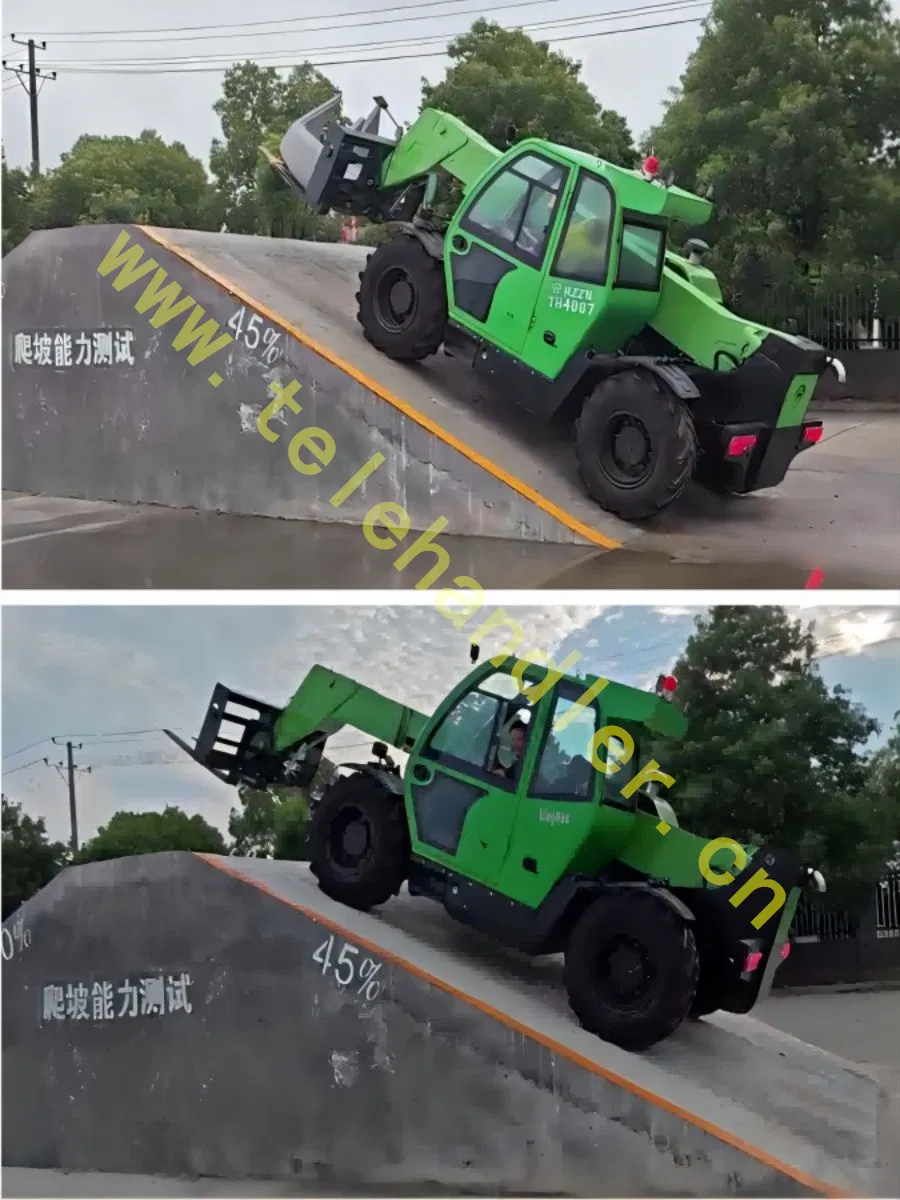

What is the maximum climbing capacity and speed?

The maximum climbing capacity is 45%. Standard speed is 28 km/h, with an optional configuration for up to 40 km/h.

How is the equipment transported?

For the HZTH4018 model, it can be shipped via a 40HQ container, which accommodates 2 units.

What kind of after-sales support is available?

We provide global support through local dealers. If no dealer is available in your area, we offer video technical support and can dispatch engineers if necessary.
