Product Description

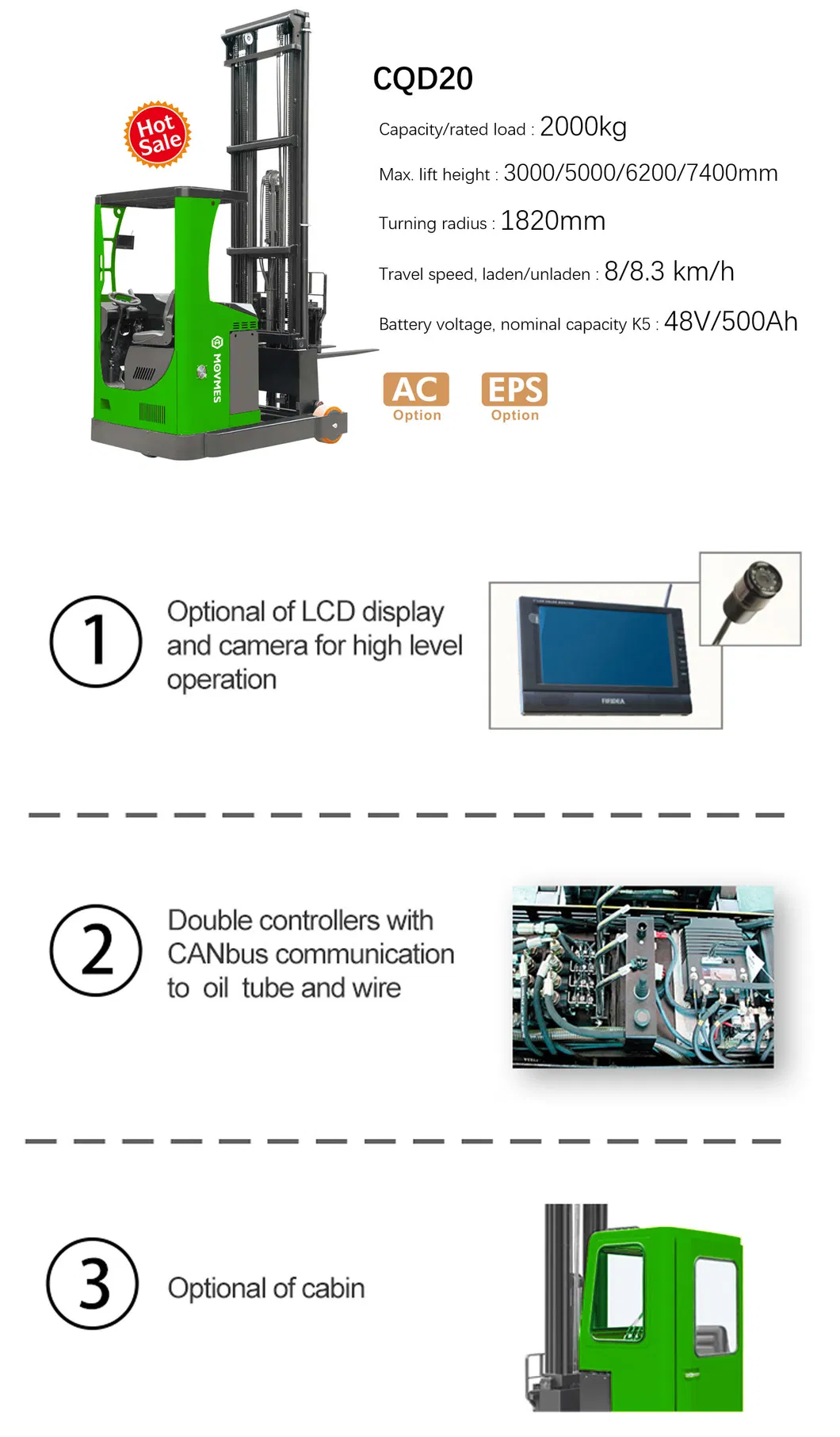

Basic Specifications

Model NO.

CQD20

Type

Reach Forklift

Power

AC Motor

Load Capacity

2.0 Ton

Fuel

Electric

Lift Height

3000/5000/6200/7400 mm

Turning Radius

1820 mm

Battery

48V/500Ah

Condition

New

Travel Speed

8/8.3 Km/H

Product Overview

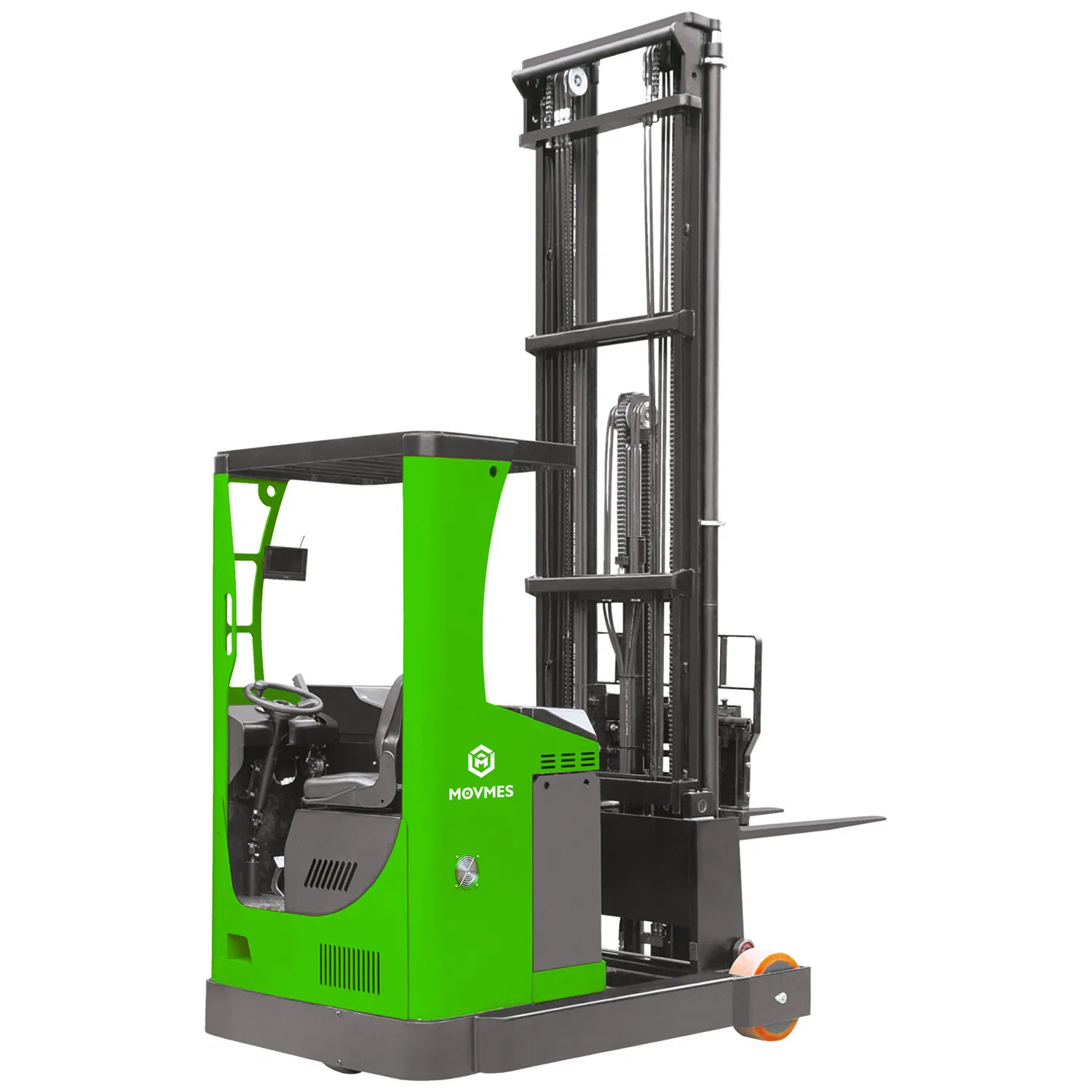

Standard Export Packed Electric Reach Truck with High Precision

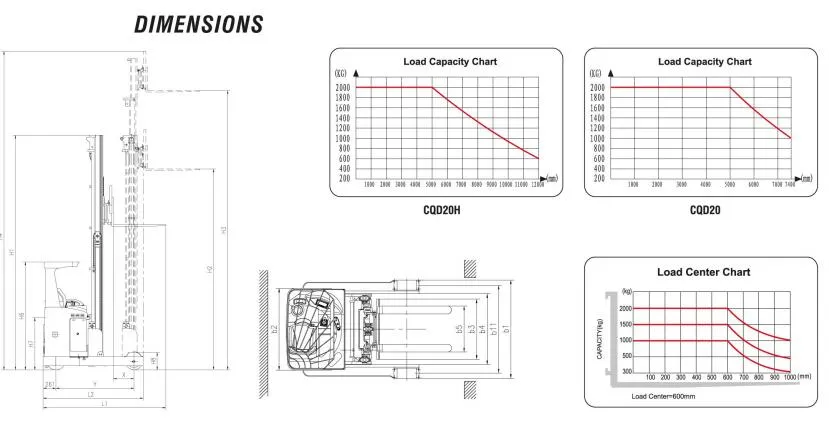

Parameter	Unit	Data
Model	-	CQD20
Capacity	kg	2000	2000	2000	2000
Max Lift Height	mm	3000	5000	6200	7400
Height, Mast Lowered	mm	2086	2240	2740	3190
Battery Voltage	V/Ah	48/500
Service Weight	kg	3300	3700	3800	3900

Design & Performance

◈STABILITY

Large and strong chassis ensures sufficient stability.
"H" type mast steel imported from Germany enhances durability.
Stepless speed regulation for lifting and travelling.

◈SAFETY AND EFFICIENCY

Automatic speed reduction when forks height is above 5M.
Full hydraulic steering system for flexible turning.
Integrated driving and steering system design.

Hot Sale Models

2.0T Rider Electric Pallet Truck

1.0T Electric Stacker

Manual Pallet Stacker

Quality Assurance

✓ 36 Years Industry Experience

✓ 150,000m² Production Area

✓ ISO9001 & CE Certified

✓ Exported to 157 Countries

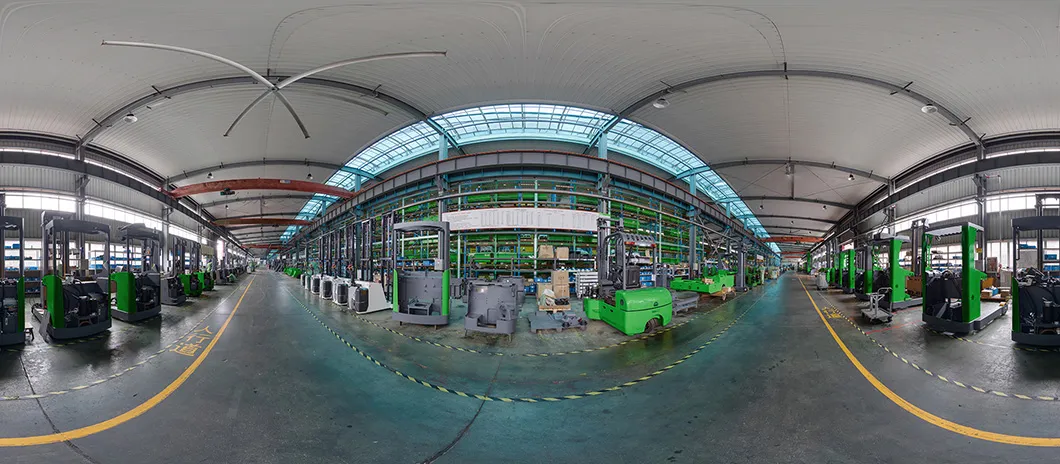

Testing System Procedures:

1. Strengthening test detection
2. Stability detection
3. Climbing performance and current testing
4. Braking performance debugging
5. Technical parameter verification

Professional Packing

Each truck is carefully packaged according to delivery requirements. Photos and videos are provided for approval before dispatch. Production lead time is typically 15-20 days.

Frequently Asked Questions

Q1: How long is the continuous working time and charging time?

The battery provides approximately 3-6 hours of continuous operation depending on the workload. Charging usually takes between 3 to 6 hours for a full cycle.

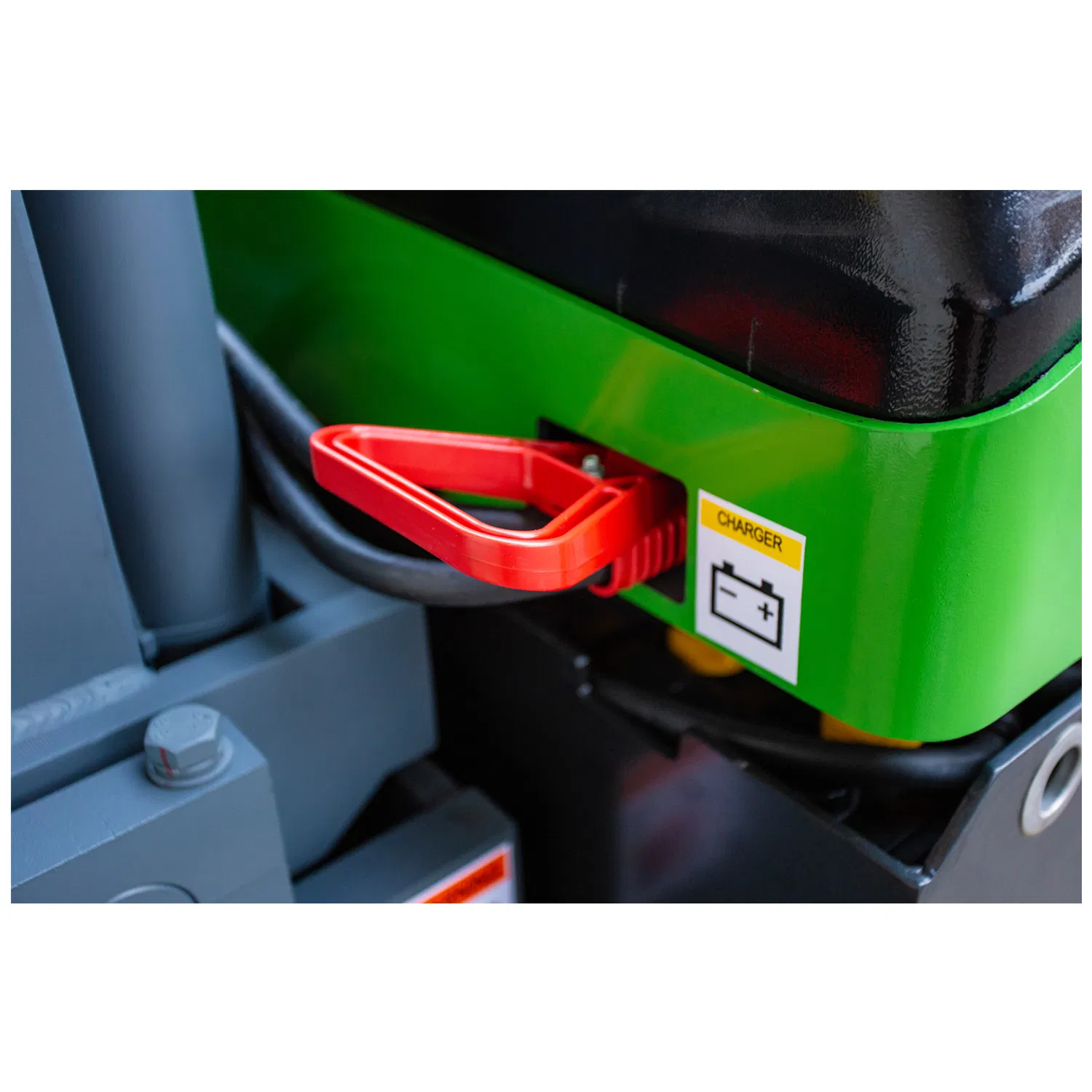

Q2: What are the specifications for the battery chargers?

Chargers are available in 24V or 48V. We provide power plugs compatible with USA, UK, Australia, and European standards.

Q3: Do you provide customized or OEM/ODM services?

Yes, we have been professionally developing warehouse logistics equipment since 1985 and offer comprehensive OEM/ODM services for global brands.

Q4: What is the warranty policy for your products?

We provide a one-year warranty. During this period, we supply replacement parts for non-human induced damage at no additional cost.

Q5: What safety features are included in the reach truck?

Safety features include an automatic speed limiter when the mast is raised above 5 meters, a full hydraulic steering system, and advanced hydraulic/electric braking systems.

Q6: Is maintenance difficult for the electric series?

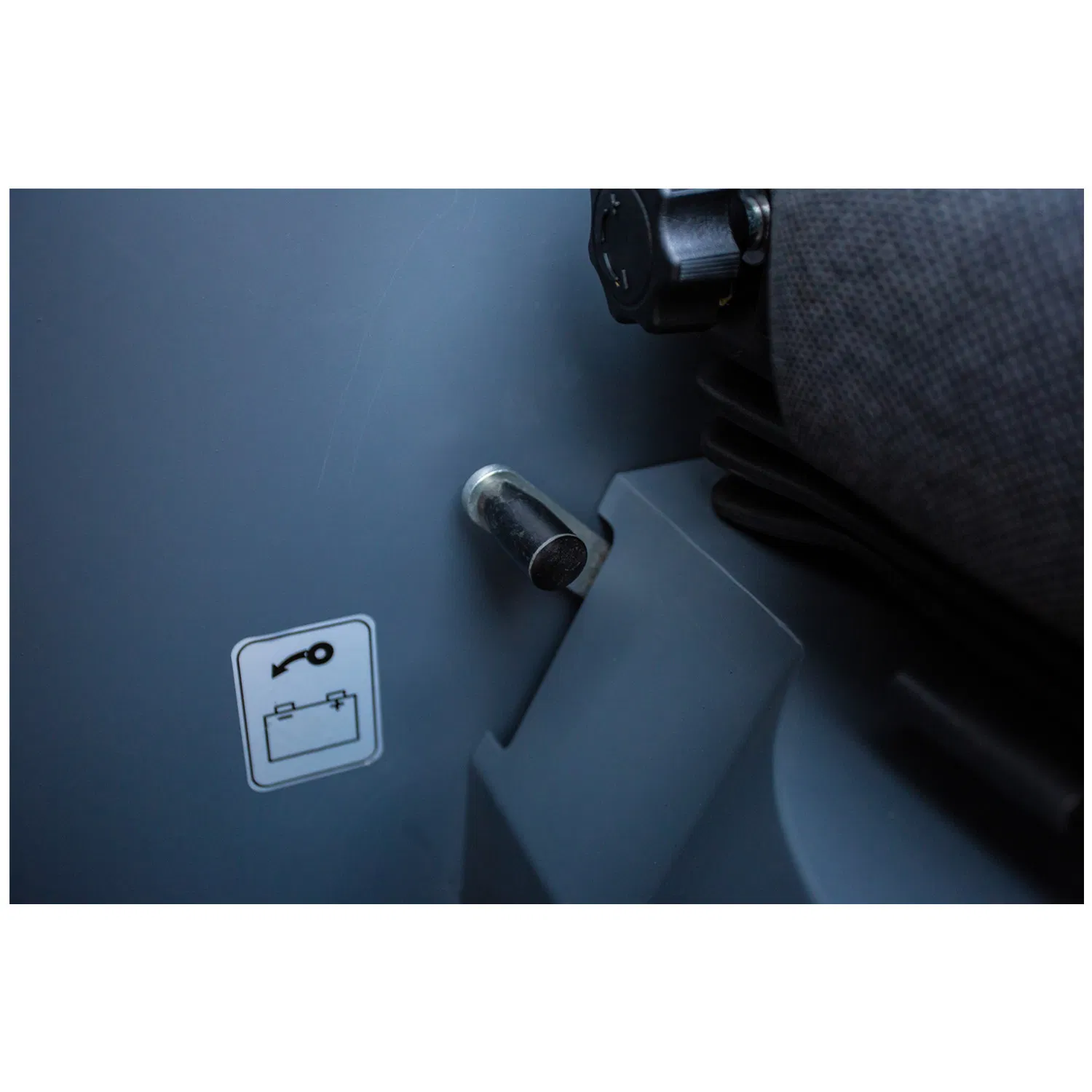

No, maintenance is simplified with a side-way battery changing system and an easy-to-open bolt-fixed back cover for daily inspections.
