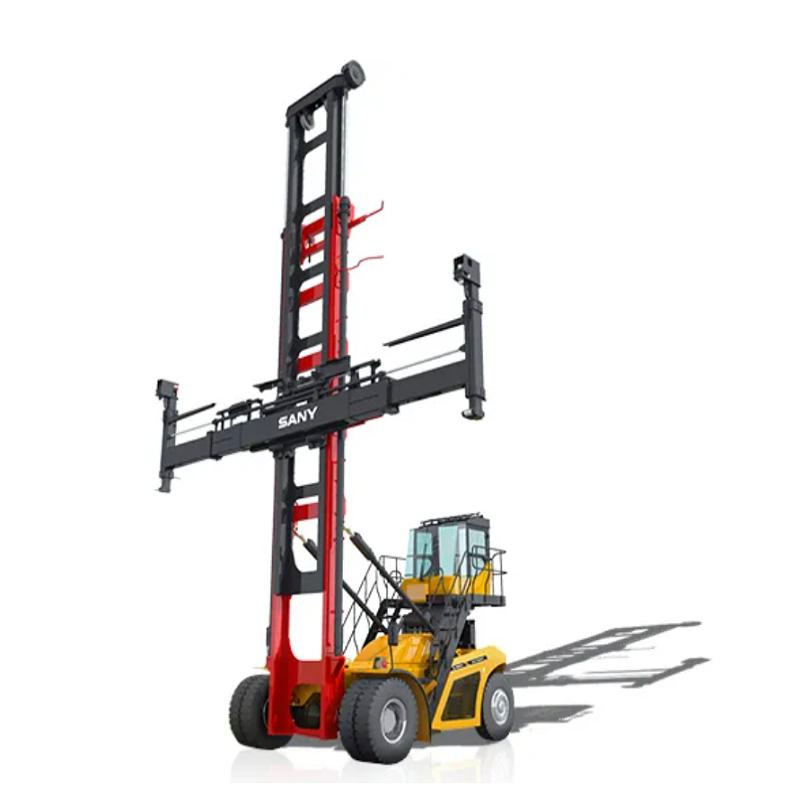

9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
1 / 5
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port
9t Single Empty Container Handler Sdcy90K6h2 for Port

9t Single Empty Container Handler Sdcy90K6h2 for Port

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Technical Specifications

Model:SDCY90K6H2
Type:Container Forklift
Power Source:Diesel Engine
Load Capacity:5T - 10T (Max 9t)
Lift Height:>5000mm
Load Center:>500mm
Stacking Height:7
Turning Radius:6000mm
Overall Length:6900mm
Wheel Base:4550mm
Condition:New
✓

Core Features

Safe and Reliable

Dynamic Anti-Rollover Protection Technology: Utilizes intelligent control to detect real-time parameters and automatically adjust operations under dangerous conditions to prevent rollover.

Extra High Mast Design: F-type mast reduces shaking, offering high rigidity and resistance to curving/twisting.

Patented Mast Clamping Alarm: Intelligent monitoring detects blocking and triggers alarms, locking dangerous operations to ensure safety.

High Efficiency

Spreader Horizontal Slew Technology: Enables faster container alignment and reduces tire friction, lowering fuel consumption.

Efficient Control System: Centralized joystick with inching control for millimeter precision. Multi-motion linkage design allows for faster, more efficient handling.

Hurdling Twin Container Spreader: Developed to improve alignment efficiency with vertical rotation of ±4°.

Energy Saving

Hydraulic Load Sensing System: Automatically adjusts pump displacement based on the load for high-precision flow control and significant energy reduction.

Dynamic Power Matching: Recognizes load changes and adjusts engine speed accordingly to optimize power output.

Advanced Fuel Options: Incorporates LNG new fuel technology for more economic and environmental operation.

⚙

Product Parameters

Component Specification
Drive AxleKE-SS-LER D81 PL488
EngineVO-LVO TAD851VE
Load Center1220mm
Main PumpPER-MCO P257A367 +PT257C386
Max Load Capacity9T
Min. Turning Radius6000mm
Overall Length6900mm
Stacking Height7
TransmissionCLARK 13.7HR32000
TyreCHAO-YANG/AD-VANCE/BRIDGE-STONE
Wheel Base4550mm
📷

Detailed Photos

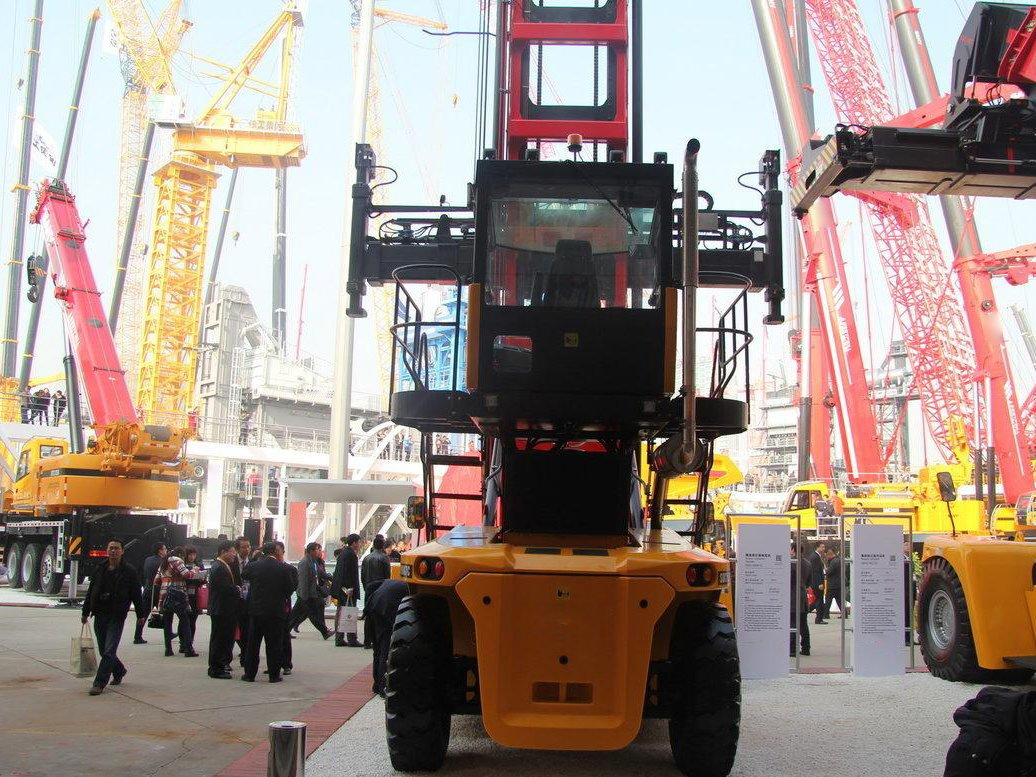

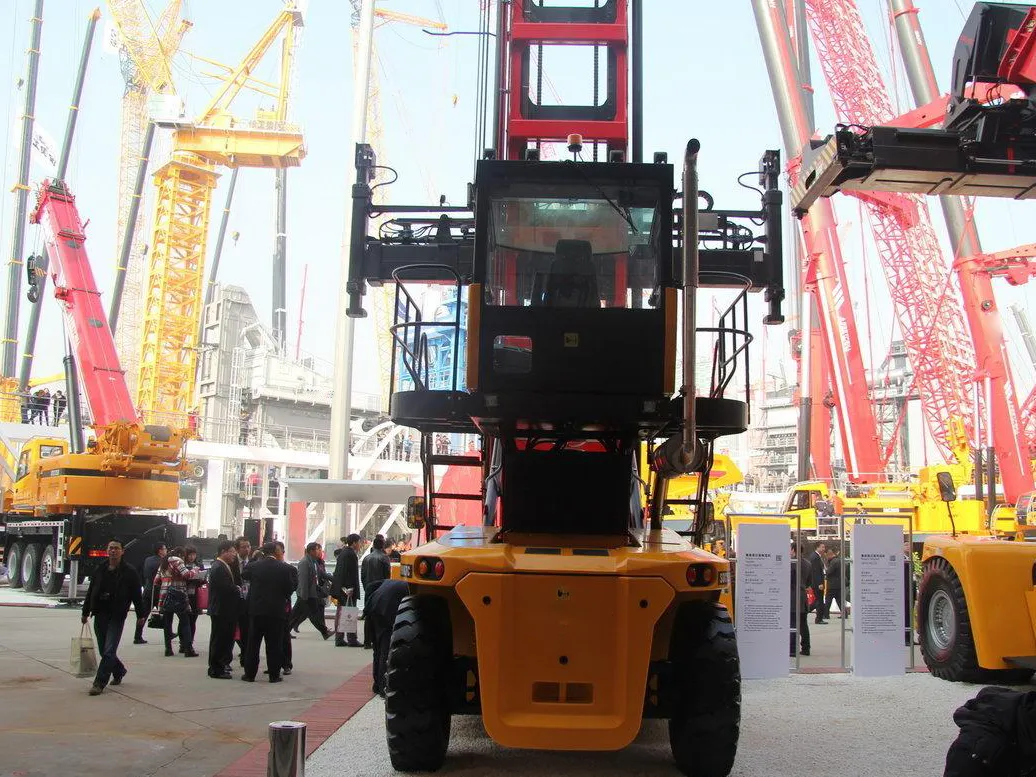

9t Single Empty Container Handler Sdcy90K6h2 Front View

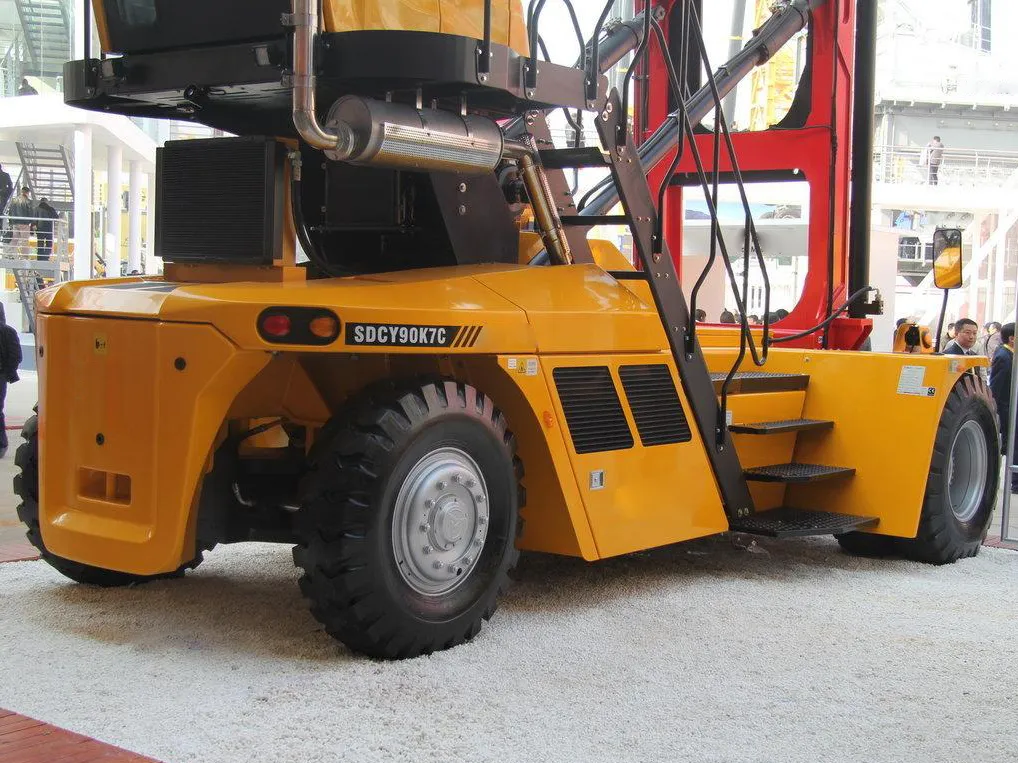

9t Single Empty Container Handler Sdcy90K6h2 Side View

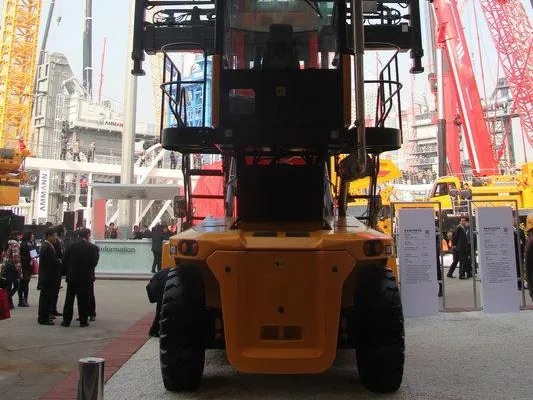

Empty Container Handler Detail 1

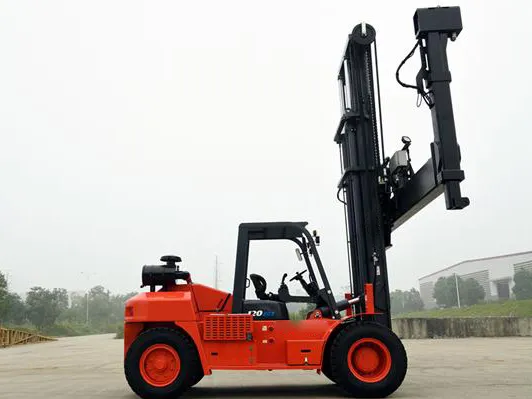

Empty Container Handler Detail 2

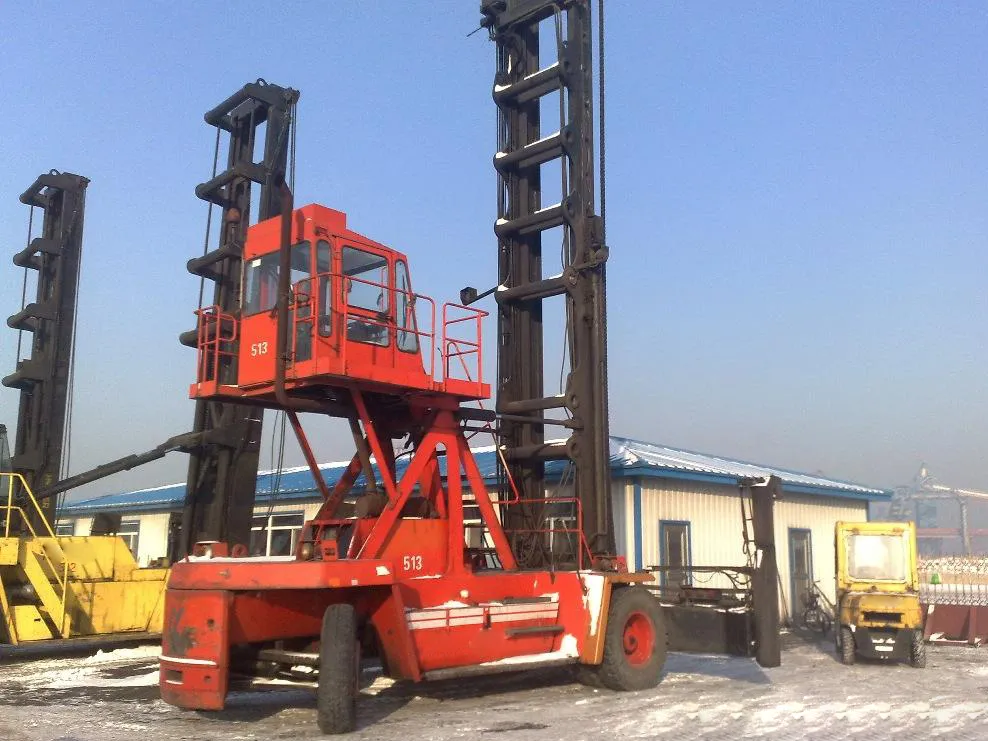

Empty Container Handler Detail 3
Technical Layout 1 Technical Layout 2 Component Analysis Mast Structure Spreader Detail Operating Cabin Safety Features
?

Frequently Asked Questions

Q1: What is the maximum stacking height for the SDCY90K6H2? A1: This model is designed for a stacking height of 7 containers.
Q2: What type of engine powers this container handler? A2: It is equipped with a high-performance Volvo TAD851VE diesel engine.
Q3: How does the dynamic anti-rollover technology work? A3: It uses intelligent control to monitor real-time parameters and automatically adjusts the machine's operating status during dangerous maneuvers to prevent tipping.
Q4: Is the joystick control precise enough for tight port operations? A4: Yes, the centralized joystick features inching control, allowing for millimeter-precision tuning and proportional movement.
Q5: What are the energy-saving benefits of this machine? A5: It features a Hydraulic Load Sensing System and Dynamic Power Matching, which adjust pump displacement and engine speed based on the load to minimize fuel consumption.
Q6: What is the minimum turning radius of the handler? A6: The minimum turning radius is 6000mm, providing excellent maneuverability in container yards.
