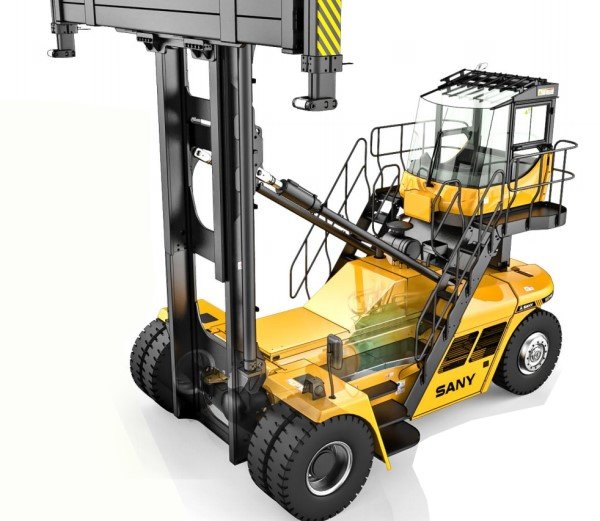

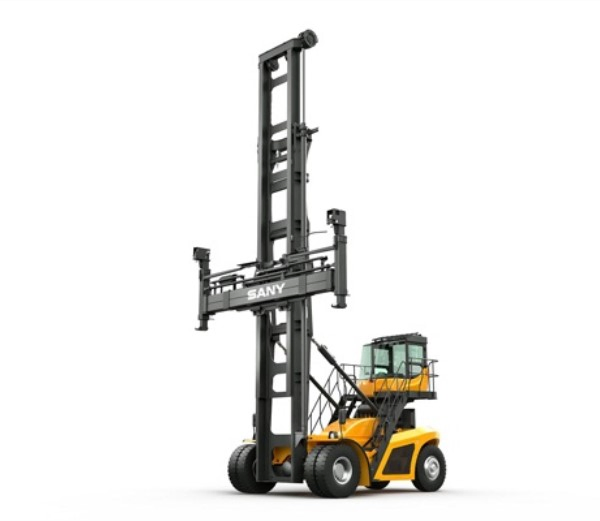

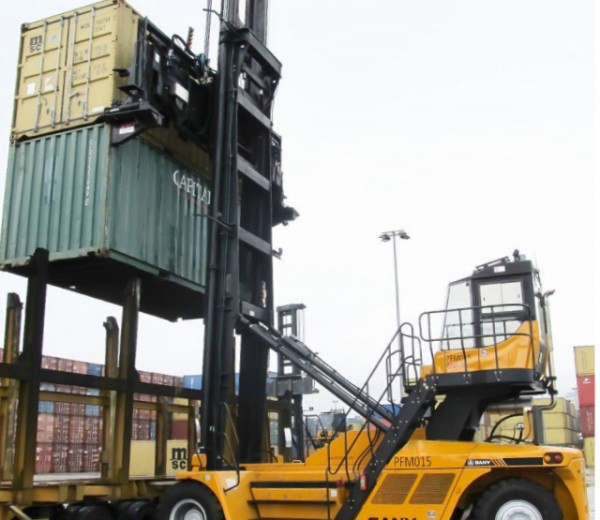

SANY empty container handler SDCY90K8H3 is mainly used in ports, wharfs and storage yards to transfer and stack standard, twin, hurdling and LNG empty containers of various specifications. With loading capacity of 9 tons, the joint Chinese and German design container handler of SANY is reliable and convenient.
Adopt intelligent control technology, detect equipment's real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover. It can achieve safe and worry-free operation.
F-type mast is creatively developed to reduce shaking. It is curve and twist resisting and highly rigid, safe and reliable.
An intelligent monitoring device will detect the blocking and send alarm. The main electronic control system can lock the dangerous operations to prevent further damage, comprehensively eliminate safety hazards.
Aligning and lifting container more conveniently and quickly. It greatly decreases the friction between tyre and floor, reduces fuel consumption and saves costs.
The centralized joystick has inching control function. It can realize fine tuning to millimeter precision easily. All the spreaders' motions are under proportional control, providing an experience of man-machine unification. The machine also has multi-motion linkage design so that it can operate faster and more efficiently.
Automatically adjust the pump displacement according to the load, realizing high precision flow control. The effect of energy saving and consumption reduction are remarkable.
Automatically recognize dynamic power according to load change and adjust engine speed accordingly. The output power automatically accommodate to load and work conditions, greatly reducing energy consumption.
| Engine model | CUMMINS QSB 6.7 | Rated power | 185/2200 kW/rpm |
| Max.torque | 1160/1200 Nm/rpm | Overall weight | 39t |
| Emission standard | Tier 3 | Operating weight | 9t |
| Stacking height | 8(8'6") | Max lifting speed | 600/550 mm/s |
| Max lowering speed | 550/600 mm/s | 20" container aisle width | 10000 mm |
| 40" container aisle width | 14000 mm | Overall width | 6038-12170 mm |
