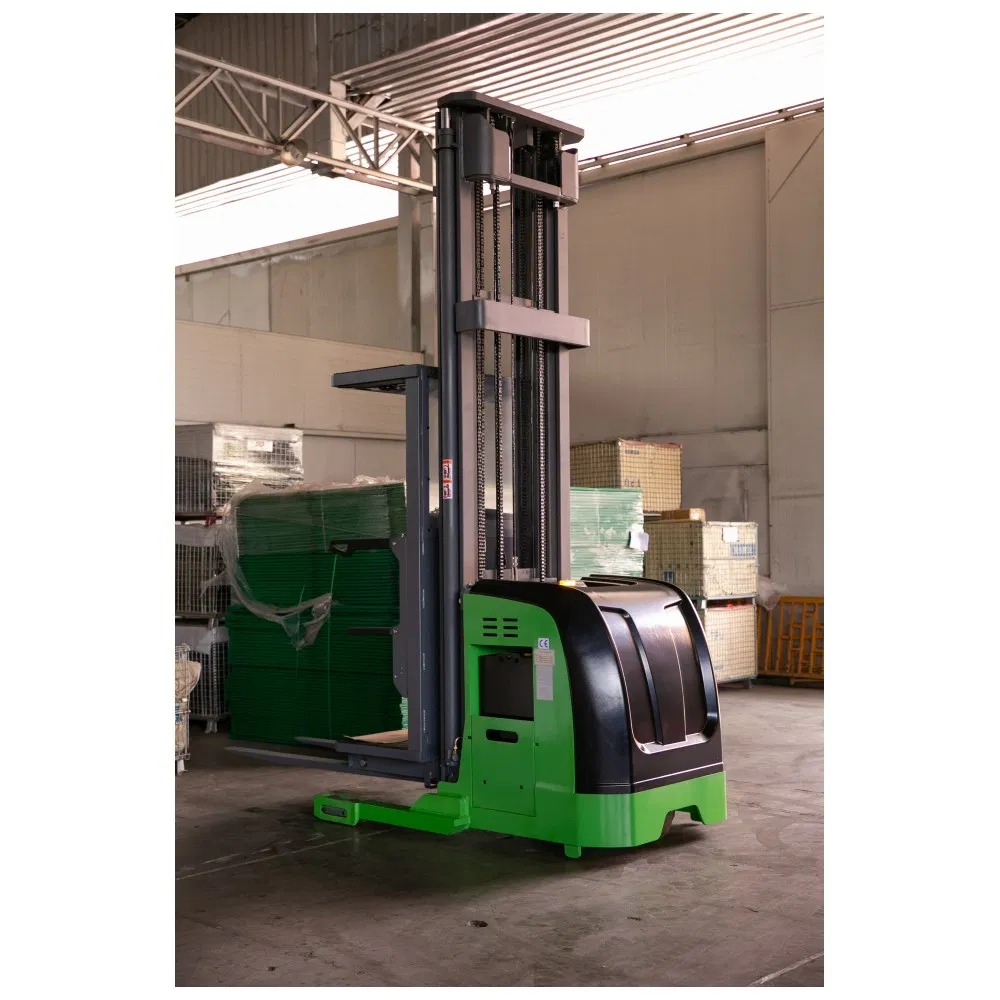

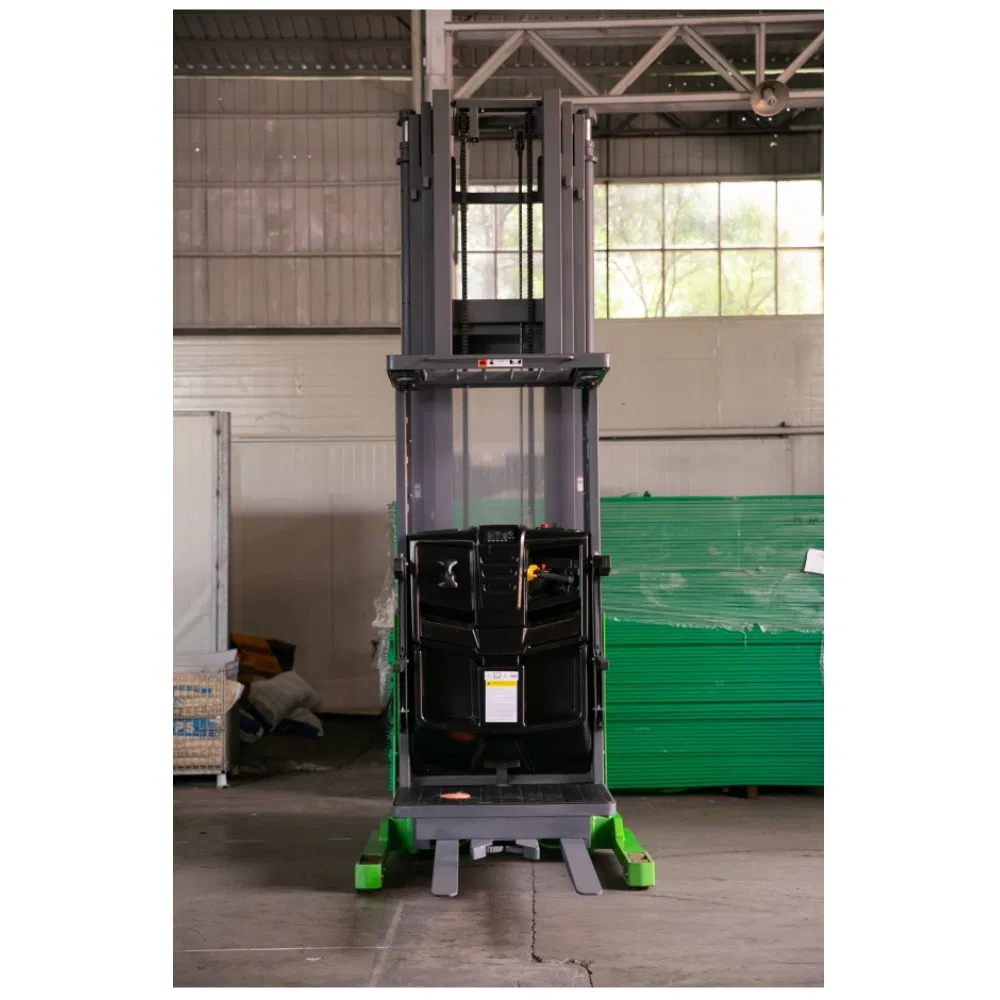

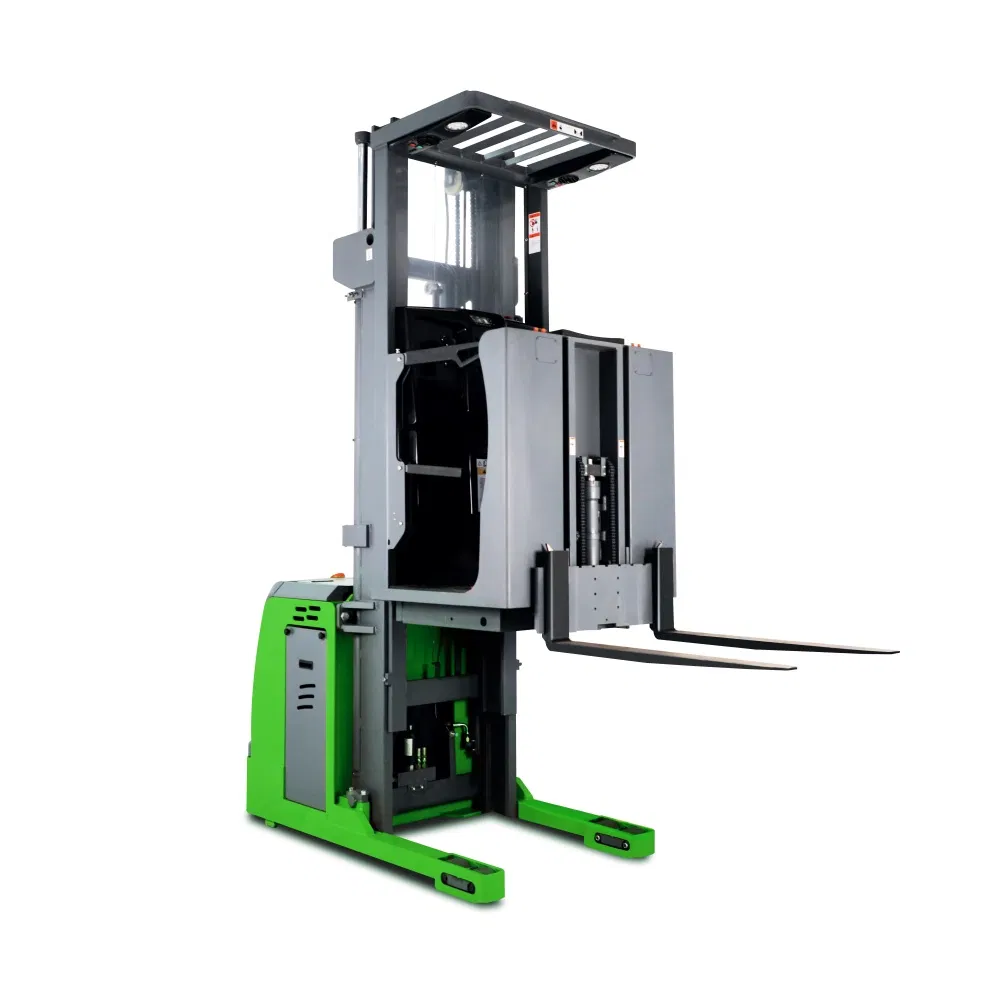

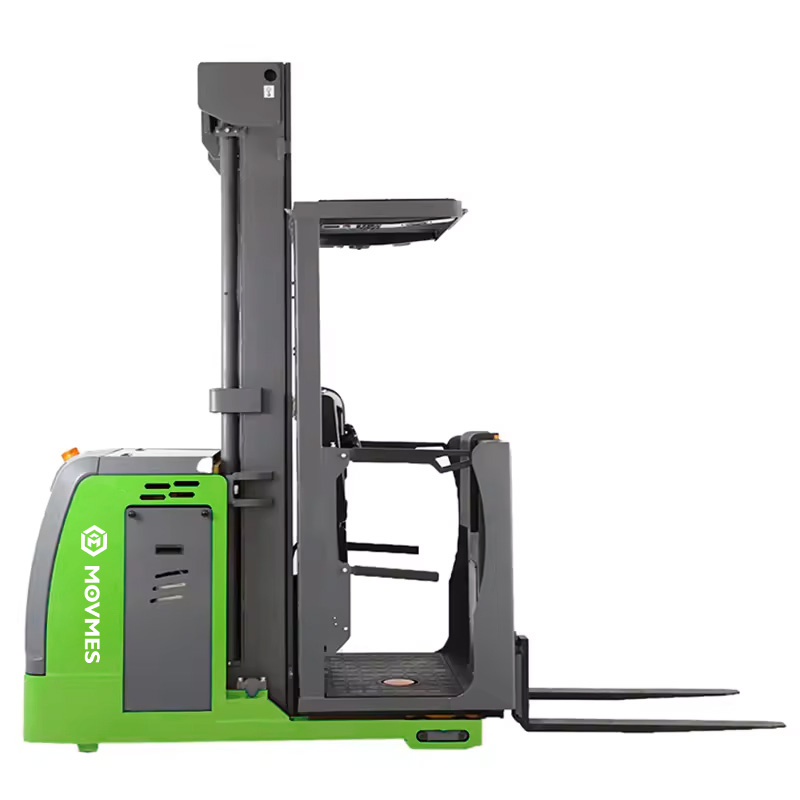

Warehouse Equipment Narrow Aisle 5m Standing Middle Level Semi Full Electric Order Picker for Sale/Forklift/Lift/Aerial/Stock/Self-Propelled/Mobile/Crown

ⓘ

Basic Information

Model NO.

OPS15-BD

Name

Middle Level Order Picker

Type

Stacker

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

>5000mm

Max. Lift Height

4500/5000/5500 mm

Turning Radius

1765 mm

Condition

New

⚙

Product Description

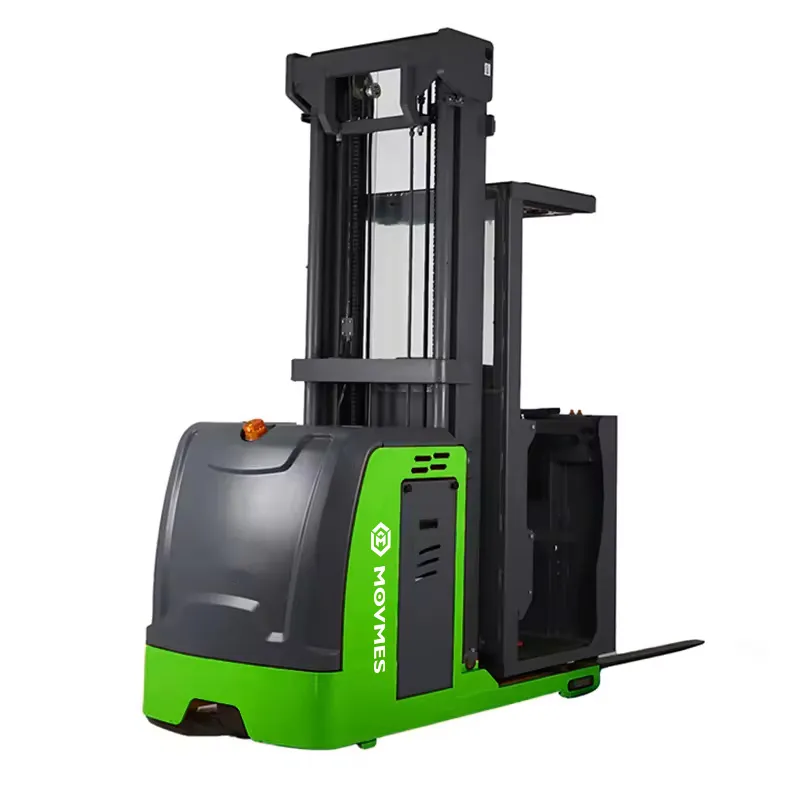

Warehouse Equipment Narrow Aisle Order Picker 5m Standing Middle Level Electric Order Picker

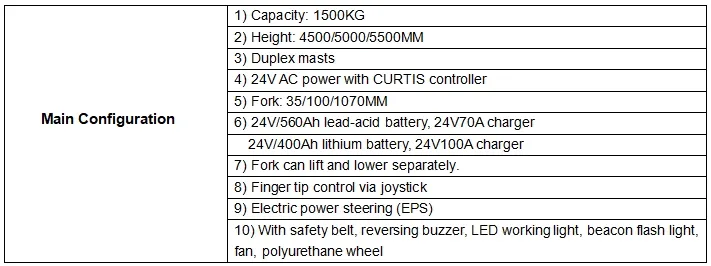

Technical Parameter

Description	Unit	Specification (OPS15)
Drive type	-	Battery
Load Capacity / rated load	Q(kg)	1500
Load centre	c(mm)	600
Tyre size, front	mm	Dia 310x125
Height, mast lowered	h1(mm)	2609/2859/3210
Max. lift height	h3(mm)	4500/5000/5500
Overall width	b1/b2(mm)	1016/1248
Turning radius	Wa(mm)	1765
Travel speed, laden / unladen	Km/h	7.7/8
Battery voltage, nominal capacity	V/Ah	24/560

📦

Related Models

OPSM Mini Order Picker
Platform lift: 3000mm | Capacity: 90kg

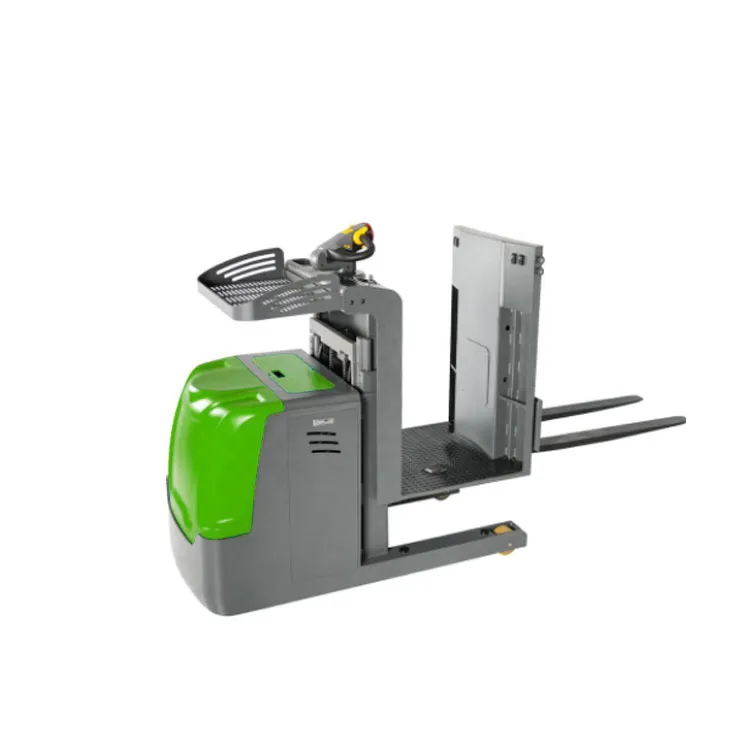

OPL10S Order Picker
Load capacity: 1000kg | Platform height: 1200mm

🚛

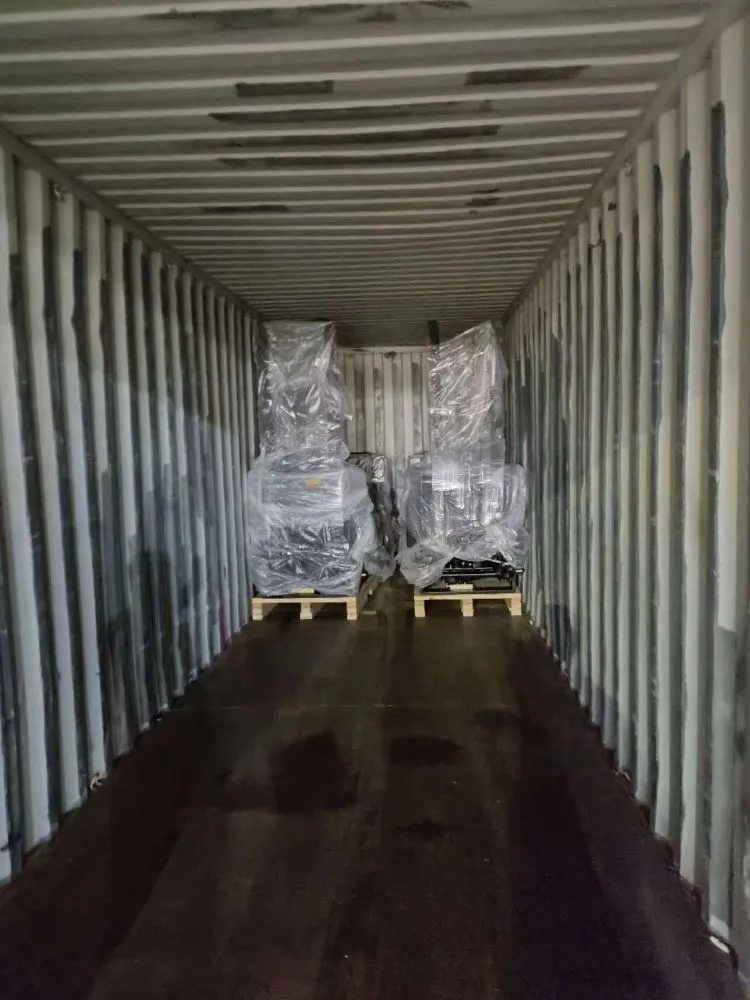

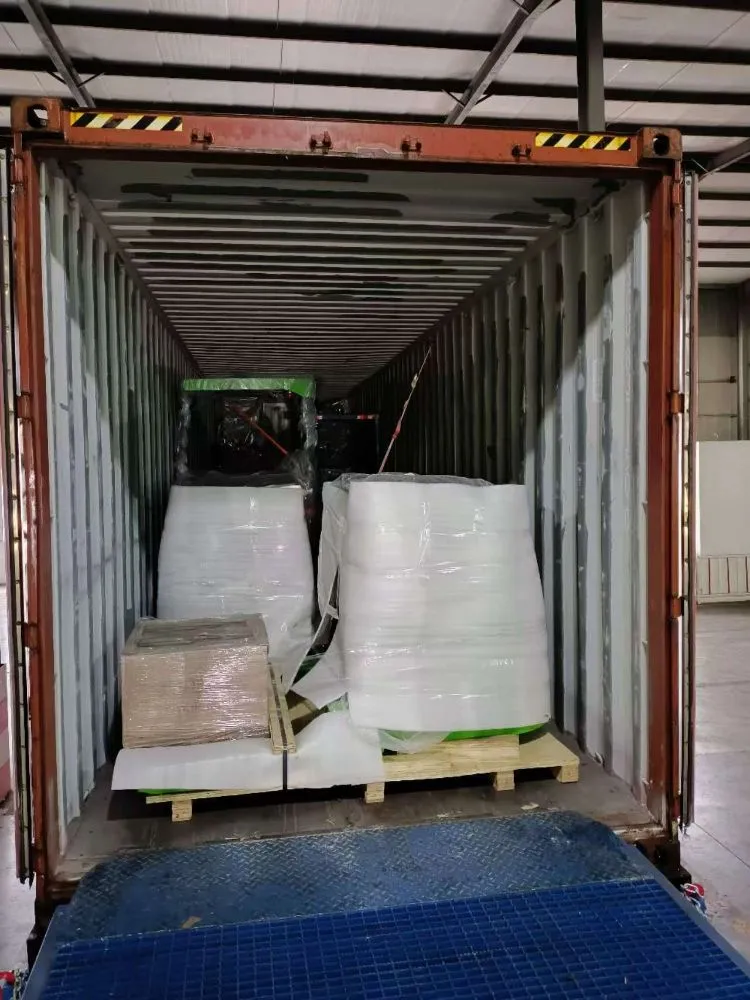

Packing and Delivery

Every equipment is carefully packaged according to delivery requirements. Photos and videos are provided before shipment to ensure quality approval. Producing time is usually 30-45 days after receiving payment.

✔

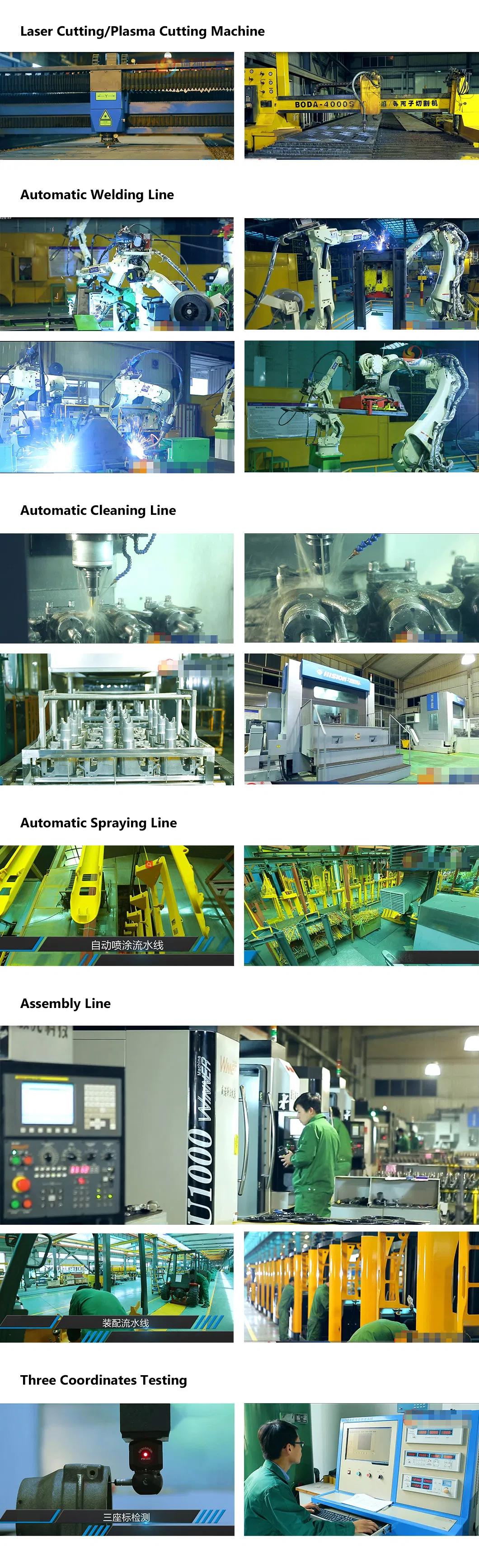

Certification & Factory Strength

Our products comply with international standards including ISO9001, ISO14001, and OHSAS18001. Material handling equipment has approved CE certificates from TUV (ISO3691-1, EN1175-1, EN16307-1).

36+Years Experience

150,000m²Factory Area

1,200Employees

157Countries Exported

?

Frequently Asked Questions

How about the continuous working time for the electric truck series?

The battery continuous working time is around 3-6 hours depending on the battery volume. Charging typically takes 3-6 hours for a full cycle.

What are the specifications of the chargers?

Our chargers are designed for 24V200Ah Lead-acid batteries. Power plugs can be provided in USA, UK, AUSTRALIA, or EUROPEAN standards.

Can you provide customized OEM or ODM products?

Yes, our factory has been professional in developing and producing warehouse logistic equipment since 1985, providing customized solutions for world-famous brands.

How long is the warranty for the products?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided for free.

What safety features are included in the order picker?

The equipment includes emergency stop buttons, automatic braking systems, and mast limit sensors to ensure maximum operator safety during high-level picking.

What is the recommended maintenance schedule?

We recommend a basic inspection every 3 months, including checking hydraulic fluid levels, tire wear, and battery terminal cleaning for optimal performance.
