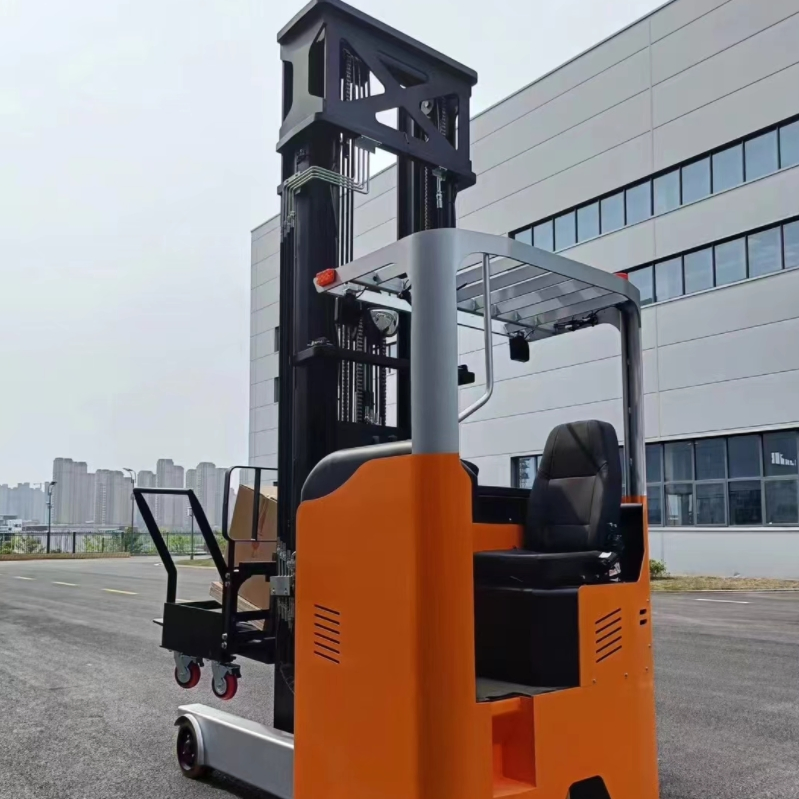

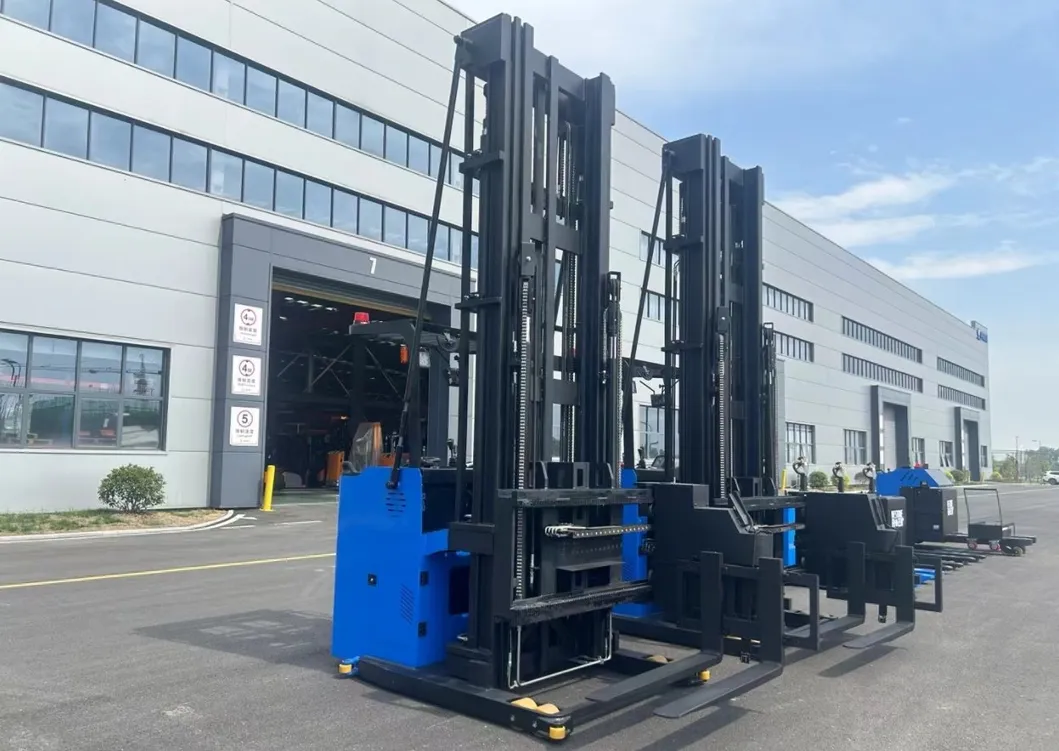

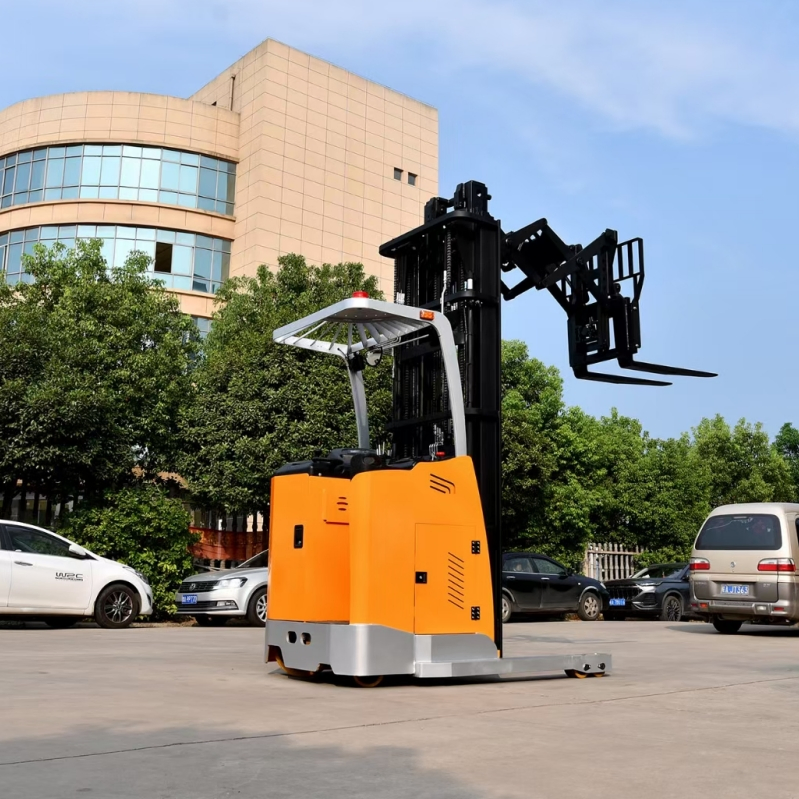

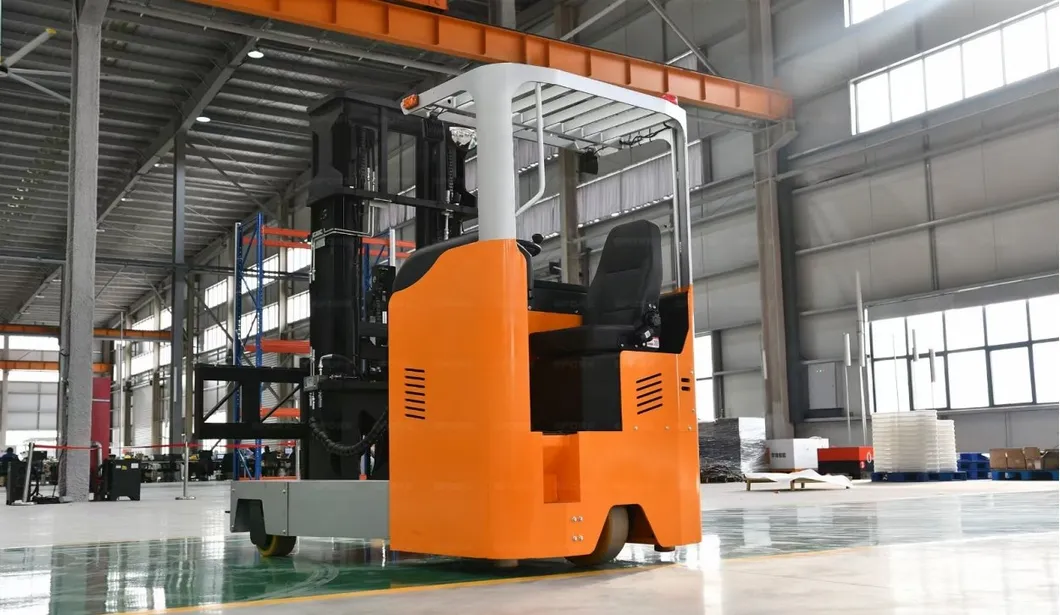

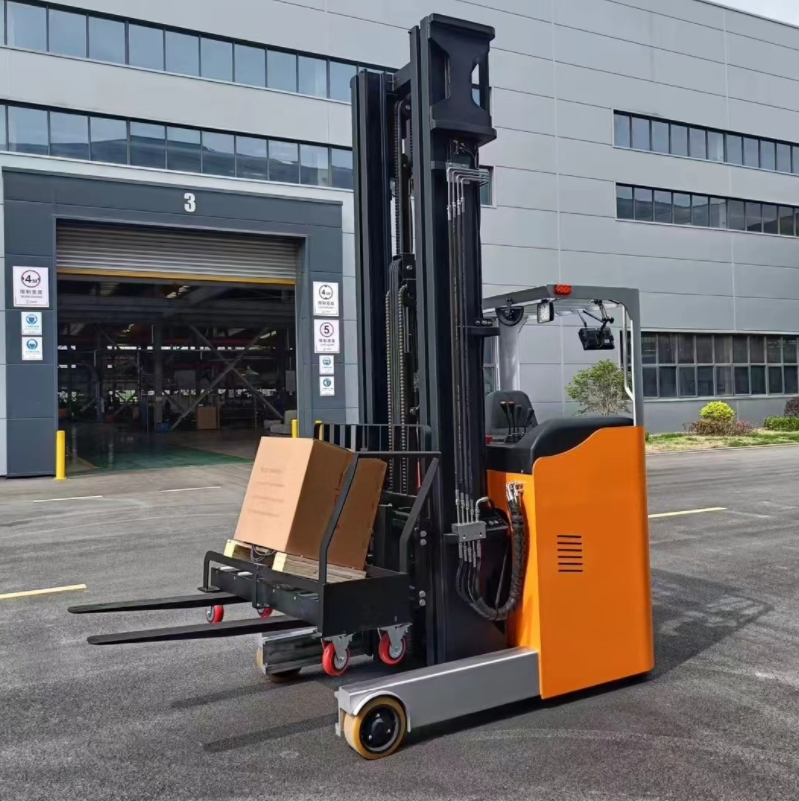

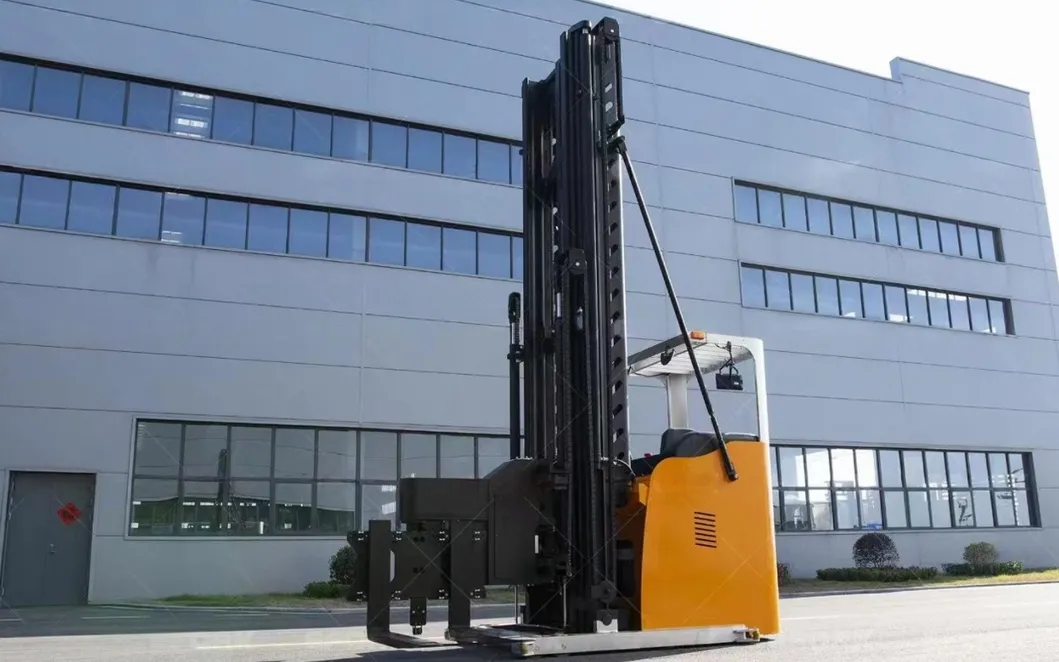

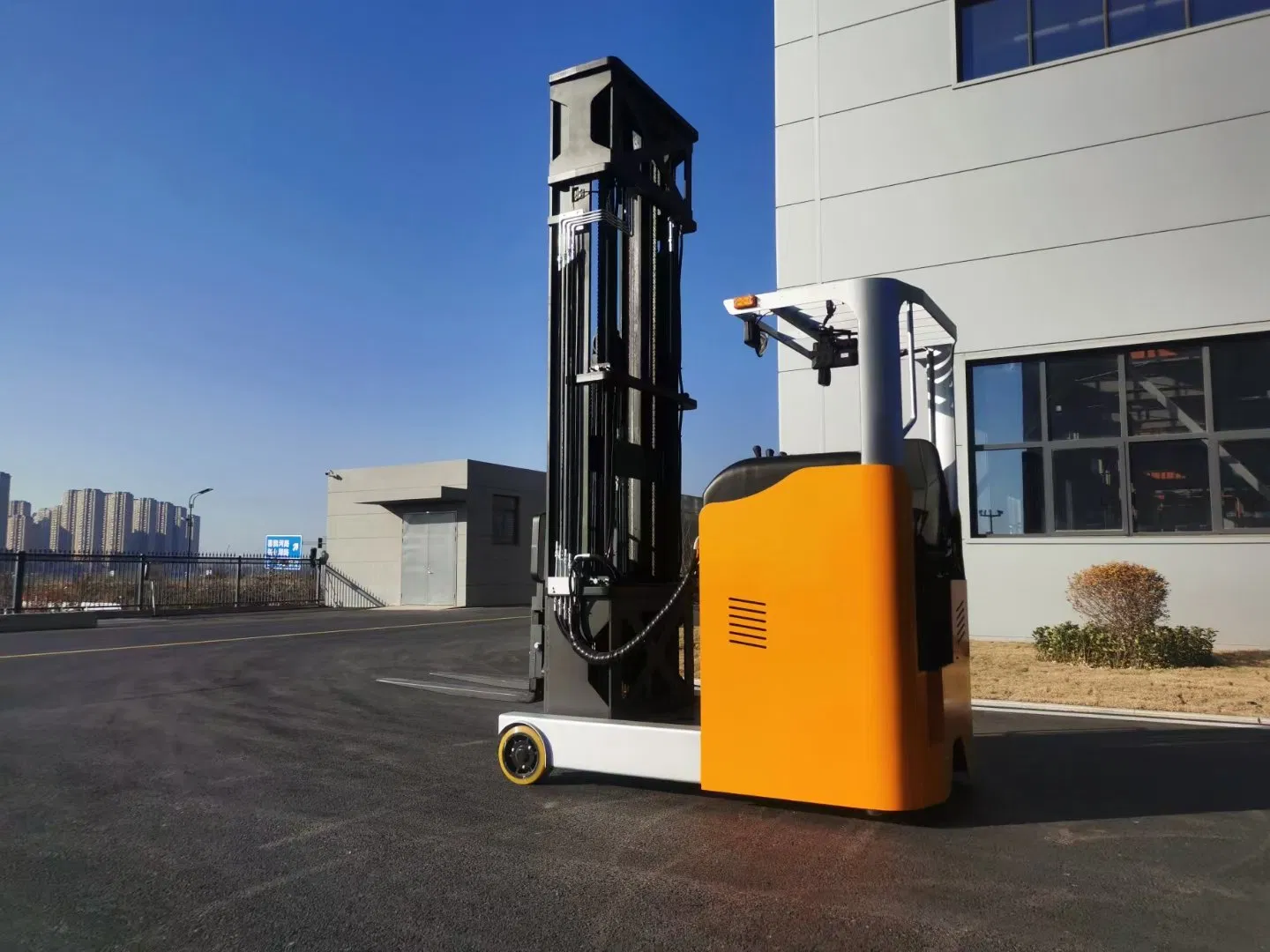

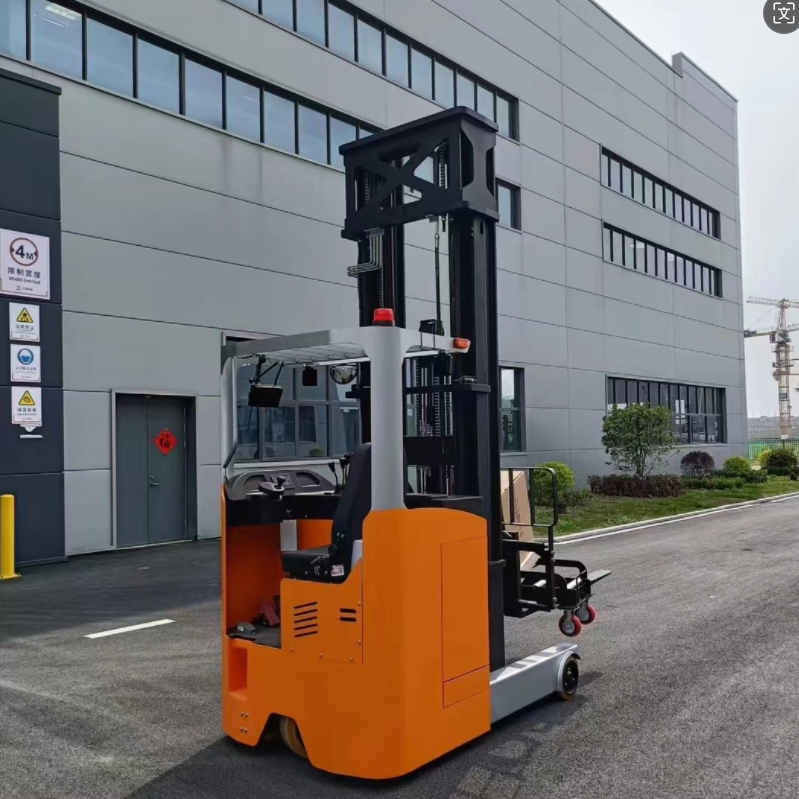

The Three-Way Stacker Truck is applied in narrow roadways with a lifting height of 4.5-12m. It realizes the stacking and picking up of goods on both sides through the rotation and side-shift movement of the fork without turning the truck.

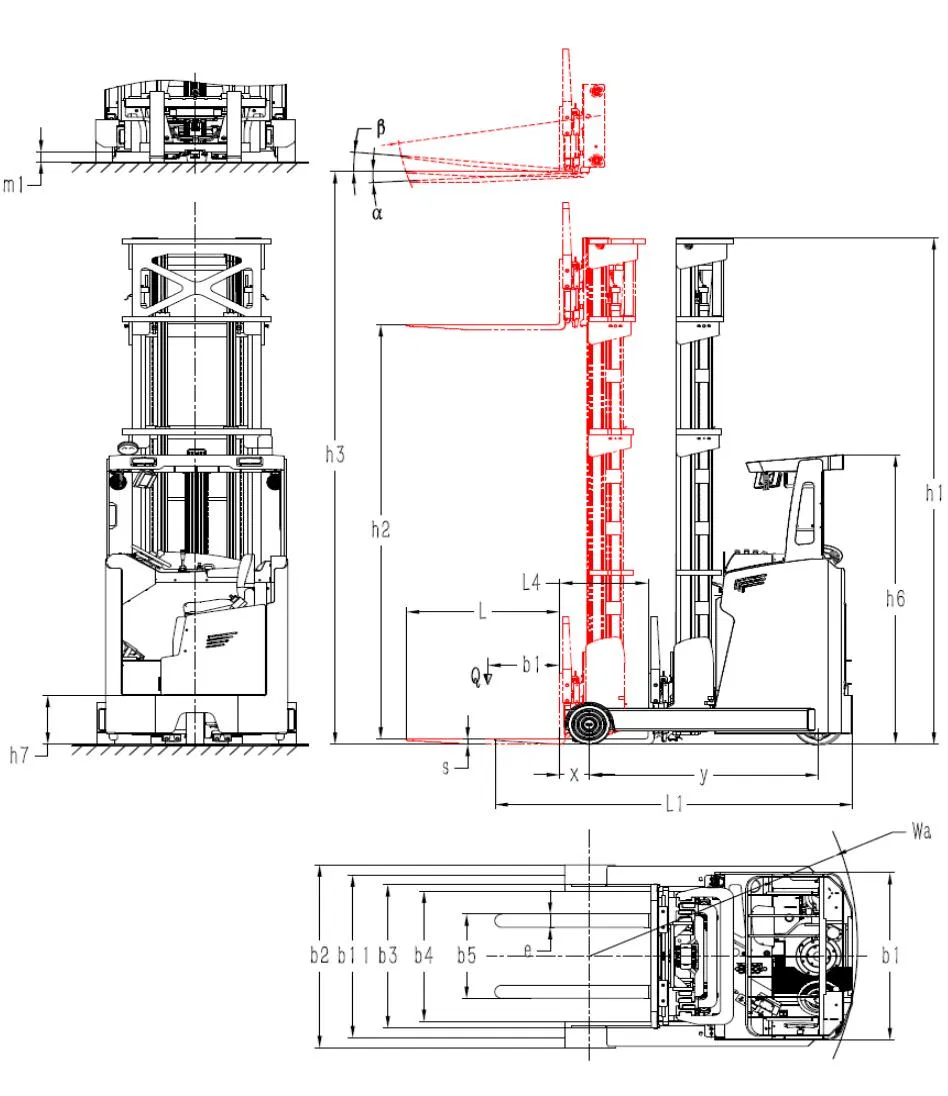

| Parameter | Unit | E3W10 | E3W15 |
|---|---|---|---|
| Power type | - | Battery | Battery |
| Operation Type | - | Stand-on | Stand-on |
| Service weight | kg | 4260 | 4690 |
| Rated capacity | Q(kg) | 1000 | 1500 |
| Load center | C(mm) | 500 | 600 |
| Lift height | h3(mm) | 3000 | 3000 |
| Fork dimension | l/e/s(mm) | 1000/125/50 | 1200/125/50 |
| Turning radius | Wa(mm) | 1880 | 1980 |
| Travelling speed (laden) | km/h | 7.5 | 7.5 |
| Lifting speed (laden) | mm/s | 230 | 200 |

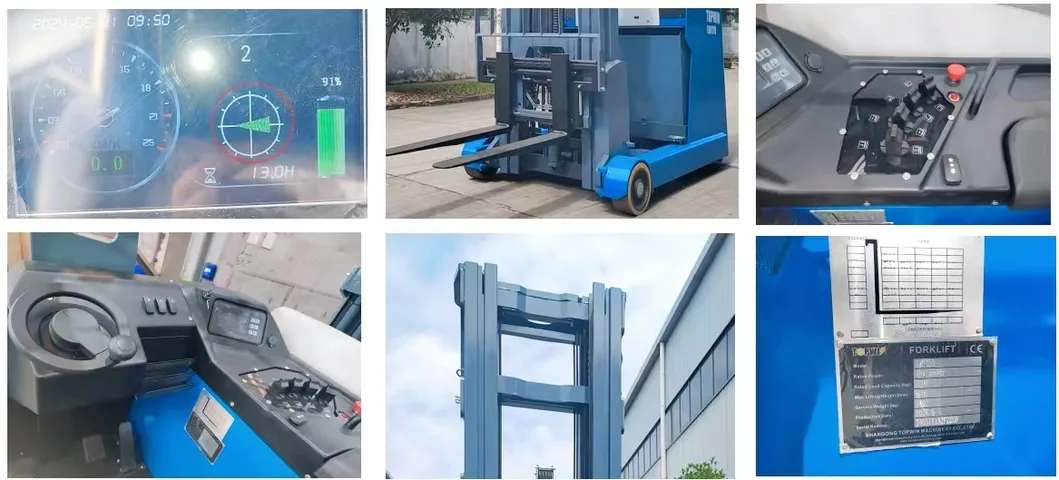

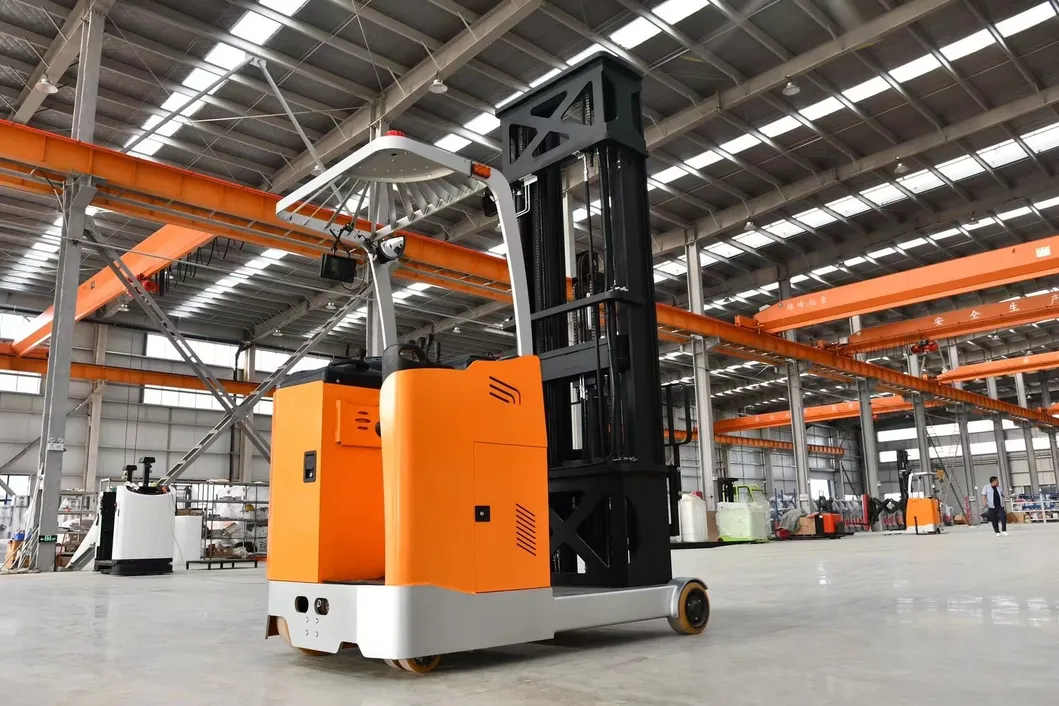

Outdoor Capability: Our Reach Trucks are versatile for both indoor and outdoor operations. With durable wheels and high ground clearance, they maintain optimal visibility and driver comfort in various climate conditions.

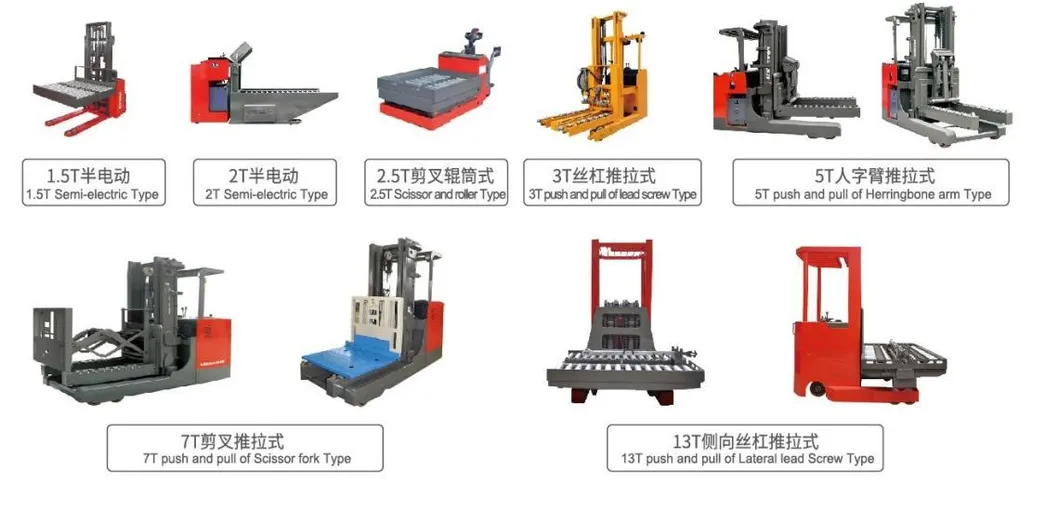

Our storage equipment range includes electric trucks, stacking cars, reach forklifts, towing vehicles, order pickers, AGV pilotless trucks, and 3-Way Electric Pallet Stackers. Our solutions are widely used across modern logistics sectors.
