Product Description

Basic Specifications

Model NO.:CQDH20C

Type:Reach Forklift

Power:AC Motor

Load Capacity:1.6 Ton / 1600 Kg

Fuel:Electric

Lift Height:5000/7000/9000/10000 mm

Load Center:500 mm

Turning Radius:1865 mm

Condition:New

Travel Speed (Laden):10.5 Km/H

Battery Voltage:36V / 700Ah

HS Code:8427109000

Product Overview

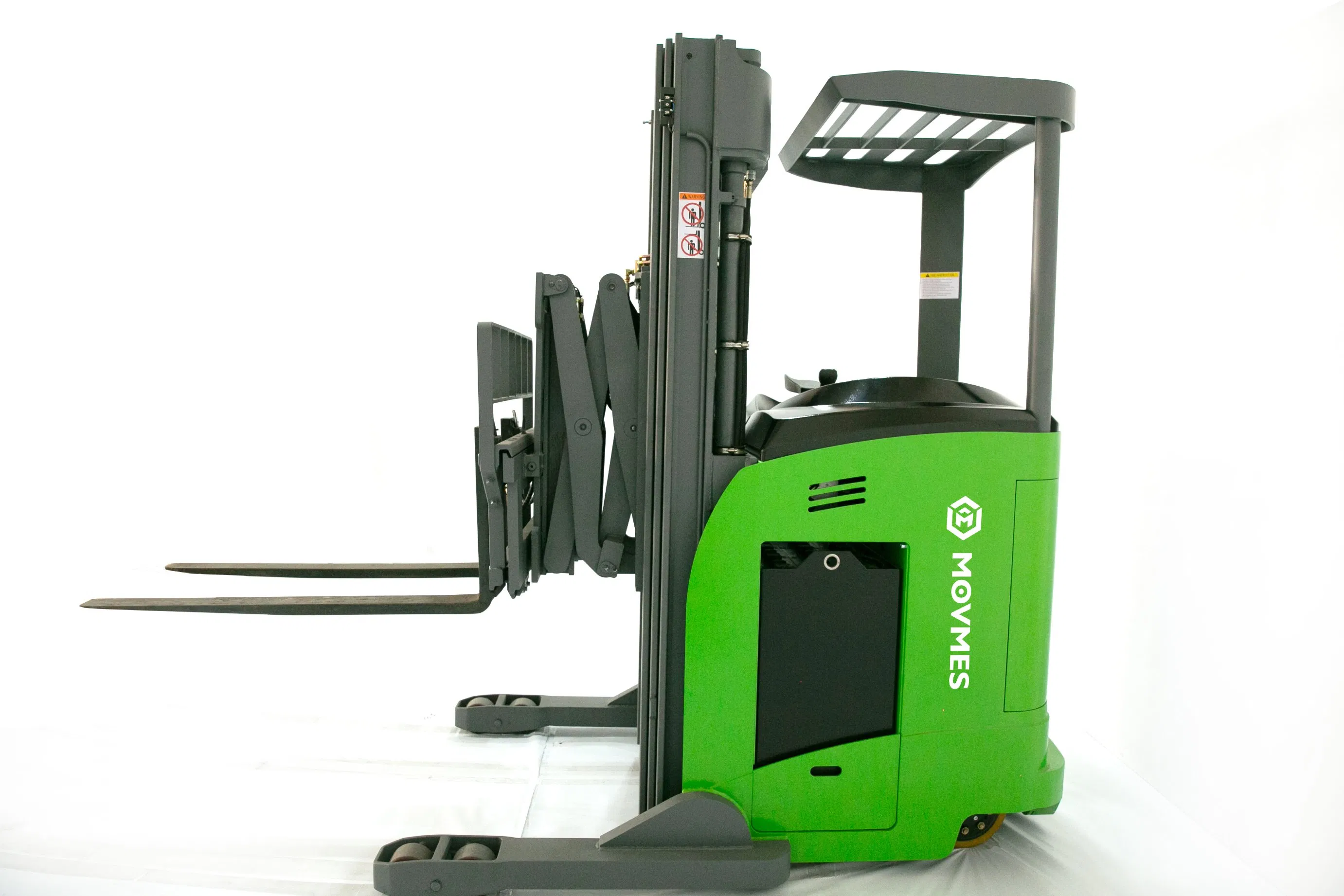

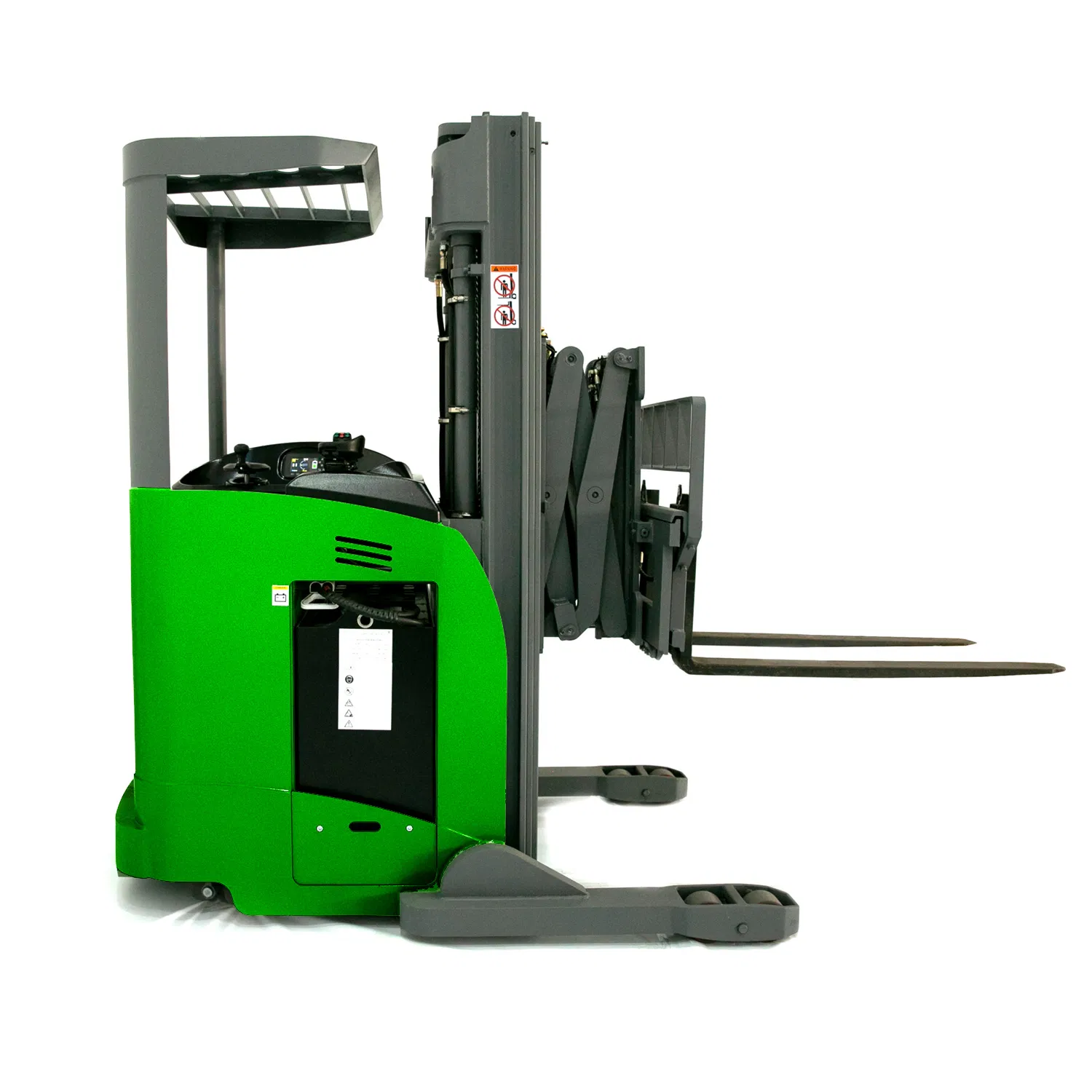

Electric fork reach truck single scissor double scissors: High-performance material handling solution designed for VNA (Very Narrow Aisle) environments, offering superior reach and lifting capabilities.

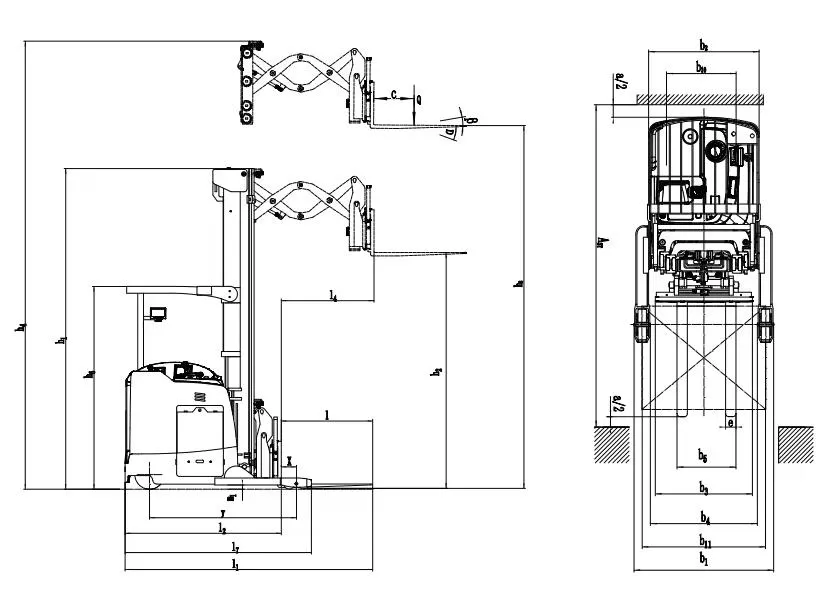

Technical Parameters

Parameter Item	Unit	Double Scissor Details
Drive Type	-	Battery
Load Capacity / Rated Load	Q (kg)	1600
Load Centre Distance	c (mm)	600
Tyre Size (Front/Rear)	mm	343*140 / 125x82
Mast Lowered Height	h1 (mm)	2365 / 2522 / 2763 / 2933 / 3130 / 3368
Max Lift Height	h3 (mm)	4500 to 10500
Overall Width	b1/b2 (mm)	1352 / 1070
Drive Motor Rating	KW	7.0 (AC)
Lift Motor Rating	KW	14.0 (AC)
Turning Radius	Wa (mm)	2005 / 1865
Aisle Width (Pallet 1000x1200)	Ast (mm)	3230
Lowering Speed (Laden/Unladen)	m/s	0.45 / 0.45

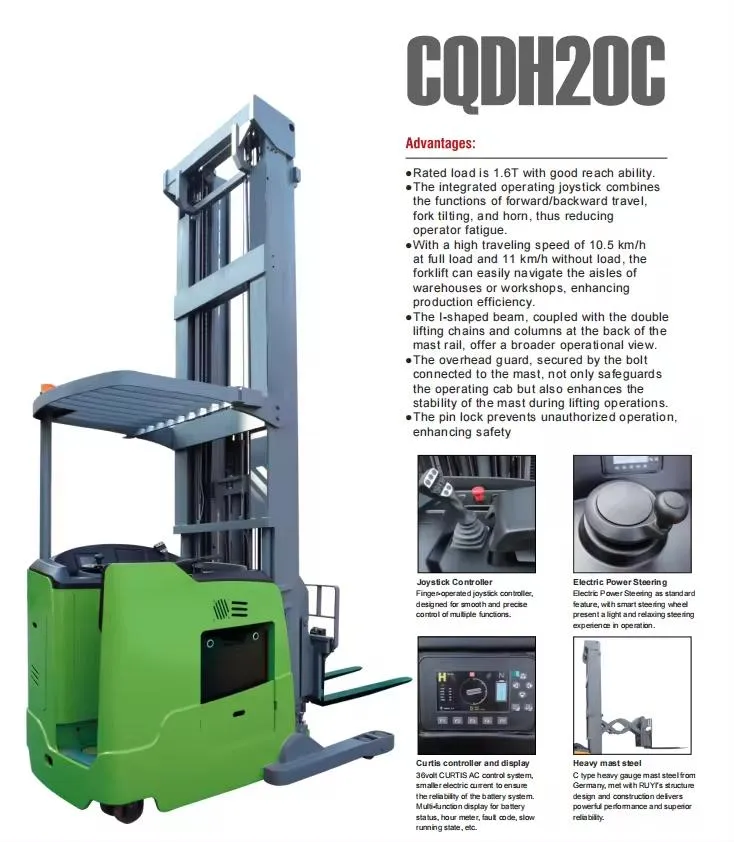

Product Advantages

● Advanced Control: Integrated operating joystick combines forward/backward travel, fork tilting, and horn functions to reduce operator fatigue.

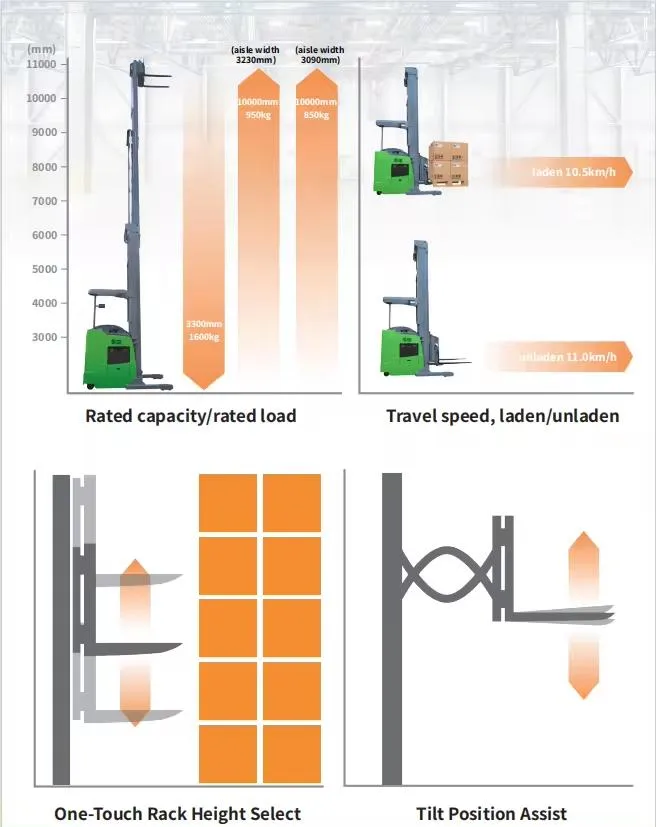

● High Efficiency: Traveling speeds of up to 10.5 km/h (full load) and 11 km/h (unladen) for rapid warehouse navigation.

● Enhanced Visibility: I-shaped beam design with double lifting chains offers a broader operational view for safer handling.

● Stability & Safety: Overhead guard secured by mast-connected bolts ensures cab safety and mast stability during high-lift operations.

● Security: Features a pin lock system to prevent unauthorized operation.

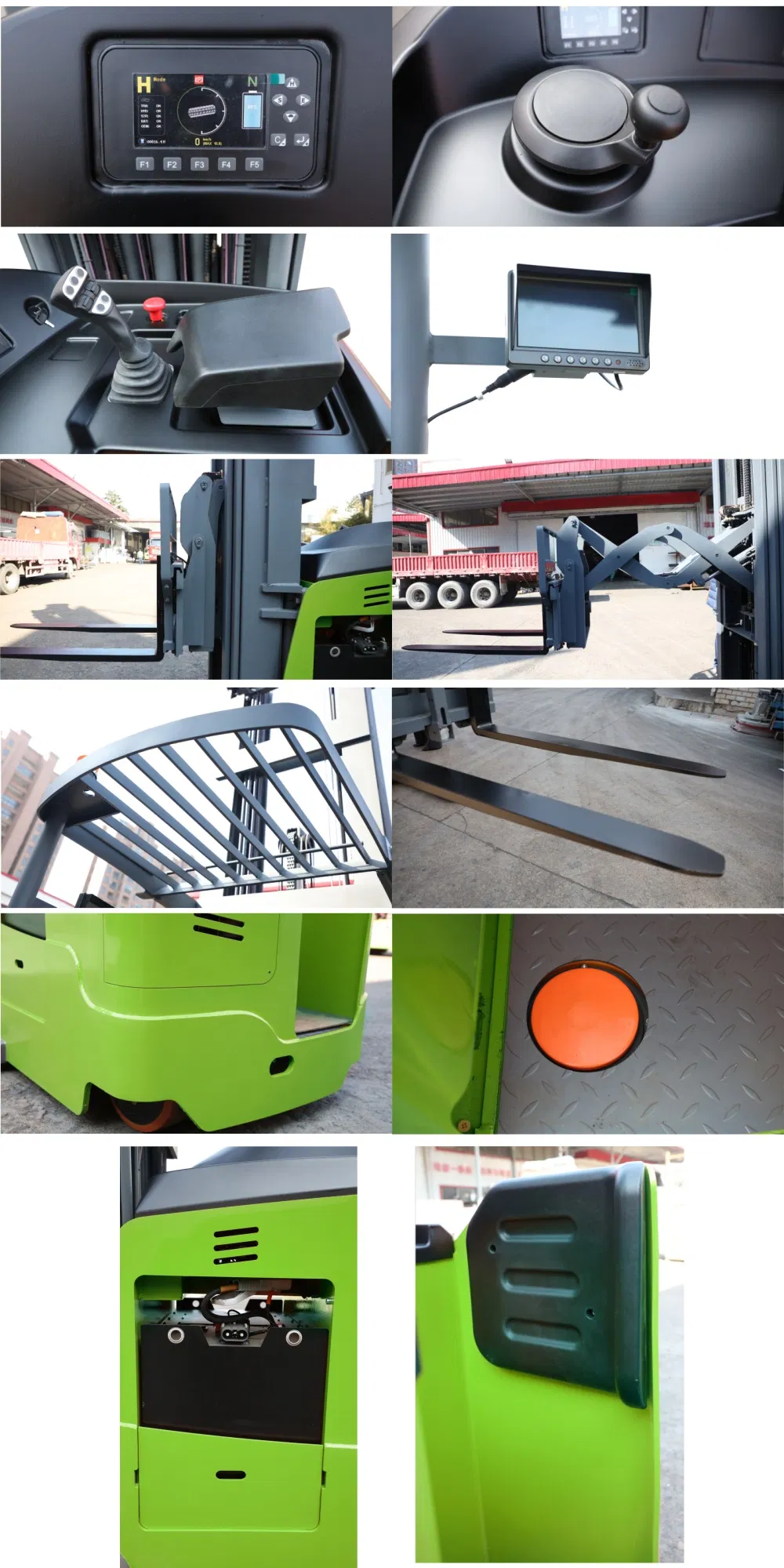

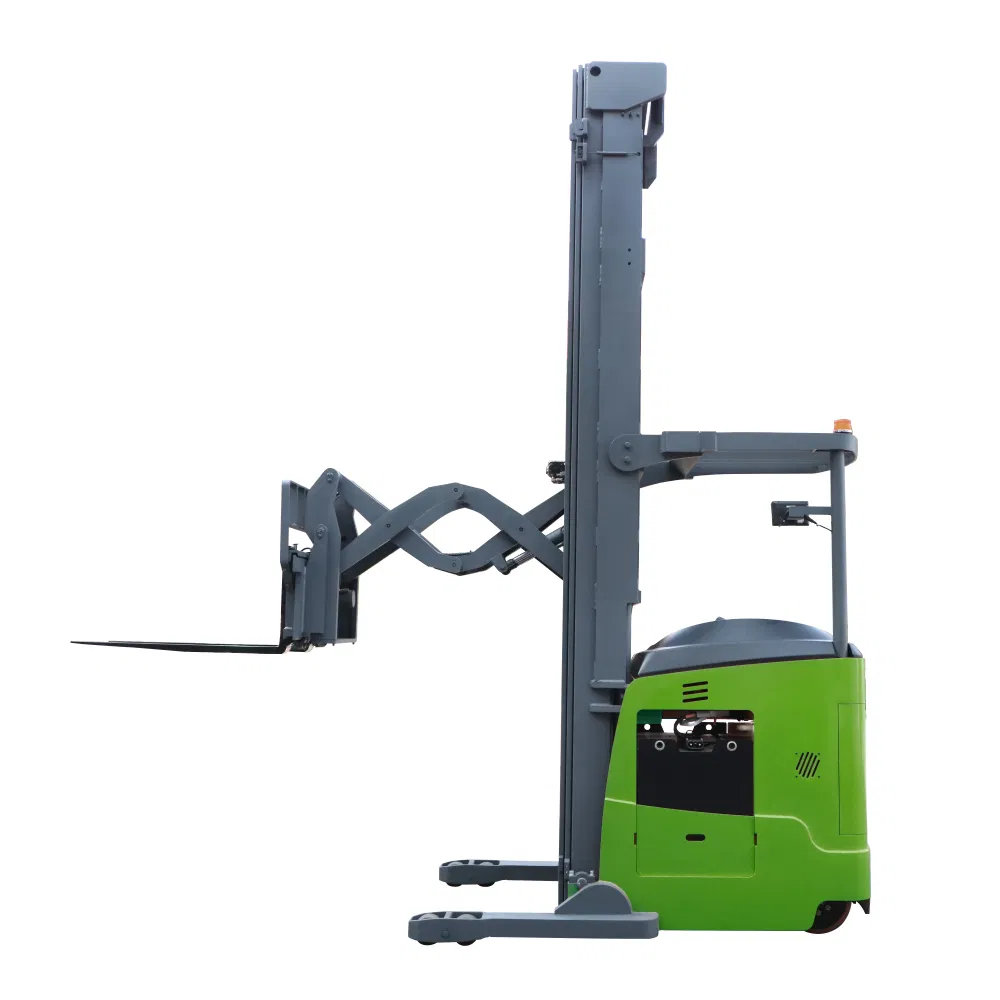

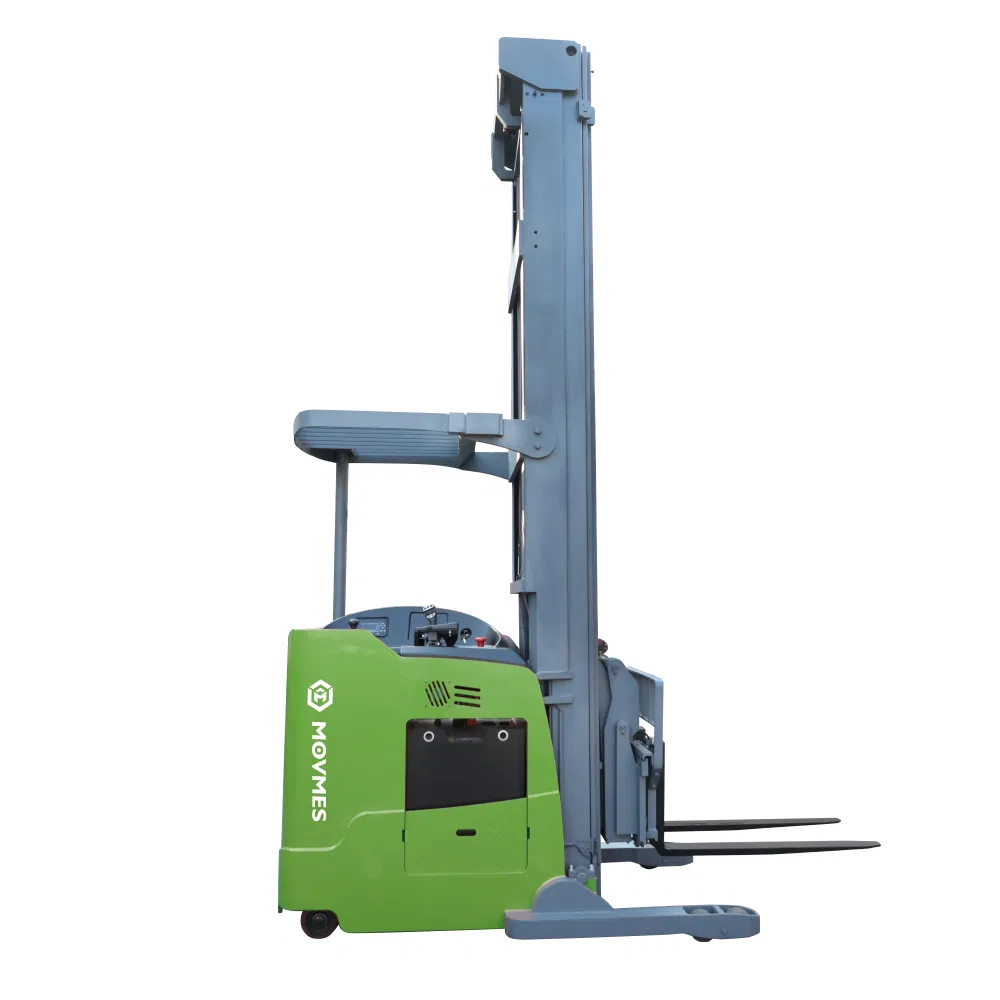

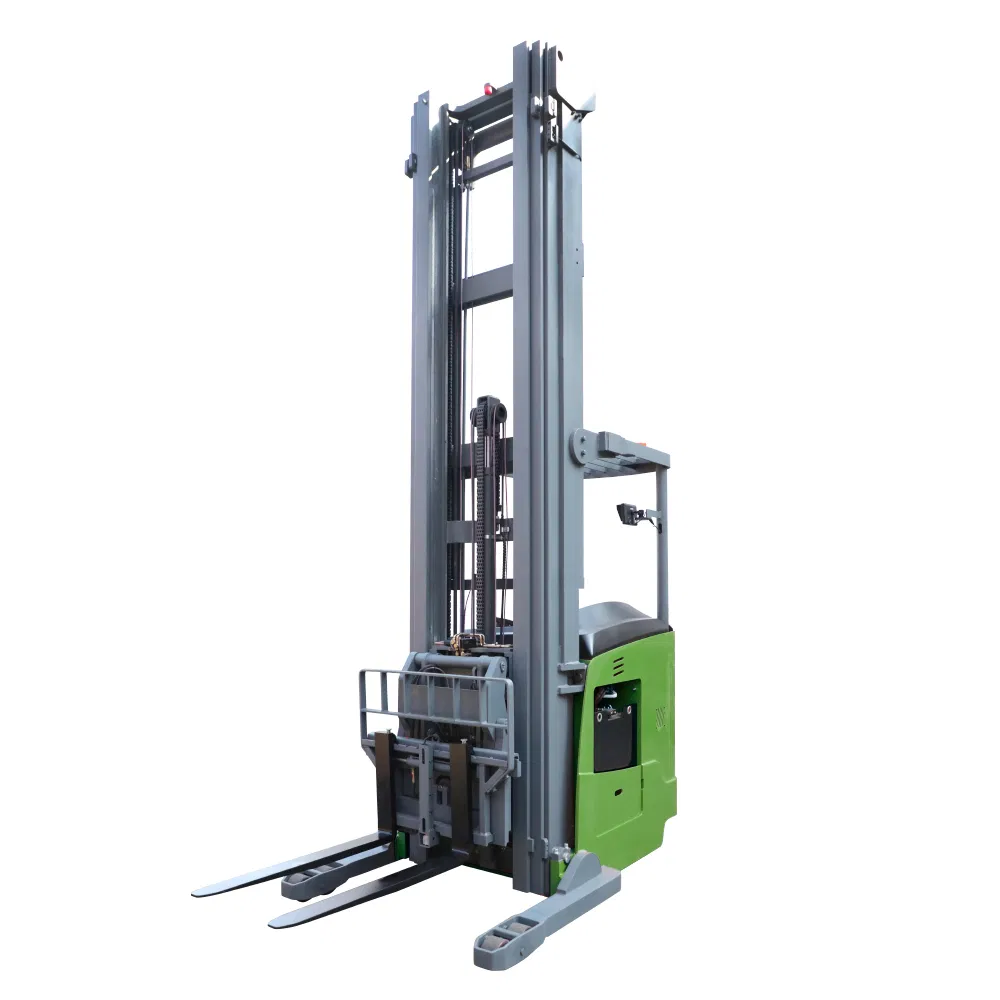

Product Display & Feedback

Customer Satisfaction

Certifications & Quality Systems

Our manufacturing processes adhere to the highest international standards:

ISO 9001:2008:Quality Management System

ISO 14001:2004:Environmental Management System

OHSAS 18001:Occupational Health & Safety

CE/TUV/GS:Approved standards EN3691-1:2012

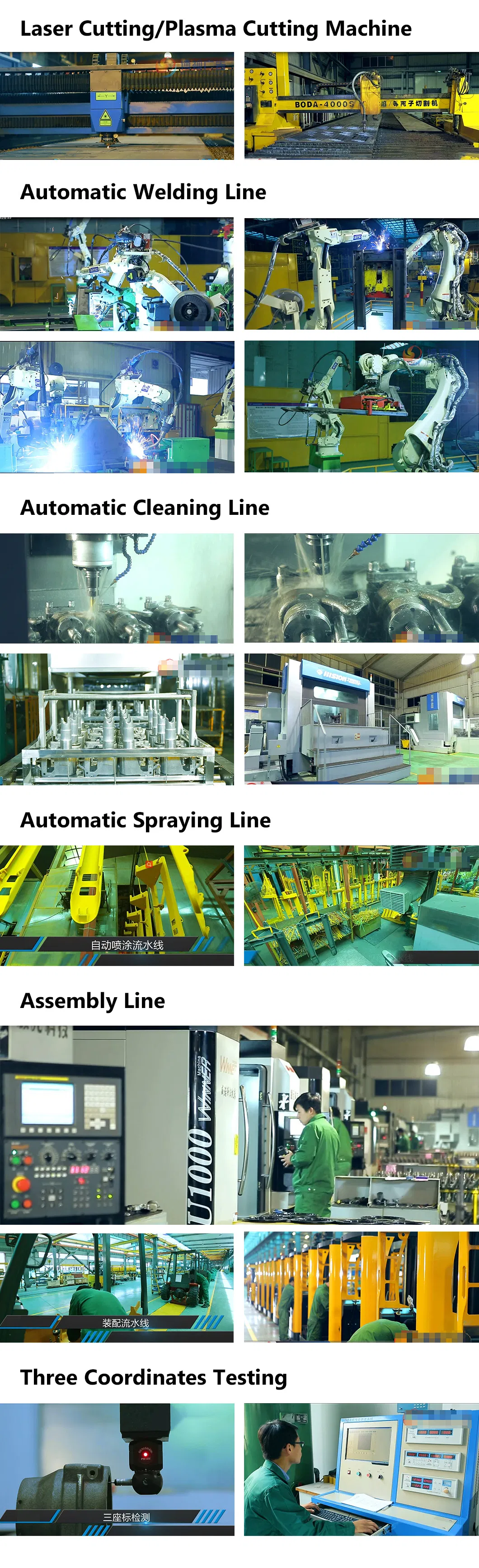

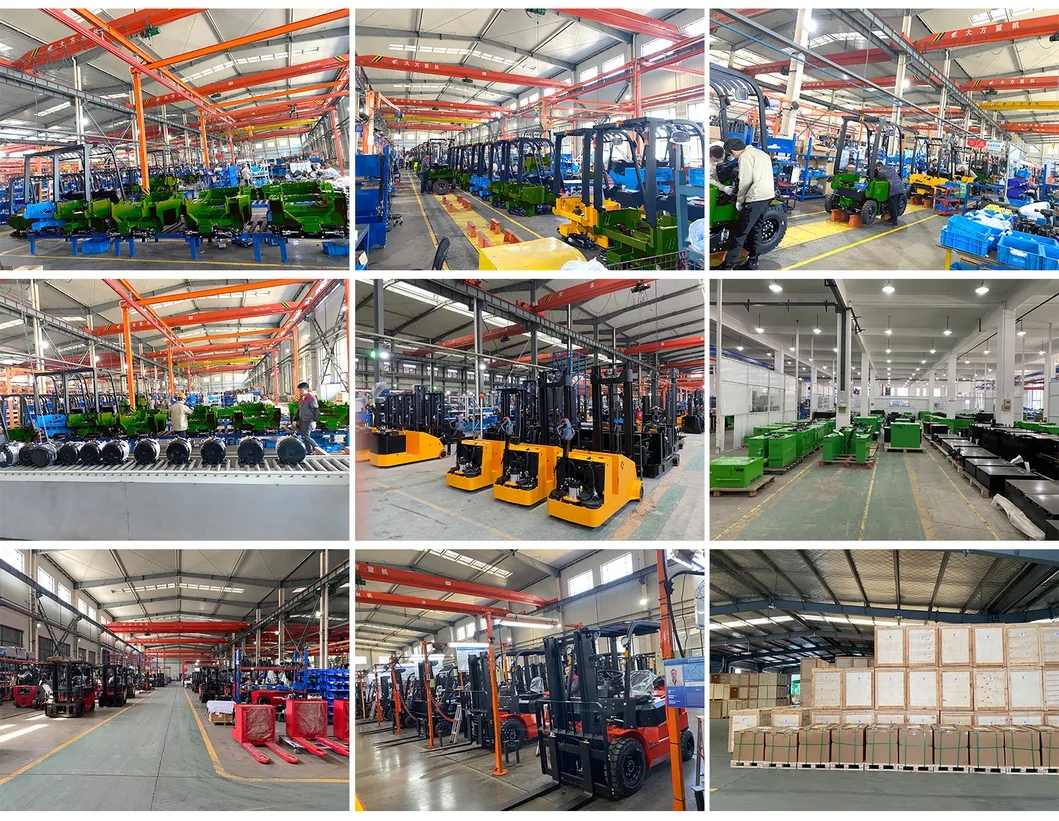

Strict Testing System

Every unit undergoes five rigorous test items before delivery:

Strengthening test detection
Stability detection
Climbing performance and current detection
Debugging and testing of braking performance
Testing of technical parameters

Frequently Asked Questions (FAQ)

Q1 How long is the continuous working time and charging time?

The battery provides approximately 3-6 hours of continuous working time (depending on battery volume). A full charge typically requires between 3 to 6 hours.

Q2 What are the specifications for the chargers?

Chargers are available in 24V or 48V. We feature a convenient side-way battery roll-out system. Power plugs can be customized to USA, UK, Australia, or European standards.

Q3 Do you provide customized OEM or ODM products?

Yes, we have been professionally developing and producing warehouse logistics equipment since 1985, including manual/electric pallet trucks, reach trucks, and forklifts for major global brands.

Q4 What is the warranty period for this reach truck?

We provide a one-year warranty. During this period, we offer free replacement for wearing parts that are damaged due to non-human causes.

Q5 What safety features are included in the CQDH20C series?

Safety features include an integrated joystick for precise control, an overhead guard for operator protection, a pin lock system to prevent unauthorized use, and electromagnetic service brakes.

Q6 Is this reach truck suitable for very narrow aisles?

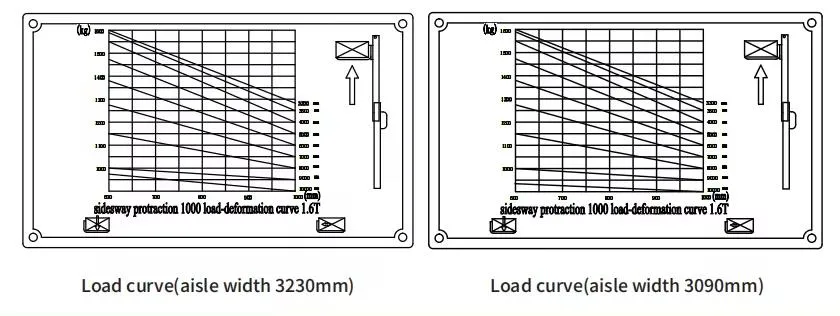

Yes, it is specifically designed for VNA applications, with a turning radius of 1865mm and aisle width requirements starting from 3090mm depending on pallet configuration.
