| Model NO. | KFS15 |
| Cab Location | Standing-up |
| Type | Reach Forklift |
| Power Source | Electric |
| Load Capacity | 1T - 5T (Rated 1500kg) |
| Lift Height | 3000 ~ 6000mm |
| Load Center | 500mm |
| Wheel Type | Polyurethane |
| Battery Type | Lead Acid (48V/40A Charger) |
| Drive Control | AC System |

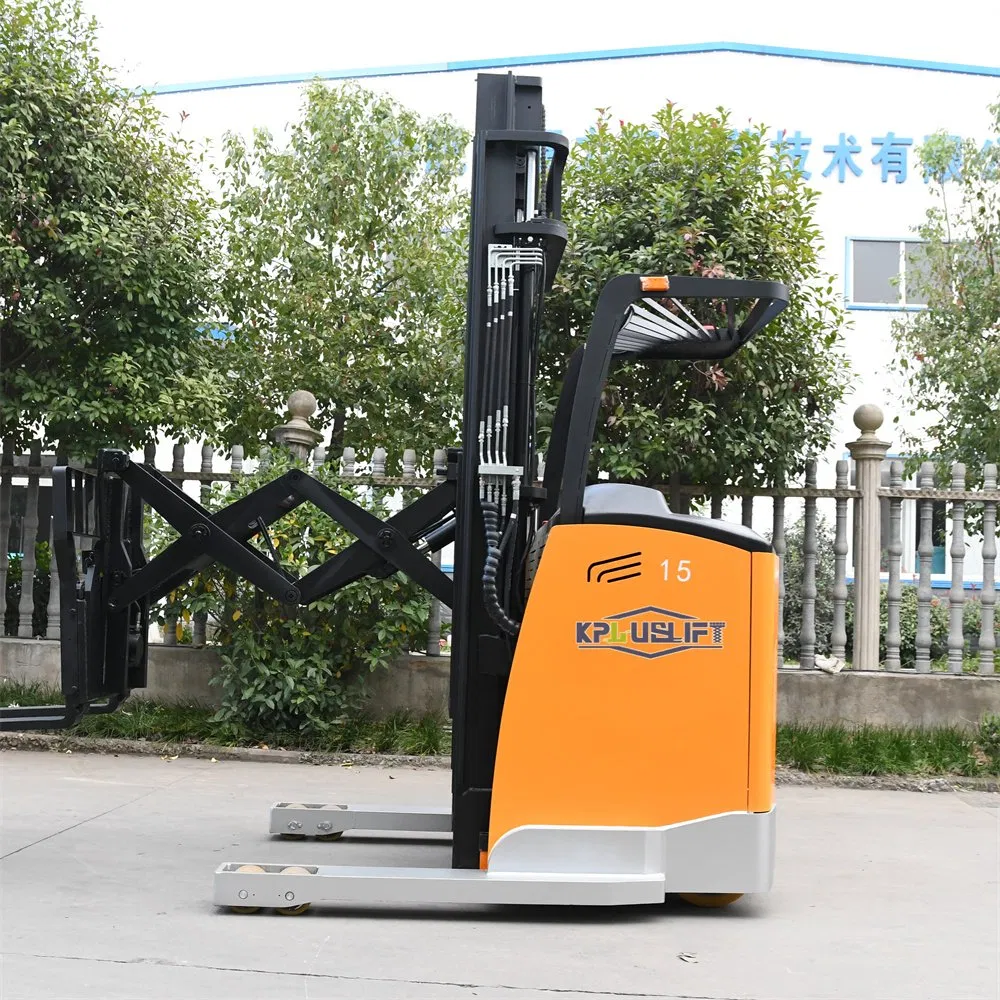

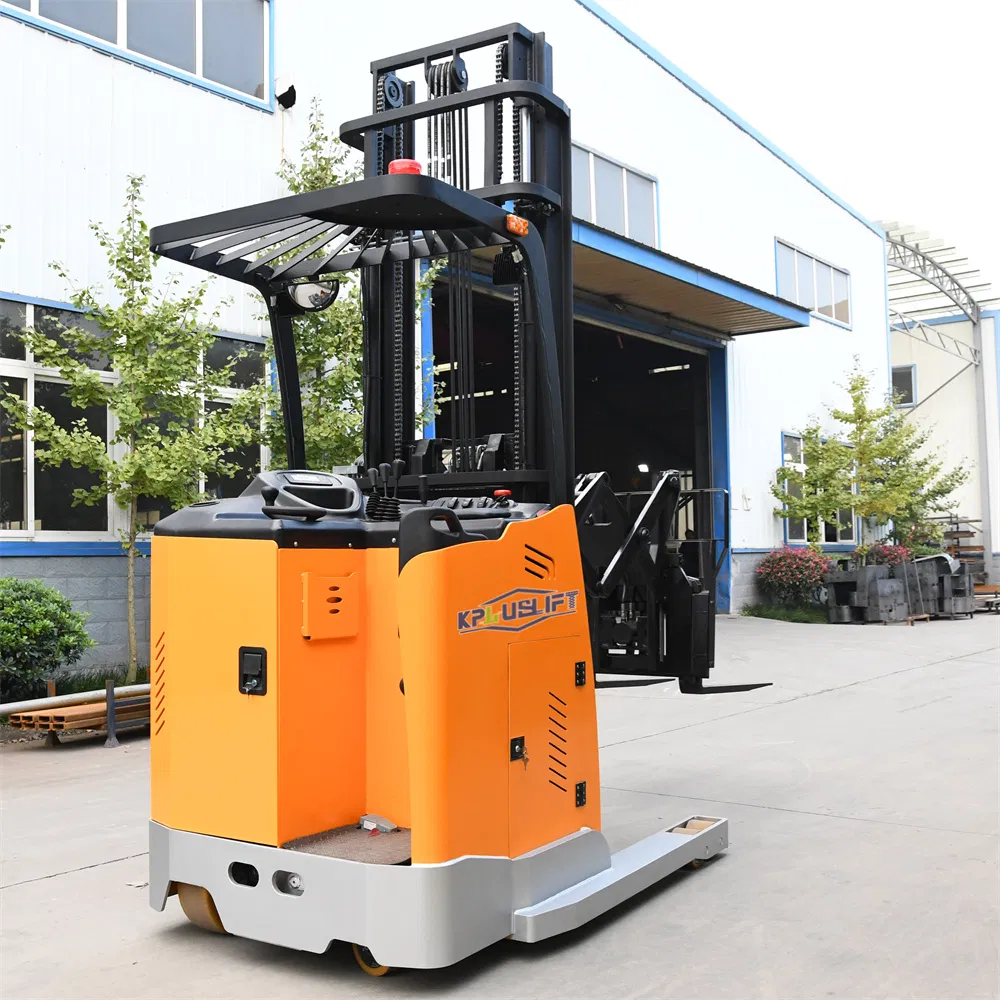

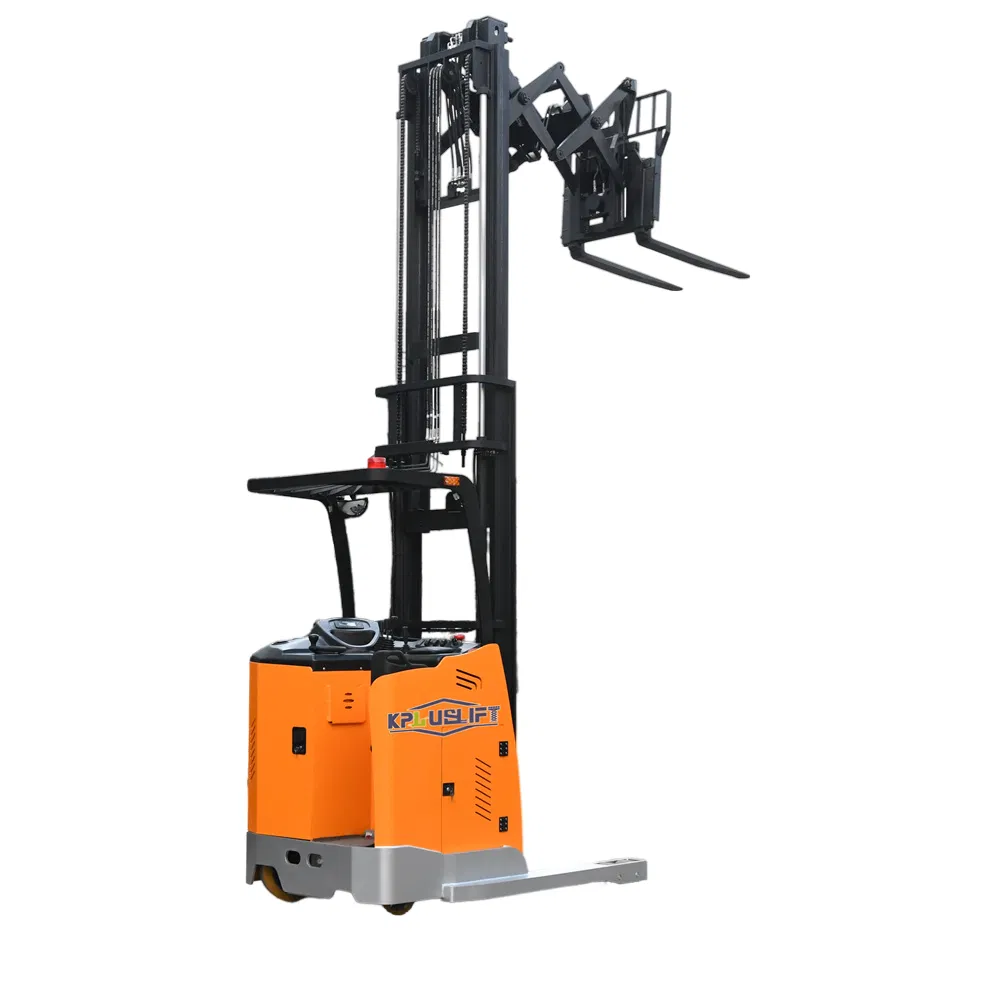

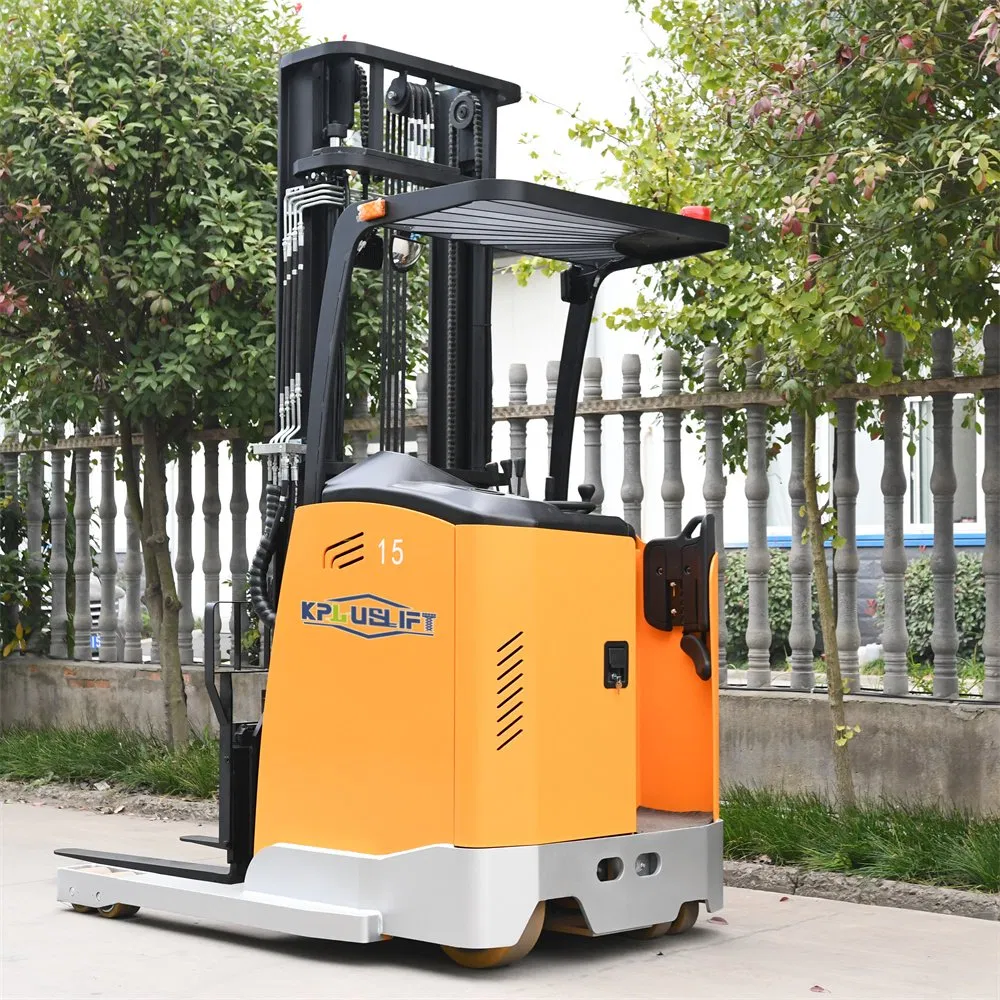

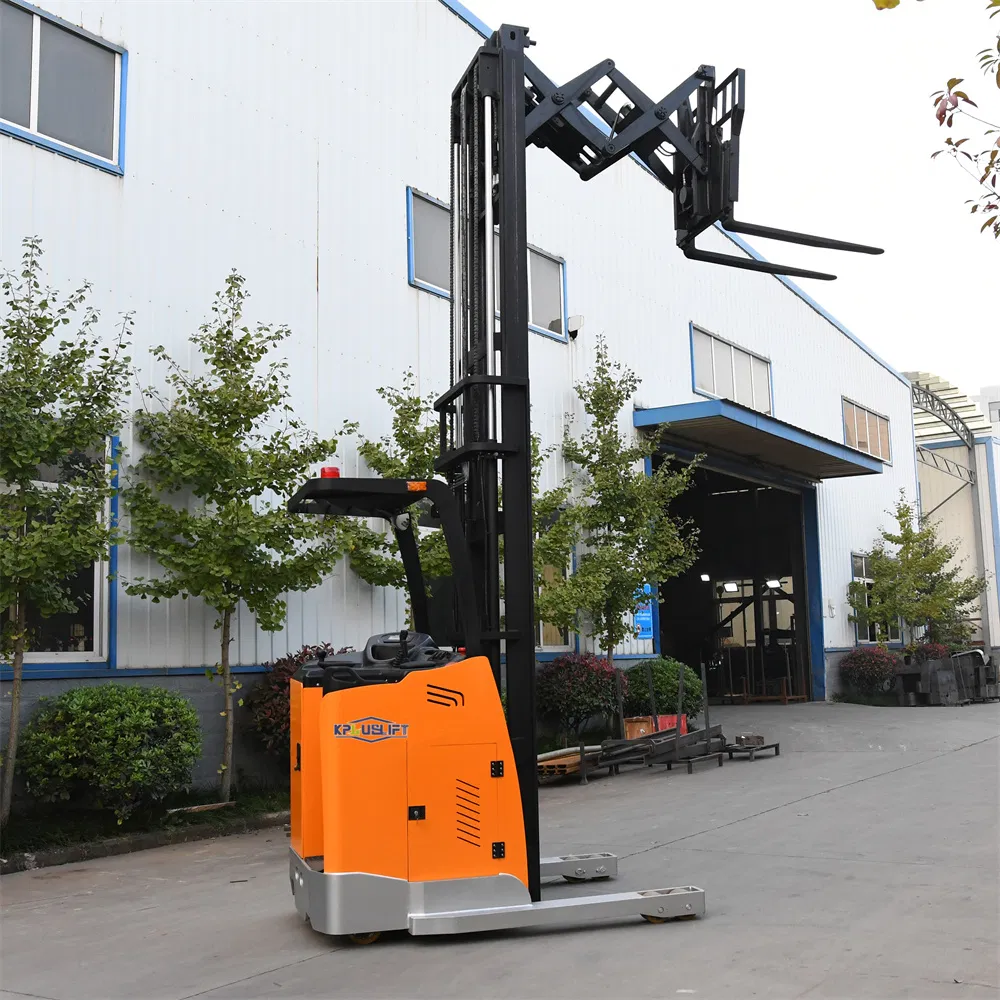

Walkie Electric Deep Reach Truck 1500kg
Double deep-reach trucks are like single-reach trucks but have double extended reach allowing the operator to reach deeper into the racking. Reach trucks are special types of forklifts often found in narrow aisle warehouses.
Key Specs for Model KFS15:
What is the difference between single-reach and double-reach trucks?
Single-reach trucks can reach into 1 pallet deep racks, allowing unobstructed access to each pallet. Double deep reach trucks have double extended reach so the operator can reach deeper into racking.
| Parameter | Unit | Value |
|---|---|---|
| Rated Capacity | kg | 1500 |
| Wheelbase | mm | 1562 |
| Self-weight with battery | kg | 3650 |
| Drive Wheel Size | mm | Ф382*142 |
| Mast Height Lowered | mm | 3050 |
| Lifting Height | mm | 4500 |
| Height, Mast Extended | mm | 5585 |
| Overall Width | mm | 1390 |
| Fork Size | mm | 35*100*1070 |
| Min. Turning Radius | mm | 1854 |
| Fork Expansion Stroke | mm | 1200 |
