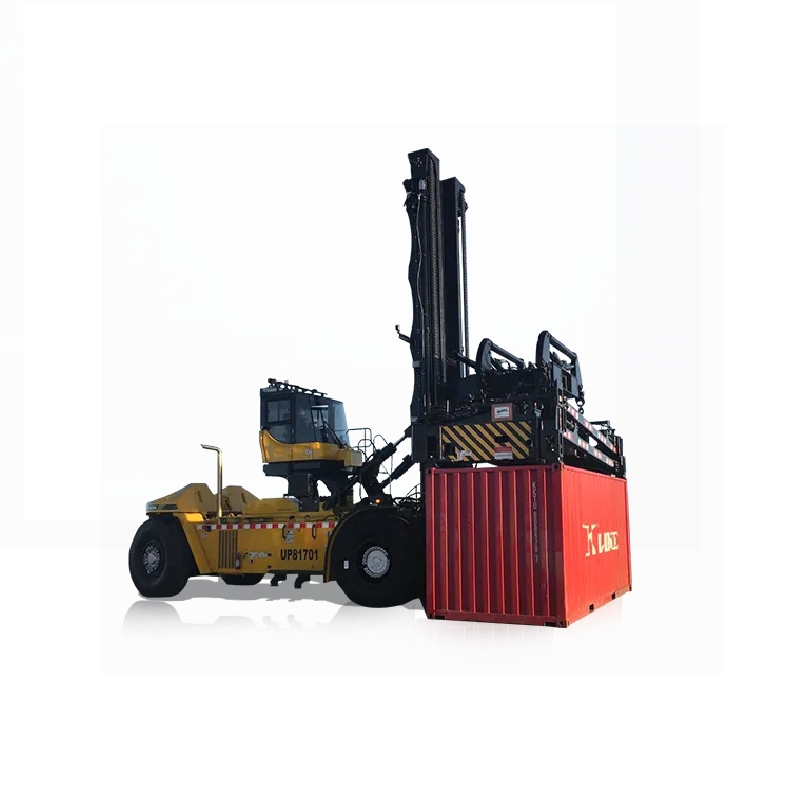

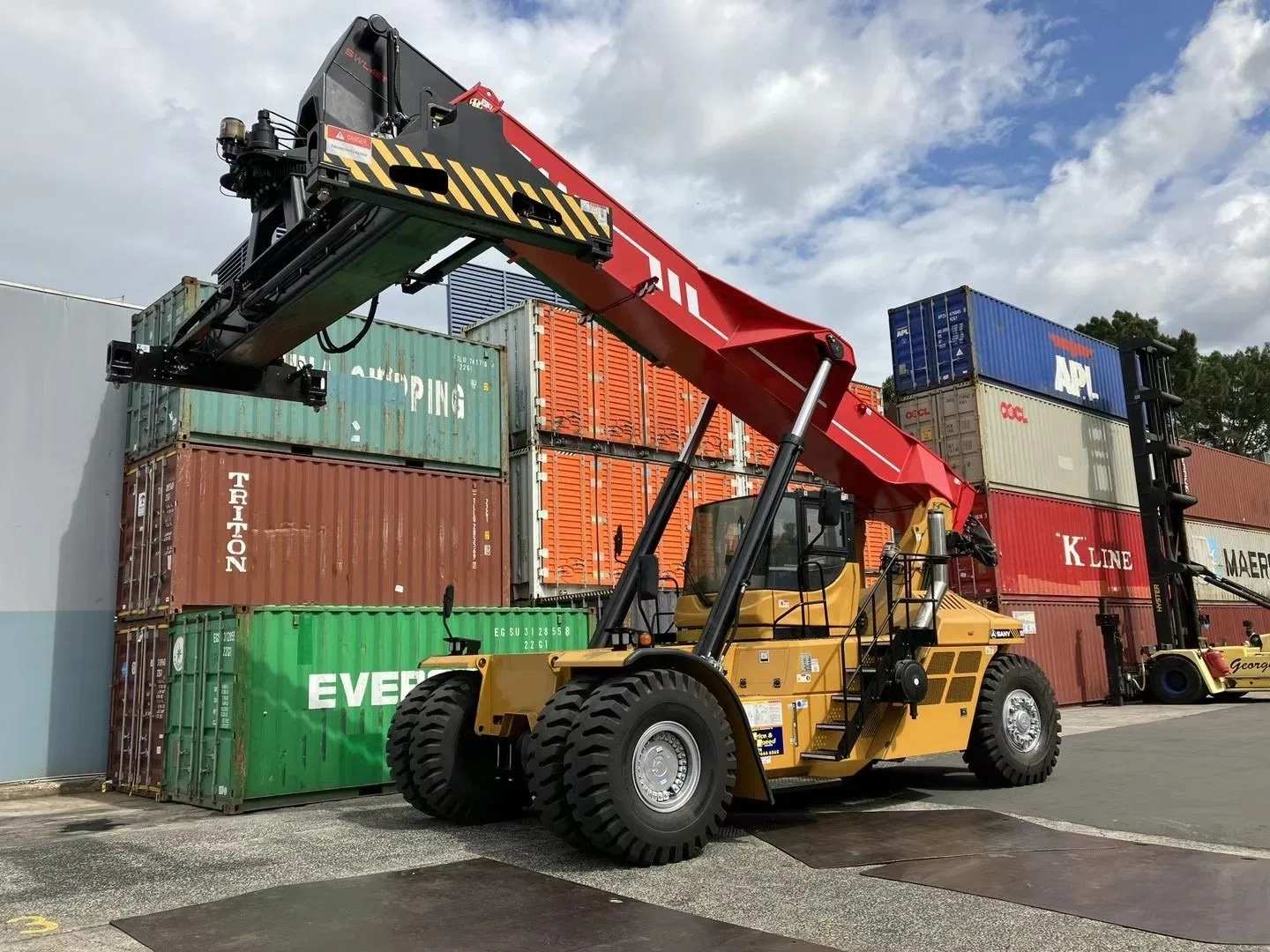

High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
1 / 5
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack
High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack

High Quality 45ton Empty Loaded Container Handler Sdcy450K3h4 Port Machinery 3 Stack

Customization: Available
After-sales Service: Online Video or Send Engineers
Warranty: 1 Year
Send Inquiry

Product Description

Specifications & Basic Info
Model
SDCY450K3H4
Type
Diesel Forklift
Load Capacity
＞42T (45000kg)
Power
Diesel Engine
Lift height
>5000mm (Up to 15m)
Turning Radius
8.1m
Ground Clearance
495mm
Overall Weight
75000kg
HS Code
8426419000
Origin
China
High Quality 45Ton Empty Loaded Container Handler

Advantages and Highlights

⚡
Dynamic Anti-rollover Protection: Intelligent control adjusts operating status to prevent rollover, ensuring safe operation.
⚡
Extra High Mast Design: F-type mast reduces shaking, offering high rigidity and reliable twist resistance.
⚡
Patented Mast Clamping Alarm: Monitoring device detects blocking and locks dangerous operations automatically.
⚡
Spreader Horizontal Slew Patent: Aligns and lifts containers faster, reducing tire friction and fuel consumption.
⚡
Efficient Control Technology: Centralized joystick with millimeter-class inching control for precise man-machine unification.
⚡
Hurdling Twin Container Spreader: Vertically rotates ±4° to improve alignment efficiency for customers' specific needs.
⚡
Hydraulic Load Sensing: Adjusts pump displacement based on load for high-precision flow and energy saving.
⚡
Dynamic Power Matching: Recognizes load changes to adjust engine speed, significantly reducing energy consumption.
Technical Parameters
Drive AxleKESSLER D102PL341
EngineCUMMIN QSL9
Load Center1700 mm
Main PumpPARKER P2075R+PGP511
Max. Load Capacity45 T
Min. Turning Radius8100 mm
No. of Stack3
Overall Length11139 mm
TransmissionDANA 15.5HR36432
Wheelbase6000 mm
Transfer ModeHydrostatic forward2/reverse2
Steering ModeFront/crab/circle
Power Output129/2200kw/rpm or 123/2200 kw/rpm
Product Gallery

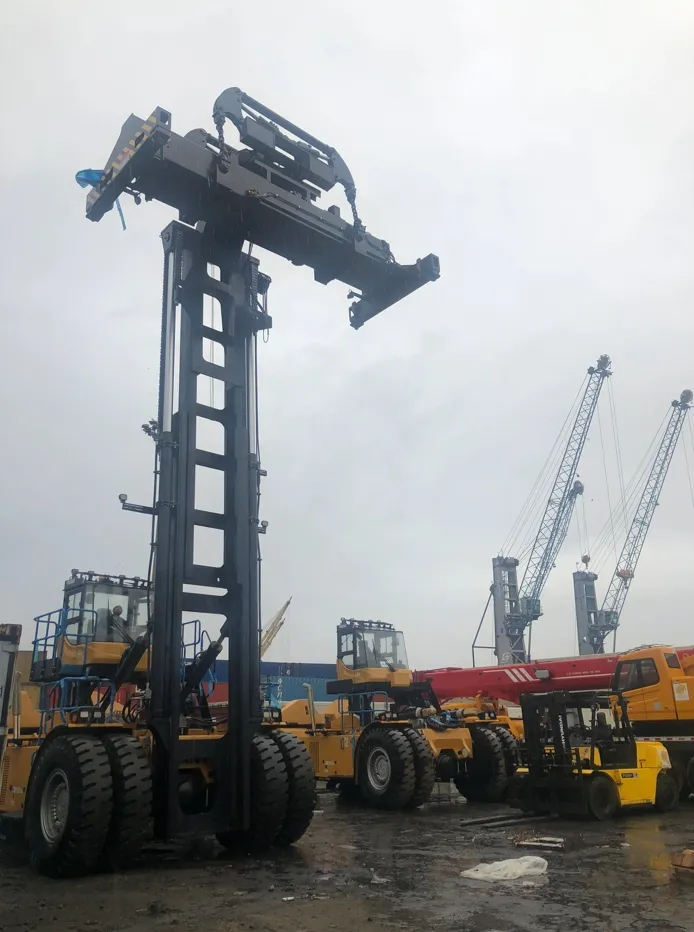

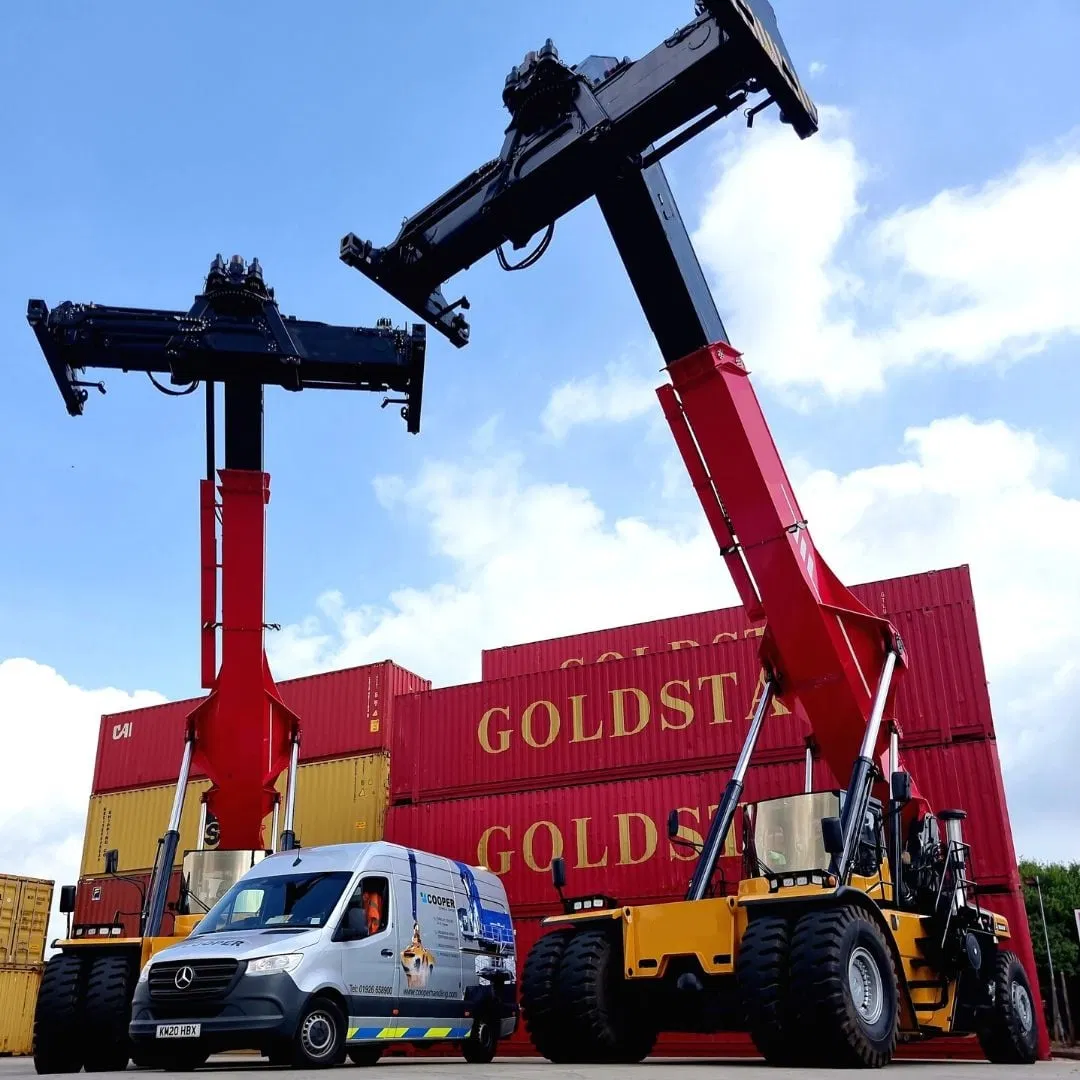

Container Handler Overview

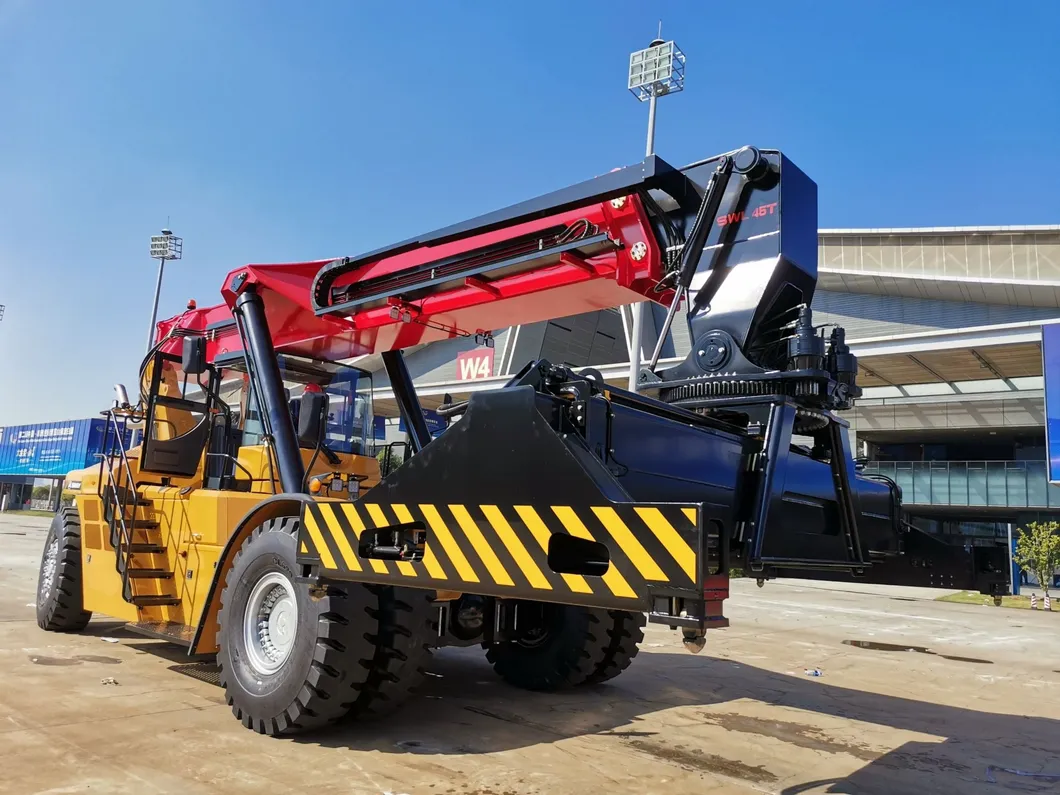

Machinery 3 Stack Equipment Operation Port Machinery Display

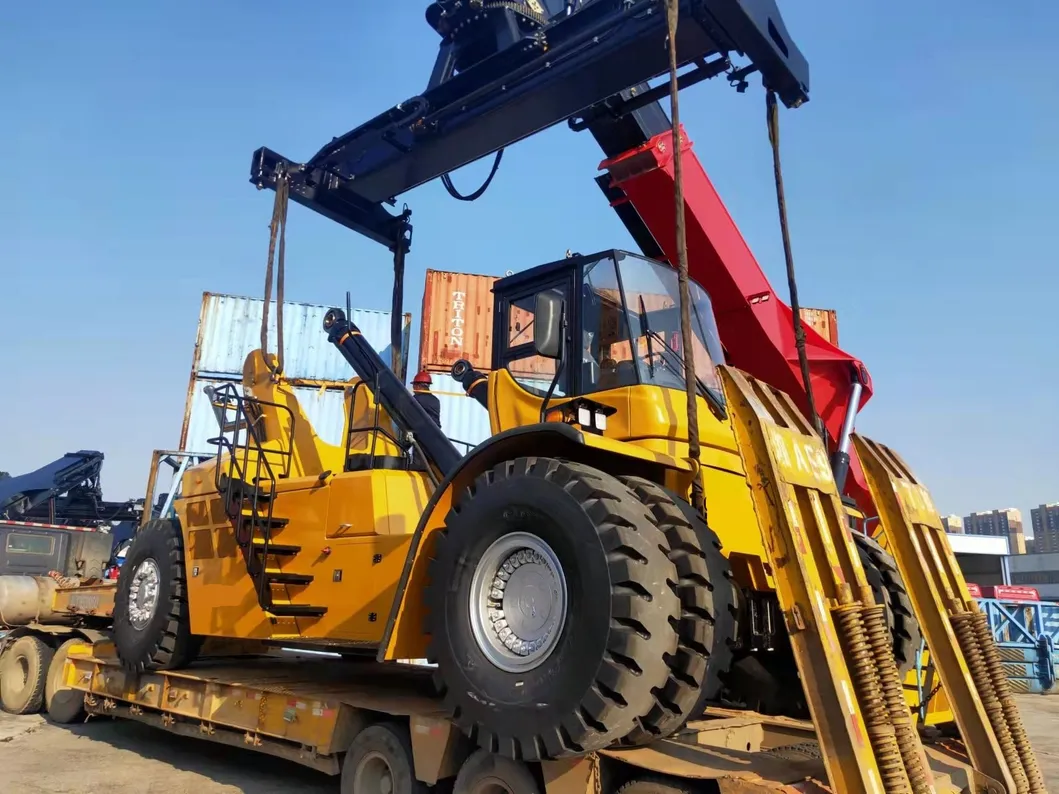

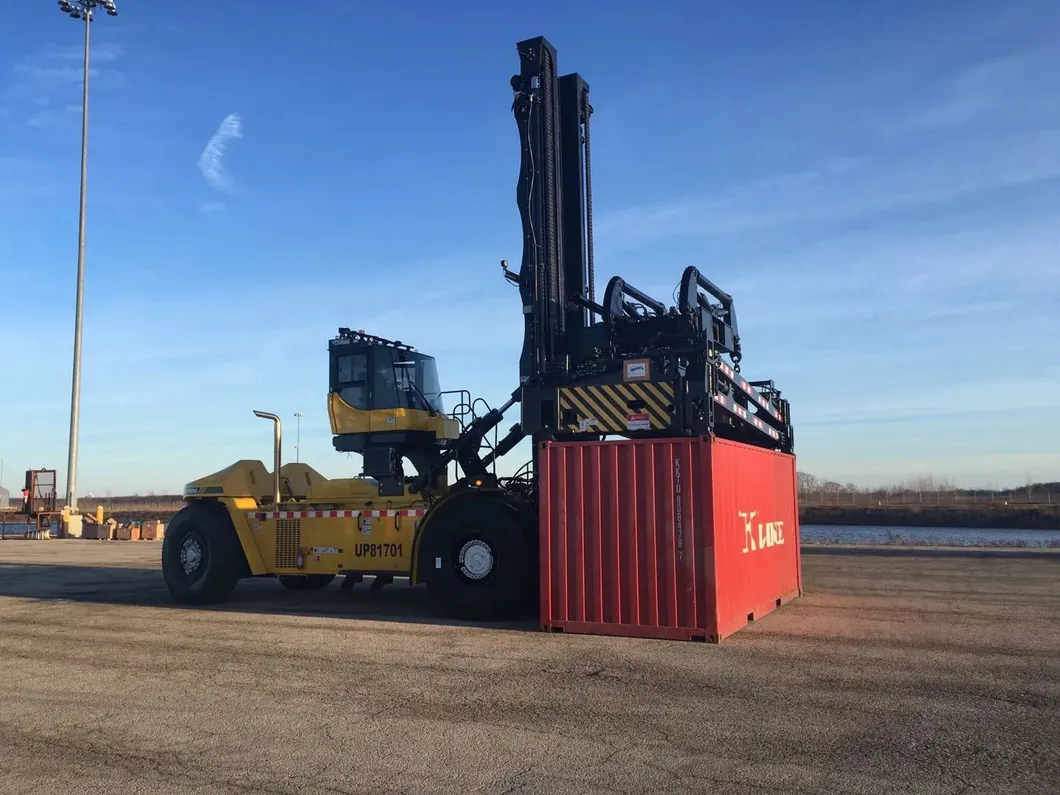

Empty Container Handler Loaded Container Handler Technical Layout
Manufacturing & Facilities
Production Facility Assembly Line Loading Port
Quality Control Stockyard Components Detail
Industrial Parts Export Packaging Shipping Logistics
Frequently Asked Questions
Q1: What is the maximum lifting capacity of the SDCY450K3H4?
The maximum load capacity is 45 tons (45000kg), specifically designed for port heavy-duty container handling.
Q2: Which engine and transmission are used in this model?
It is equipped with a high-performance CUMMINS QSL9 engine and a DANA 15.5HR36432 transmission for reliable power and smooth operation.
Q3: How many containers can it stack?
The SDCY450K3H4 is capable of stacking containers up to 3 tiers high.
Q4: What safety technologies are integrated into this handler?
It features dynamic anti-rollover protection, a mast clamping alarm system, and an intelligent monitoring system that locks dangerous operations to eliminate safety hazards.
Q5: Is the machine energy efficient?
Yes, it utilizes a hydraulic load-sensing system and dynamic power matching control, which automatically adjusts engine speed and pump displacement to reduce fuel consumption.
Q6: What are the primary transport dimensions?
The overall specifications are approximately 11139mm in length, 6053mm in width, and 6300mm in height, complying with standard export packaging requirements.
