Logistics Essentiallogistics Essential High-Performance Telescopic Handler

1 / 5

Logistics Essentiallogistics Essential High-Performance Telescopic Handler

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Model NO.	Loader
Certification	ISO
Condition	New
Rated Load	6-9t
Transmission	Power
Walking Mode	Wheeled
Type	Large Loader
Power	Diesel Engine
Lift Height	>5000mm
Origin	China

Product Description

Main technical parameters of fork loading of telescopic arm:

Parameter	Unit	Value
Rated load	kg	3500
Maximum lift height	mm	10000
Maximum reach	mm	5000
Maximum traction force	kn	≥70
Minimum ground clearance	mm	420
Overall dimensions(L×W×H)	mm	5700×2230×2400
Wheelbase	mm	3670
Turning radius (outer wheel)	mm	≤4500
Maximum travel speed	km/h	30
Steering type	/	4 wheel drive (Front, Crab, Four-wheel)
Engine Model	/	CYD Diesel Engine
Engine Power	kw/r/min	85
Frame leveling	/	+/- 9°

Compact structure, flexible operation, stable lifting, and precise fork transportation.

Engine features low noise, low emission, strong power, and large torque reserve.

Equipped with a torque limit system to ensure operational safety in extreme conditions.

Automatic flow compensation technology for fork leveling during boom luffing.

Horizontal frame leveling function for high site adaptability.

Four-wheel drive with multiple steering modes (Two-wheel, Four-wheel, and Crab).

Advanced human-computer interaction system with full monitoring and alarms.

Full hydraulic wet braking system for stable and reliable stopping power.

High transmission efficiency with electronically controlled gearbox and axle.

Versatile configuration: bucket, high-altitude platforms, and other tools available.

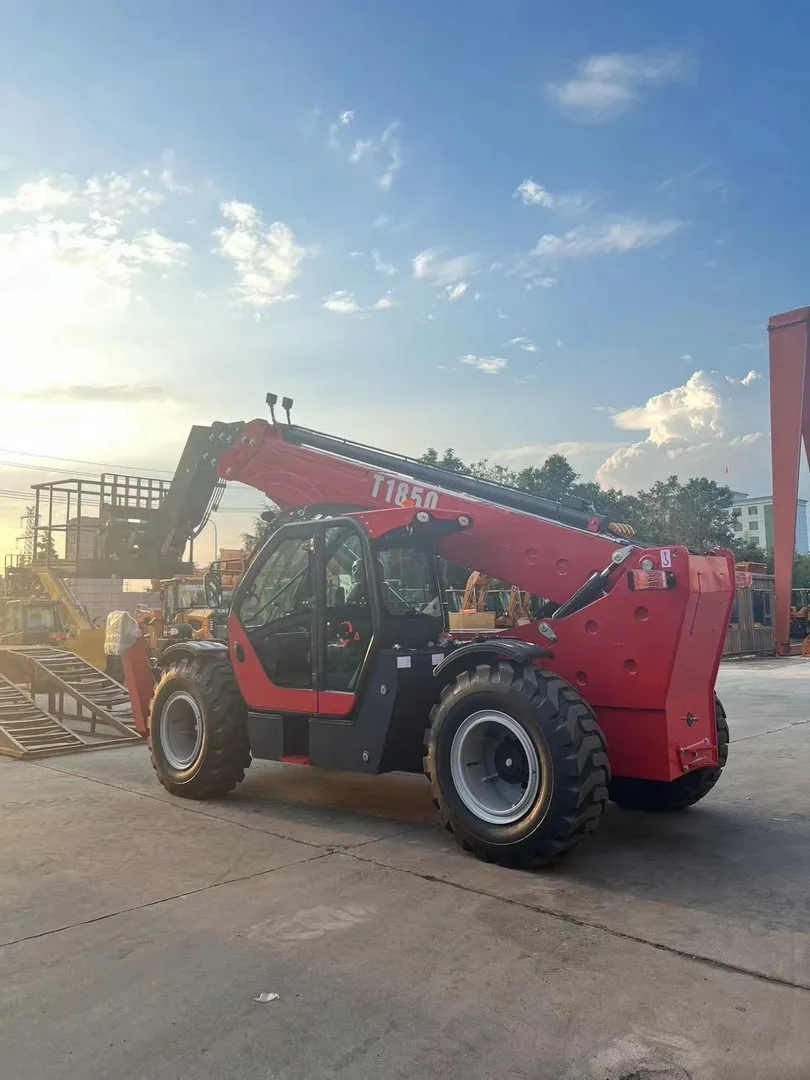

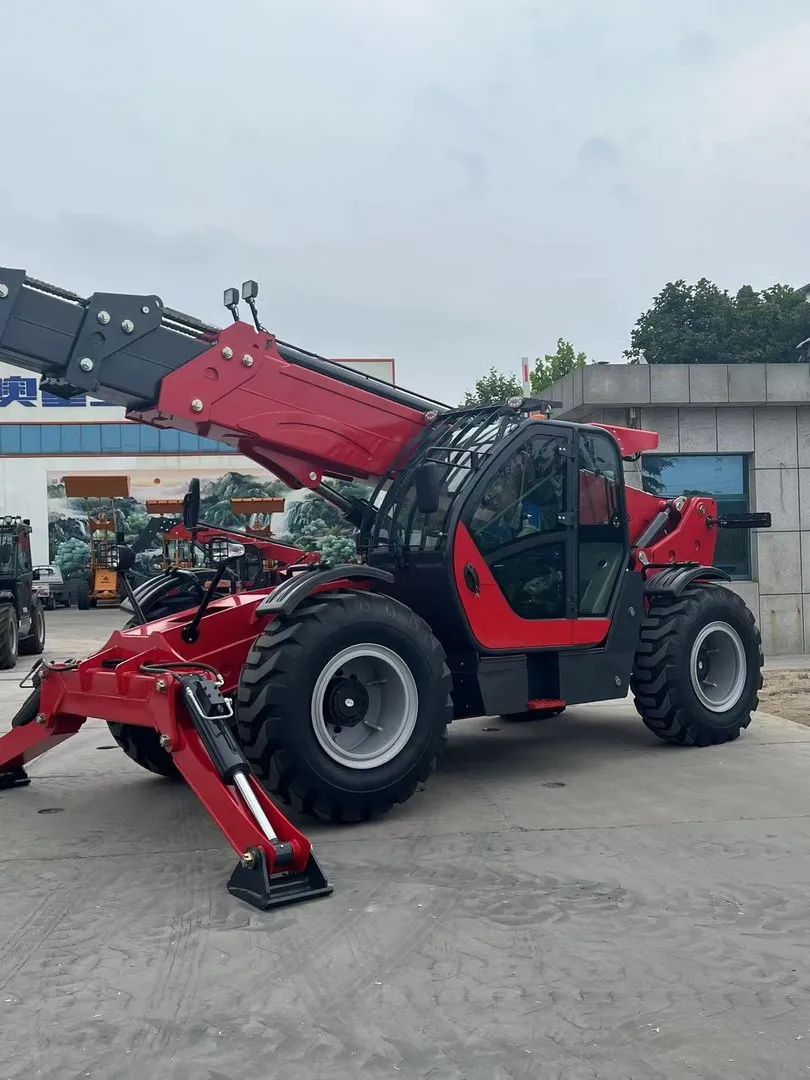

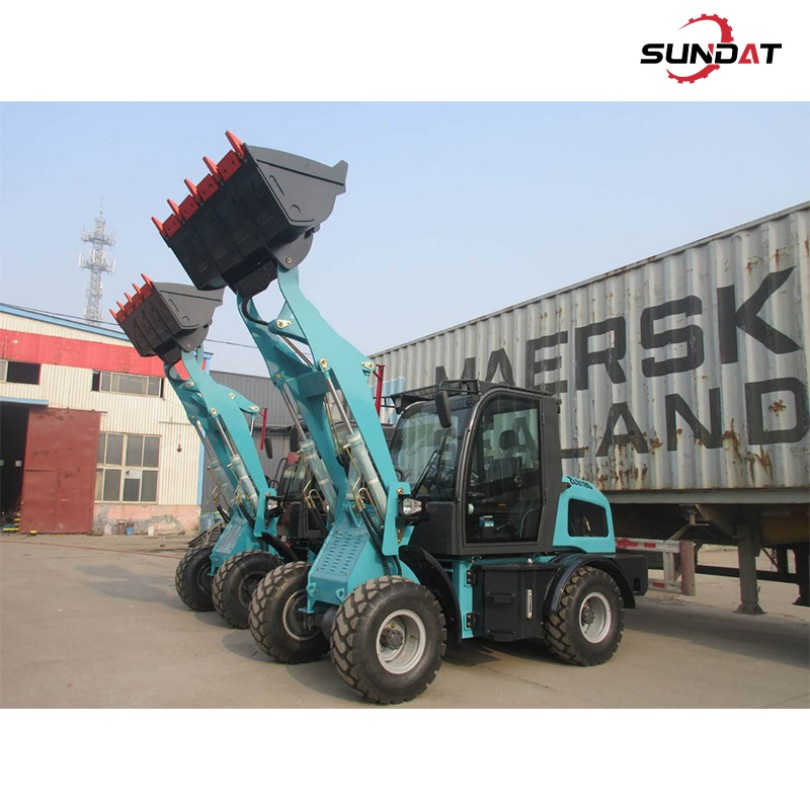

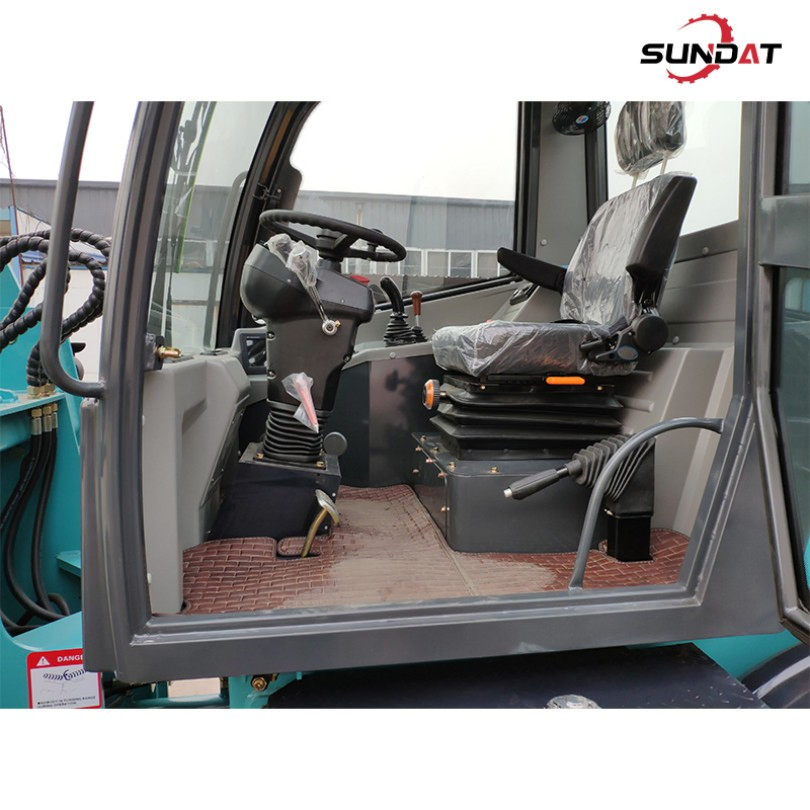

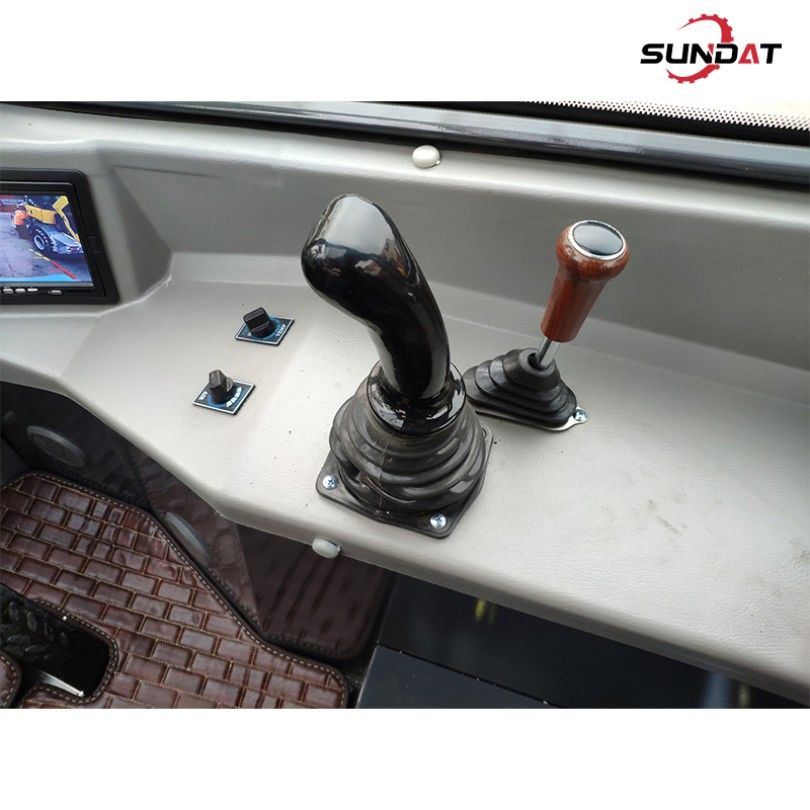

Detailed Photos

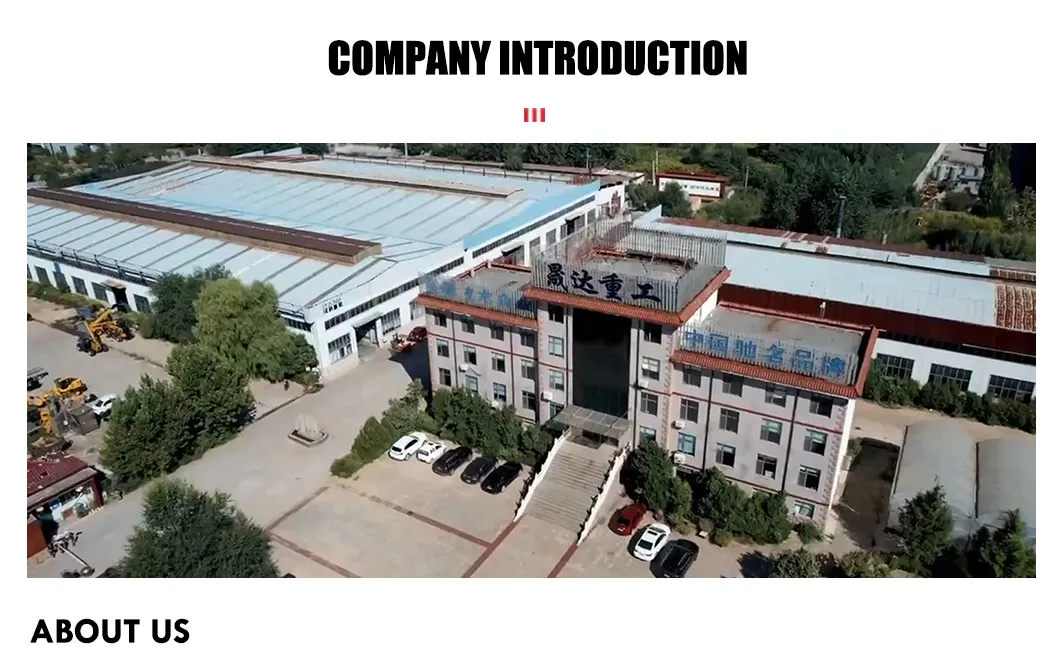

Profile Overview

Our company offers a variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" and always do our best to satisfy potential needs of our customers. We are sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation in this era of economic globalization.

Frequently Asked Questions

Q1: What is the maximum lift capacity and height? The rated load capacity is 3500kg, and the maximum lift height reaches up to 10,000mm.

Q2: What steering modes does this telescopic handler support? It features four-wheel drive and offers three steering modes: Front Wheel Steering, Crab Steering, and Four Wheel Steering for maximum maneuverability.

Q3: Does the machine have safety protection for overloads? Yes, it is equipped with a multifunctional centralized handle and an Overload Protection System (torque limit system) to ensure safety during extreme operations.

Q4: Can it handle uneven terrain? Absolutely. It includes a frame leveling function (+/- 9°) and four-wheel drive, providing strong off-road capability and site adaptability.

Q5: What type of engine and transmission are used? It uses a high-performance CYD diesel engine (85kw) and a closed piston pump combined with a walking motor and electronic control gearbox.

Q6: Are there different attachments available for this loader? Yes, the configuration can be customized with high-altitude platforms, buckets, and other specialized tools to meet specific project needs.
