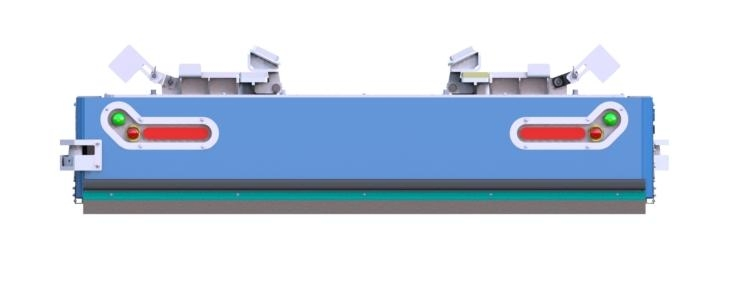

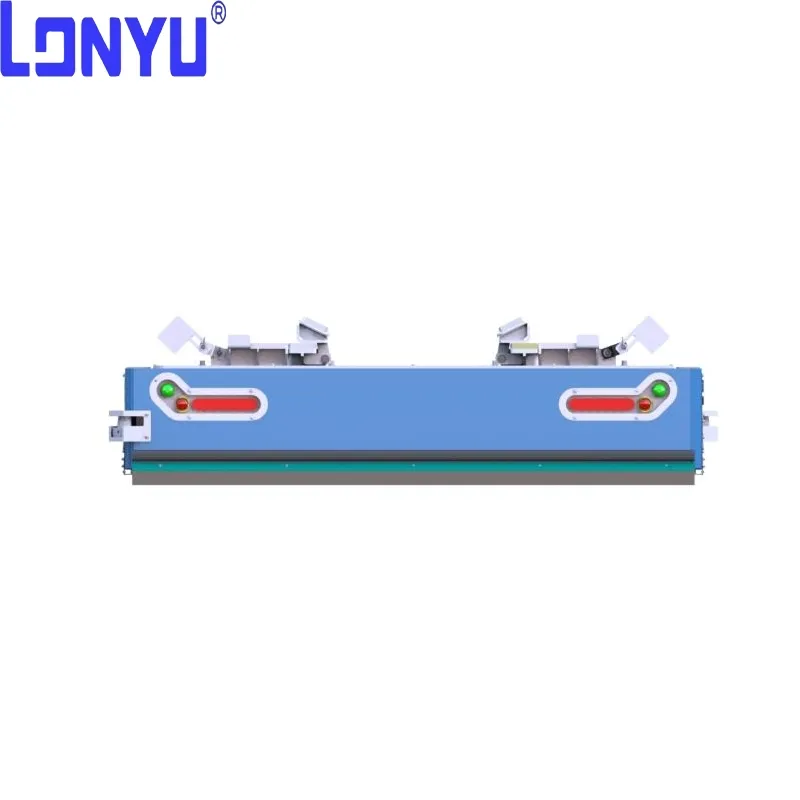

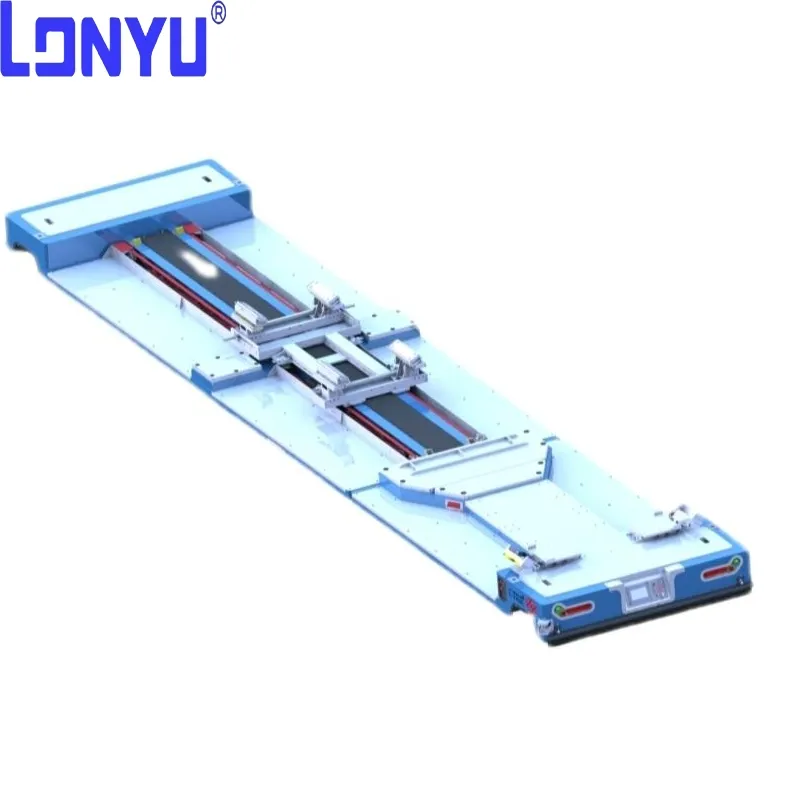

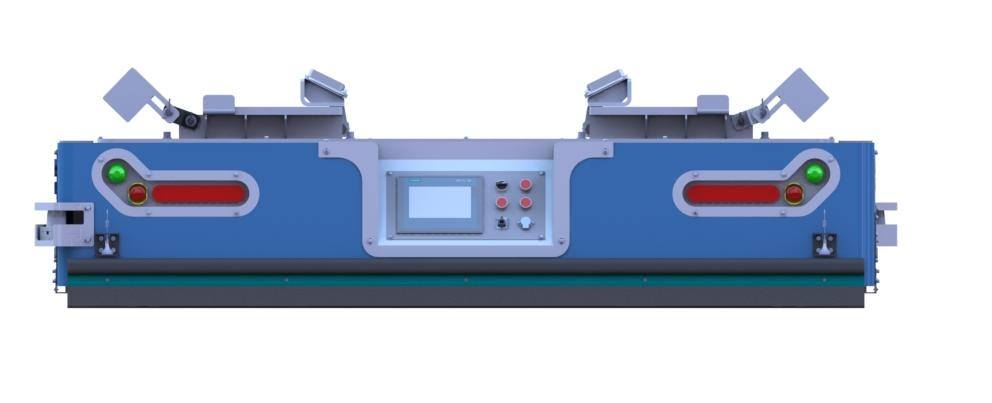

New Design High Performance Obstacle Avoidance AGV Robot
We specialize in the development and service of heavy-duty AGVs, providing comprehensive solutions for handling extremely heavy, long, and large materials across various industries. Our technical expertise covers AGVs ranging from 10 to 1,000 tons.
Security System: Full circle laser obstacle avoidance + physical collision bar + indicator light + emergency stop.
Suspension: Hydraulic Suspension and Leveling System for active real-time adjustment.

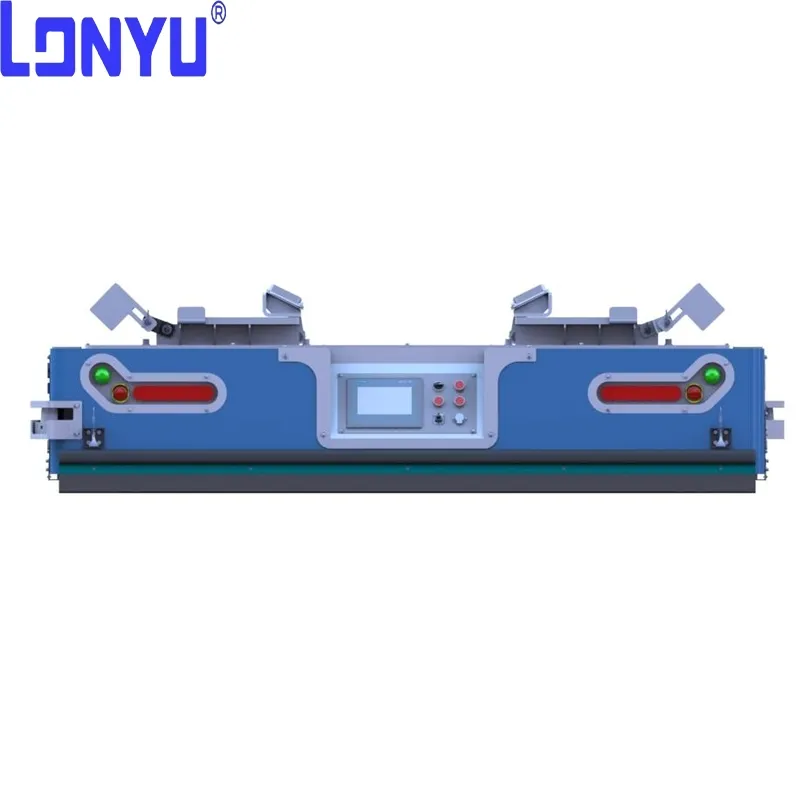

Control System: Intelligent monitoring panel with fault diagnostics.
Technical Specifications
Parameter
Details
Model
999B
Rated Load (T)
12
Equipment Weight (T)
5
Dimensions (mm)
10400 * 2200 * 650
Drive Motor
Low-voltage servo motor + independent servo controller
Battery Type
Lithium iron phosphate battery (3 hours life)
Accuracy (mm)
±10 (Navigation & Positioning)
Braking Distance
≤300mm (full load), ≤200mm (no load)
Protection Level
IP54
Core Features & Details
Navigation Methods
Supports magnetic stripe, QR code, laser, SLAM, inertial navigation, and GNSS vision systems.
Movement Flexibility
Capable of forward, backward, lateral (left/right), rotation, and diagonal movement.
Body Construction
Uses Q235B or Q355B steel with finite element and stress relief analysis for durability.
Safety Systems
Equipped with laser obstacle sensors, audible/visual warnings, and contact collision avoidance.

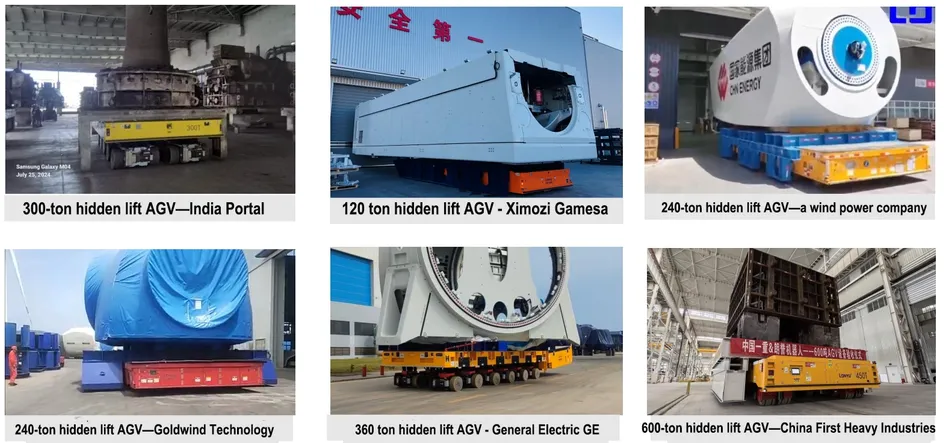

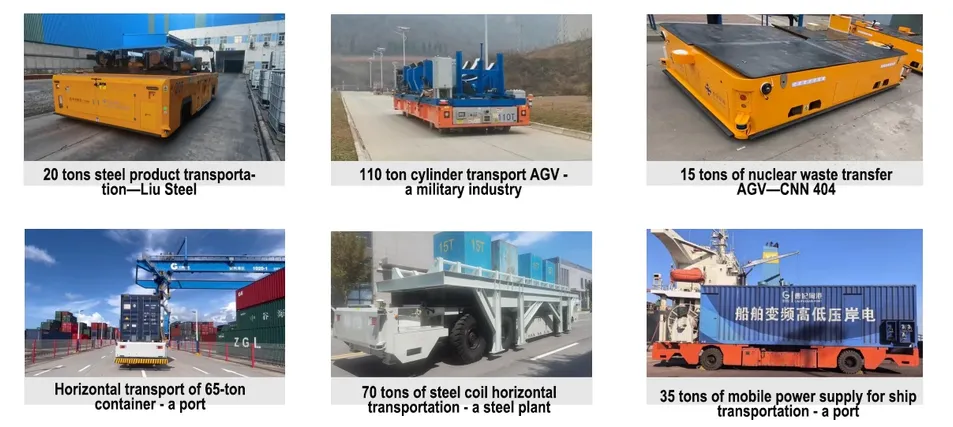

Industrial Applications

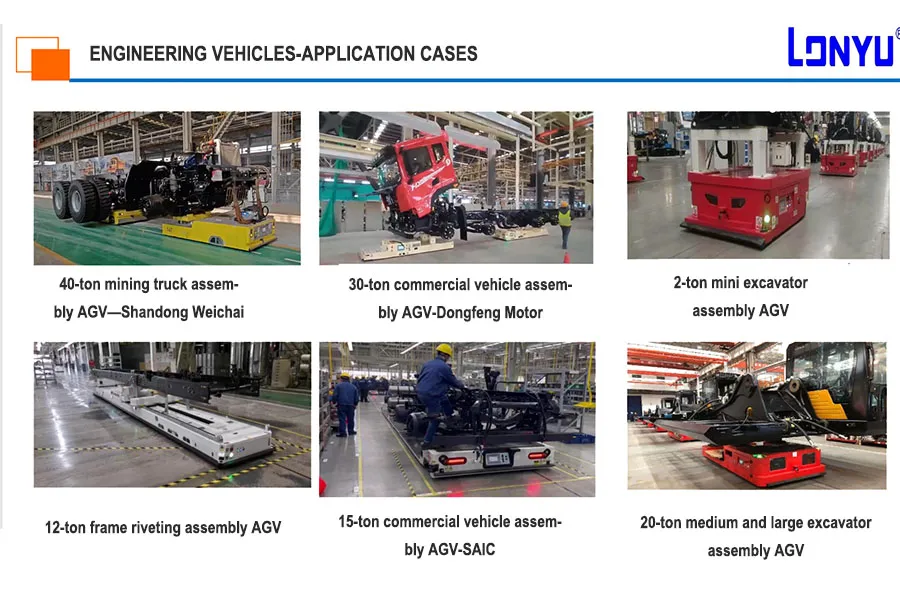

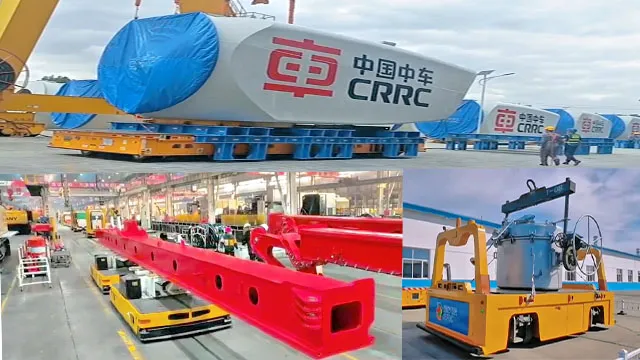

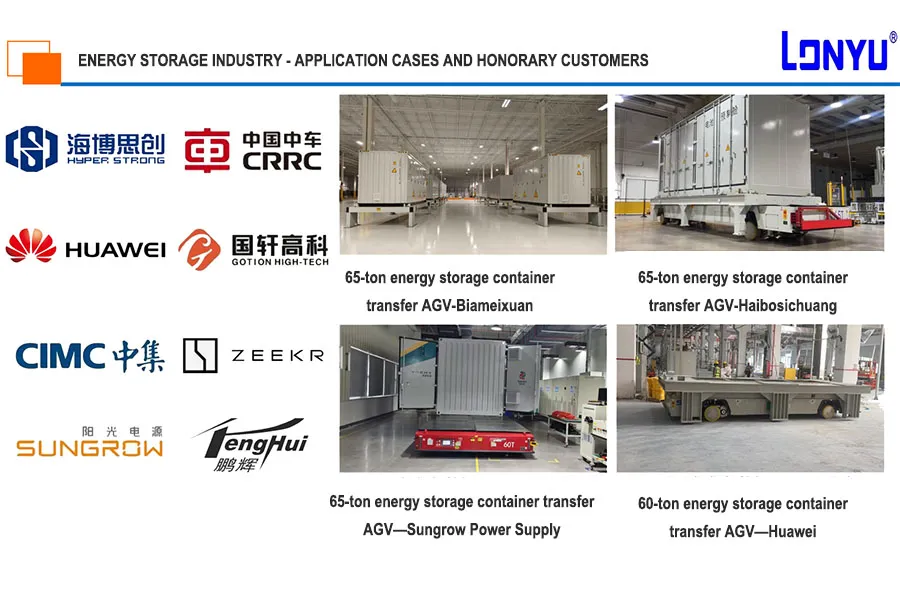

Our heavy-duty AGVs are widely utilized in steel plants, wind power, transformer manufacturing, ship building, rail transit, aerospace, and general heavy industries.

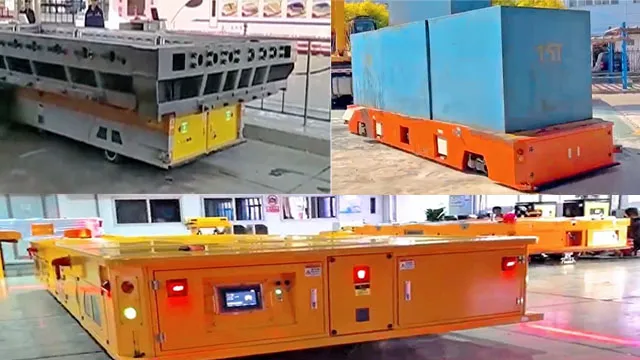

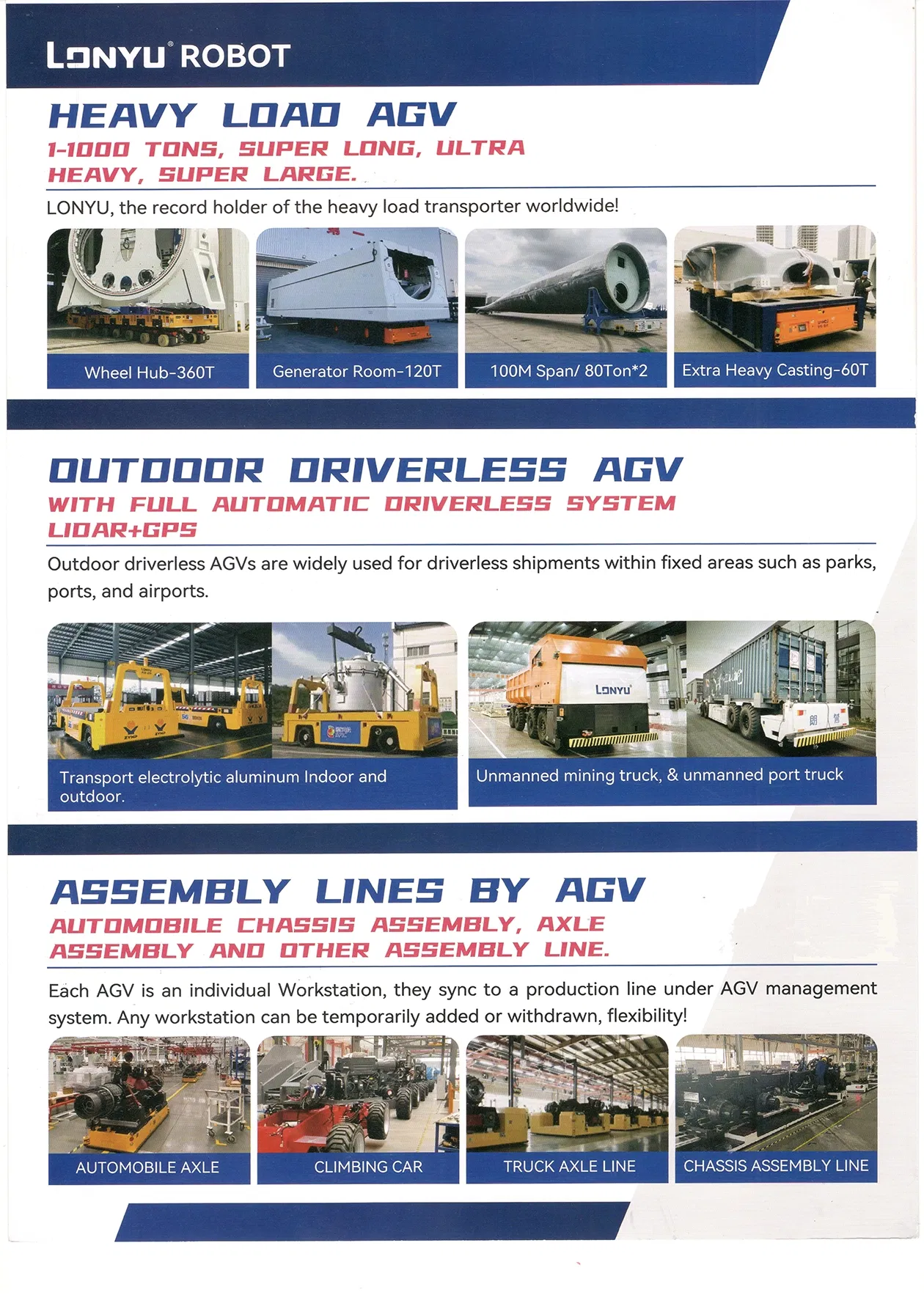

Production Gallery
Frequently Asked Questions
Would an AGV be a good solution for my facility?
An AGV is an ideal movable platform for horizontal material movement. It is best suited for applications where the weight of the load and travel requirements demand automated, consistent handling without manual intervention.
What are the primary benefits of heavy-duty AGVs?
They offer high safety, stable operation, and affordability for extremely heavy loads. Features include automatic lifting, hydraulic independent suspension, and the ability to adapt to uneven ground while maintaining precise steering.
Where are these AGVs typically applied?
Mainly in warehousing, manufacturing, ports, and hazardous environments. They handle overweight or overlong materials, reducing labor intensity and improving production efficiency in heavy industrial sectors.
How fast can an indoor AGV travel?
Indoor AGVs typically range from 0-60 m/min. For safety and load stability in standard manufacturing environments, we generally recommend a speed of no more than 30 m/min.
What kind of power system do the AGVs use?
They utilize a pure electric system powered by automotive-grade, maintenance-free lithium iron phosphate batteries. A single charge typically provides about three hours of driving time for heavy loads.
Can the AGV handle slopes and uneven ground?
Yes, equipped with a suspension system (hydraulic or spring), the vehicle can navigate slopes of up to 3° indoors and 5° outdoors, depending on the chassis design and wheel diameter.
