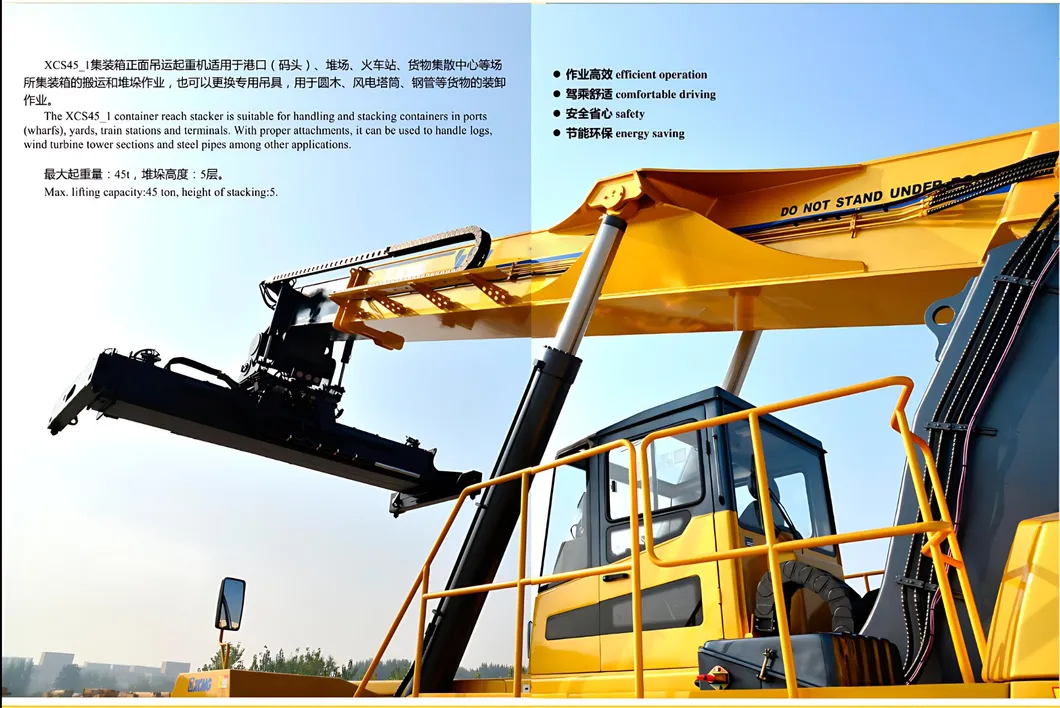

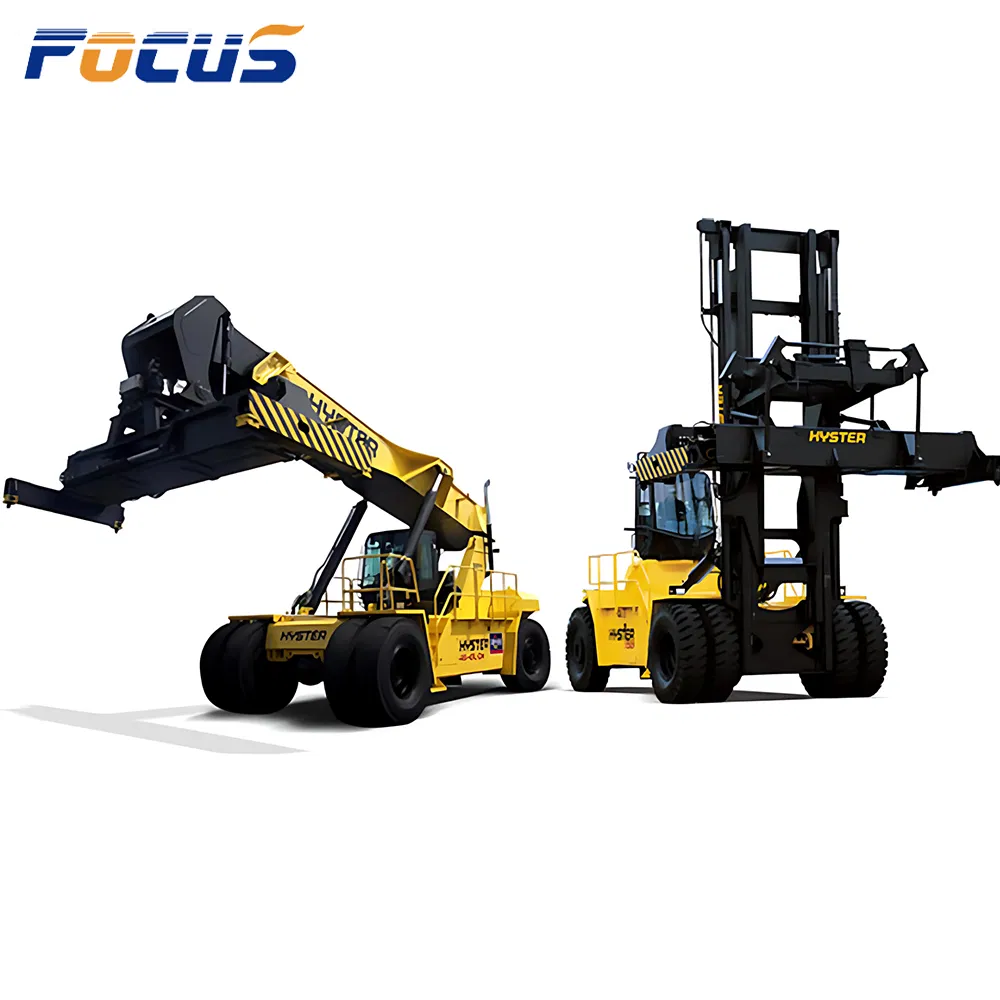

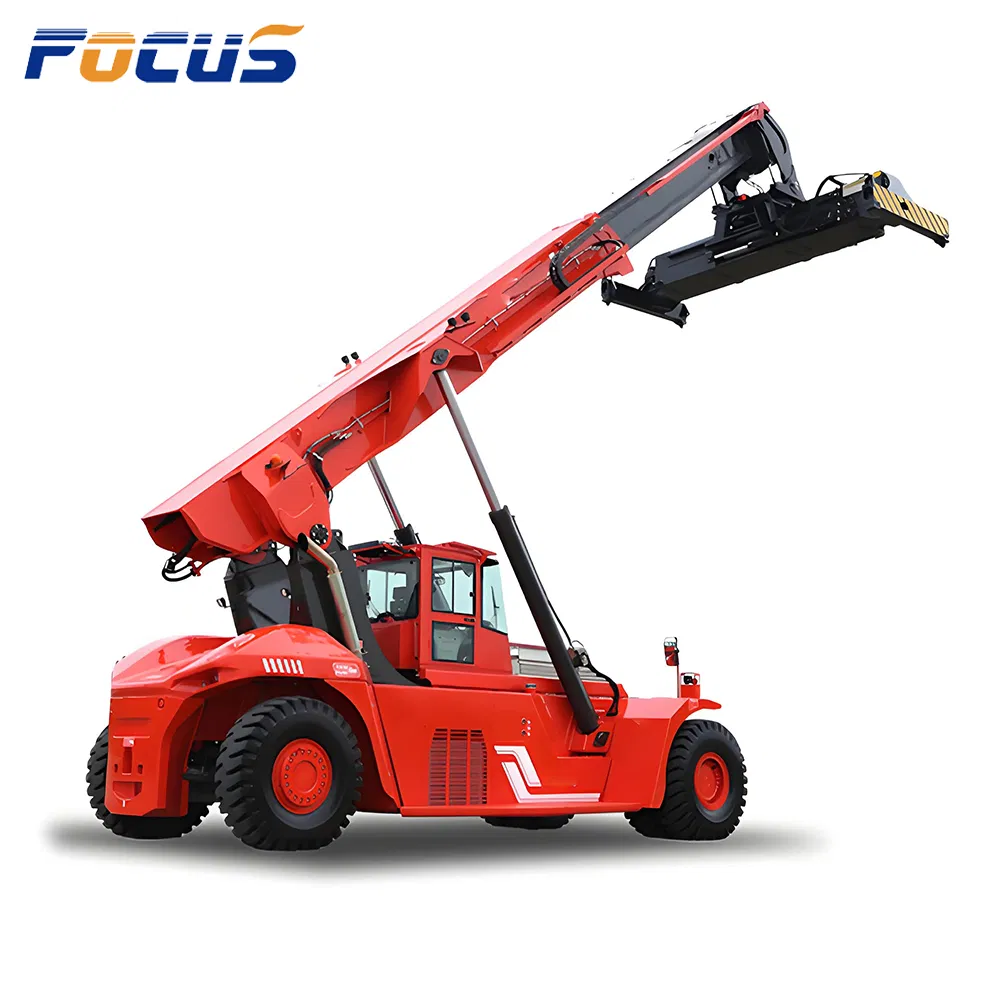

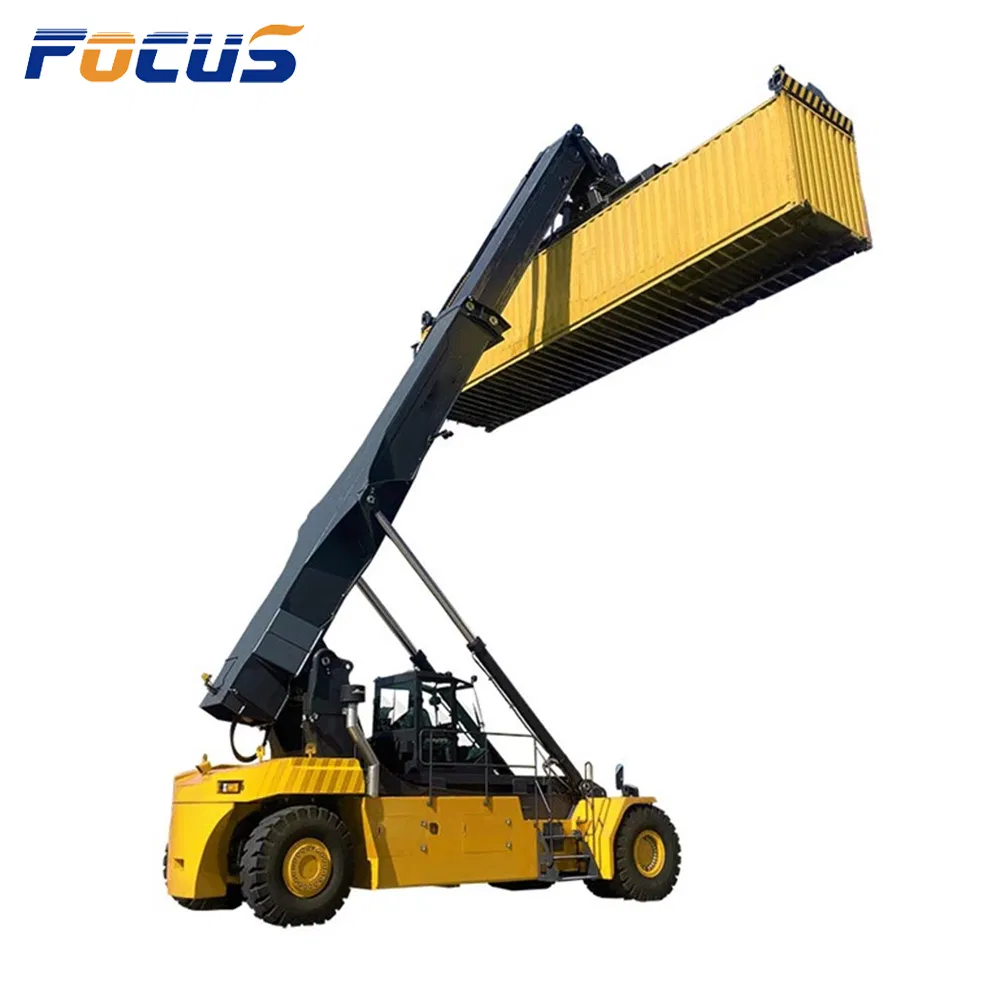

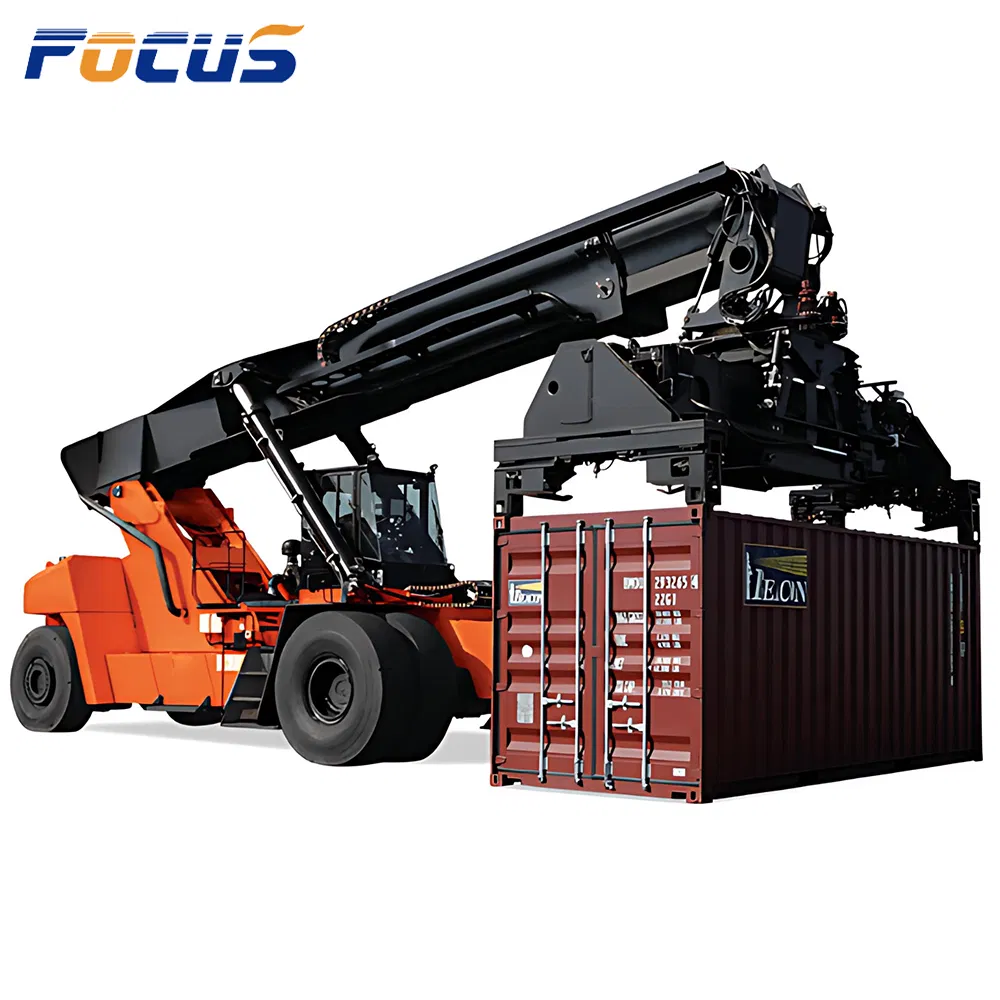

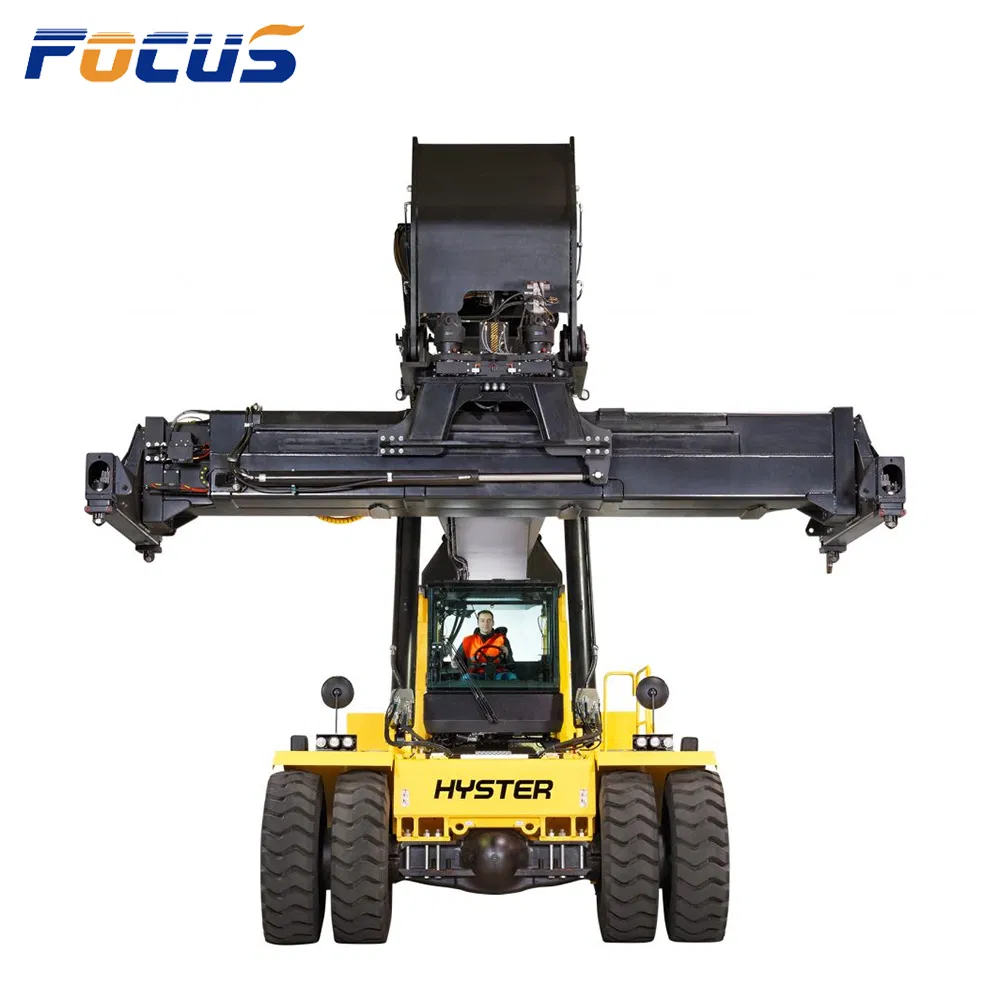

High-Capacity 45T Reach Stacker Container Handler
The Reach Stacker and Container Handlers RS45 are the ultimate solution for heavy-duty material handling. Designed as heavy forklifts for massive jobs, these machines utilize a Telehandler configuration to keep yards organized with empty and laden containers. Ideal for ports, wharfs, and storage yards, it features world-leading technologies such as dynamic anti-rollover protection and automatic fire extinguishers.
Designed specifically for 20ft and 40ft containers, these stackers are more flexible, easier to operate, and offer higher stacking capacity than traditional forklifts. They feature on-demand hydraulics and cooling technologies to lower the total cost of ownership.
Overhead reach arm for high stacking sites.
Dynamic anti-rollover and anti-collision systems.
Cummins QSL9 engine and Kessler drive axles.
Built for harsh 24/7 terminal environments.
| Parameter Item | Technical Specification |
|---|---|
| Equipment Model | SRSC45H1 |
| Rated Power (kW) | 265 / 2100 |
| Rated Torque (N·m) | 1780 / 1260 |
| Vehicle Weight (kg) | 72000 |
| Cab Noise (dB(A)) | ≤72 |
| Climbing Ability (No Load/Load) | 39% / 32% |
| Max Lifting Speed (Load) | 250 mm/s |
| Max Travel Speed (No Load) | 25 km/h |
| Transmission Model | 15.5HR36000 |
| Overall Dimensions | 11340 × 6053 × 4770 mm |
| Max Lifting Height | 15100 mm |
| Boom Angle | 0~60° |
