📊 Basic Information
Model NO.H90EC-8
TypeDiesel Container Handler
PowerDiesel Engine
Load Capacity9t
FuelDiesel
Load center1220mm
Lift height21270mm
ConditionNew
Layers of Stack8
Wheelbase4550 mm
EngineVolvo Tad851ve, 185 Kw
GearboxDana
Service Weight41 T
TrademarkHangcha
HS Code8427109000
⚙️ Product Description

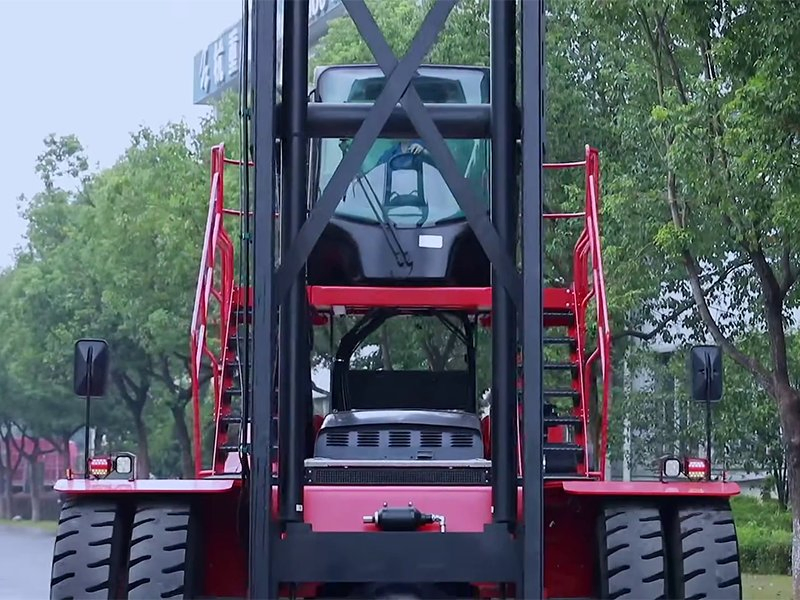

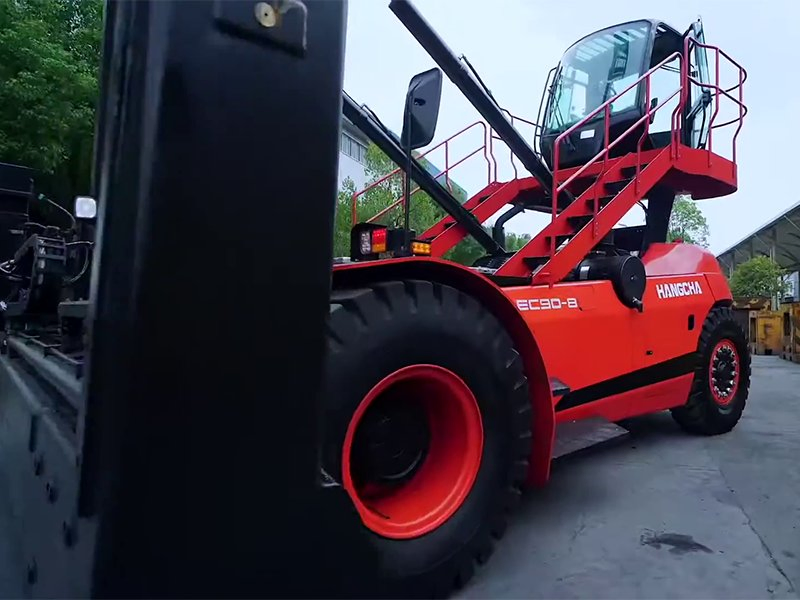

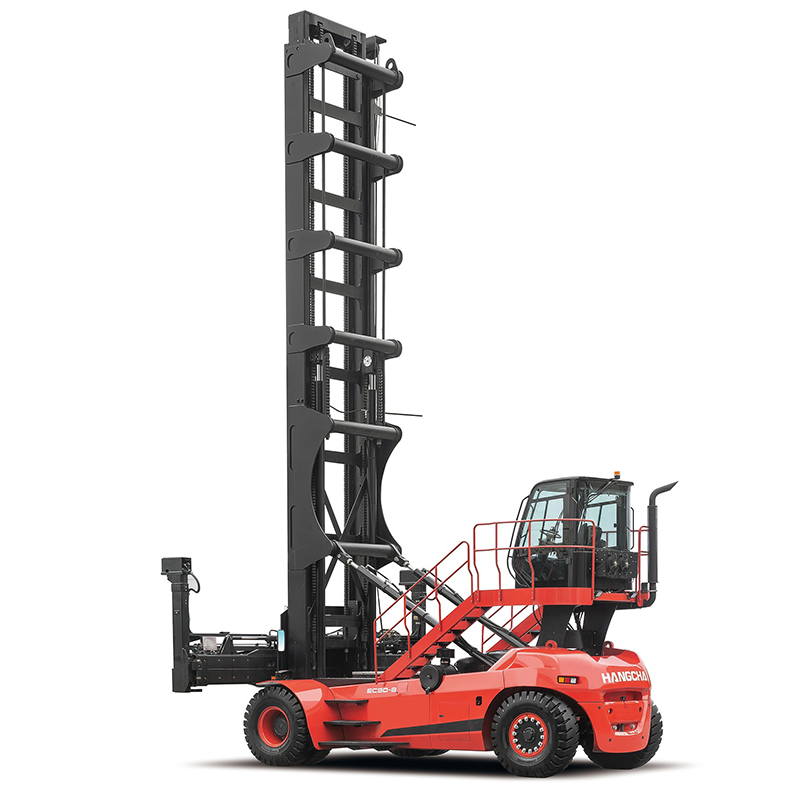

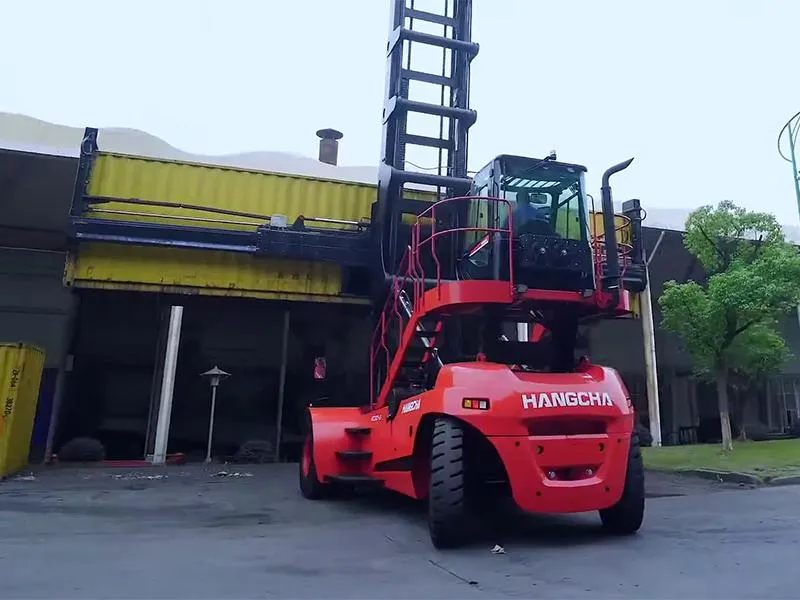

Hangcha 9 Ton Capacity H90ec-8 Empty Container Handler
A new generation high-quality professional product, which is newly developed on the basis of X series platforms and years of industry experience and extensively adopts advanced technologies, is mainly used in the loading, handling and stacking operations of empty 20ft and 40ft ISO containers.
| Technical Specifications |
H90EC-7 |
H90EC-8 |
| Rated load | 9 t | 9 t |
| Layers of stack | 7 | 8 |
| Max. lifting height | 18670 mm | 21270 mm |
| Load centre distance | 1220 mm | 1220 mm |
| Wheelbase | 4550 mm | 4550 mm |
| Engine | VOLVO TAD851VE, 185 kW |
| Gearbox | DANA | DANA |
| Service weight | 40 t | 41 t |
| Overall dimension (mm) | 6850*6100*10715 | 6850*6100*12015 |
Key Features:
- Core Components: Gearbox(DANA), drive axle(KESSLER), engine and key hydraulic parts with stable quality.
- Reliable Structure: Advanced digital design, finite element analysis, and rigorous fatigue/overload tests.
- Stability: High-strength steel mast and high-positioned inclined oil cylinder installation.
- Intelligent Cooling: Heat dissipation management system automatically adjusts intensity based on temperature.

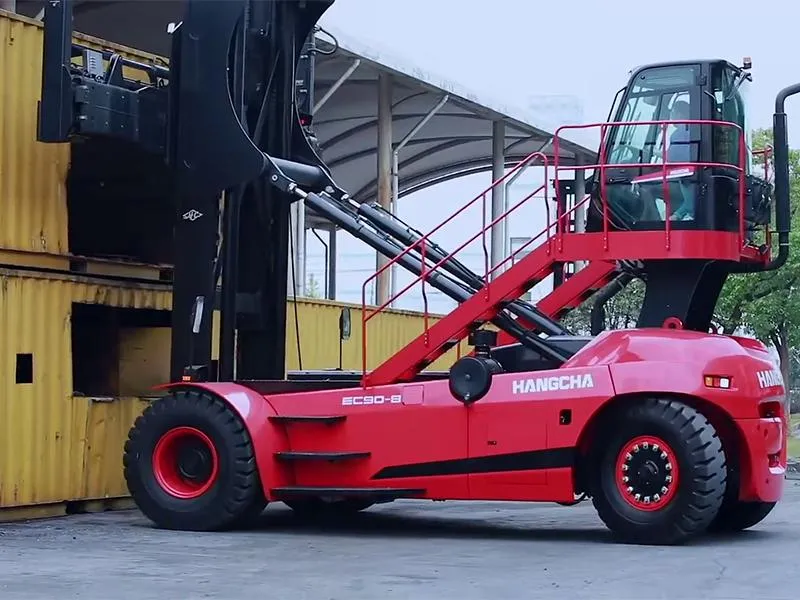

- Durability: Waterproof and dust-proof electrical system; novel spreader with low maintenance cost.

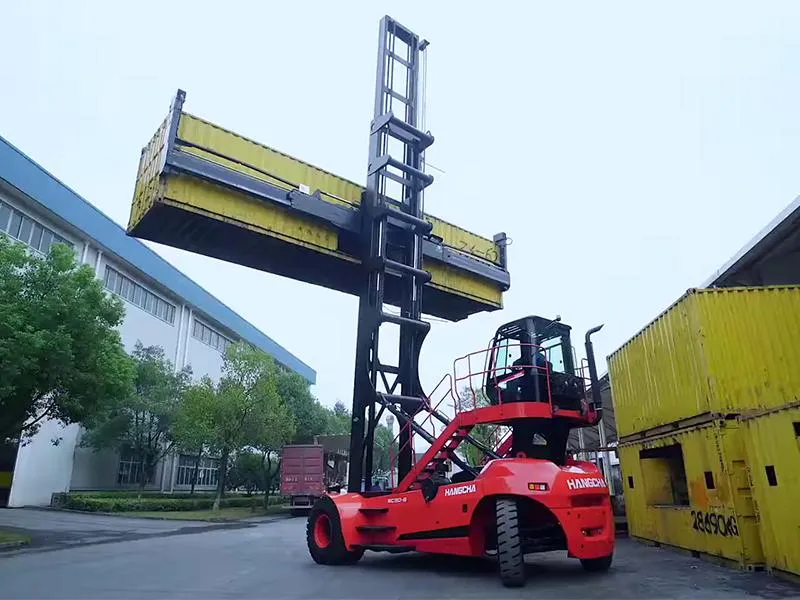

📷 Component & Product View
🏭 Manufacturing & Workshop
❓ Frequently Asked Questions
Q1: What is the maximum stacking capacity of the H90EC-8?
A: The H90EC-8 model is designed to stack empty containers up to 8 layers high with a rated load capacity of 9 tons.
Q2: Which engine is used in this empty container handler?
A: It is equipped with a high-performance VOLVO TAD851VE engine, providing 185 kW of power.
Q3: Does the truck support both 20ft and 40ft containers?
A: Yes, the spreader is specifically designed for loading, handling, and stacking operations of both 20ft and 40ft ISO containers.
Q4: What are the main advantages of the hydraulic and electrical systems?
A: The electrical system features a waterproof and dust-proof design for high reliability, while the hydraulic system uses key parts with stable quality and an automatic heat dissipation management system.
Q5: How is the stability of the mast ensured?
A: The mast is made of high-strength steel with an ultra-wide structure. The inclined oil cylinder is installed at a high position to significantly improve rigidity and stability during operation.
Q6: What gearbox is integrated into this model?
A: The H90EC-8 utilizes a world-renowned DANA gearbox, known for its stability and reliable power transmission.
