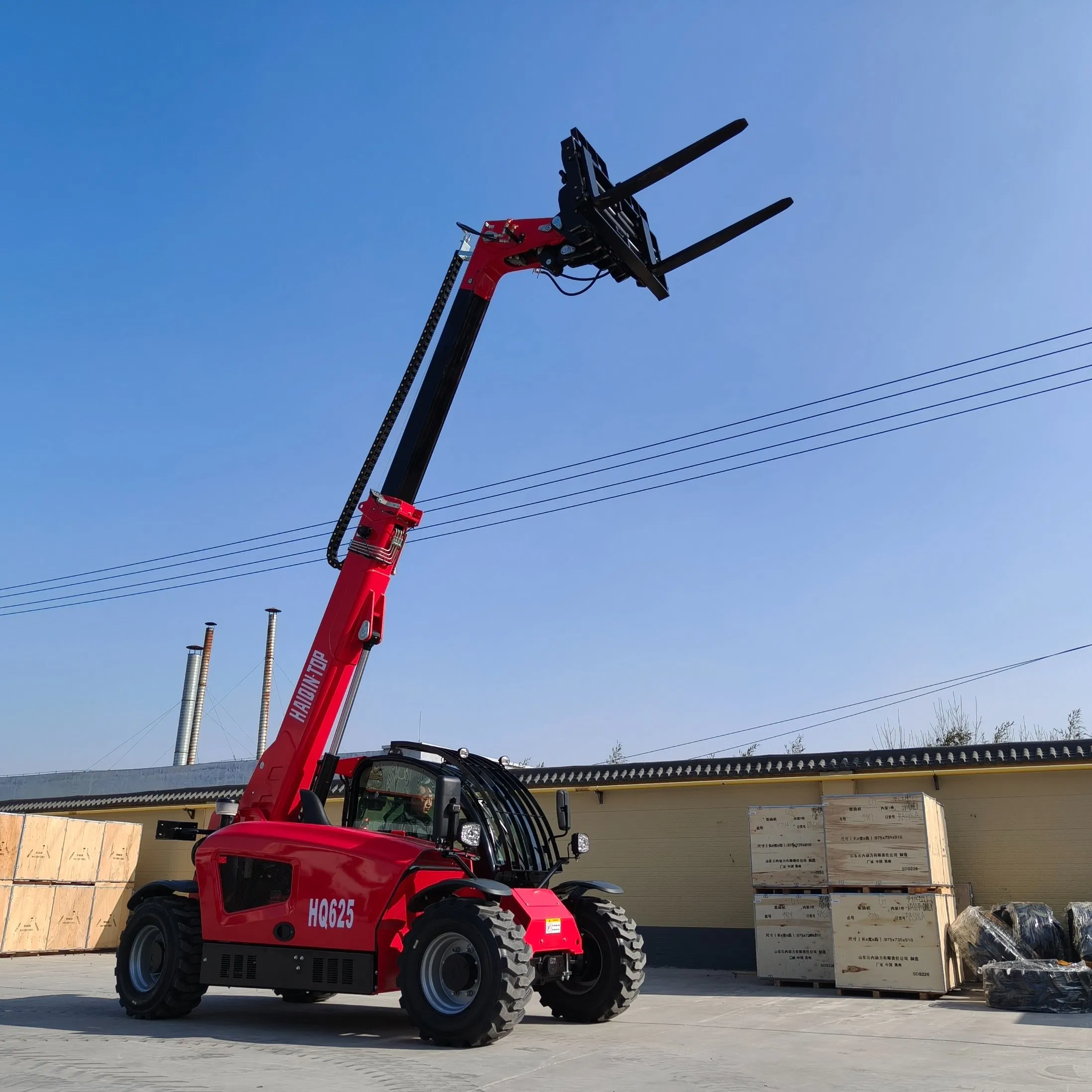

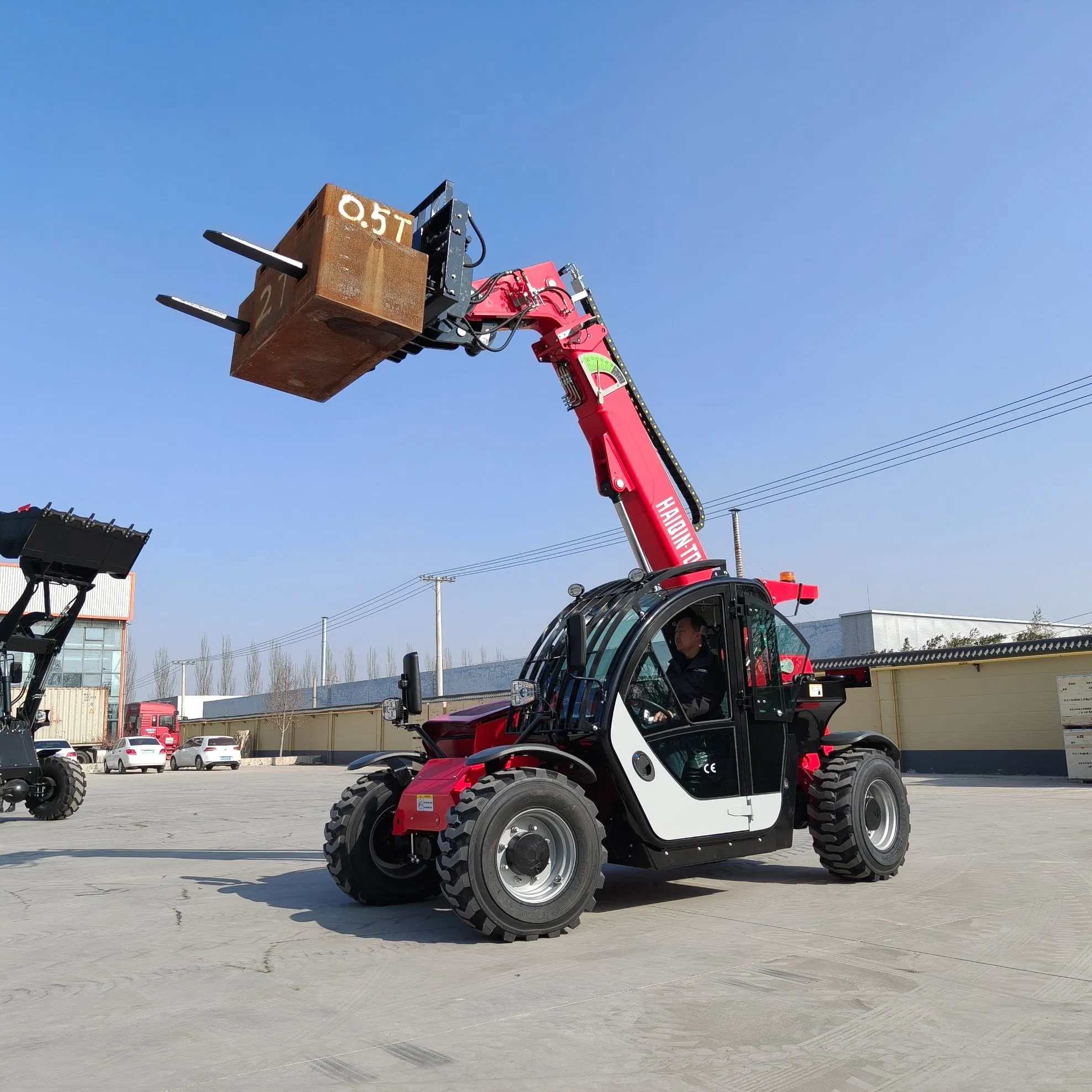

Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
1 / 5
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler
Haiqintop New (HQ625) with Danfoss-System Telescopic Handler

Haiqintop New (HQ625) with Danfoss-System Telescopic Handler

Customization: Available
After-sales Service: 24 Hours Every Day of Technology and Parts Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.HQ625
TypeDiesel Forklift/Telehandler
PowerDiesel Engine (55-65kw)
Load Capacity2500kg
Lift Height>6000mm
Operation Weight6200kg
Engine OptionsYunnei / Changchai / Yanmar
Package3 Units in a 40HQ Container
HQ625 Telehandler Main Features

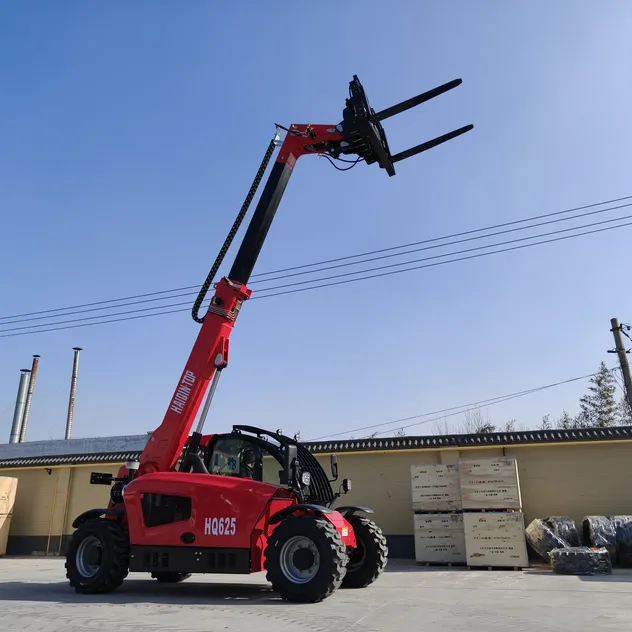

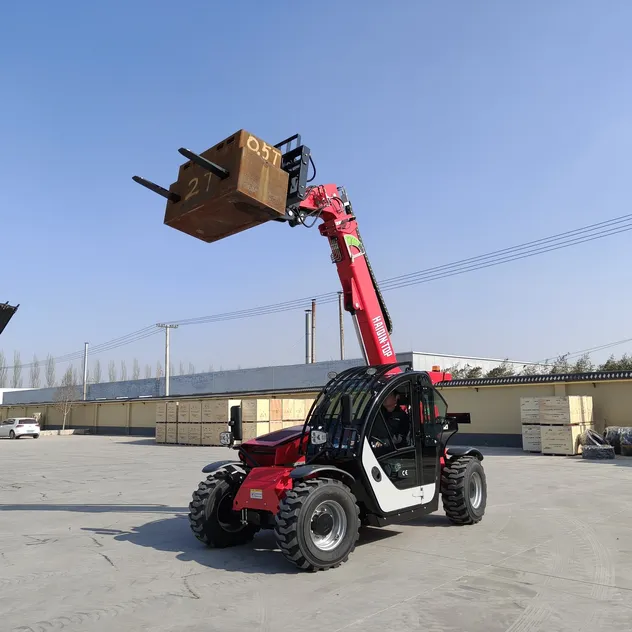

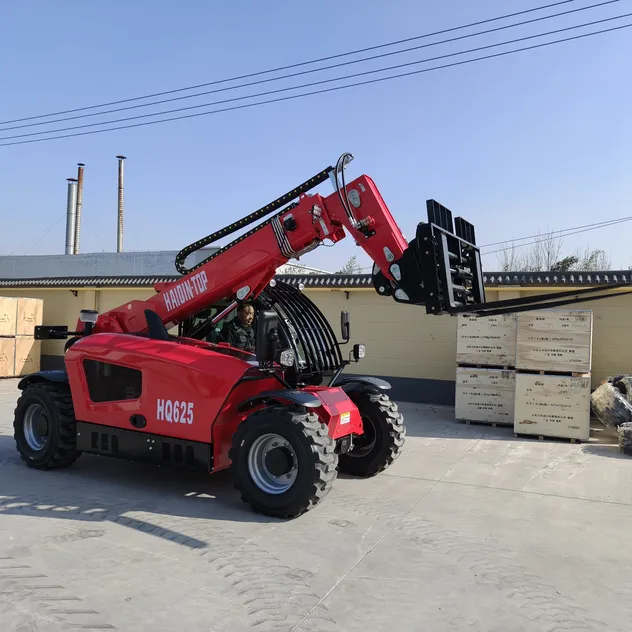

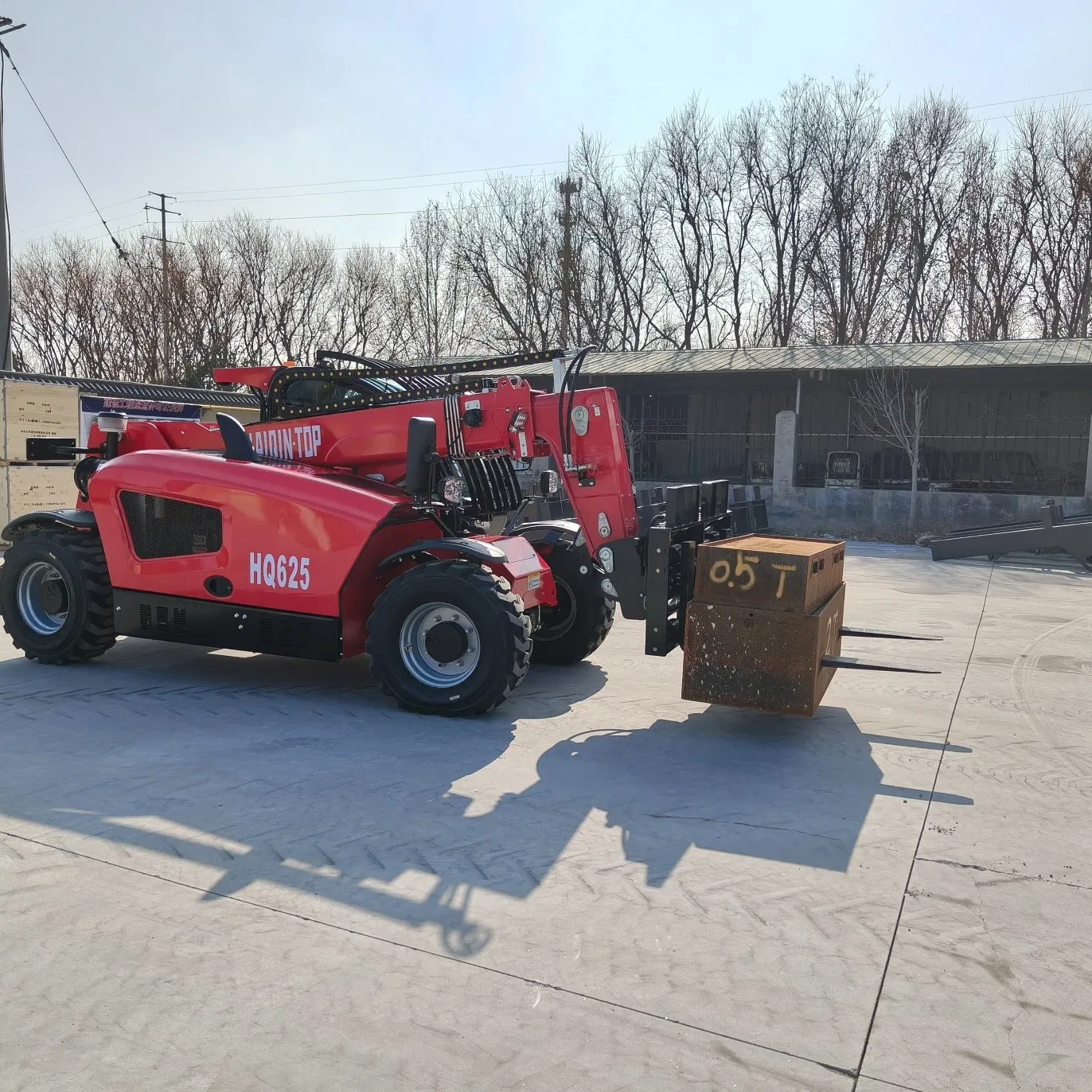

HQ625 Front View HQ625 Side View HQ625 Operation
  • Compact design and versatile functionality.
  • Equipped with 55kw Euro 5 or optional engines.
  • Maximum lift height reaches up to 6010mm with a 2500kg load capacity.
  • Danfoss-Hydrostatic system available for superior control.

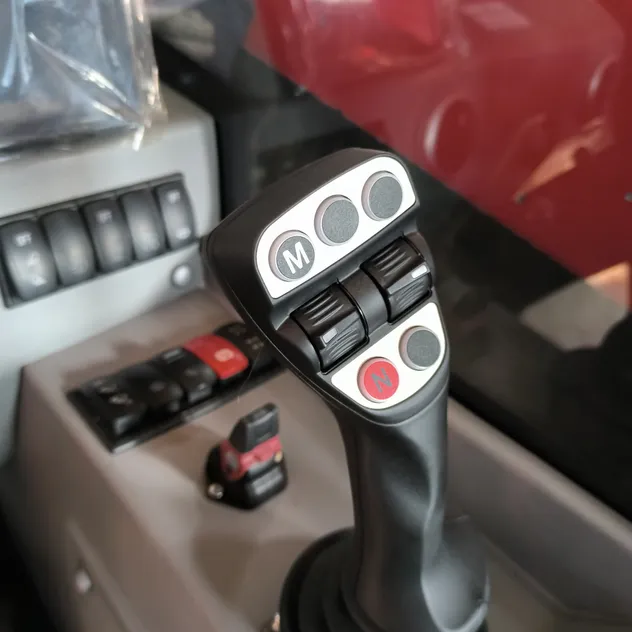

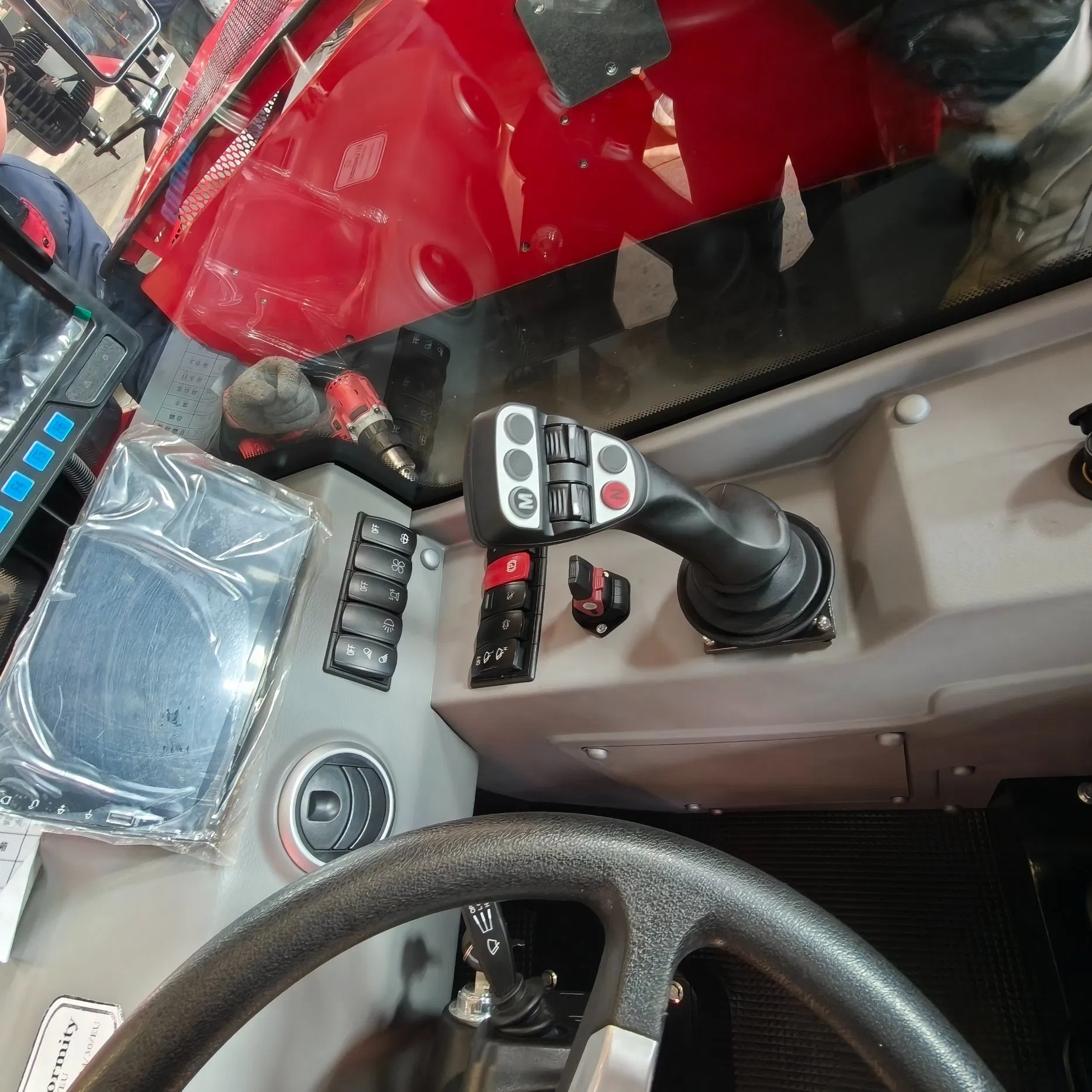

  • Load sensitive Joystick handle with Multi-Function capabilities.

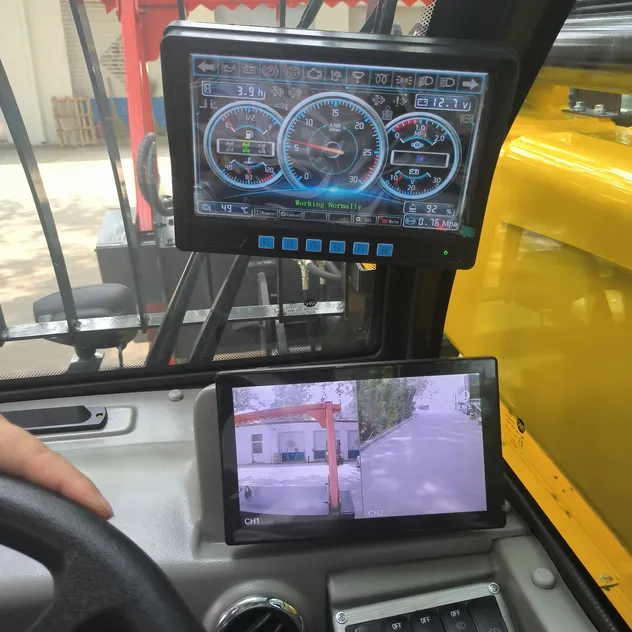

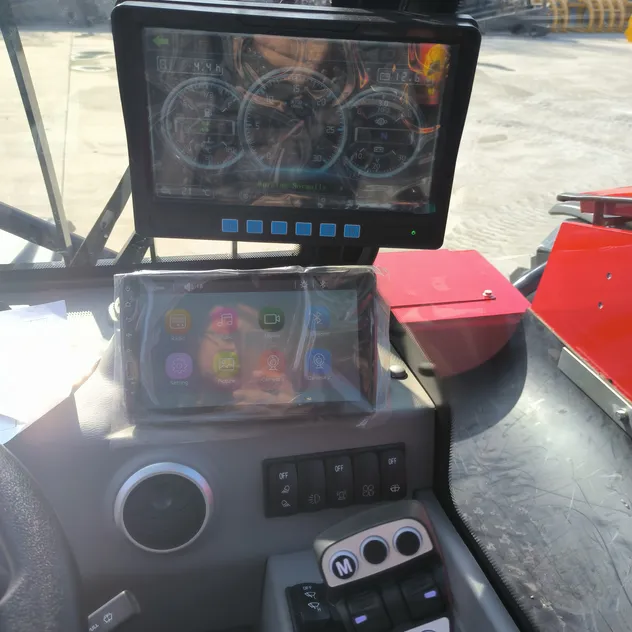

  • Large space closed cabin with Full LCD display screens.
HQ625 Details HQ625 Details HQ625 Details
Safety & Comfort: Rops & Fops Cabin

The HQ625 telehandler is designed with a Rops & Fops certified cabin to ensure maximum operator safety. It features three driving modes: 2-wheel drive, 4-wheel drive, and crab driving for extreme maneuverability. The luxury cabin includes A/C and front/rear view cameras for enhanced visibility during work.

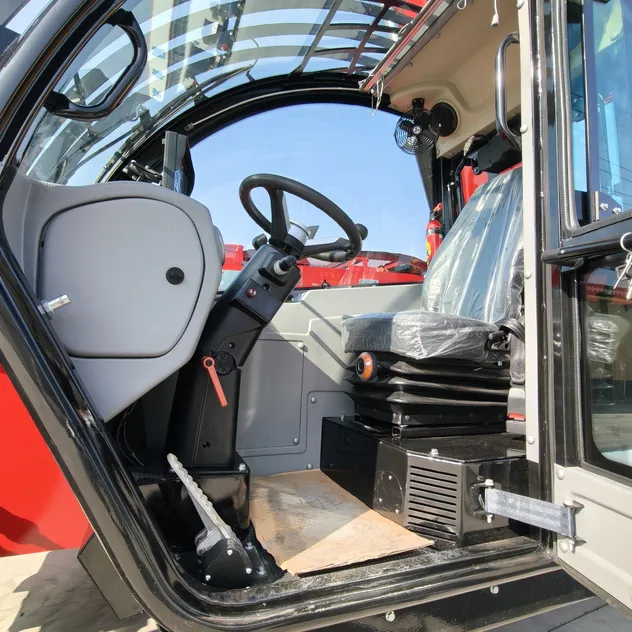

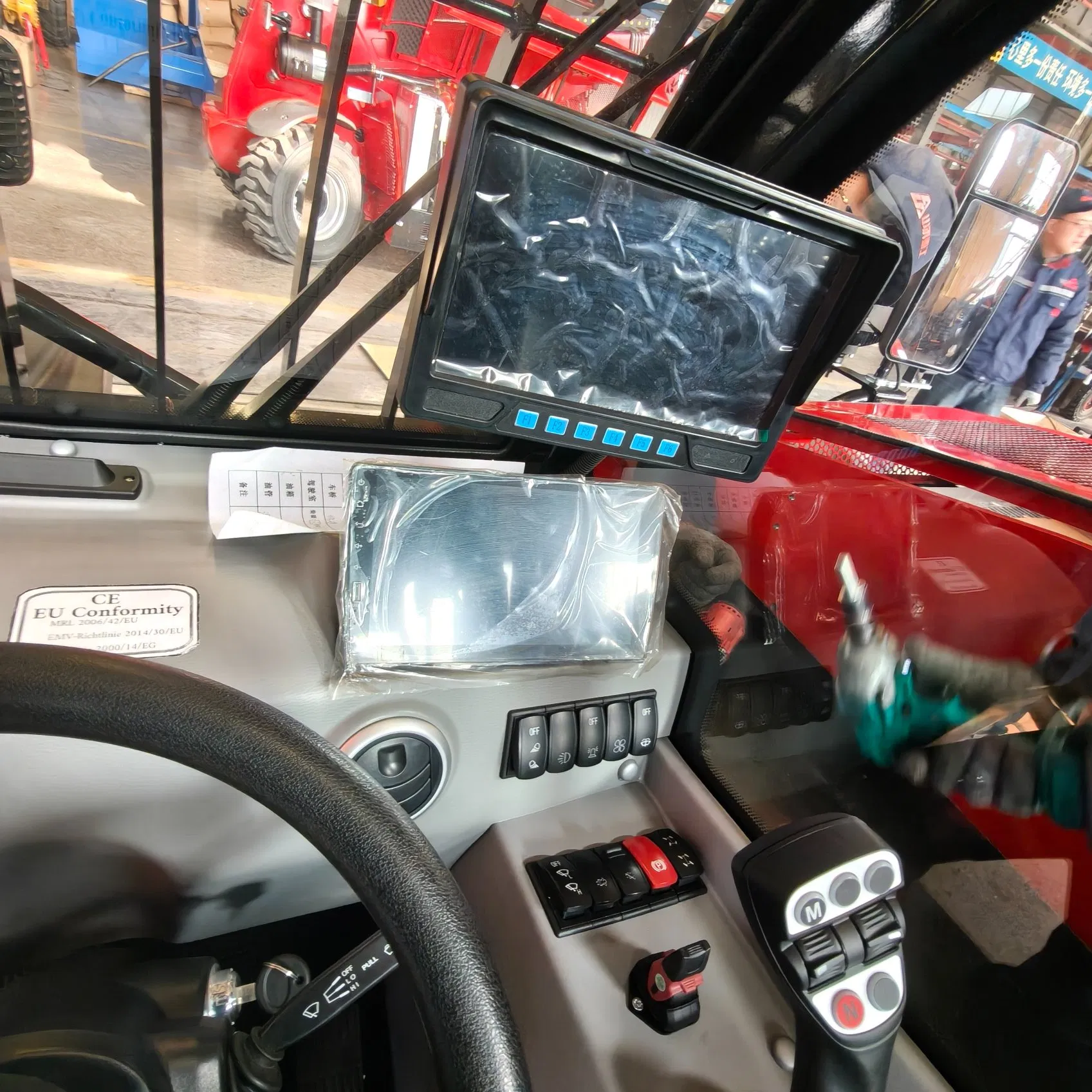

Luxury Cabin Interior Engine System Controls
Working Performance Video

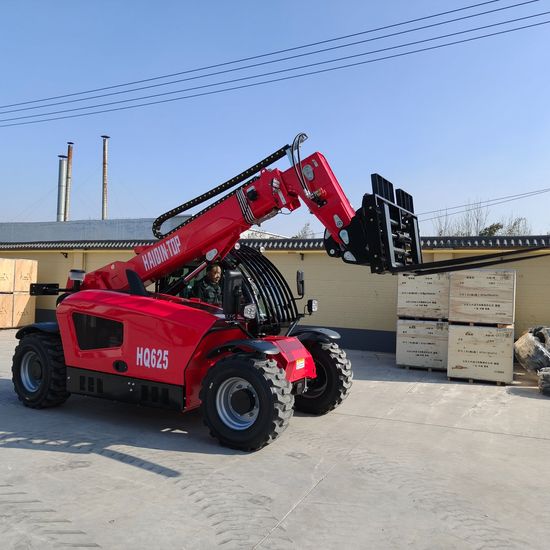

Video Placeholder
Technical Parameters
Maximum lift capacity2500kg
Lift height6000mm
Lift capacity at full reach800kg
Maximum forward reach3300mm
Engine Power58KW / 55KW Options
Tyre Size14-17.5
Wheelbase2300mm
Steering typesFront Wheel / Four Wheel / Crab Steering
Overall dimensions3900mm (L) * 1810mm (W) * 2000mm (H)
Warranty12 Months
Packing & Quality Assurance

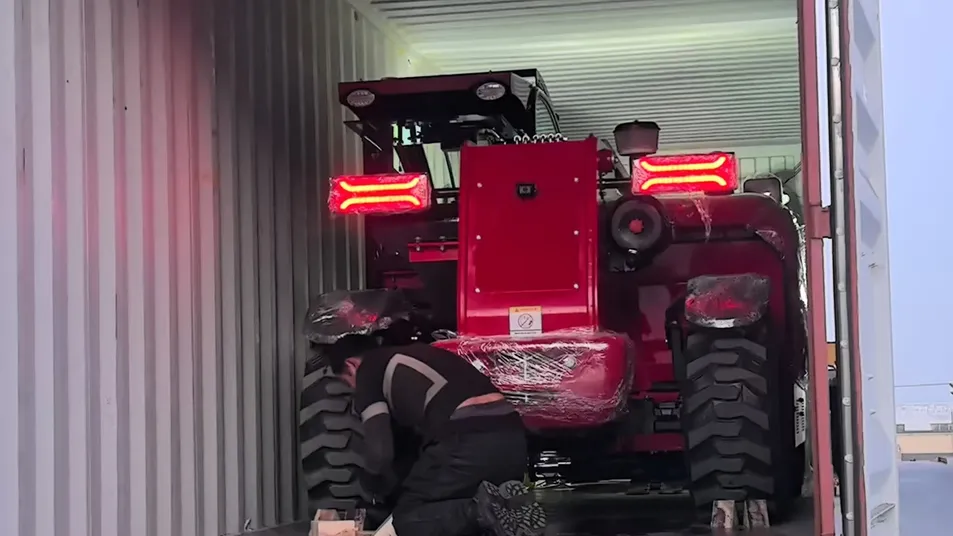

Container Loading

Professional loading ensures that up to 3 units fit into a 40HQ container. All machines are reinforced with triangular wood and strong steel wire. Before shipment, professional technicians conduct comprehensive inspections of all circuits, oil systems, and hydraulic components.

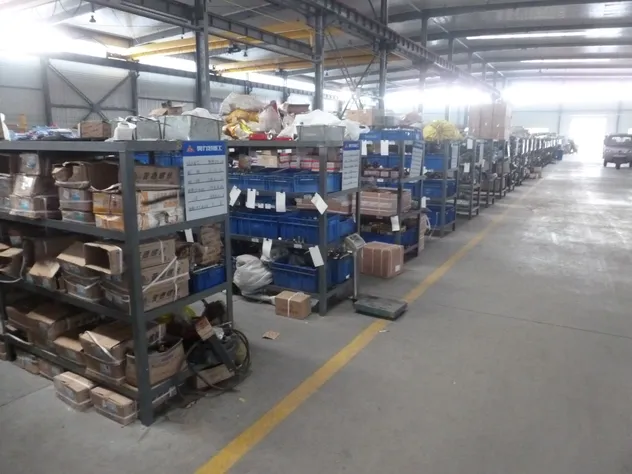

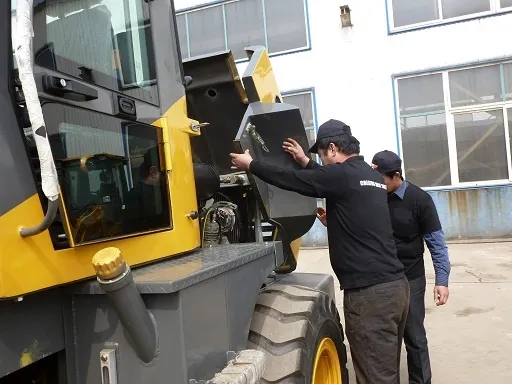

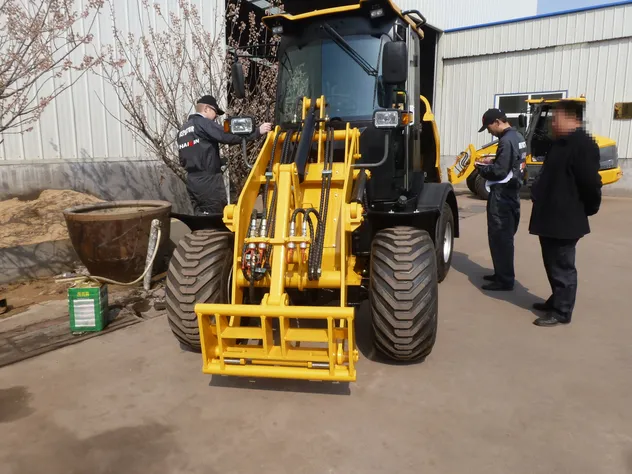

Inspection Spare Parts Warehouse
Manufacturing Excellence

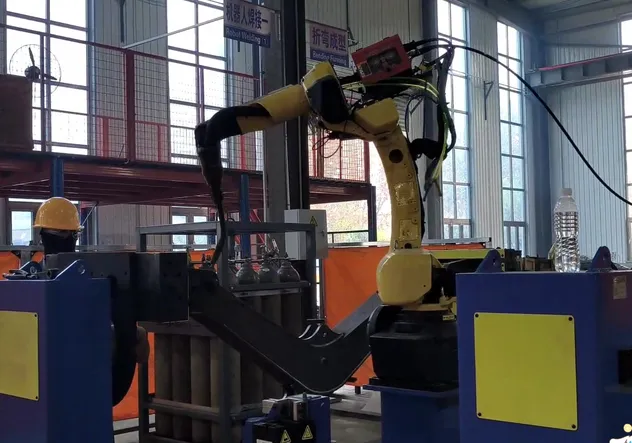

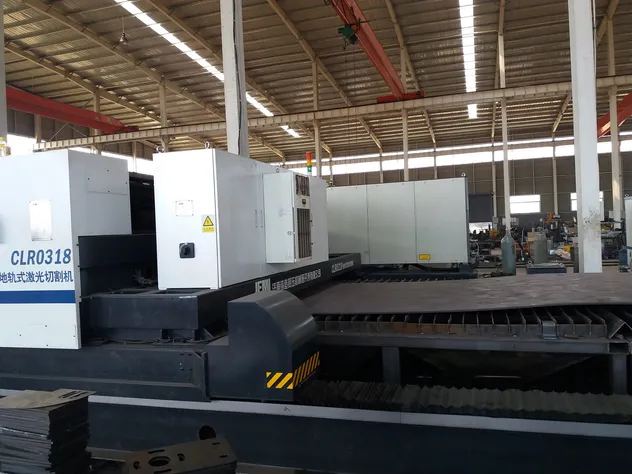

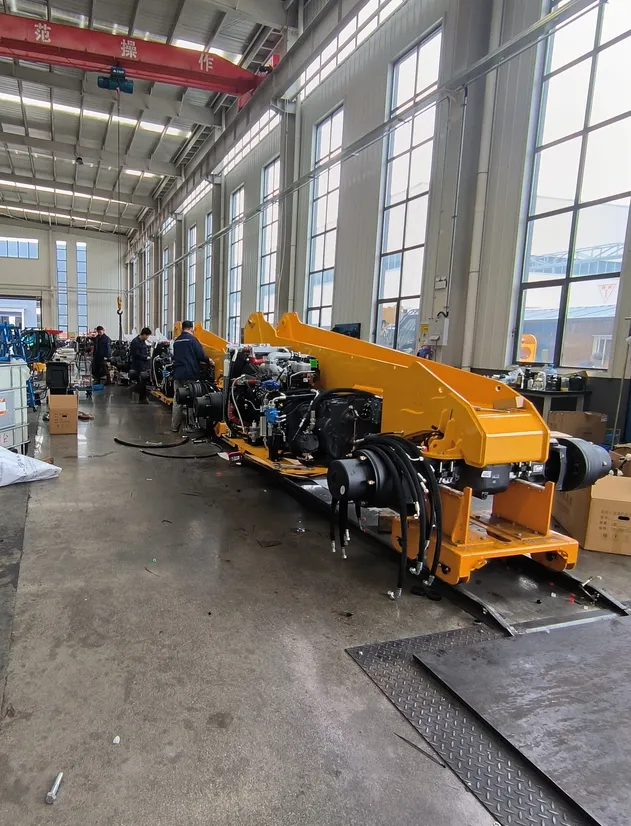

Assembling Line Robot Welding Laser Cutting

Utilizing professional assembly lines, robot welding for high-quality frame construction, and laser cutting machines to ensure precision in every component.

Frequently Asked Questions
Q1: What is the maximum lift capacity of the HQ625?
The maximum lift capacity is 2500kg, with a lift capacity of 2000kg at full height and 800kg at full reach.
Q2: What engine options are available for this telehandler?
Standard engines include YUNNEI/YN27GBZ (58KW). Optional engines include EURO5 standard CHANGCHAI (55KW), KOHLER KDI2504TCR (55KW), and CUMMINS QSF2.8 (55KW).
Q3: Does the machine come with any safety certifications?
Yes, the machinery is certified with CE, EAC, SGS, and ISO. The cabin is Rops & Fops certified for operator safety.
Q4: How many units can be shipped in a standard container?
The HQ625 is designed for efficient shipping; up to 3 units can be loaded into a single 40HQ container.
Q5: What are the different steering modes available?
The machine supports three steering modes: Front Wheel Steering, Four Wheel Steering, and Crab Steering for better maneuverability in tight spaces.
Q6: What is the warranty period for the HQ625?
The machine comes with a standard 12-month warranty covering major components.
