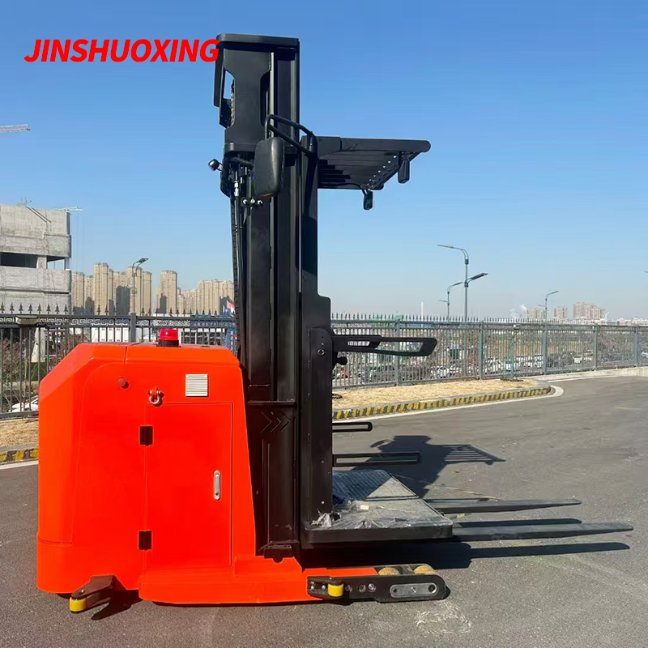

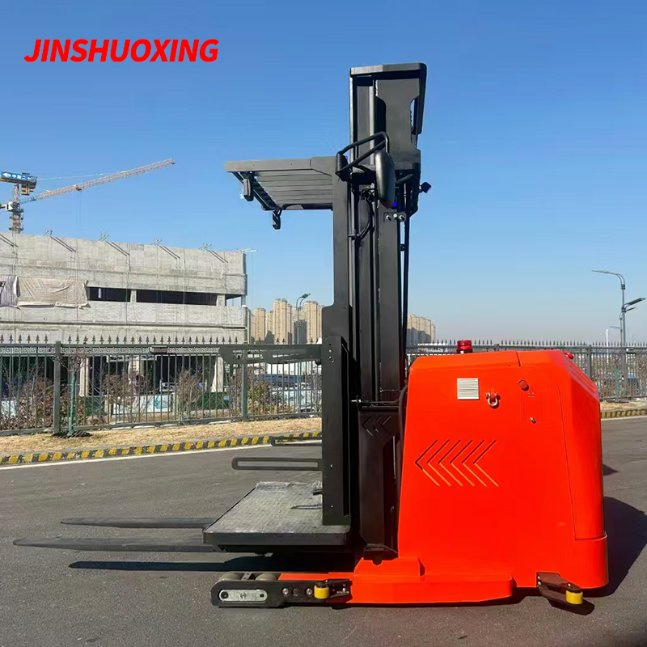

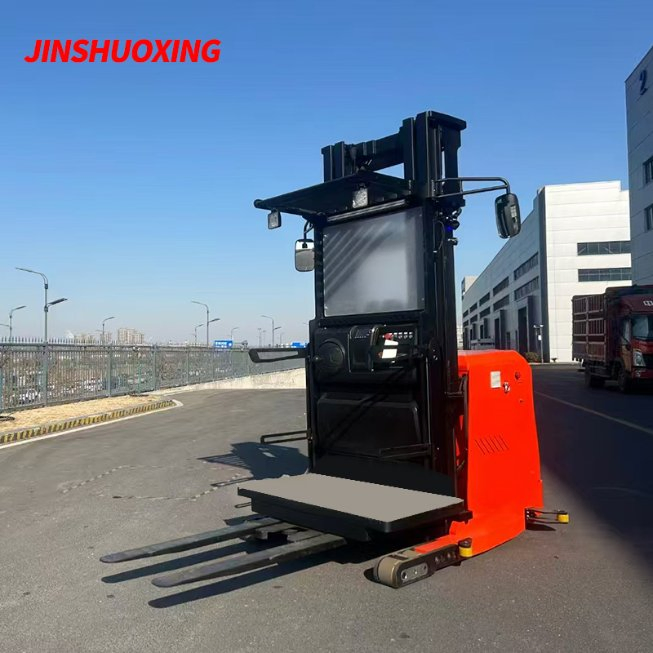

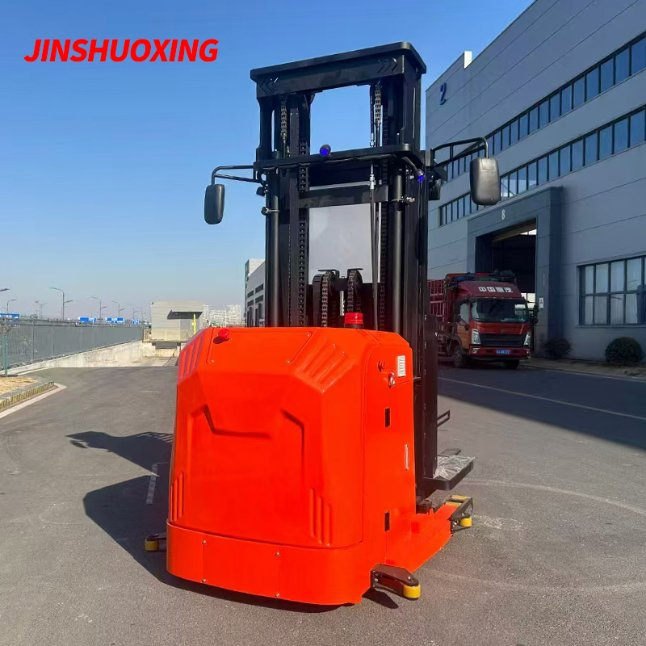

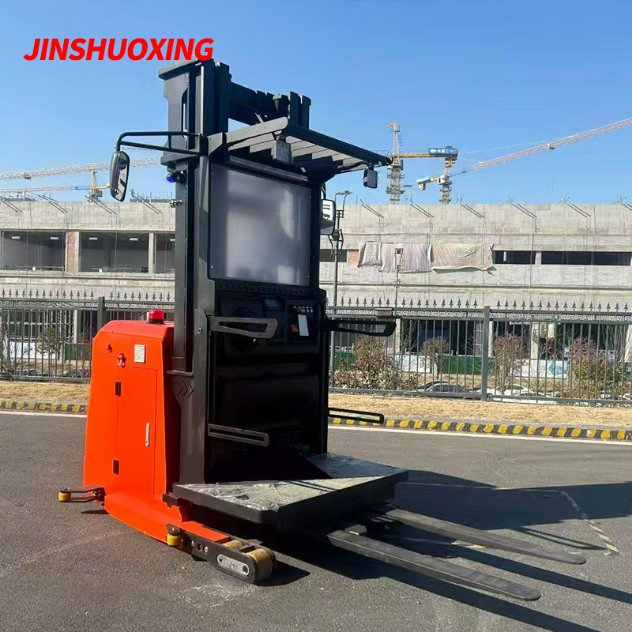

1 Ton 1.5 Ton Electric Order Picker Narrow Aisle 6m 9m

After-sales Service: 1 Year
Warranty: 1 Year
Cab Location: Adjustable

Product Description

Basic Specifications

Model NO.
CDD-X
Type
Electric Order Picker
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
3000-7000mm
Battery Type
Lead Acid
Voltage
24/48 V
Wheel Material
PU
📦

Packaging & Delivery

Package Size
250.00cm * 130.00cm * 250.00cm
Gross Weight
3000.000kg
Origin
China
Capacity
3000 Units/Year
📋

Technical Parameters

Model CDD10X-45S CDD15X-45S
Operation TypePickingPicking
Rated Load Capacity (kg)10001500
Load Center Distance (mm)500500
Service Weight (kg)26003000
Operator Platform Lift Height (mm)45004500
Max. Mast Height (mm)66706670
Travel Speed (km/h)5/35/3
Drive Motor Power (kw)2.56.5
Battery Voltage / Capacity24V300Ah48V300Ah
CDD10X / CDD15X Triplex Mast Parameters
Lifting Height Closed Mast Height Free Lift Height Open Mast Height Load Capacity (10X/15X)
30001520059201000 / 1500
40002020064201000 / 1500
4500227006670900 / 1500
5000252006920800 / 1300
6000302007420400 / 900
🖼

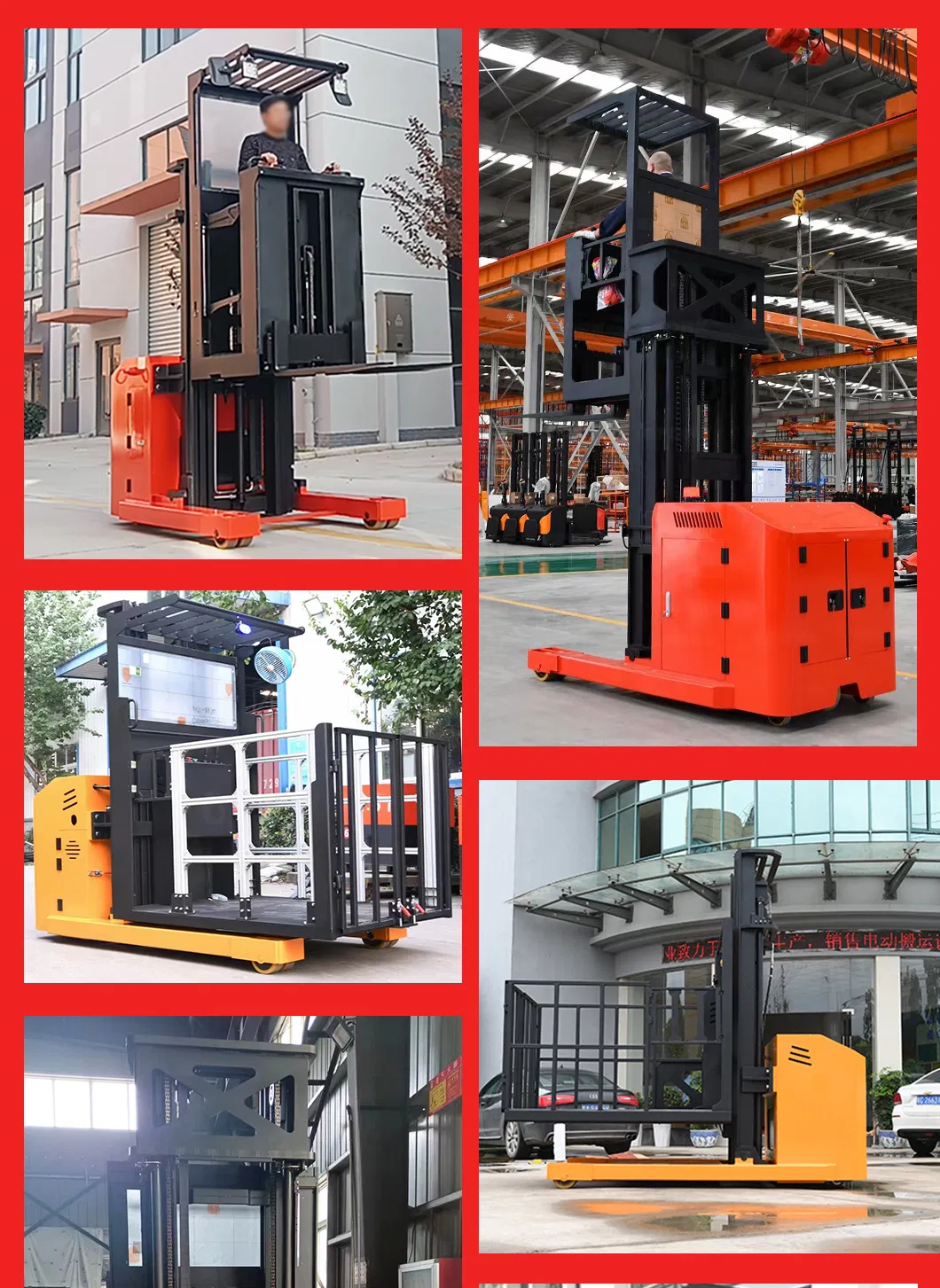

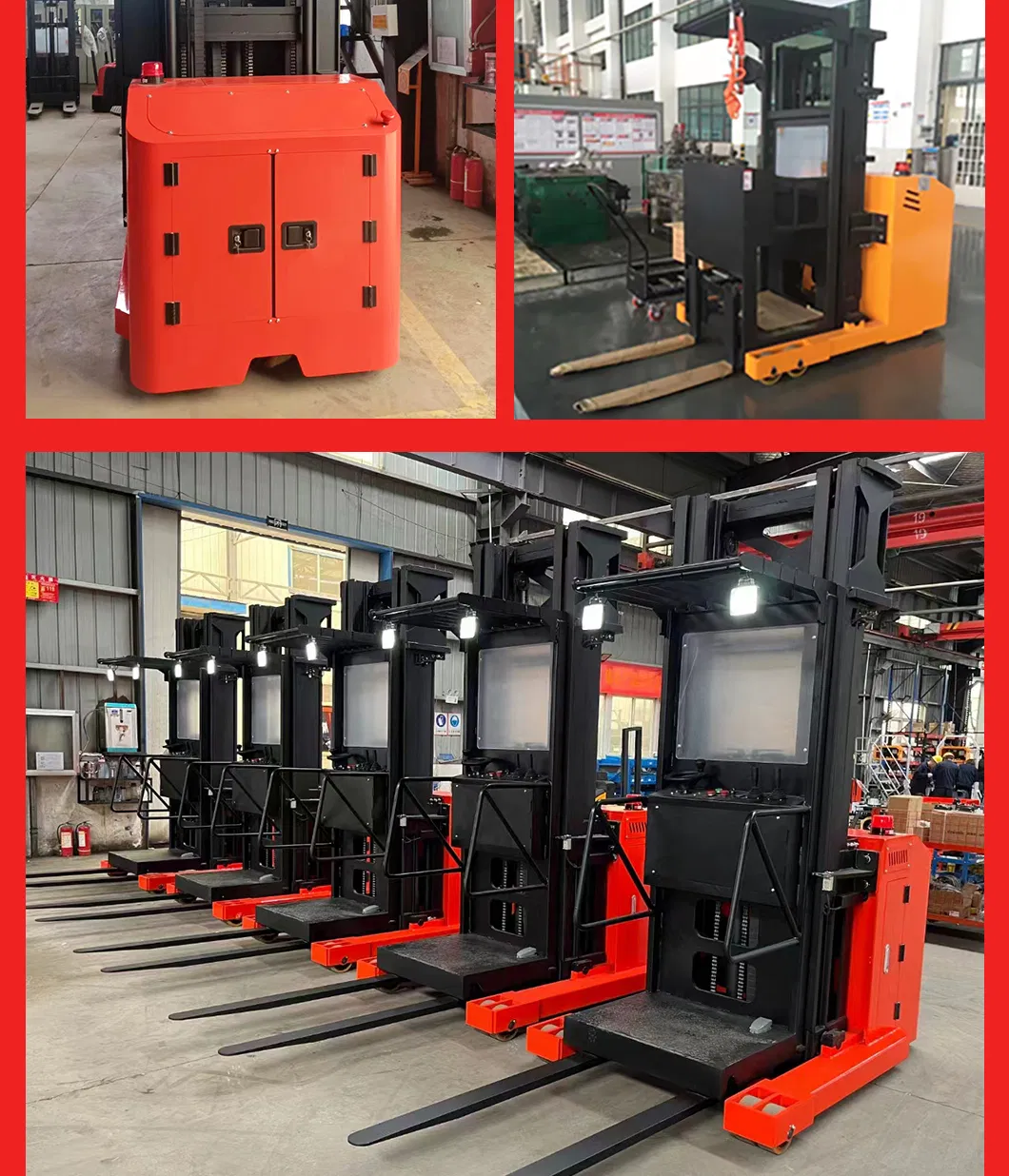

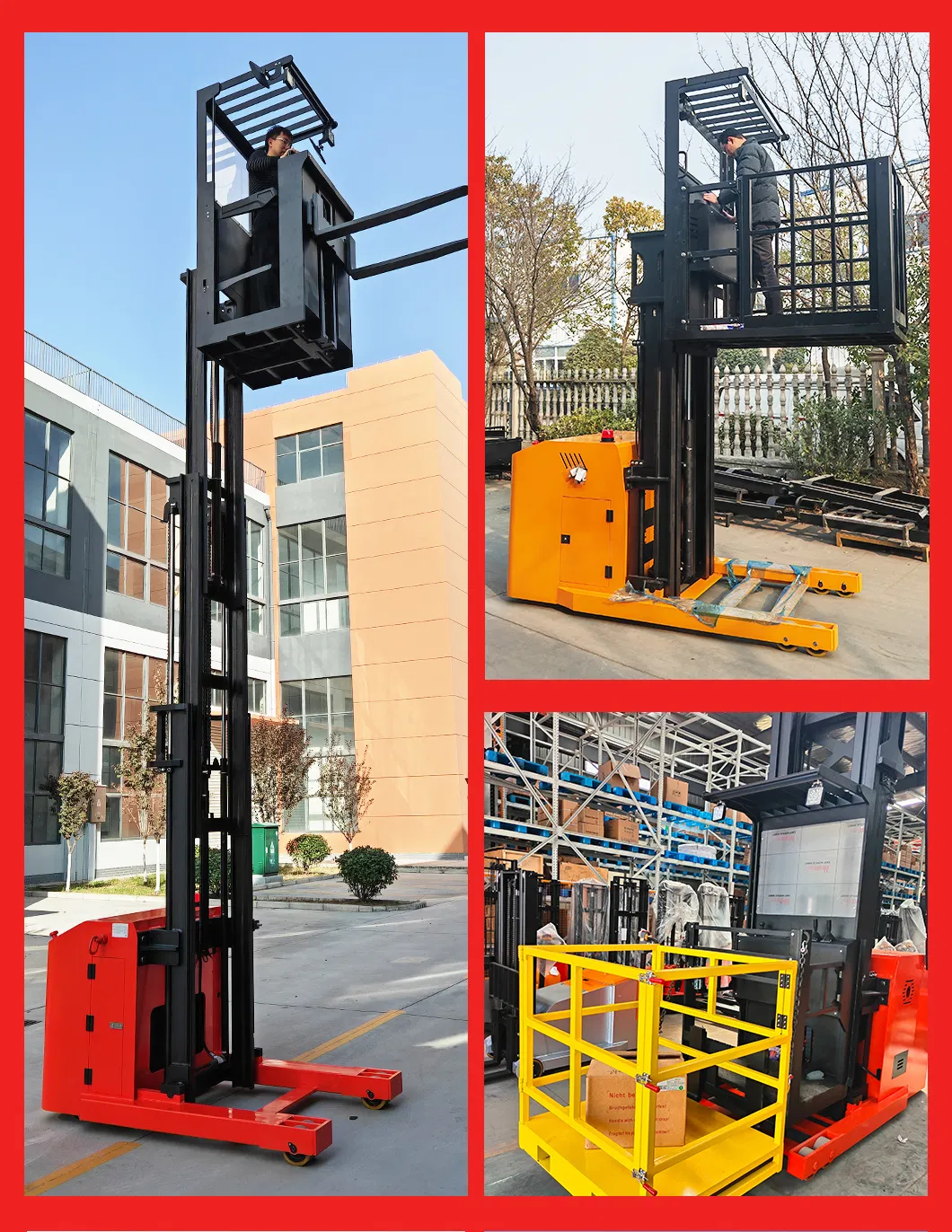

Product Display

Frequently Asked Questions

How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation with a low failure rate.
How do you ensure the product meets my usage conditions?
Our professional sales personnel will communicate with you in detail about your specific needs in the early stage and recommend the most suitable products for your environment.
Can you provide customized services?
Yes, we provide various customization services including color, logo, body size, and specific body function adjustments to meet your requirements.
How long does it take for product production?
Production time is approximately 10 to 30 days. Standard products may ship immediately, while customized or complex orders require more time.
What shipping methods are available?
Most products are transported by sea. Some regions can be served by railway. Small parts can be shipped via international express delivery.
How is after-sales service provided?
We provide user manuals, assembly videos, operation guides, and maintenance videos with every shipment to ensure ease of use and longevity.
