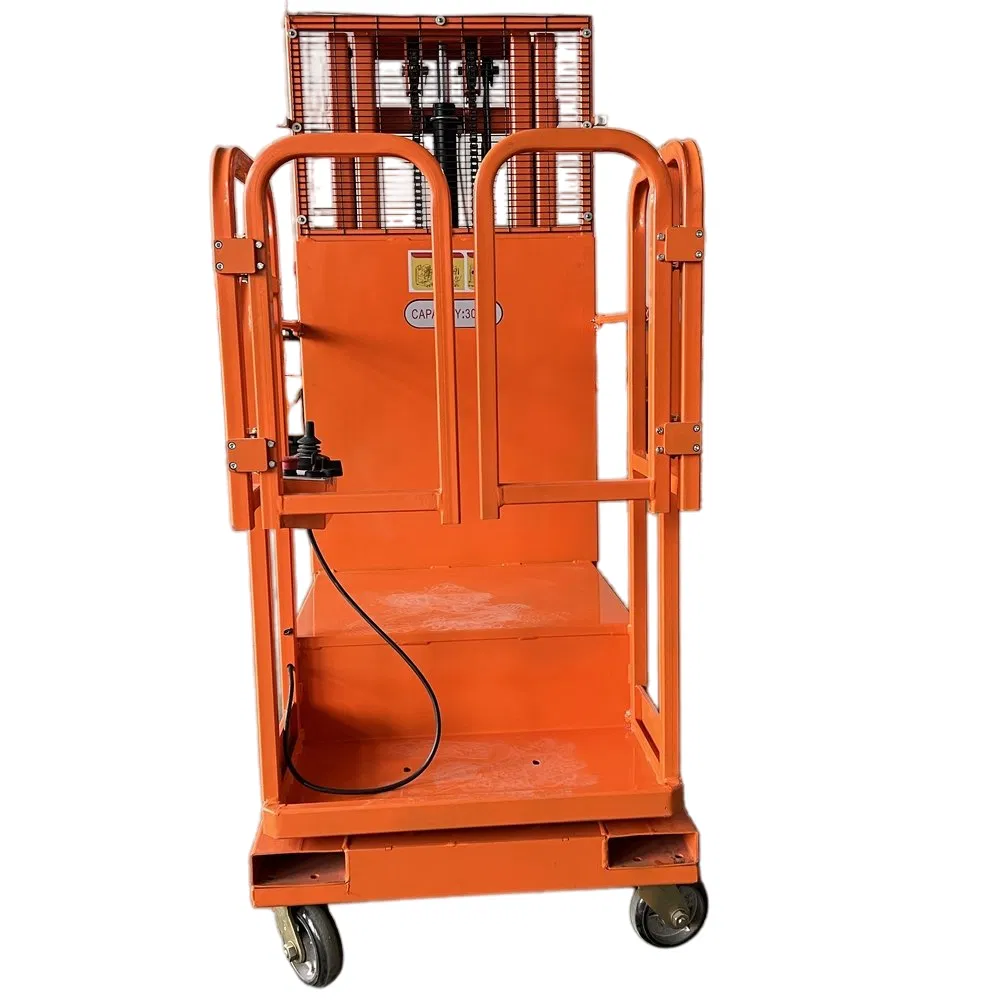

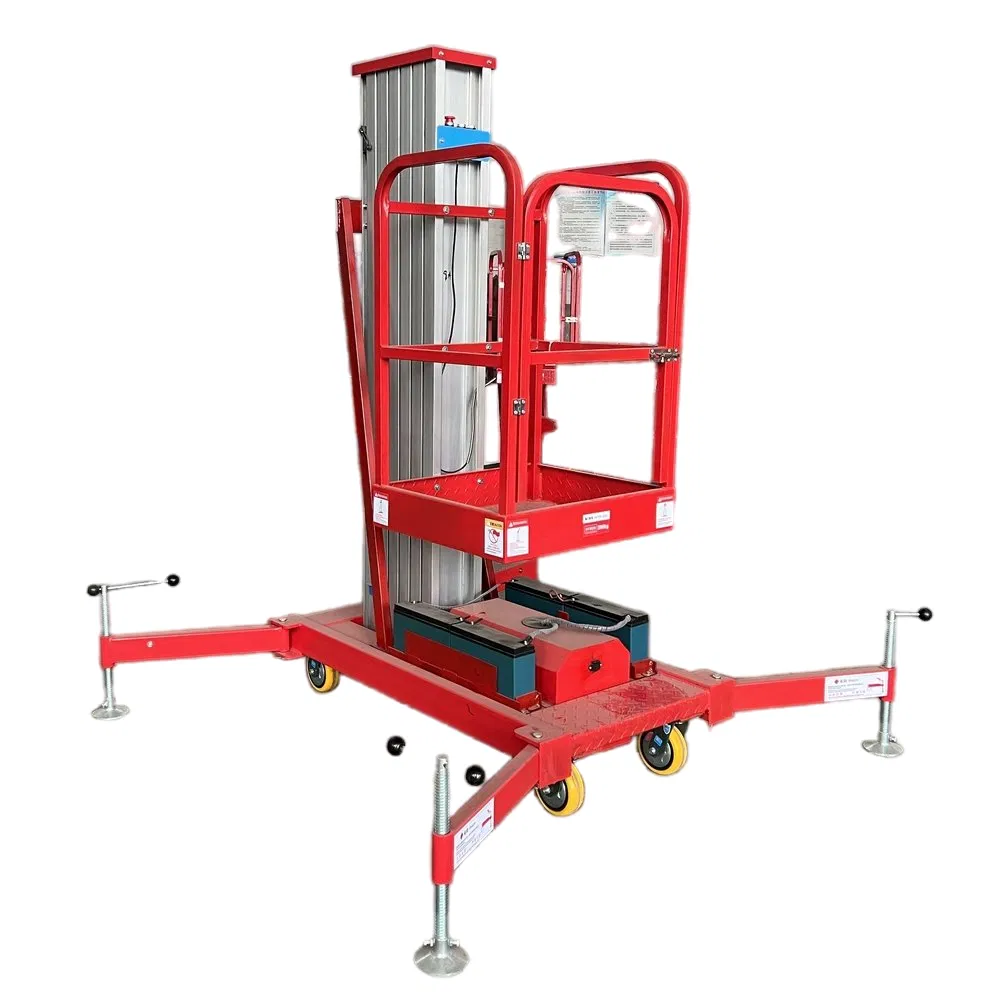

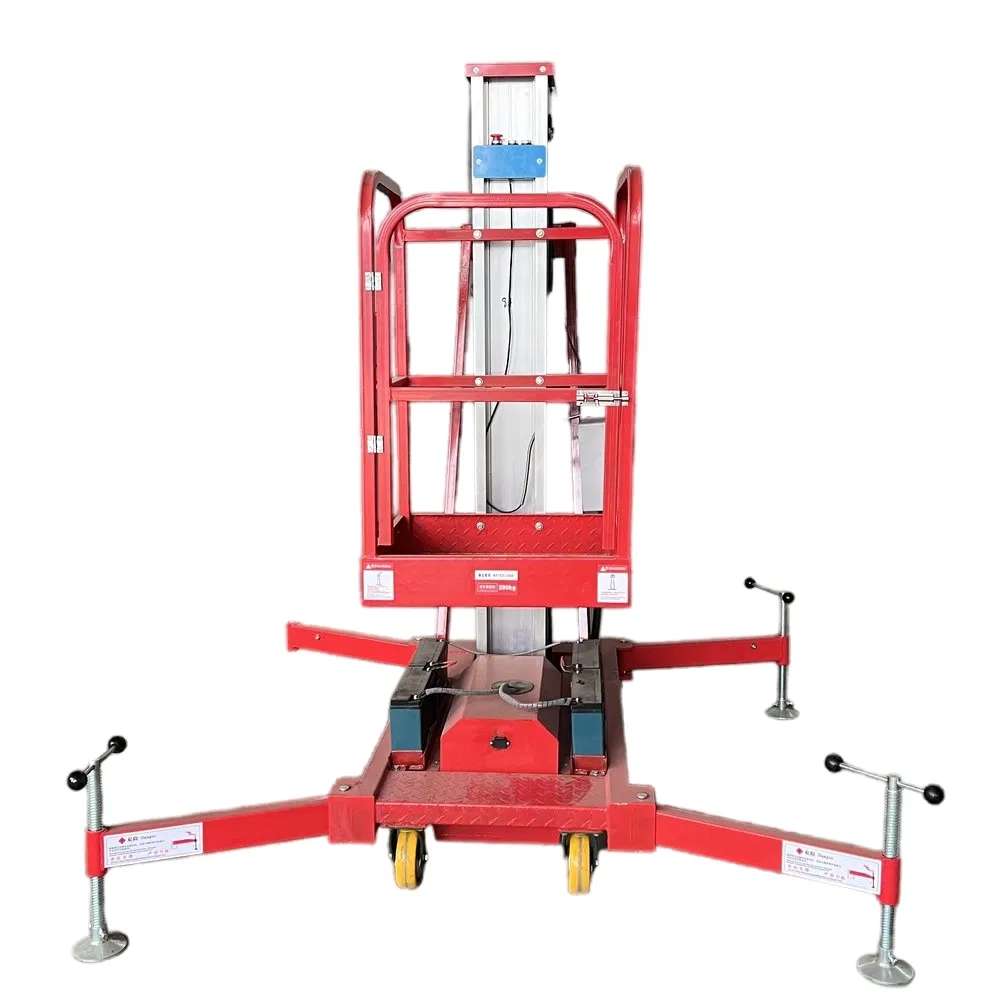

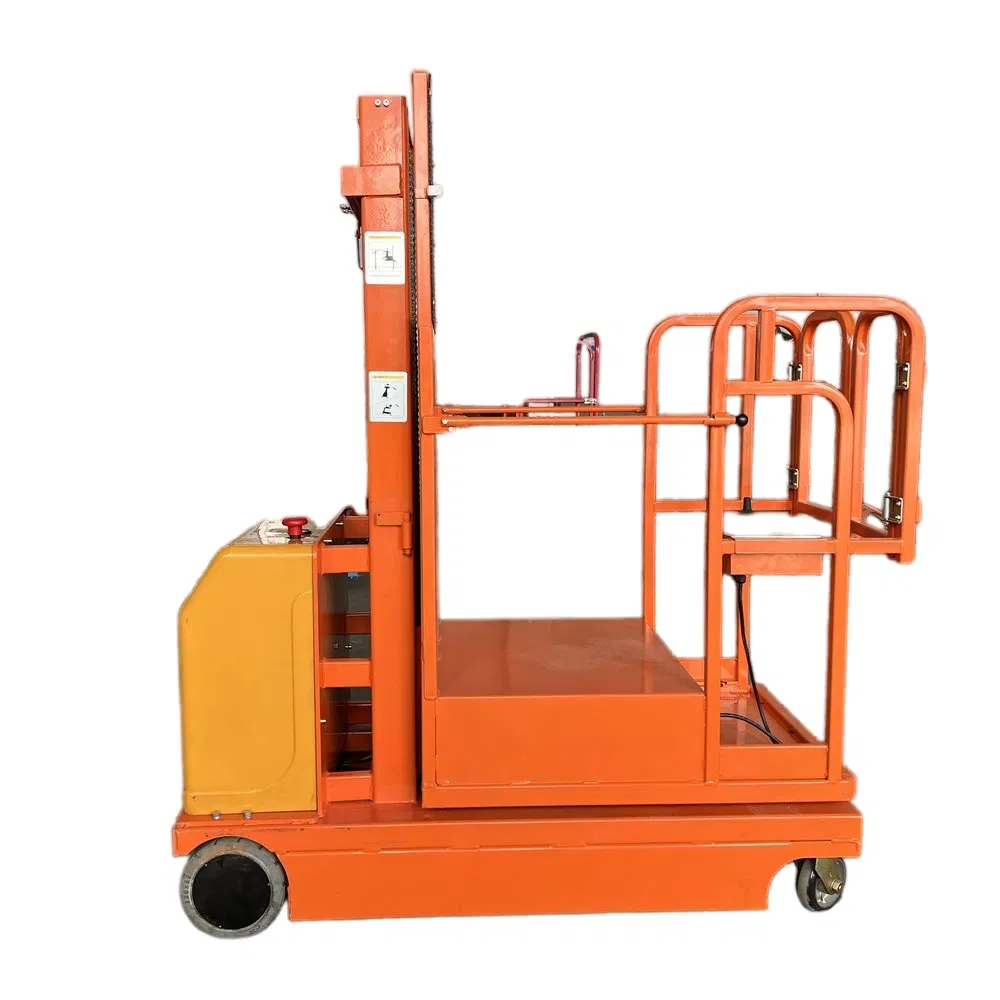

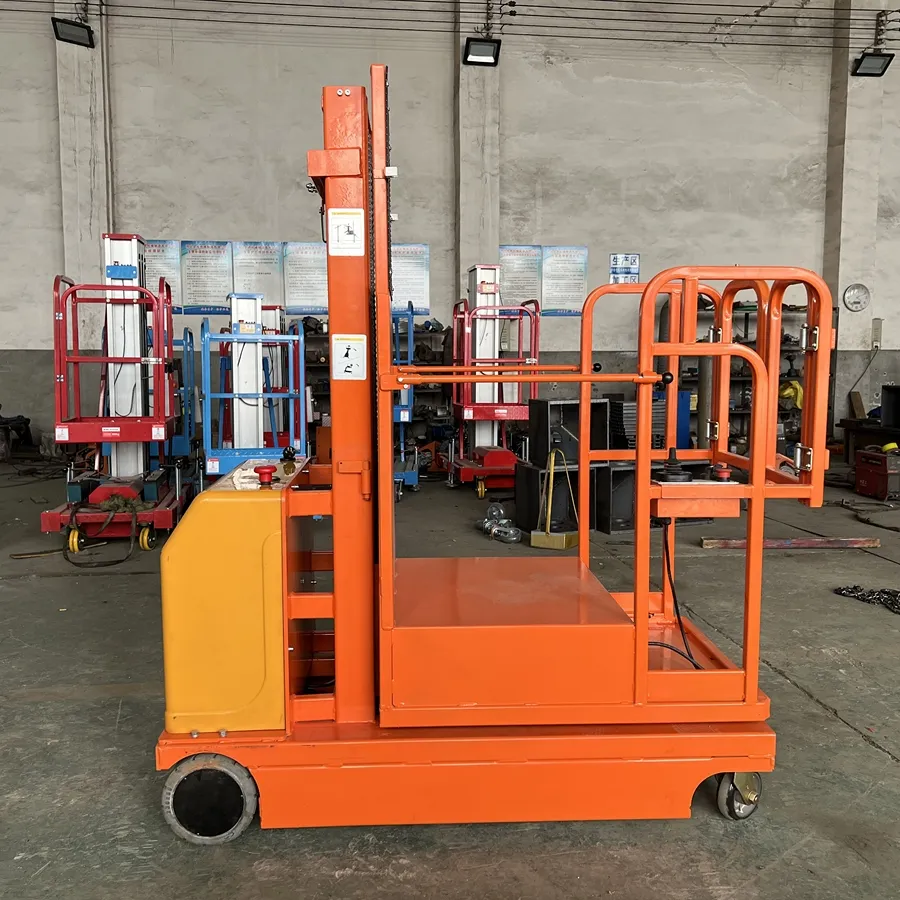

The Electric Order Picker is a high-performance warehouse solution designed to simplify and accelerate order picking tasks. Powered by an efficient electric drive system, it ensures smooth maneuverability, precise control, and reduced operator fatigue. With adjustable platforms, high reach capability, and a compact design, it optimizes storage retrieval in narrow aisles and high-bay racking systems.
Built for durability and easy operation, this order picker enhances productivity and ensures safe handling of goods in logistics, retail, and distribution environments. It reduces physical strain and boosts efficiency with its electric-powered operation and ergonomic controls.
| Model Specifications | FSEP3-2.7 | FSEP3-3.3 | FSEP3-4.0 |
|---|---|---|---|
| Maximum Platform Height (mm) | 2700 | 3300 | 4000 |
| Maximum Machine Height (mm) | 4020 | 4900 | 5310 |
| Ground Clearance (mm) | 40 | 40 | 40 |
| Platform Rated Load (kg) | 300 | 300 | 300 |
| Working Platform Size (mm) | 600x700 | 600x700 | 600x700 |
| Turning Radius (mm) | 1600 | 15-20 | 15-20 |
| Machine Weight (kg) | 430 | 450 | 660 |
| Specifications | 4M Platform | 6M Platform | 8M Platform |
|---|---|---|---|
| Platform Load | 1 Ton | 1 Ton | 1 Ton |
| Machine Weight | 1.3 Tons | 1.55 Tons | 1.75 Tons |
| Lifting Motor Power | 2.2KW | 2.2KW | 2.2KW |
| Travel Motor Power | 1500W/48V*2 | 1500W/48V*2 | 1500W/48V*2 |
| Battery Specs | 48V32Ah*2 | 48V32Ah*2 | 48V32Ah*2 |
| Model | Load 150Kg 4M | Load 150Kg 6M | Load 130Kg 8M | Load 130Kg 10M |
|---|---|---|---|---|
| Table Size | 650*650mm | 650*650mm | 650*650mm | 650*650mm |
| Maximum Height | 4.0m | 6.0m | 8.0m | 10m |
| Vehicle Weight | 340Kg | 360Kg | 380Kg | 420Kg |
