Basic Information
Cab Location
Not Adjustable
Fork Type
Fixed or Movable
Product Application Technology Characteristics
1
Two lifting cylinders placed on both sides improve lateral stability and widen operator field of vision.
2
Gantry column uses imported high-lift special steel for superior durability.
3
Compact structure with low center of gravity provides excellent steering stability.
4
Fork features front-rear tilt function, optimizing loading and stacking efficiency.
5
Large capacity battery ensures strong and lasting power for long shifts.
6
Combines electromagnetic and regenerative braking to extend friction plate lifespan.
7
Reliable multi-way valve hydraulic system controls lifting, movement, and tilting precisely.
8
Rubber damping cushions reduce impact and noise during doorframe movement.
9
Open battery compartment design facilitates heat dissipation and safe maintenance.
Technology Parameter
| Model |
Unit |
CQD-A15 |
CQD-A20 |
| Driving Mode | - | Electric (Battery) | Electric (Battery) |
| Rated Load | kg | 1500 | 2000 |
| Load Center Distance | mm | 500 | 500 |
| Forward Distance | mm | 500 | 500 |
| Wheel Material | - | PU | PU |
| Lifting Height | mm | 1600-5000 | 1600-4500 |
| Overall Length | mm | 2530 | 2530 |
| Overall Width | mm | 1000 | 1000 |
| Turning Radius | mm | 1600 | 1600 |
| Driving Speed (Full/No Load) | km/h | 4.5/5.2 | 4.5/5.2 |
| Battery Capacity | V/Ah | 180 | 180 |

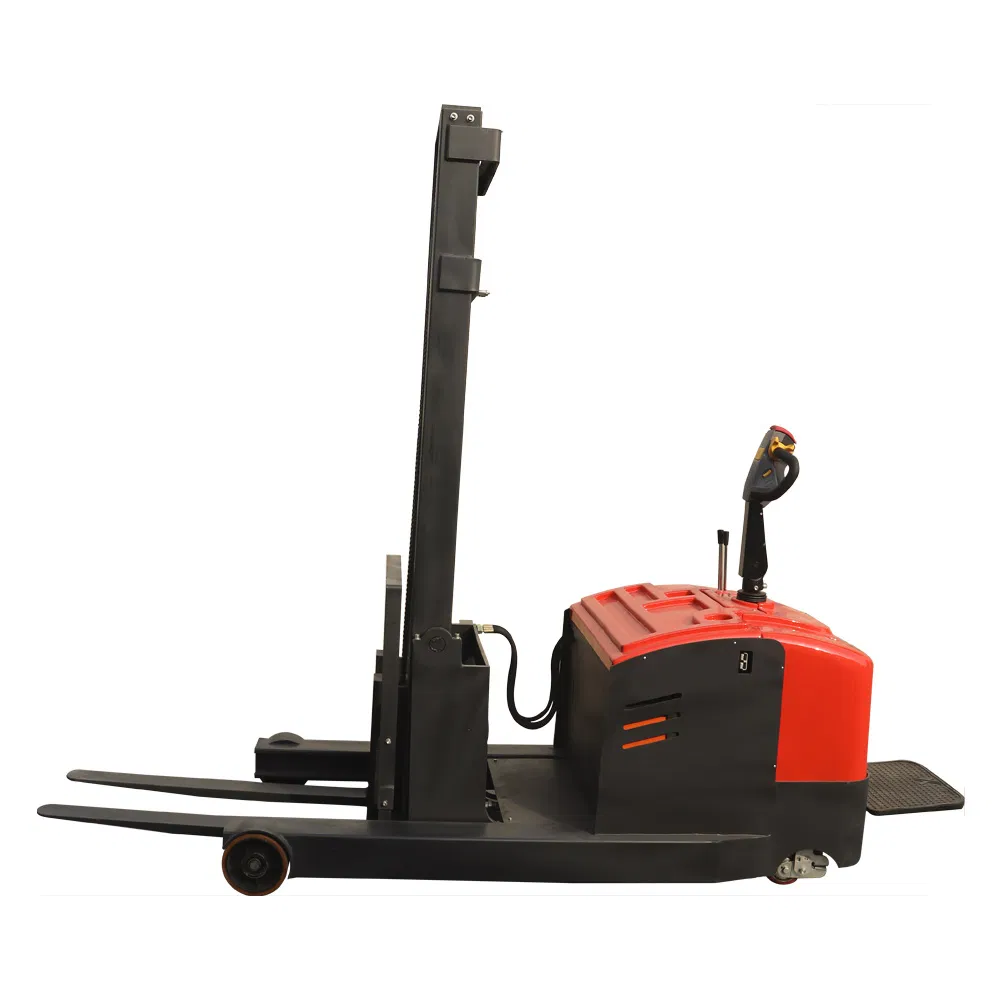

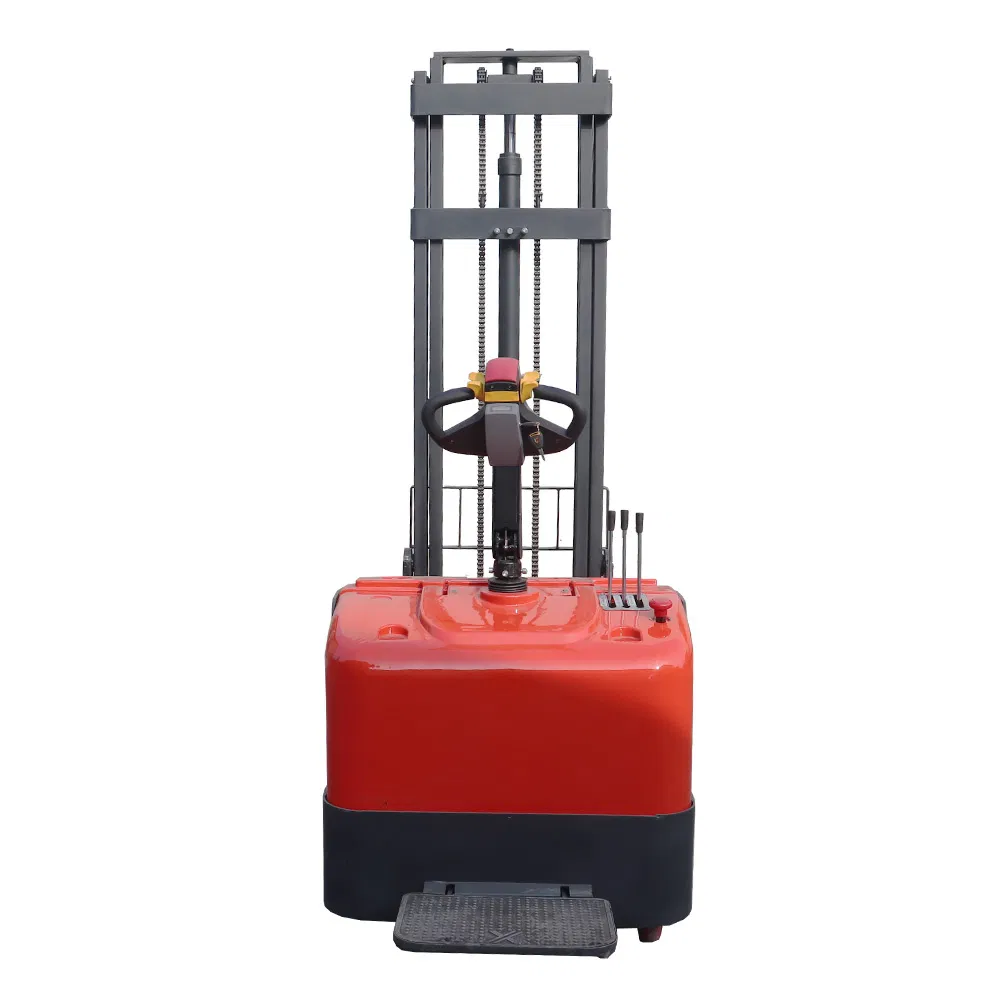

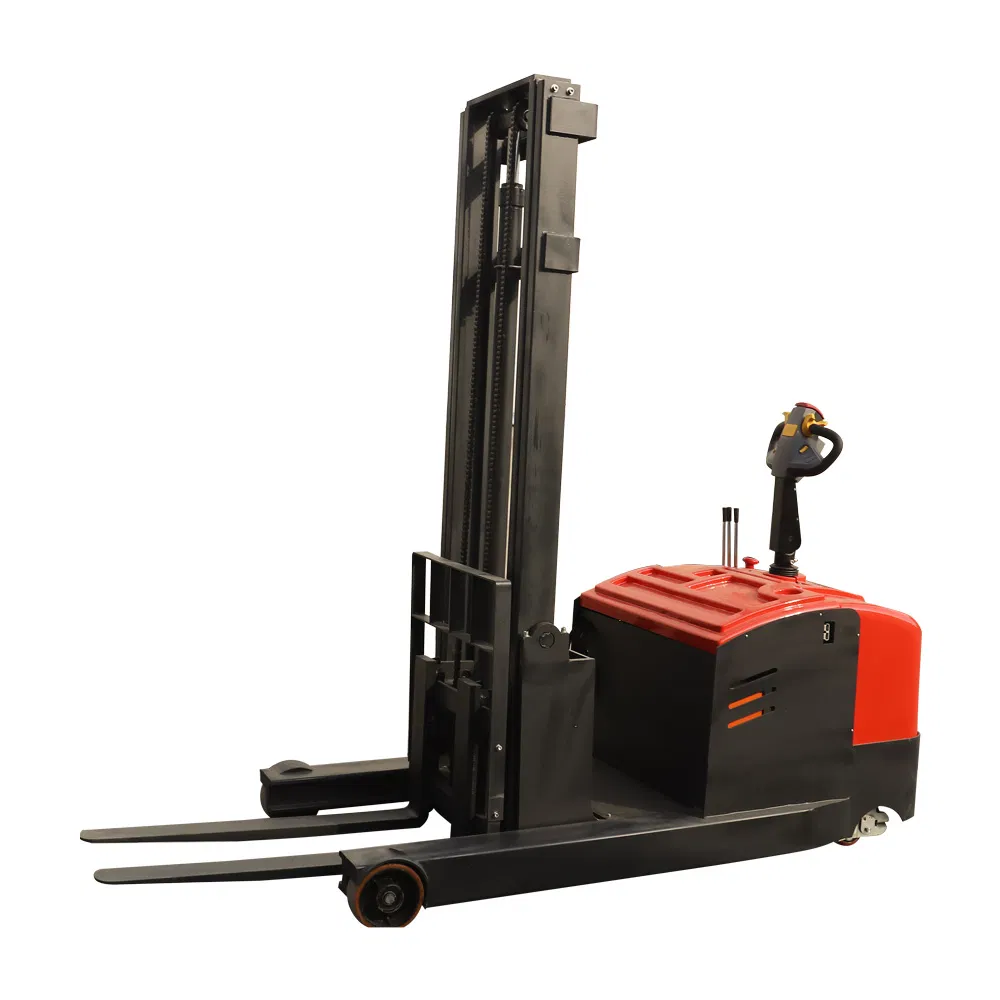

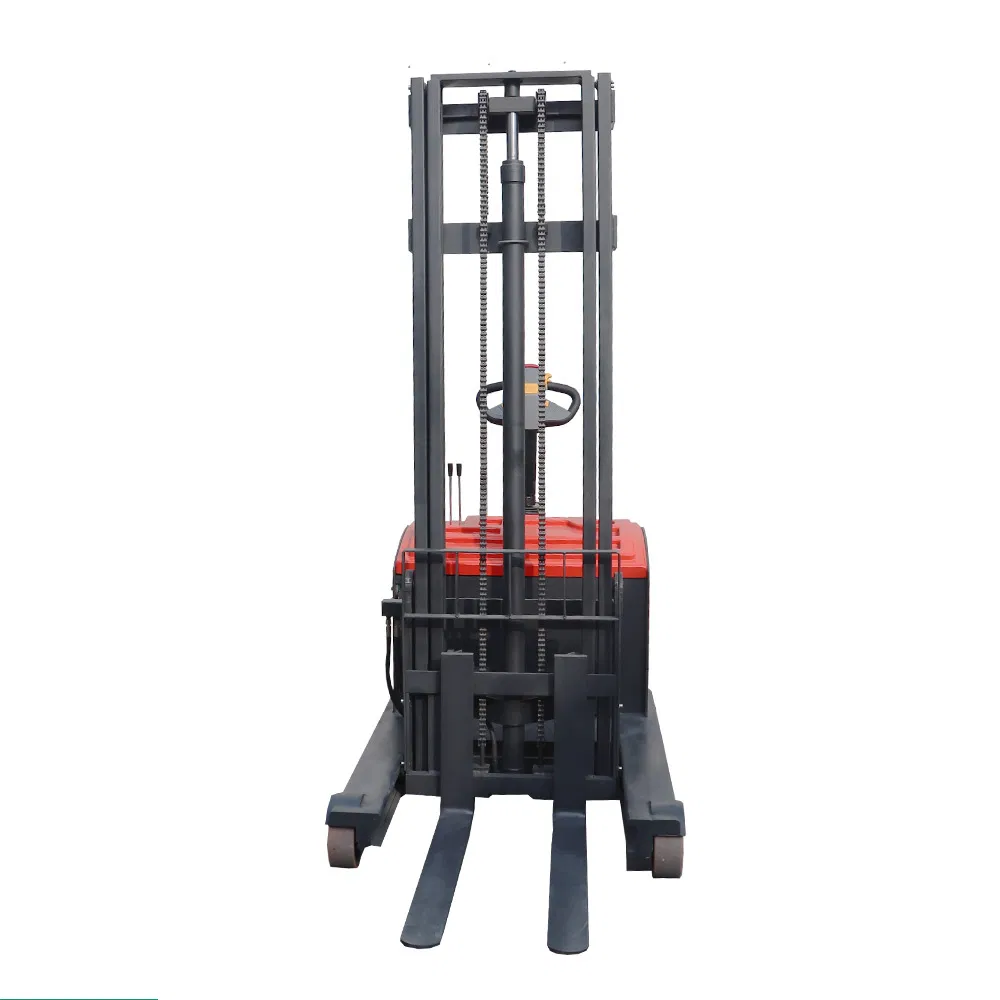

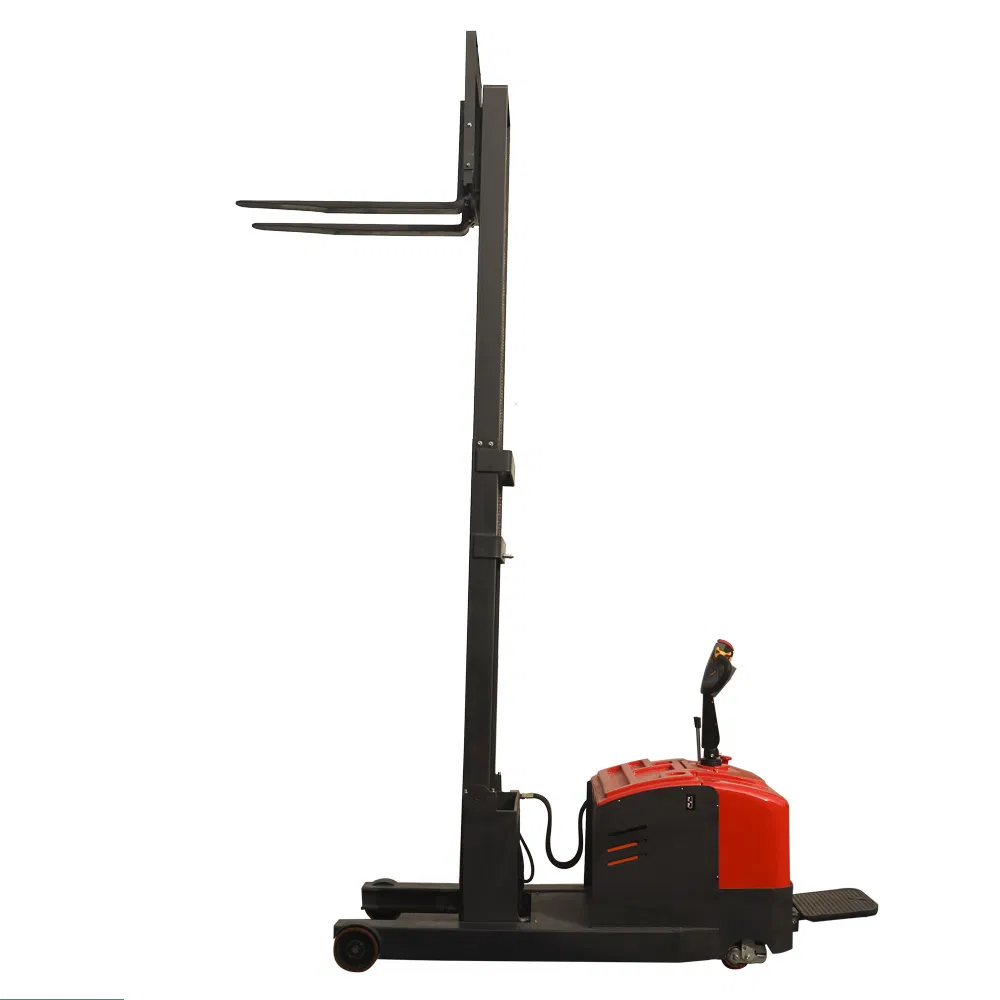

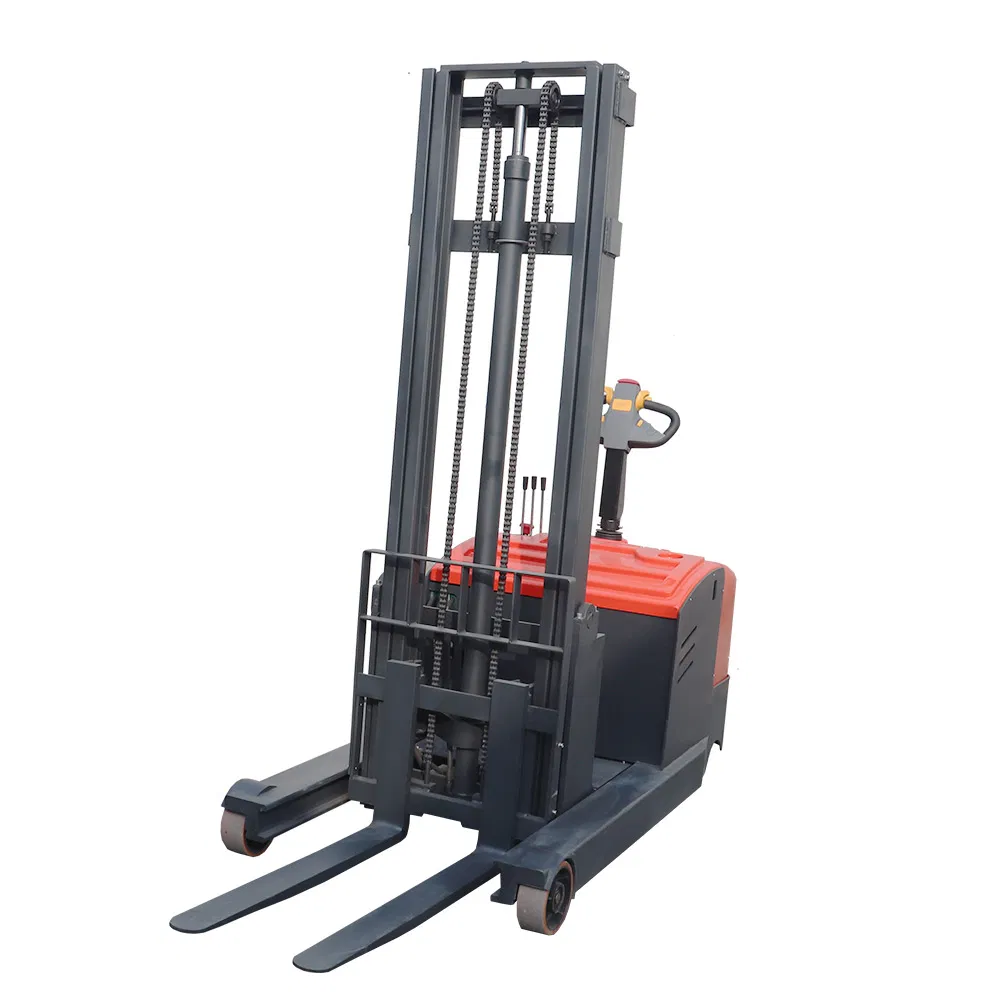

Product Display

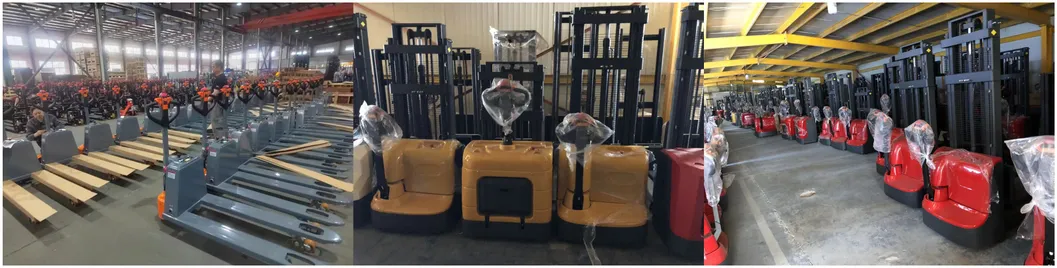

Packaging and Shipping

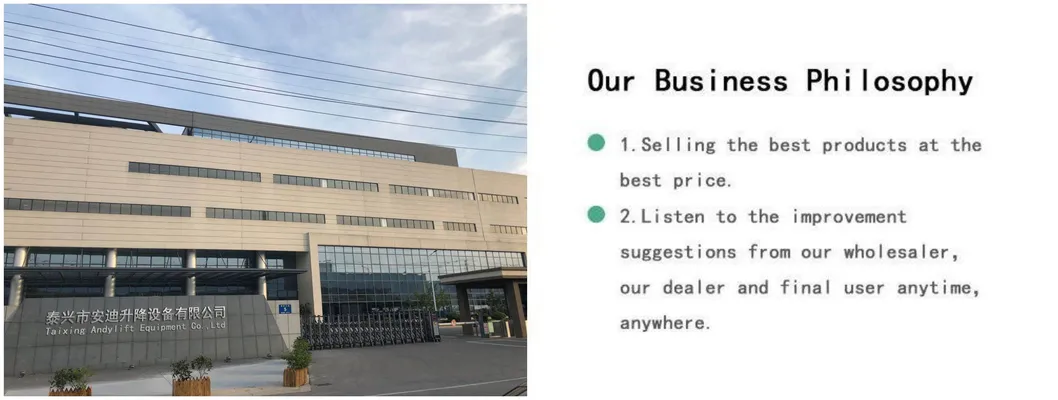

About Manufacturing
Founded in 2009, we possess powerful R&D capabilities and advanced production technology ensuring top-tier product quality. With extensive experience in electric stackers, electric forklifts, and pallet trucks, we provide a comprehensive range of products with stable quality and professional technical support. Our products are exported globally to regions including Australia, Brazil, Germany, England, and America.
- Timely delivery for standard models
- Extensive customization options
- Rapid response to inquiries
- Reliable quality at competitive pricing
Frequently Asked Questions
How long is the warranty period for the reach stacker?
We provide a standard warranty of 12 months or 2000 working hours, whichever comes first.
What are the standard payment terms for orders?
Our standard terms are 30% advance payment via TT, with the remaining 70% balance due before delivery or upon receipt of the original B/L copy.
What is the estimated lead time for delivery?
Lead times are typically 15-20 days for classic forklifts and stackers, and 5-10 days for spare parts.
Can equipment be customized with specific logos or colors?
Yes, we can customize configuration, logos, labels, and colors according to your specific requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 unit for most products. For very small handling equipment, we can discuss requirements on a case-by-case basis.
What safety features are included in the hydraulic system?
The system includes a reliable multi-way valve control for lifting, front-rear movement, and tilting, along with electromagnetic braking for safe operation.
