Product Description

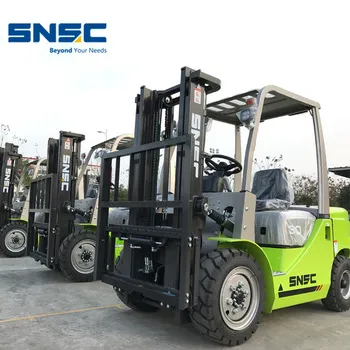

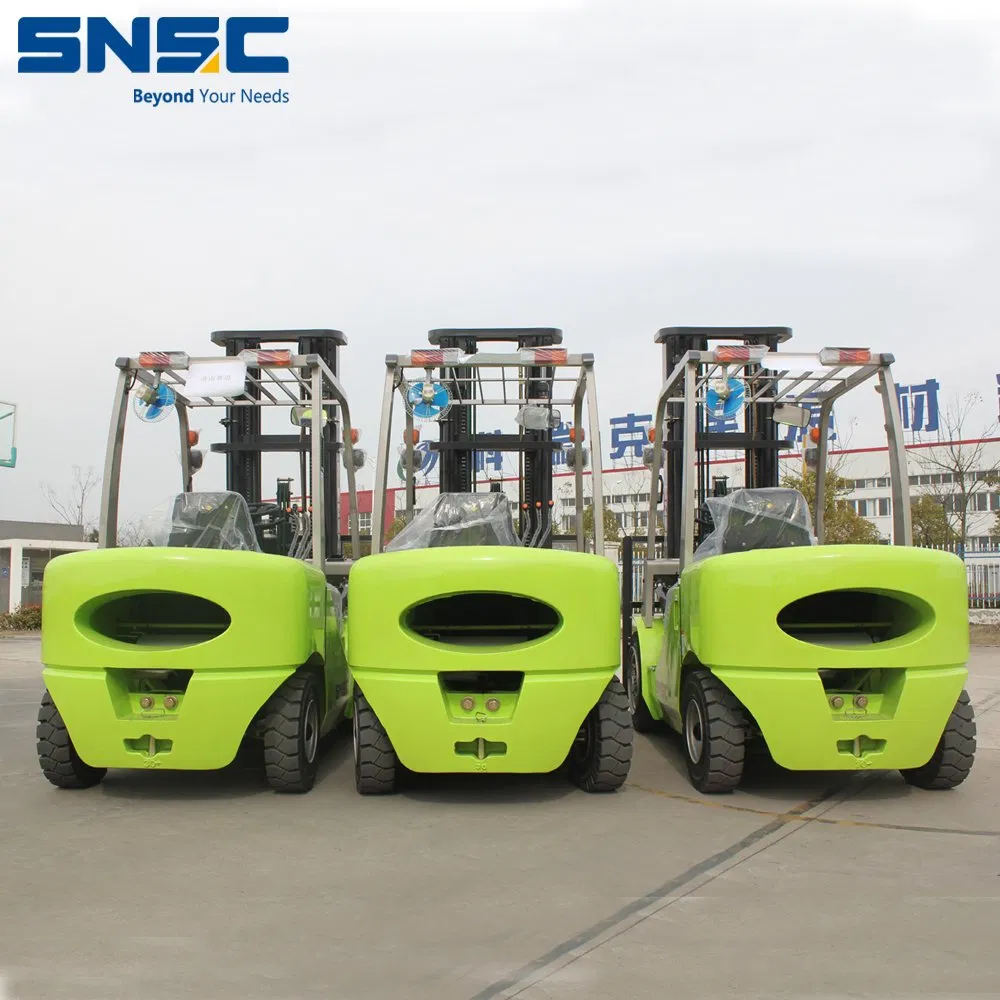

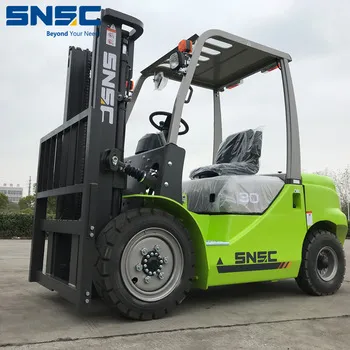

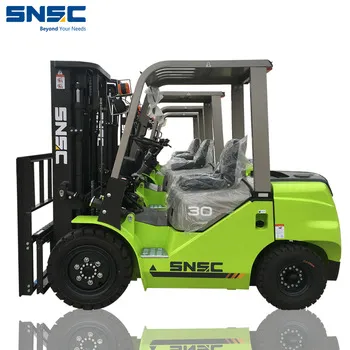

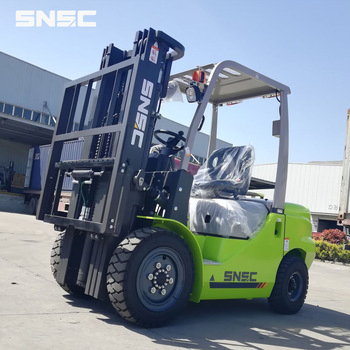

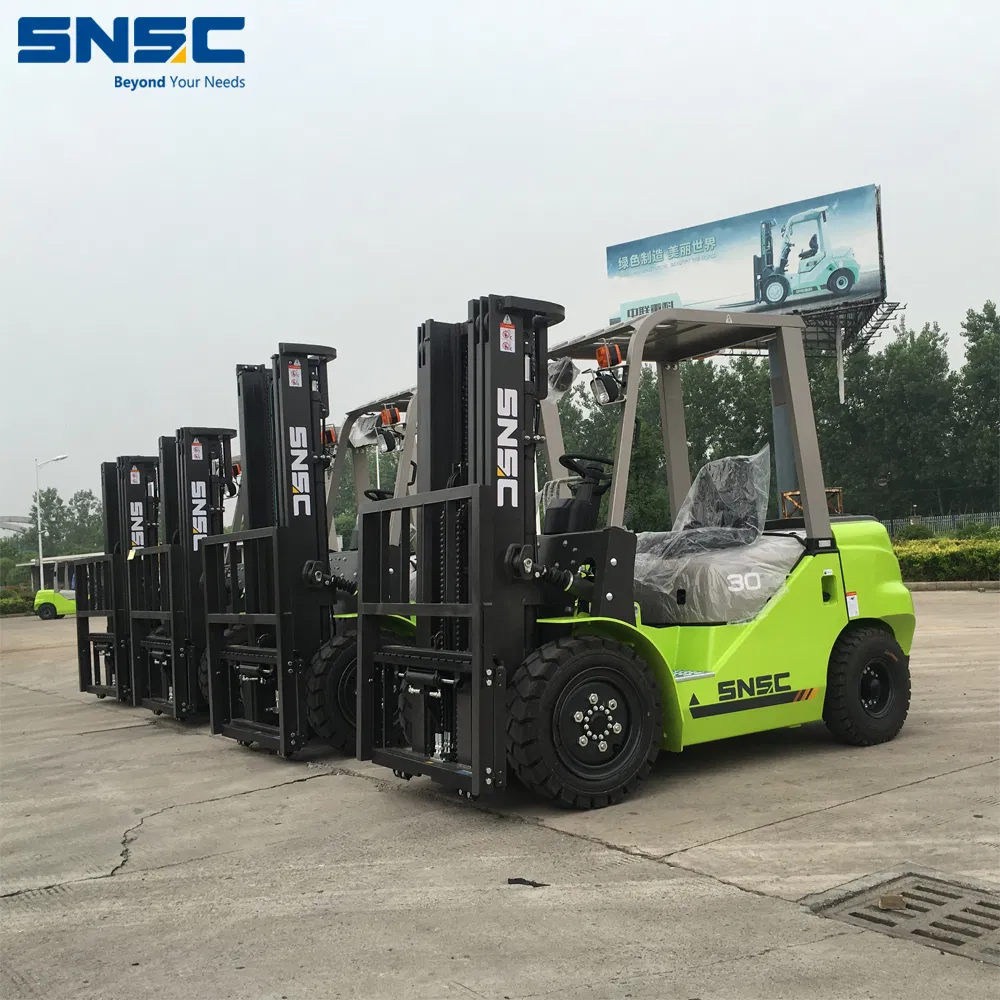

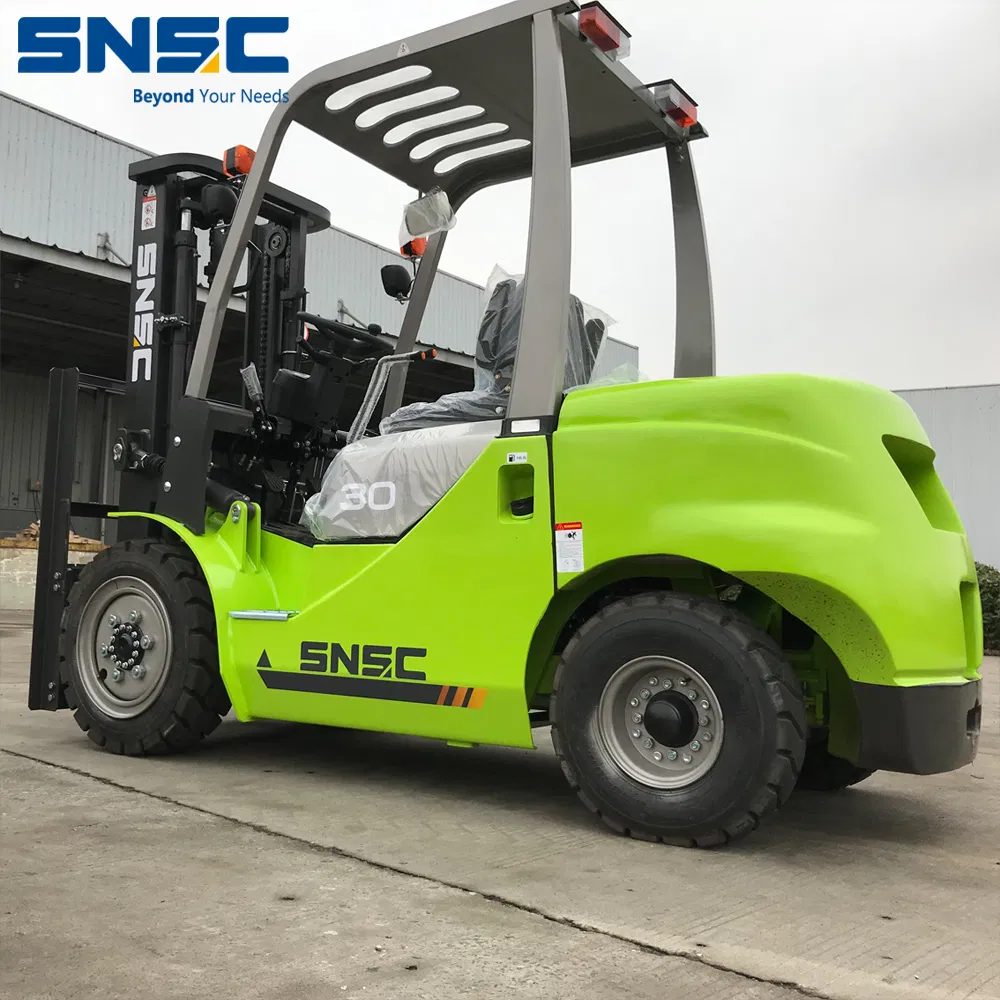

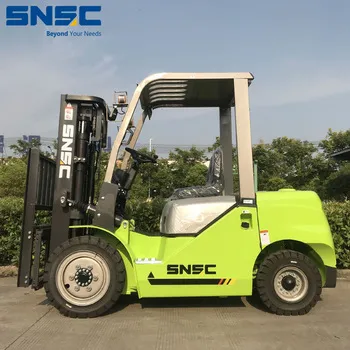

3000kg Diesel Warehouse Explosion Proof Forklift Truck With ISUZU Engine
Standard Configuration & Details
- Standard China Xinchai C490BPG Engine
- Japan SHIMADZU Hydraulic System
- Standard 2-stage 3m mast
- Electric Hydraulic Automatic Transmission (TCM technology)

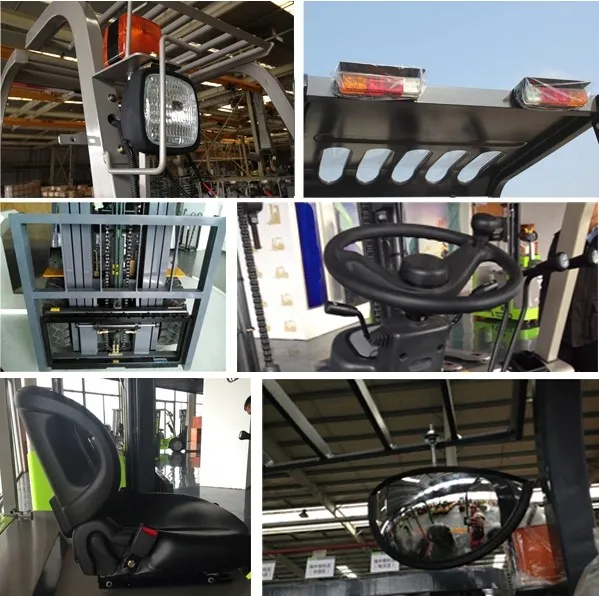

- Full Lamp Protection
- Tilt-cylinder dust-proof protection
- Triangle wide view back mirror
- Waterproof overhead guard
- Backing buzzer and warning light
- Standard Pneumatic Tires
Common Options

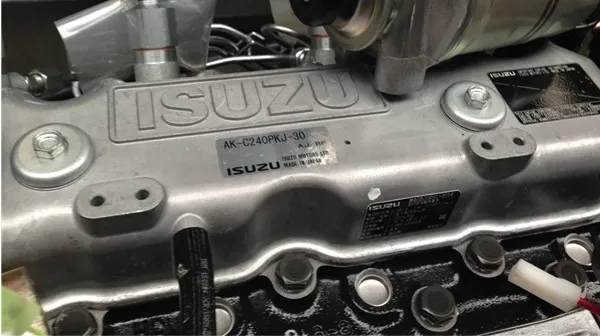

- Japan ISUZU C240 Engine / Japan Mitsubishi S4S Engine
- Solid Tires
- 3m-7m duplex or triplex full free mast

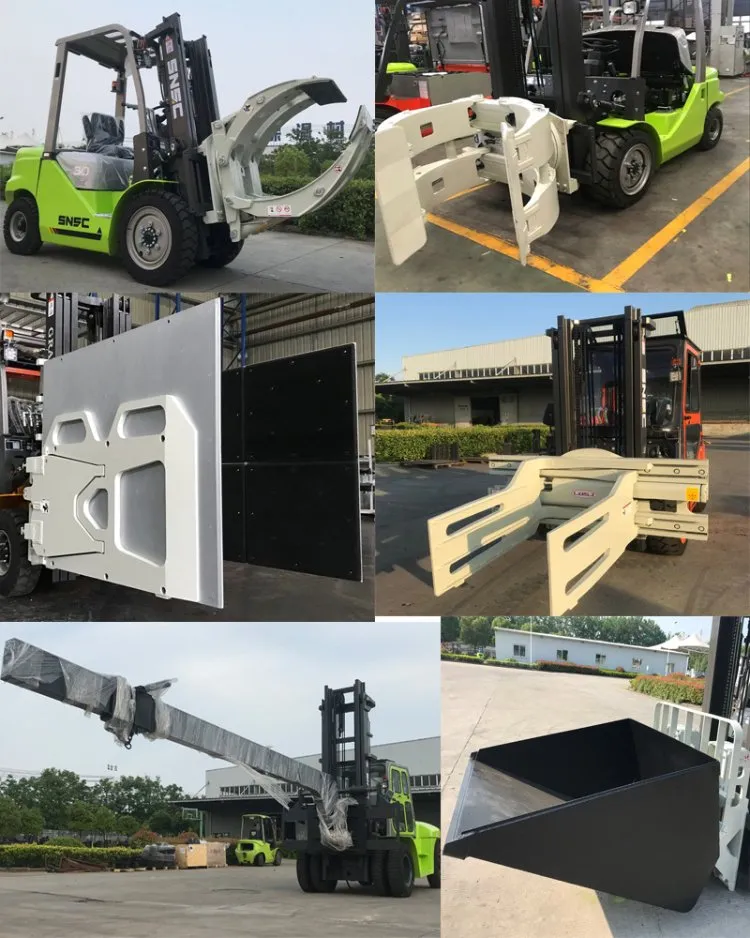

- Attachments: paper roll clamp, block clamp, bale clamp, bucket, etc.
- Fully closed cabin with heater or air conditioner
- Side shifter and fork positioner
- Fully suspension luxury seat
- Double filter and High exhaust
- Customized color options
💡 Customizable Solutions:
We can customize all kinds of diesel forklift attachments according to different working demands, such as block clamps, paper roll clamps, bale clamps, fork positioners, and single-double attachments.
Technical Specifications
| Category |
Specifications |
Unit |
Data (FD30) |
| Features | Power type | - | Diesel |
| Features | Rated load | kg | 3000 |
| Features | Load center | mm | 500 |
| Features | Lifting height | mm | 3000 |
| Features | Free lifting height | mm | 145 |
| Features | Fork size (L*W*T) | mm | 1070*125*45 |
| Features | Mast tilt angle | Deg. | 6/12 |
| Performance | Max. travelling speed (loaded) | km/h | 20 |
| Performance | Max. lifting speed (loaded/empty) | mm/s | 470/520 |
| Performance | Max. climbing ability | % | 20 |
| Dimension | Overall length (without fork) | mm | 2825 |
| Dimension | Overall width | mm | 1230 |
| Dimension | Mast lowered height | mm | 2065 |
| Powertrain | Engine Model | - | XC490BPG |
| Powertrain | Rated power | kw/r.p.m | 39/2650 |
| Powertrain | Fuel tank capacity | L | 70 |
Product Gallery

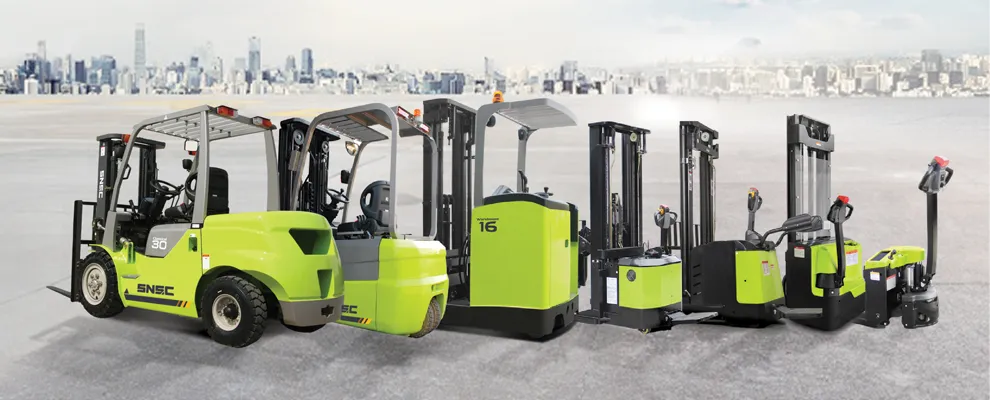

Full Product Catalogue
Diesel Forklift: 1.5 Ton to 10 Ton (FD15 - FD100)
Electric Forklift: 1.5 Ton to 3.5 Ton (FB15 - FB35)
LPG & Gasoline Forklift: 1.5 Ton to 3.5 Ton (FL15 - FL35)
Warehouse Equipment: Electric Pallet Trucks, Stackers, Reach Trucks, and Tractors.
Frequently Asked Questions
What is the rated load capacity of the FD30 model?
The FD30 model has a rated load capacity of 3000kg (3 tons), suitable for most warehouse and industrial applications.
Which engine options are available for this forklift?
The standard engine is the China Xinchai C490BPG. Optional high-performance engines include the Japan ISUZU C240 and Japan Mitsubishi S4S.
What is the maximum lift height for the mast?
While the standard lift height is 3000mm, we offer customizable mast options ranging from 3000mm up to 7000mm in duplex or triplex configurations.
Can this forklift be customized with specific attachments?
Yes, we provide various attachments including paper roll clamps, block clamps, bale clamps, buckets, side shifters, and fork positioners to meet your specific working requirements.
What type of transmission does the forklift use?
The FD30 uses an Electric Hydraulic Automatic Transmission based on TCM technology for smooth and efficient operation.
Are different tire types available?
Yes, the unit comes standard with pneumatic tires, but high-durability solid tires are available as an option for harsh environments.
