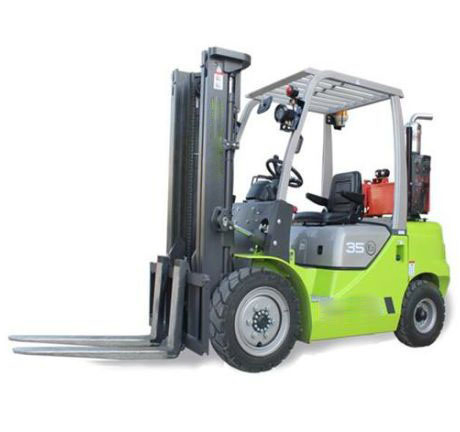

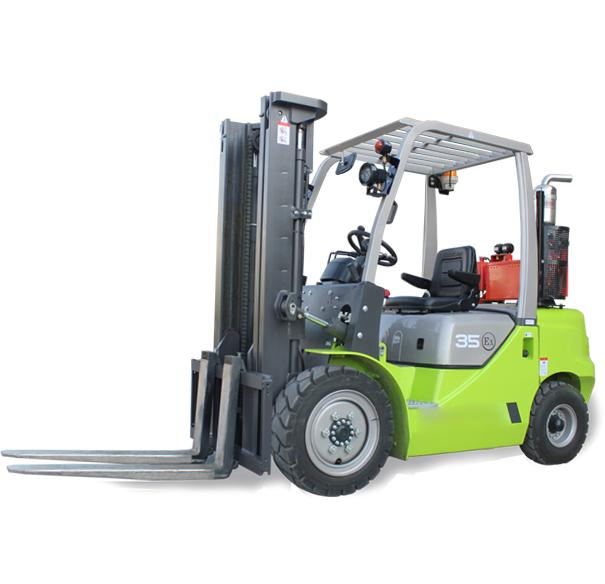

Explosion-Proof Technology: The vehicle is engineered with intrinsically safe components, including a sound alarm and a pneumatic horn for maximum safety in hazardous environments.
Advanced Safety Monitoring: Equipped with a comprehensive temperature and leakage monitoring system. An emergency stop valve and main battery switch are integrated to ensure reliable operation.
High-Visibility Lighting: Features explosion-proof, high-brightness LED components for safe operation in low-light conditions.
Anti-Static & Friction Treatment: Critical parts like forks are treated with stainless steel or conductive anti-wear paint to prevent mechanical friction or static electricity buildup.
Exhaust Treatment: Utilizes a spark arrester and flame extinguishing gas structure, supplemented by an exhaust temperature detection device.
| Characteristics | Unit | FD30 | FD35 |
| Power Source | - | Diesel | Diesel |
| Rated Capacity | kg | 3000 | 3500 |
| Center of Load | mm | 500 | 500 |
| Lifting Height | mm | 3000 | 3000 |
| Free Lifting Height | mm | 145 | 145 |
| Forks (L×W×H) | mm | 1070×125×45 | 1070×125×45 |
| Min. Turning Radius | mm | 2600 | 2600 |
| Max. Traveling Speed (Loaded) | km/h | 20 | 20 |
| Max. Lifting Speed (Loaded) | mm/s | 470/520 | 470/520 |
| Overall Length (without fork) | mm | 3895 | 3895 |
| Overall Width | mm | 1230 | 1230 |
