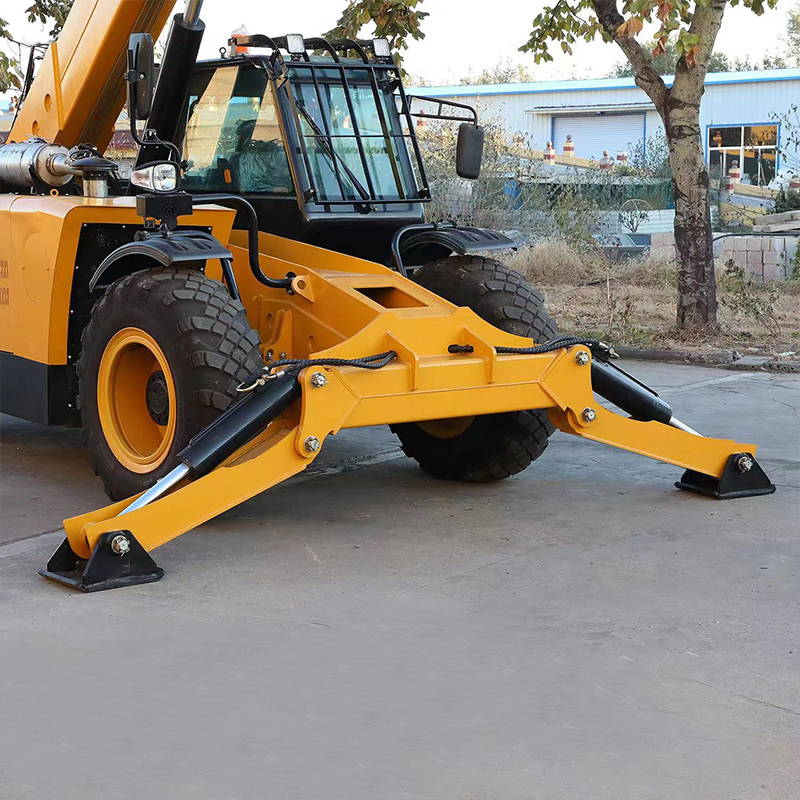

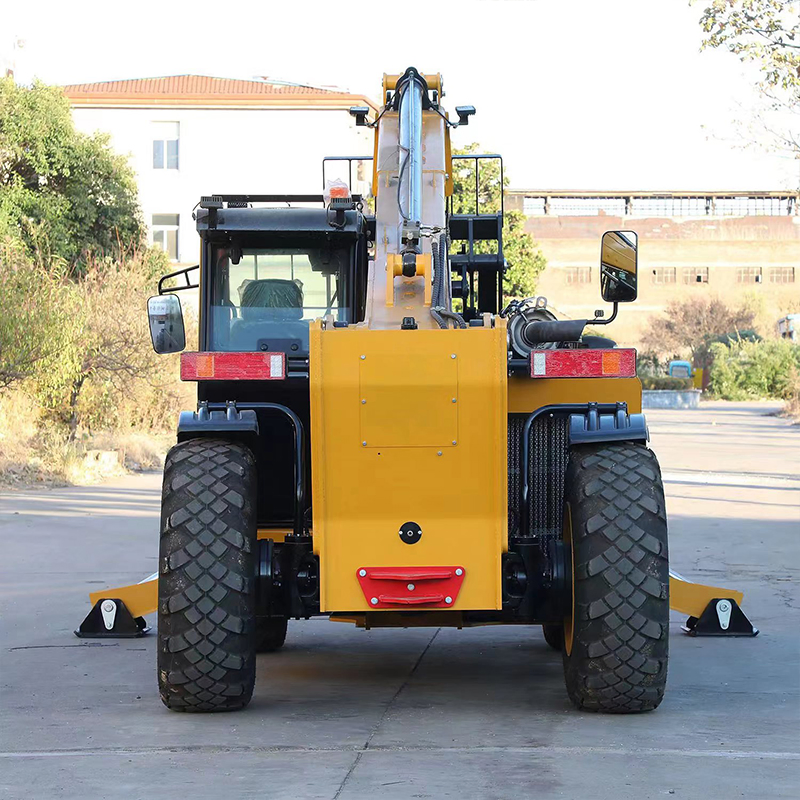

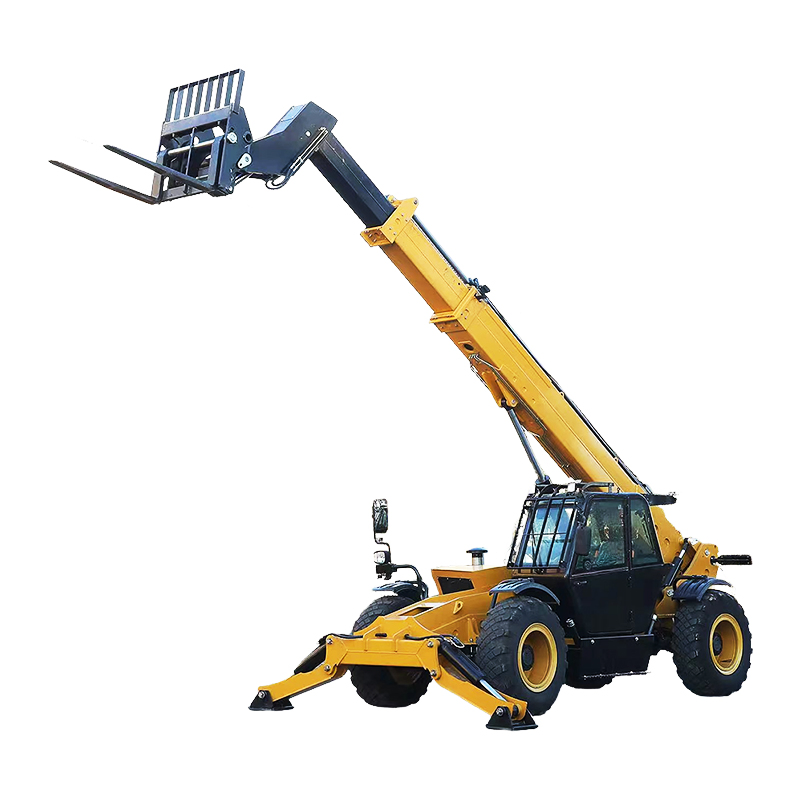

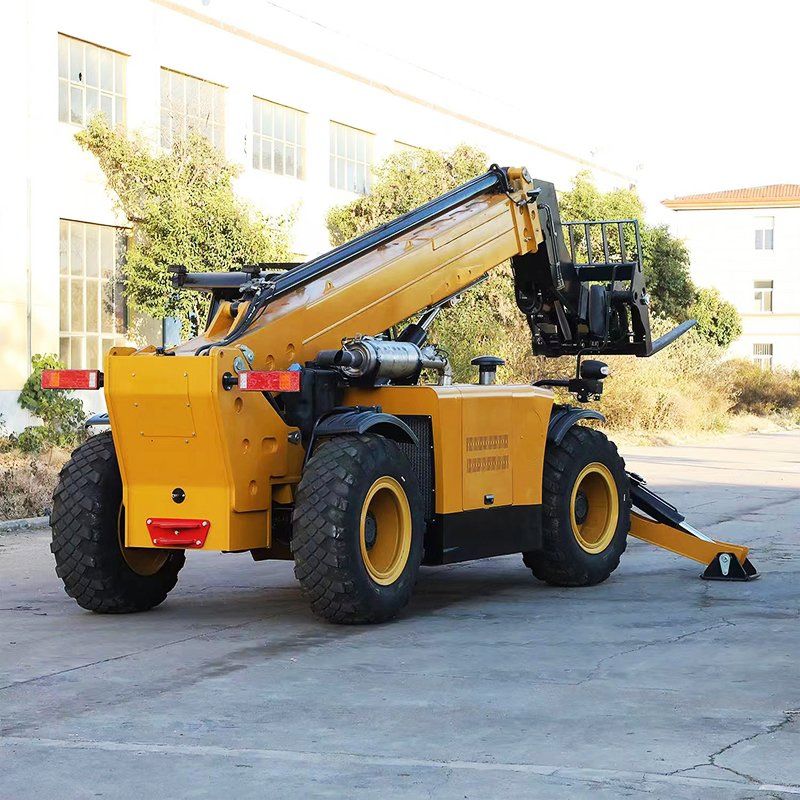

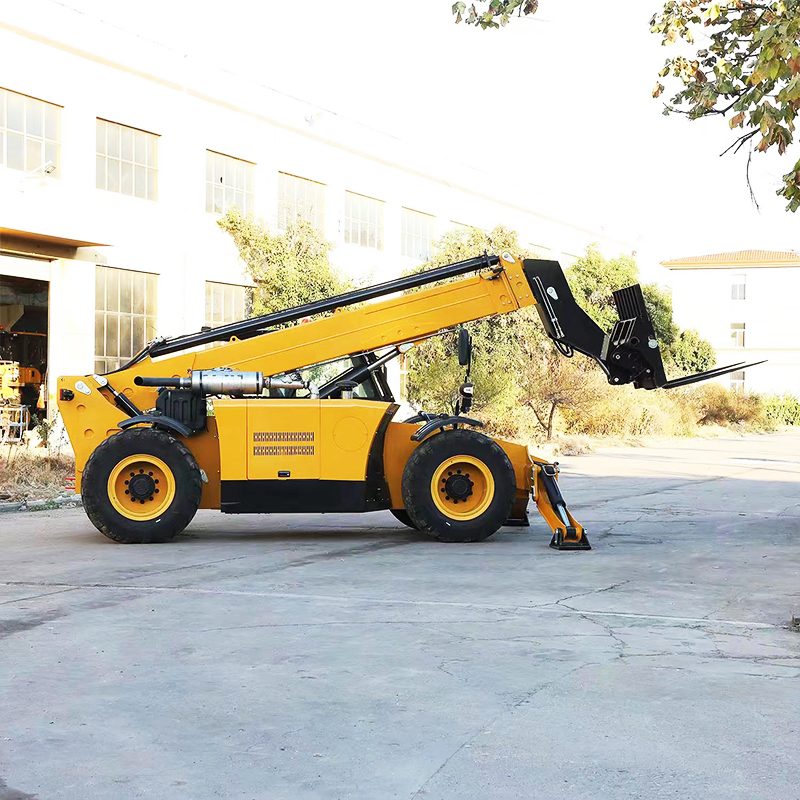

8 Tons Boom Lift EPA Diesel Engine Telescopic Handler

1 / 5

8 Tons Boom Lift EPA Diesel Engine Telescopic Handler

Customization:	Available
After-sales Service:	All Life
Warranty:	One Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Telescopic Handler

Type

Diesel Forklift

Power

Diesel Engine

Load Capacity

5T - 10T

Lift height

>5000mm

Condition

New

Rated Load Capacity

3.5t

Maximum Driving Speed

35km/H

Engine Brand

Yuchai

Vehicle Weight

9.3t

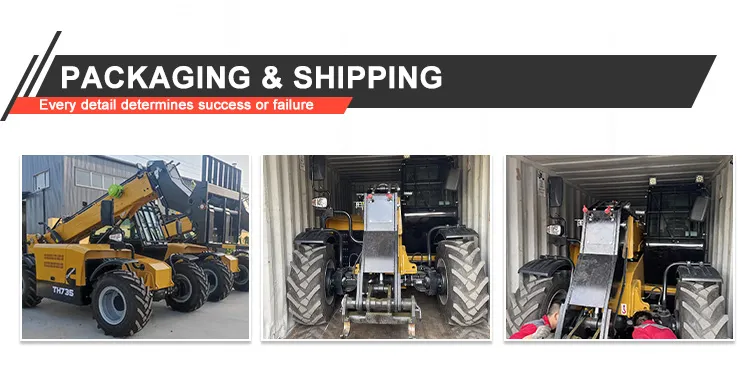

📦 Packaging & Delivery

Package Size

101.00cm * 180.00cm * 280.00cm

Package Gross Weight

4000.000kg

🚂 Product Description

Maximum driving speed of 35Km/h 3 ton telescopic handler forklift

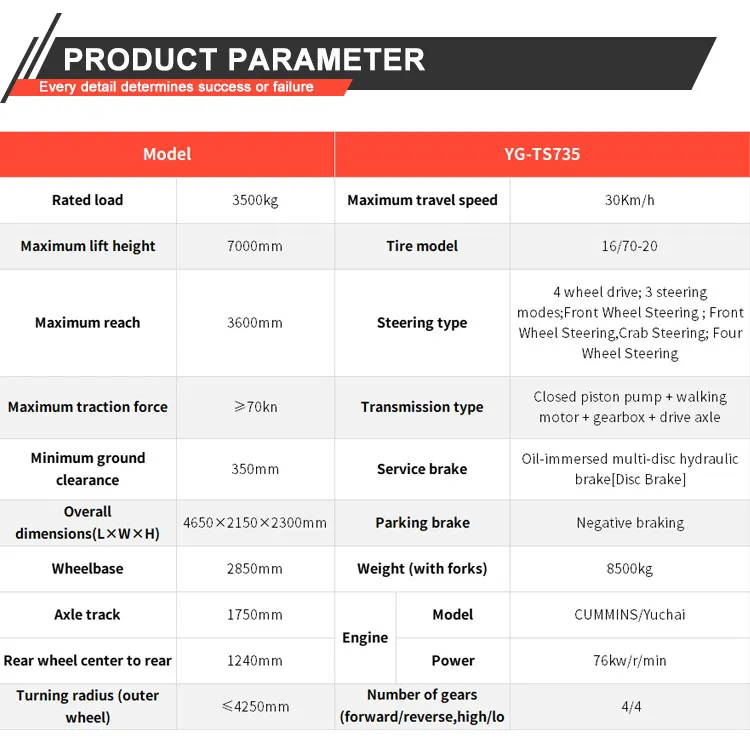

Model		YG-TS735	YG-TS1035	YG-TS1440	YG-TS1850
Rated load		3500kg	3500kg	4000kg	5000kg
Maximum lift height		7000mm	10000mm	13500mm	17550mm
Maximum reach		3600mm	5000mm	8500mm	13080mm
Maximum traction force		≥70kn	≥70kn	≥70kn	≥70kn
Minimum ground clearance		350mm	420mm	420mm	420mm
Overall dimensions(L×W×H)		4650×2150×2300mm	5700×2230×2400mm	7000×2350×2550mm	7500×2430×2550mm

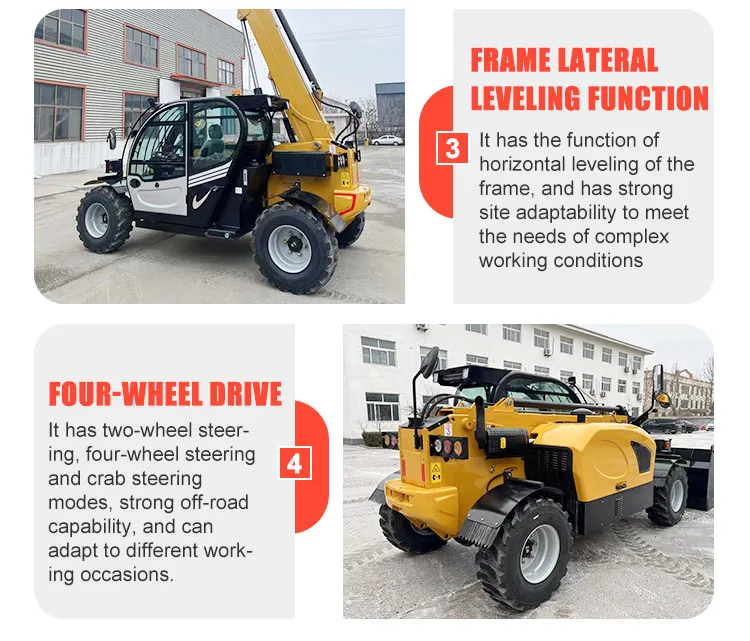

Steering type		4 wheel drive; 3 steering modes (Front Wheel Steering, Crab Steering, Four Wheel Steering)
Transmission type		Closed piston pump + walking motor + gearbox + drive axle
Service brake		Oil-immersed multi-disc hydraulic brake [Disc Brake]
Engine	Model	CUMMINS/Yuchai	Yuchai	Yunnei	CUMMINS 4BTA3.9-C125
Engine	Power	76kw/r/min	77.3kw/r/min	92/2200	91/2200

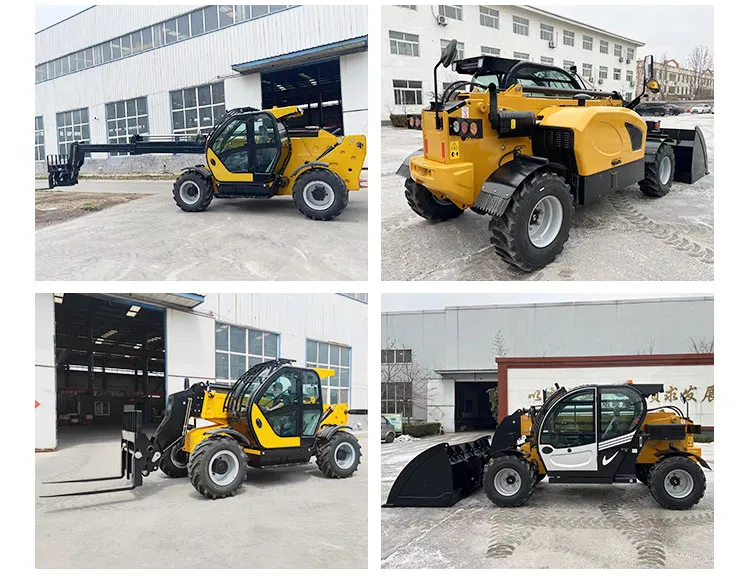

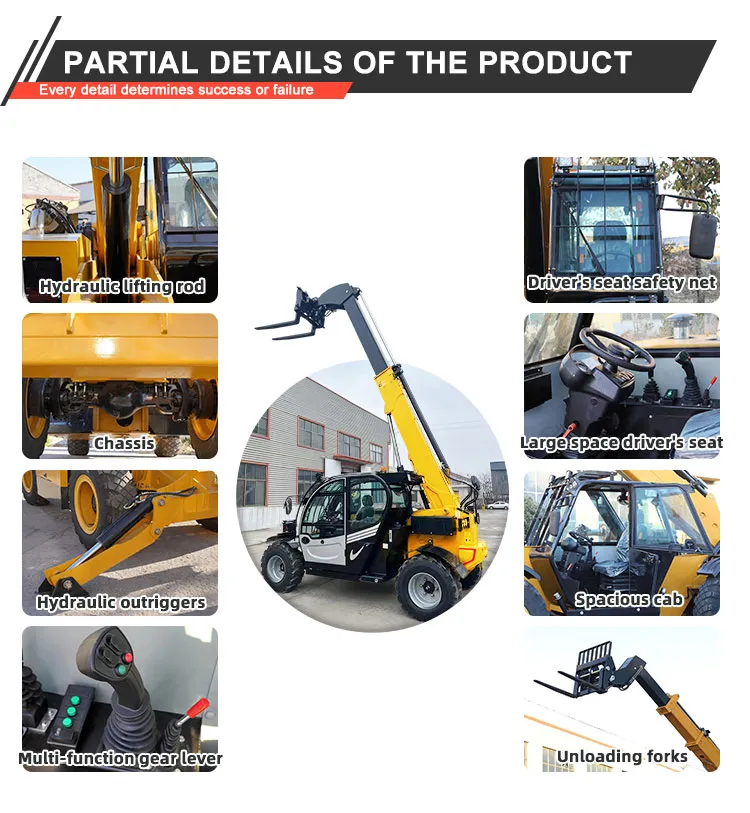

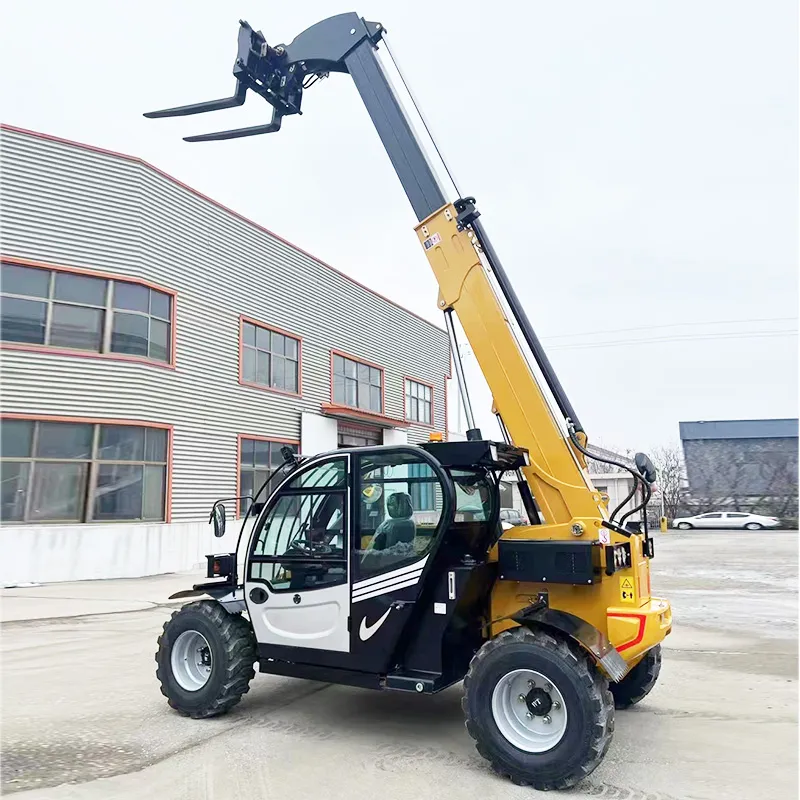

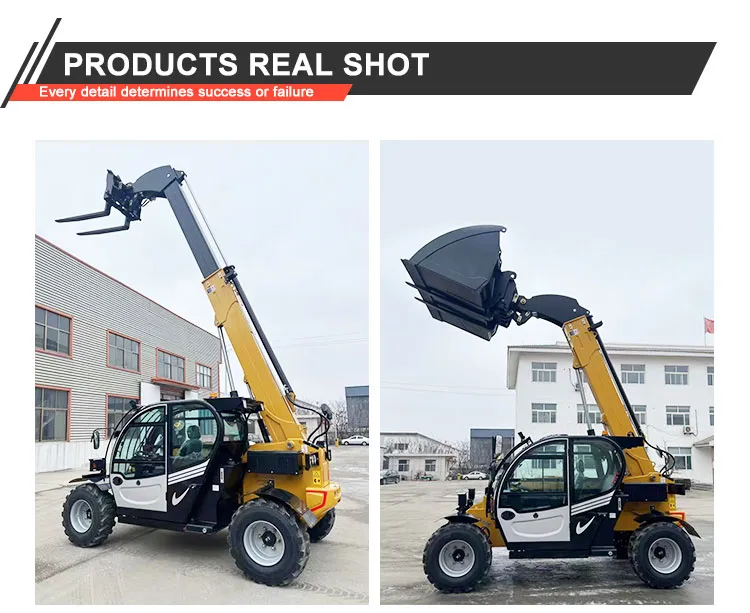

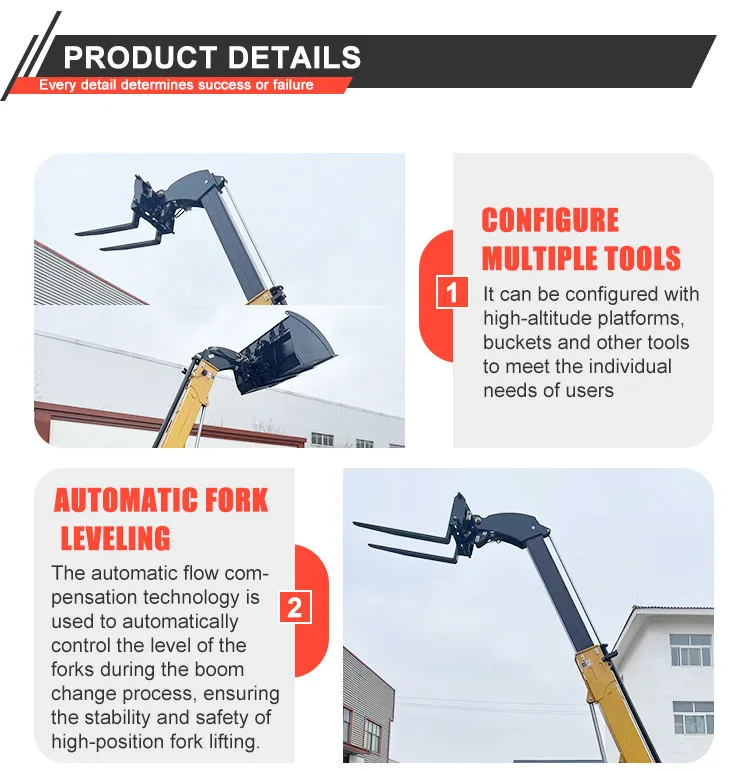

📷 Detailed Photos

🏭 Facility Display

❓ Frequently Asked Questions

What is the maximum lifting height available for these telescopic handlers?

Depending on the specific model, the maximum lifting height ranges from 7,000mm up to 17,550mm (approx. 17.5 meters).

What are the different steering modes supported?

Our telescopic handlers support 4-wheel drive and offer three versatile steering modes: Front Wheel Steering, Crab Steering, and Four Wheel Steering for maximum maneuverability.

Which engine brands are used in these machines?

We use high-performance engines from reputable brands including Cummins, Yuchai, and Yunnei, depending on the model requirements.

What is the rated load capacity of the telescopic handler range?

The rated load capacity starts at 3,500kg and goes up to 5,000kg for the larger models like the YG-TS1850.

What type of braking system is installed?

The machines are equipped with an oil-immersed multi-disc hydraulic service brake (disc brake) and negative braking for the parking brake to ensure maximum safety.

Can the cabin be adjusted?

Yes, the cabin location is adjustable to provide the operator with the best visibility and comfort during operation.
