300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
1 / 5
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker
300kgs Warehouse Picking up Electric Aerial Order Picker

300kgs Warehouse Picking up Electric Aerial Order Picker

Customization: Available
After-sales Service: One Year Not Include The Quick-Wear Parts
Warranty: One Year Not Include The Quick-Wear Parts
Send Inquiry

Product Description

Basic Specifications

Model NO.
GOPZ202
Application
Workshop, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
300kg
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Certification
CE, ISO 9001
Origin
China
HS Code
84281090

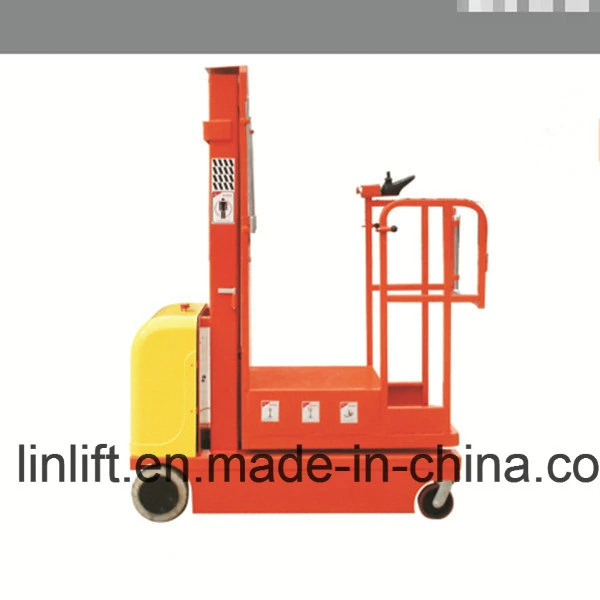

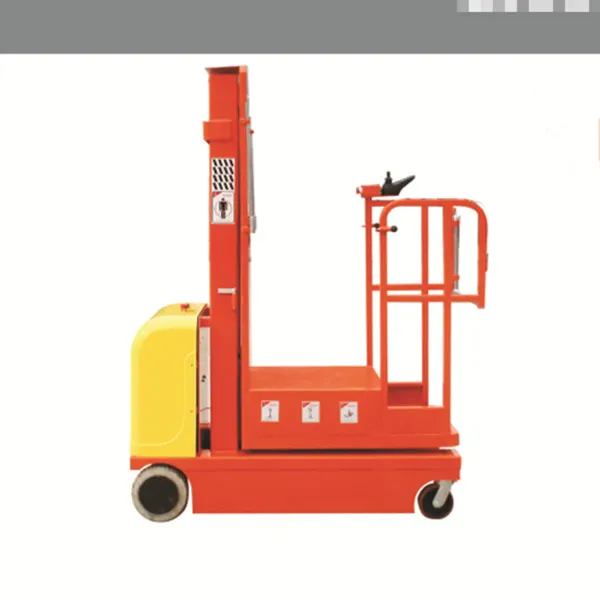

300KGS Electric Aerial Order Picker (Lifting Height: 3m - 4.5m)

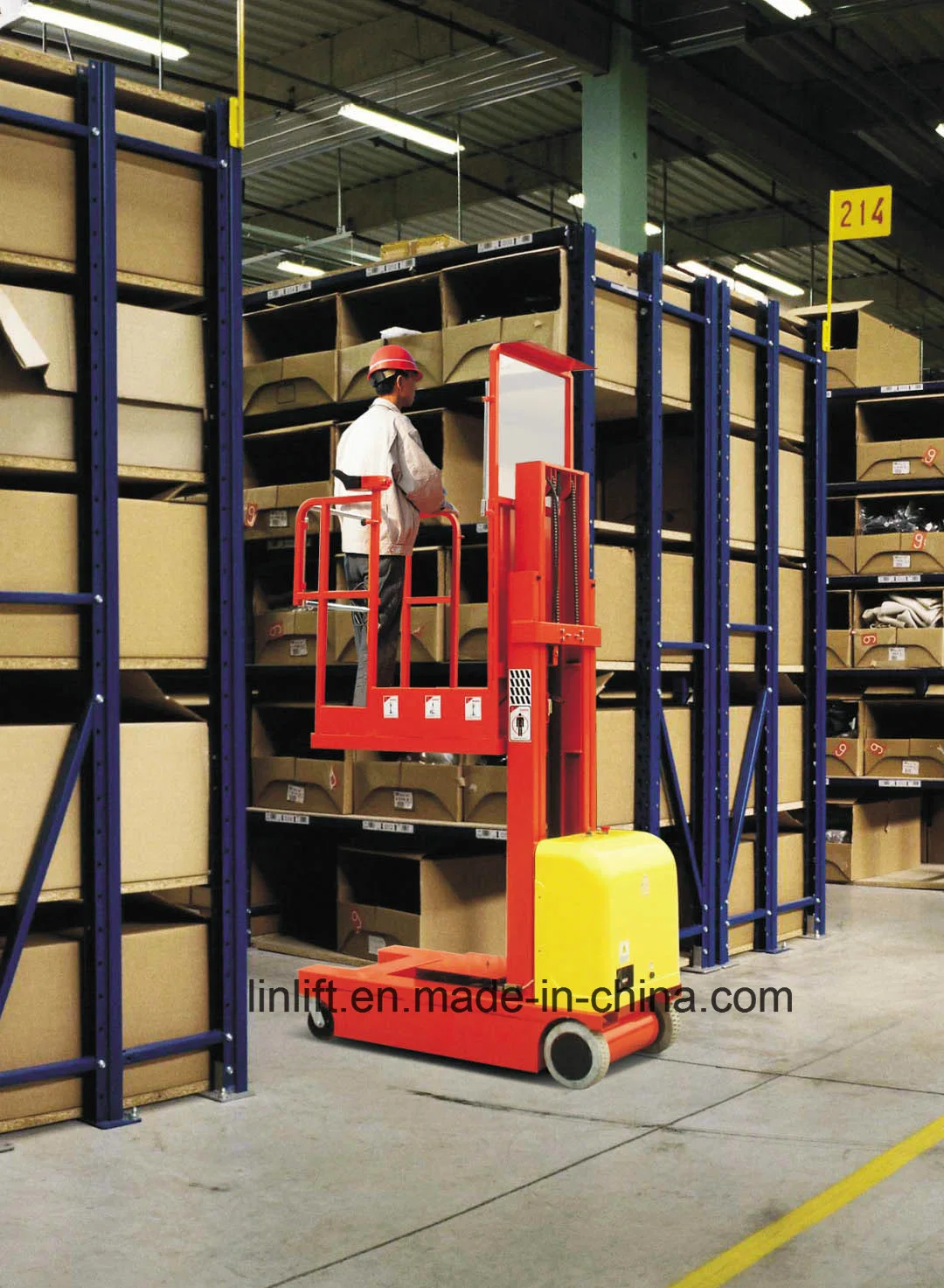

This electric order picker is primarily designed for use in warehouses, workshops, supermarket aisles, stations, and other confined or narrow spaces.

Technical Specifications

Machine specifications GOPZ202 GOPZ302 GOPZ3.502
Weight400KG574KG588KG
Overall height1.42m1.93m2.15m
Overall width0.7m
Gradeability30%
Max Drive Speed (Stowed)4Km/h
Electrical specifications
Batteries2-12V/120Ah
Integrated charger24V/15A
Lifting motor24VDC/1.5KW
Platform Data
S.W.L300KG
Platform size0.95*0.64m
Working height4m5m5.5m
Platform floor height2m3m3.5m

Standard Equipment

Proportional controls
Low voltage alarm
Can Bus Technology
Battery charge indicator
Emergency down button
Charger protection
Safety brackets
Emergency stop button
Overloading limited
Controller temperature protection
300kgs Warehouse Picking up Electric Aerial Order Picker

Frequently Asked Questions

1. What is the maximum carrying capacity of this order picker?
The GOPZ series has a Safe Working Load (S.W.L) of 300kg across all models.
2. What are the available working heights for these models?
The working height ranges from 4m (GOPZ202) and 5m (GOPZ302) up to 5.5m (GOPZ3.502).
3. Can this equipment operate on slopes?
Yes, it features a gradeability of 30% and is designed to handle maximum slopes of 1.5-3° depending on the operation mode.
4. What type of power source does it use?
It is powered by a DC battery system consisting of two 12V/120Ah batteries with an integrated 24V/15A charger.
5. Is it suitable for narrow supermarket aisles?
Yes, with an overall width of only 0.7m, it is specifically designed for narrow spaces and tight environments.
6. What safety features are included as standard?
Standard safety equipment includes an emergency stop button, emergency down button, overloading limits, low voltage alarm, and charger protection.
