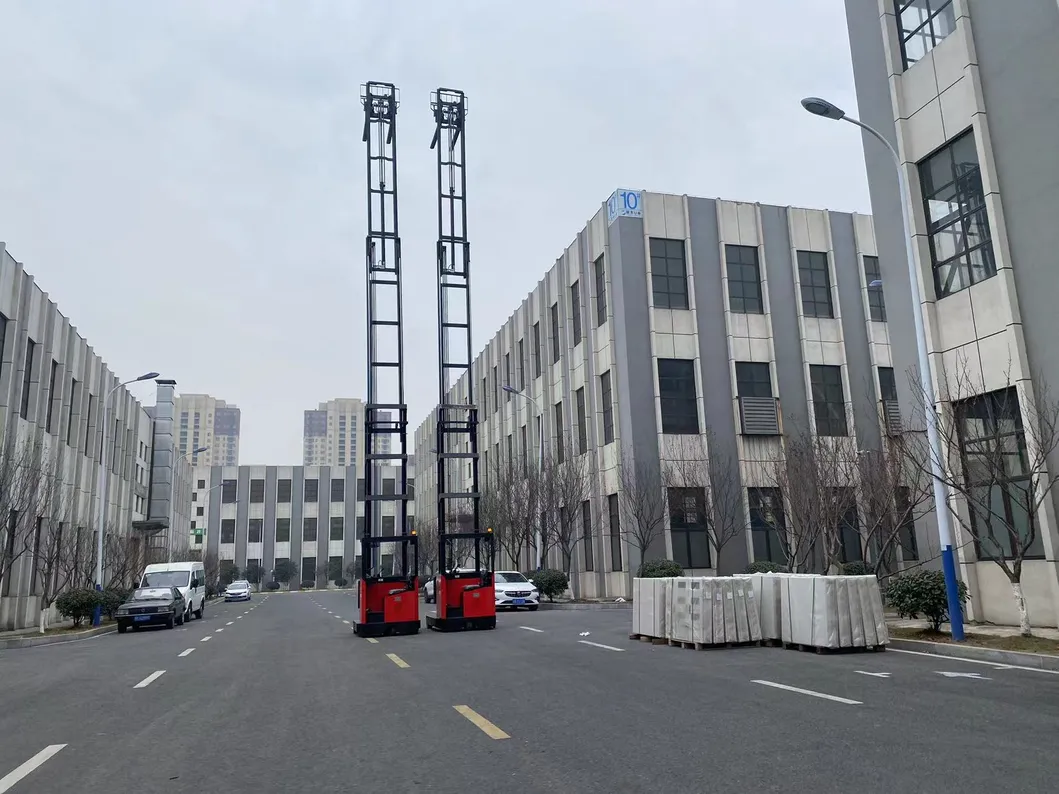

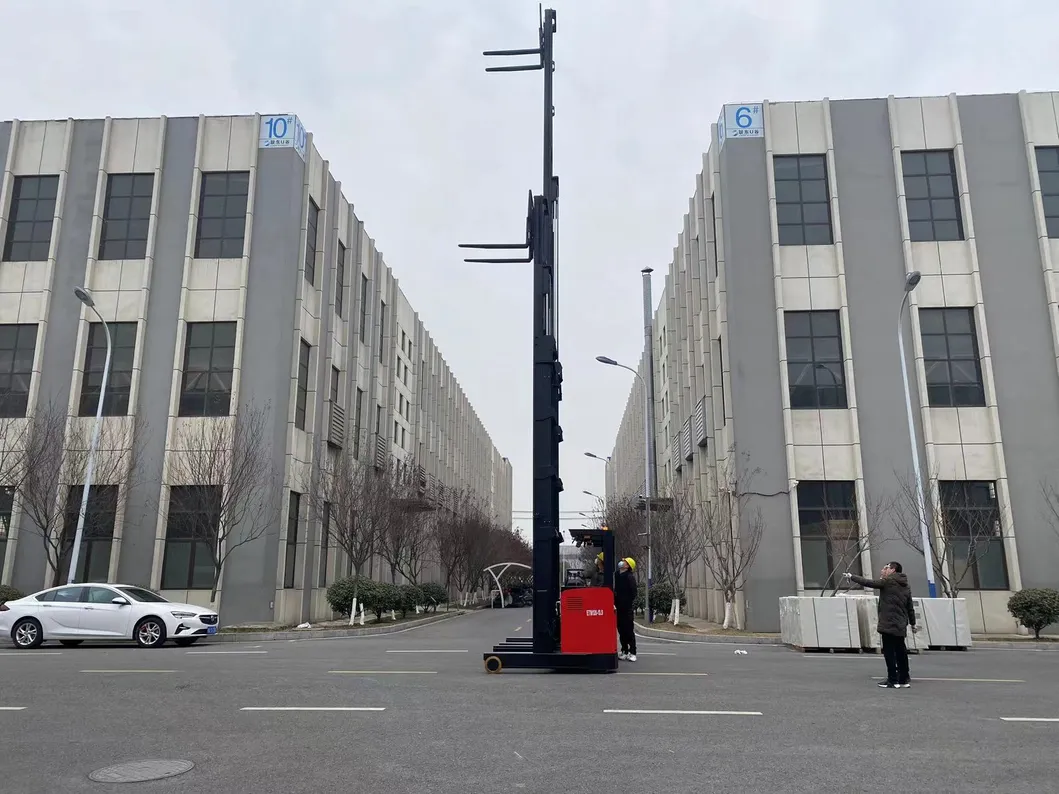

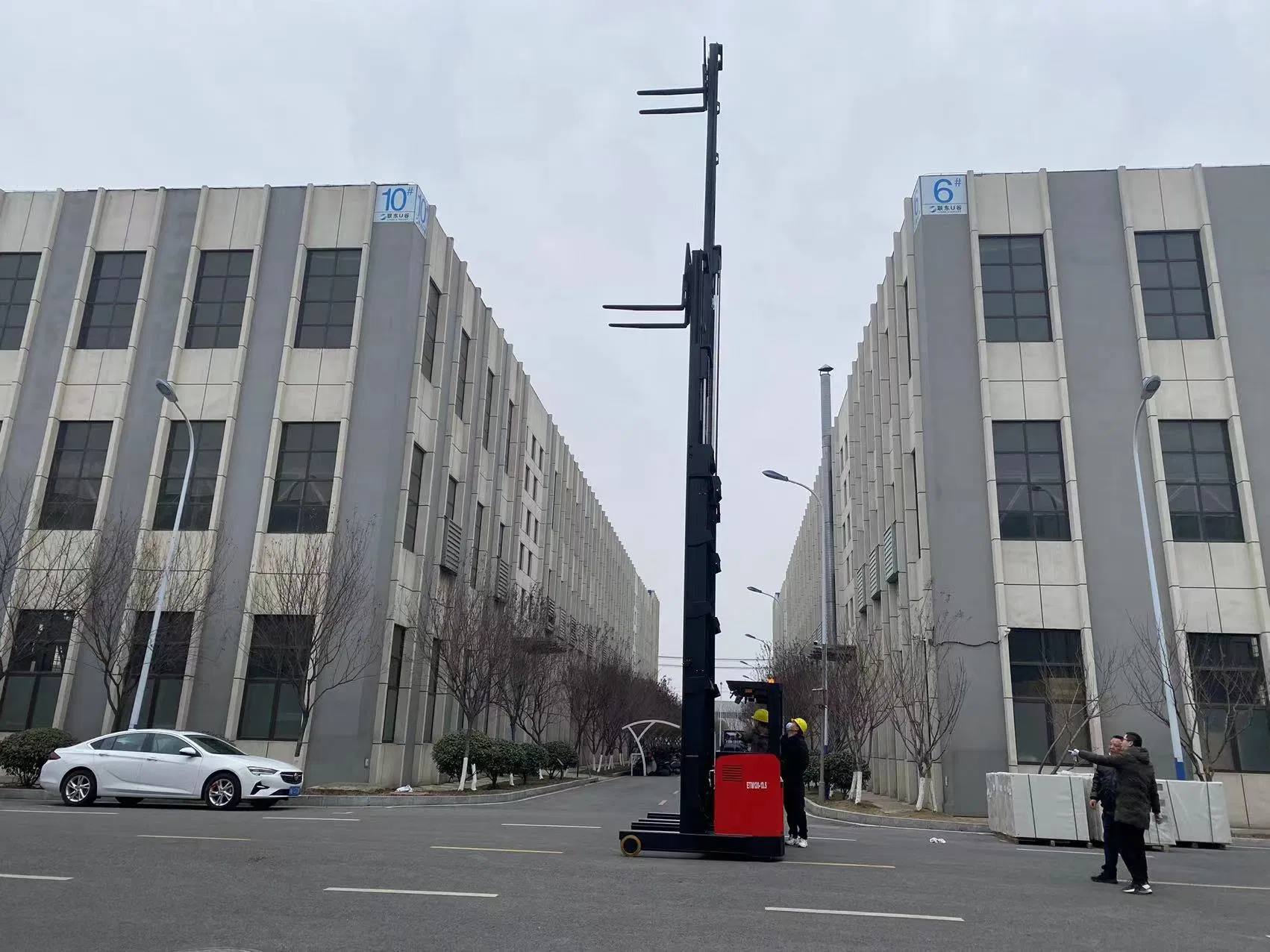

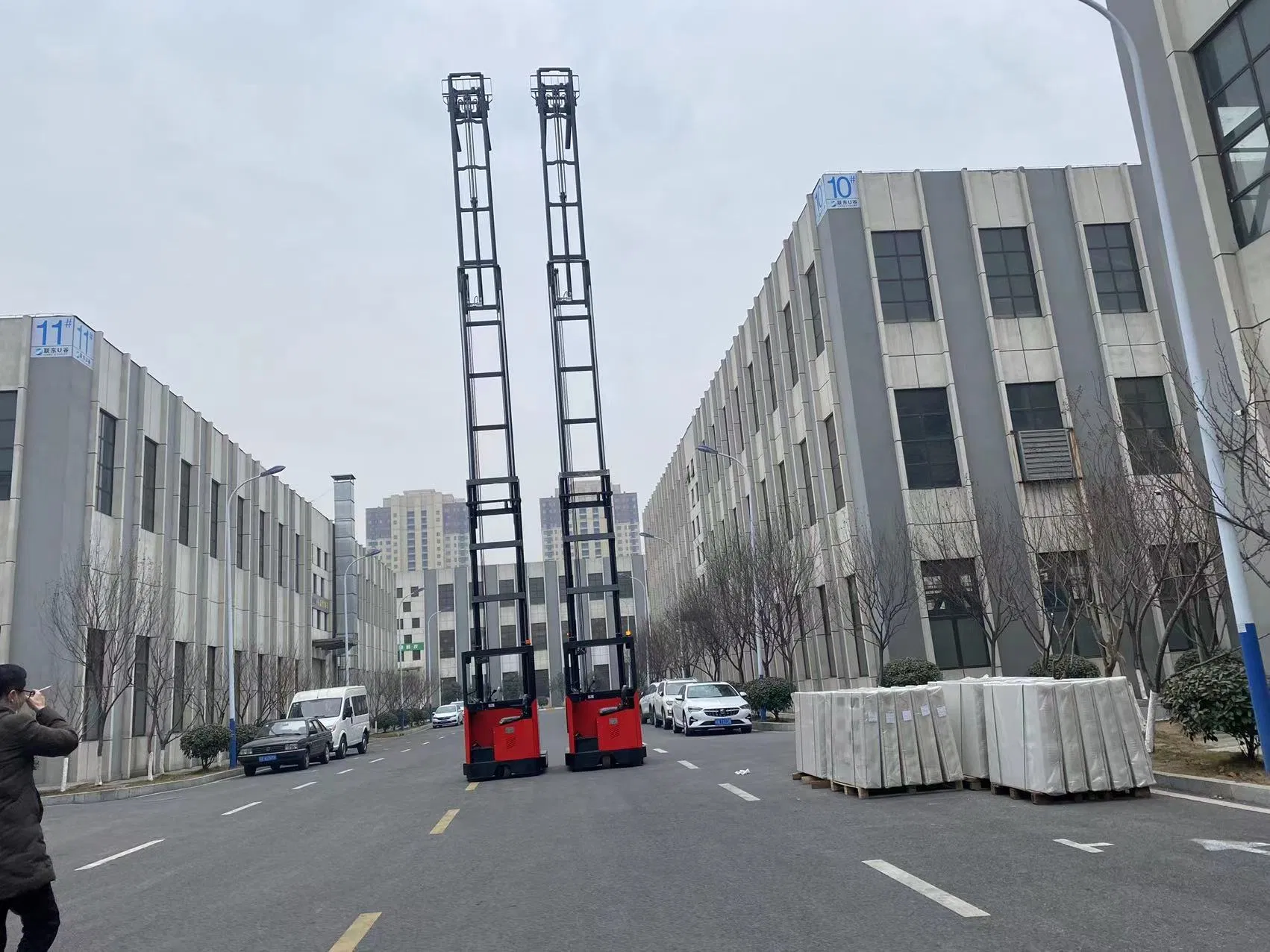

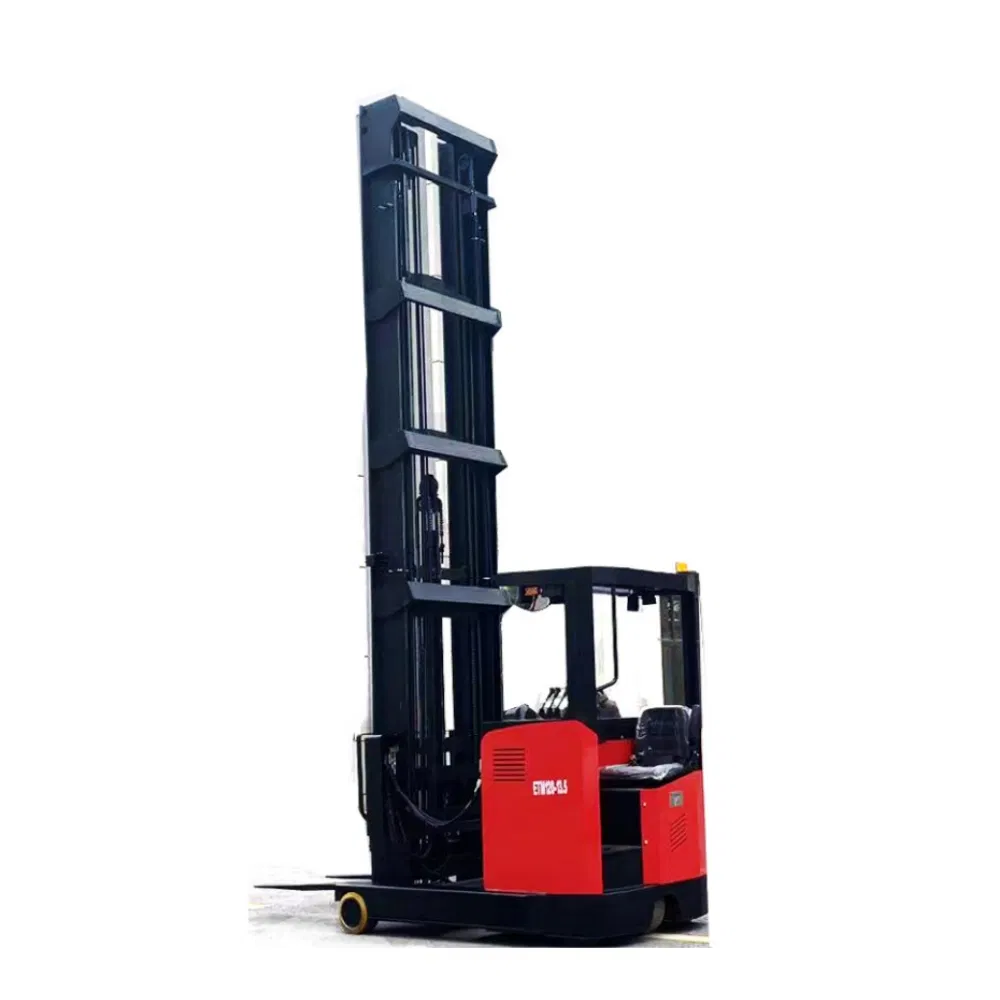

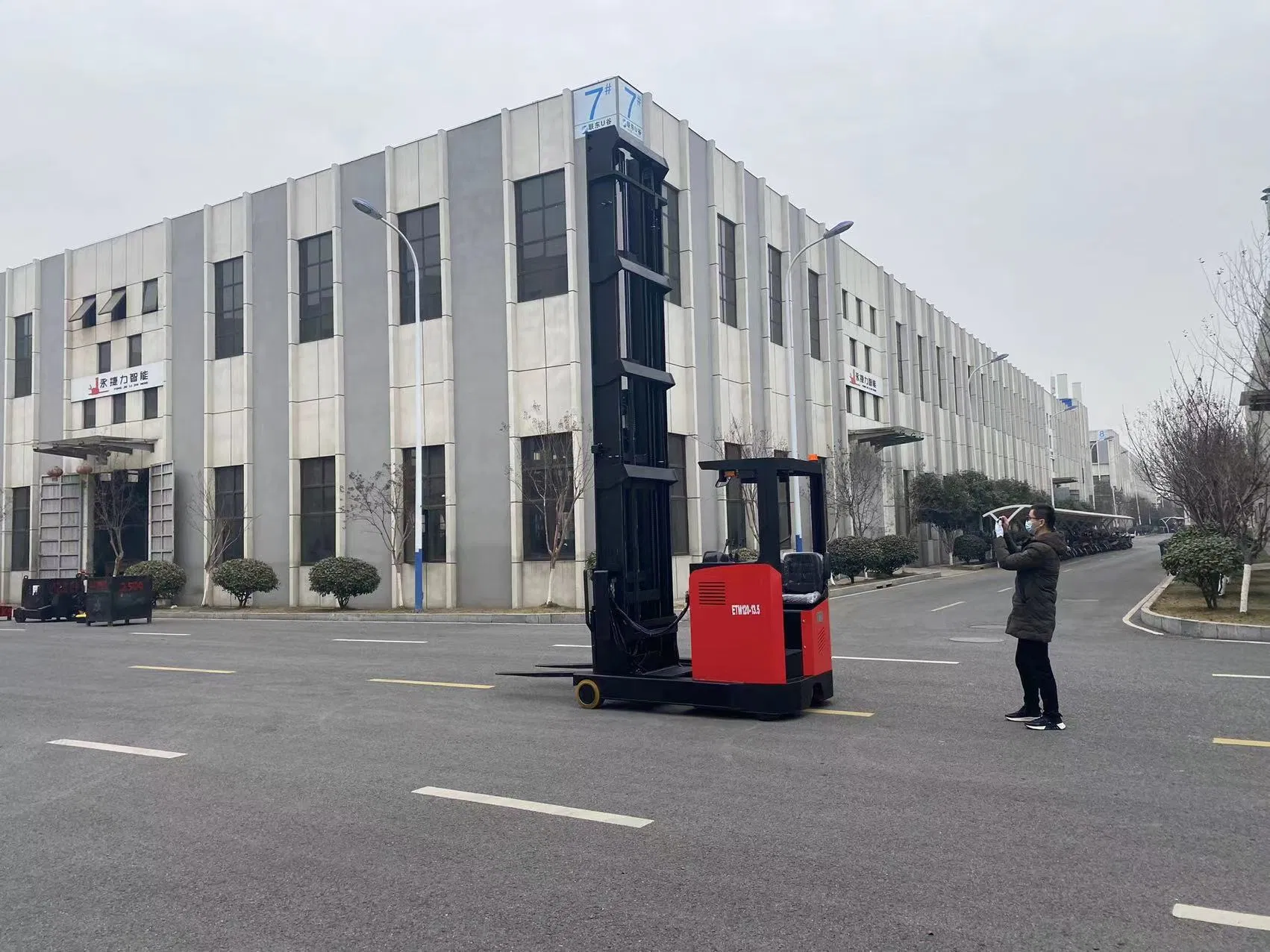

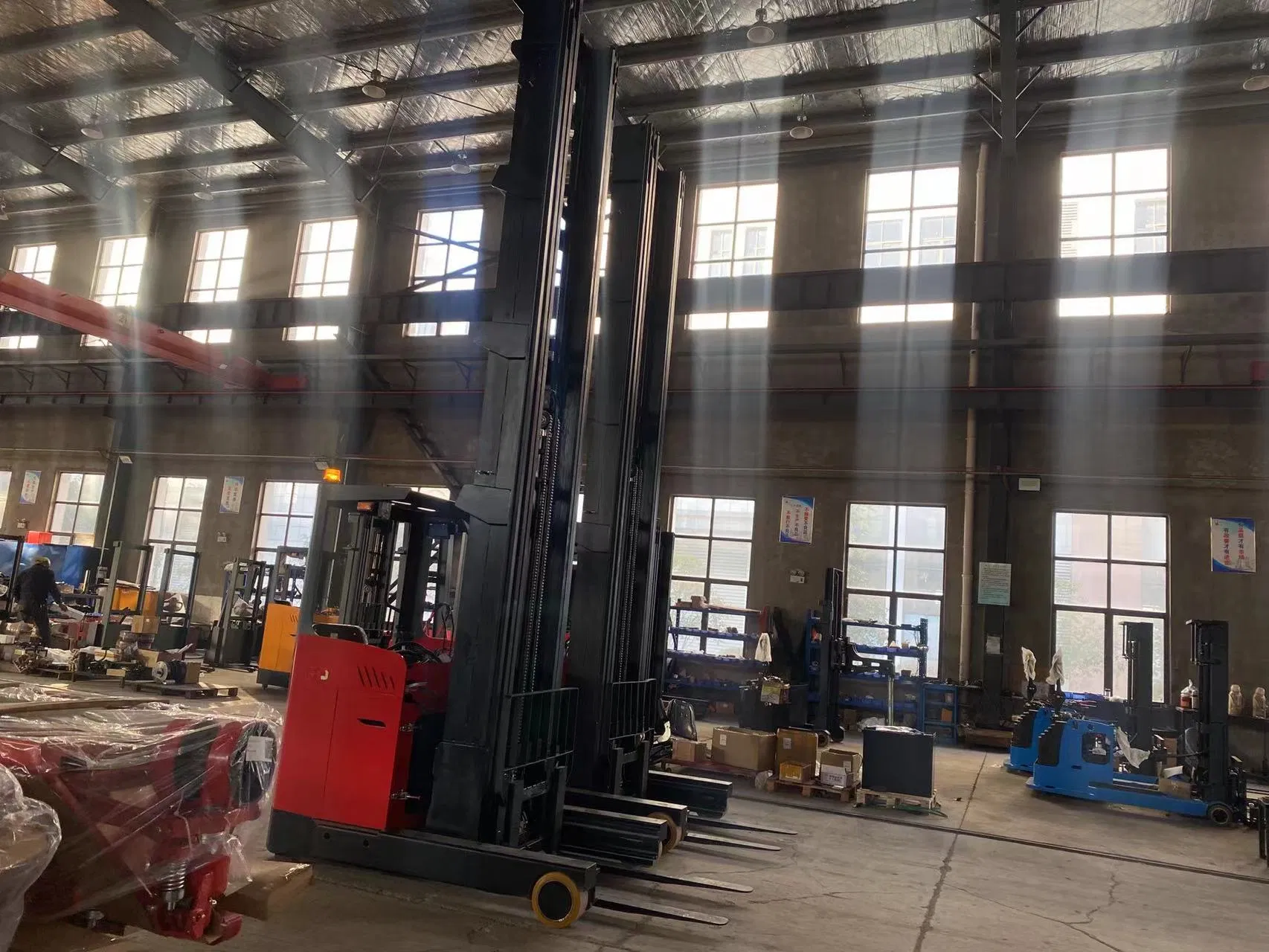

Electric Reach Truck Forklift: Available in 1.5 Ton, 1.8 Ton, 2 Ton, and 2.5 Ton capacities. Lifting heights ranging from 5m to 13.5m. Equipped with EPS (Electric Power Steering) and a seated operation design for maximum warehouse efficiency.
| Specification | Unit | Value (ETV120) |
|---|---|---|

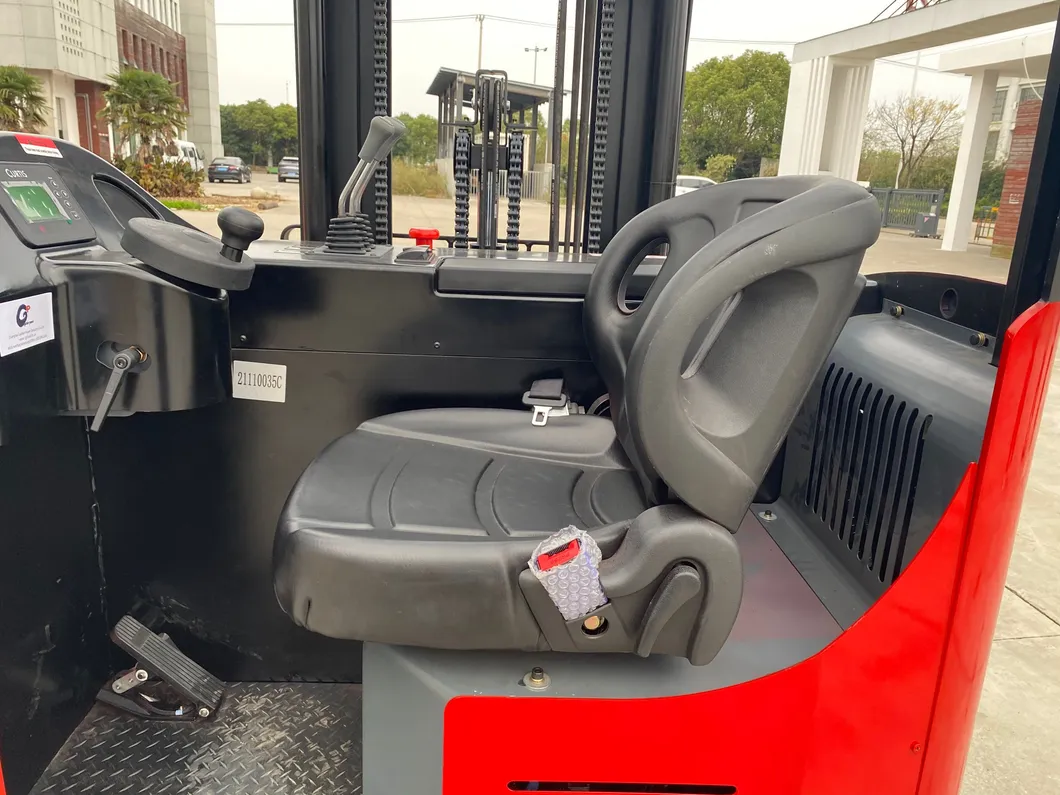

| Operation | - | Seated |
| Load Capacity | Q(kg) | 2000 |
| Lift Height (Max) | h3(mm) | 3000 |
| Load Center | c(mm) | 500 |
| Wheelbase | Y(mm) | 1500 |
| Service Weight | kg | 3300 |
| Tyre Type | - | PU Wheel |
| Tyre Size (Front) | mm | D406*152 |
| Tyre Size (Rear) | mm | Φ340*104 |
| Overall Length | mm | 2440 |
| Overall Width | b1(mm) | 1260 |
| Turning Radius | Wa(mm) | 1820 |
| Travel Speed (Full/No Load) | Km/h | 8 / 8.3 |
| Lifting Speed (Full/No Load) | m/s | 0.19 / 0.2 |
| Drive Motor | kW | 4 |
| Lift Motor | kW | 8.2 |

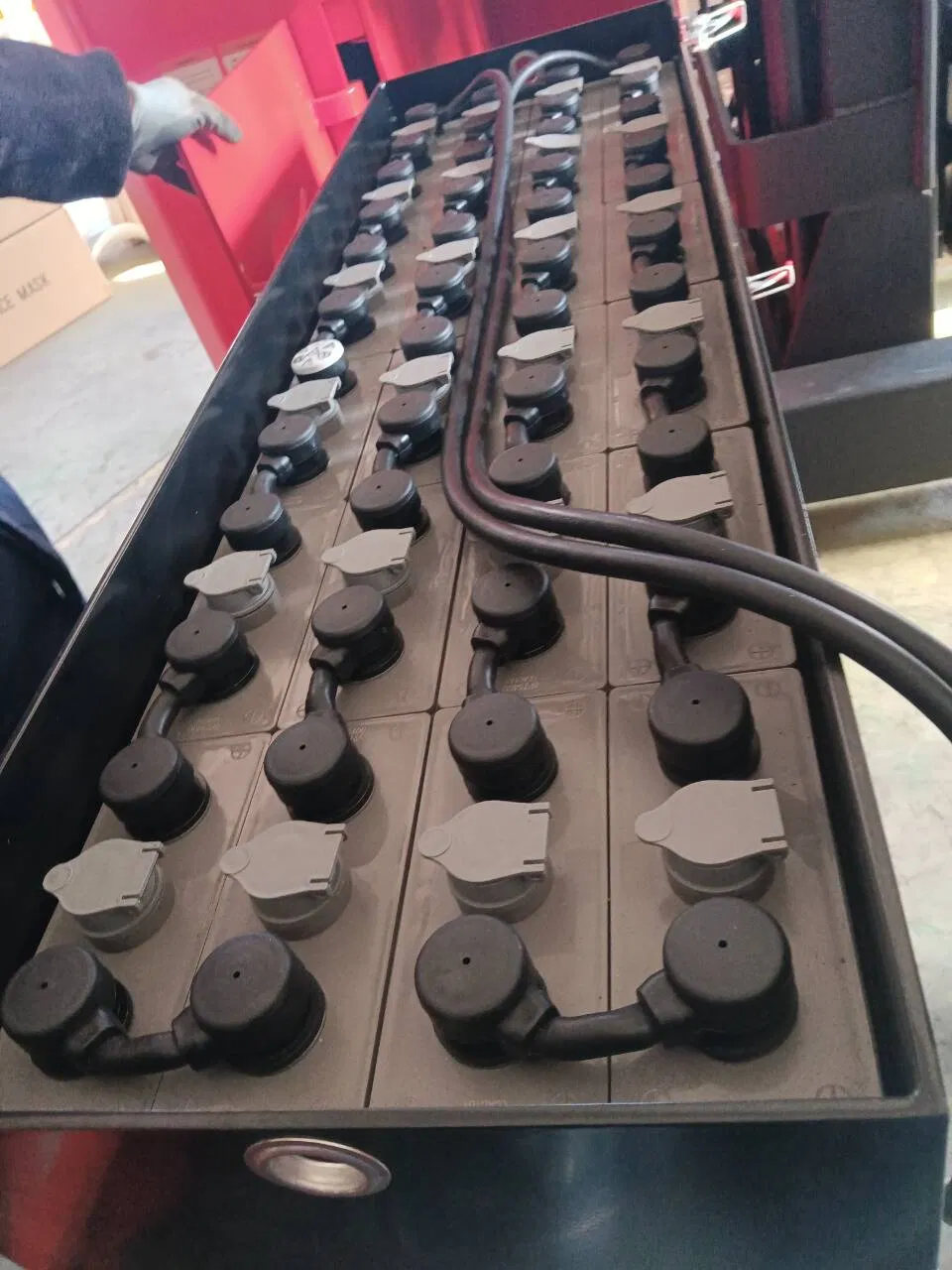

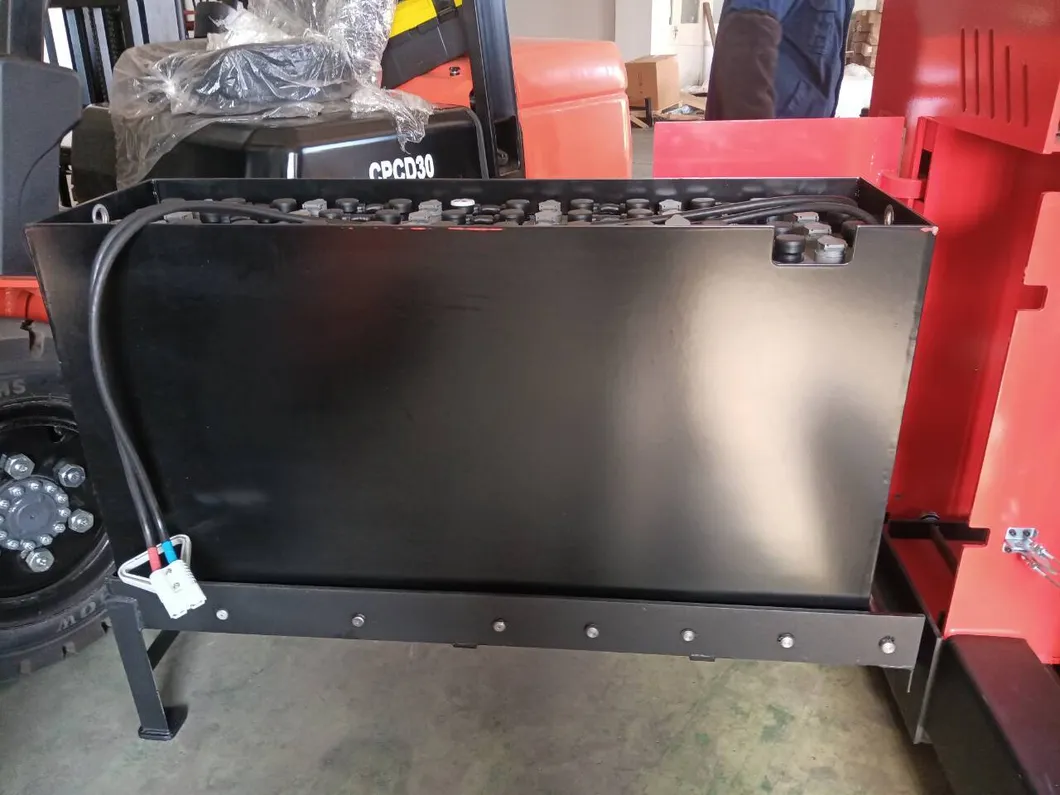

| Battery Voltage/Capacity | V/Ah | 48V/500AH |

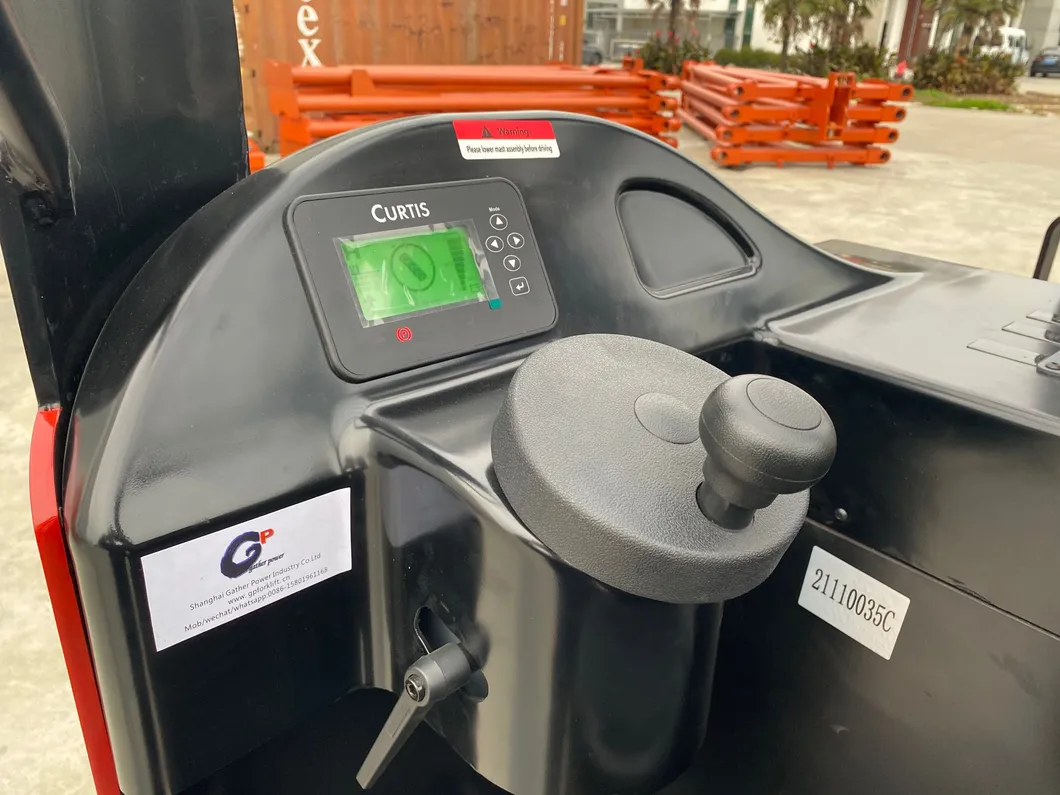

| Control System | - | ZAPI/CURTIS/SME |
